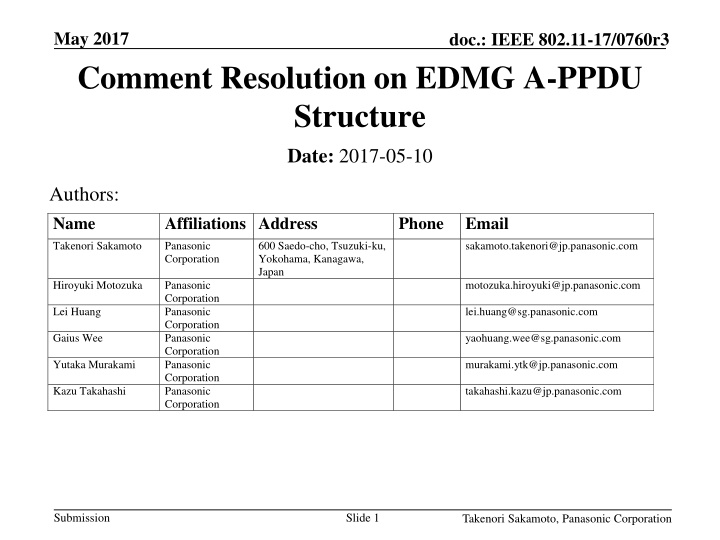

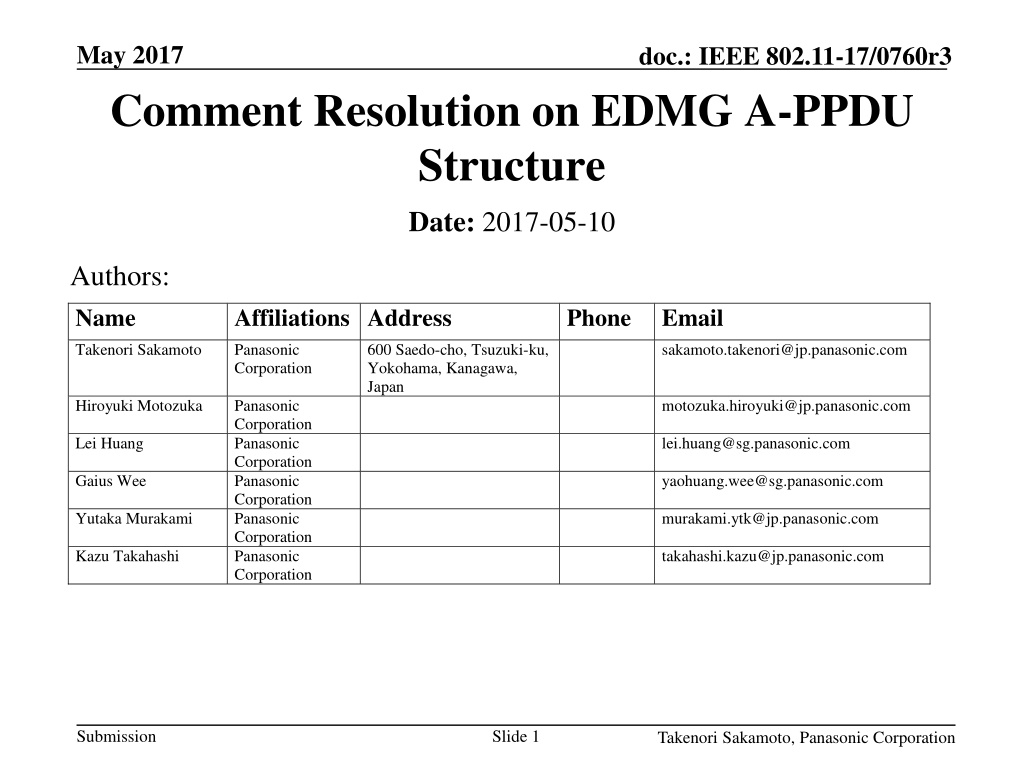

  1. May 2017 Comment Resolution on EDMG A-PPDU Structure Date: 2017-05-10 doc.: IEEE 802.11-17/0760r3 Authors: Name Affiliations Address Phone Email Takenori Sakamoto Panasonic Corporation 600 Saedo-cho, Tsuzuki-ku, Yokohama, Kanagawa, Japan sakamoto.takenori@jp.panasonic.com Hiroyuki Motozuka Panasonic Corporation Panasonic Corporation Panasonic Corporation Panasonic Corporation Panasonic Corporation motozuka.hiroyuki@jp.panasonic.com Lei Huang lei.huang@sg.panasonic.com Gaius Wee yaohuang.wee@sg.panasonic.com Yutaka Murakami murakami.ytk@jp.panasonic.com Kazu Takahashi takahashi.kazu@jp.panasonic.com Submission Slide 1 Takenori Sakamoto, Panasonic Corporation

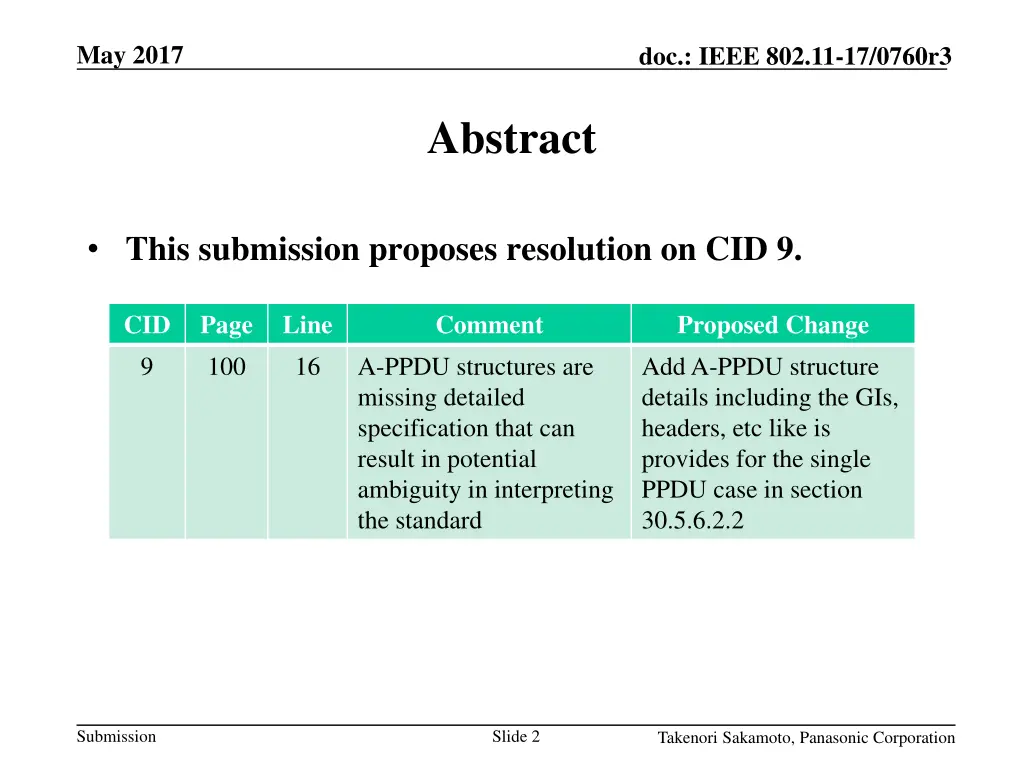

  2. May 2017 doc.: IEEE 802.11-17/0760r3 Abstract This submission proposes resolution on CID 9. CID 9 Page 100 Line 16 Comment Proposed Change Add A-PPDU structure details including the GIs, headers, etc like is provides for the single PPDU case in section 30.5.6.2.2 A-PPDU structures are missing detailed specification that can result in potential ambiguity in interpreting the standard Submission Slide 2 Takenori Sakamoto, Panasonic Corporation

  3. May 2017 doc.: IEEE 802.11-17/0760r3 Problem #1 Since only normal GI is specified in 11ad [1], the L-Header within the Nth PPDU within the DMG A-PPDU and the final data symbol block within the (N-1)th PPDU within the DNG A-PPDU can share the GI. On the other hand, 11ay supports short/normal/long GI [2]. The EDMG-Header-A shall be prepended by the normal GI. The data symbol blocks can be prepended by the short/normal/long GI. When using short/long GI, the EDMG-Header-A within the Nth PPDU and the final data symbol block within the (N-1)th PPDU can not share the GI because of no cyclicity as shown below. PPDU #N-1 PPDU #N DATA DATA DATA Header-A1 Header-A2 DATA GIei32*NCB GIei64*NCB GIei64*NCB DATA EDMG-Header-A1 64* NCB 64* NCB 32* NCB Short GI Short GI 480*NCB 448*NCB Not cyclic Not cyclic GIei64*NCB GIei64*NCB GIei64*NCB DATA EDMG-Header-A1 64* NCB 64* NCB 64* NCB Normal GI Normal GI 448*NCB 448*NCB Cyclic Cyclic GIei128*NCB GIei64*NCB GIei64*NCB DATA EDMG-Header-A1 64* NCB NCB 64* 64* NCB Long GI Long GI 128*NCB 384*NCB 448*NCB Not cyclic Not cyclic Submission Slide 3 Takenori Sakamoto, Panasonic Corporation

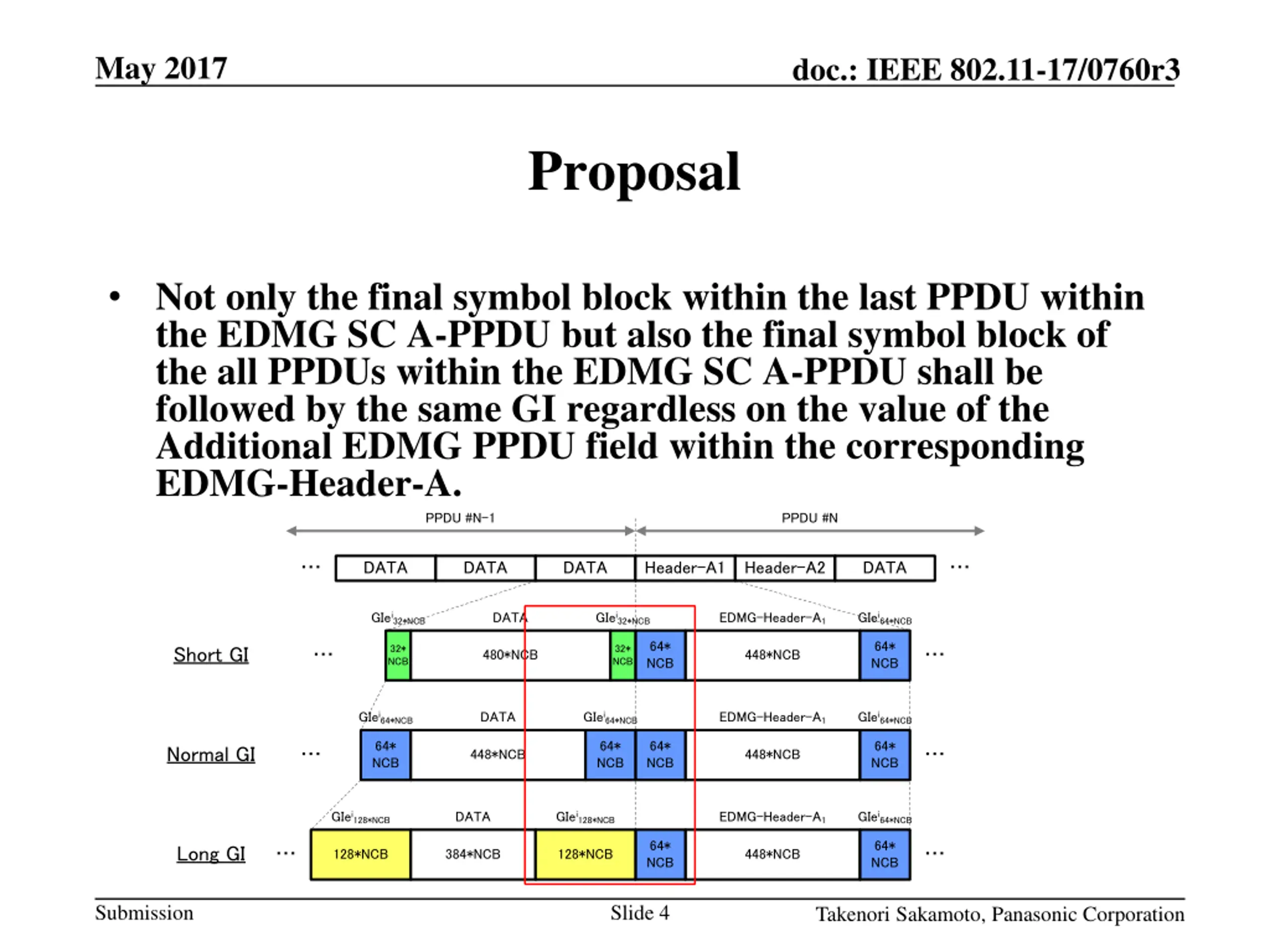

  4. May 2017 doc.: IEEE 802.11-17/0760r3 Proposal Not only the final symbol block within the last PPDU within the EDMG SC A-PPDU but also the final symbol block of the all PPDUs within the EDMG SC A-PPDU shall be followed by the same GI regardless on the value of the Additional EDMG PPDU field within the corresponding EDMG-Header-A. PPDU #N-1 PPDU #N DATA DATA DATA Header-A1 Header-A2 DATA GIei32*NCB GIei32*NCB GIei64*NCB DATA EDMG-Header-A1 64* NCB 64* NCB 32* NCB 32* NCB Short GI Short GI 480*NCB 448*NCB GIei64*NCB GIei64*NCB GIei64*NCB DATA EDMG-Header-A1 64* NCB 64* NCB 64* NCB 64* NCB Normal GI Normal GI 448*NCB 448*NCB GIei128*NCB GIei128*NCB GIei64*NCB DATA EDMG-Header-A1 64* NCB 64* NCB Long GI Long GI 128*NCB 384*NCB 128*NCB 448*NCB Submission Slide 4 Takenori Sakamoto, Panasonic Corporation

  5. May 2017 doc.: IEEE 802.11-17/0760r3 Problem #2 The PPDU structure for the jth PPDU (1 j N) within the EDMG SC A-PPDU is different from any other type of SU PPDU structures specified in [2]. The non-EDMG portion, the EDMG-STF and the EDMG-CEF shall not be transmitted in the jth PPDU (1 j N). We need to specify new PPDU structure for the jth PPDU (1 j N) within the EDMG SC A-PPDU. Submission Slide 5 Takenori Sakamoto, Panasonic Corporation

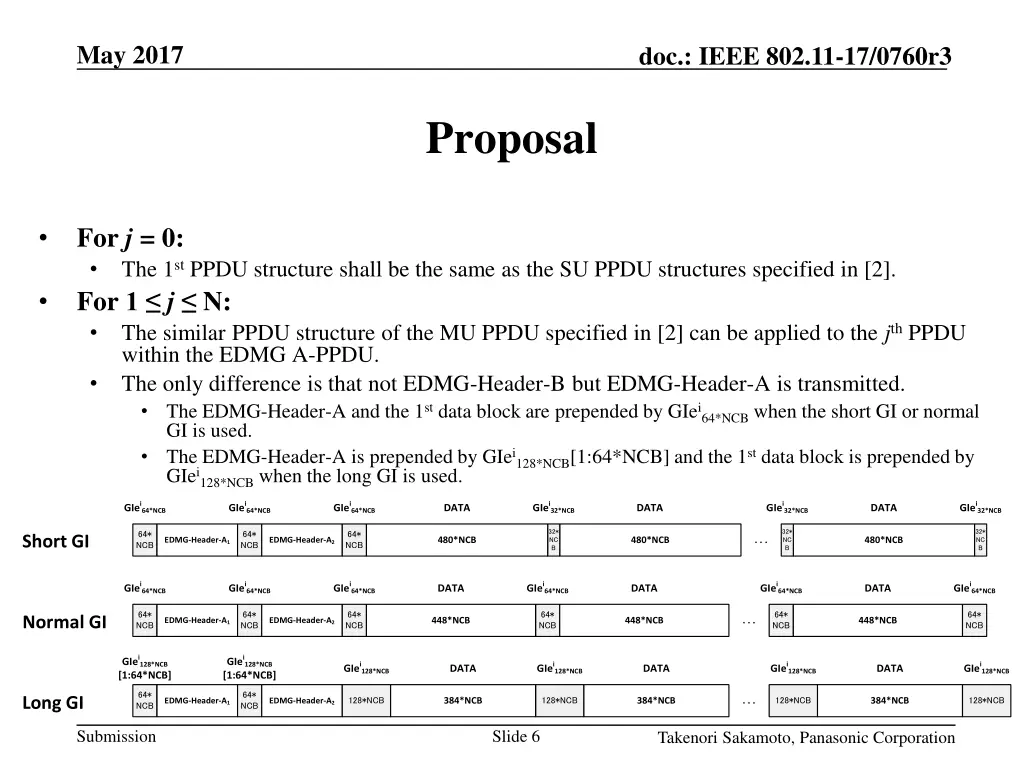

  6. May 2017 doc.: IEEE 802.11-17/0760r3 Proposal For j = 0: The 1st PPDU structure shall be the same as the SU PPDU structures specified in [2]. For 1 j N: The similar PPDU structure of the MU PPDU specified in [2] can be applied to the jth PPDU within the EDMG A-PPDU. The only difference is that not EDMG-Header-B but EDMG-Header-A is transmitted. The EDMG-Header-A and the 1st data block are prepended by GIei64*NCB when the short GI or normal GI is used. The EDMG-Header-A is prepended by GIei128*NCB[1:64*NCB] and the 1st data block is prepended by GIei128*NCB when the long GI is used. GIei GIei GIei GIei GIei GIei DATA DATA DATA 64*NCB 64*NCB 64*NCB 32*NCB 32*NCB 32*NCB 32 32* * NC NC B B 32 32* * NC NC B B 32 32* * NC NC B B 64 64* * NCB NCB 64 64* * NCB NCB 64 64* * NCB NCB Short GI 480*NCB 480*NCB . . . 480*NCB EDMG-Header-A1 EDMG-Header-A2 GIei GIei GIei GIei GIei GIei DATA DATA DATA 64*NCB 64*NCB 64*NCB 64*NCB 64*NCB 64*NCB 64 64* * NCB NCB 64 64* * NCB NCB 64 64* * NCB NCB 64 64* * NCB NCB 64 64* * NCB NCB 64 64* * NCB NCB Normal GI 448*NCB 448*NCB . . . 448*NCB EDMG-Header-A1 EDMG-Header-A2 GIei [1:64*NCB] GIei [1:64*NCB] GIei GIei GIei GIei 128*NCB 128*NCB DATA DATA DATA 128*NCB 128*NCB 128*NCB 128*NCB 64 64* * NCB NCB 64 64* * NCB NCB Long GI 128 128* *NCB NCB 128 128* *NCB NCB 128 128* *NCB NCB 128 128* *NCB NCB 384*NCB 384*NCB . . . 384*NCB EDMG-Header-A1 EDMG-Header-A2 Submission Slide 6 Takenori Sakamoto, Panasonic Corporation

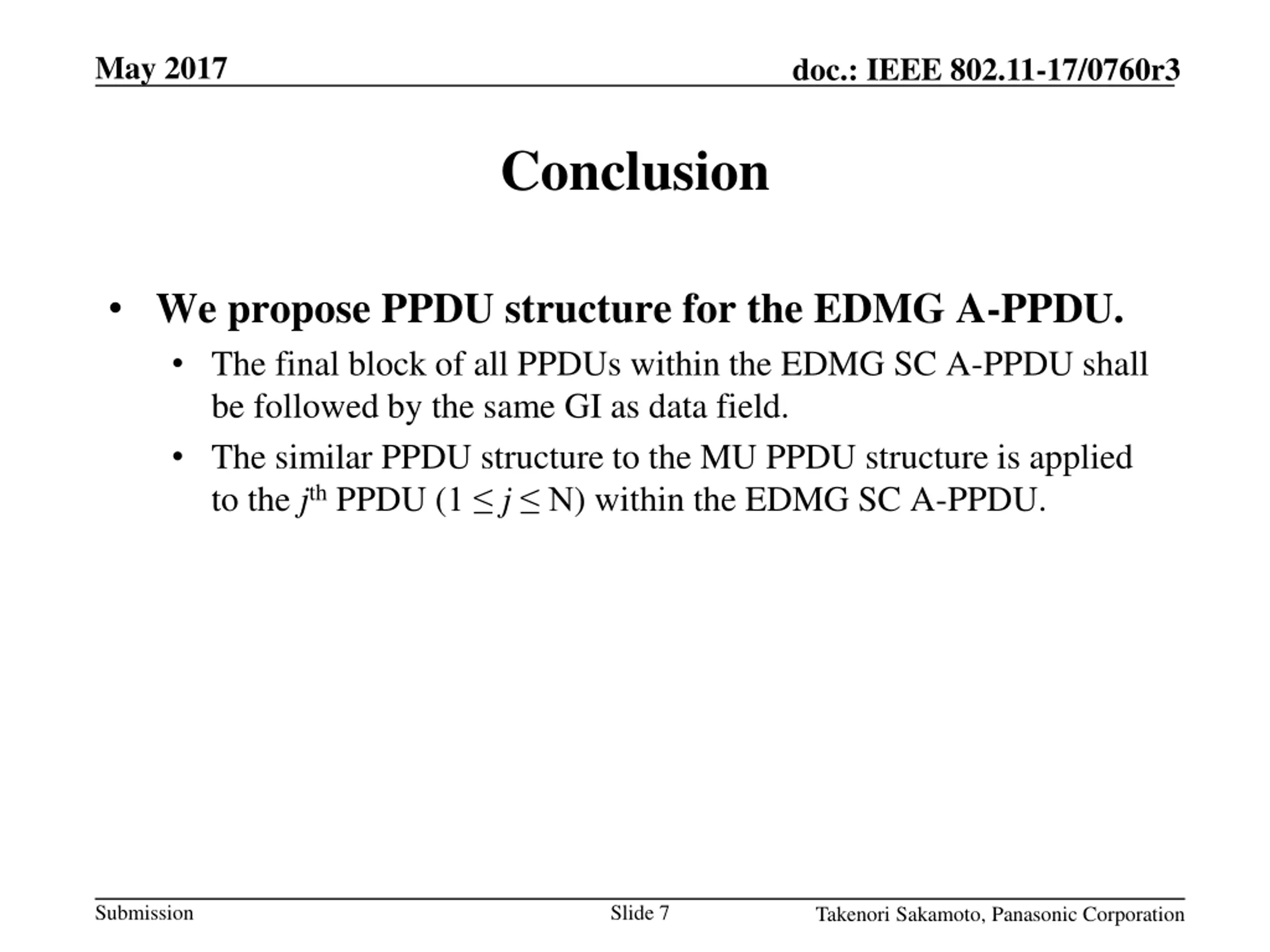

  7. May 2017 doc.: IEEE 802.11-17/0760r3 Conclusion We propose PPDU structure for the EDMG A-PPDU. The final block of all PPDUs within the EDMG SC A-PPDU shall be followed by the same GI as data field. The similar PPDU structure to the MU PPDU structure is applied to the jth PPDU (1 j N) within the EDMG SC A-PPDU. Submission Slide 7 Takenori Sakamoto, Panasonic Corporation

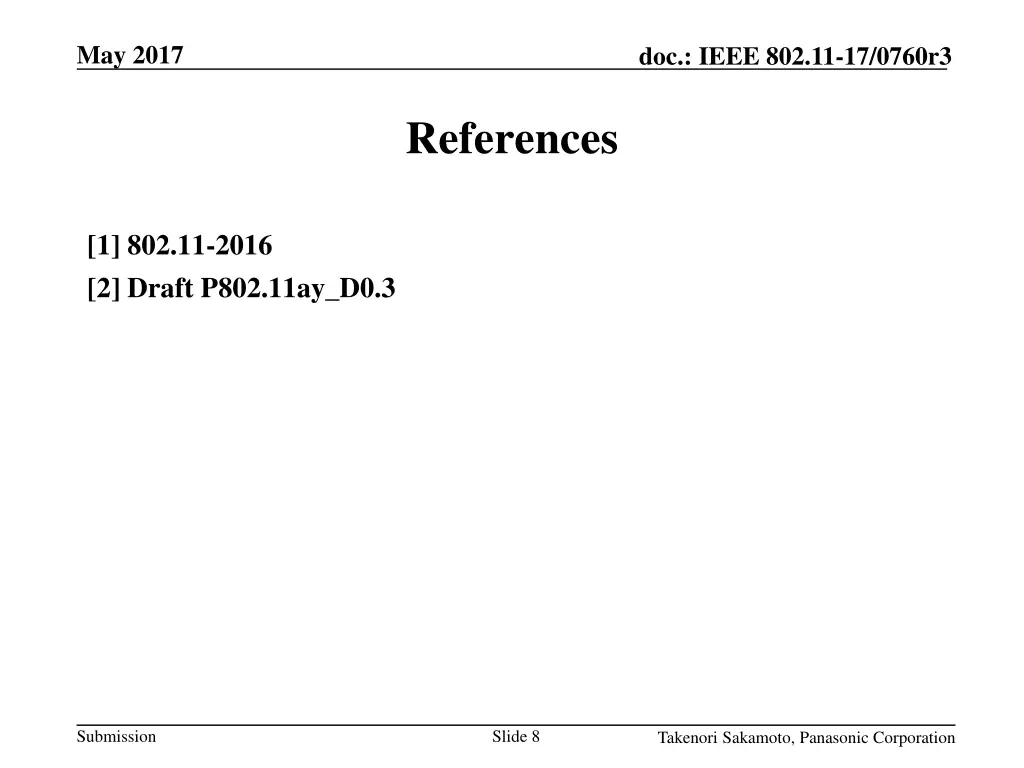

  8. May 2017 doc.: IEEE 802.11-17/0760r3 References [1] 802.11-2016 [2] Draft P802.11ay_D0.3 Submission Slide 8 Takenori Sakamoto, Panasonic Corporation
