Modular Division and RSA Algorithms Explained

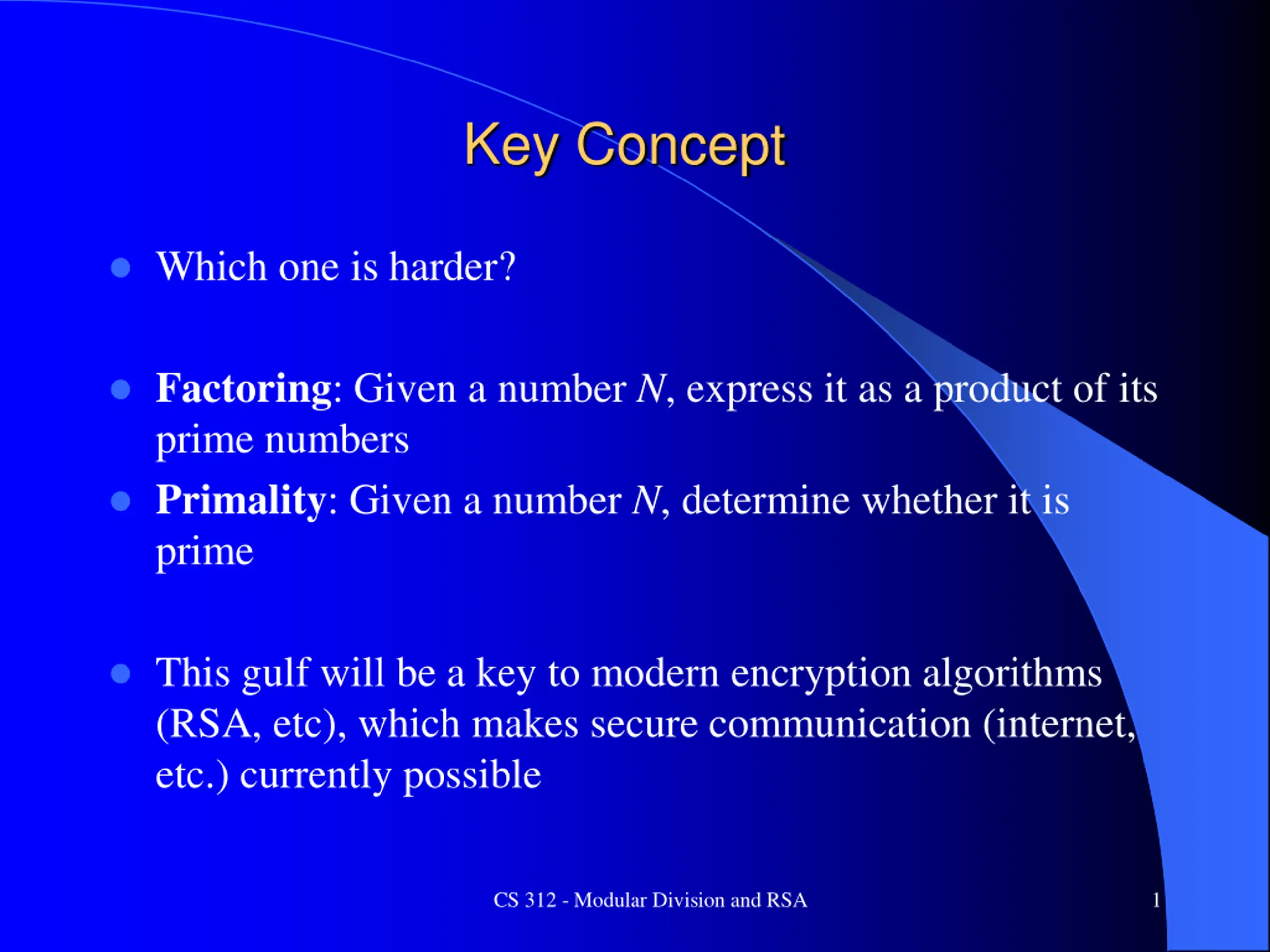

Key Concept Which one is harder? Factoring: Given a number N, express it as a product of its prime numbers Primality: Given a number N, determine whether it is prime This gulf will be a key to modern encryption algorithms (RSA, etc), which makes secure communication (internet, etc.) currently possible CS 312 - Modular Division and RSA 1

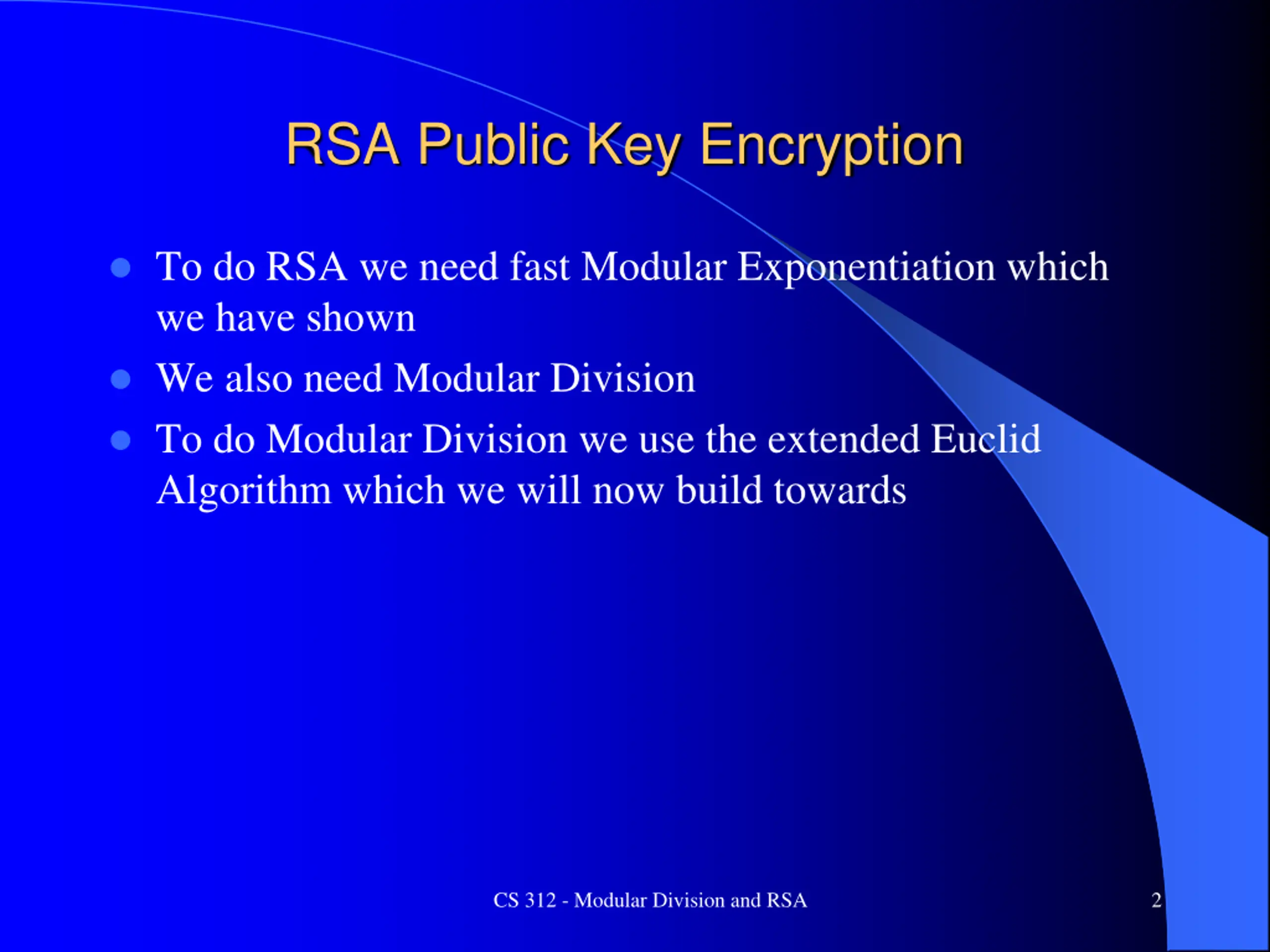

RSA Public Key Encryption To do RSA we need fast Modular Exponentiation which we have shown We also need Modular Division To do Modular Division we use the extended Euclid Algorithm which we will now build towards CS 312 - Modular Division and RSA 2

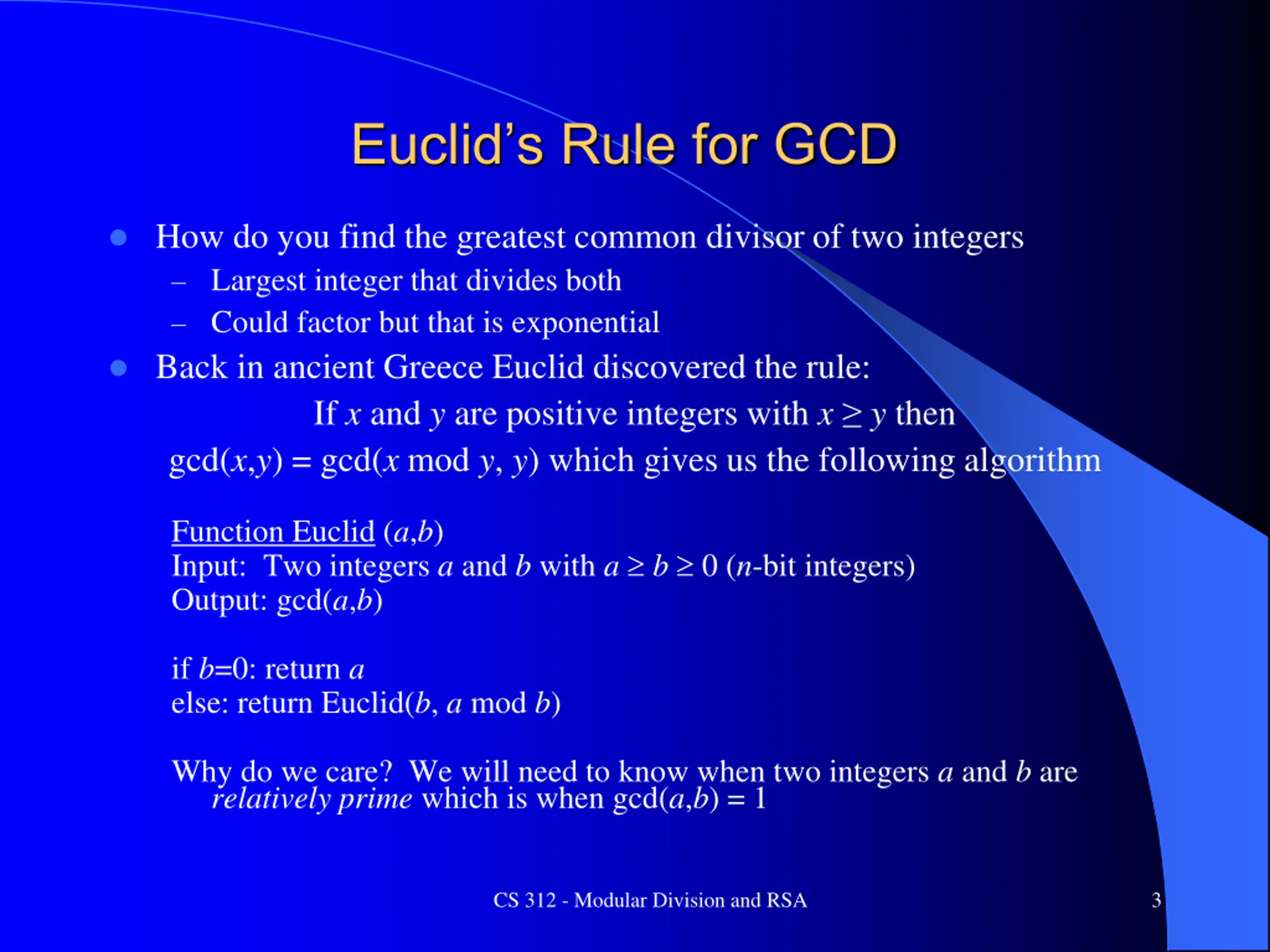

Euclids Rule for GCD How do you find the greatest common divisor of two integers Largest integer that divides both Could factor but that is exponential Back in ancient Greece Euclid discovered the rule: If x and y are positive integers with x y then gcd(x,y) = gcd(x mod y, y) which gives us the following algorithm Function Euclid (a,b) Input: Two integers a and b with a b 0 (n-bit integers) Output: gcd(a,b) if b=0: return a else: return Euclid(b, a mod b) Why do we care? We will need to know when two integers a and b are relatively prime which is when gcd(a,b) = 1 CS 312 - Modular Division and RSA 3

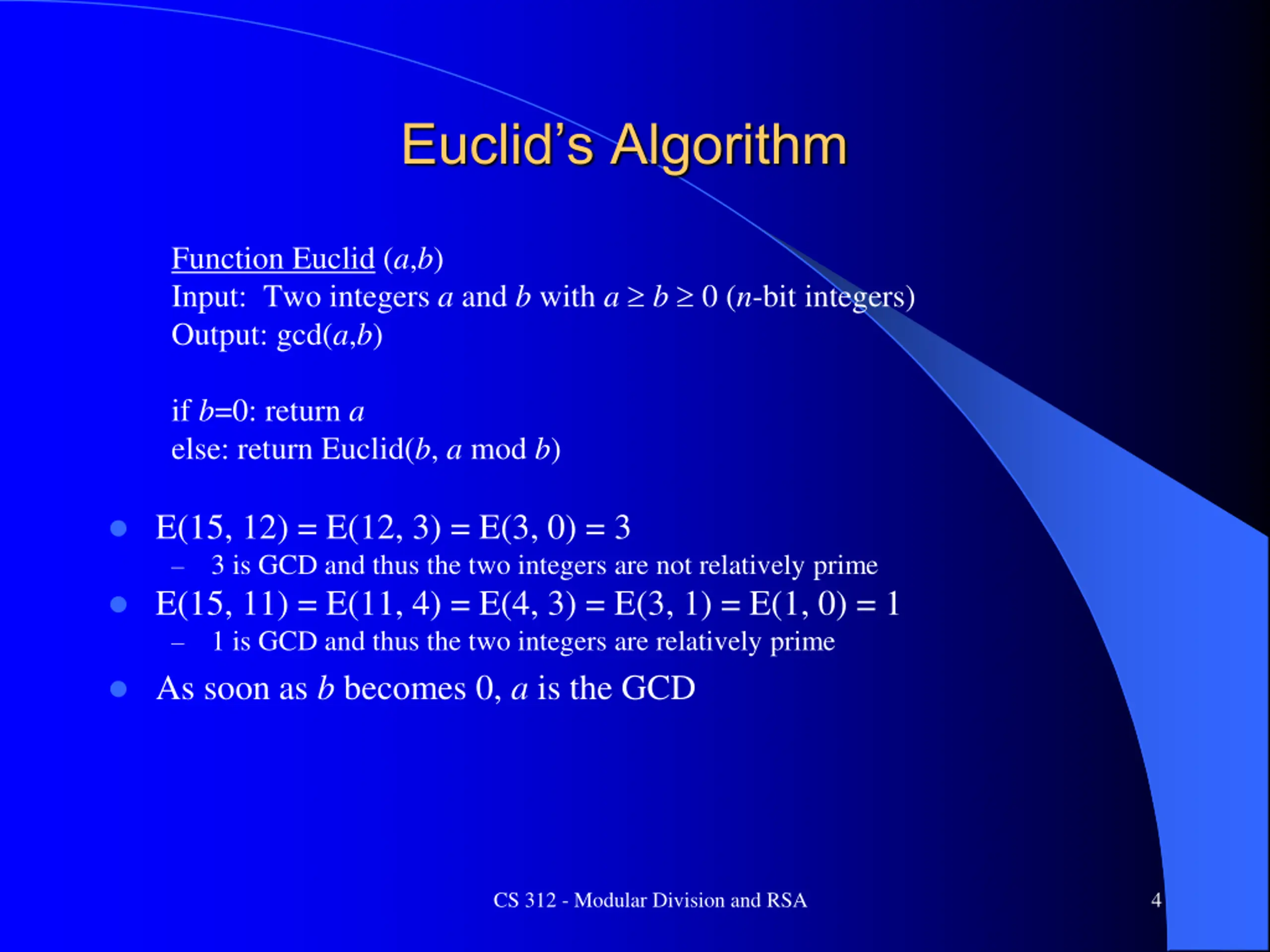

Euclids Algorithm Function Euclid (a,b) Input: Two integers a and b with a b 0 (n-bit integers) Output: gcd(a,b) if b=0: return a else: return Euclid(b, a mod b) E(15, 12) = E(12, 3) = E(3, 0) = 3 3 is GCD and thus the two integers are not relatively prime E(15, 11) = E(11, 4) = E(4, 3) = E(3, 1) = E(1, 0) = 1 1 is GCD and thus the two integers are relatively prime As soon as b becomes 0, a is the GCD CS 312 - Modular Division and RSA 4

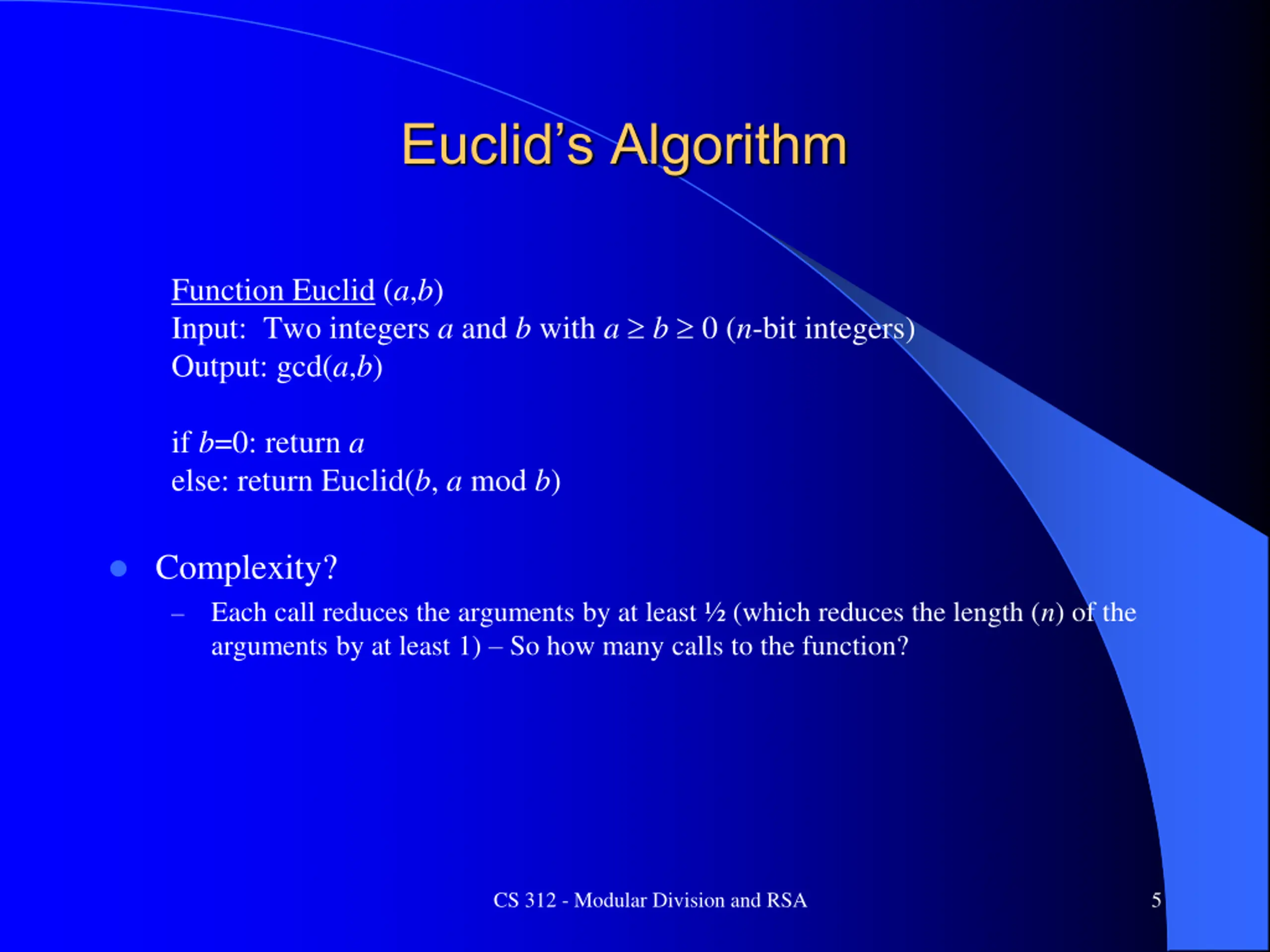

Euclids Algorithm Function Euclid (a,b) Input: Two integers a and b with a b 0 (n-bit integers) Output: gcd(a,b) if b=0: return a else: return Euclid(b, a mod b) Complexity? Each call reduces the arguments by at least (which reduces the length (n) of the arguments by at least 1) So how many calls to the function? CS 312 - Modular Division and RSA 5

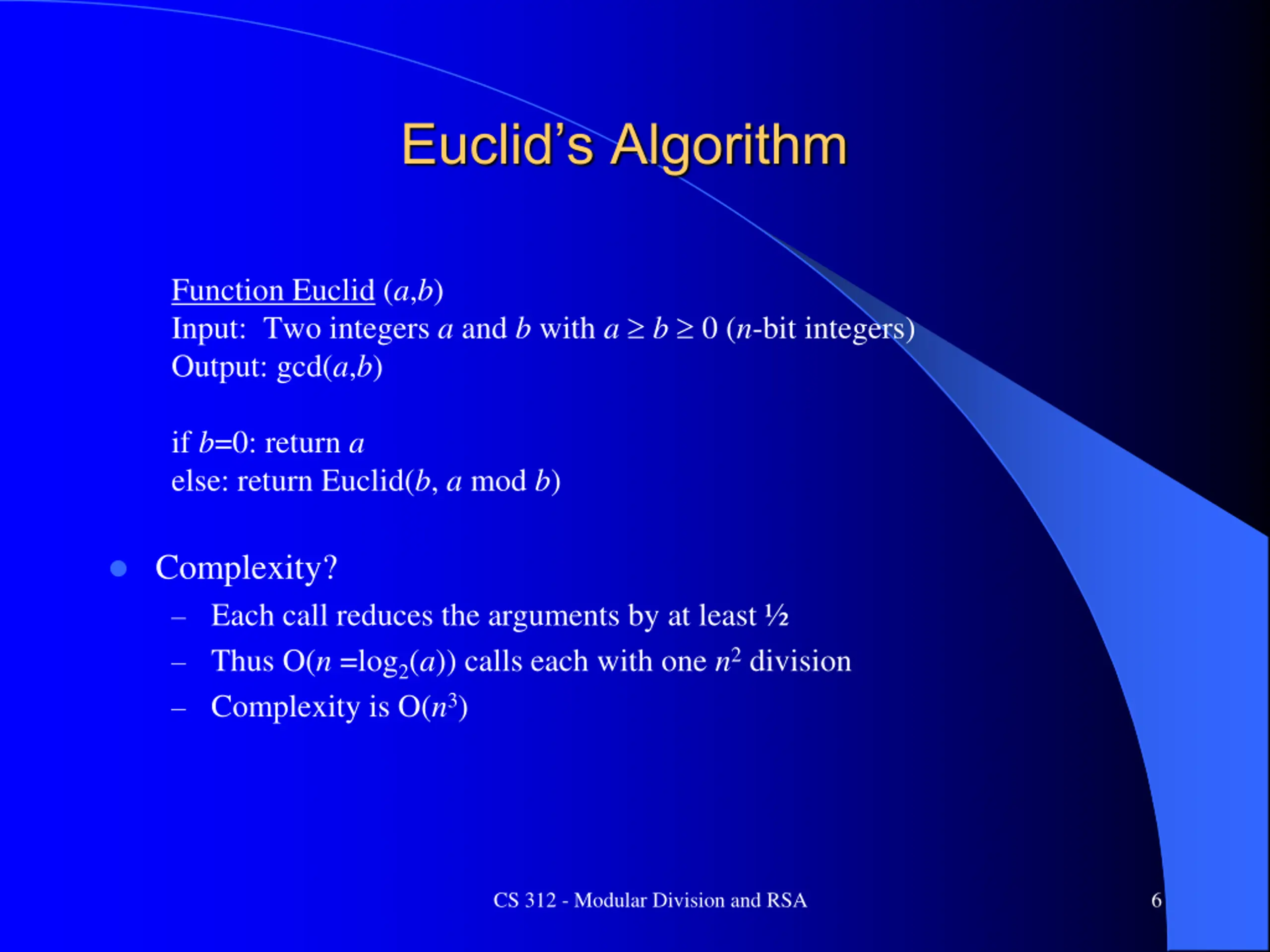

Euclids Algorithm Function Euclid (a,b) Input: Two integers a and b with a b 0 (n-bit integers) Output: gcd(a,b) if b=0: return a else: return Euclid(b, a mod b) Complexity? Each call reduces the arguments by at least Thus O(n =log2(a)) calls each with one n2 division Complexity is O(n3) CS 312 - Modular Division and RSA 6

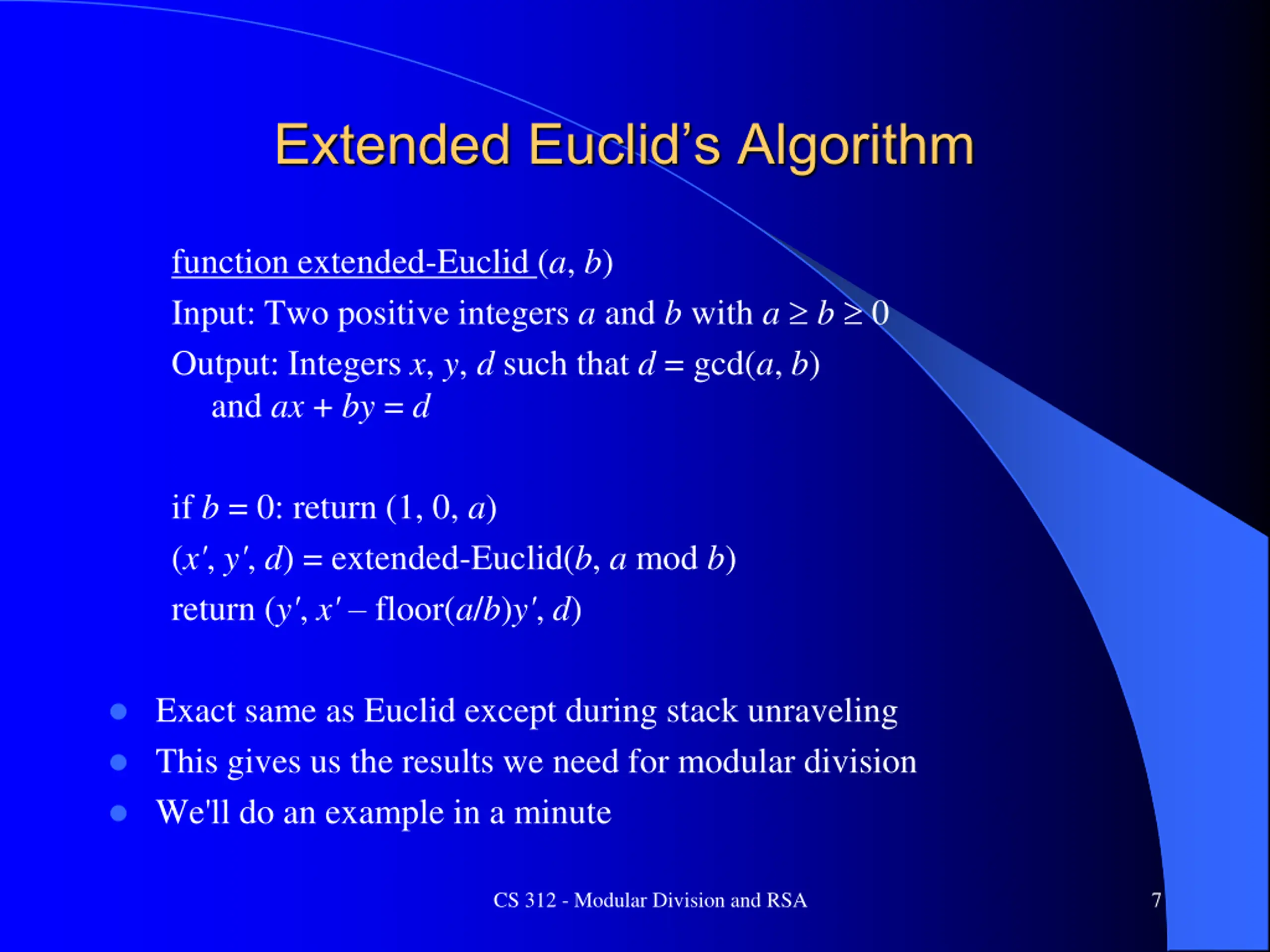

Extended Euclids Algorithm function extended-Euclid (a, b) Input: Two positive integers a and b with a b 0 Output: Integers x, y, d such that d = gcd(a, b) and ax + by = d if b = 0: return (1, 0, a) (x', y', d) = extended-Euclid(b, a mod b) return (y', x' floor(a/b)y', d) Exact same as Euclid except during stack unraveling This gives us the results we need for modular division We'll do an example in a minute CS 312 - Modular Division and RSA 7

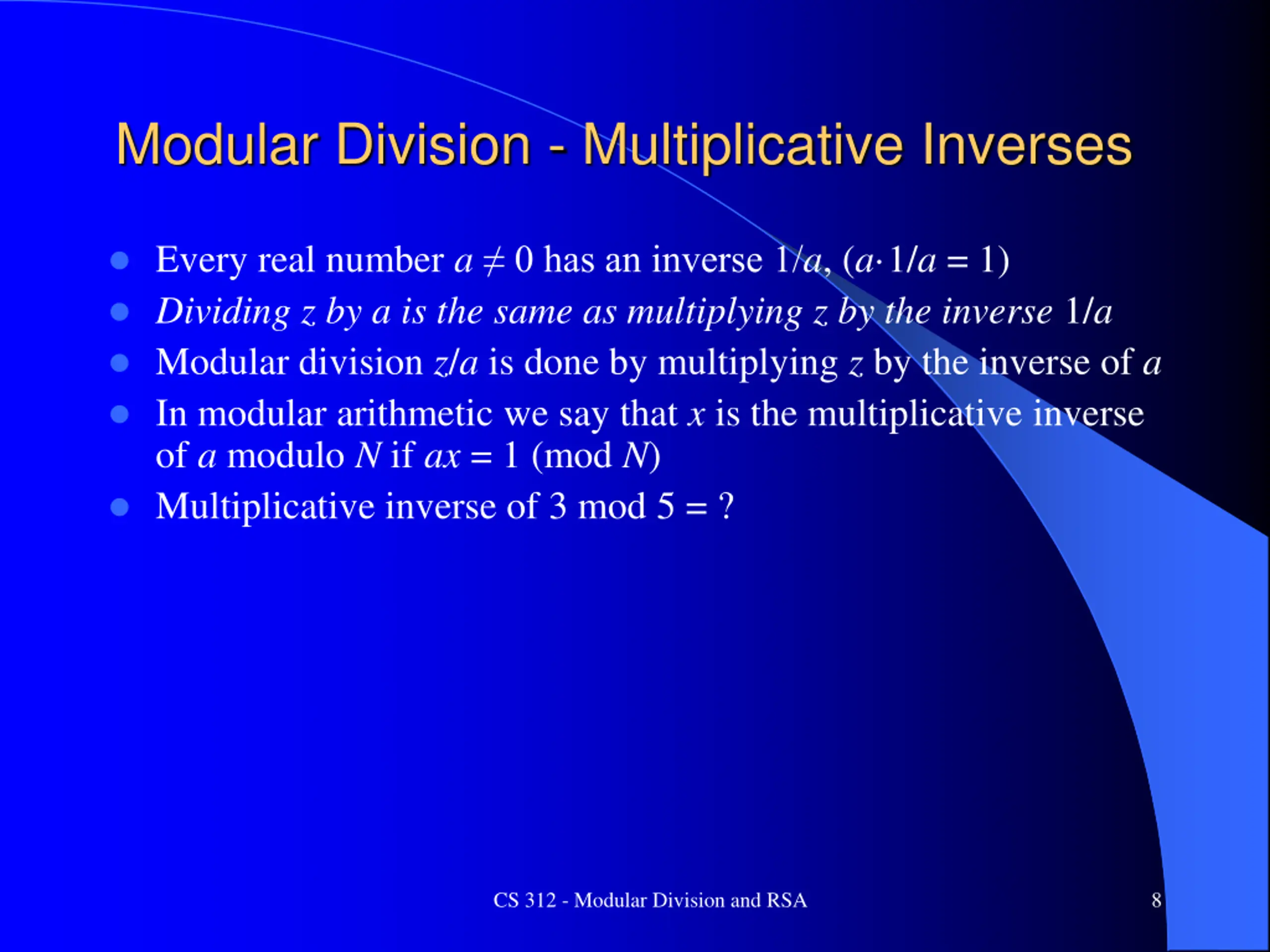

Modular Division - Multiplicative Inverses Every real number a 0 has an inverse 1/a, (a 1/a = 1) Dividing z by a is the same as multiplying z by the inverse 1/a Modular division z/a is done by multiplying z by the inverse of a In modular arithmetic we say that x is the multiplicative inverse of a modulo N if ax = 1 (mod N) Multiplicative inverse of 3 mod 5 = ? CS 312 - Modular Division and RSA 8

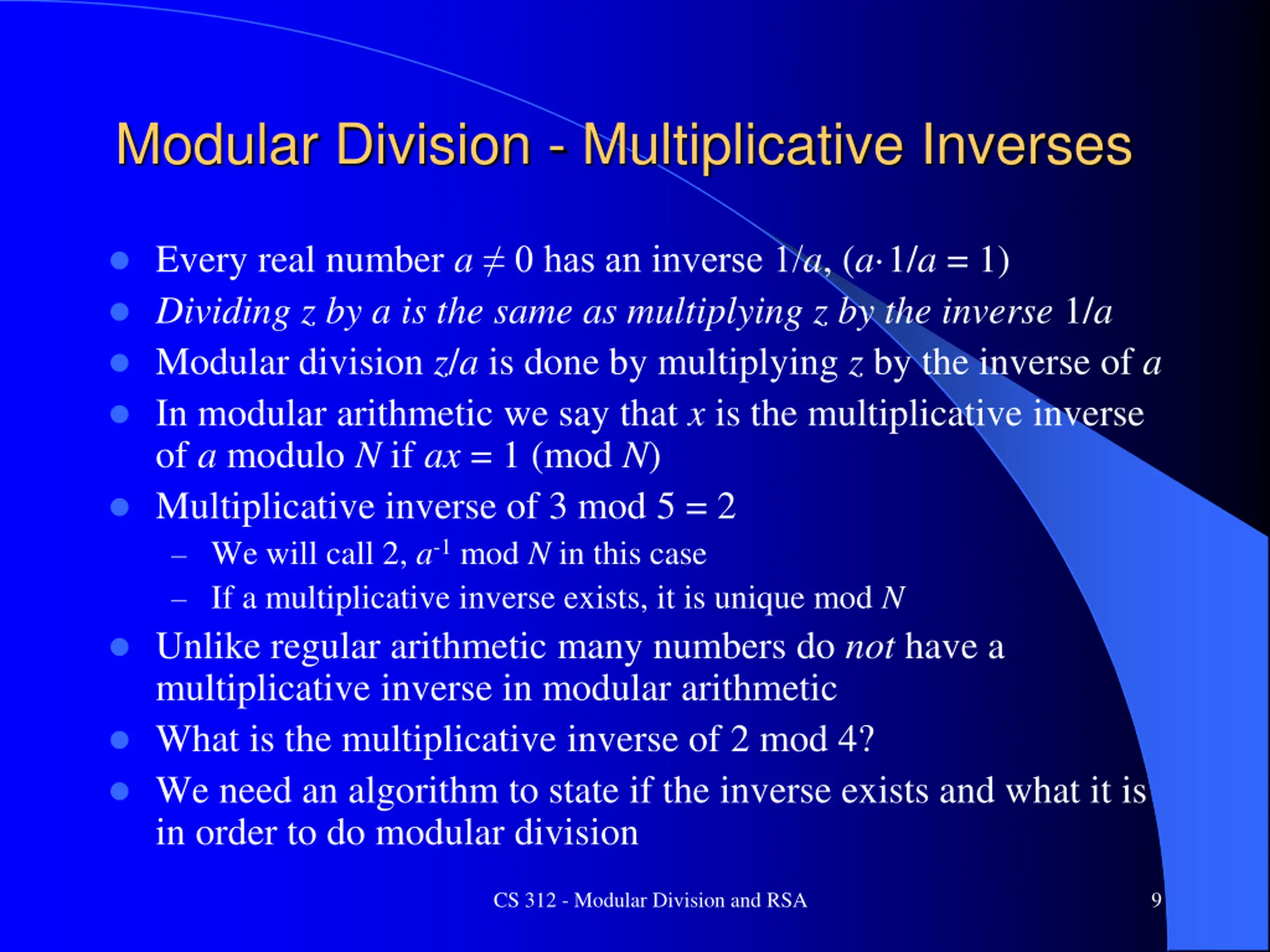

Modular Division - Multiplicative Inverses Every real number a 0 has an inverse 1/a, (a 1/a = 1) Dividing z by a is the same as multiplying z by the inverse 1/a Modular division z/a is done by multiplying z by the inverse of a In modular arithmetic we say that x is the multiplicative inverse of a modulo N if ax = 1 (mod N) Multiplicative inverse of 3 mod 5 = 2 We will call 2, a-1 mod N in this case If a multiplicative inverse exists, it is unique mod N Unlike regular arithmetic many numbers do not have a multiplicative inverse in modular arithmetic What is the multiplicative inverse of 2 mod 4? We need an algorithm to state if the inverse exists and what it is in order to do modular division CS 312 - Modular Division and RSA 9

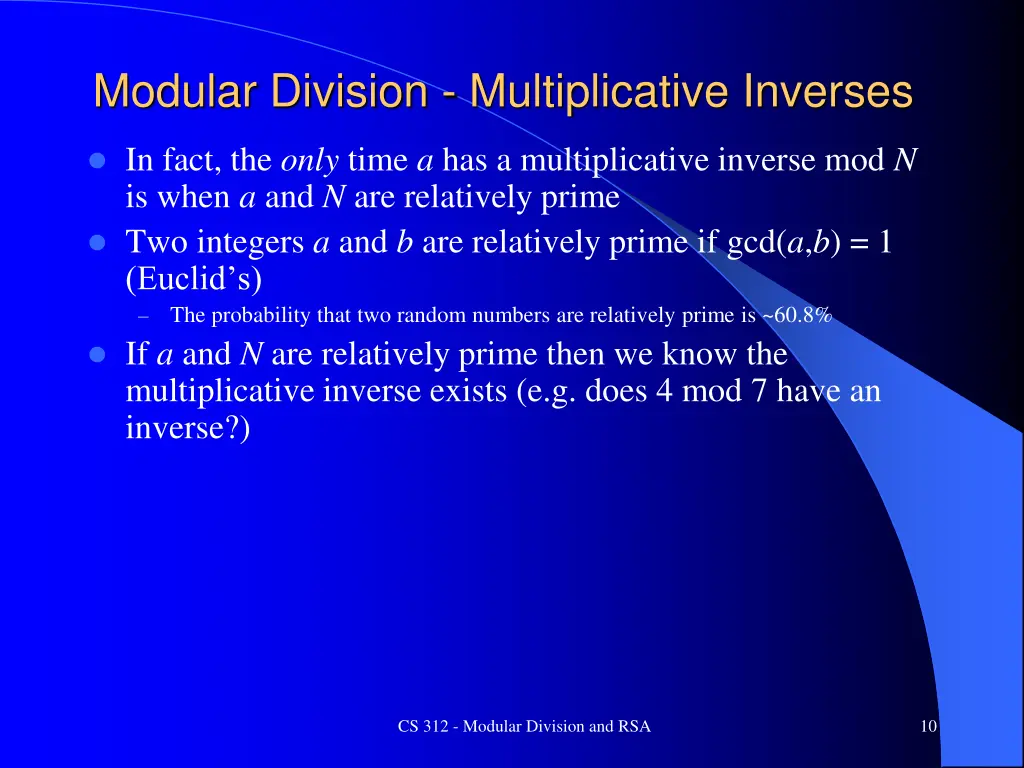

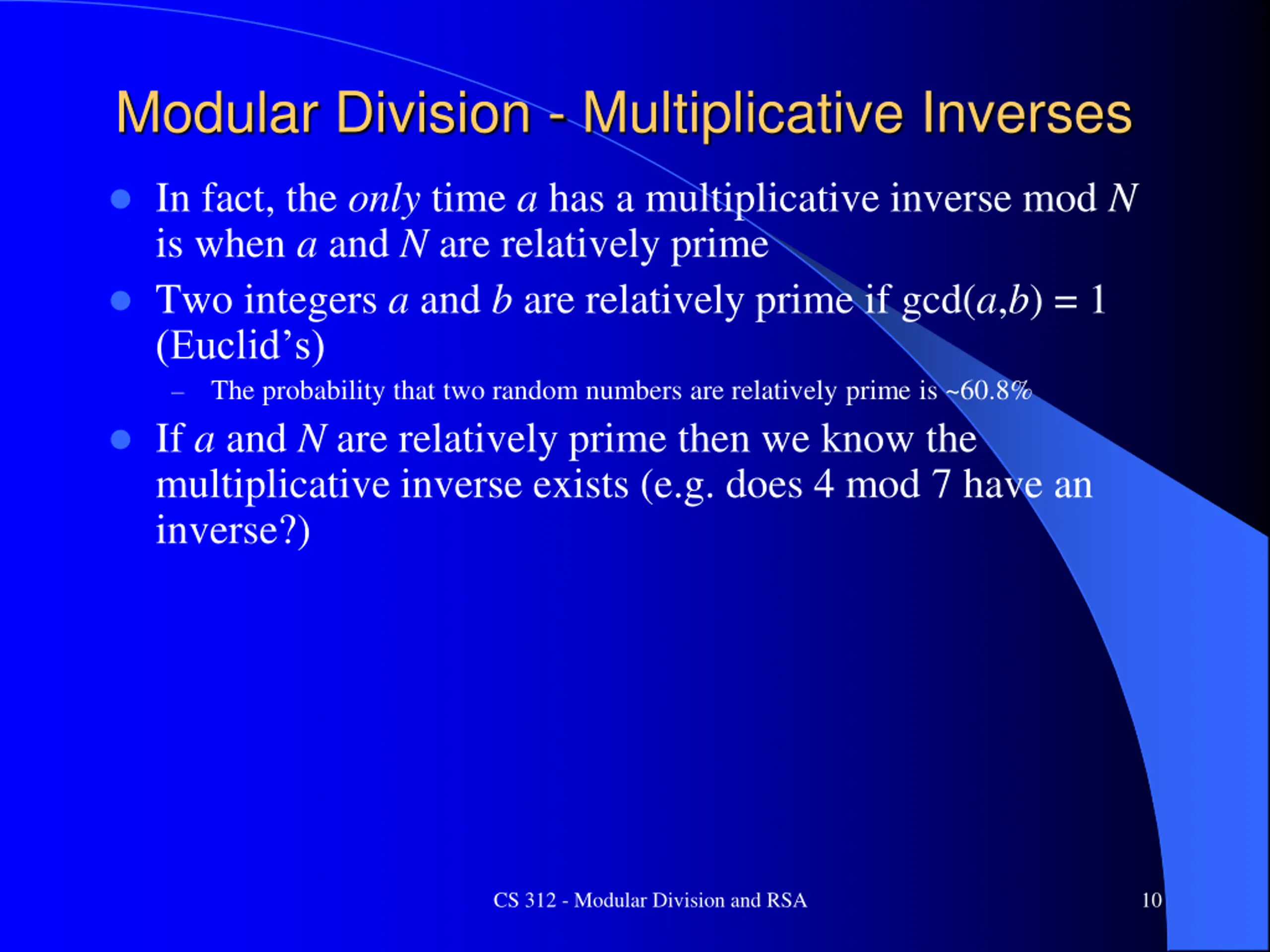

Modular Division - Multiplicative Inverses In fact, the only time a has a multiplicative inverse mod N is when a and N are relatively prime Two integers a and b are relatively prime if gcd(a,b) = 1 (Euclid s) The probability that two random numbers are relatively prime is ~60.8% If a and N are relatively prime then we know the multiplicative inverse exists (e.g. does 4 mod 7 have an inverse?) CS 312 - Modular Division and RSA 10

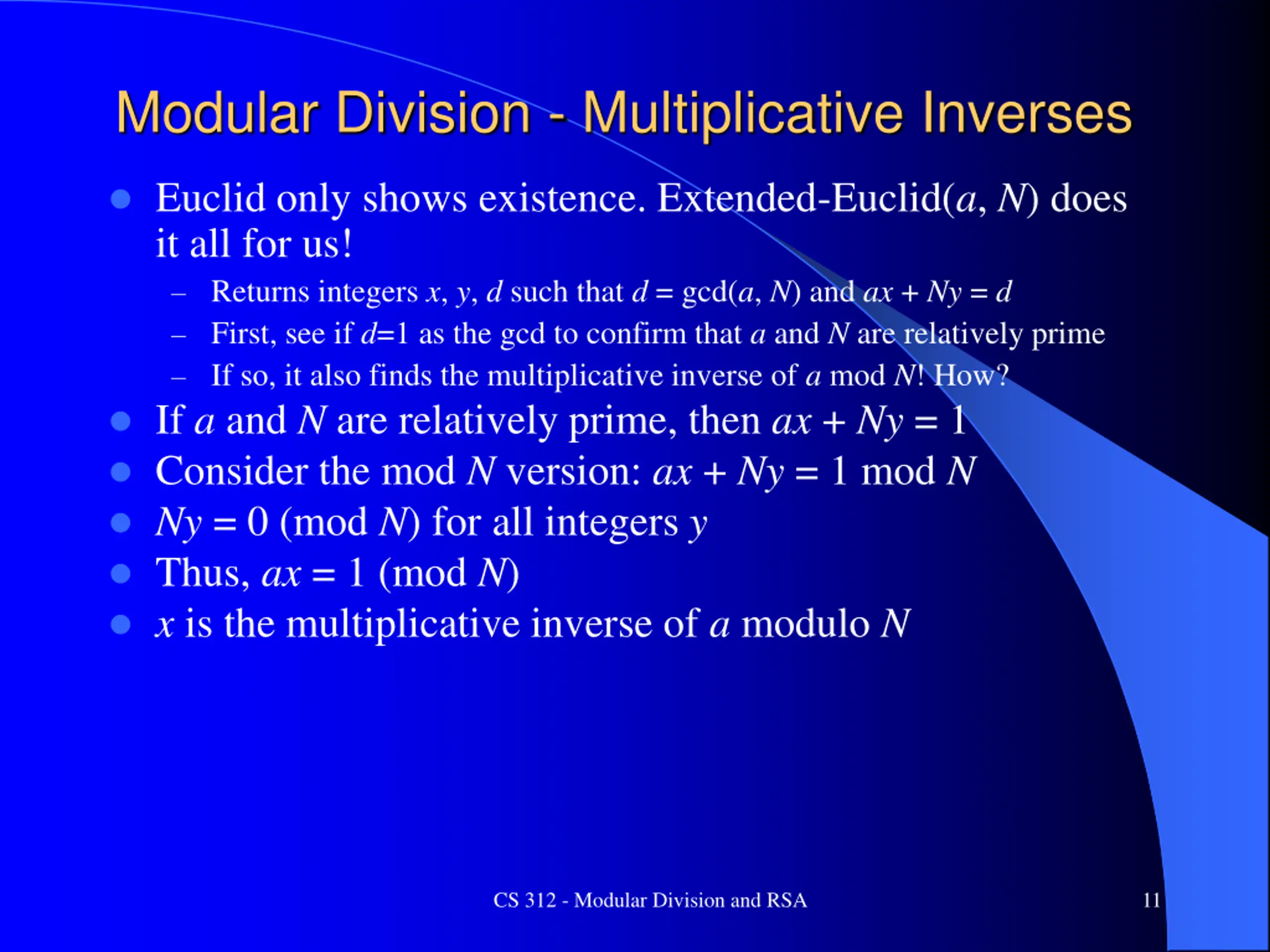

Modular Division - Multiplicative Inverses Euclid only shows existence. Extended-Euclid(a, N) does it all for us! Returns integers x, y, d such that d = gcd(a, N) and ax + Ny = d First, see if d=1 as the gcd to confirm that a and N are relatively prime If so, it also finds the multiplicative inverse of a mod N! How? If a and N are relatively prime, then ax + Ny = 1 Consider the mod N version: ax + Ny = 1 mod N Ny = 0 (mod N) for all integers y Thus, ax = 1 (mod N) x is the multiplicative inverse of a modulo N CS 312 - Modular Division and RSA 11

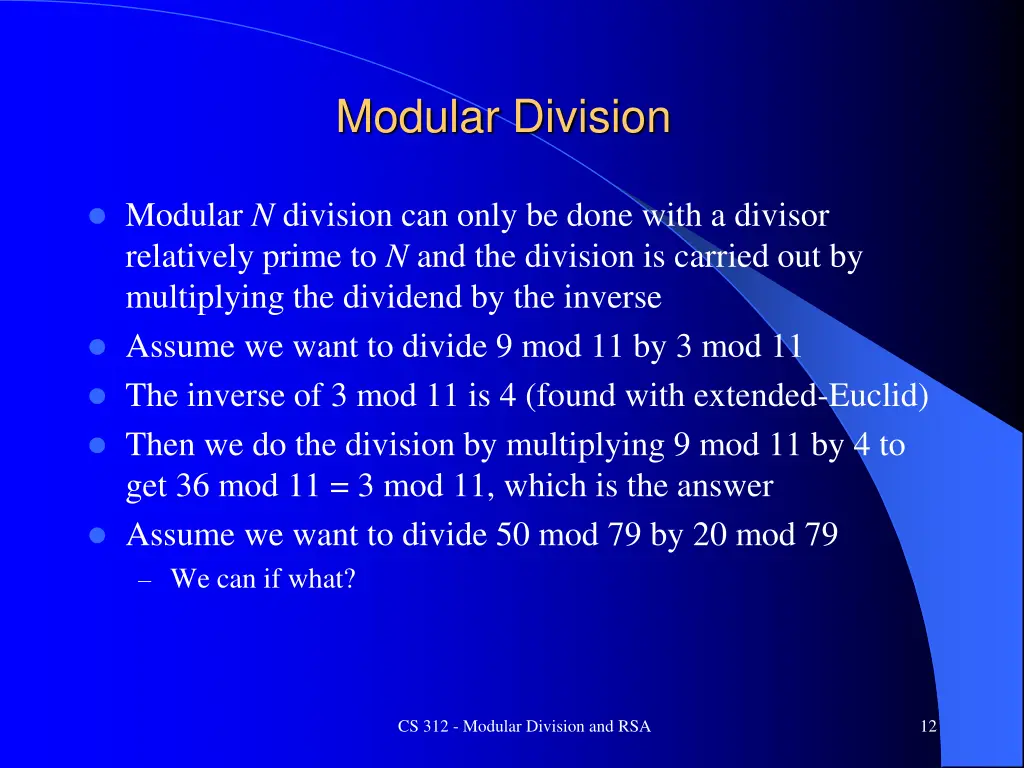

Modular Division Modular N division can only be done with a divisor relatively prime to N and the division is carried out by multiplying the dividend by the inverse Assume we want to divide 9 mod 11 by 3 mod 11 The inverse of 3 mod 11 is 4 (found with extended-Euclid) Then we do the division by multiplying 9 mod 11 by 4 to get 36 mod 11 = 3 mod 11, which is the answer Assume we want to divide 50 mod 79 by 20 mod 79 We can if what? CS 312 - Modular Division and RSA 12

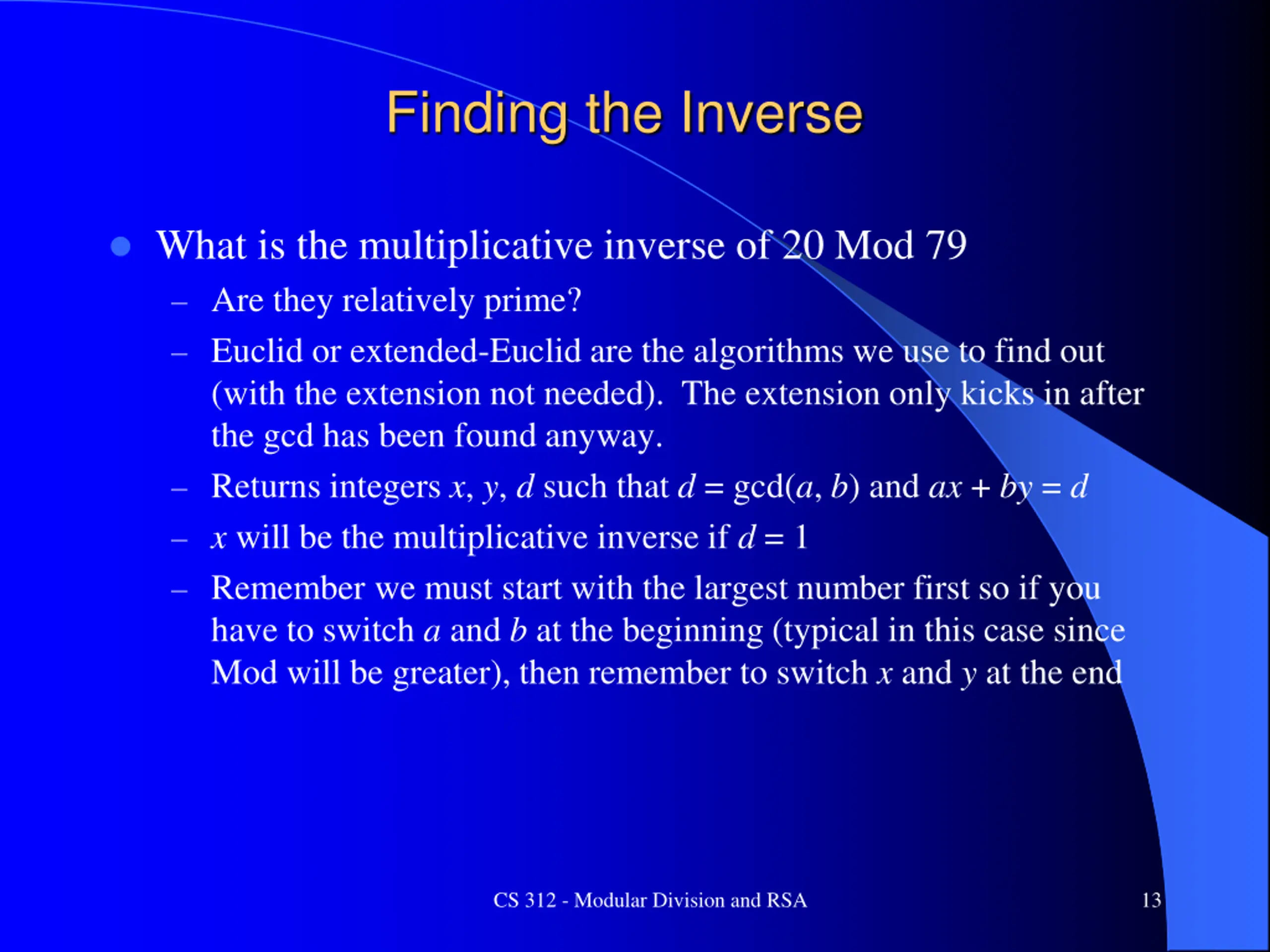

Finding the Inverse What is the multiplicative inverse of 20 Mod 79 Are they relatively prime? Euclid or extended-Euclid are the algorithms we use to find out (with the extension not needed). The extension only kicks in after the gcd has been found anyway. Returns integers x, y, d such that d = gcd(a, b) and ax + by = d x will be the multiplicative inverse if d = 1 Remember we must start with the largest number first so if you have to switch a and b at the beginning (typical in this case since Mod will be greater), then remember to switch x and y at the end CS 312 - Modular Division and RSA 13

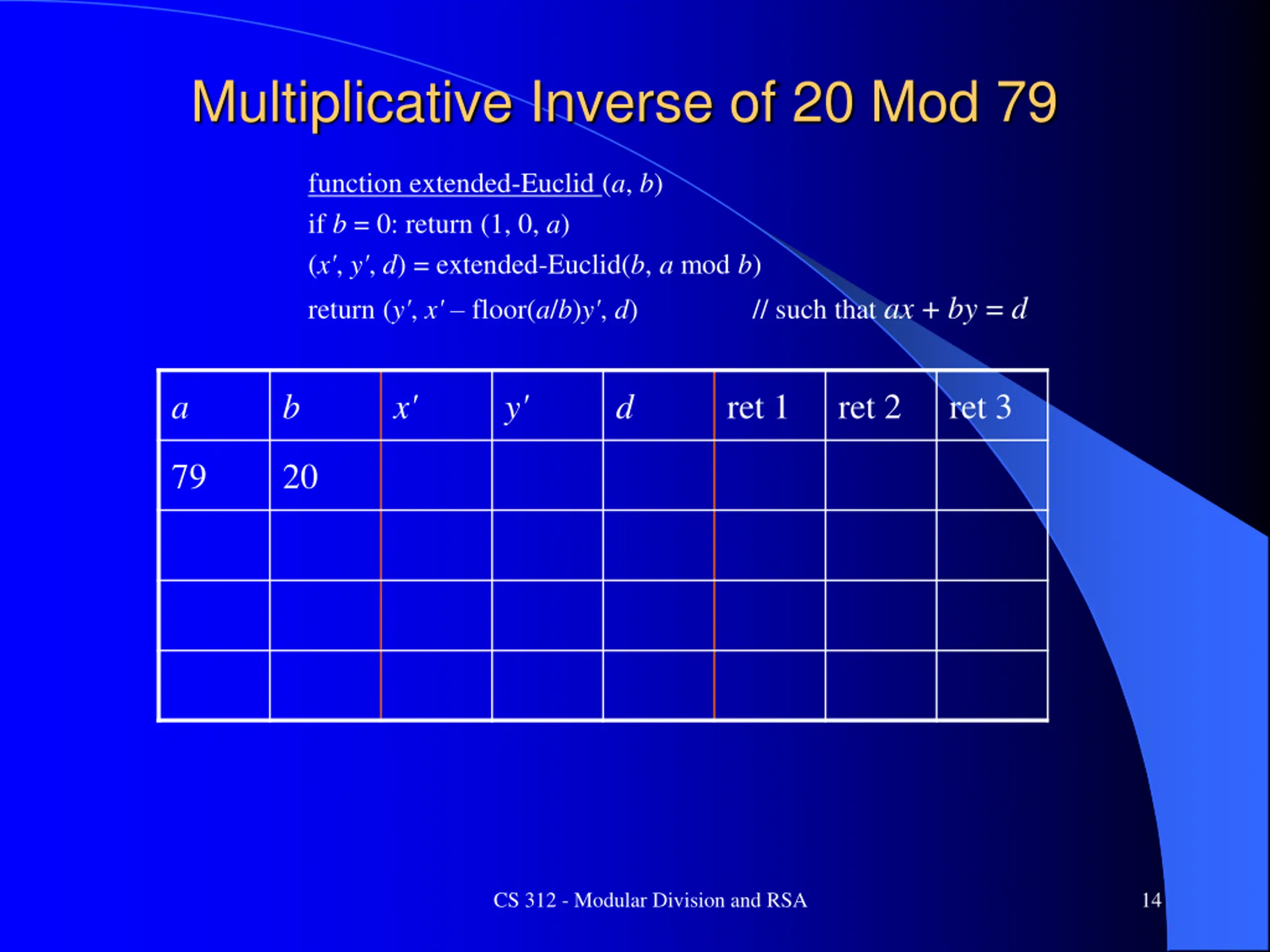

Multiplicative Inverse of 20 Mod 79 function extended-Euclid (a, b) if b = 0: return (1, 0, a) (x', y', d) = extended-Euclid(b, a mod b) return (y', x' floor(a/b)y', d) // such that ax + by = d ret 1 ret 2 ret 3 a b x' y' d 79 20 CS 312 - Modular Division and RSA 14

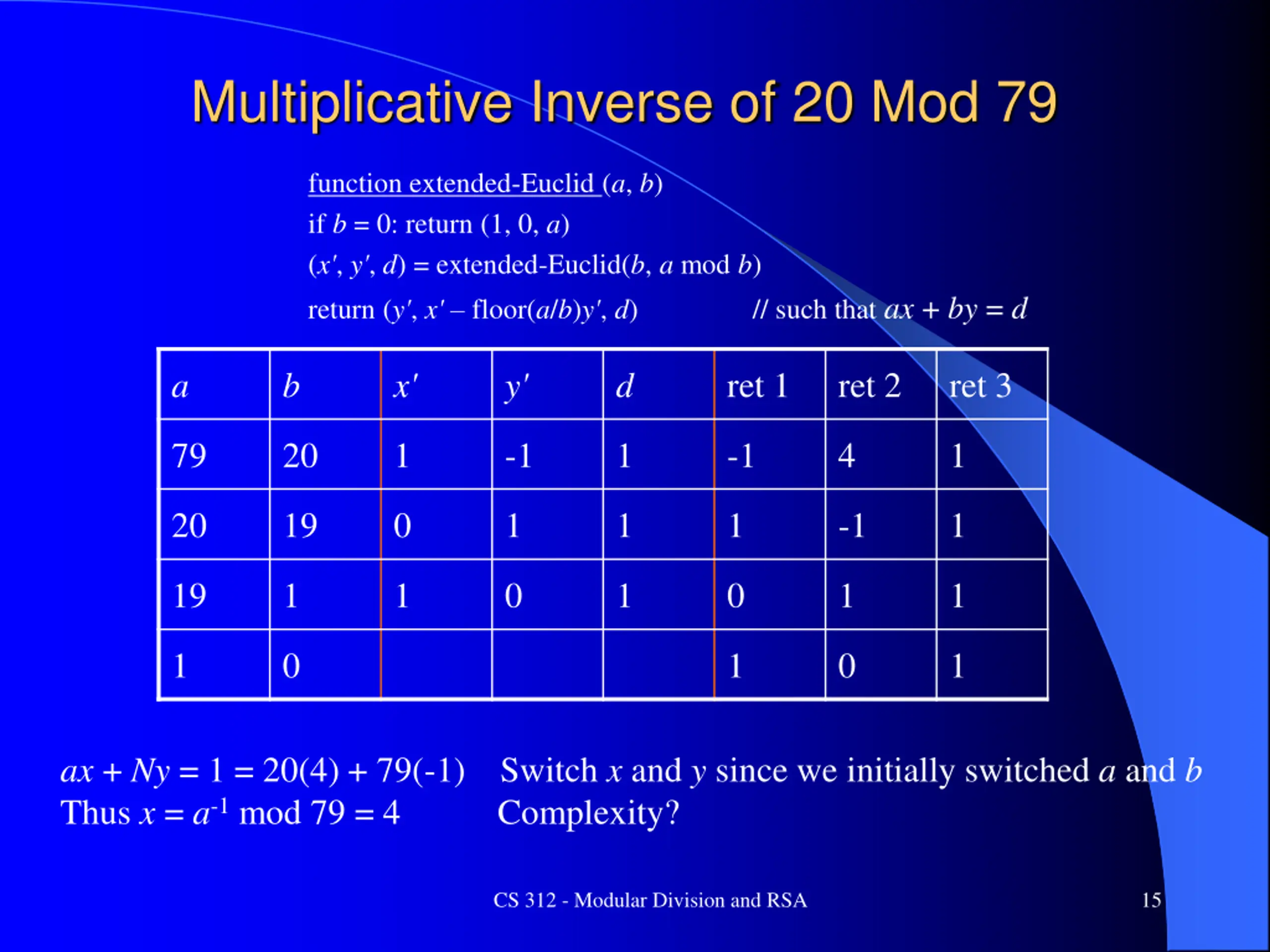

Multiplicative Inverse of 20 Mod 79 function extended-Euclid (a, b) if b = 0: return (1, 0, a) (x', y', d) = extended-Euclid(b, a mod b) return (y', x' floor(a/b)y', d) // such that ax + by = d ret 1 ret 2 ret 3 a b x' y' d 79 20 1 -1 1 -1 4 1 20 19 0 1 1 1 -1 1 19 1 1 0 1 0 1 1 1 0 1 0 1 ax + Ny = 1 = 20(4) + 79(-1) Switch x and y since we initially switched a and b Thus x = a-1 mod 79 = 4 Complexity? CS 312 - Modular Division and RSA 15

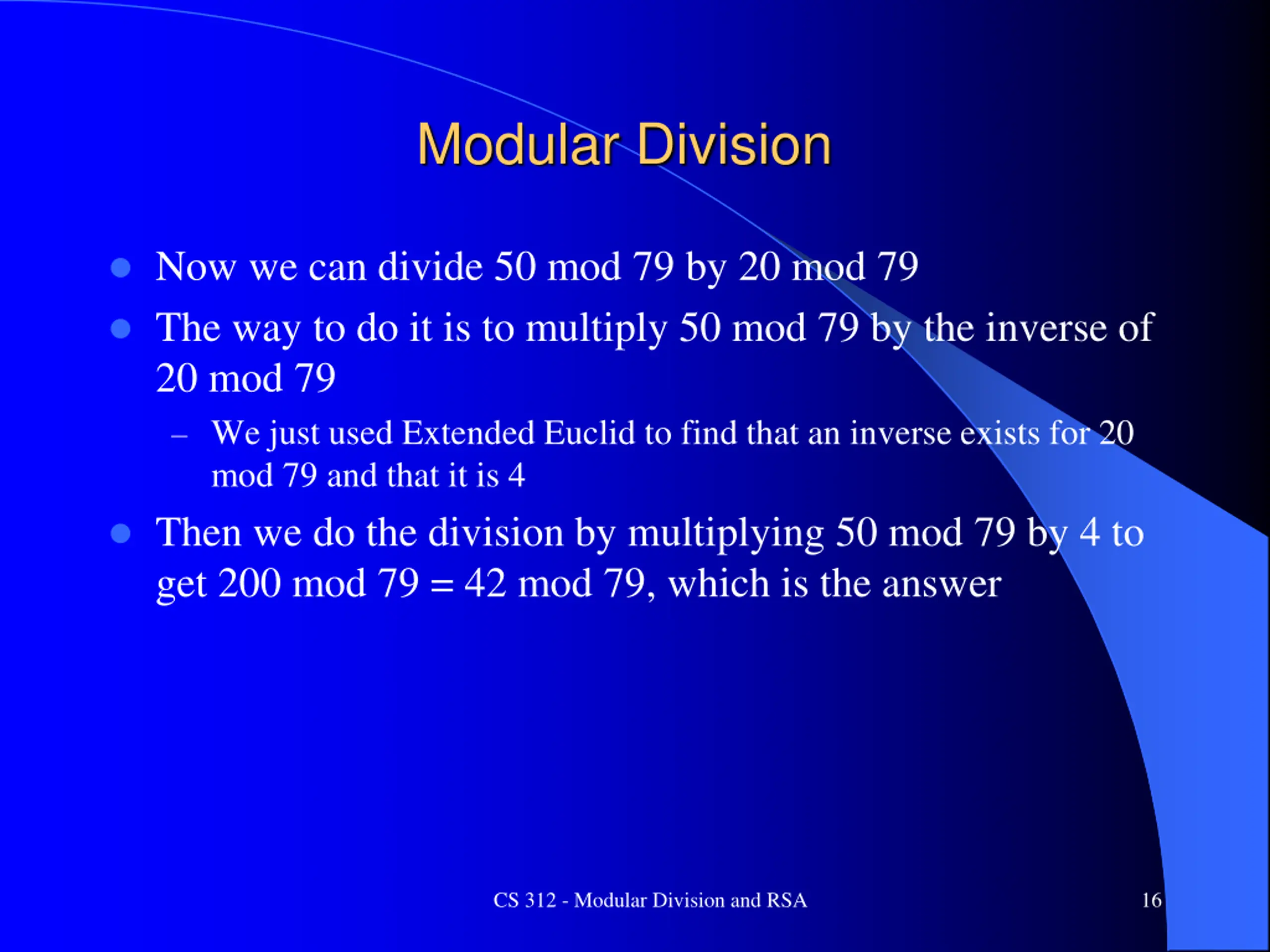

Modular Division Now we can divide 50 mod 79 by 20 mod 79 The way to do it is to multiply 50 mod 79 by the inverse of 20 mod 79 We just used Extended Euclid to find that an inverse exists for 20 mod 79 and that it is 4 Then we do the division by multiplying 50 mod 79 by 4 to get 200 mod 79 = 42 mod 79, which is the answer CS 312 - Modular Division and RSA 16

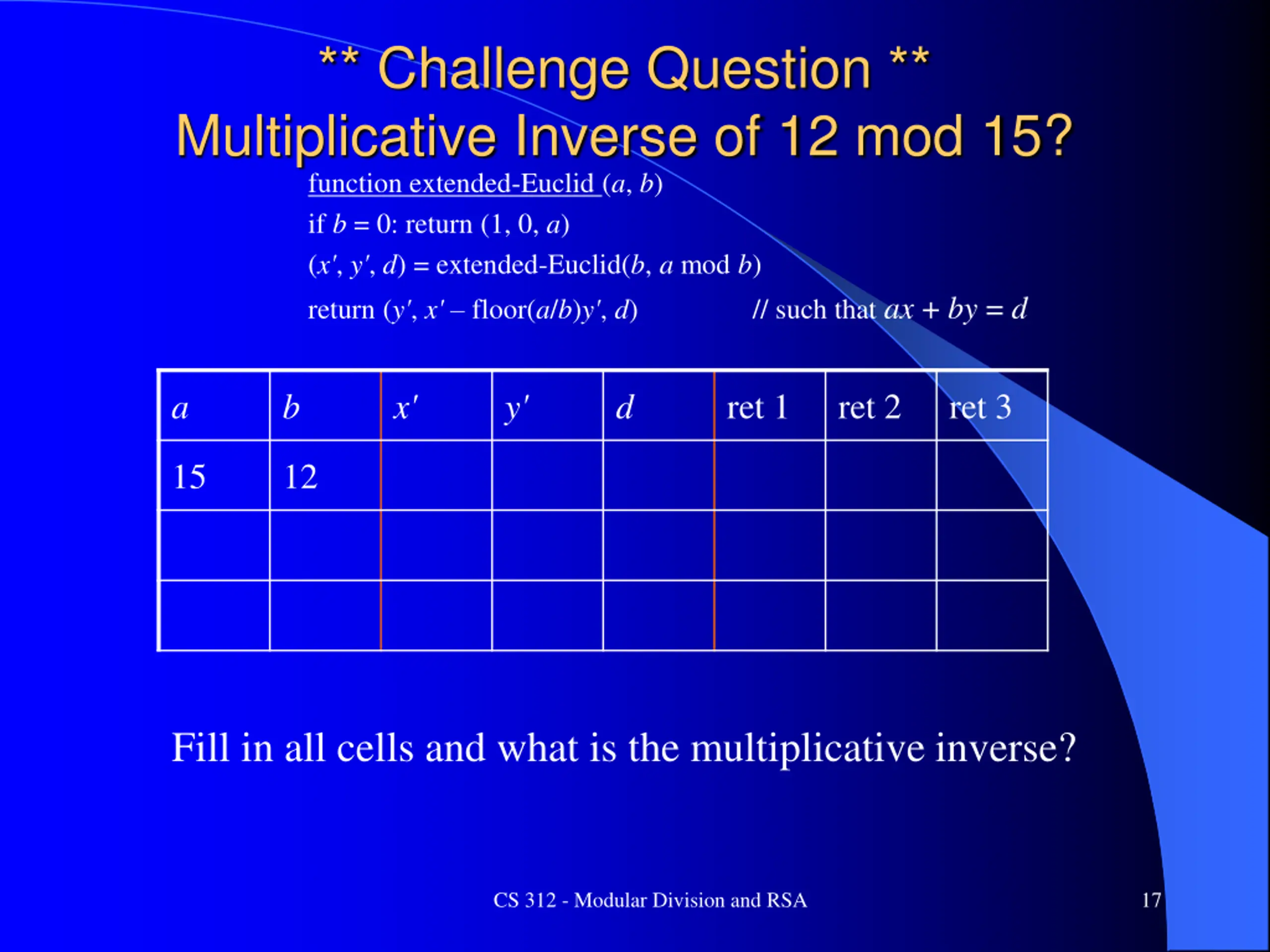

** Challenge Question ** Multiplicative Inverse of 12 mod 15? function extended-Euclid (a, b) if b = 0: return (1, 0, a) (x', y', d) = extended-Euclid(b, a mod b) return (y', x' floor(a/b)y', d) // such that ax + by = d ret 1 ret 2 ret 3 a b x' y' d 15 12 Fill in all cells and what is the multiplicative inverse? CS 312 - Modular Division and RSA 17

Multiplicative Inverse of 12 mod 15? function extended-Euclid (a, b) if b = 0: return (1, 0, a) (x', y', d) = extended-Euclid(b, a mod b) return (y', x' floor(a/b)y', d) // such that ax + by = d ret 1 ret 2 ret 3 a b x' y' d 15 12 0 1 3 1 -1 3 12 3 1 0 3 0 1 3 3 0 1 0 3 ax + Ny = 3 = 12(-1) + 15(1) (Switched!) However, there is no multiplicative inverse since the gcd = 3 and thus a and N are not relatively prime CS 312 - Modular Division and RSA 18

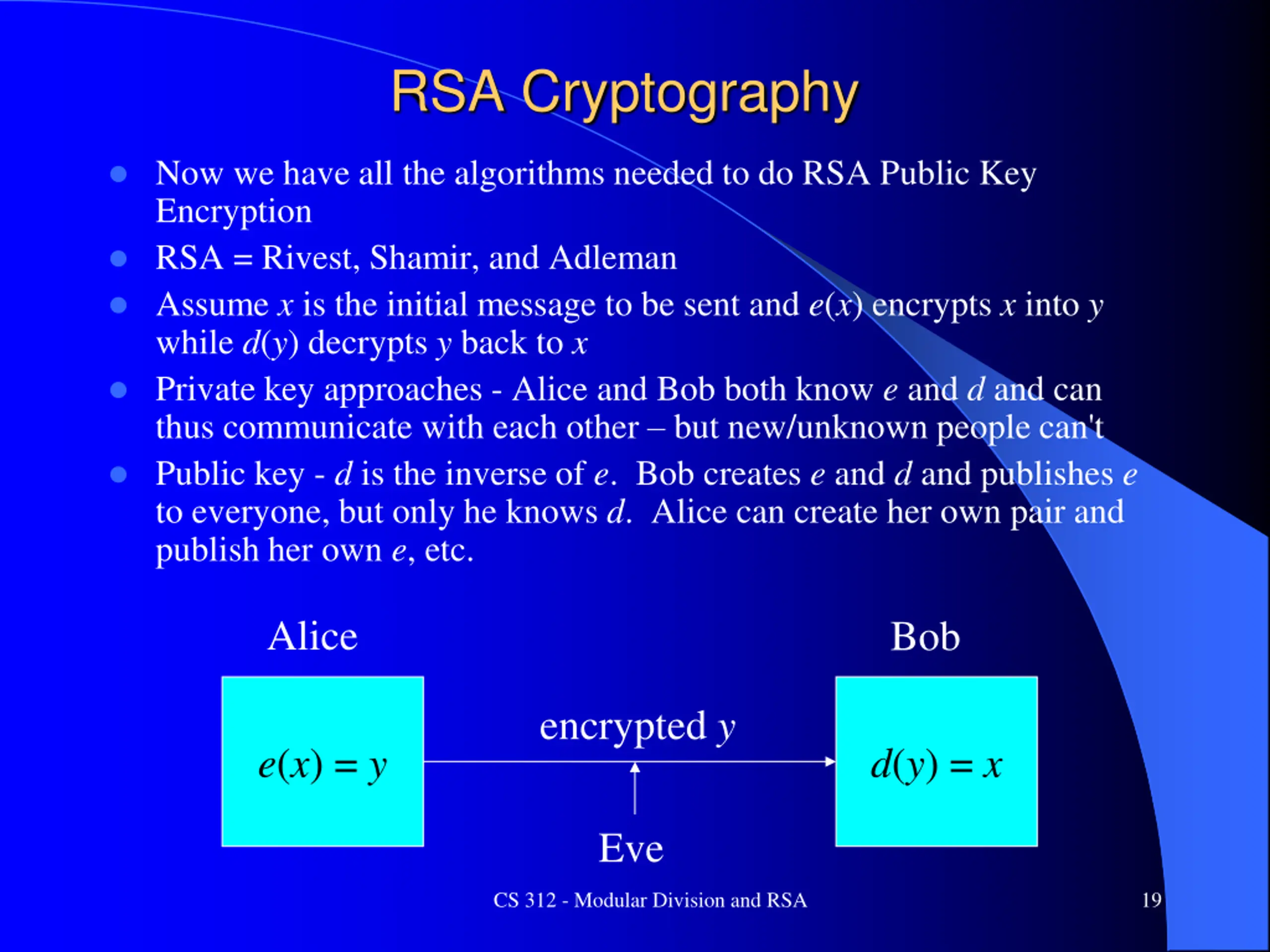

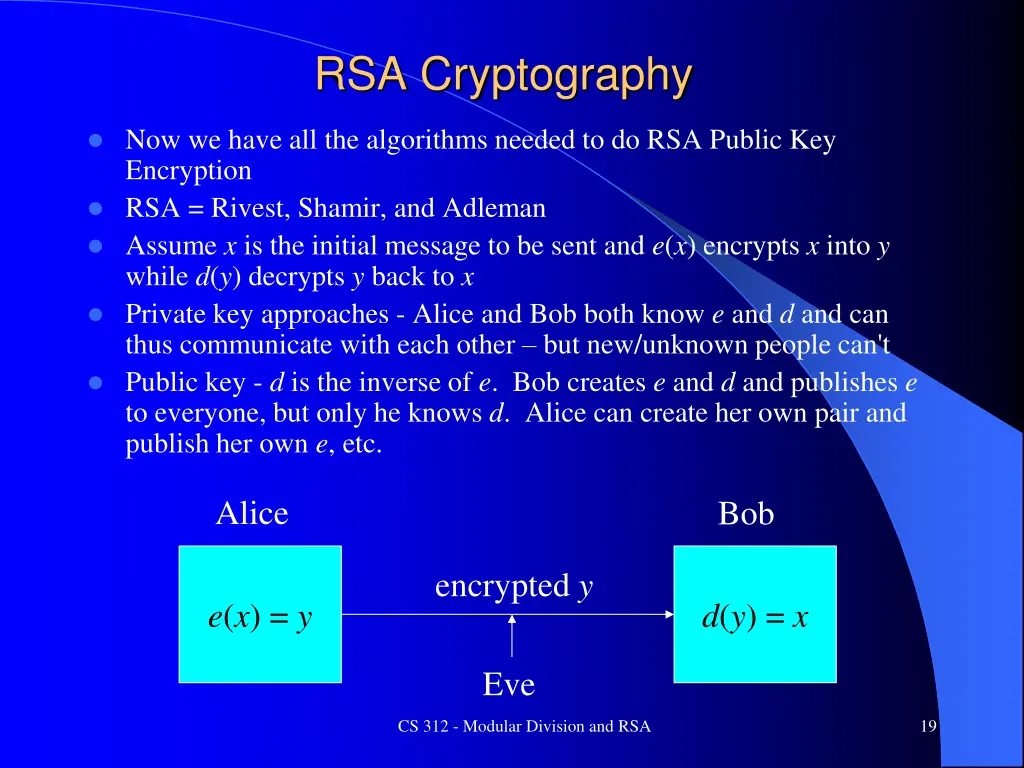

RSA Cryptography Now we have all the algorithms needed to do RSA Public Key Encryption RSA = Rivest, Shamir, and Adleman Assume x is the initial message to be sent and e(x) encrypts x into y while d(y) decrypts y back to x Private key approaches - Alice and Bob both know e and d and can thus communicate with each other but new/unknown people can't Public key - d is the inverse of e. Bob creates e and d and publishes e to everyone, but only he knows d. Alice can create her own pair and publish her own e, etc. Alice Bob encrypted y e(x) = y d(y) = x Eve CS 312 - Modular Division and RSA 19

RSA Cryptography CS 312 - Modular Division and RSA 20

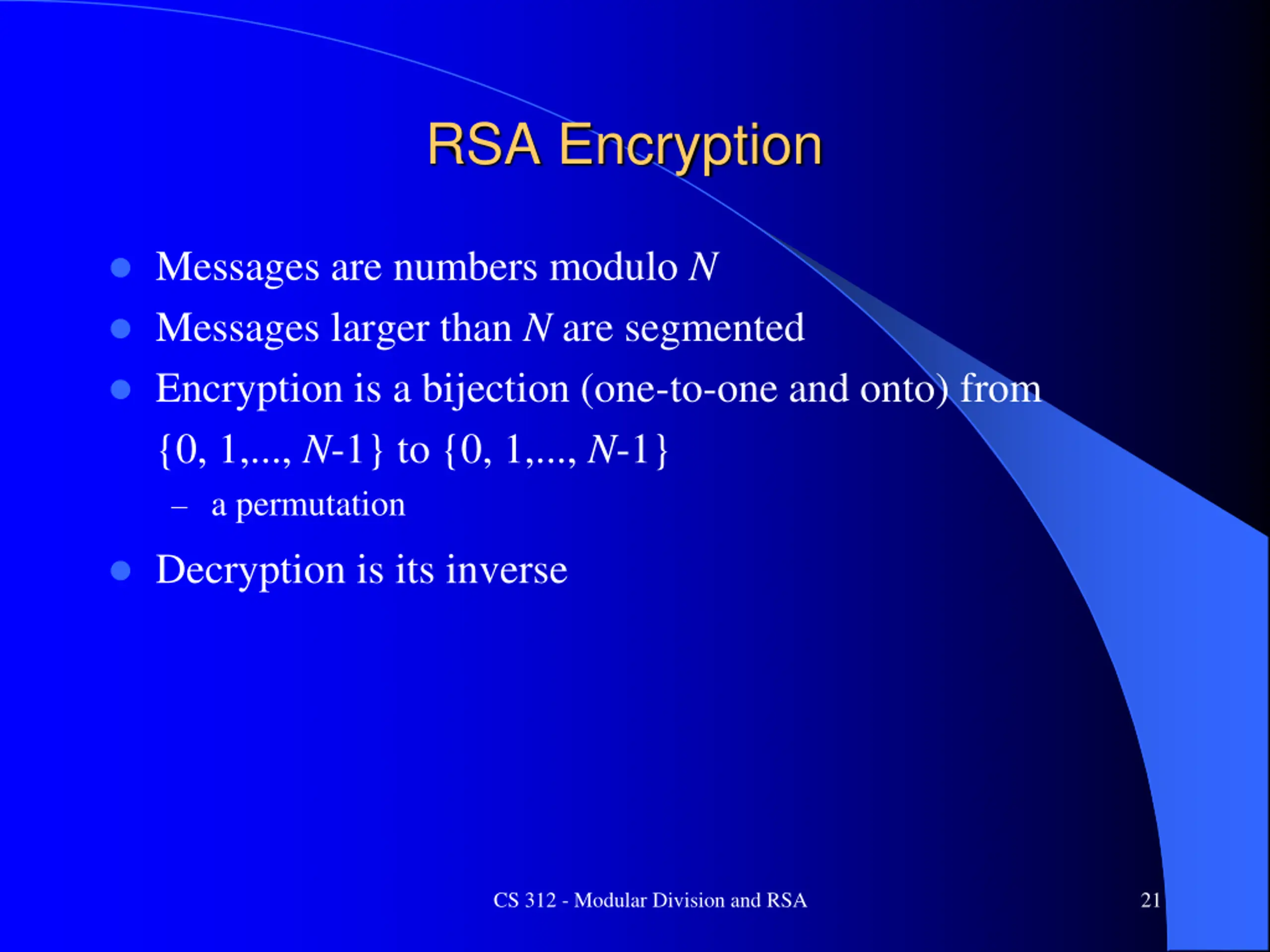

RSA Encryption Messages are numbers modulo N Messages larger than N are segmented Encryption is a bijection (one-to-one and onto) from {0, 1,..., N-1} to {0, 1,..., N-1} a permutation Decryption is its inverse CS 312 - Modular Division and RSA 21

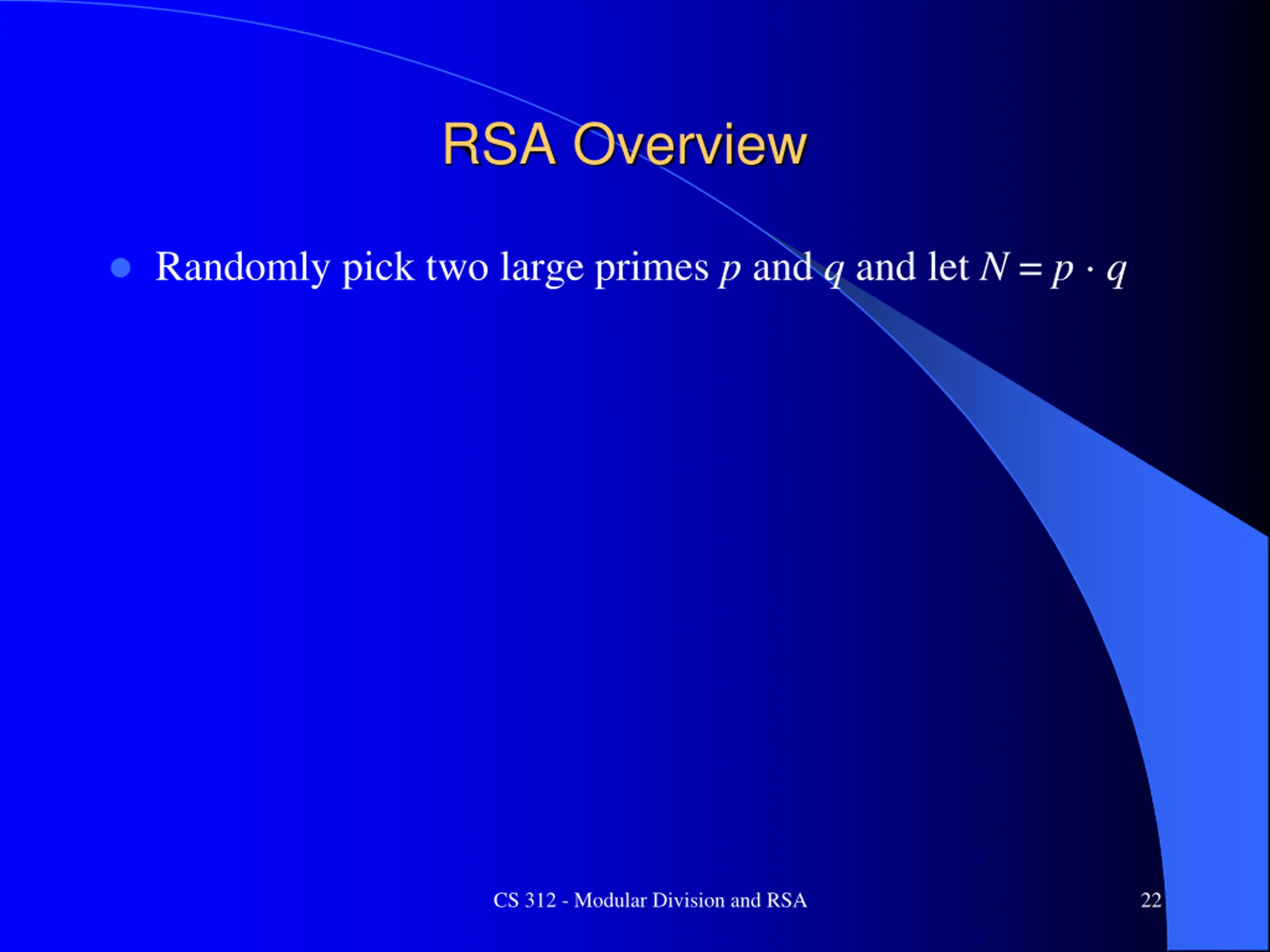

RSA Overview Randomly pick two large primes p and q and let N = p q CS 312 - Modular Division and RSA 22

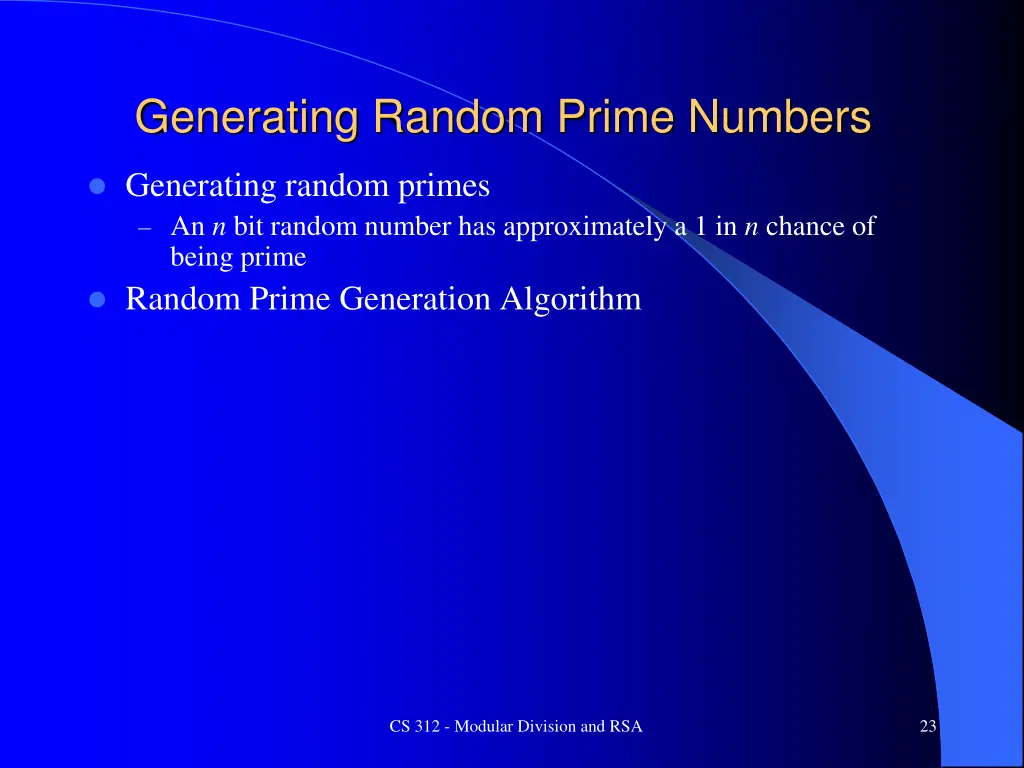

Generating Random Prime Numbers Generating random primes An n bit random number has approximately a 1 in n chance of being prime Random Prime Generation Algorithm CS 312 - Modular Division and RSA 23

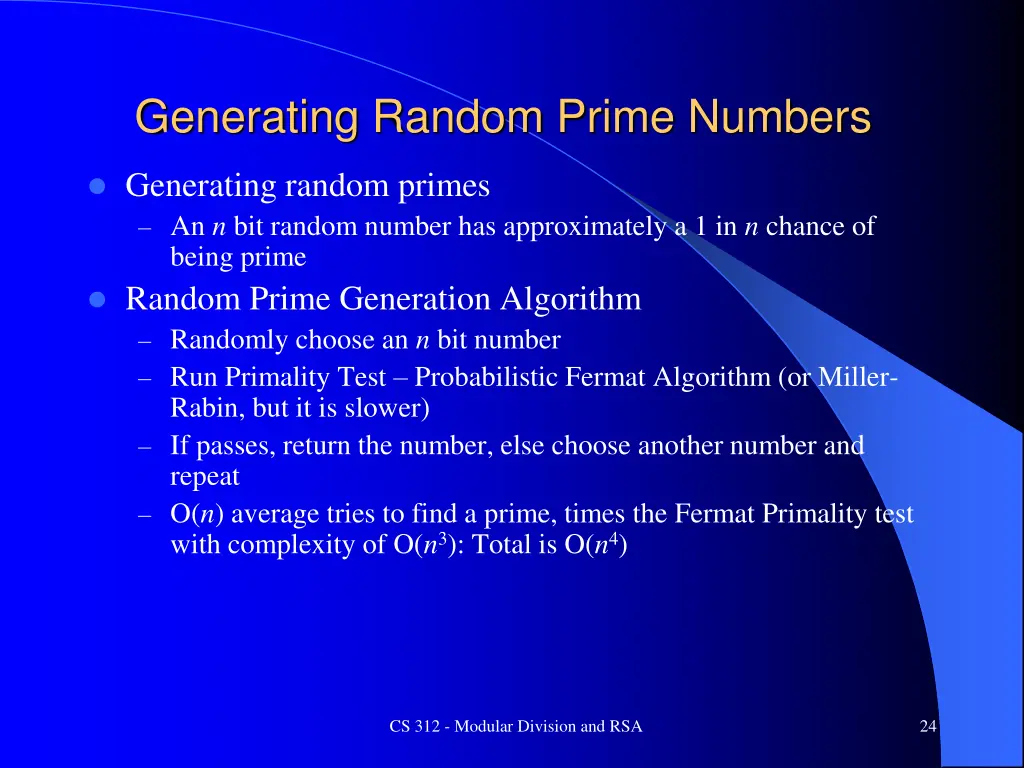

Generating Random Prime Numbers Generating random primes An n bit random number has approximately a 1 in n chance of being prime Random Prime Generation Algorithm Randomly choose an n bit number Run Primality Test Probabilistic Fermat Algorithm (or Miller- Rabin, but it is slower) If passes, return the number, else choose another number and repeat O(n) average tries to find a prime, times the Fermat Primality test with complexity of O(n3): Total is O(n4) CS 312 - Modular Division and RSA 24

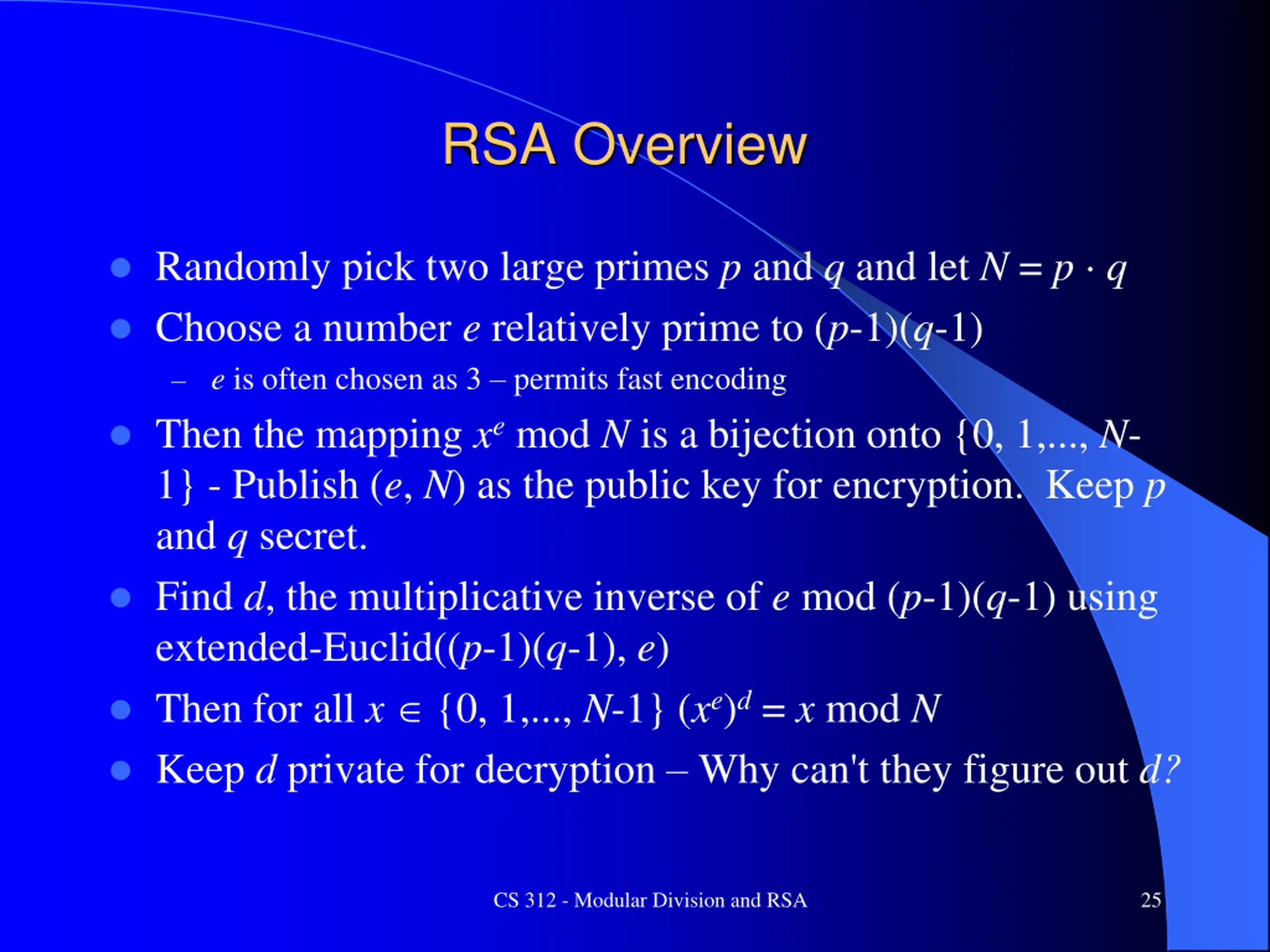

RSA Overview Randomly pick two large primes p and q and let N = p q Choose a number e relatively prime to (p-1)(q-1) e is often chosen as 3 permits fast encoding Then the mapping xe mod N is a bijection onto {0, 1,..., N- 1} - Publish (e, N) as the public key for encryption. Keep p and q secret. Find d, the multiplicative inverse of e mod (p-1)(q-1) using extended-Euclid((p-1)(q-1), e) Then for all x {0, 1,..., N-1} (xe)d = x mod N Keep d private for decryption Why can't they figure out d? CS 312 - Modular Division and RSA 25

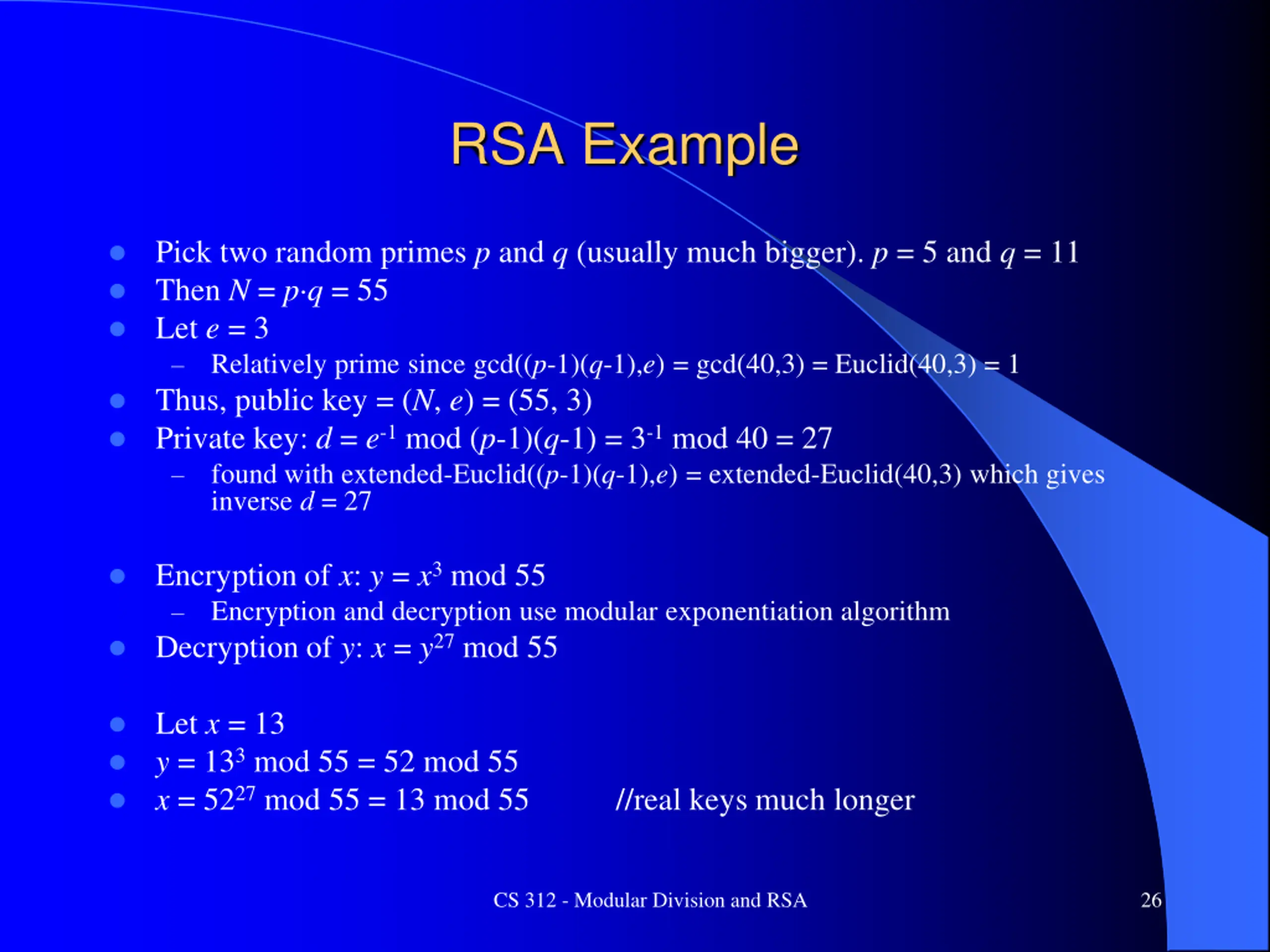

RSA Example Pick two random primes p and q (usually much bigger). p = 5 and q = 11 Then N = p q = 55 Let e = 3 Relatively prime since gcd((p-1)(q-1),e) = gcd(40,3) = Euclid(40,3) = 1 Thus, public key = (N, e) = (55, 3) Private key: d = e-1 mod (p-1)(q-1) = 3-1 mod 40 = 27 found with extended-Euclid((p-1)(q-1),e) = extended-Euclid(40,3) which gives inverse d = 27 Encryption of x: y = x3 mod 55 Encryption and decryption use modular exponentiation algorithm Decryption of y: x = y27 mod 55 Let x = 13 y = 133 mod 55 = 52 mod 55 x = 5227 mod 55 = 13 mod 55 //real keys much longer CS 312 - Modular Division and RSA 26

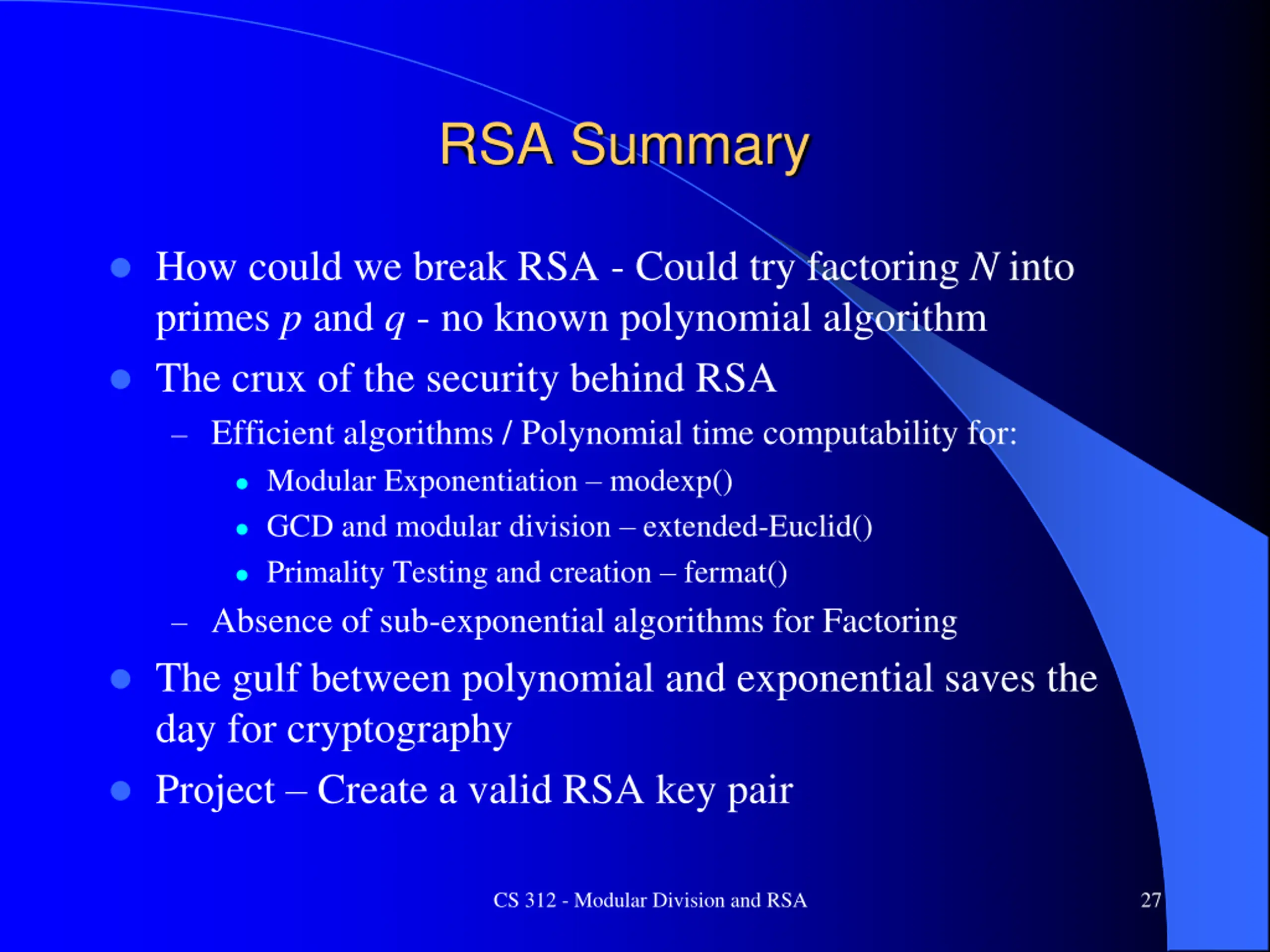

RSA Summary How could we break RSA - Could try factoring N into primes p and q - no known polynomial algorithm The crux of the security behind RSA Efficient algorithms / Polynomial time computability for: Modular Exponentiation modexp() GCD and modular division extended-Euclid() Primality Testing and creation fermat() Absence of sub-exponential algorithms for Factoring The gulf between polynomial and exponential saves the day for cryptography Project Create a valid RSA key pair CS 312 - Modular Division and RSA 27
