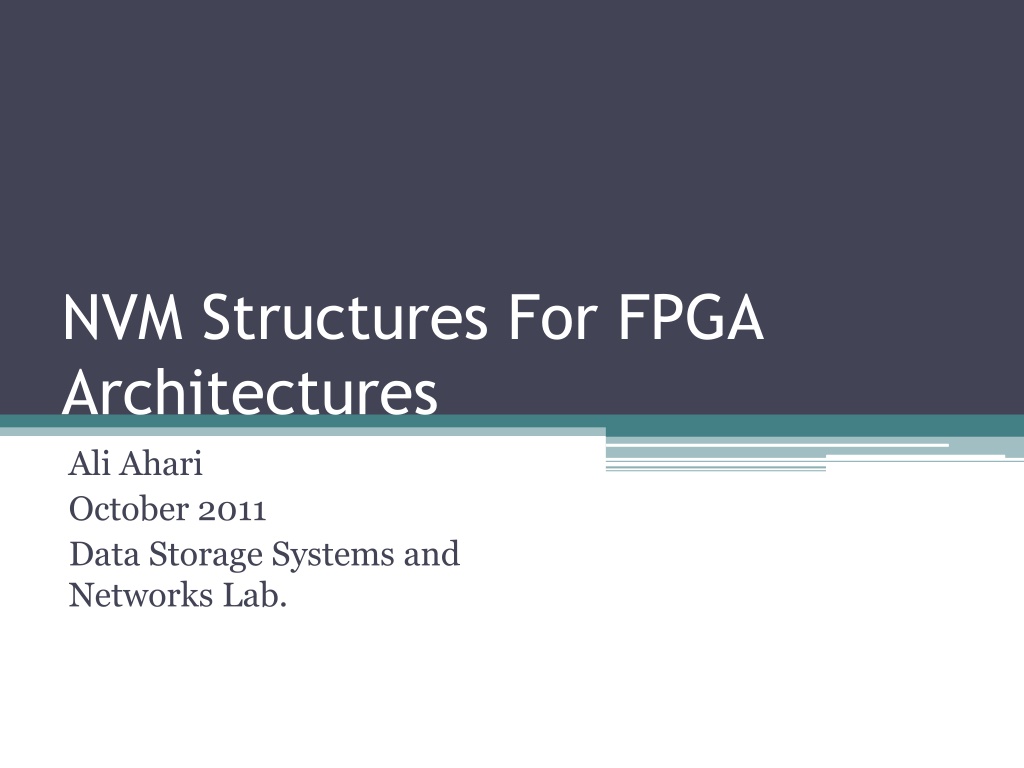

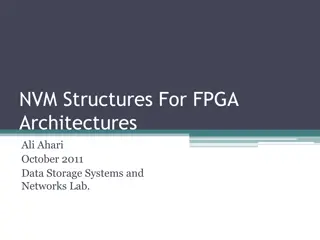

  1. NVM Structures For FPGA Architectures Ali Ahari October 2011 Data Storage Systems and Networks Lab.

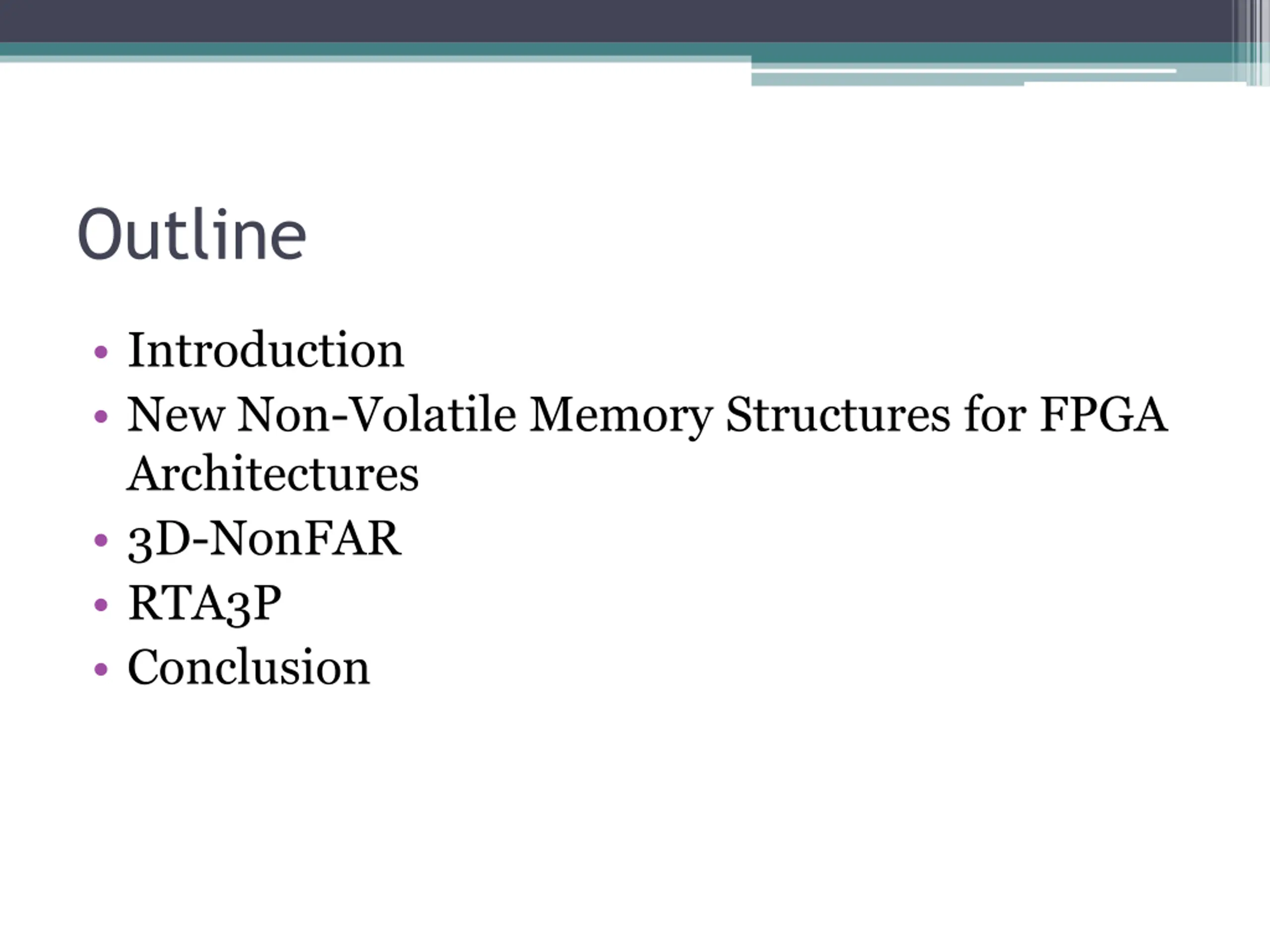

  2. Outline Introduction New Non-Volatile Memory Structures for FPGA Architectures 3D-NonFAR RTA3P Conclusion

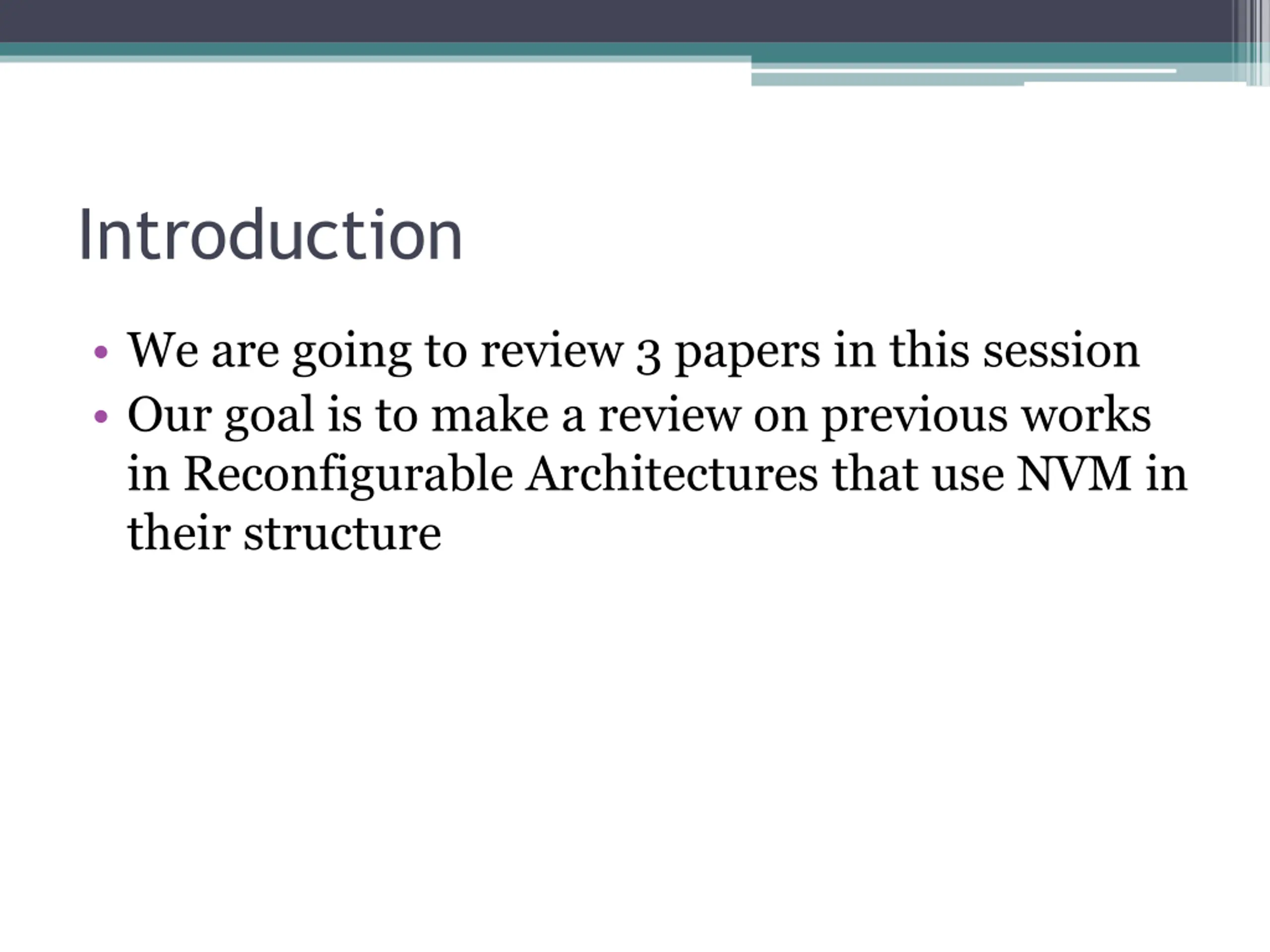

  3. Introduction We are going to review 3 papers in this session Our goal is to make a review on previous works in Reconfigurable Architectures that use NVM in their structure

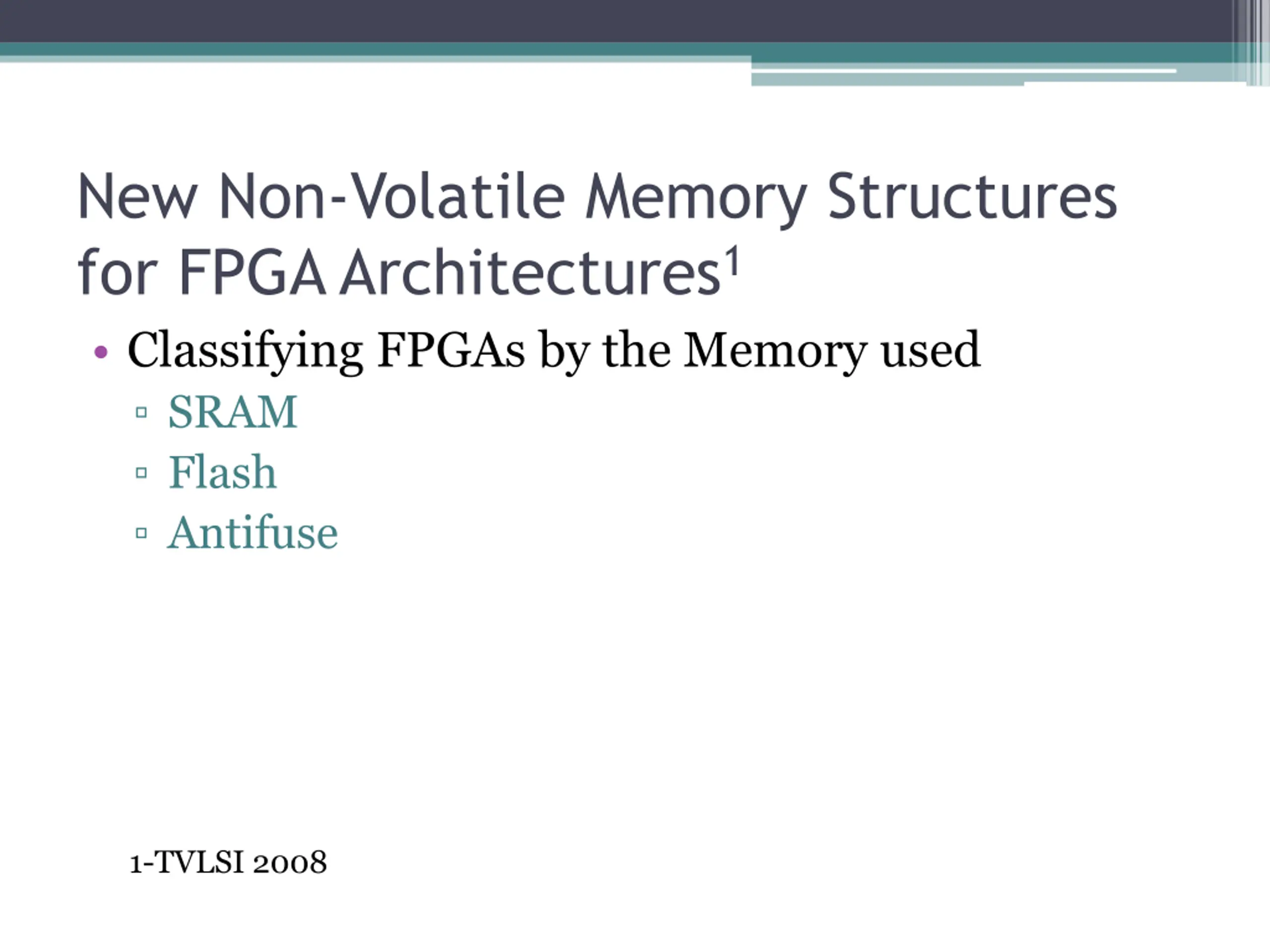

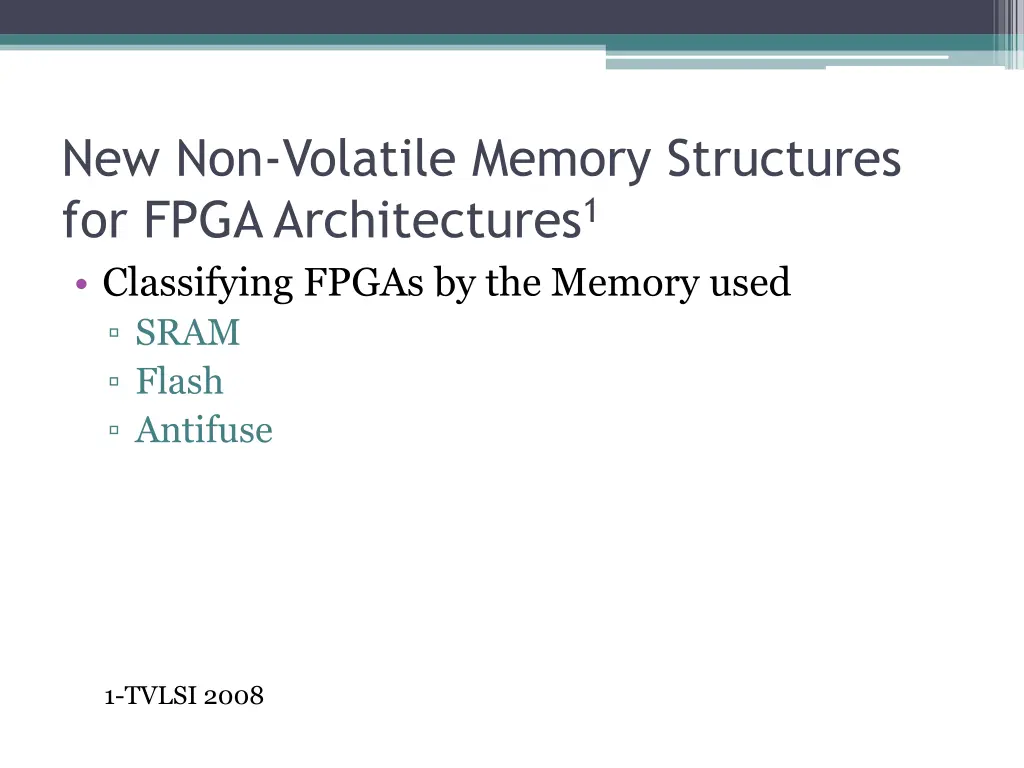

  4. New Non-Volatile Memory Structures for FPGA Architectures1 Classifying FPGAs by the Memory used SRAM Flash Antifuse 1-TVLSI 2008

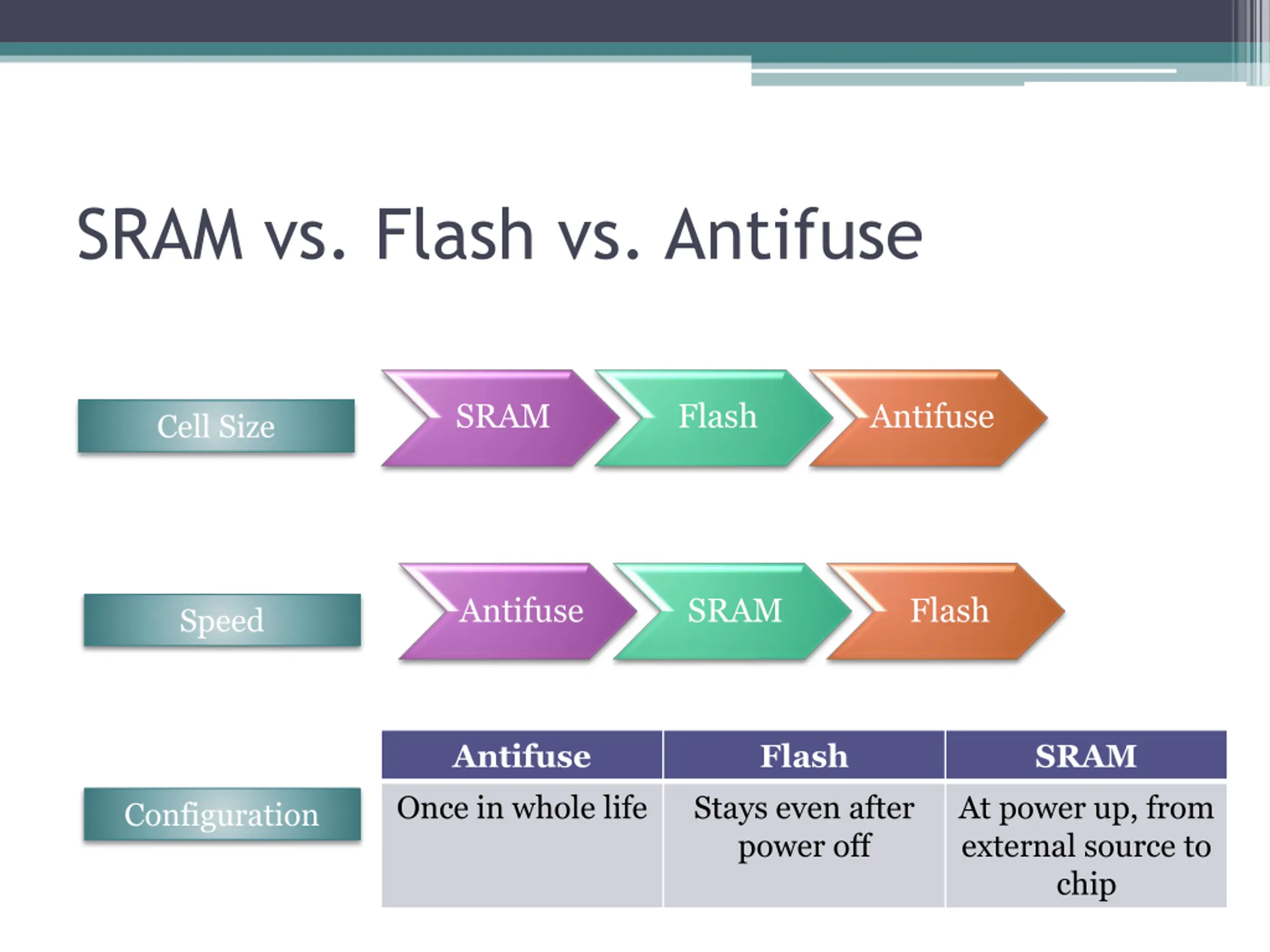

  5. SRAM vs. Flash vs. Antifuse SRAM Flash Antifuse Cell Size Antifuse SRAM Flash Speed Antifuse Once in whole life Flash SRAM Stays even after power off At power up, from external source to chip Configuration

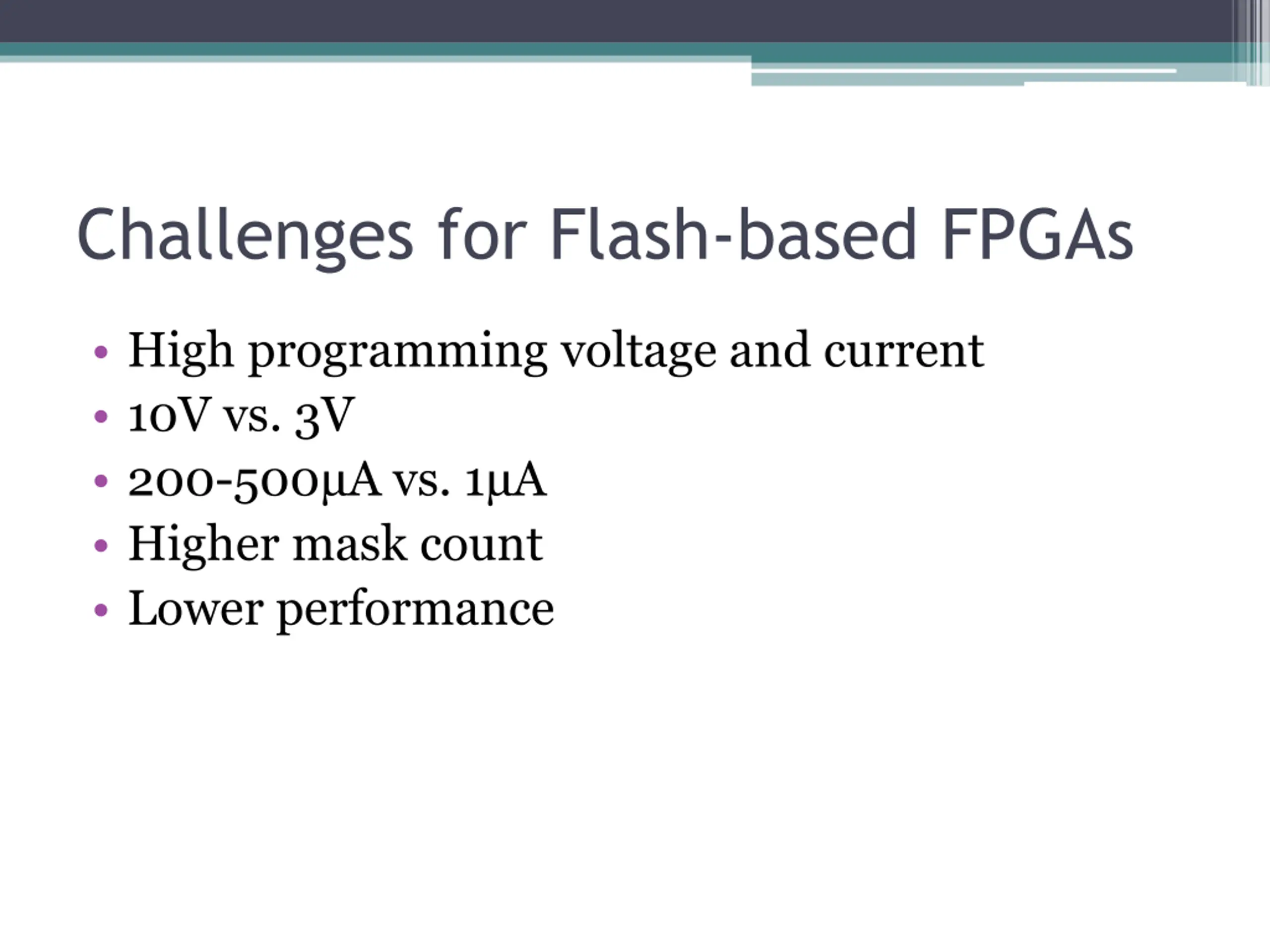

  6. Challenges for Flash-based FPGAs High programming voltage and current 10V vs. 3V 200-500 A vs. 1 A Higher mask count Lower performance

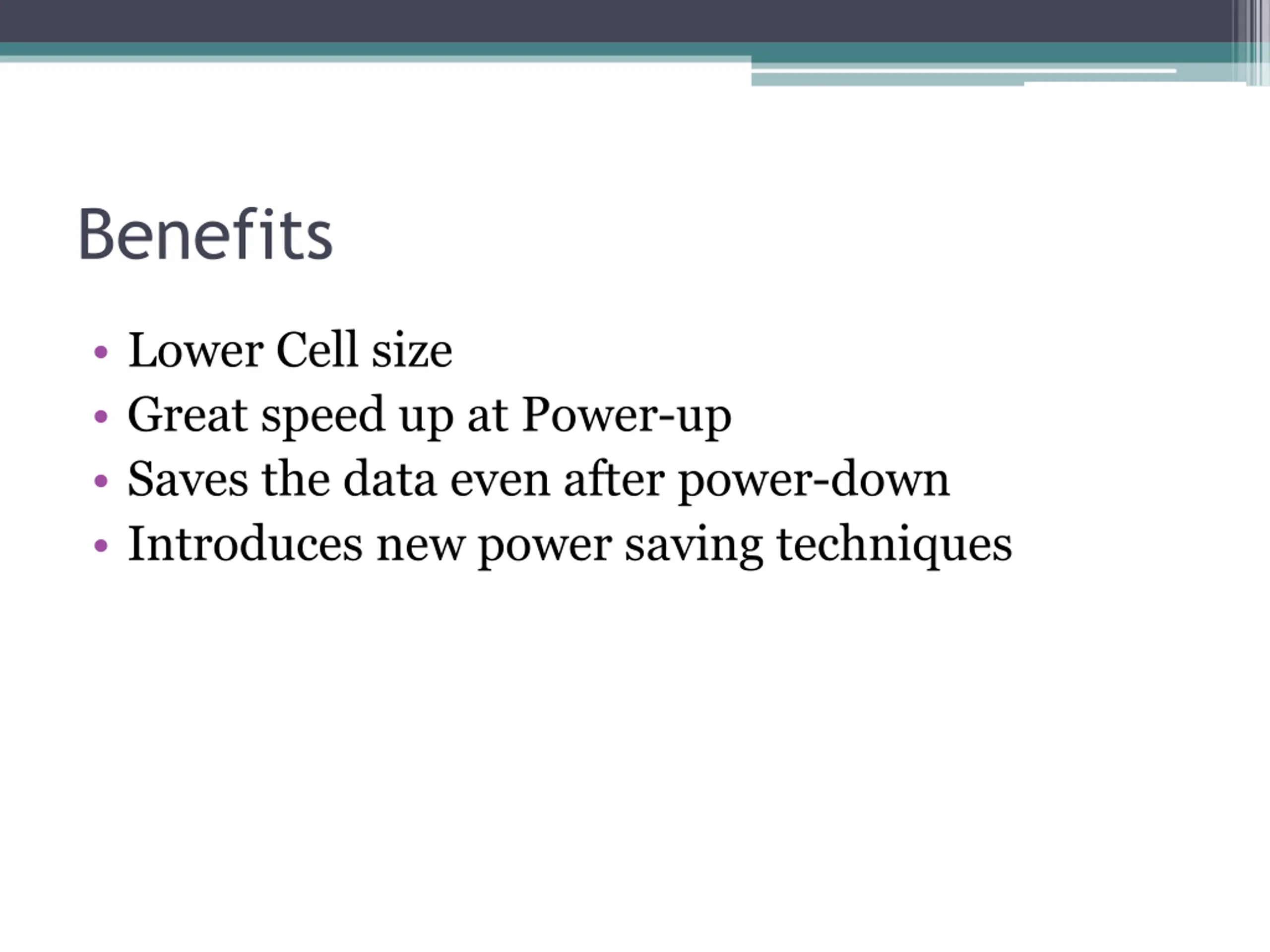

  7. Benefits Lower Cell size Great speed up at Power-up Saves the data even after power-down Introduces new power saving techniques

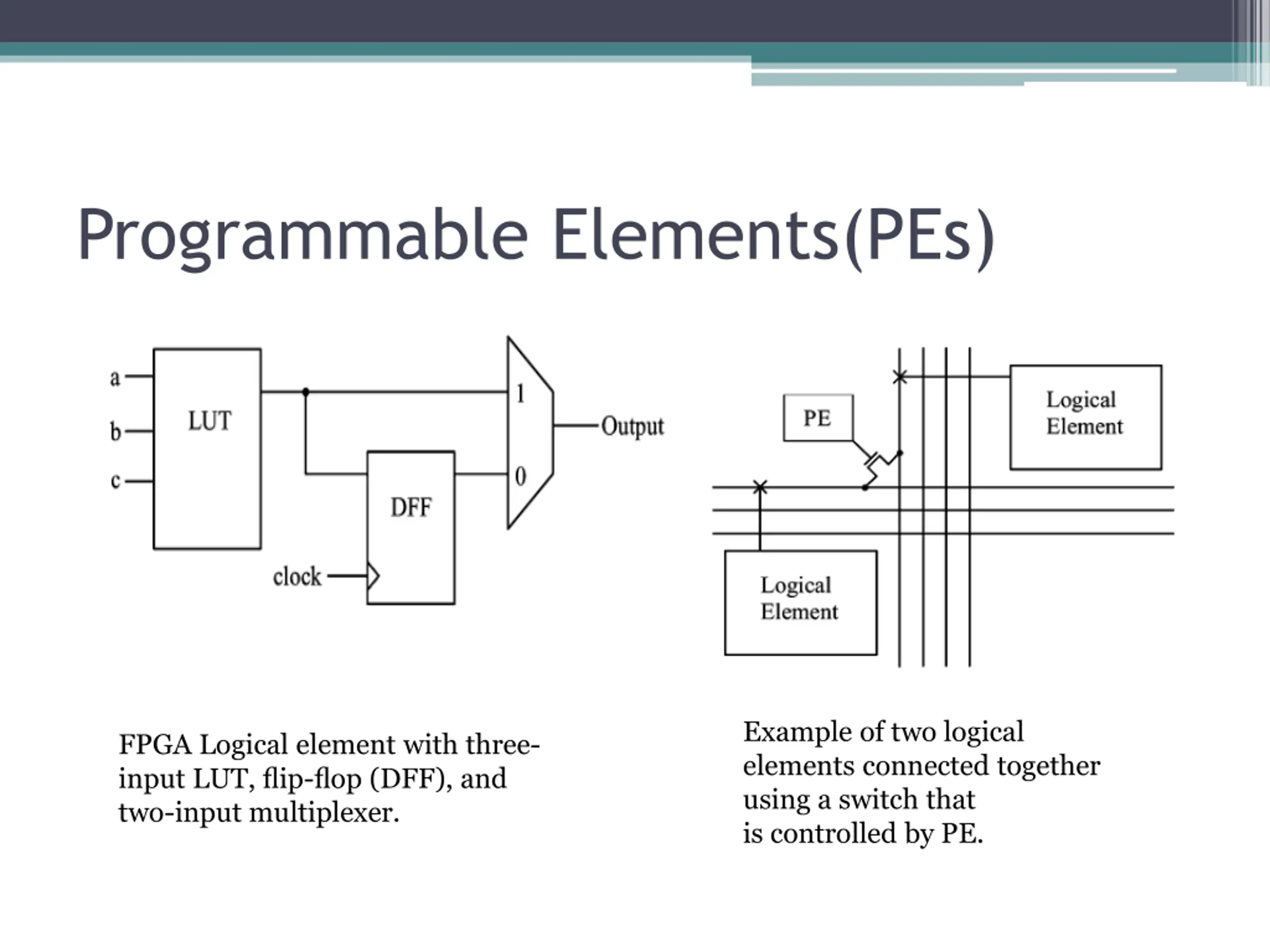

  8. Programmable Elements(PEs) Example of two logical elements connected together using a switch that is controlled by PE. FPGA Logical element with three- input LUT, flip-flop (DFF), and two-input multiplexer.

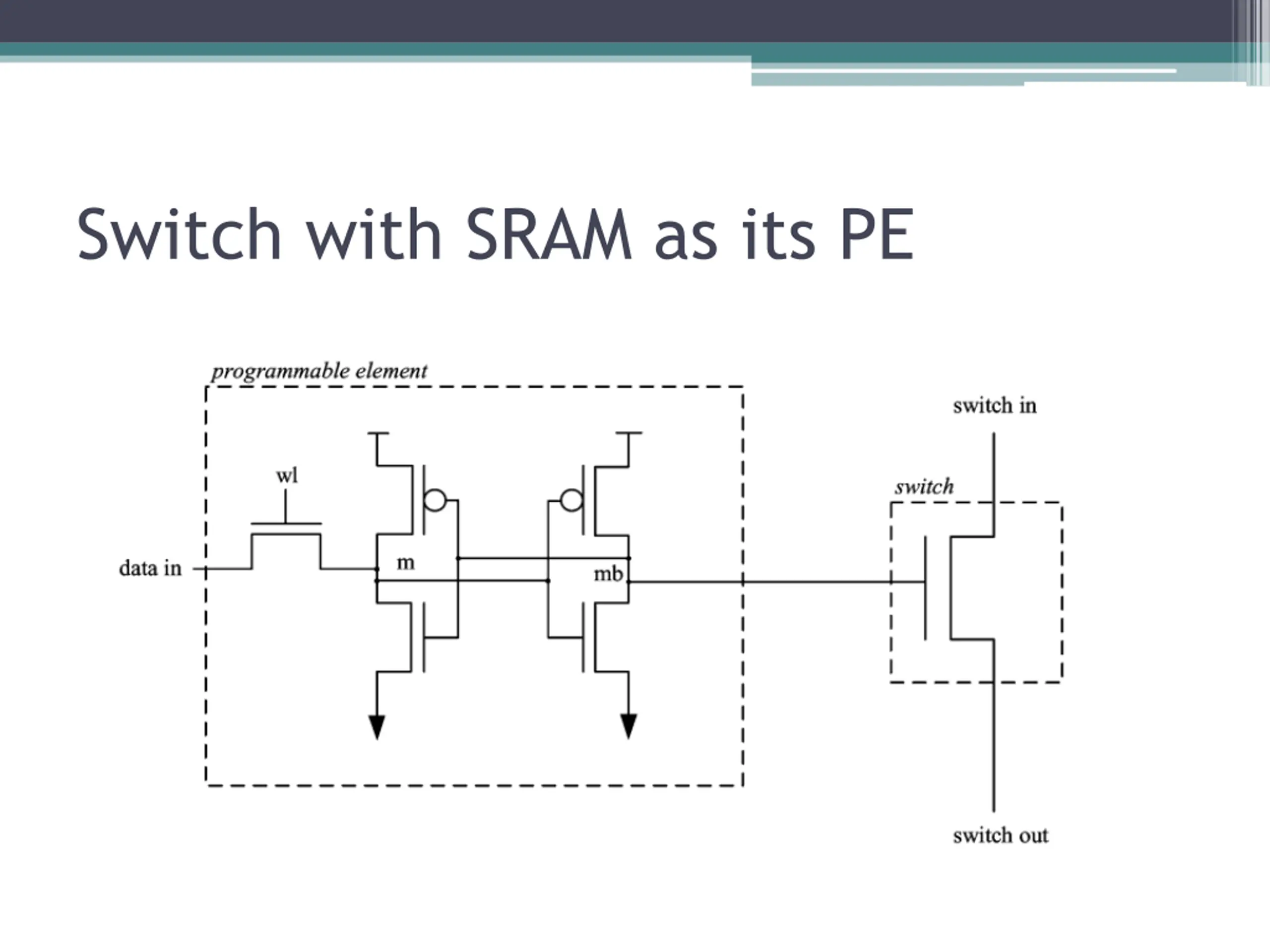

  9. Switch with SRAM as its PE

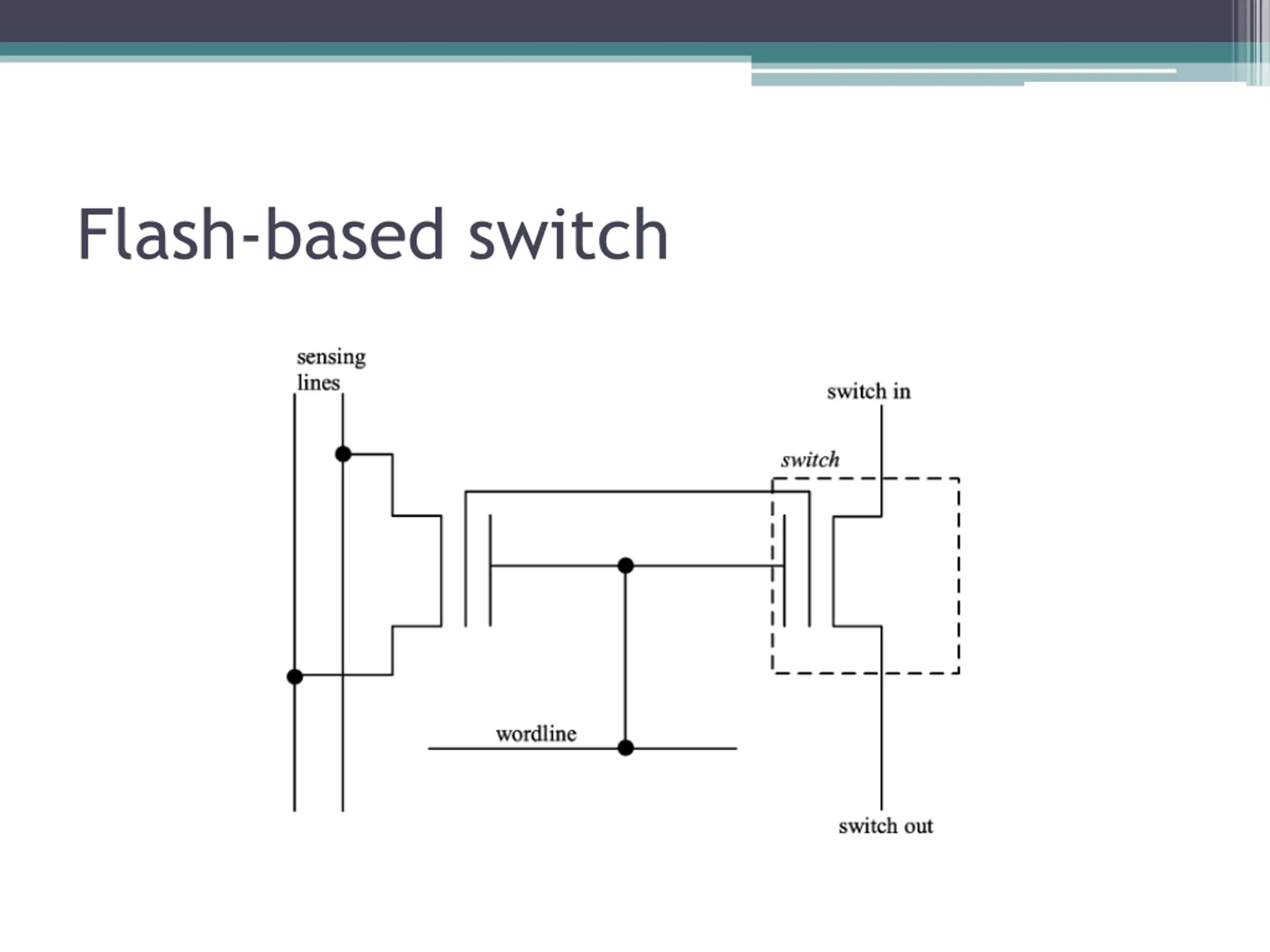

  10. Flash-based switch

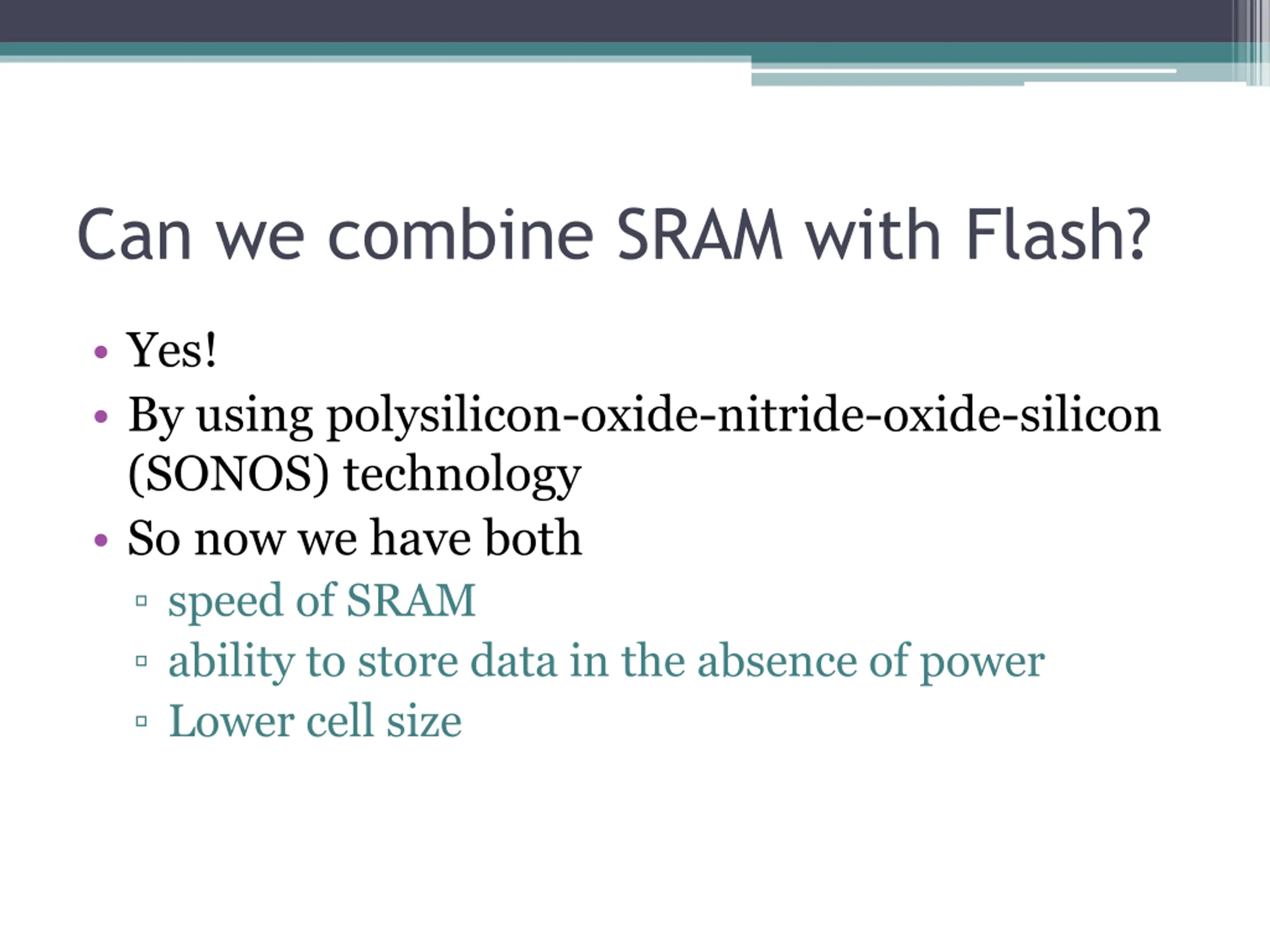

  11. Can we combine SRAM with Flash? Yes! By using polysilicon-oxide-nitride-oxide-silicon (SONOS) technology So now we have both speed of SRAM ability to store data in the absence of power Lower cell size

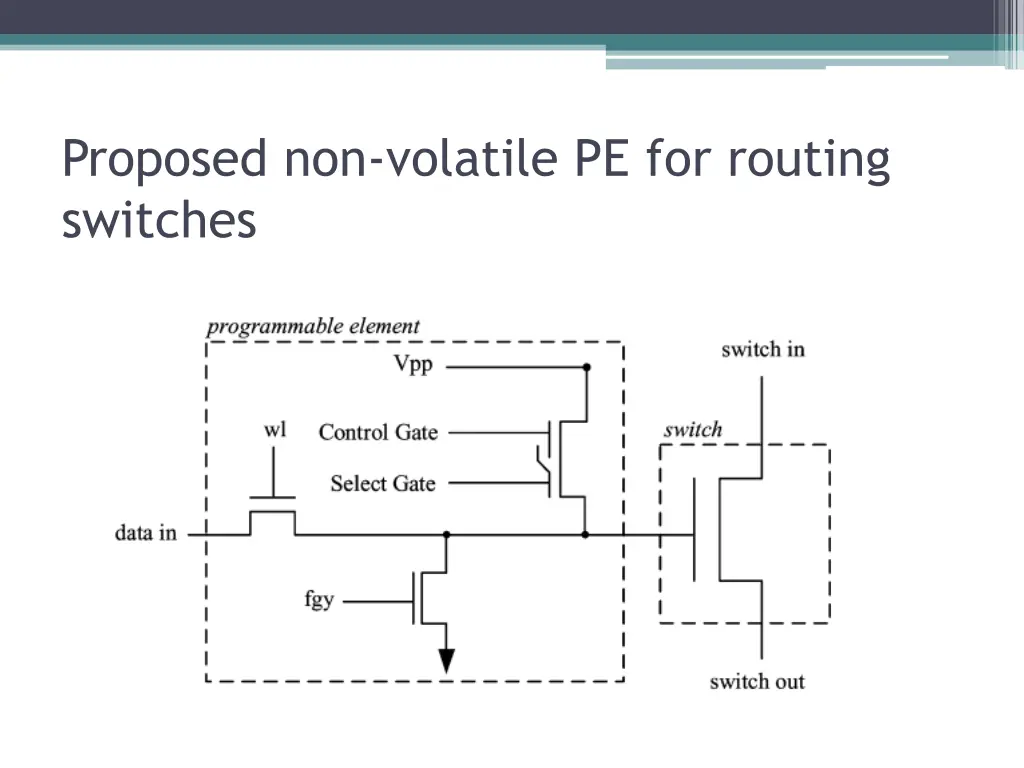

  12. Proposed non-volatile PE for routing switches

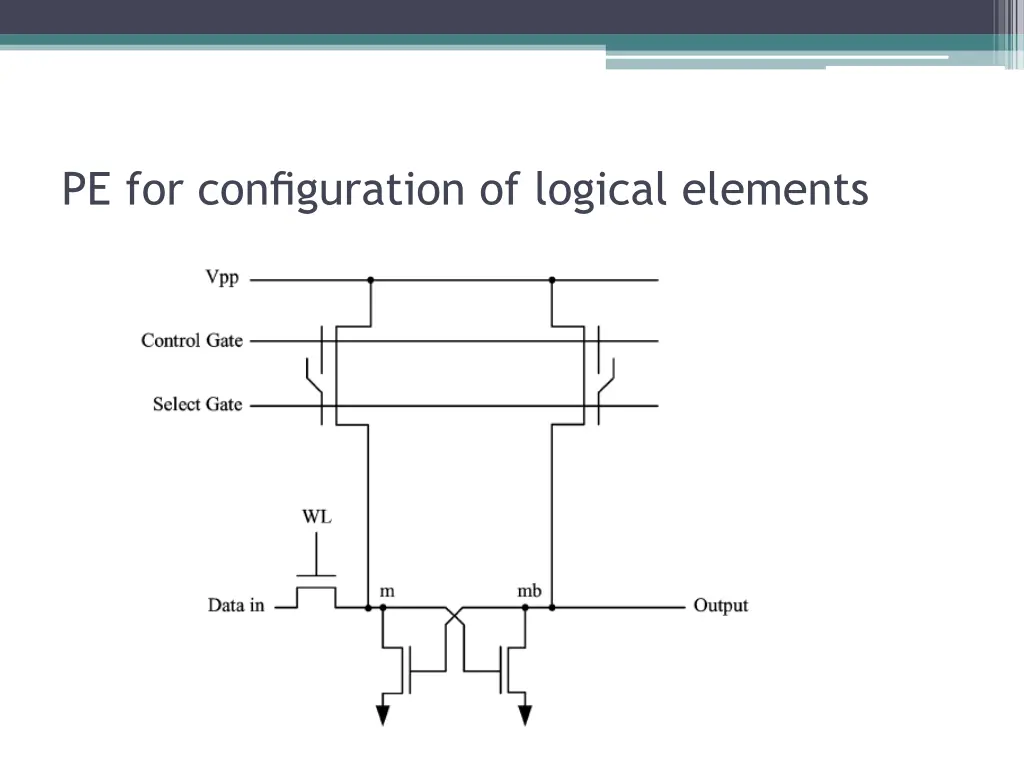

  13. PE for configuration of logical elements

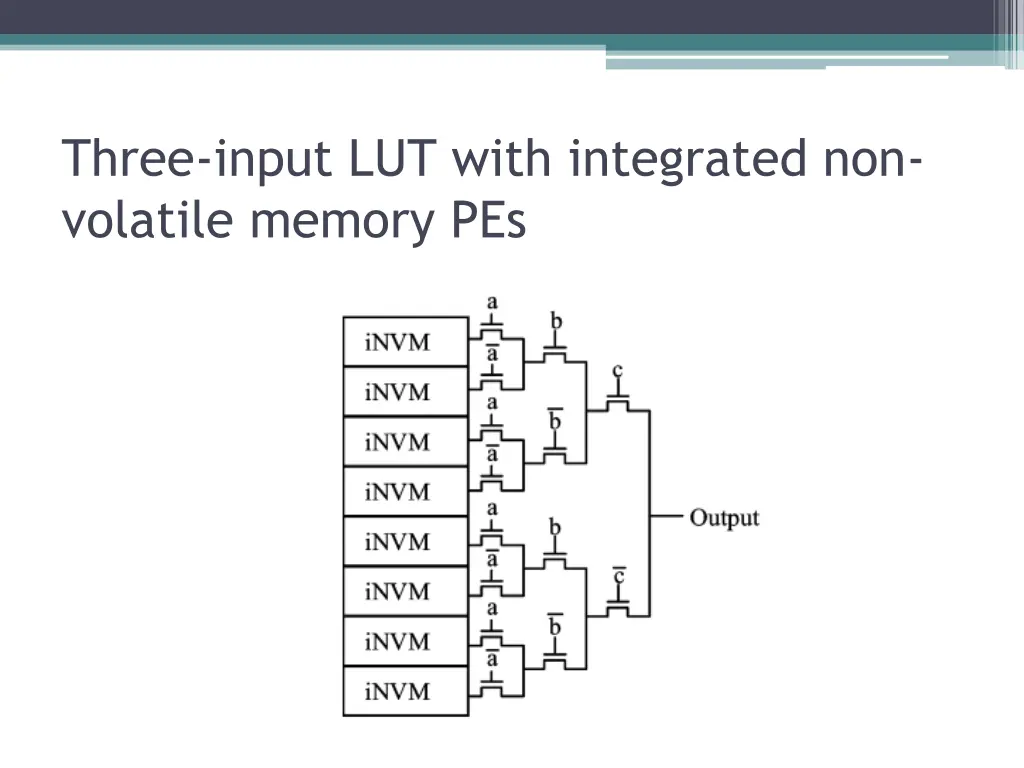

  14. Three-input LUT with integrated non- volatile memory PEs

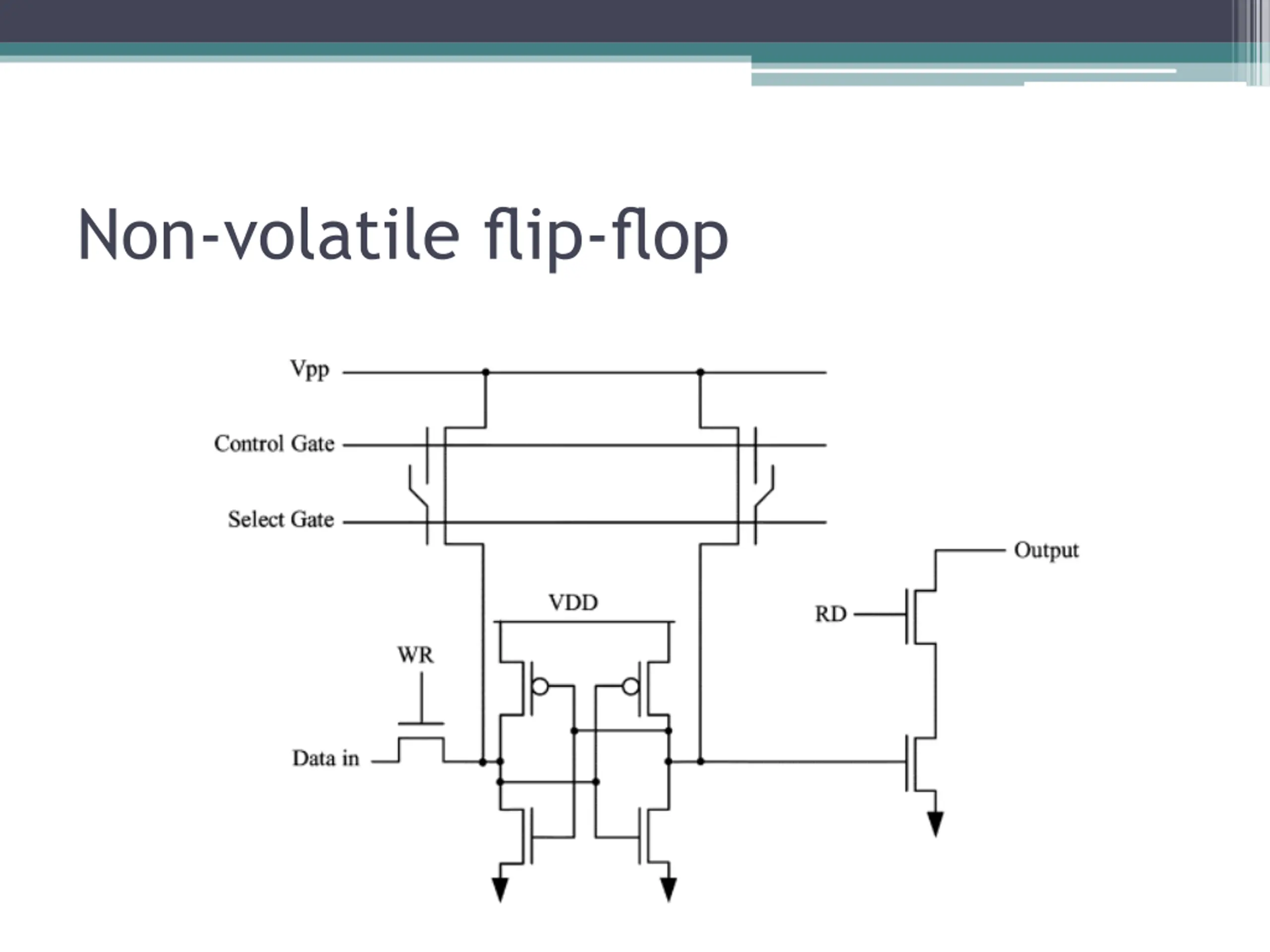

  15. Non-volatile flip-flop

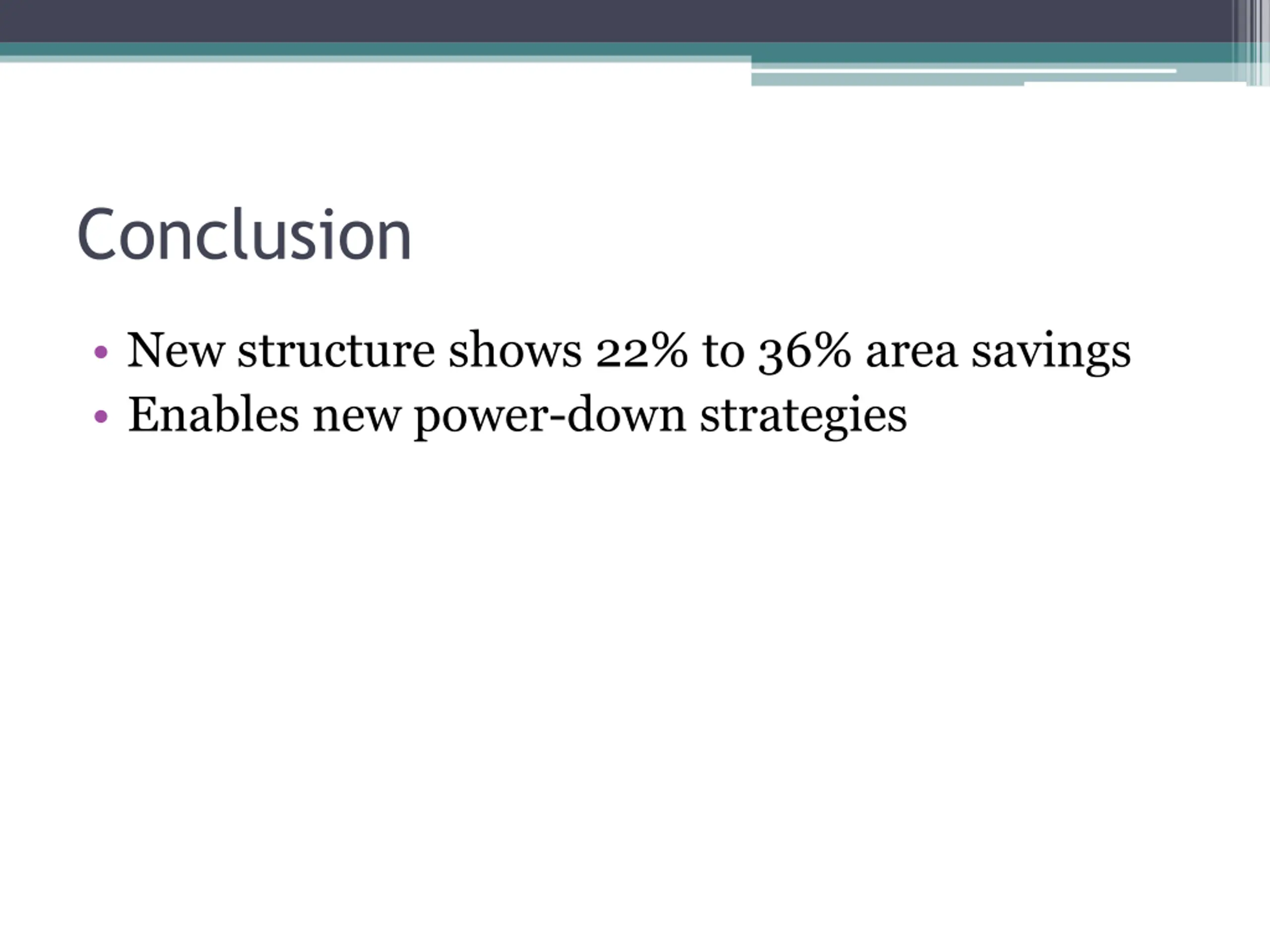

  16. Conclusion New structure shows 22% to 36% area savings Enables new power-down strategies

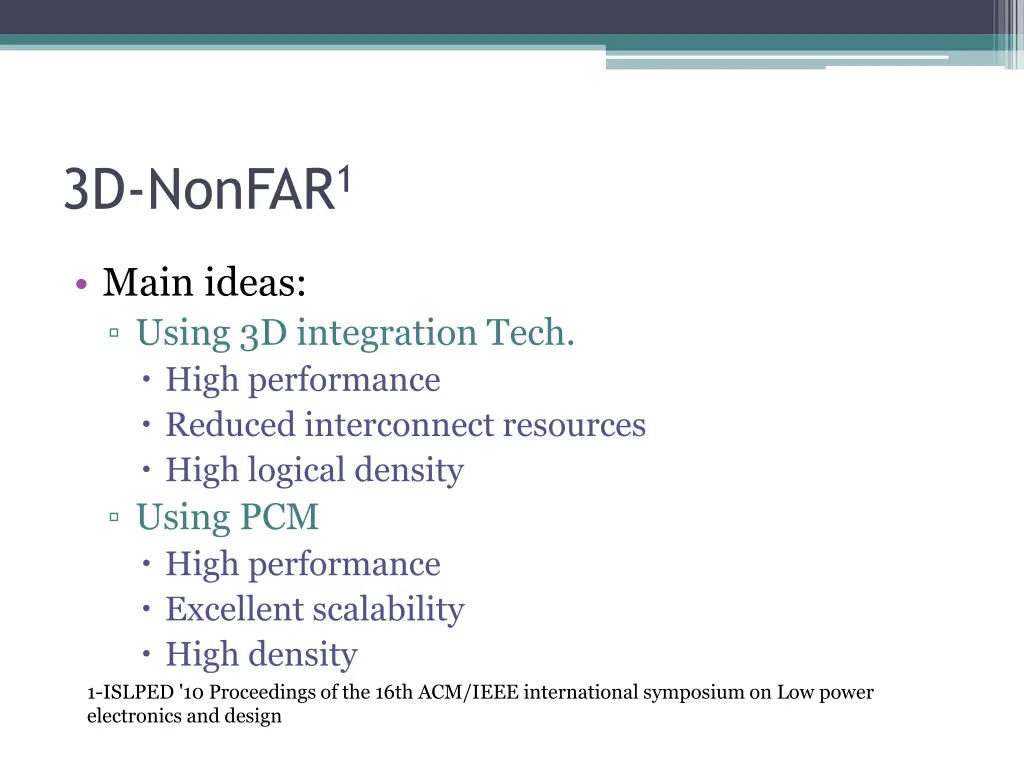

  17. 3D-NonFAR1 Main ideas: Using 3D integration Tech. High performance Reduced interconnect resources High logical density Using PCM High performance Excellent scalability High density 1-ISLPED '10 Proceedings of the 16th ACM/IEEE international symposium on Low power electronics and design

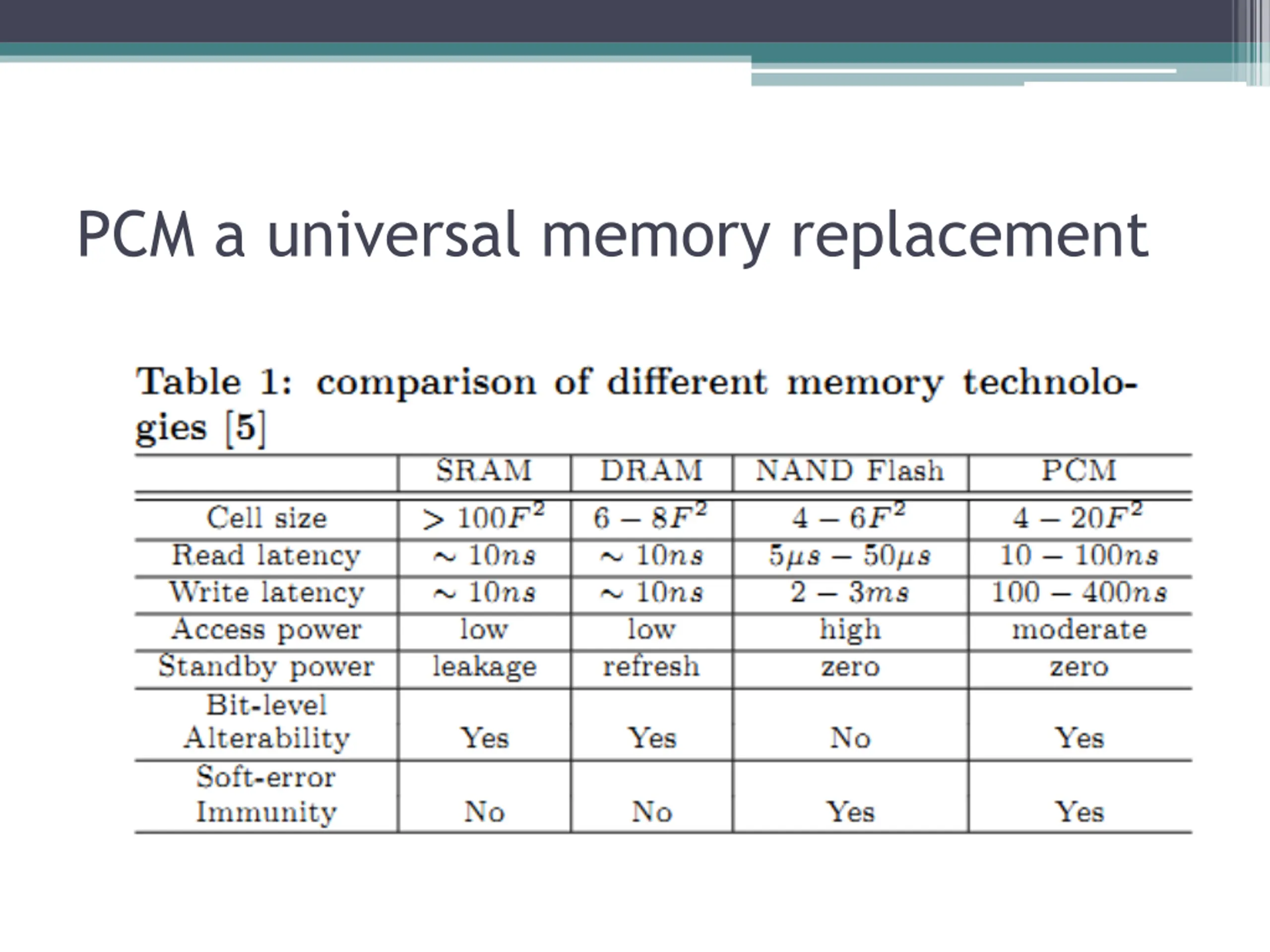

  18. PCM a universal memory replacement

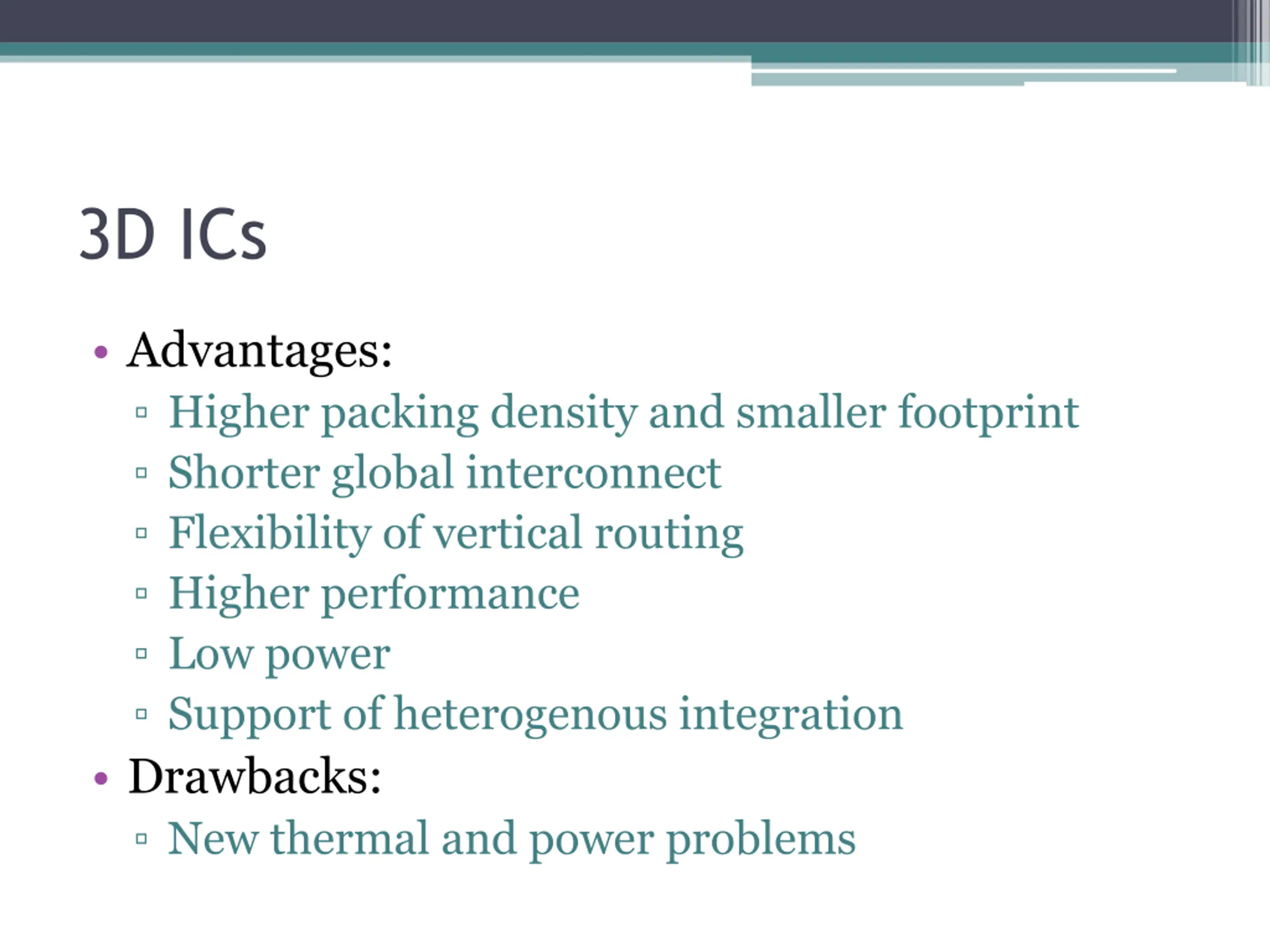

  19. 3D ICs Advantages: Higher packing density and smaller footprint Shorter global interconnect Flexibility of vertical routing Higher performance Low power Support of heterogenous integration Drawbacks: New thermal and power problems

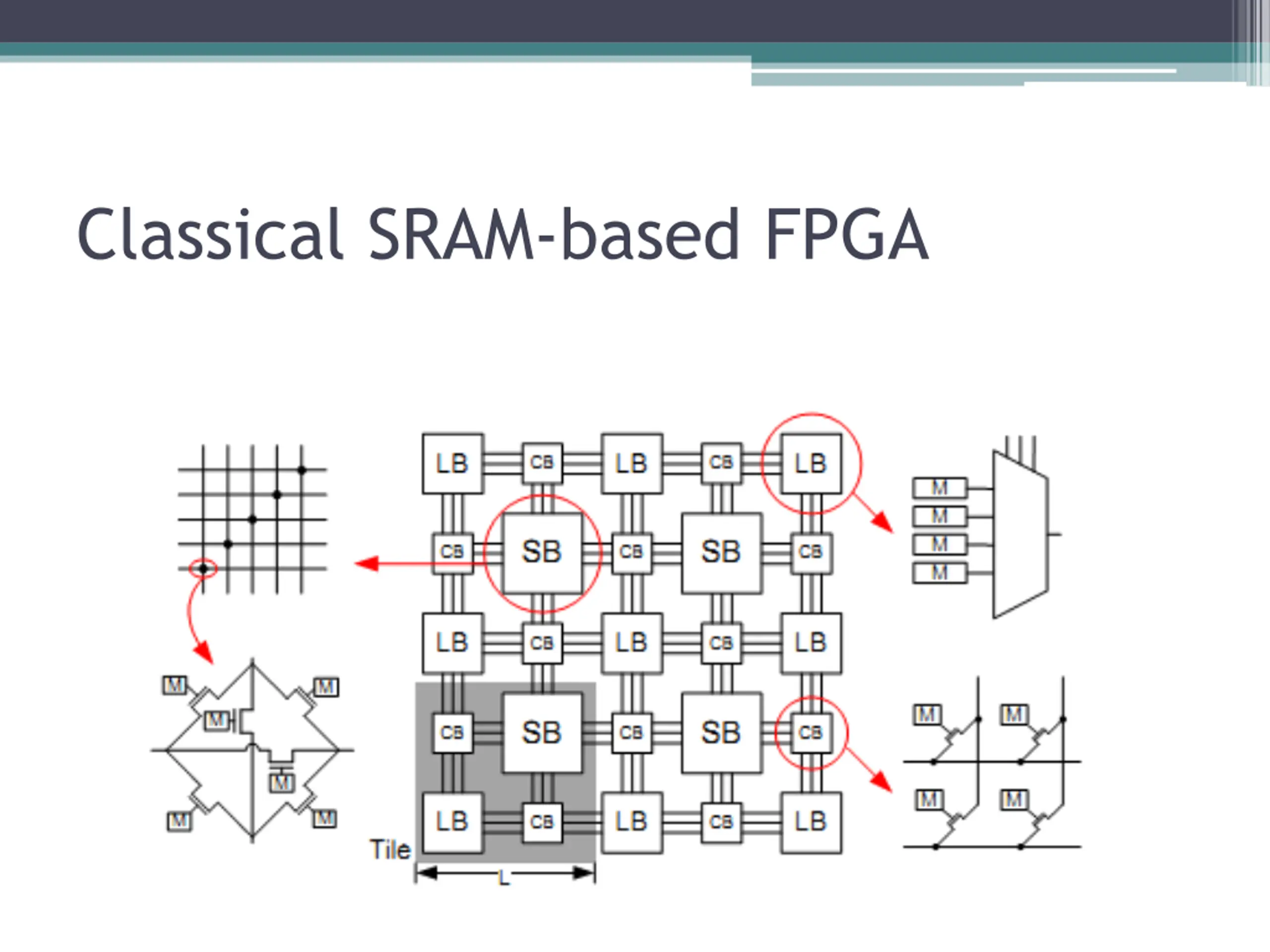

  20. Classical SRAM-based FPGA

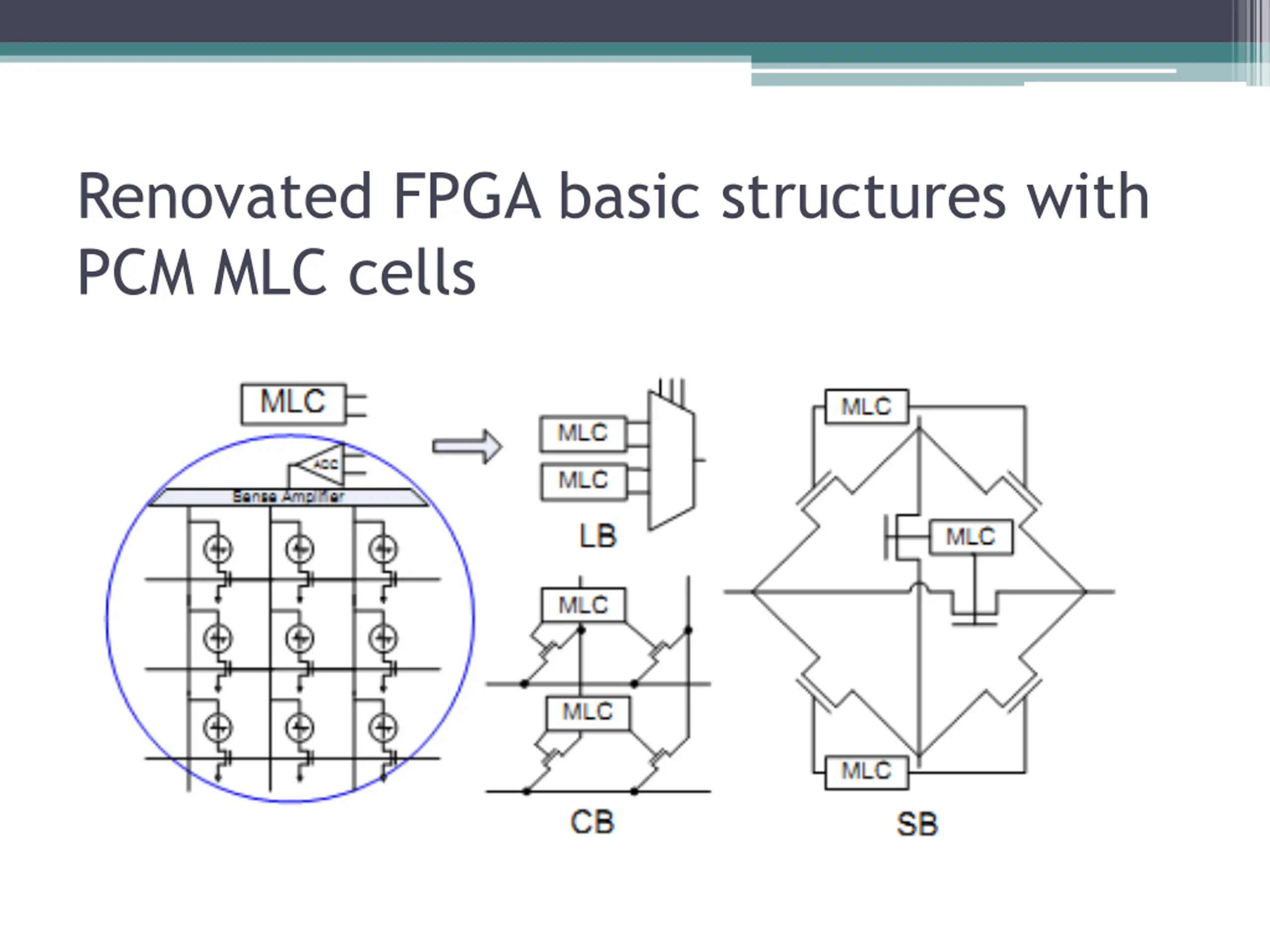

  21. Renovated FPGA basic structures with PCM MLC cells

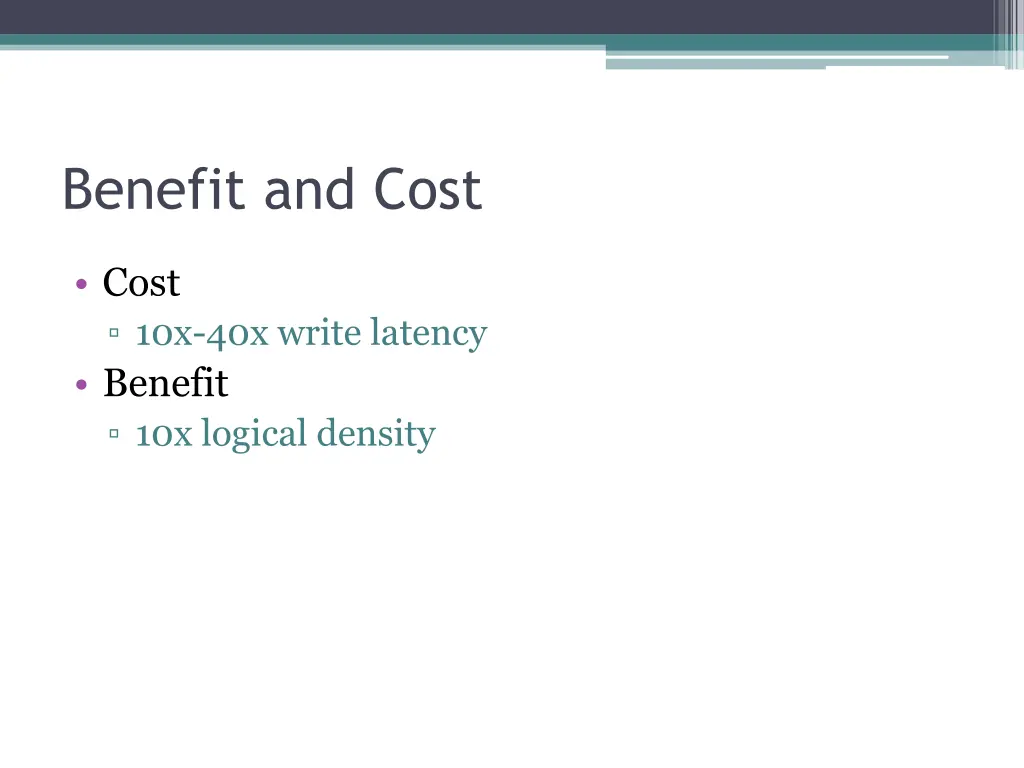

  22. Benefit and Cost Cost 10x-40x write latency Benefit 10x logical density

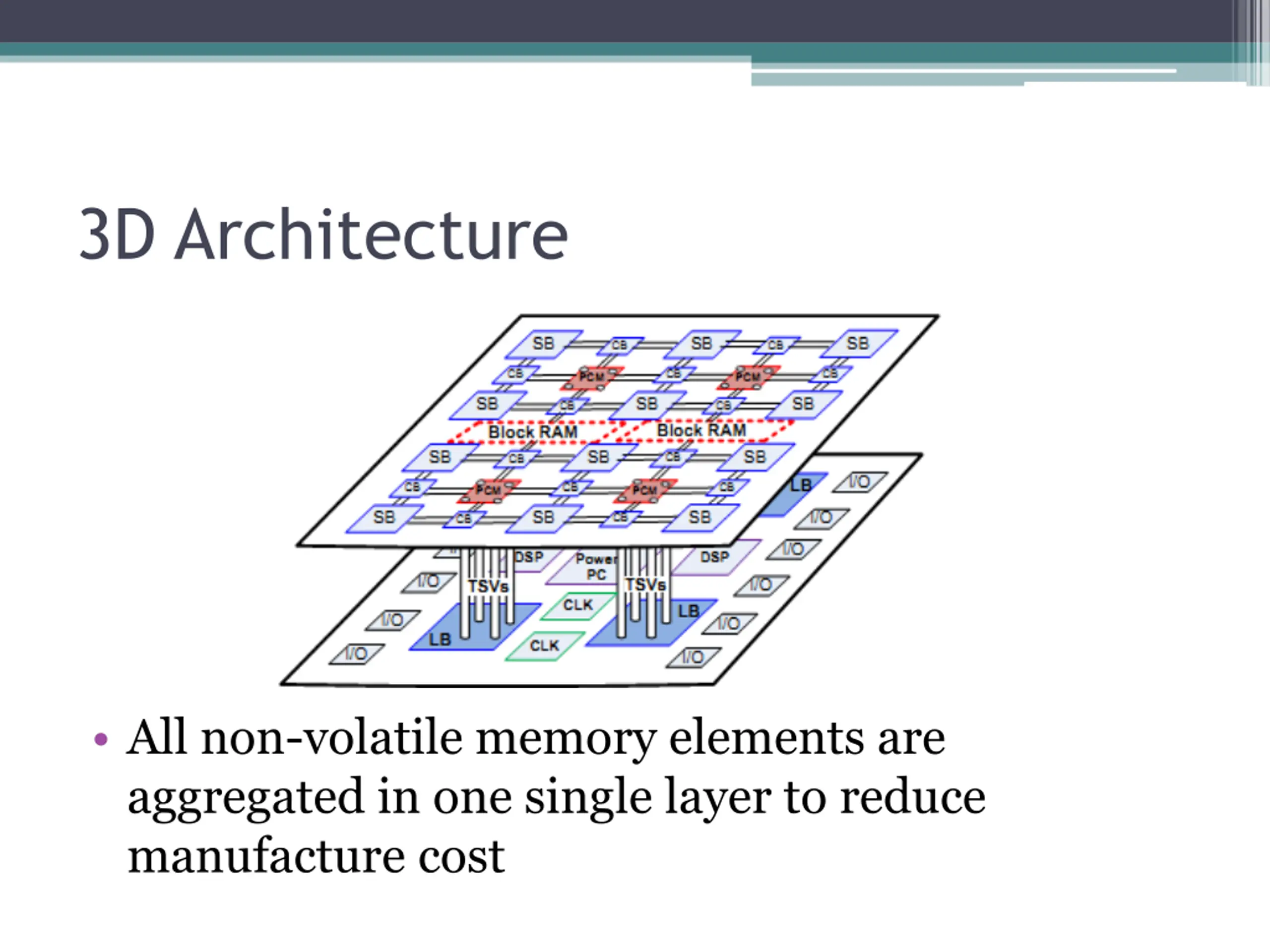

  23. 3D Architecture All non-volatile memory elements are aggregated in one single layer to reduce manufacture cost

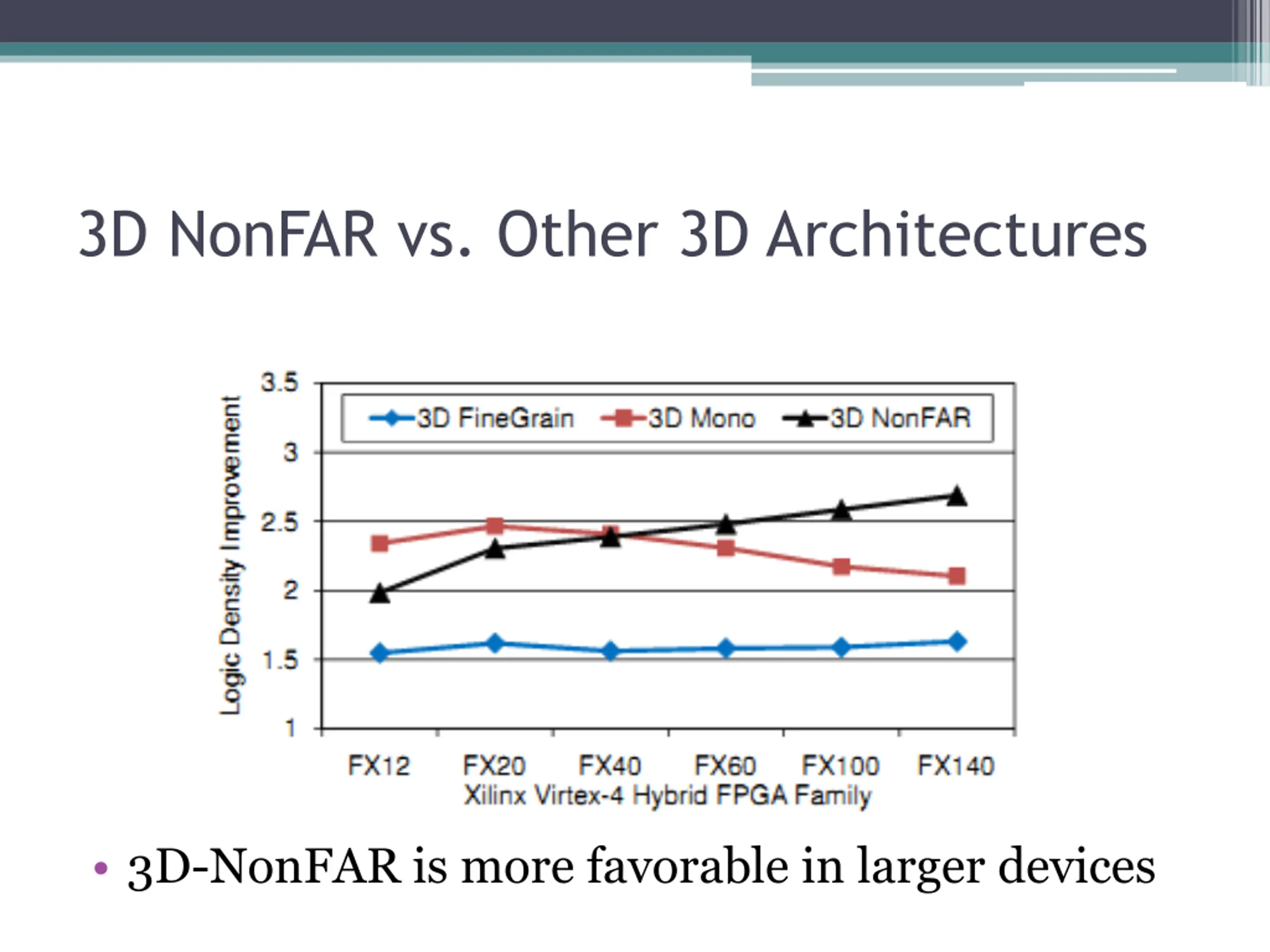

  24. 3D NonFAR vs. Other 3D Architectures 3D-NonFAR is more favorable in larger devices

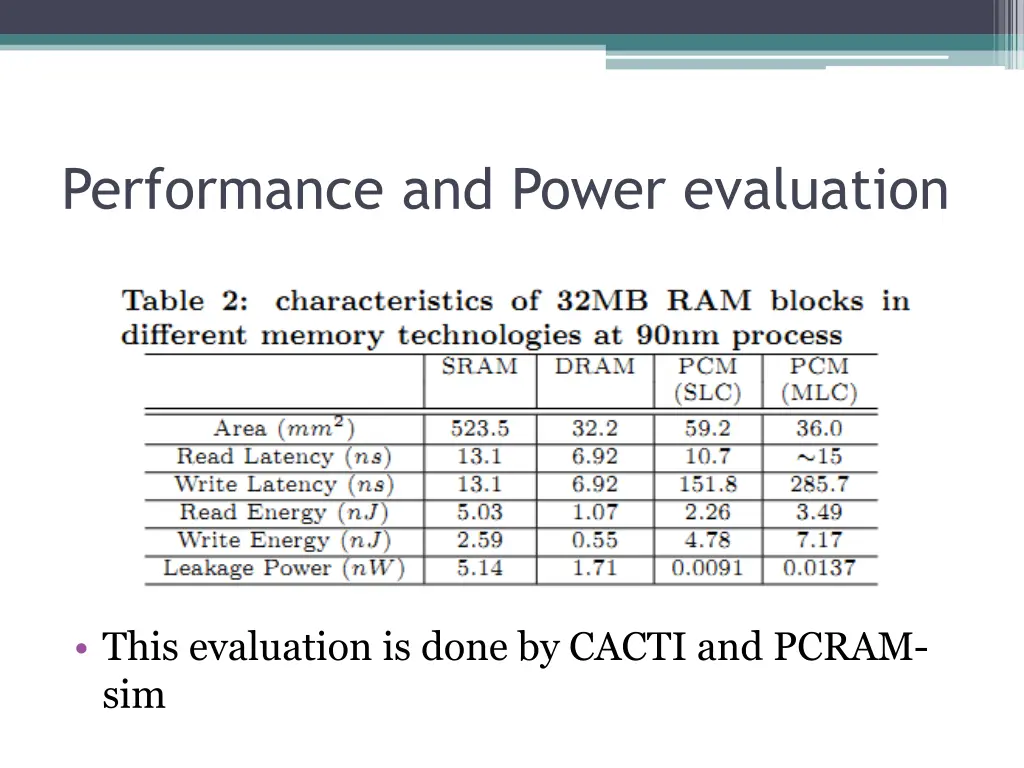

  25. Performance and Power evaluation This evaluation is done by CACTI and PCRAM- sim

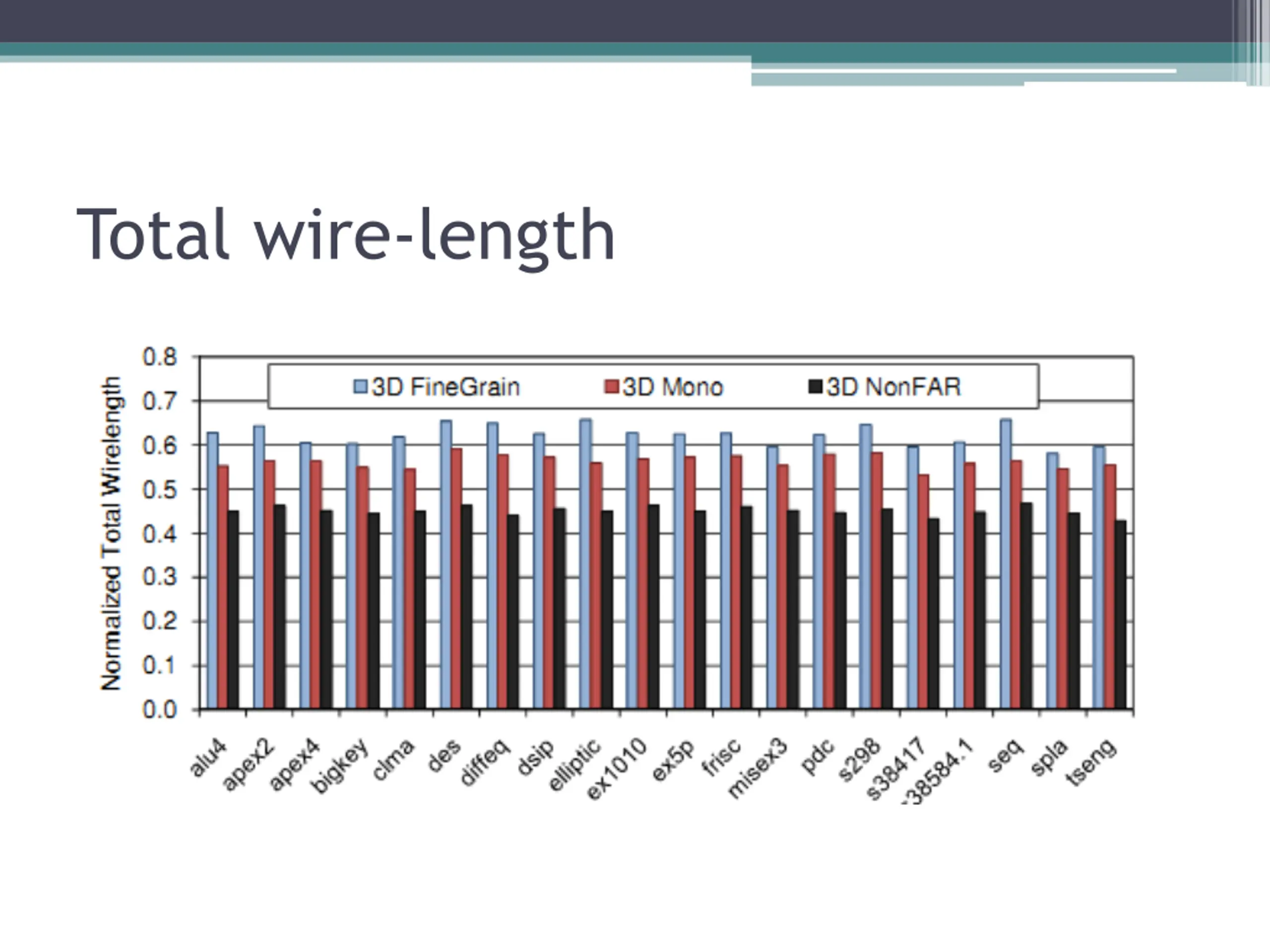

  26. Total wire-length

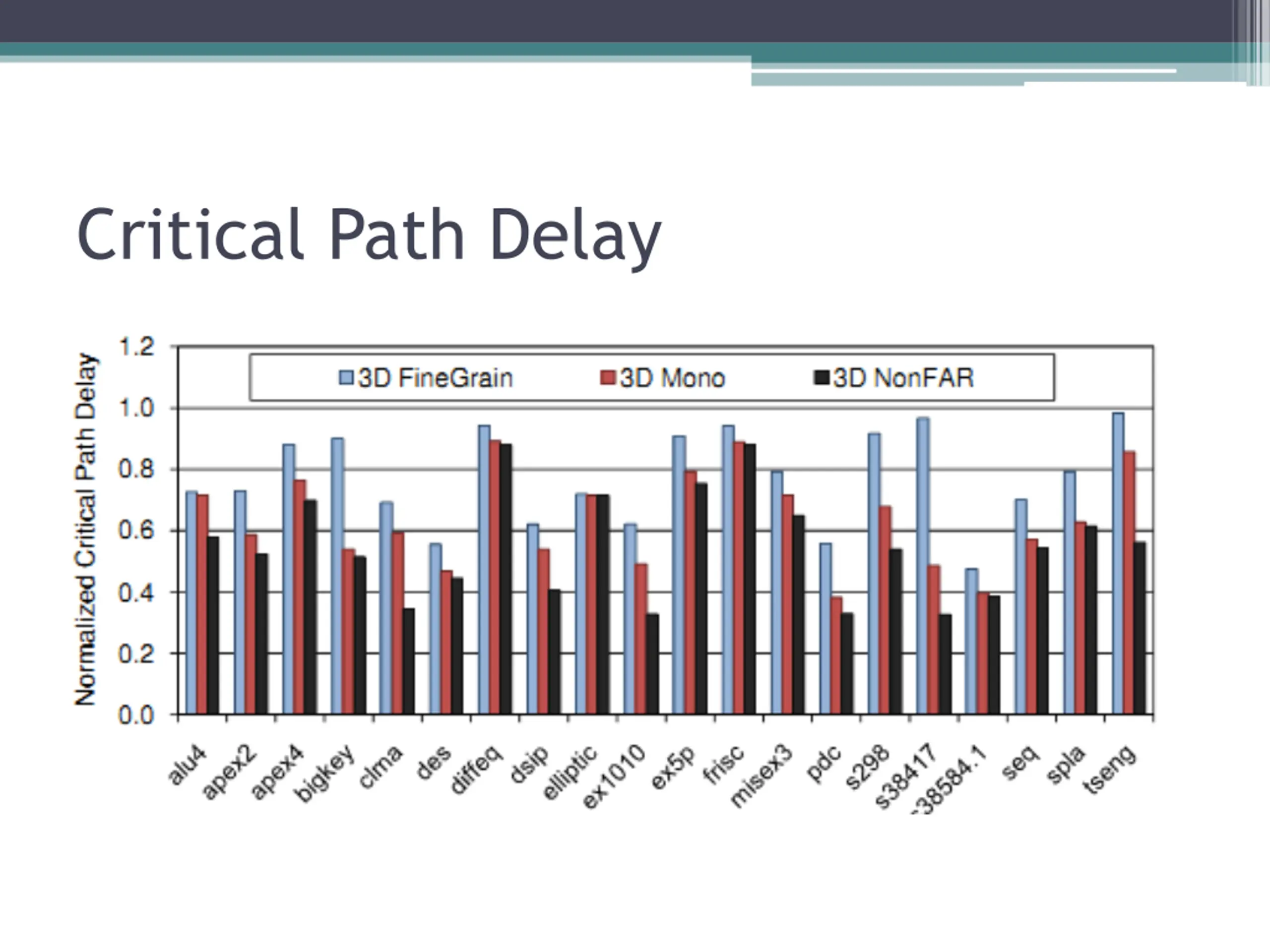

  27. Critical Path Delay

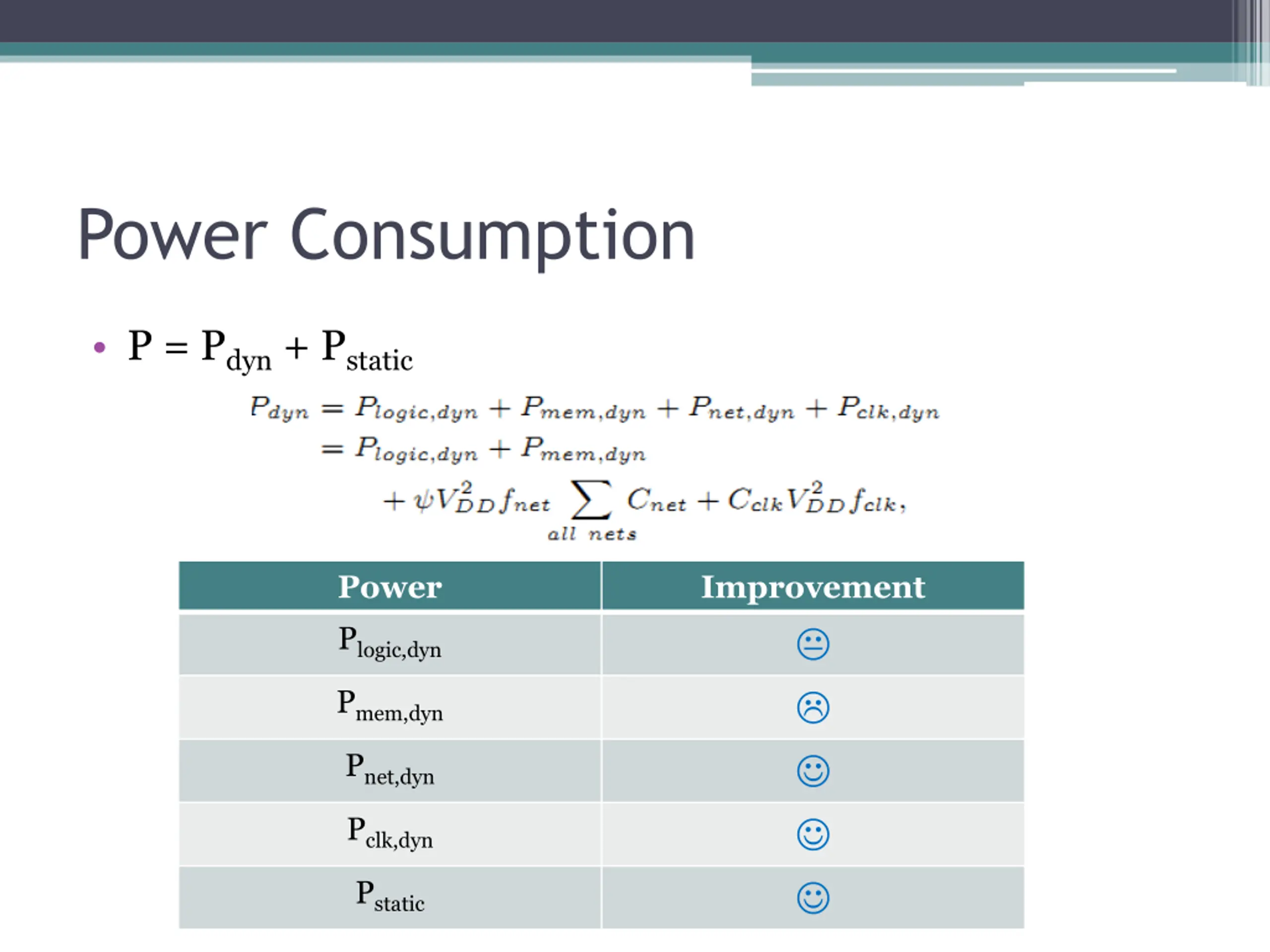

  28. Power Consumption P = Pdyn + Pstatic Power Plogic,dyn Improvement Pmem,dyn Pnet,dyn Pclk,dyn Pstatic

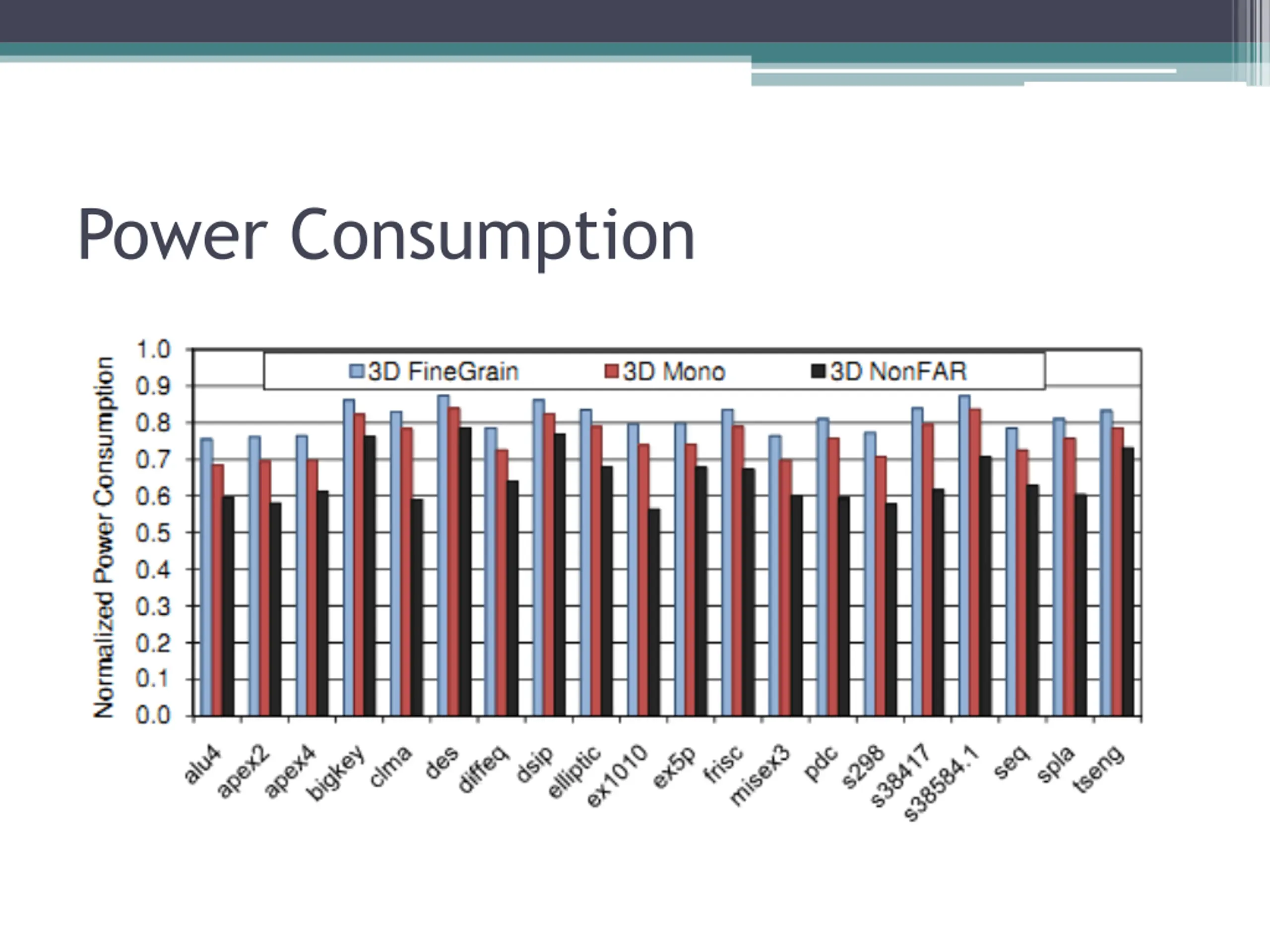

  29. Power Consumption

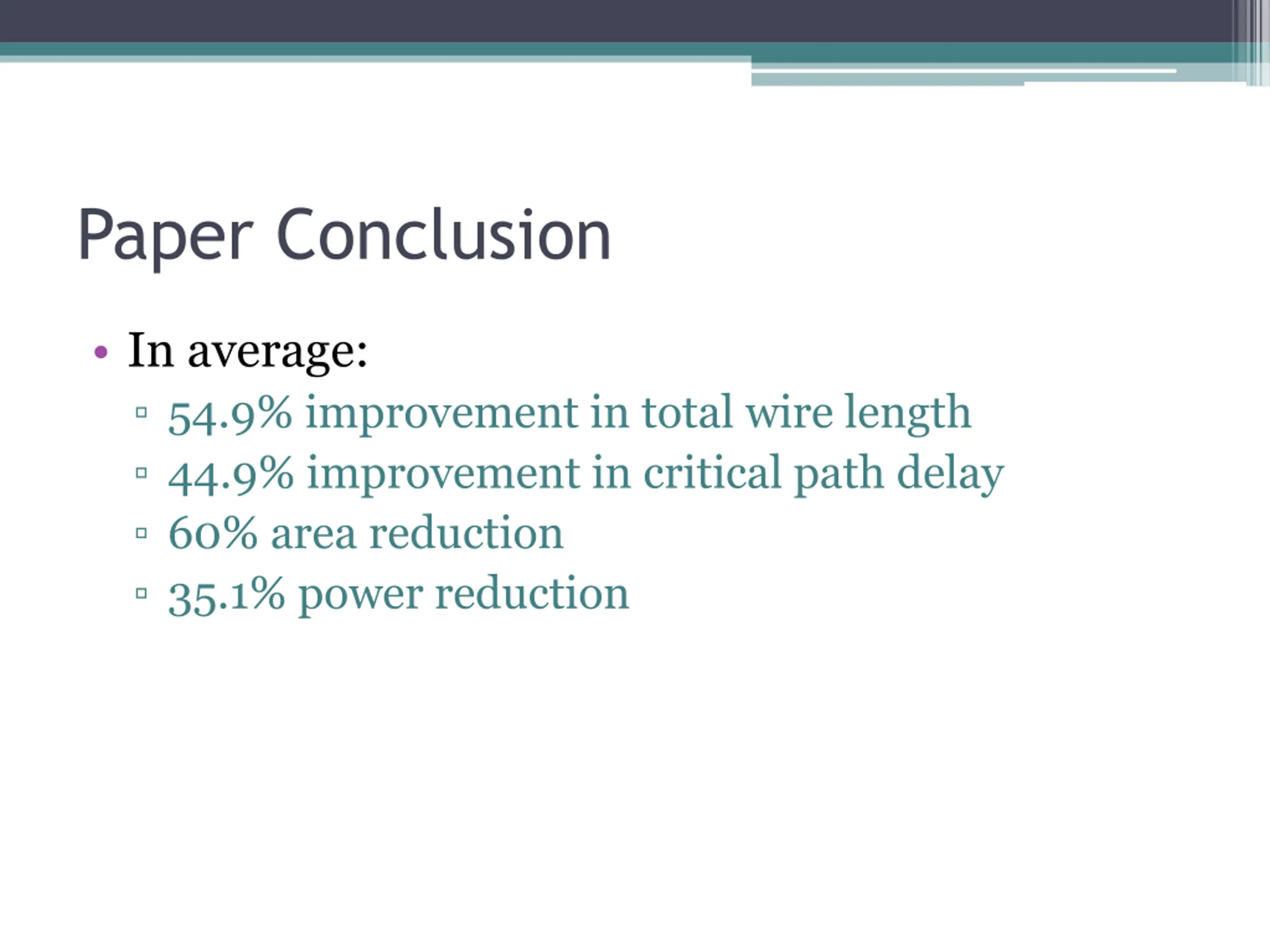

  30. Paper Conclusion In average: 54.9% improvement in total wire length 44.9% improvement in critical path delay 60% area reduction 35.1% power reduction

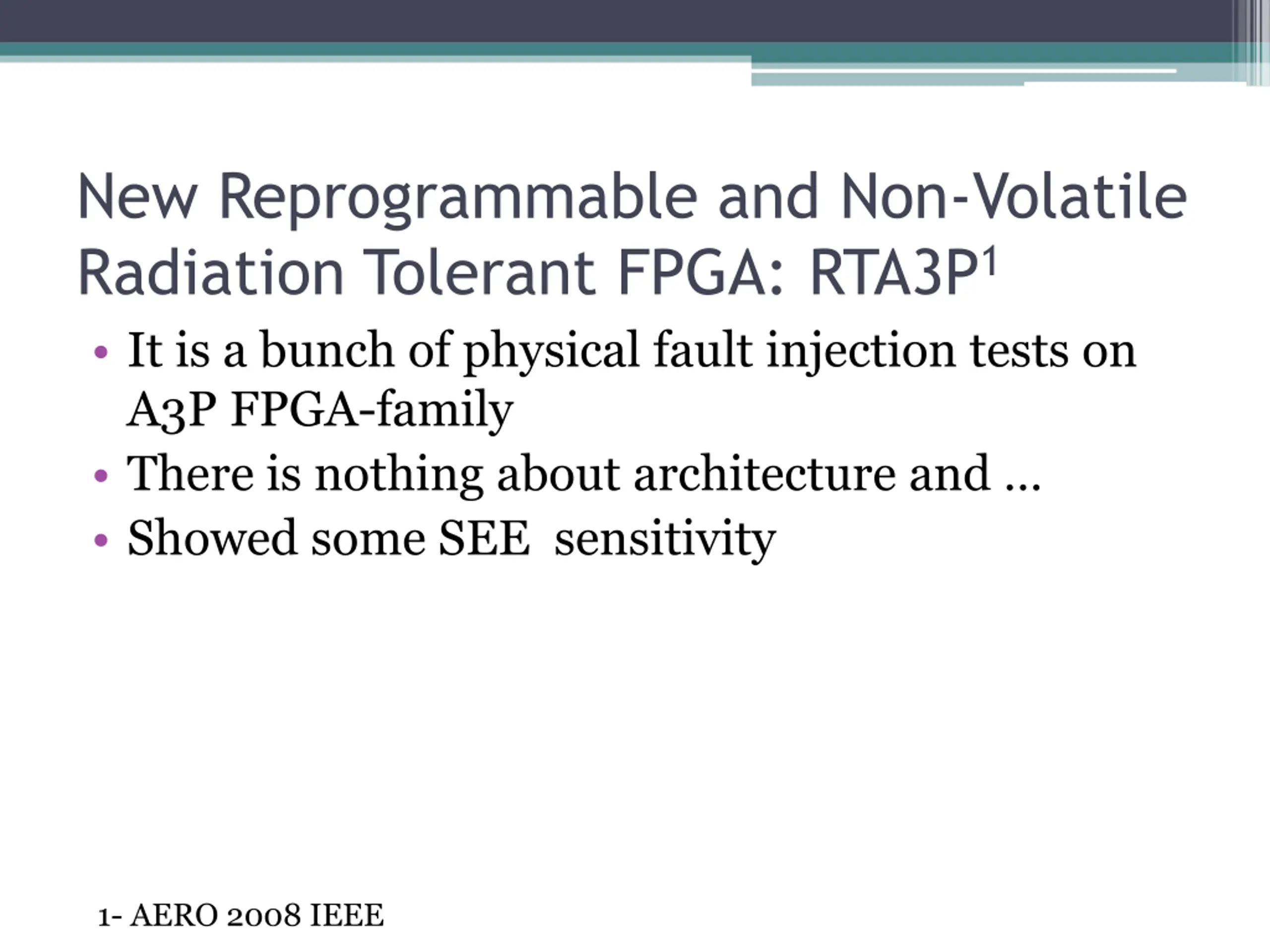

  31. New Reprogrammable and Non-Volatile Radiation Tolerant FPGA: RTA3P1 It is a bunch of physical fault injection tests on A3P FPGA-family There is nothing about architecture and Showed some SEE sensitivity 1- AERO 2008 IEEE

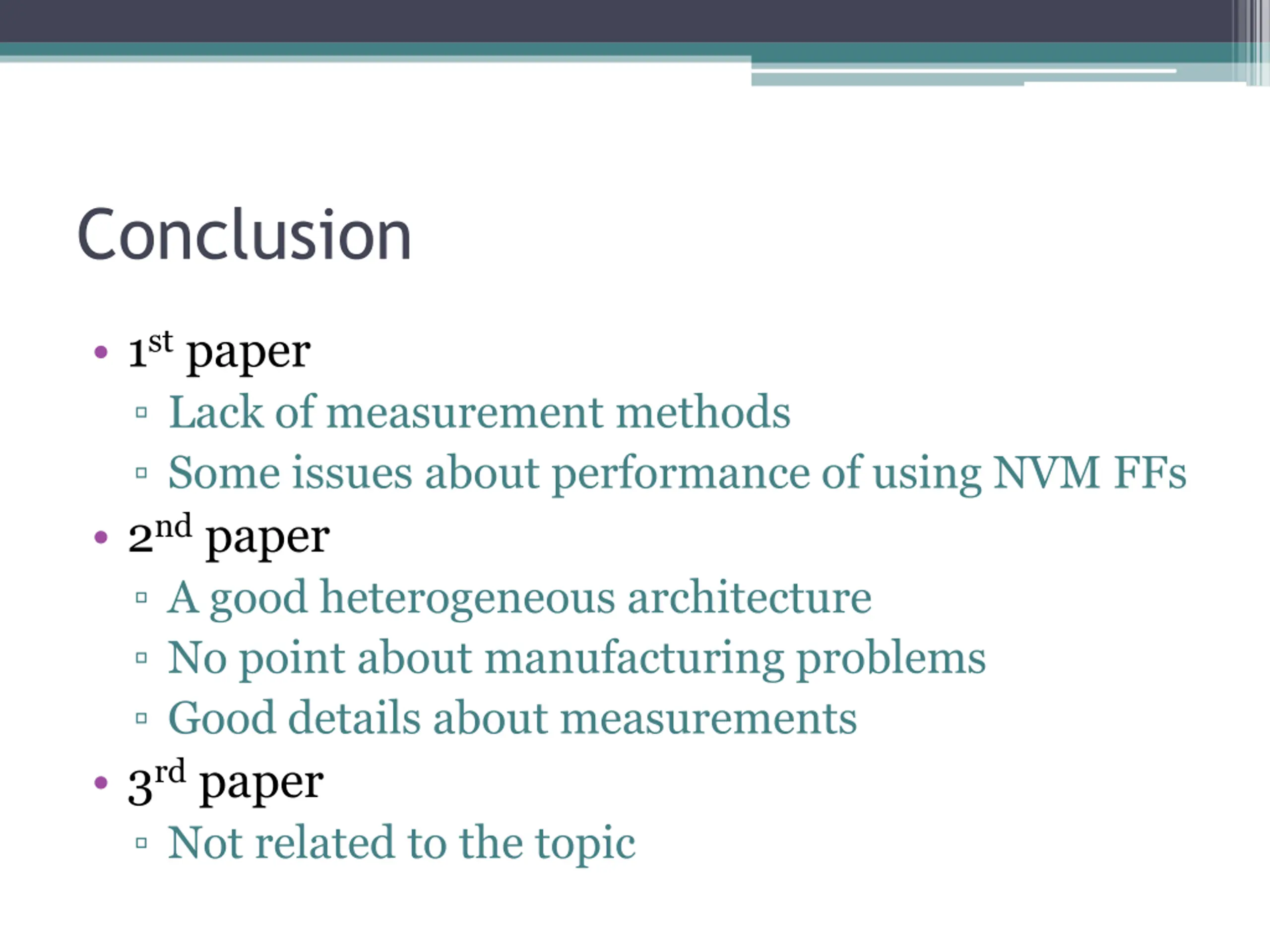

  32. Conclusion 1st paper Lack of measurement methods Some issues about performance of using NVM FFs 2nd paper A good heterogeneous architecture No point about manufacturing problems Good details about measurements 3rd paper Not related to the topic
