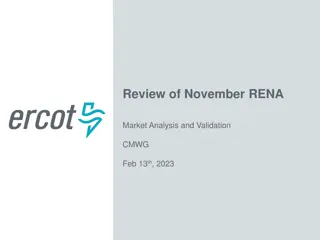

Review of November RENA Market Analysis and Validation CMWG Feb 13th, 2023

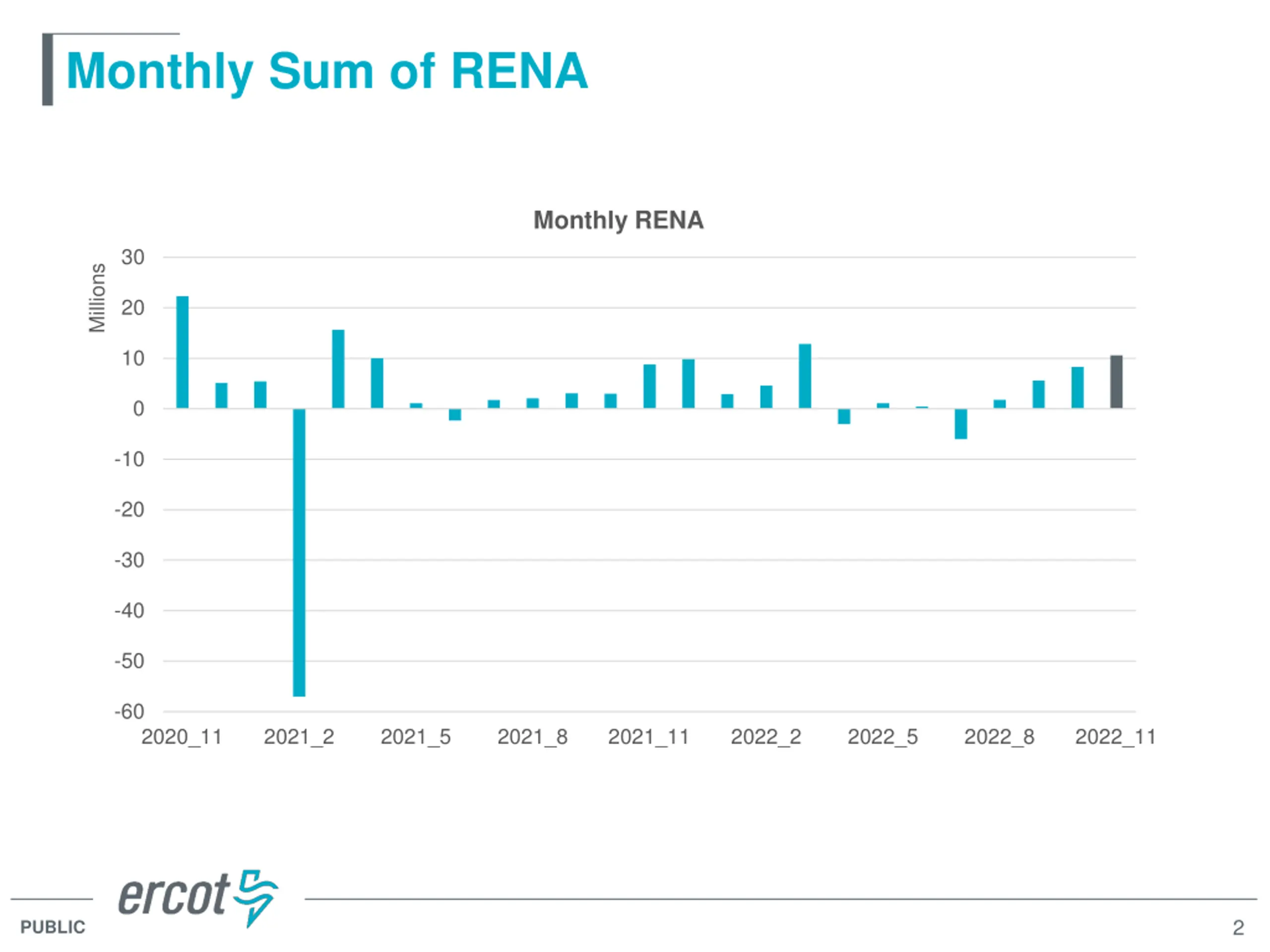

Monthly Sum of RENA Monthly RENA 30 Millions 20 10 0 -10 -20 -30 -40 -50 -60 2020_11 2021_2 2021_5 2021_8 2021_11 2022_2 2022_5 2022_8 2022_11 2 PUBLIC

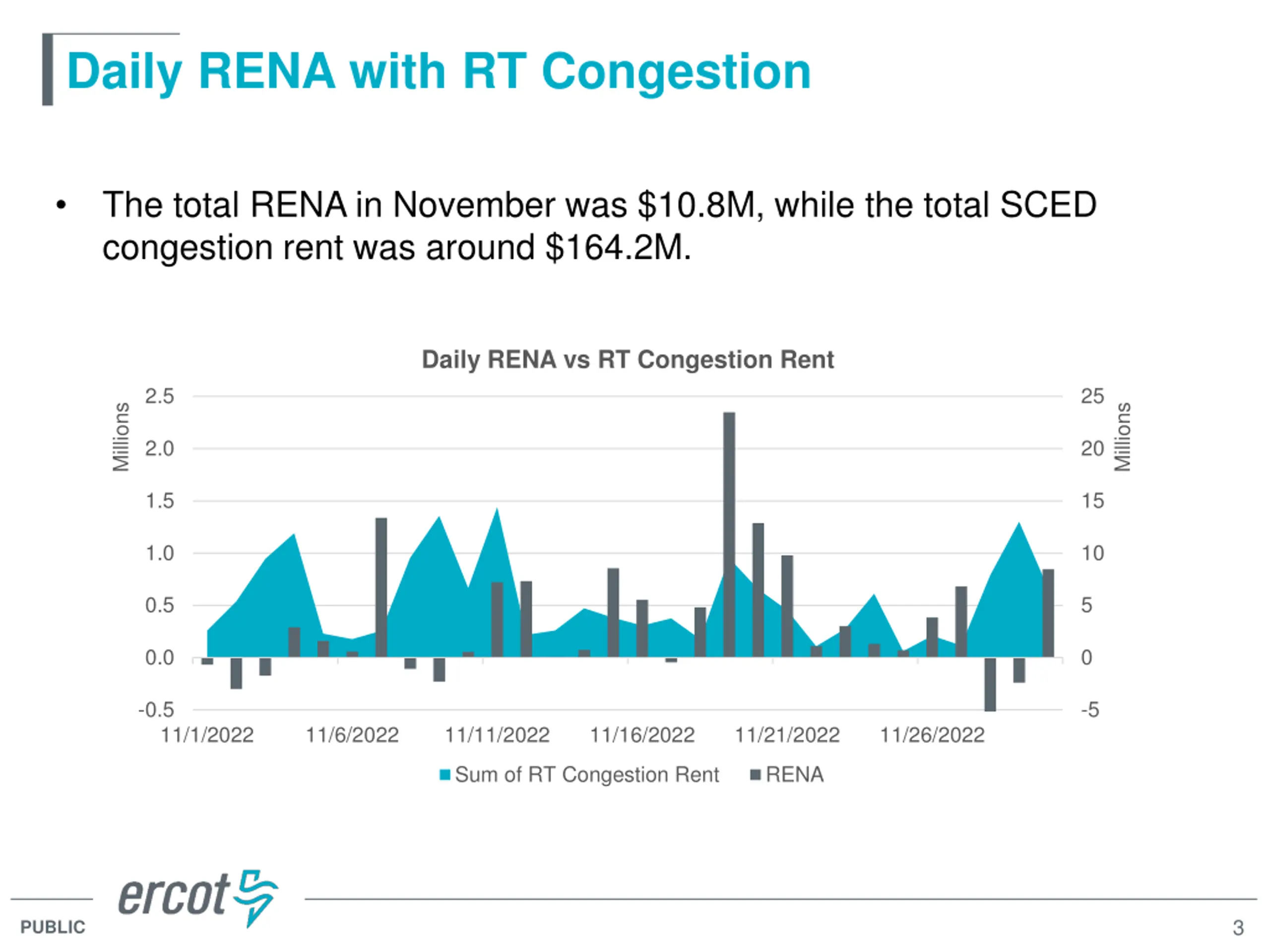

Daily RENA with RT Congestion The total RENA in November was $10.8M, while the total SCED congestion rent was around $164.2M. Daily RENA vs RT Congestion Rent 2.5 25 Millions Millions 2.0 20 1.5 15 1.0 10 0.5 5 0.0 0 -0.5 -5 11/1/2022 11/6/2022 11/11/2022 11/16/2022 11/21/2022 11/26/2022 Sum of RT Congestion Rent RENA 3 PUBLIC

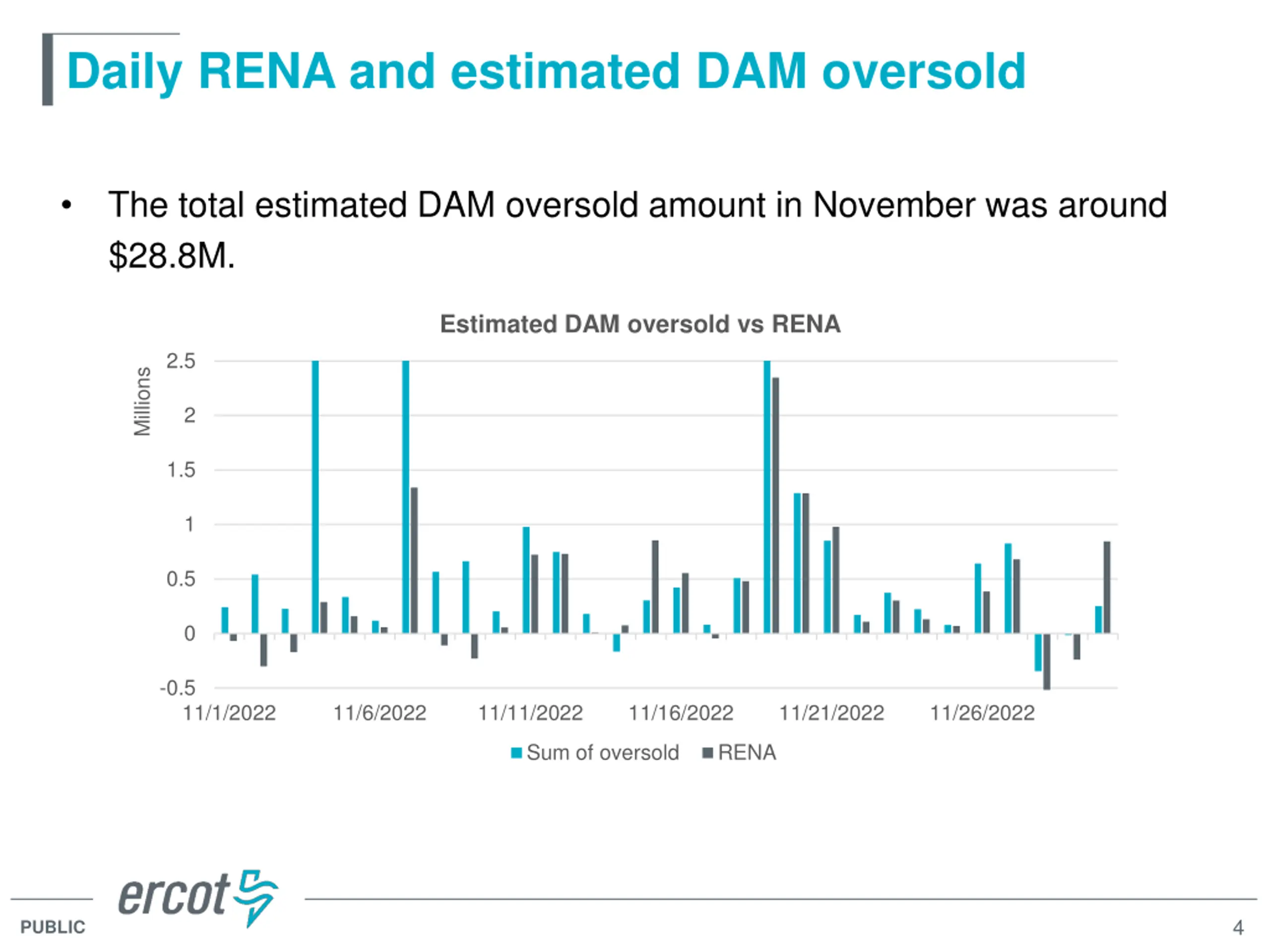

Daily RENA and estimated DAM oversold The total estimated DAM oversold amount in November was around $28.8M. Estimated DAM oversold vs RENA 2.5 Millions 2 1.5 1 0.5 0 -0.5 11/1/2022 11/6/2022 11/11/2022 11/16/2022 11/21/2022 11/26/2022 Sum of oversold RENA 4 PUBLIC

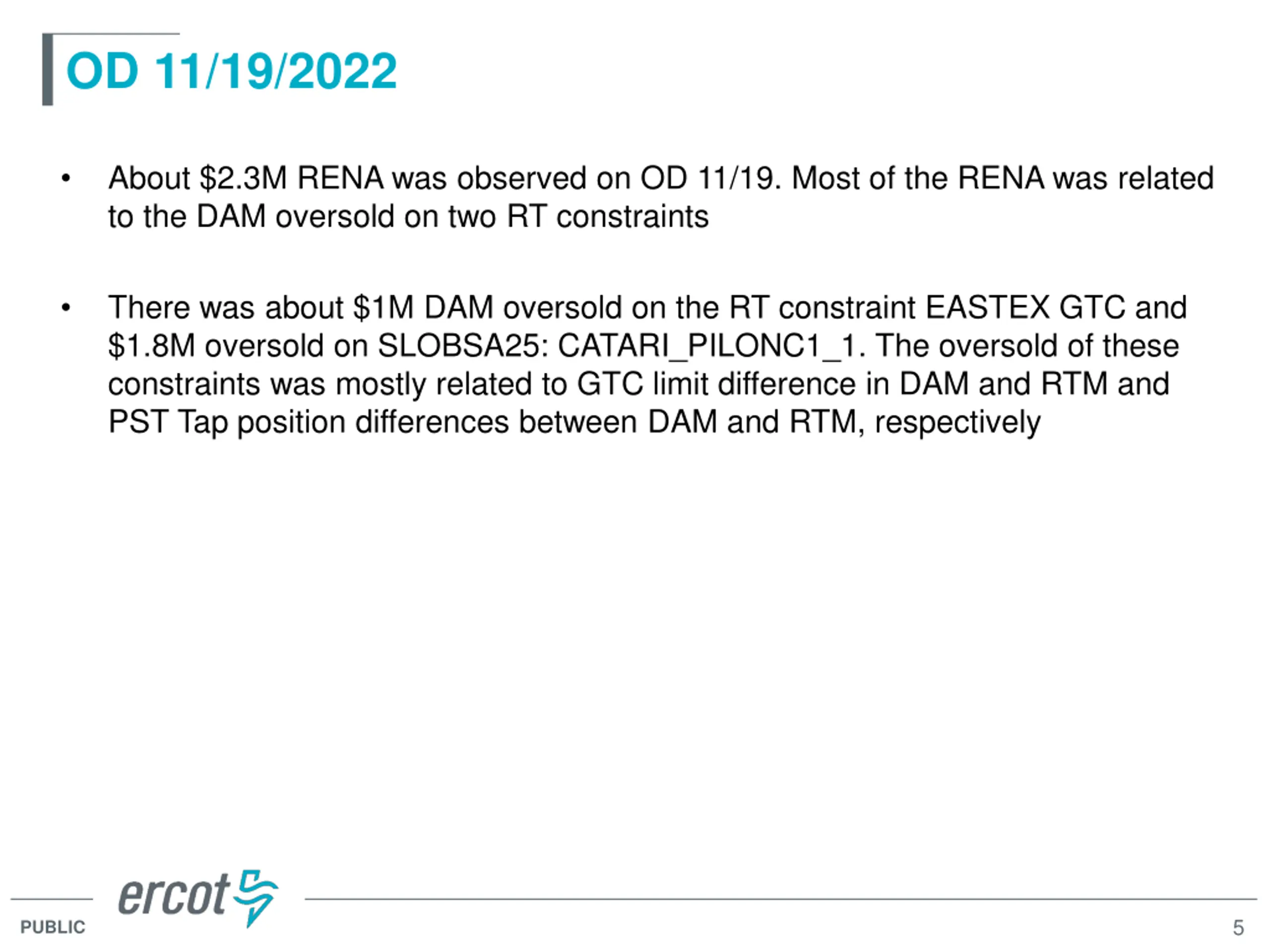

OD 11/19/2022 About $2.3M RENA was observed on OD 11/19. Most of the RENA was related to the DAM oversold on two RT constraints There was about $1M DAM oversold on the RT constraint EASTEX GTC and $1.8M oversold on SLOBSA25: CATARI_PILONC1_1. The oversold of these constraints was mostly related to GTC limit difference in DAM and RTM and PST Tap position differences between DAM and RTM, respectively 5 PUBLIC
OD 11/20/2022 11/21/2022 About $1.3M RENA was observed on OD 11/20 and $1M RENA observed on 11/21 RENA for both days was mostly related to the oversold EASTEX GTC constraint, with $0.9M oversold on 11/20 and $0.5M oversold on 11/21. The oversold of EASTEX constraint was related to GTC limit difference in DAM and RTM 6 PUBLIC

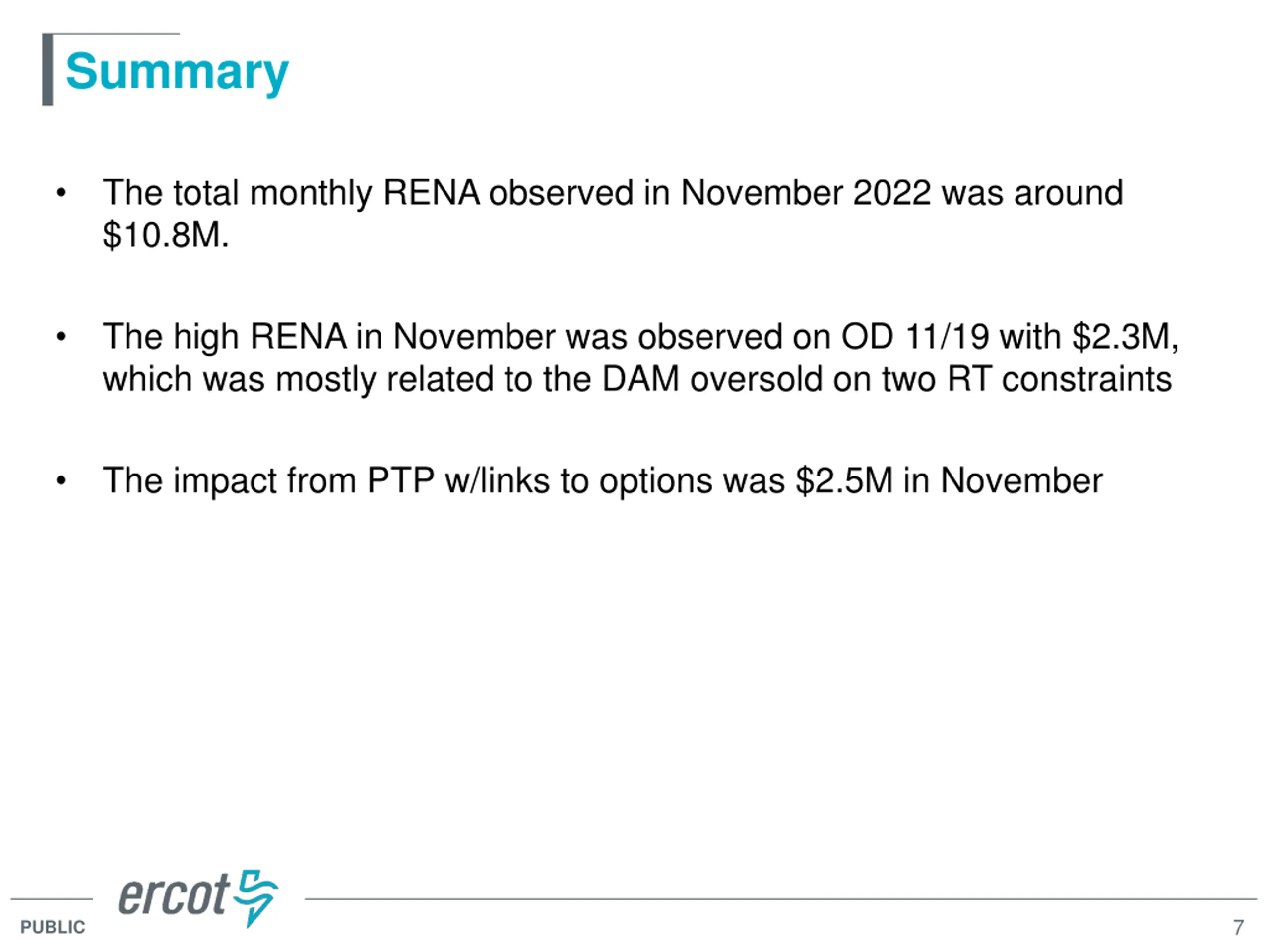

Summary The total monthly RENA observed in November 2022 was around $10.8M. The high RENA in November was observed on OD 11/19 with $2.3M, which was mostly related to the DAM oversold on two RT constraints The impact from PTP w/links to options was $2.5M in November 7 PUBLIC

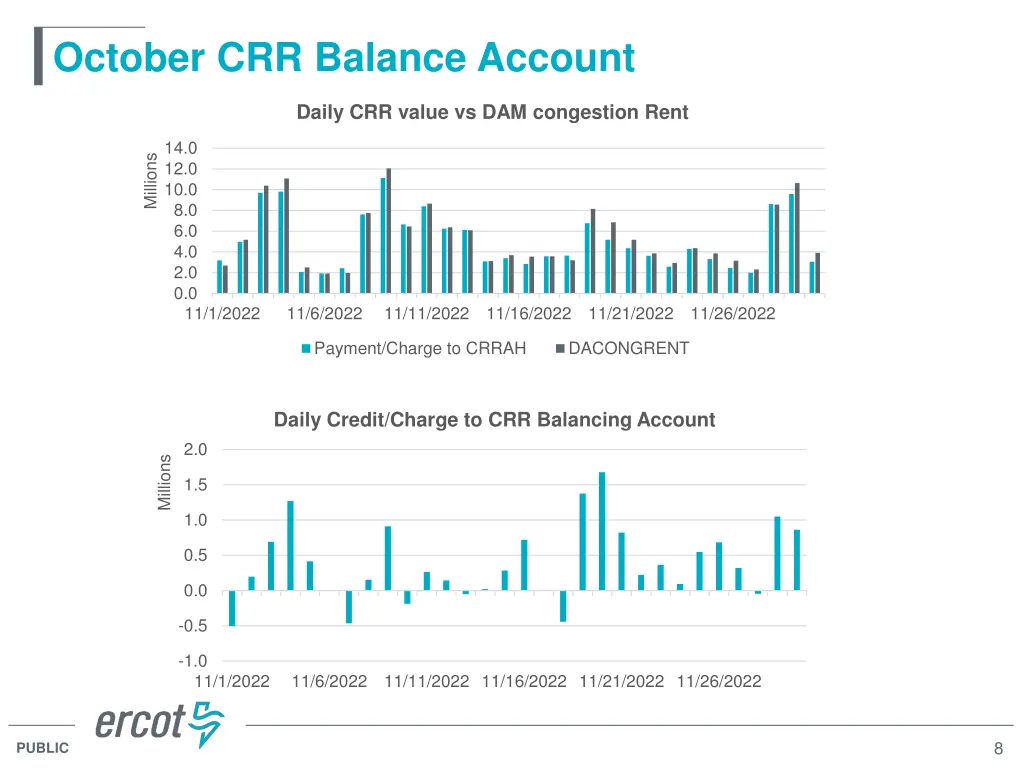

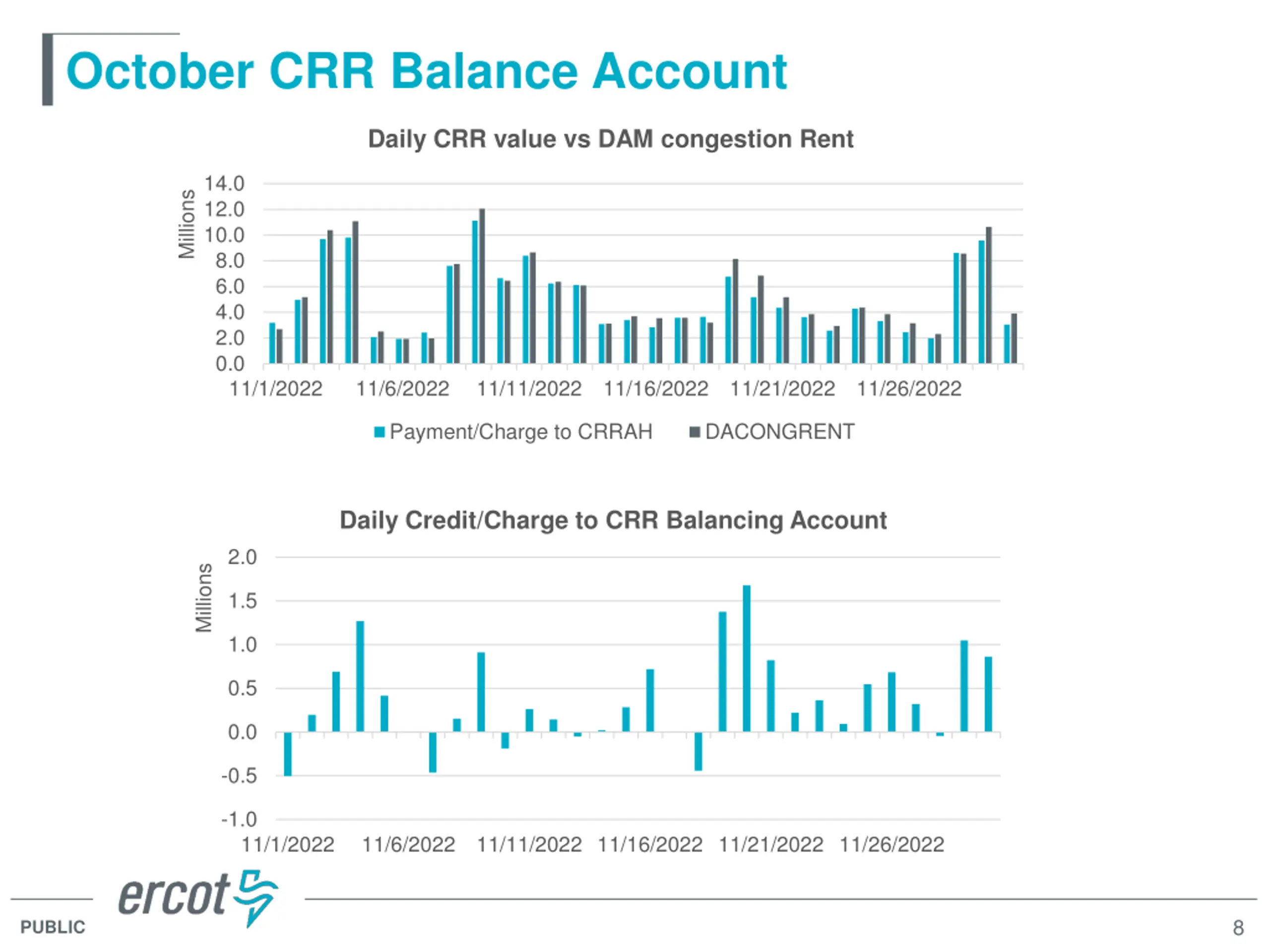

October CRR Balance Account Daily CRR value vs DAM congestion Rent 14.0 Millions 12.0 10.0 8.0 6.0 4.0 2.0 0.0 11/1/2022 11/6/2022 11/11/2022 11/16/2022 11/21/2022 11/26/2022 Payment/Charge to CRRAH DACONGRENT Daily Credit/Charge to CRR Balancing Account 2.0 Millions 1.5 1.0 0.5 0.0 -0.5 -1.0 11/1/2022 11/6/2022 11/11/2022 11/16/2022 11/21/2022 11/26/2022 8 PUBLIC
