User-facing Improvements to Charm++ Process Launching Evan Ramos Charmworks, Inc.

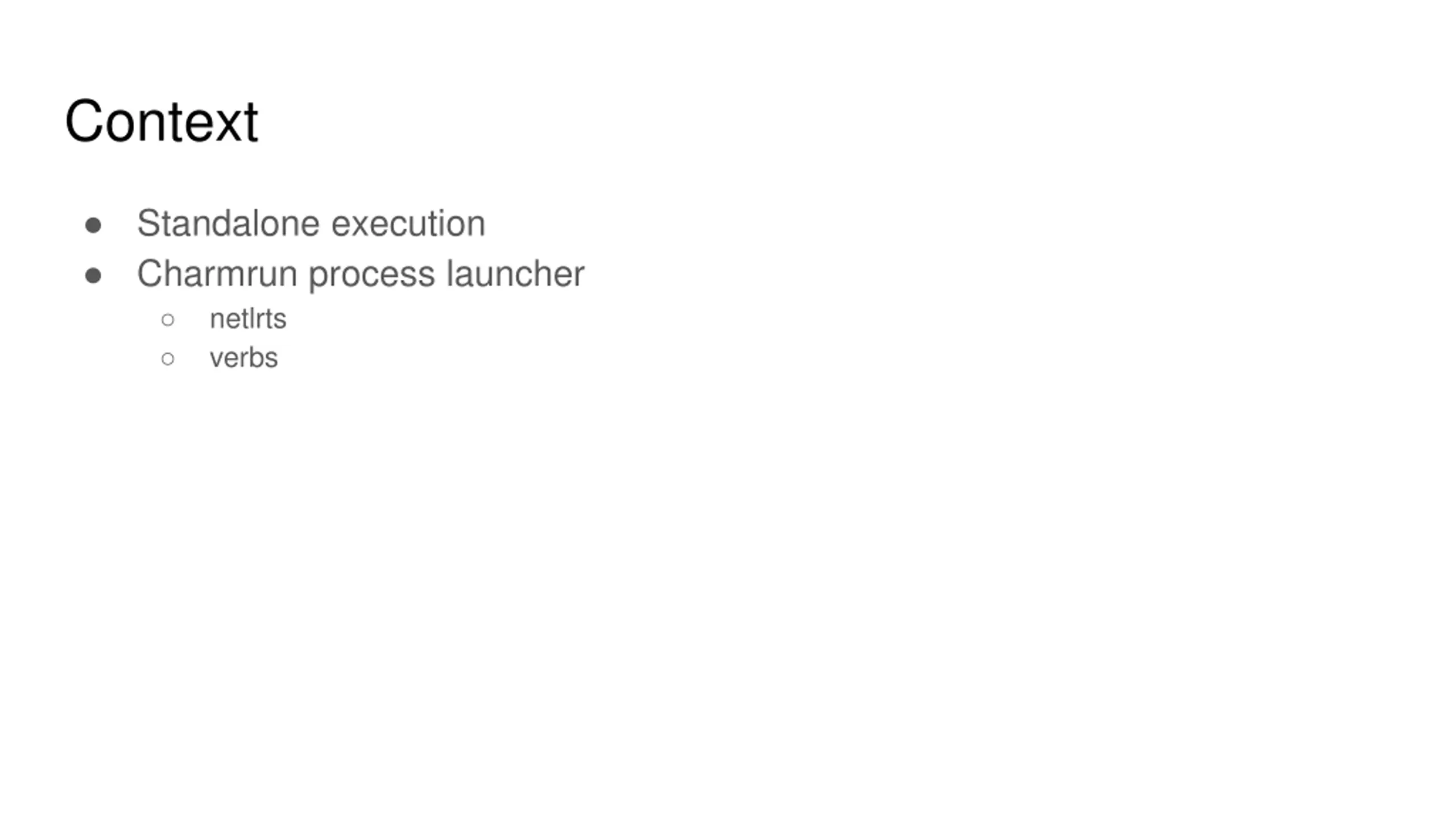

Context Standalone execution Charmrun process launcher netlrts verbs

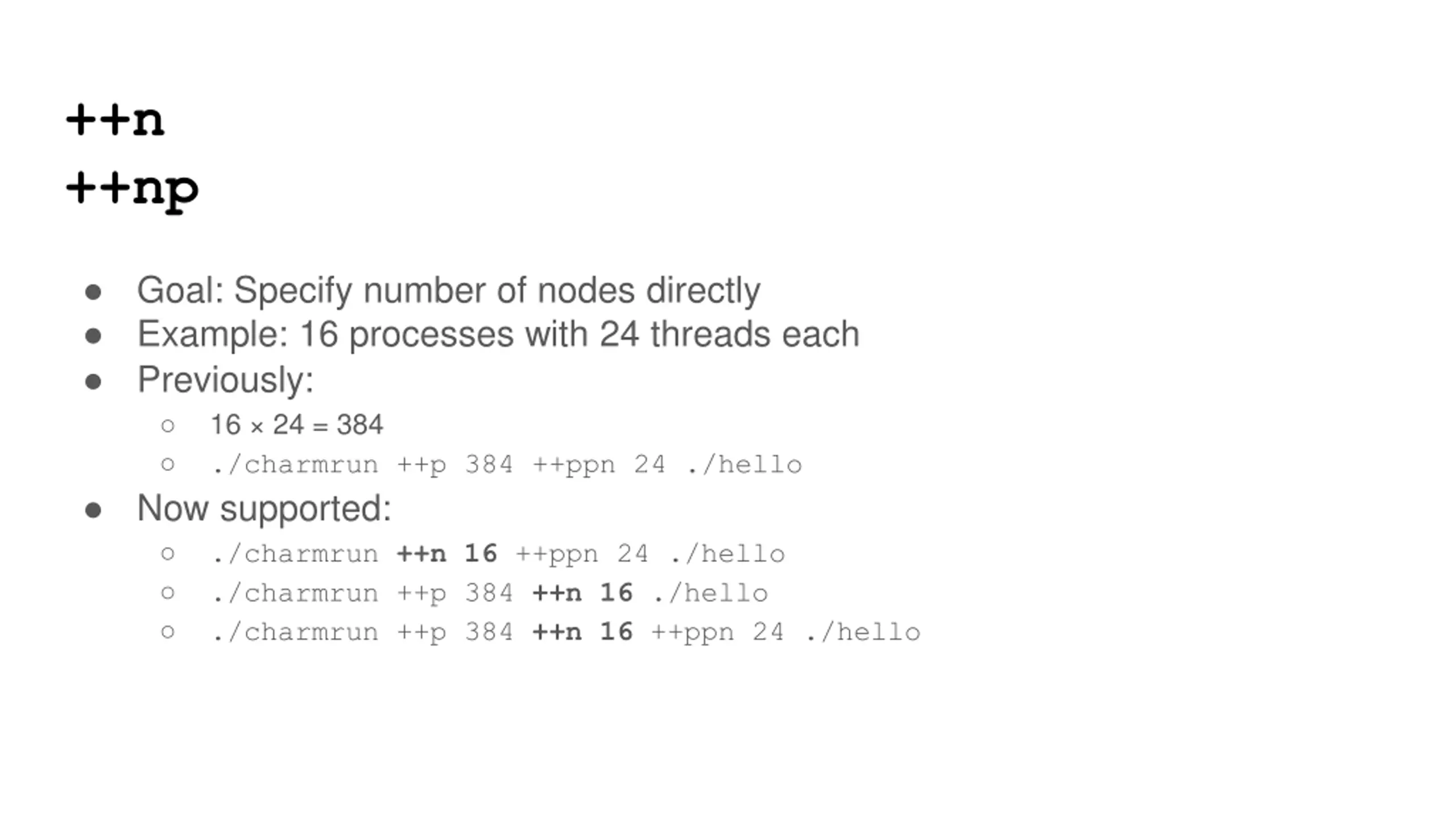

++n ++np Goal: Specify number of nodes directly Example: 16 processes with 24 threads each Previously: 16 24 = 384 ./charmrun ++p 384 ++ppn 24 ./hello Now supported: ./charmrun ++n 16 ++ppn 24 ./hello ./charmrun ++p 384 ++n 16 ./hello ./charmrun ++p 384 ++n 16 ++ppn 24 ./hello

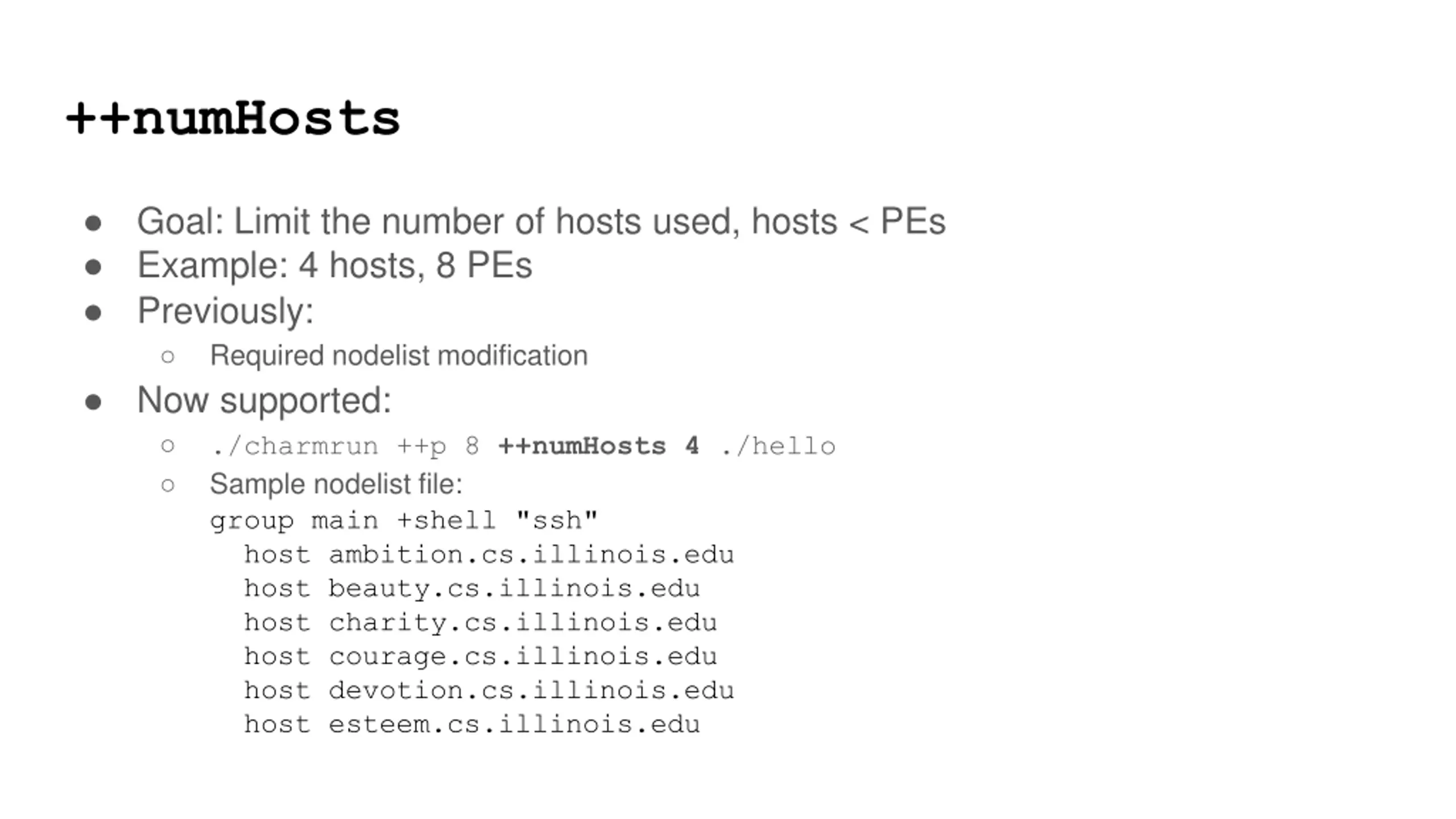

++numHosts Goal: Limit the number of hosts used, hosts < PEs Example: 4 hosts, 8 PEs Previously: Required nodelist modification Now supported: ./charmrun ++p 8 ++numHosts 4 ./hello Sample nodelist file: group main +shell "ssh" host ambition.cs.illinois.edu host beauty.cs.illinois.edu host charity.cs.illinois.edu host courage.cs.illinois.edu host devotion.cs.illinois.edu host esteem.cs.illinois.edu

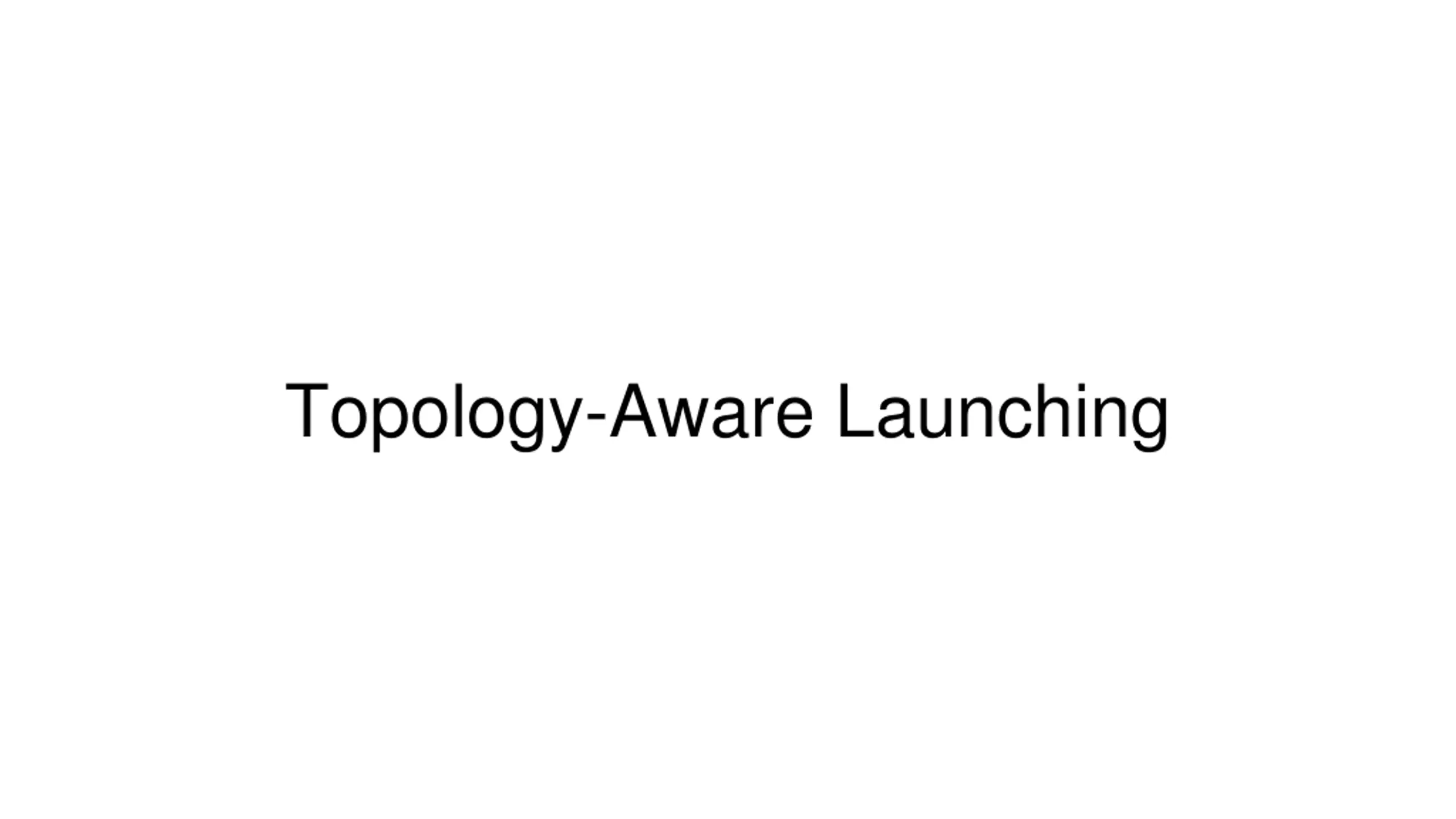

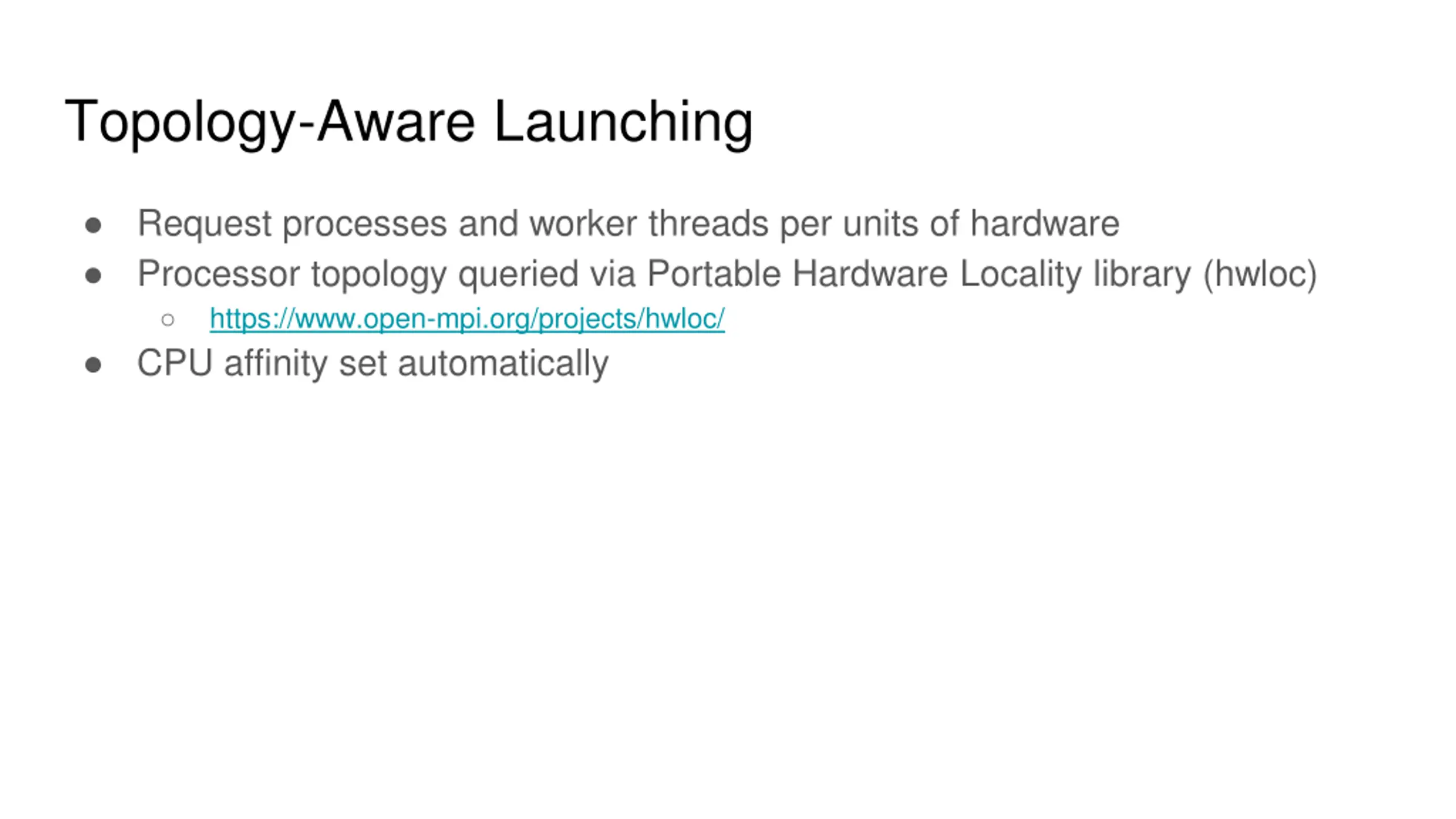

Topology-Aware Launching Request processes and worker threads per units of hardware Processor topology queried via Portable Hardware Locality library (hwloc) https://www.open-mpi.org/projects/hwloc/ CPU affinity set automatically

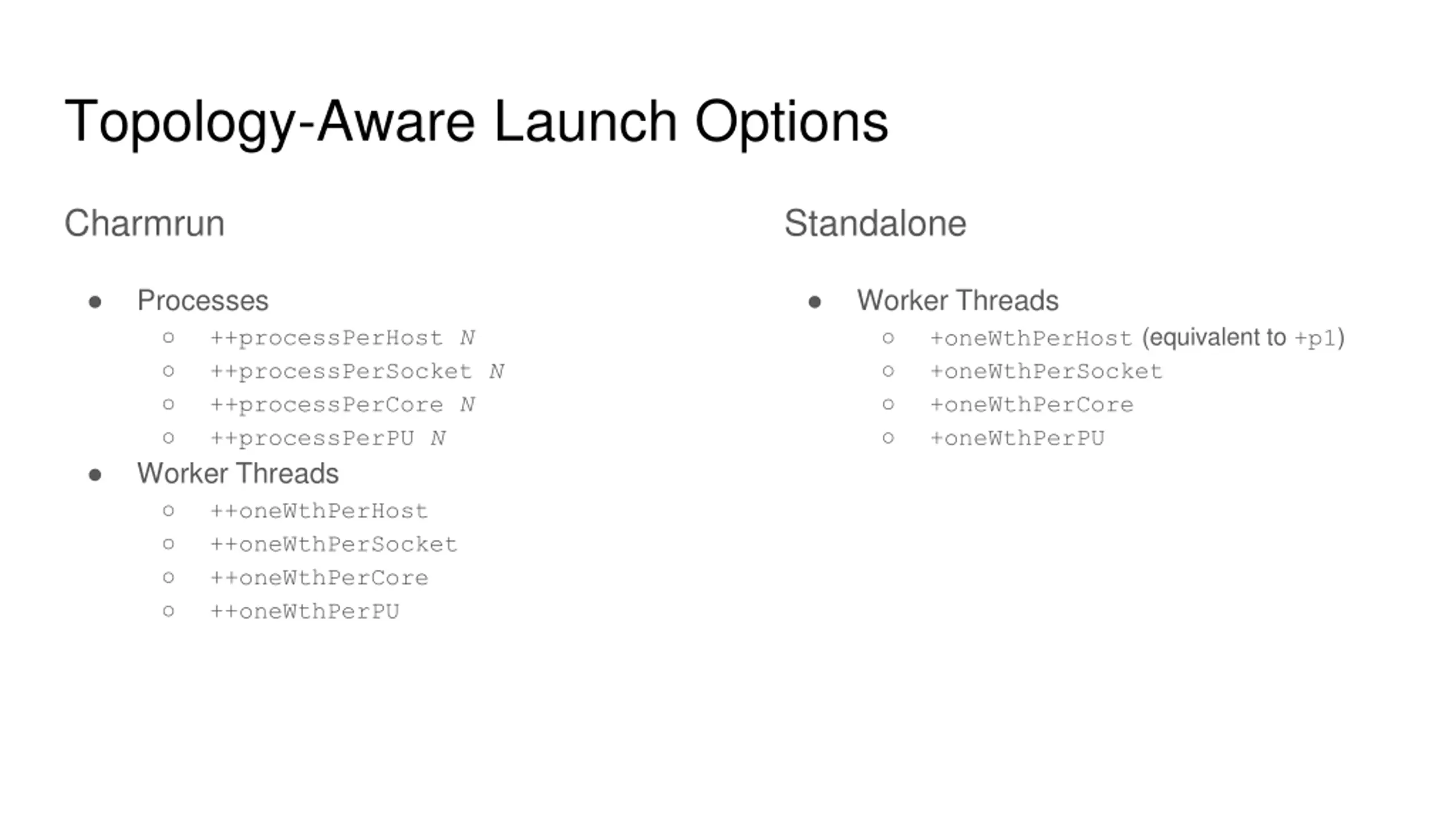

Topology-Aware Launch Options Charmrun Standalone Processes Worker Threads ++oneWthPerHost ++oneWthPerSocket ++oneWthPerCore ++oneWthPerPU Worker Threads +oneWthPerHost (equivalent to +p1) +oneWthPerSocket +oneWthPerCore +oneWthPerPU ++processPerHost N ++processPerSocket N ++processPerCore N ++processPerPU N

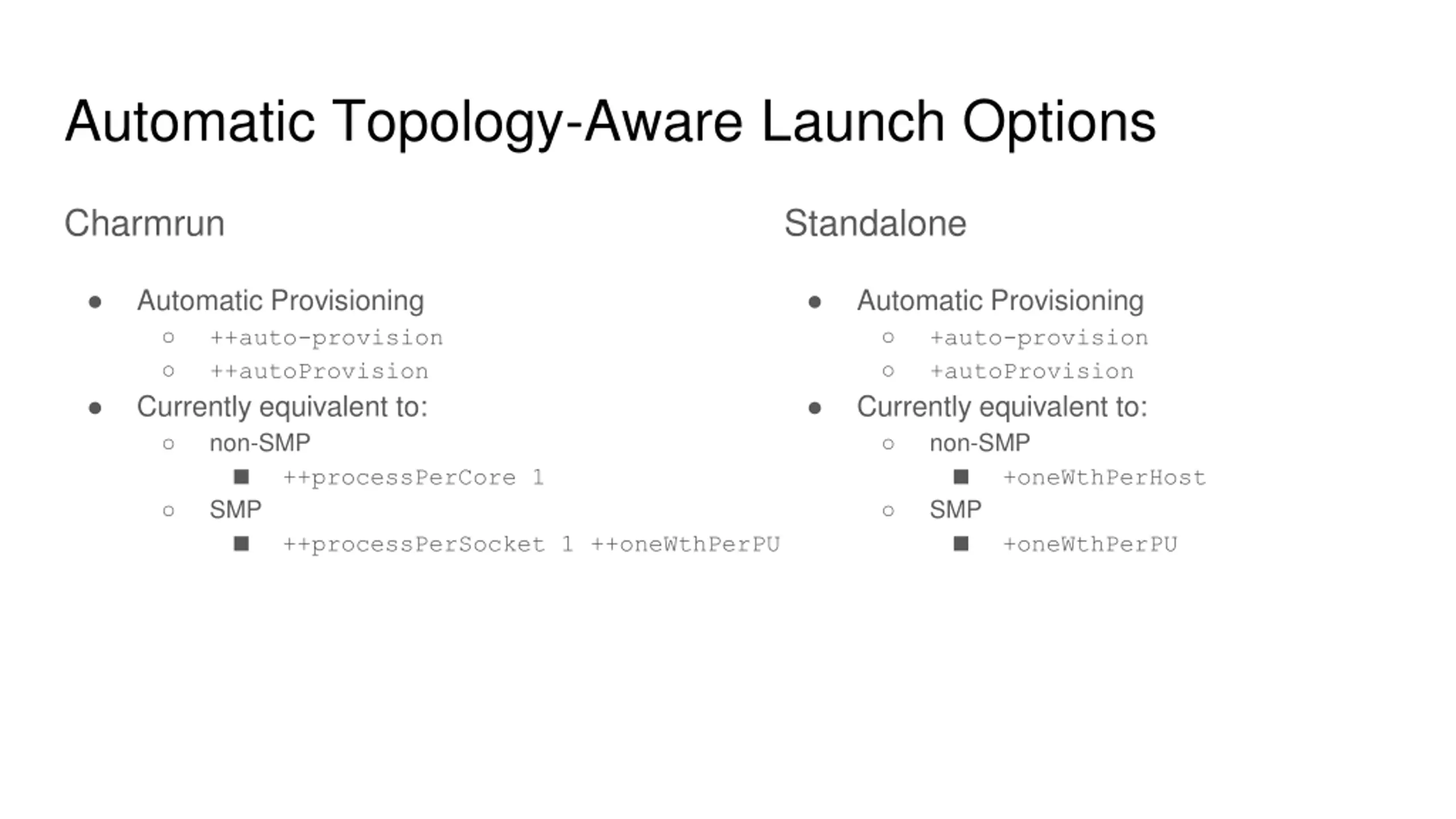

Automatic Topology-Aware Launch Options Charmrun Standalone Automatic Provisioning ++auto-provision ++autoProvision Currently equivalent to: non-SMP ++processPerCore 1 SMP ++processPerSocket 1 ++oneWthPerPU Automatic Provisioning +auto-provision +autoProvision Currently equivalent to: non-SMP +oneWthPerHost SMP +oneWthPerPU

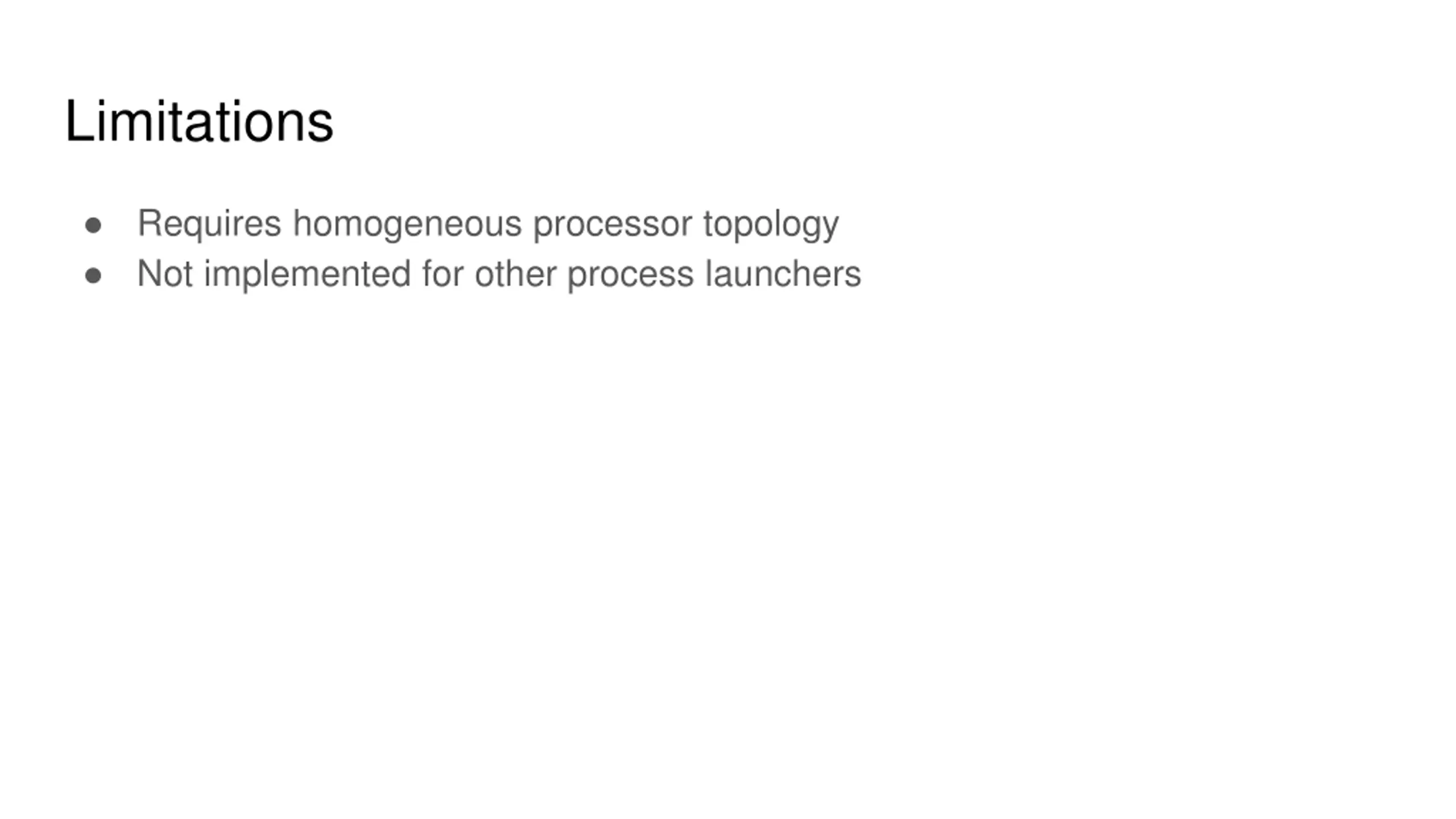

Limitations Requires homogeneous processor topology Not implemented for other process launchers

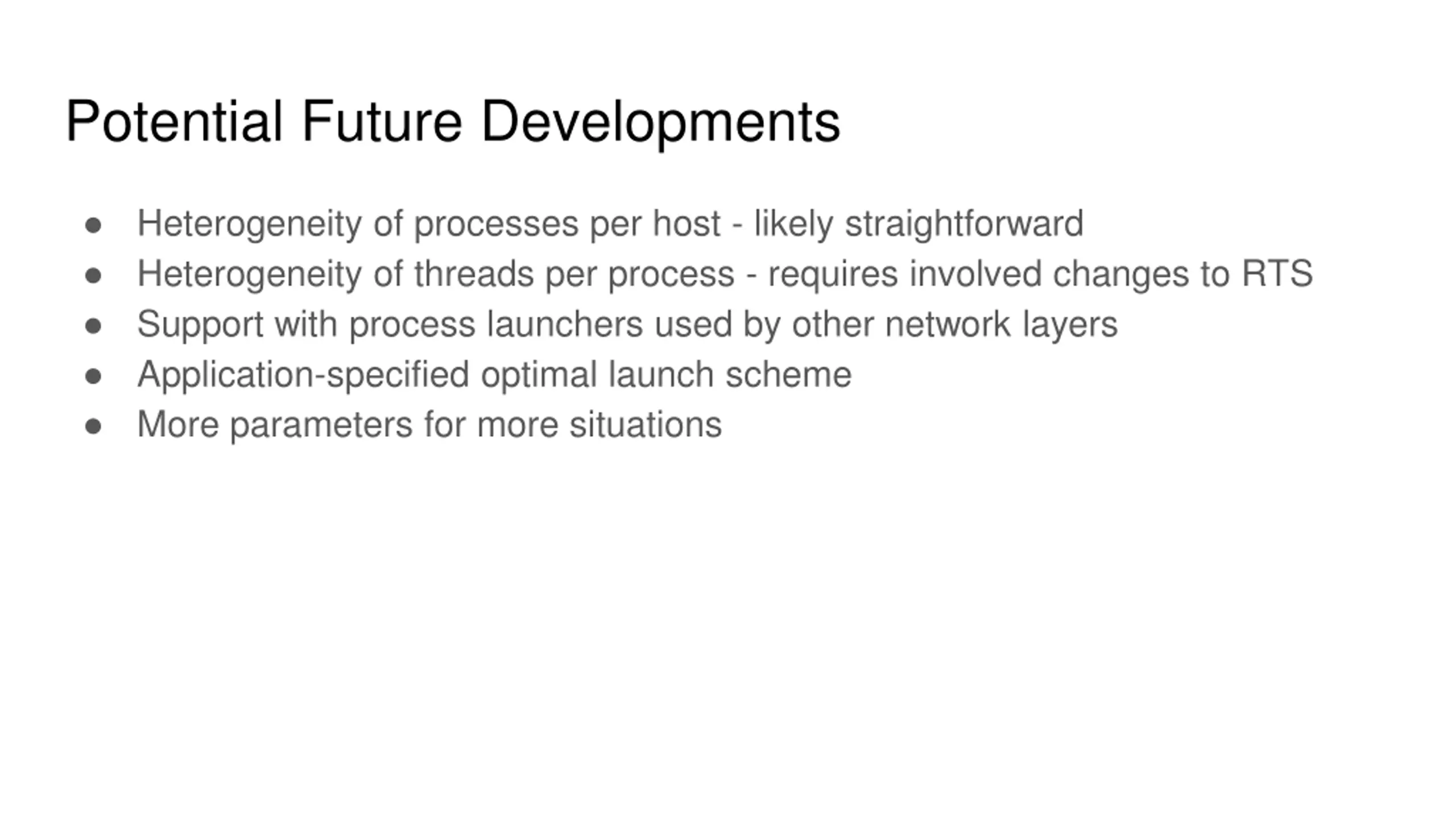

Potential Future Developments Heterogeneity of processes per host - likely straightforward Heterogeneity of threads per process - requires involved changes to RTS Support with process launchers used by other network layers Application-specified optimal launch scheme More parameters for more situations

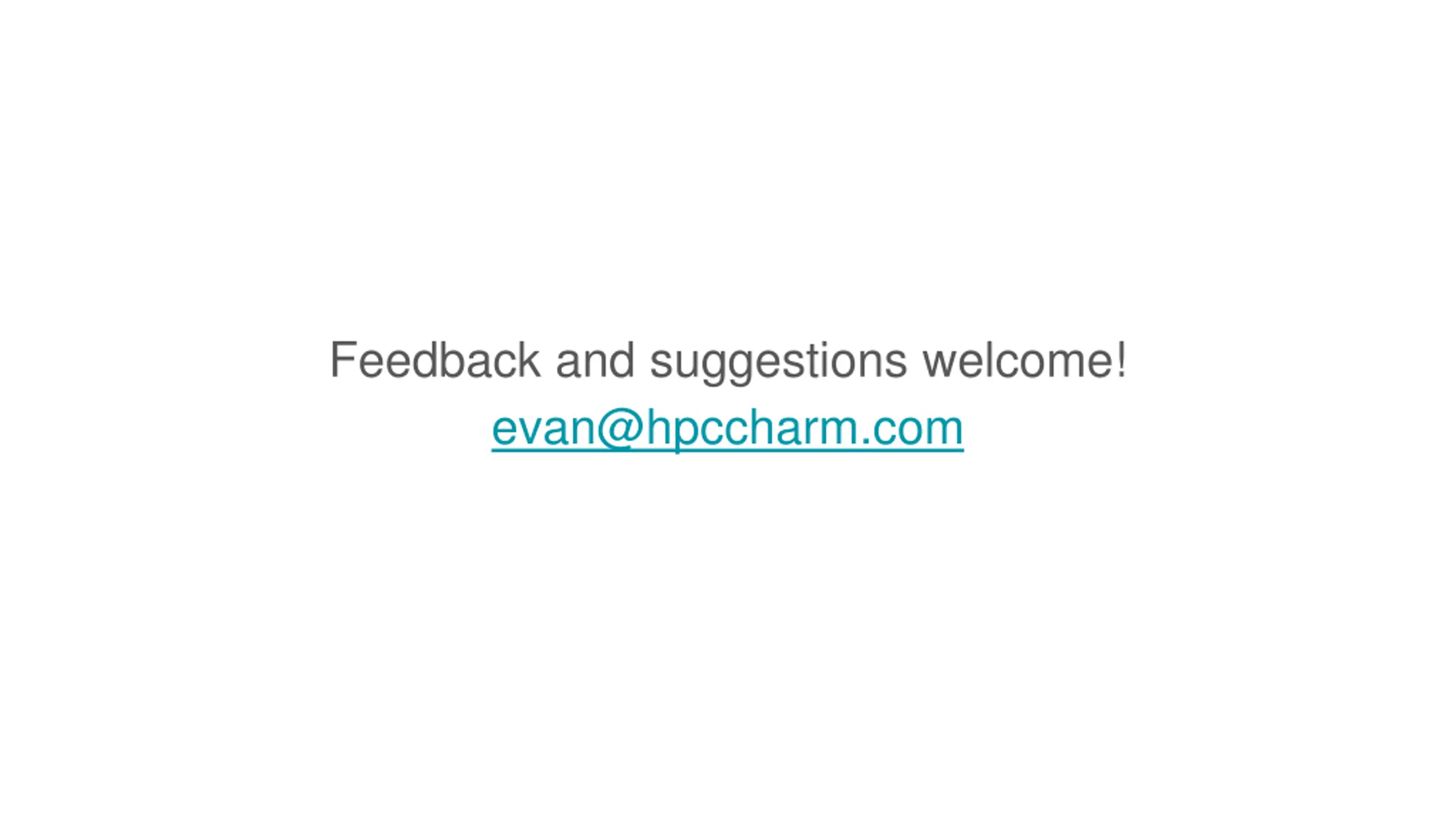

Feedback and suggestions welcome! evan@hpccharm.com
