Presentation Transcript

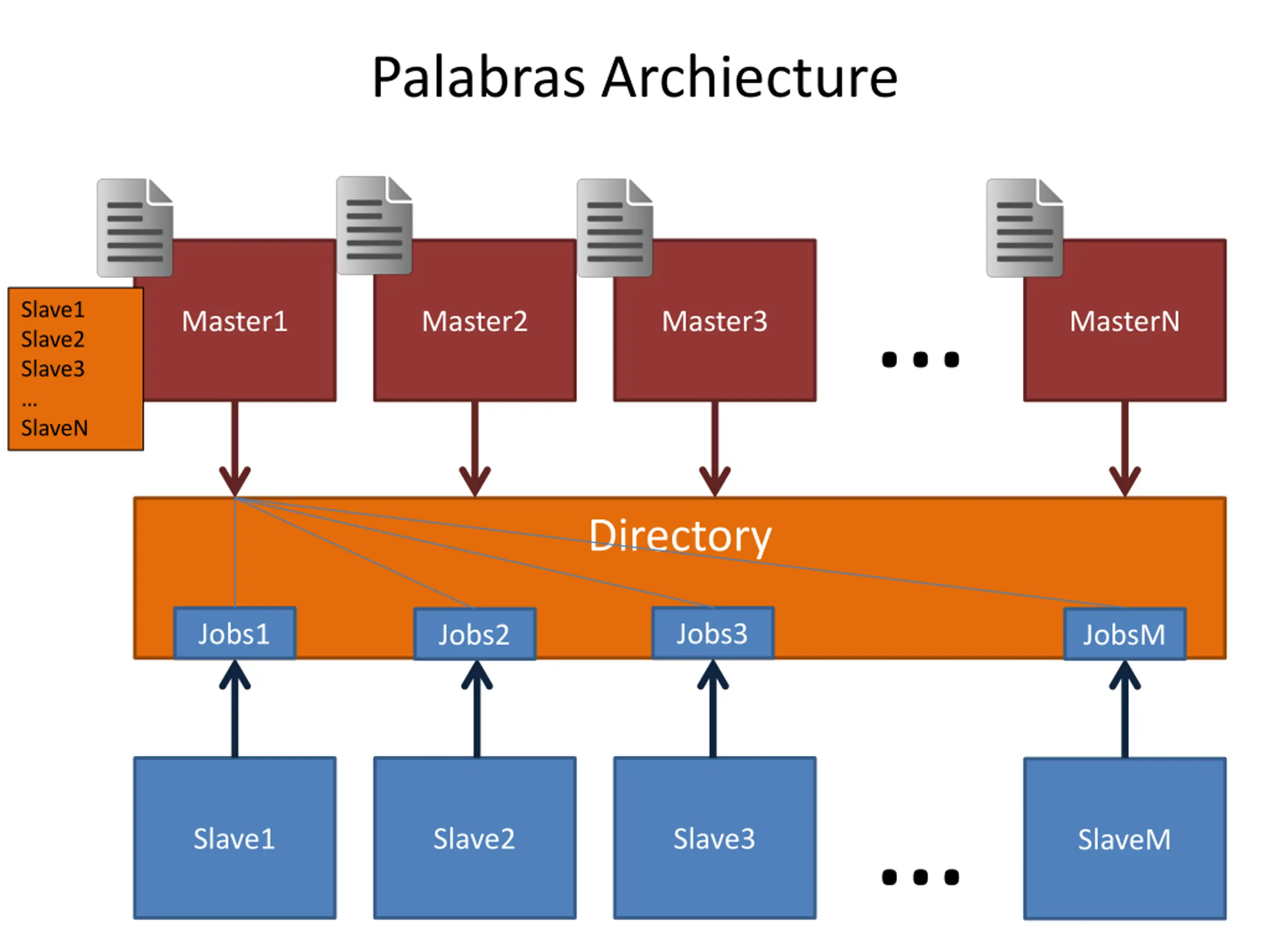

Palabras Archiecture Slave1 Slave2 Slave3 SlaveN Master1 Master2 Master3 MasterN Directory Jobs3 Jobs1 Jobs2 JobsM Slave1 Slave2 Slave3 SlaveM

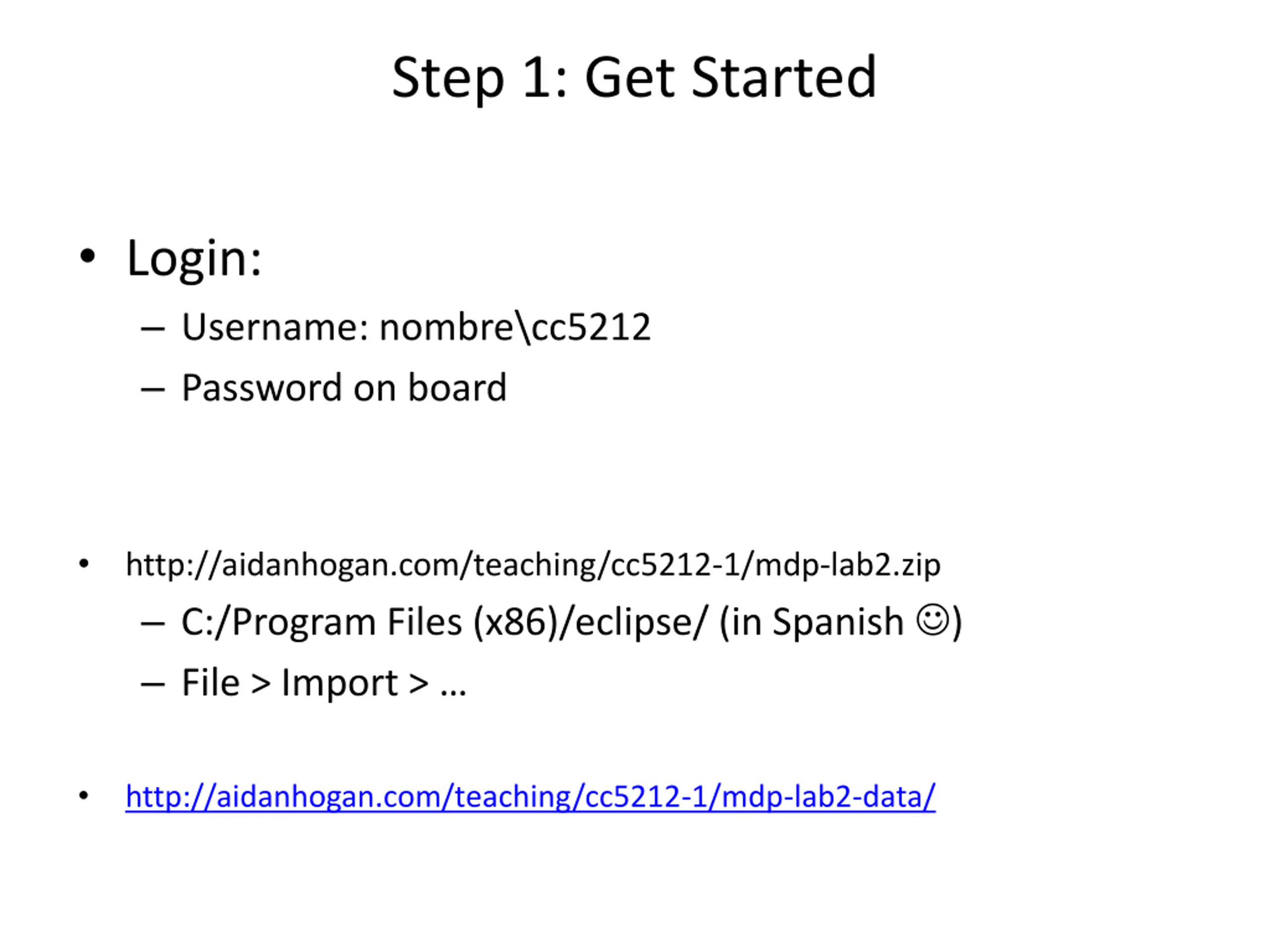

Step 1: Get Started Login: Username: nombre\cc5212 Password on board http://aidanhogan.com/teaching/cc5212-1/mdp-lab2.zip C:/Program Files (x86)/eclipse/ (in Spanish ) File > Import > http://aidanhogan.com/teaching/cc5212-1/mdp-lab2-data/

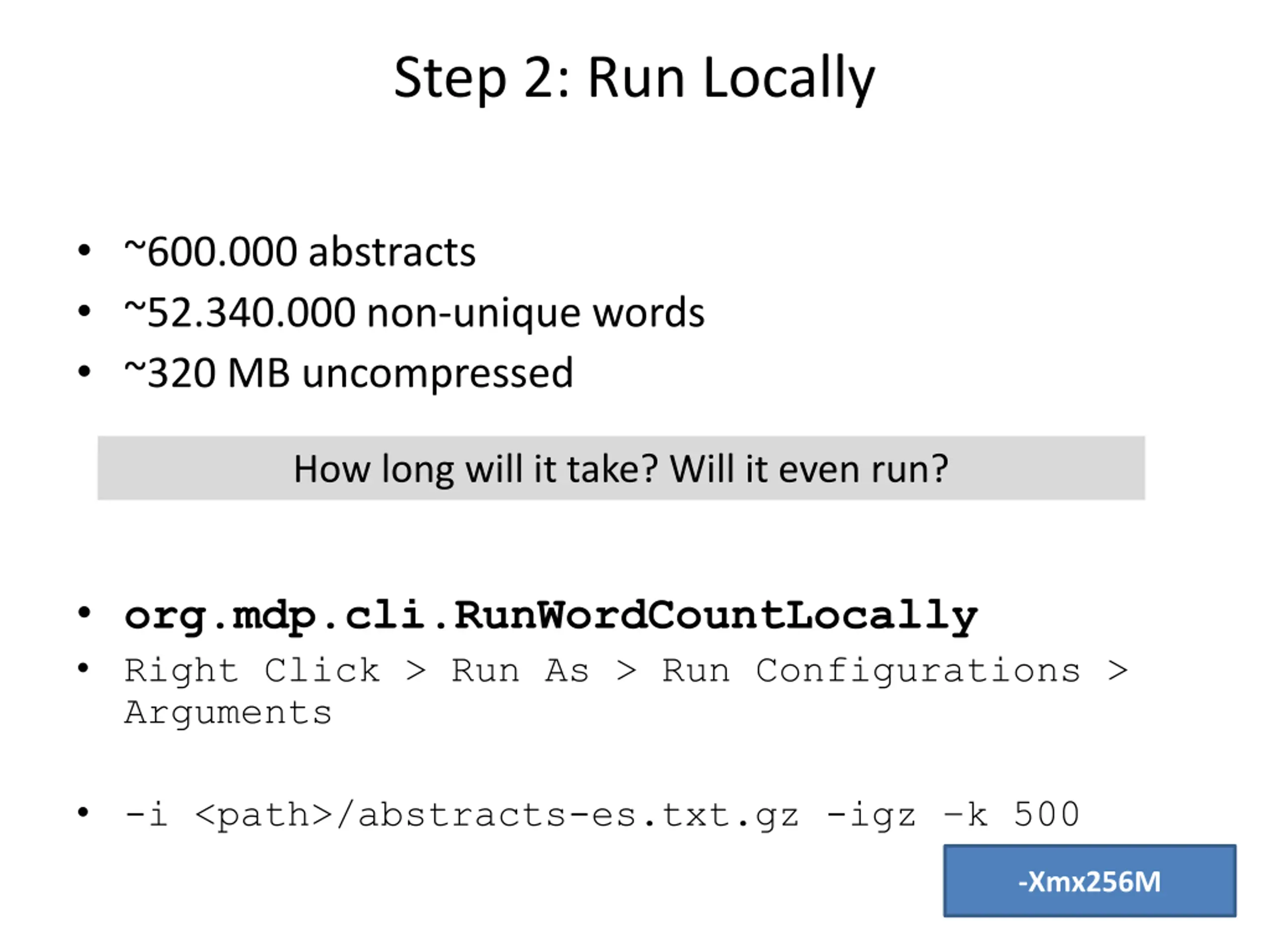

Step 2: Run Locally ~600.000 abstracts ~52.340.000 non-unique words ~320 MB uncompressed How long will it take? Will it even run? org.mdp.cli.RunWordCountLocally Right Click > Run As > Run Configurations > Arguments -i <path>/abstracts-es.txt.gz -igz k 500 -Xmx256M

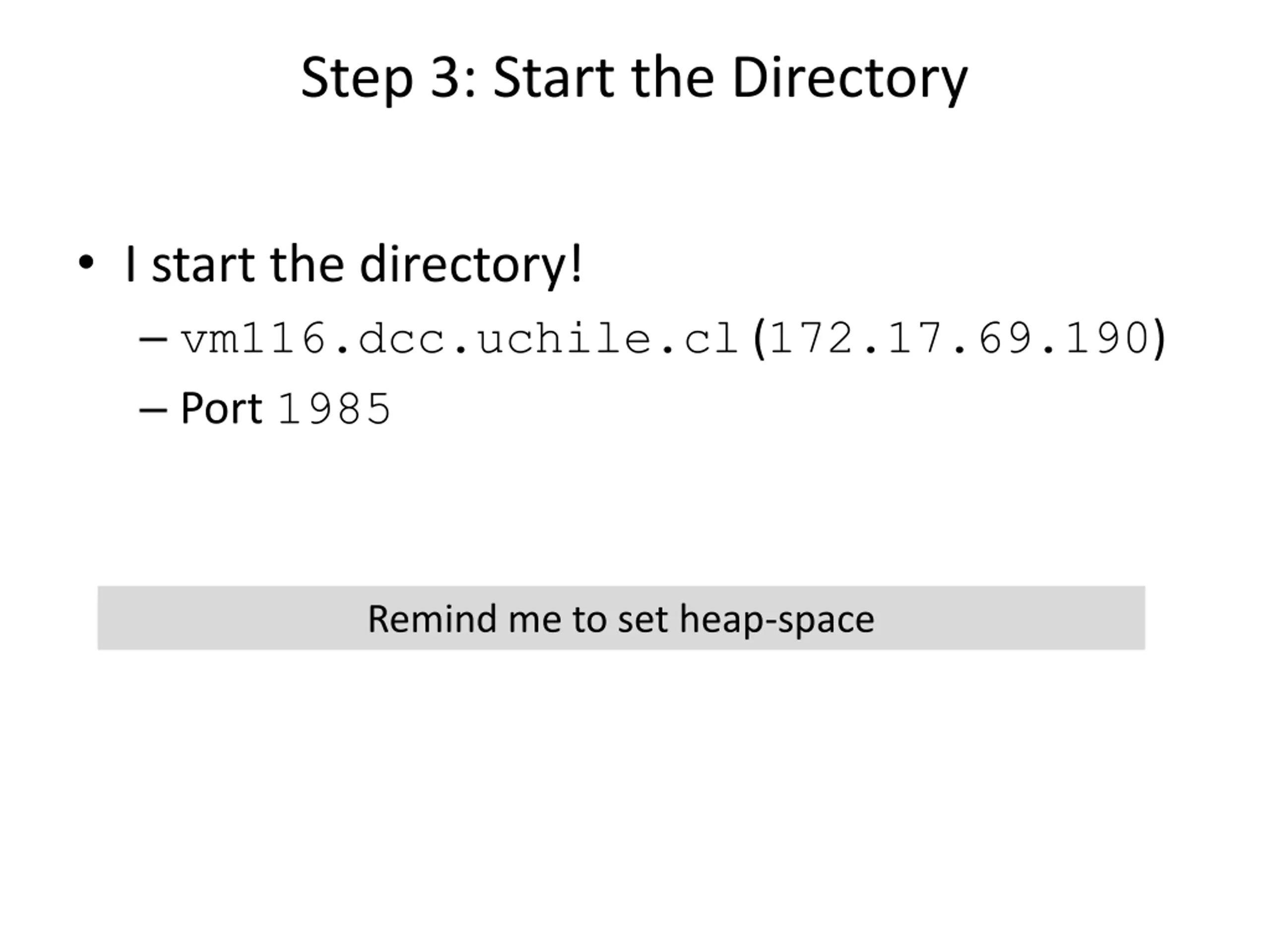

Step 3: Start the Directory I start the directory! vm116.dcc.uchile.cl (172.17.69.190) Port 1985 Remind me to set heap-space

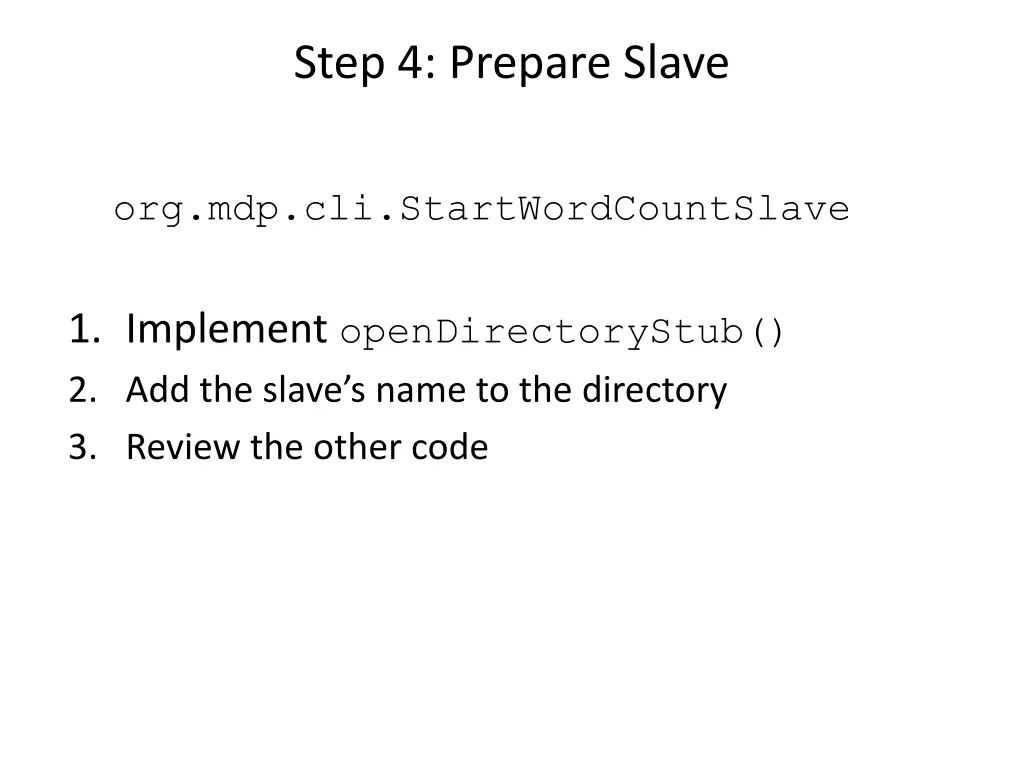

Step 4: Prepare Slave org.mdp.cli.StartWordCountSlave 1. Implement openDirectoryStub() 2. Add the slave s name to the directory 3. Review the other code

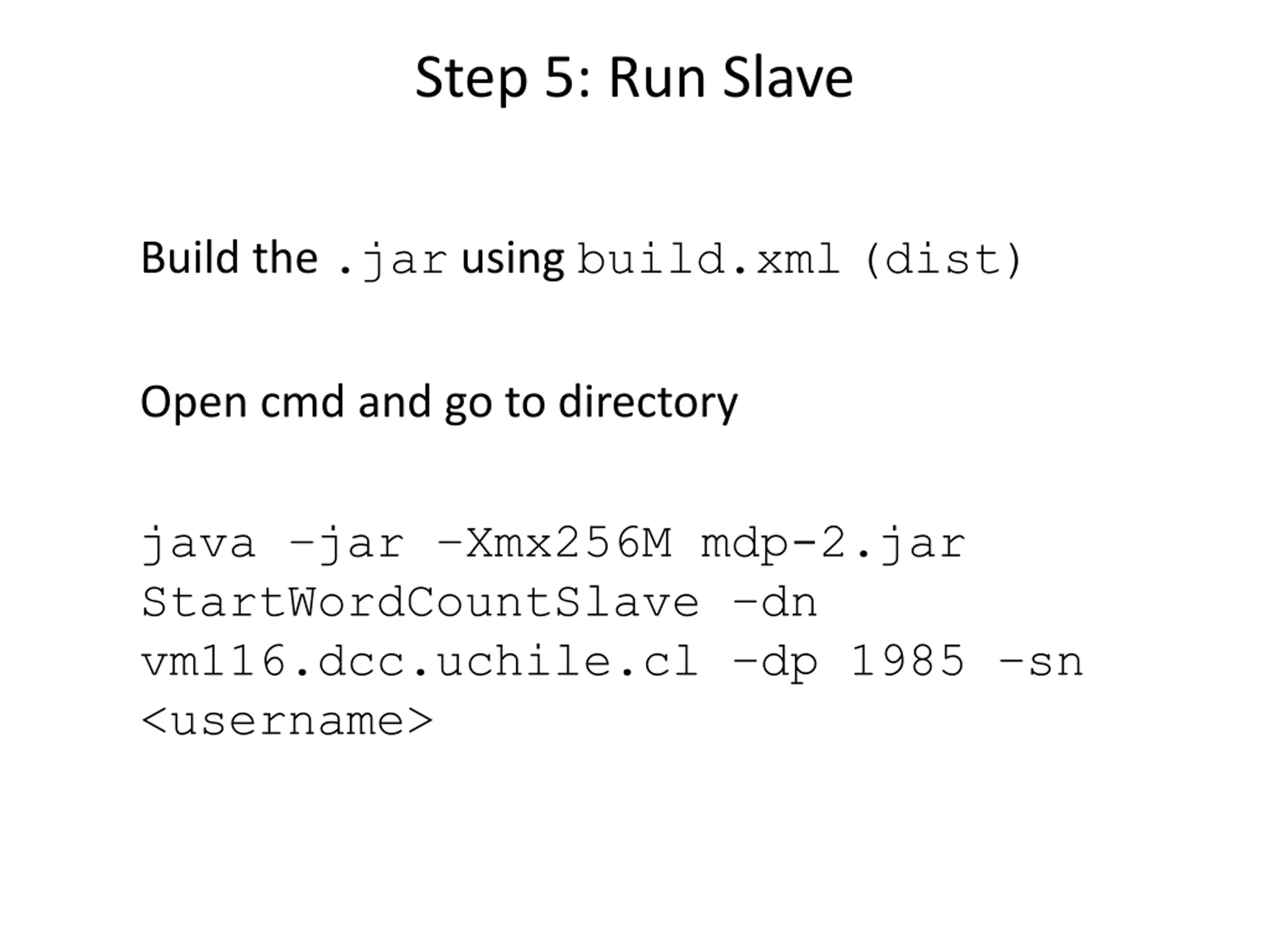

Step 5: Run Slave Build the .jar using build.xml(dist) Open cmd and go to directory java jar Xmx256M mdp-2.jar StartWordCountSlave dn vm116.dcc.uchile.cl dp 1985 sn <username>

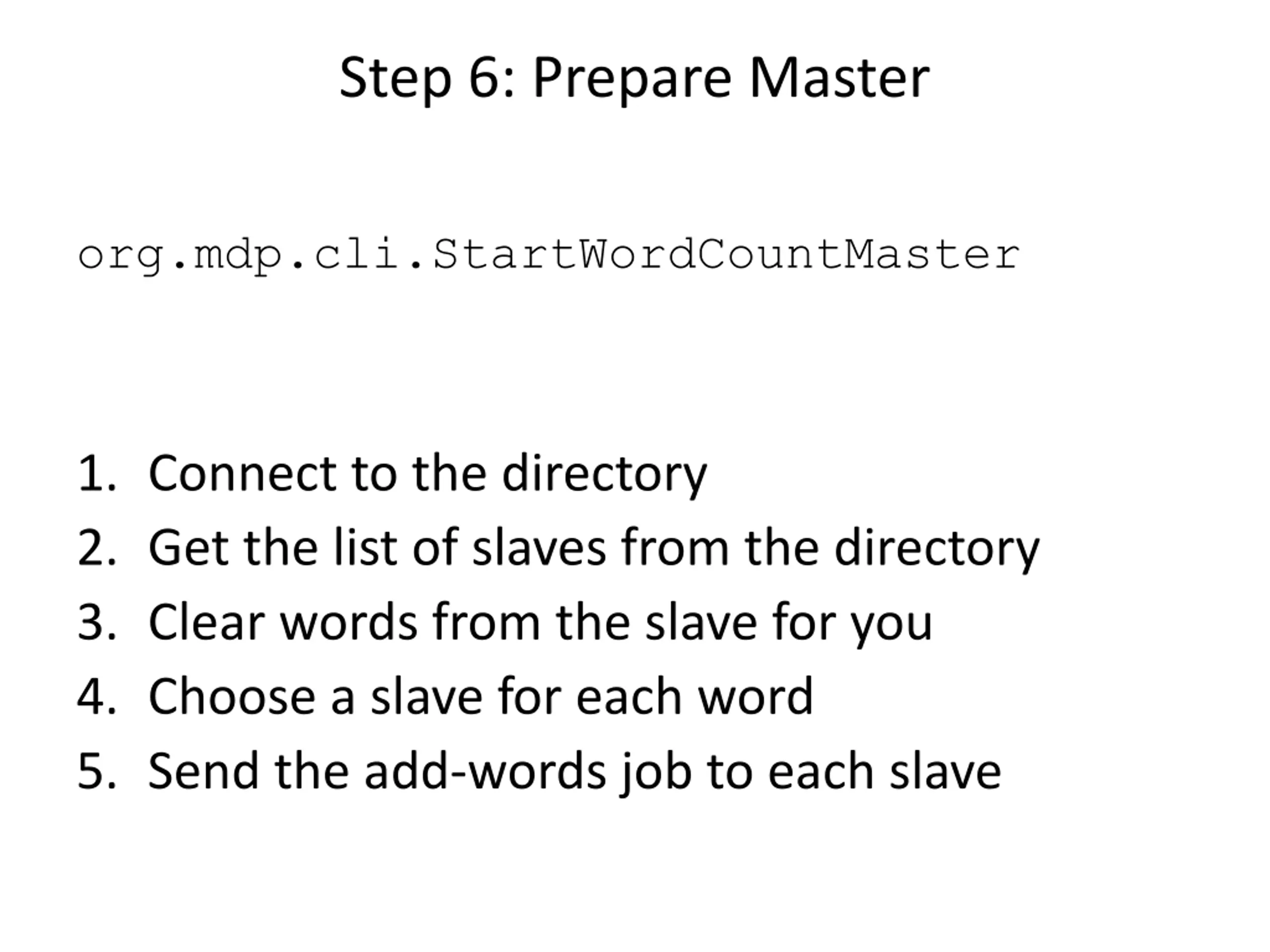

Step 6: Prepare Master org.mdp.cli.StartWordCountMaster 1. Connect to the directory 2. Get the list of slaves from the directory 3. Clear words from the slave for you 4. Choose a slave for each word 5. Send the add-words job to each slave

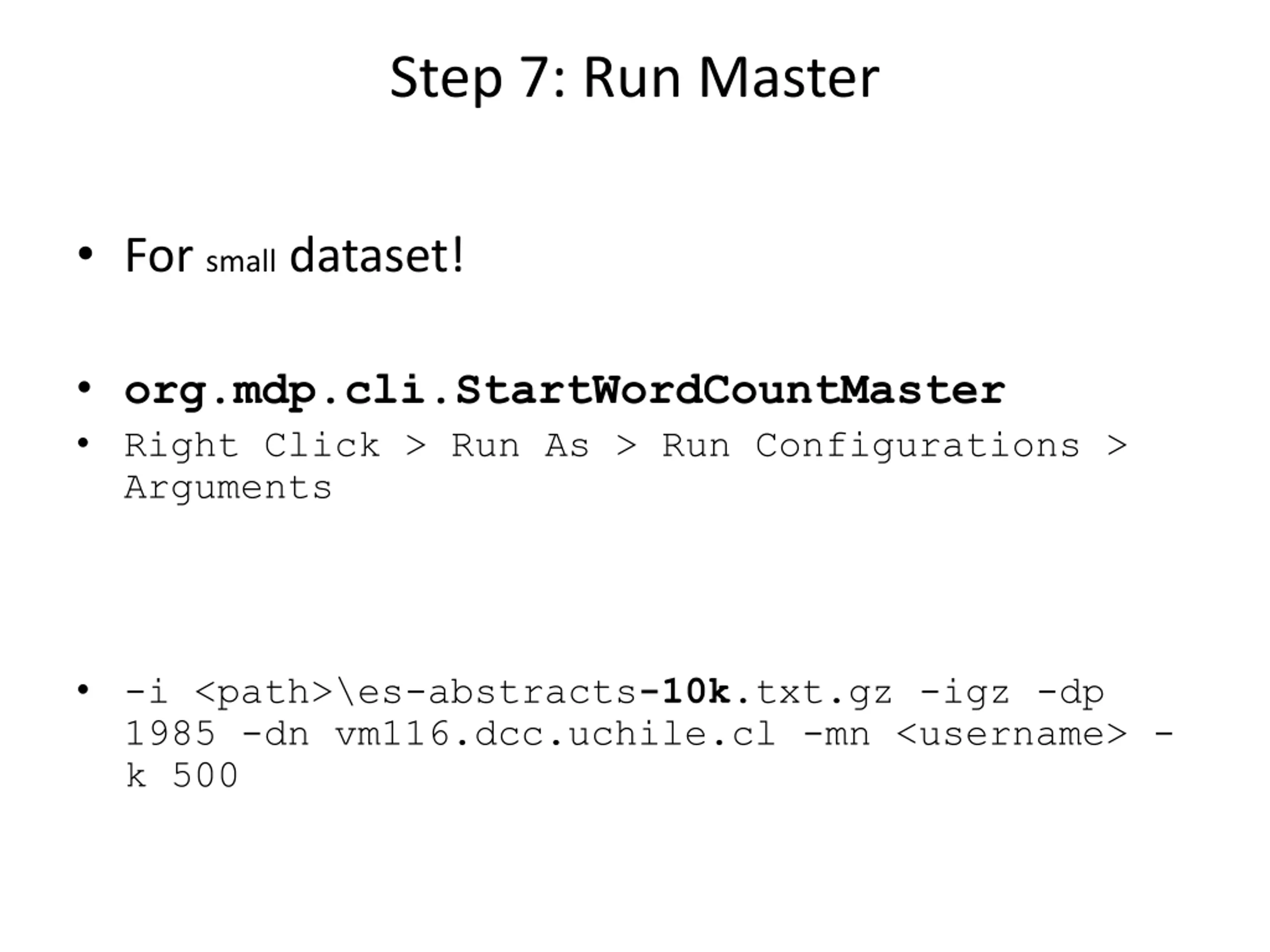

Step 7: Run Master For small dataset! org.mdp.cli.StartWordCountMaster Right Click > Run As > Run Configurations > Arguments -i <path>\es-abstracts-10k.txt.gz -igz -dp 1985 -dn vm116.dcc.uchile.cl -mn <username> - k 500

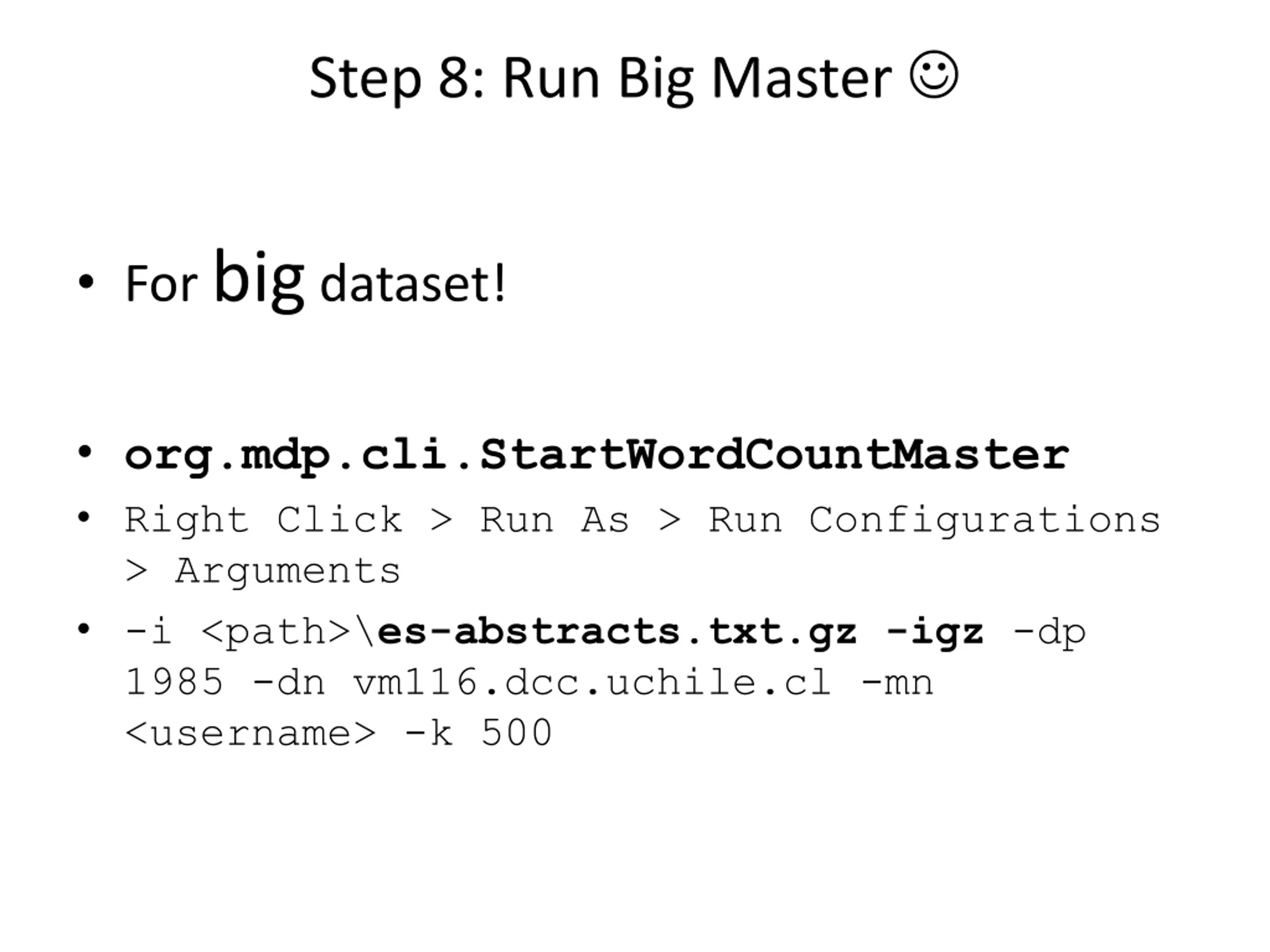

Step 8: Run Big Master For big dataset! org.mdp.cli.StartWordCountMaster Right Click > Run As > Run Configurations > Arguments -i <path>\es-abstracts.txt.gz -igz -dp 1985 -dn vm116.dcc.uchile.cl -mn <username> -k 500

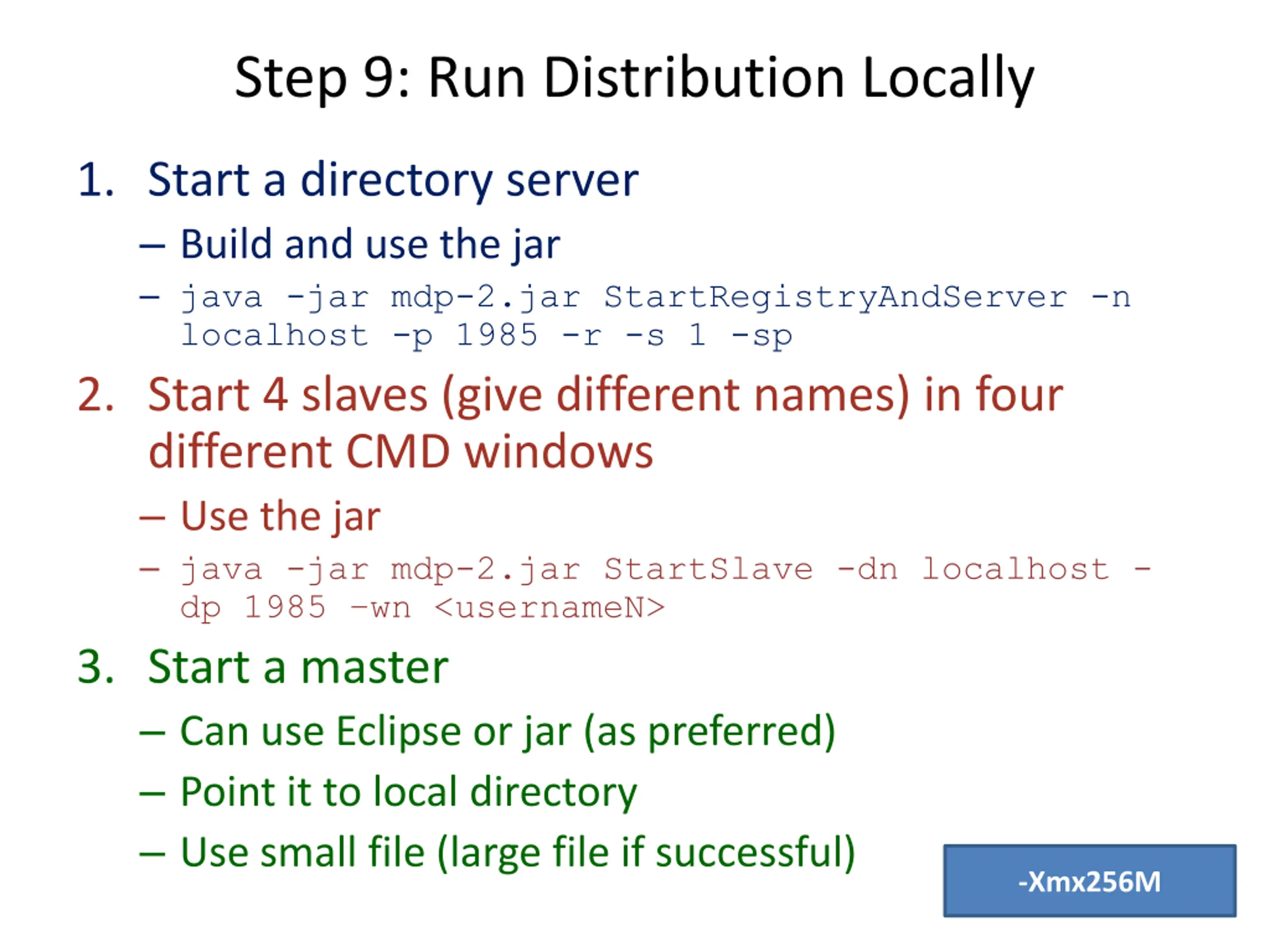

Step 9: Run Distribution Locally 1. Start a directory server Build and use the jar java -jar mdp-2.jar StartRegistryAndServer -n localhost -p 1985 -r -s 1 -sp 2. Start 4 slaves (give different names) in four different CMD windows Use the jar java -jar mdp-2.jar StartSlave -dn localhost - dp 1985 wn <usernameN> 3. Start a master Can use Eclipse or jar (as preferred) Point it to local directory Use small file (large file if successful) -Xmx256M

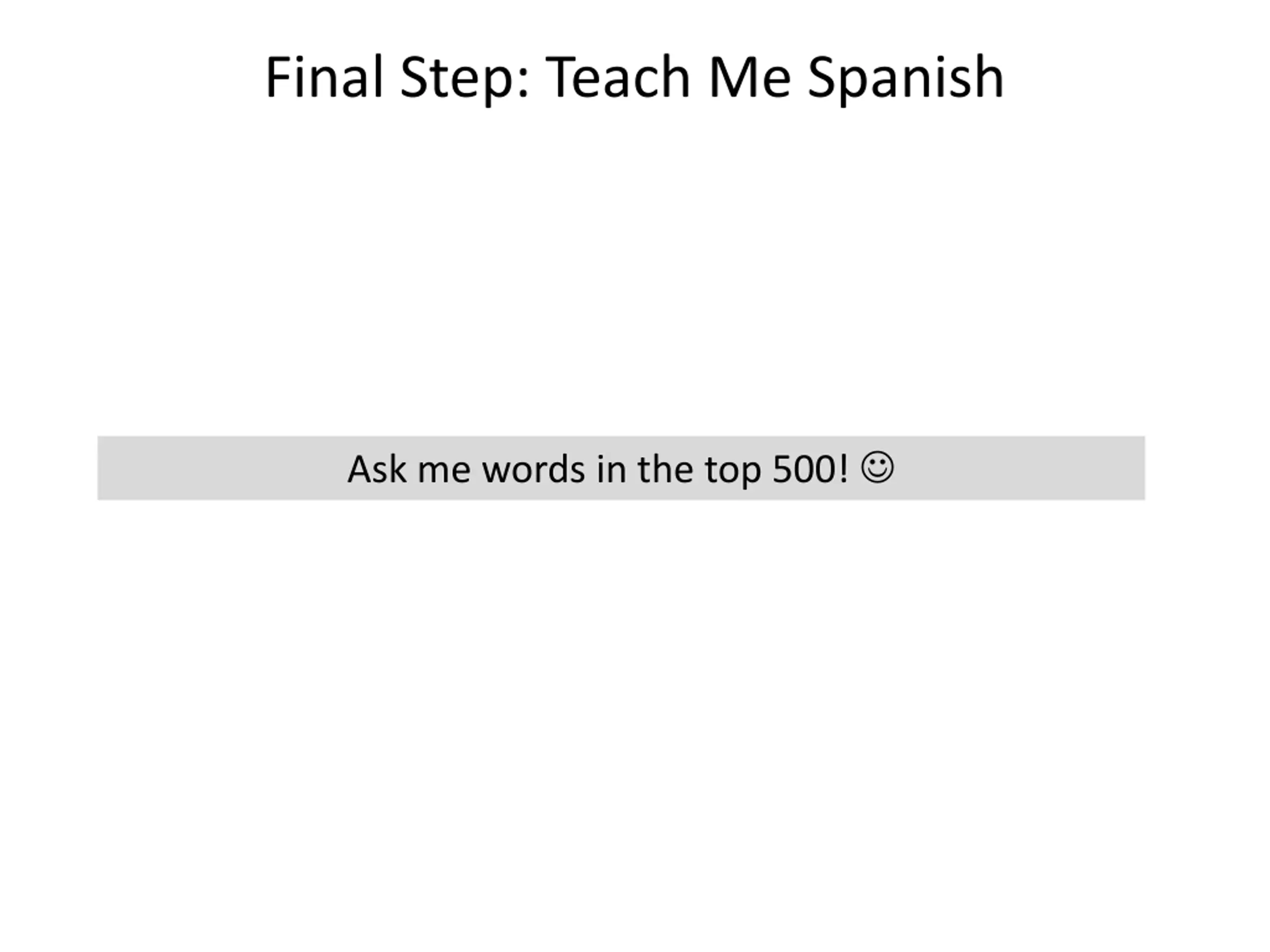

Final Step: Teach Me Spanish Ask me words in the top 500!
