Optimizing Operational Parameters for Hydromechanical Extrusion Process

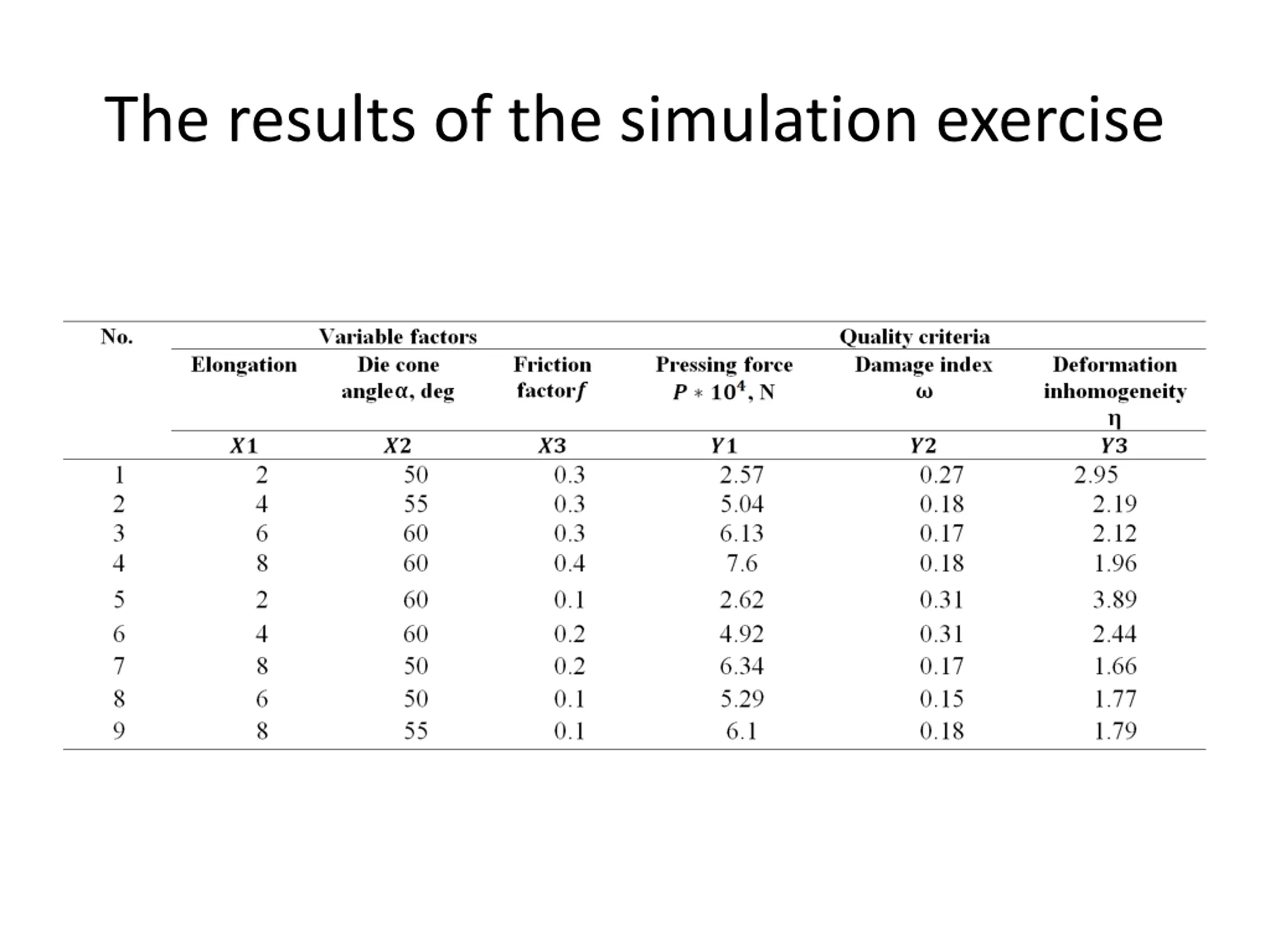

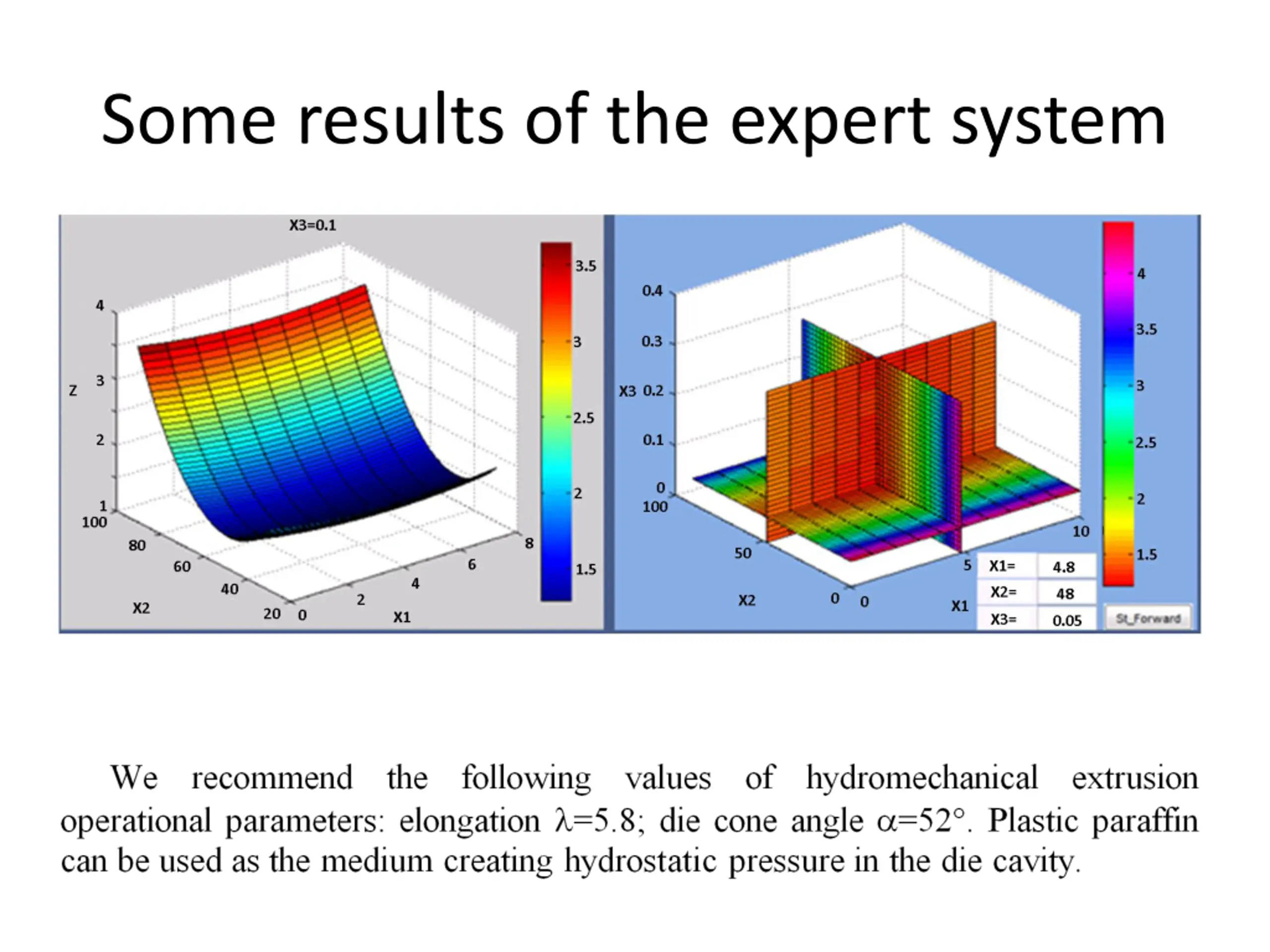

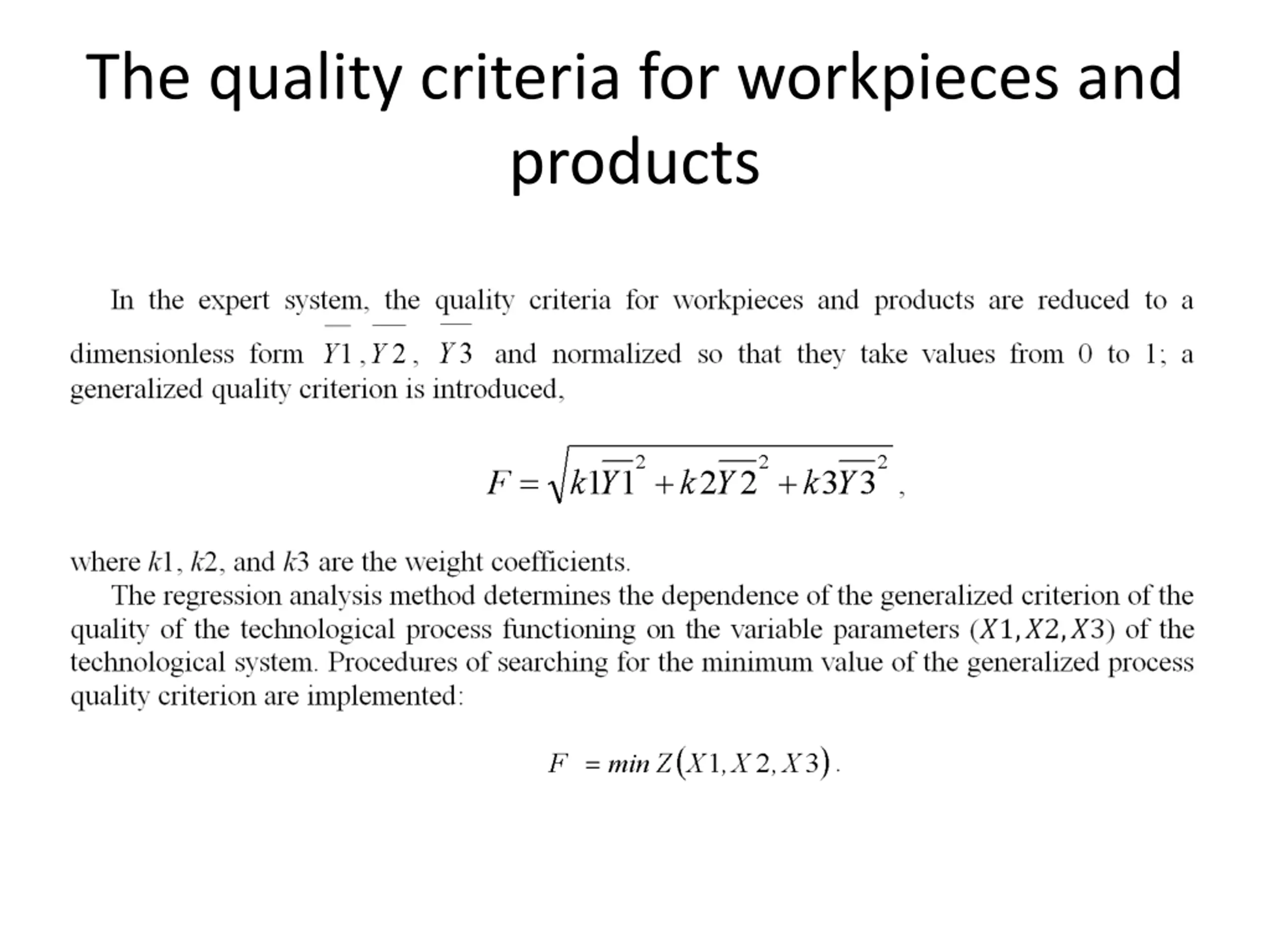

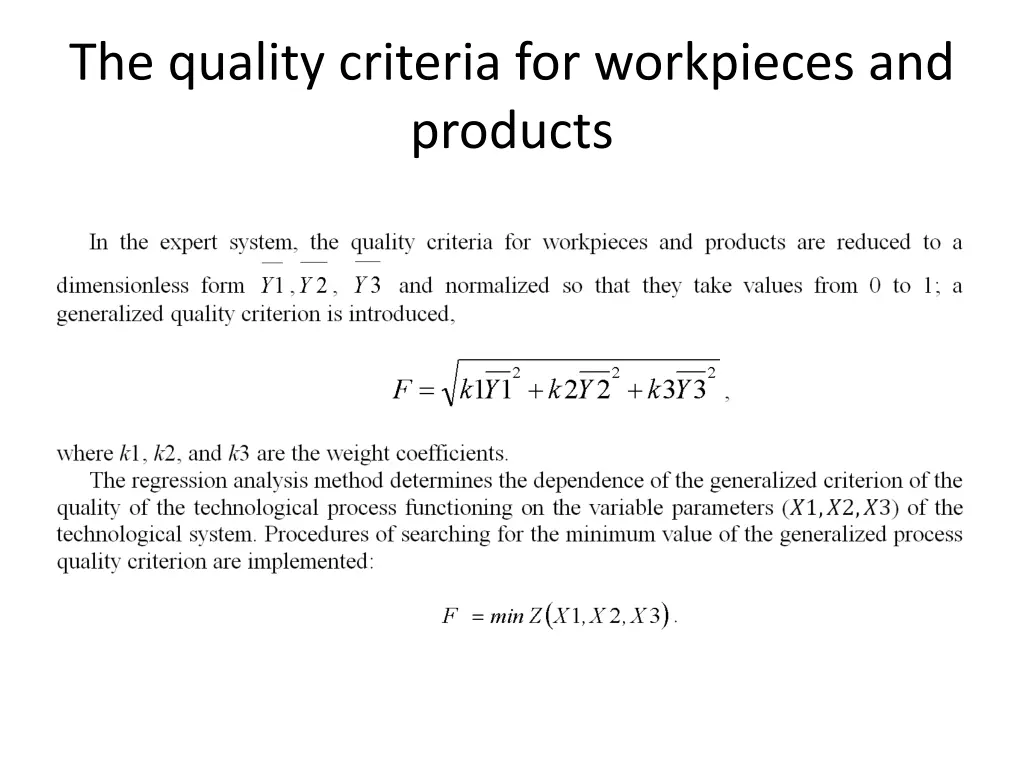

Explore the multi-criteria selection of operational parameters for hydromechanical extrusion process, stress and strain analysis results, simulation exercise outcomes, quality criteria for workpieces, and expert system results. Gain insights into the implementation diagram and enhance your understanding of this innovative process.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

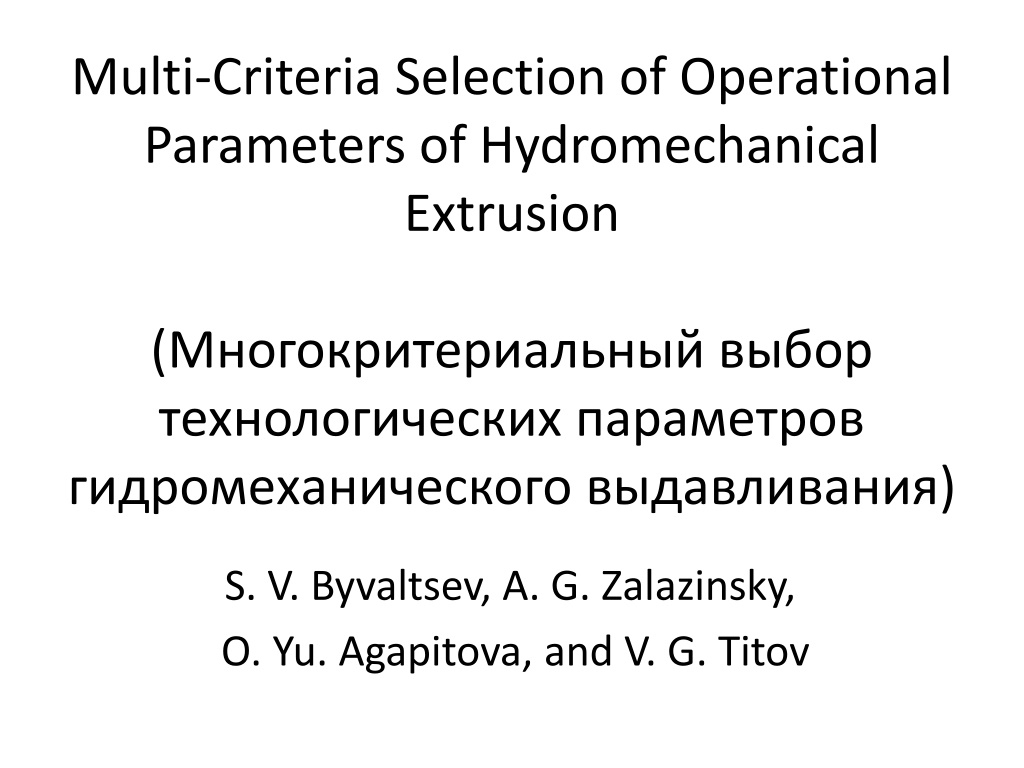

Multi-Criteria Selection of Operational Parameters of Hydromechanical Extrusion ( ) S. V. Byvaltsev, A. G. Zalazinsky, O. Yu. Agapitova, and V. G. Titov

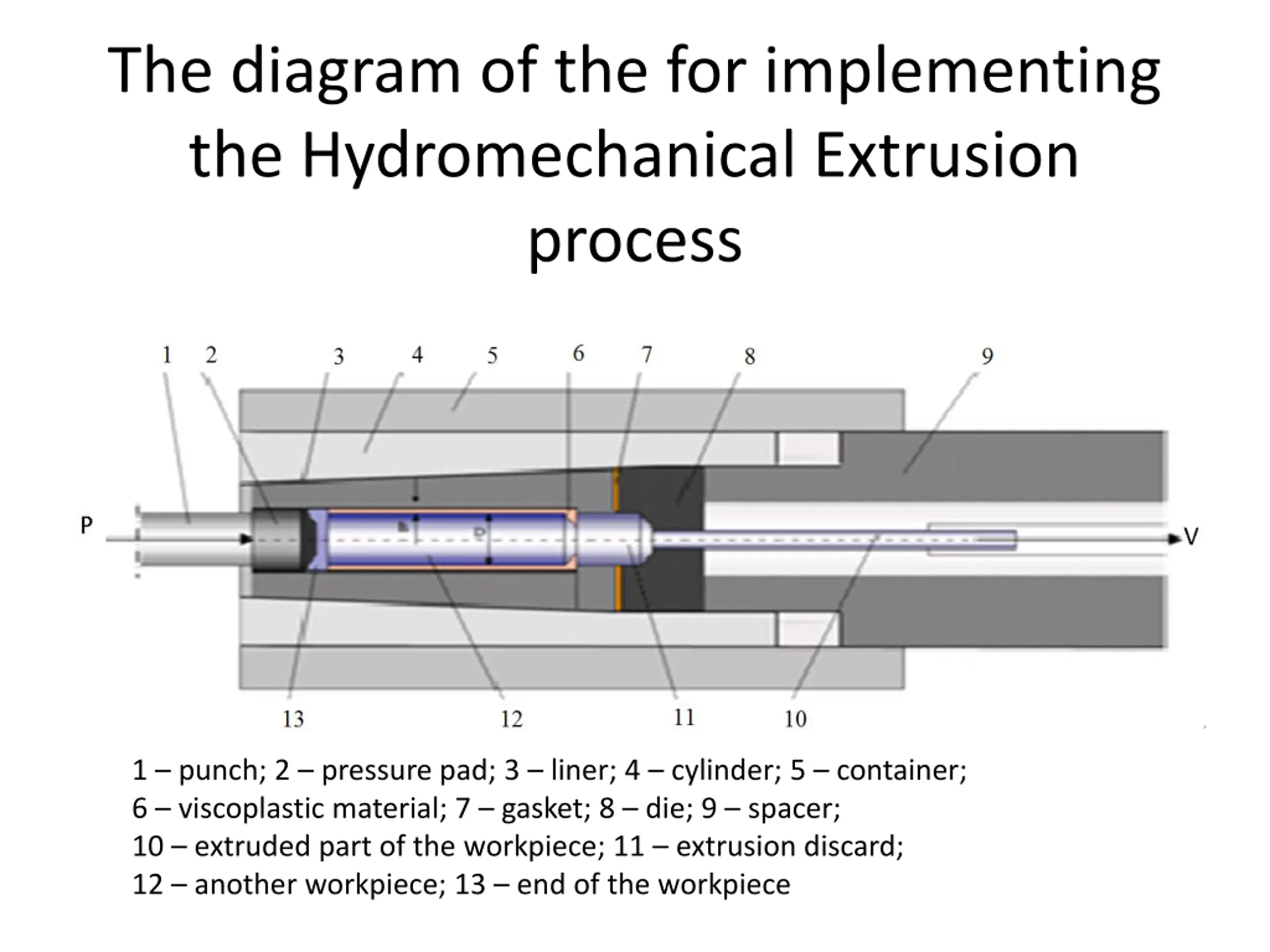

The diagram of the for implementing the Hydromechanical Extrusion process 1 punch; 2 pressure pad; 3 liner; 4 cylinder; 5 container; 6 viscoplastic material; 7 gasket; 8 die; 9 spacer; 10 extruded part of the workpiece; 11 extrusion discard; 12 another workpiece; 13 end of the workpiece

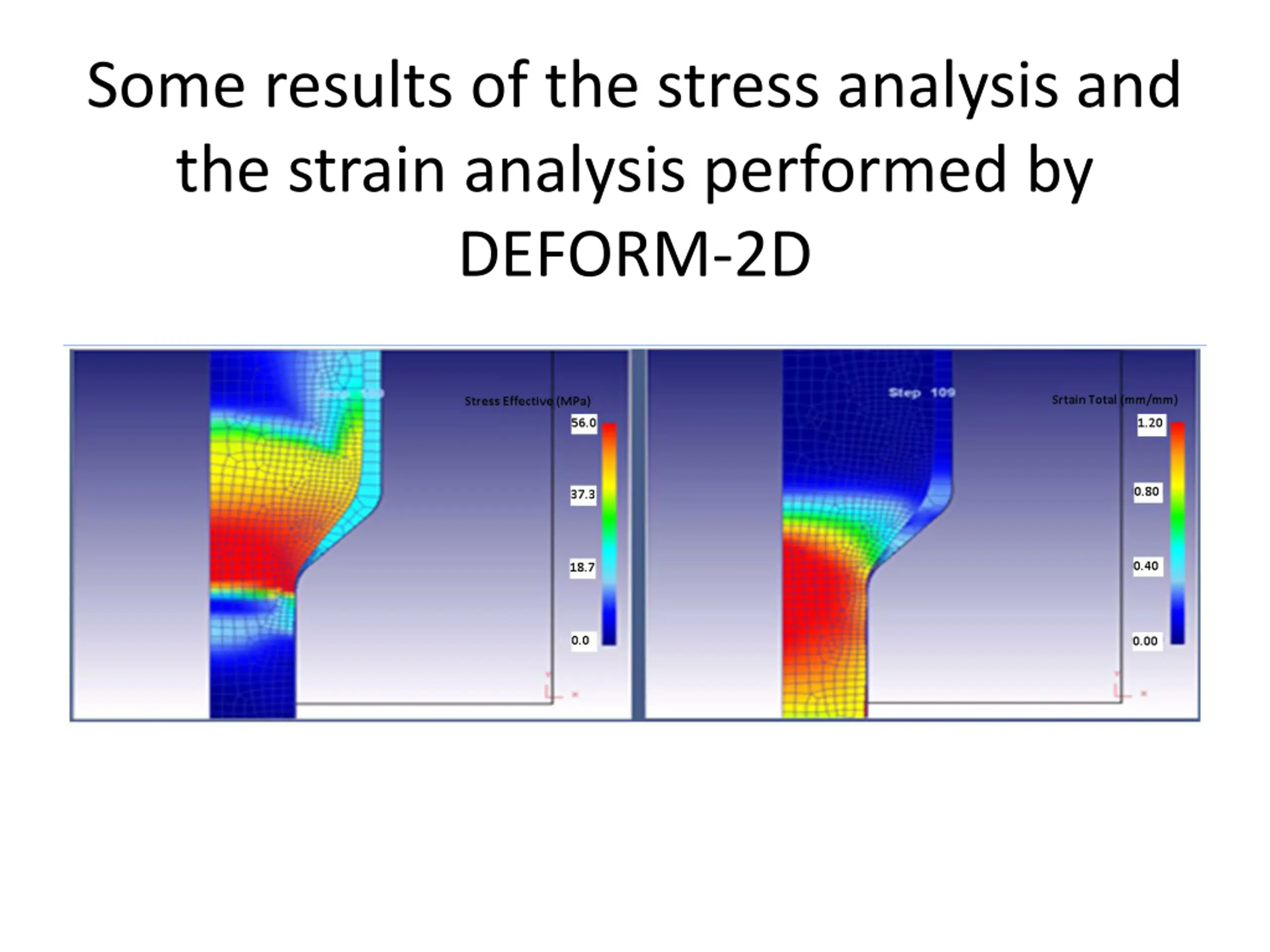

Some results of the stress analysis and the strain analysis performed by DEFORM-2D
