Optimizing Synchrotron Scanning Control with Async and Ophyd

Tom Cobb

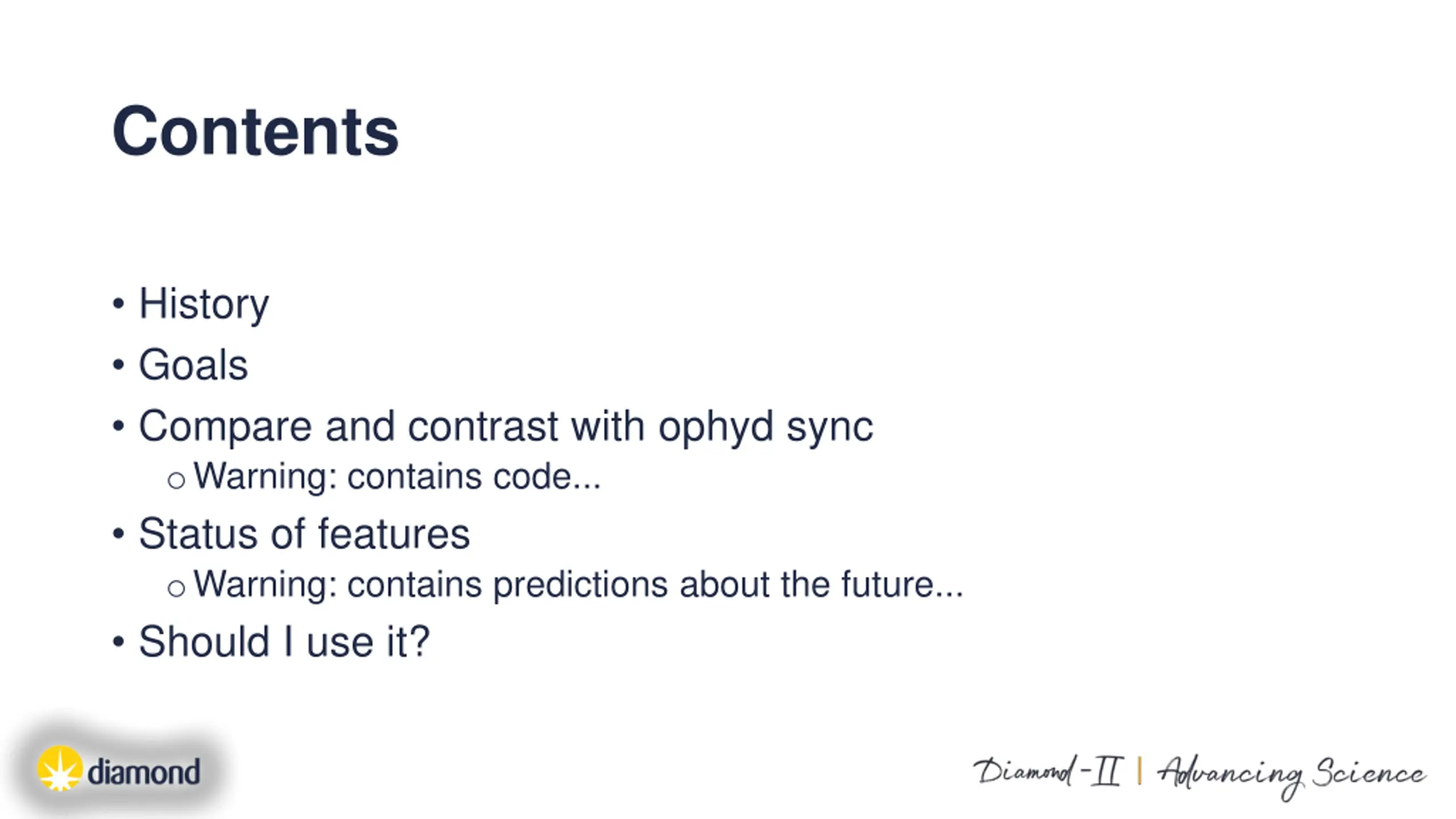

Contents History Goals Compare and contrast with ophyd sync oWarning: contains code... Status of features oWarning: contains predictions about the future... Should I use it?

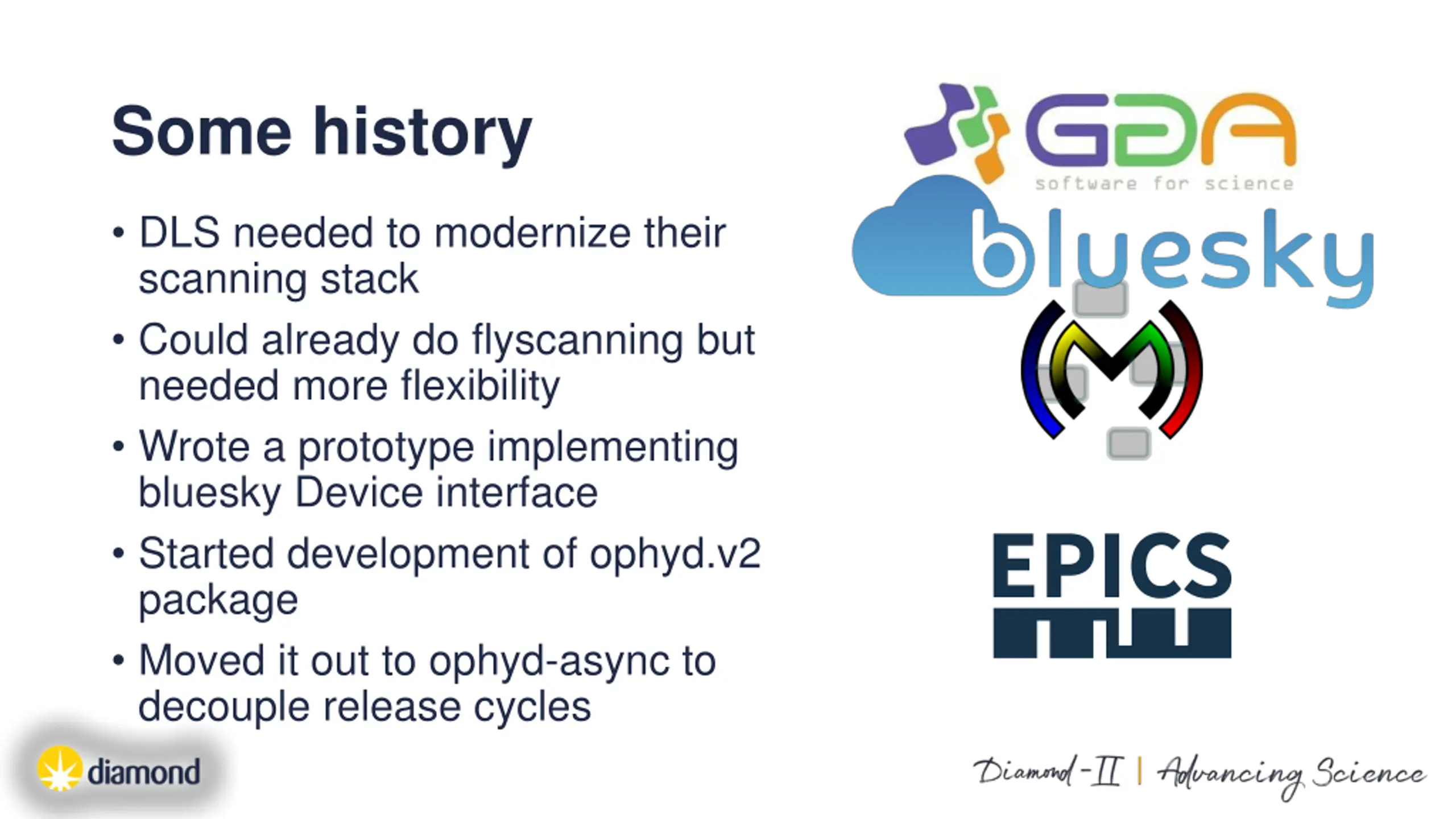

Some history DLS needed to modernize their scanning stack Could already do flyscanning but needed more flexibility Wrote a prototype implementing bluesky Device interface Started development of ophyd.v2 package Moved it out to ophyd-async to decouple release cycles

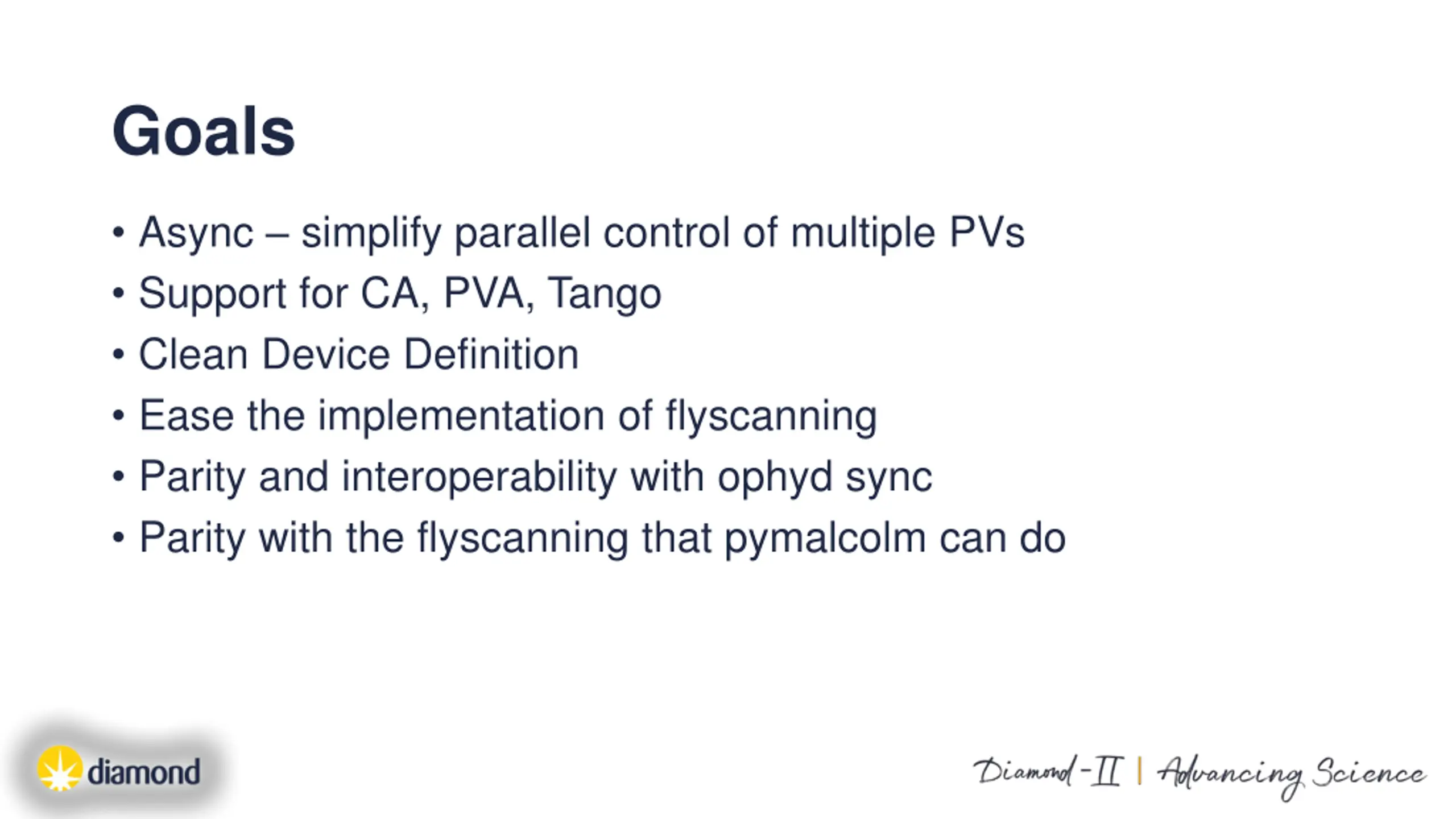

Goals Async simplify parallel control of multiple PVs Support for CA, PVA, Tango Clean Device Definition Ease the implementation of flyscanning Parity and interoperability with ophyd sync Parity with the flyscanning that pymalcolm can do

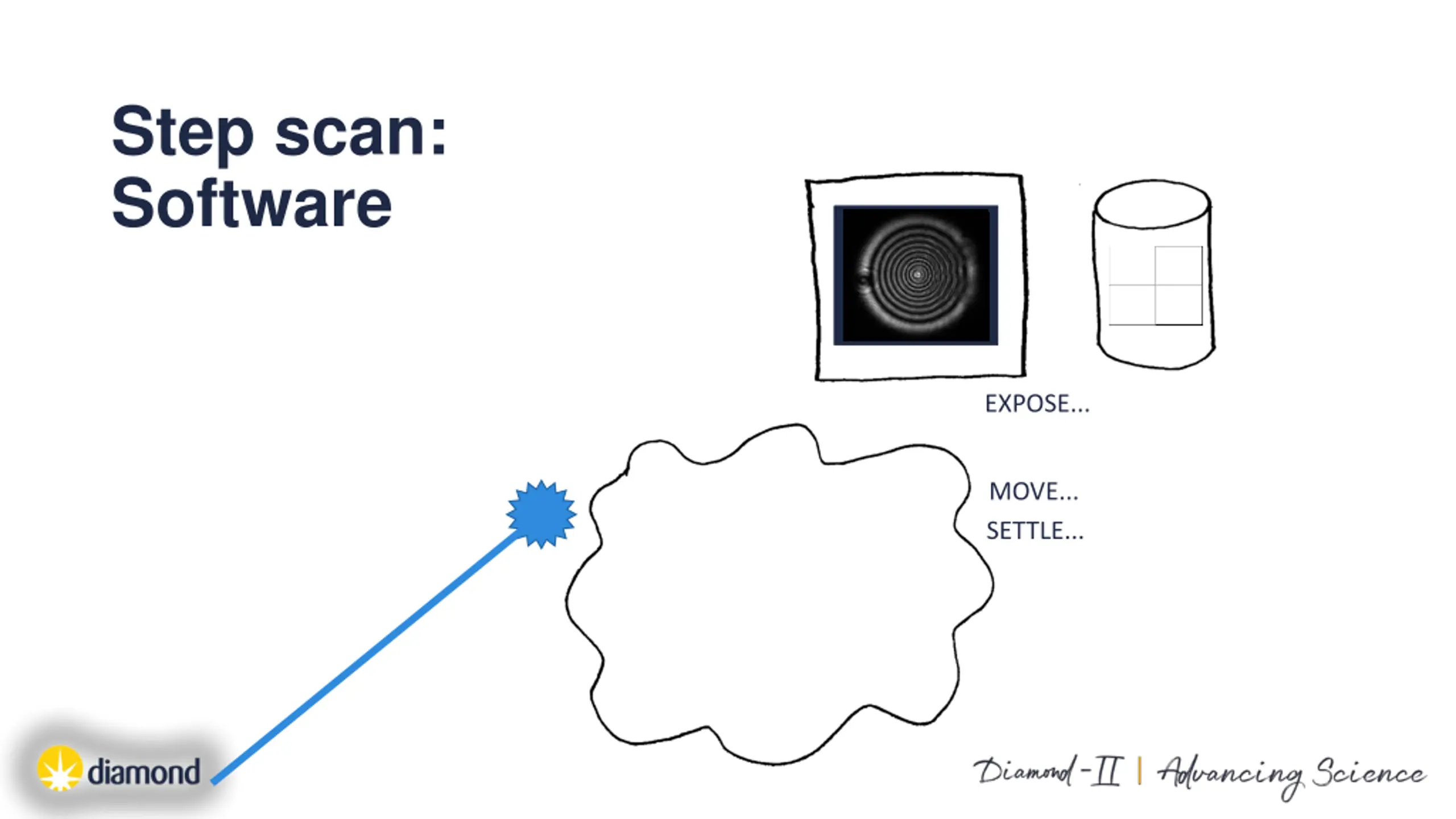

Step scan: Software EXPOSE... MOVE... SETTLE...

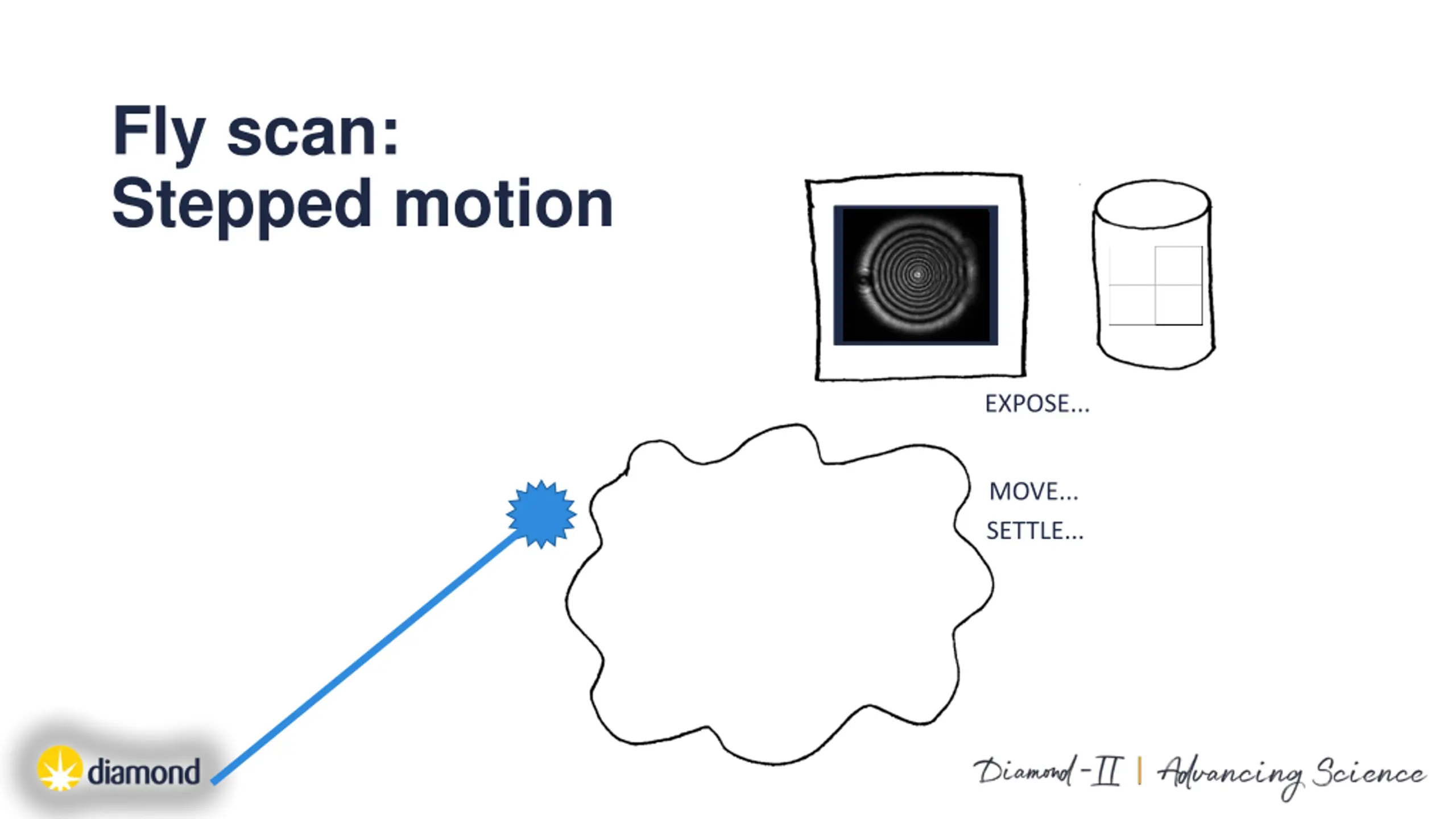

Fly scan: Stepped motion EXPOSE... MOVE... SETTLE...

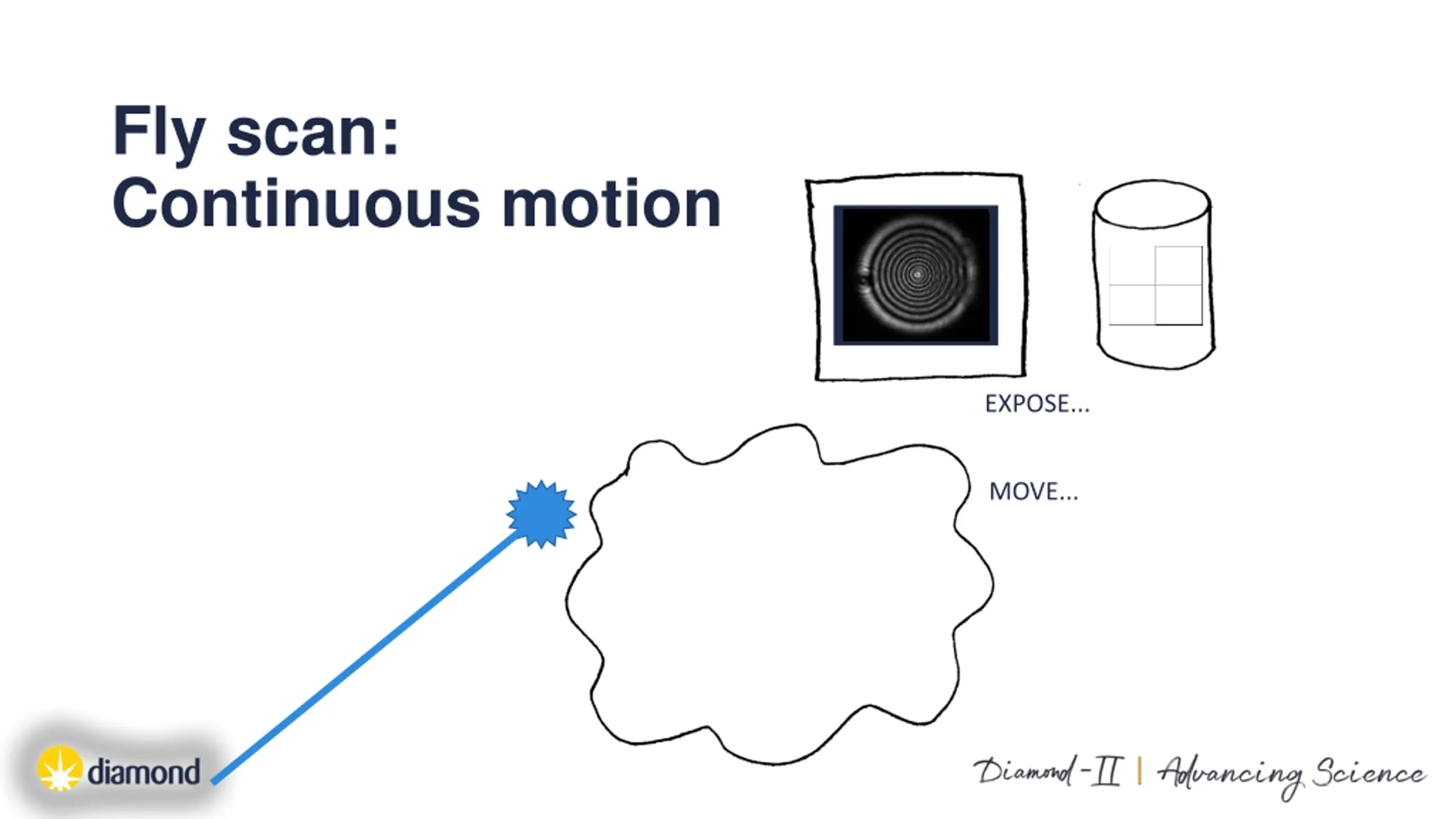

Fly scan: Continuous motion EXPOSE... MOVE...

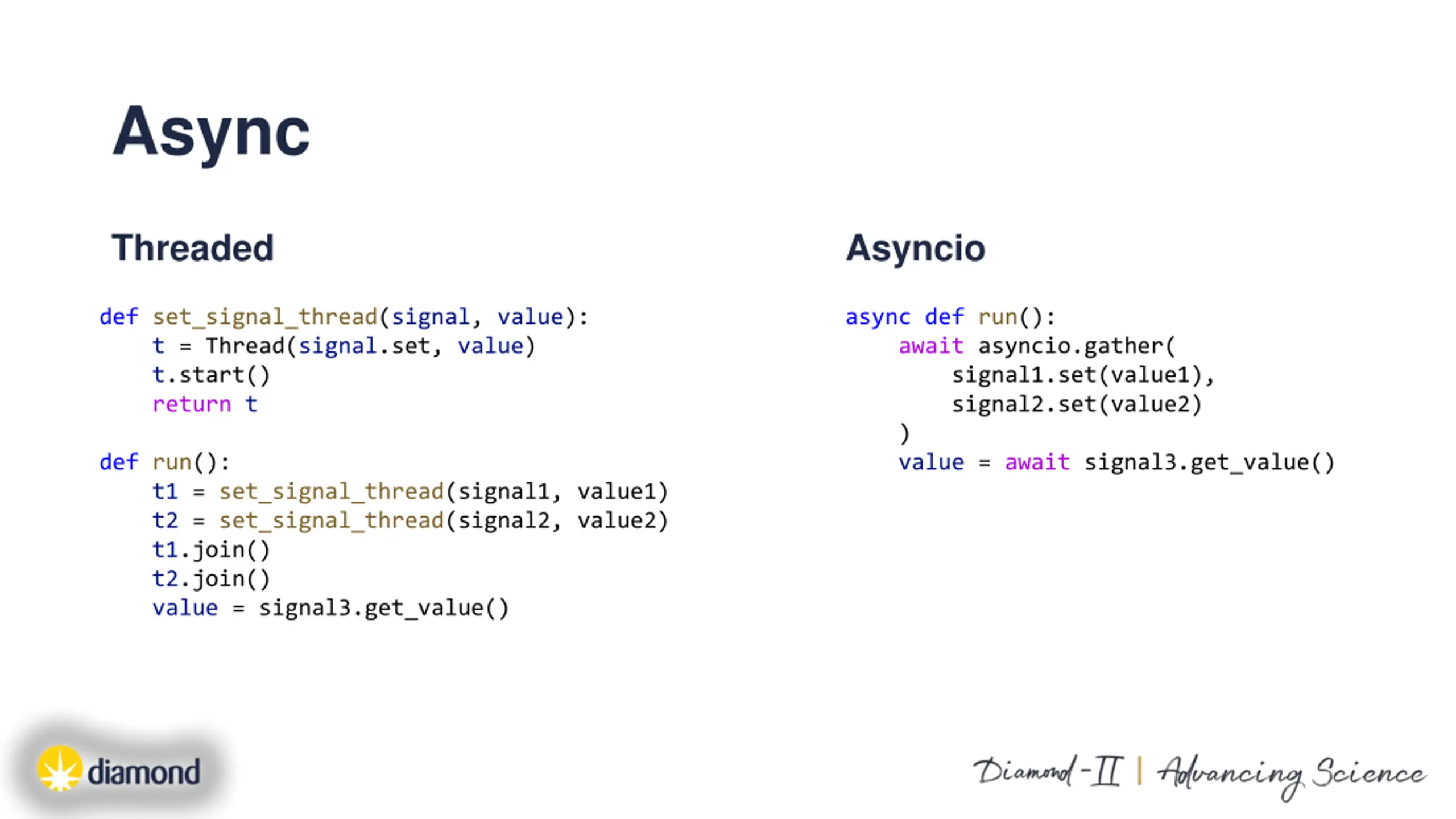

Async Threaded Asyncio def set_signal_thread(signal, value): t = Thread(signal.set, value) t.start() return t async def run(): await asyncio.gather( signal1.set(value1), signal2.set(value2) ) value = await signal3.get_value() def run(): t1 = set_signal_thread(signal1, value1) t2 = set_signal_thread(signal2, value2) t1.join() t2.join() value = signal3.get_value()

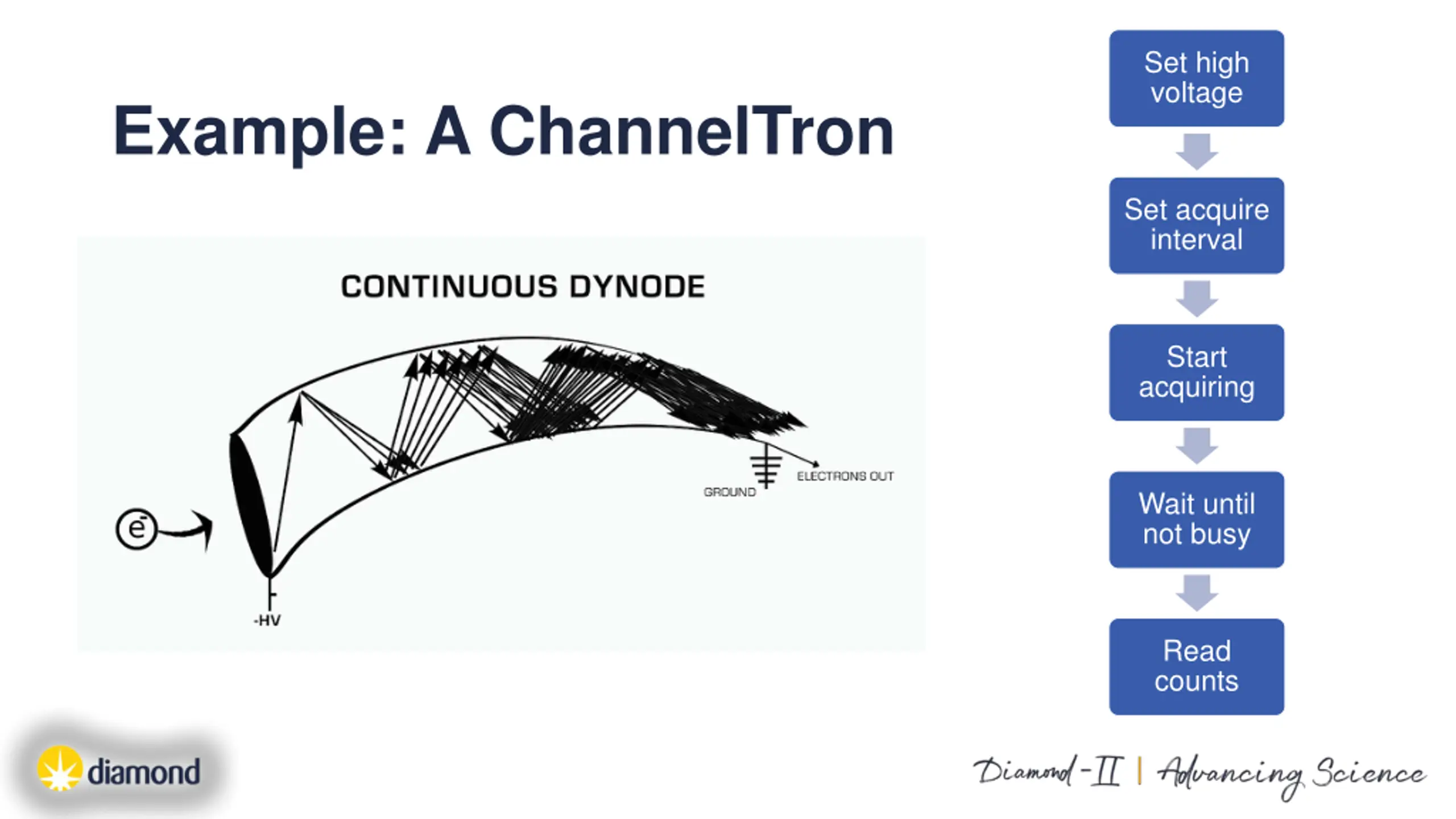

Set high voltage Example: A ChannelTron Set acquire interval Start acquiring Wait until not busy Read counts

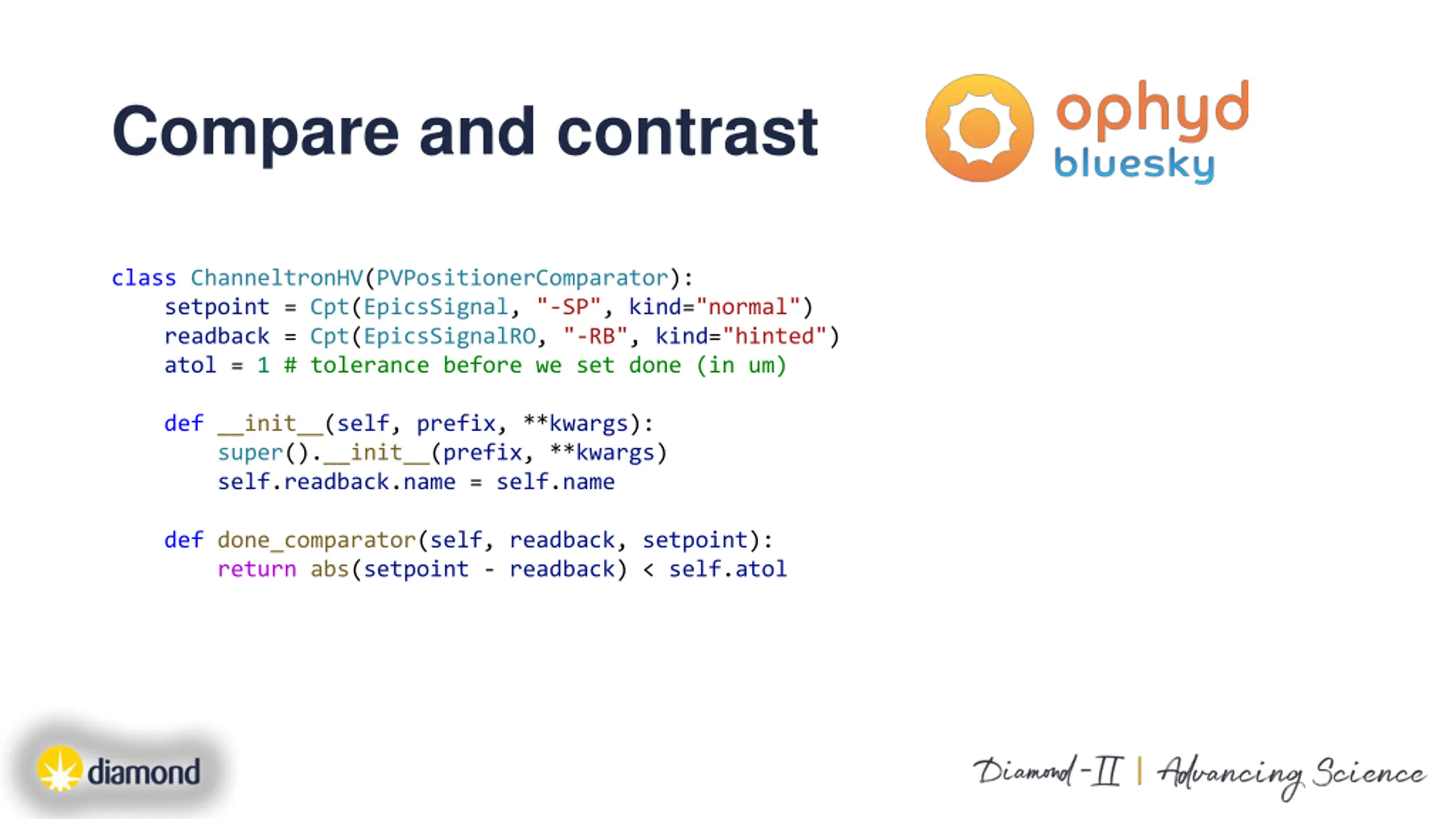

Compare and contrast class ChanneltronHV(PVPositionerComparator): setpoint = Cpt(EpicsSignal, "-SP", kind="normal") readback = Cpt(EpicsSignalRO, "-RB", kind="hinted") atol = 1 # tolerance before we set done (in um) def __init__(self, prefix, **kwargs): super().__init__(prefix, **kwargs) self.readback.name = self.name def done_comparator(self, readback, setpoint): return abs(setpoint - readback) < self.atol

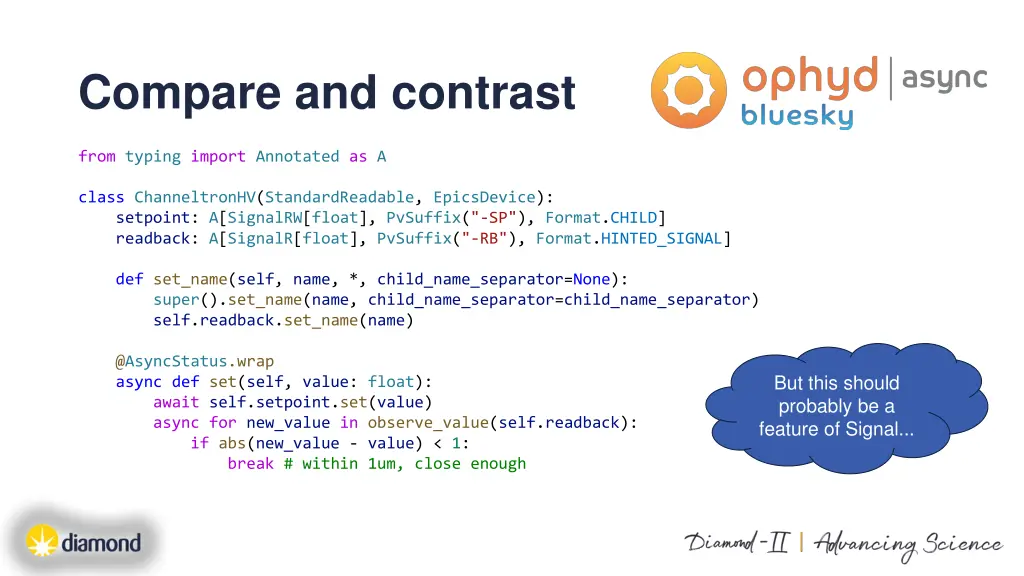

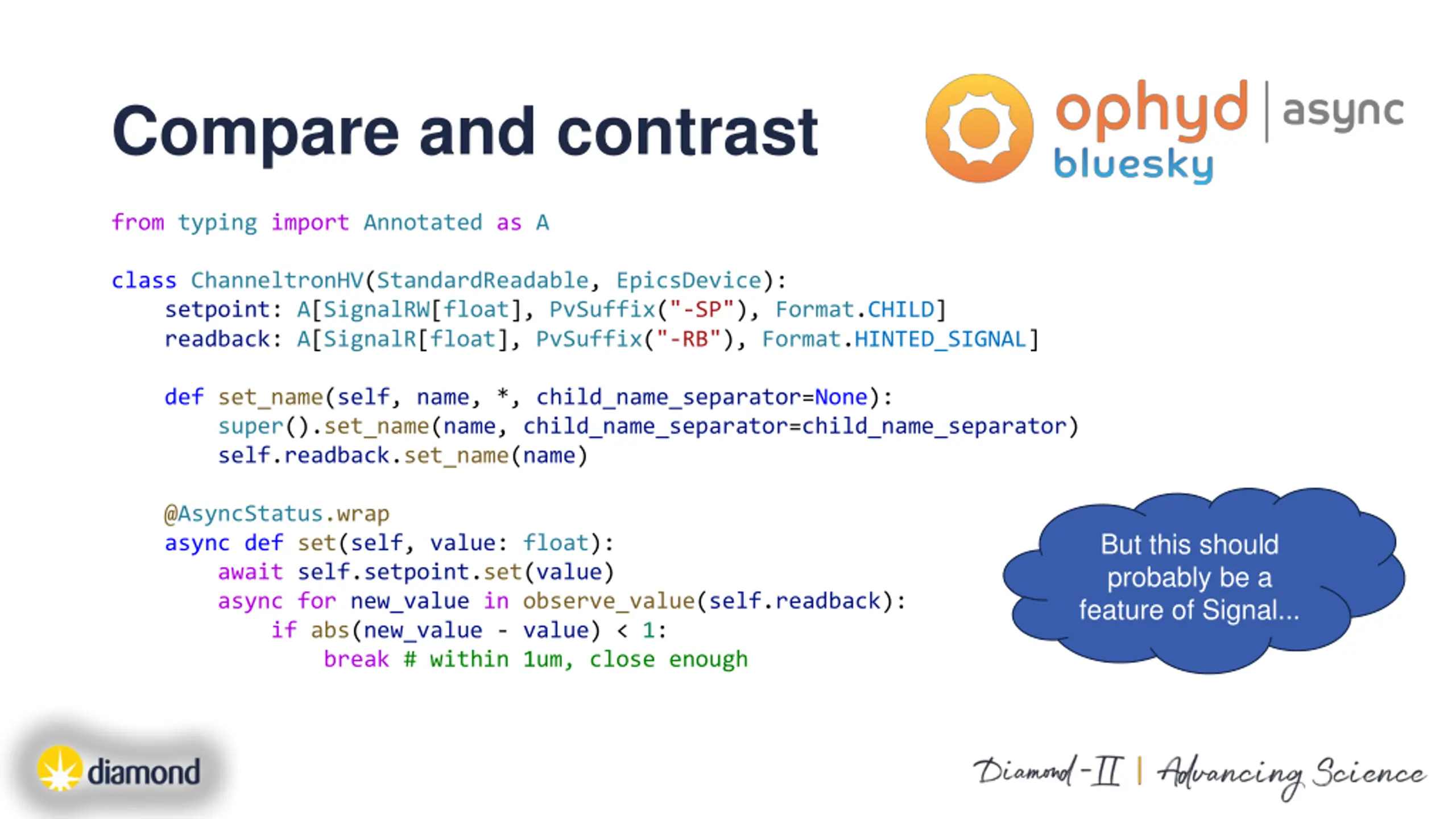

Compare and contrast from typing import Annotated as A class ChanneltronHV(StandardReadable, EpicsDevice): setpoint: A[SignalRW[float], PvSuffix("-SP"), Format.CHILD] readback: A[SignalR[float], PvSuffix("-RB"), Format.HINTED_SIGNAL] def set_name(self, name, *, child_name_separator=None): super().set_name(name, child_name_separator=child_name_separator) self.readback.set_name(name) @AsyncStatus.wrap async def set(self, value: float): await self.setpoint.set(value) async for new_value in observe_value(self.readback): if abs(new_value - value) < 1: break # within 1um, close enough But this should probably be a feature of Signal...

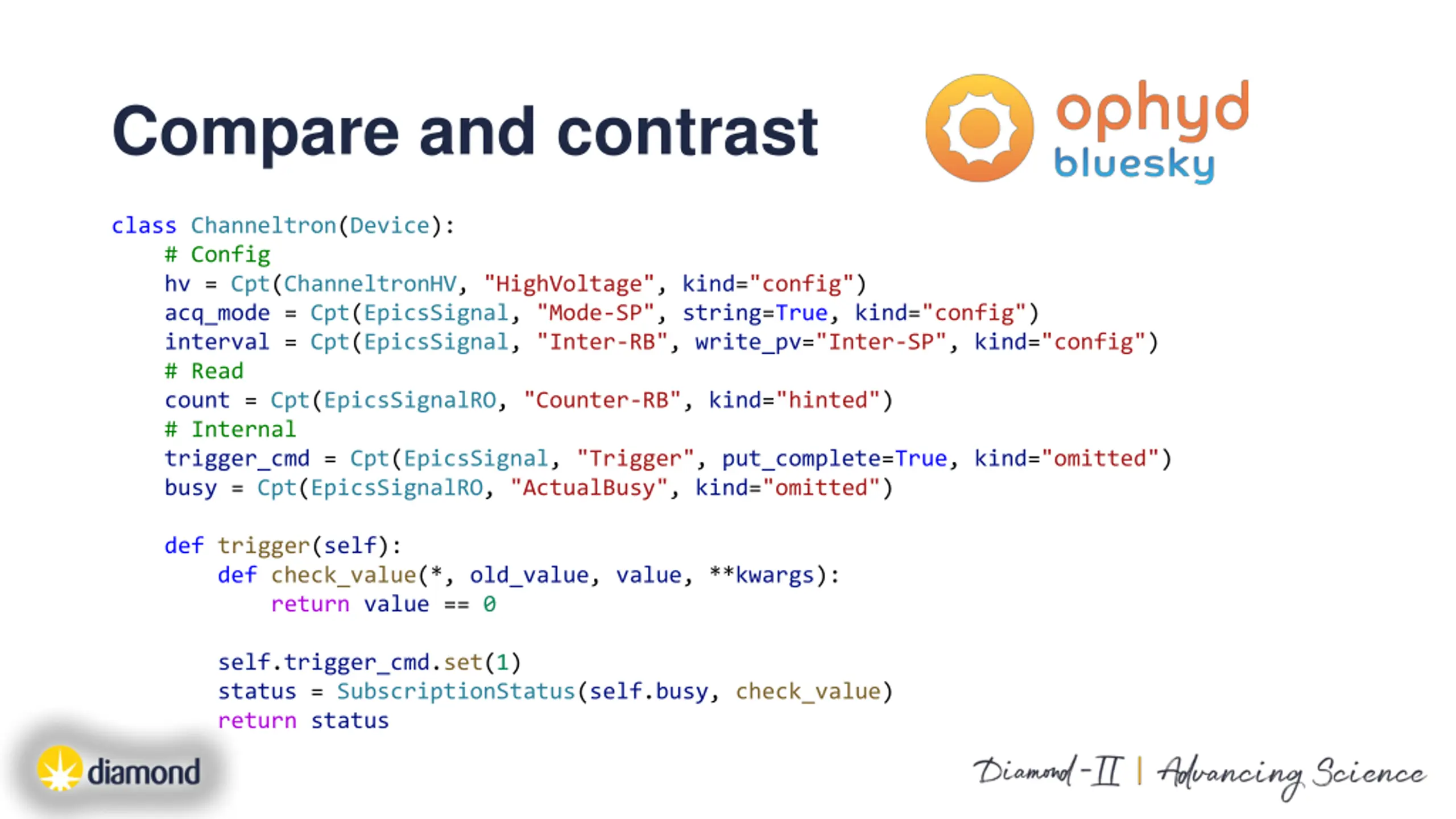

Compare and contrast class Channeltron(Device): # Config hv = Cpt(ChanneltronHV, "HighVoltage", kind="config") acq_mode = Cpt(EpicsSignal, "Mode-SP", string=True, kind="config") interval = Cpt(EpicsSignal, "Inter-RB", write_pv="Inter-SP", kind="config") # Read count = Cpt(EpicsSignalRO, "Counter-RB", kind="hinted") # Internal trigger_cmd = Cpt(EpicsSignal, "Trigger", put_complete=True, kind="omitted") busy = Cpt(EpicsSignalRO, "ActualBusy", kind="omitted") def trigger(self): def check_value(*, old_value, value, **kwargs): return value == 0 self.trigger_cmd.set(1) status = SubscriptionStatus(self.busy, check_value) return status

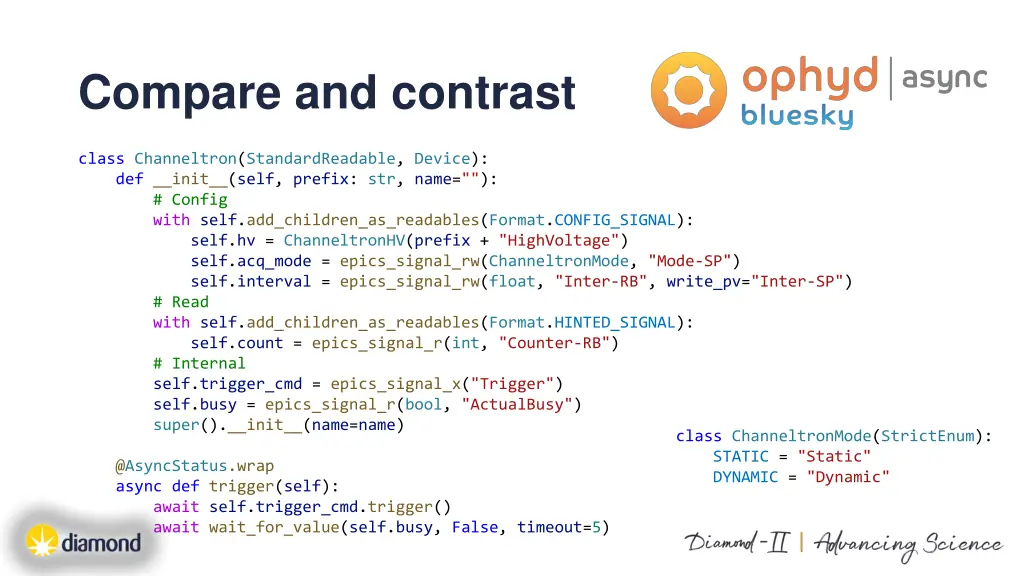

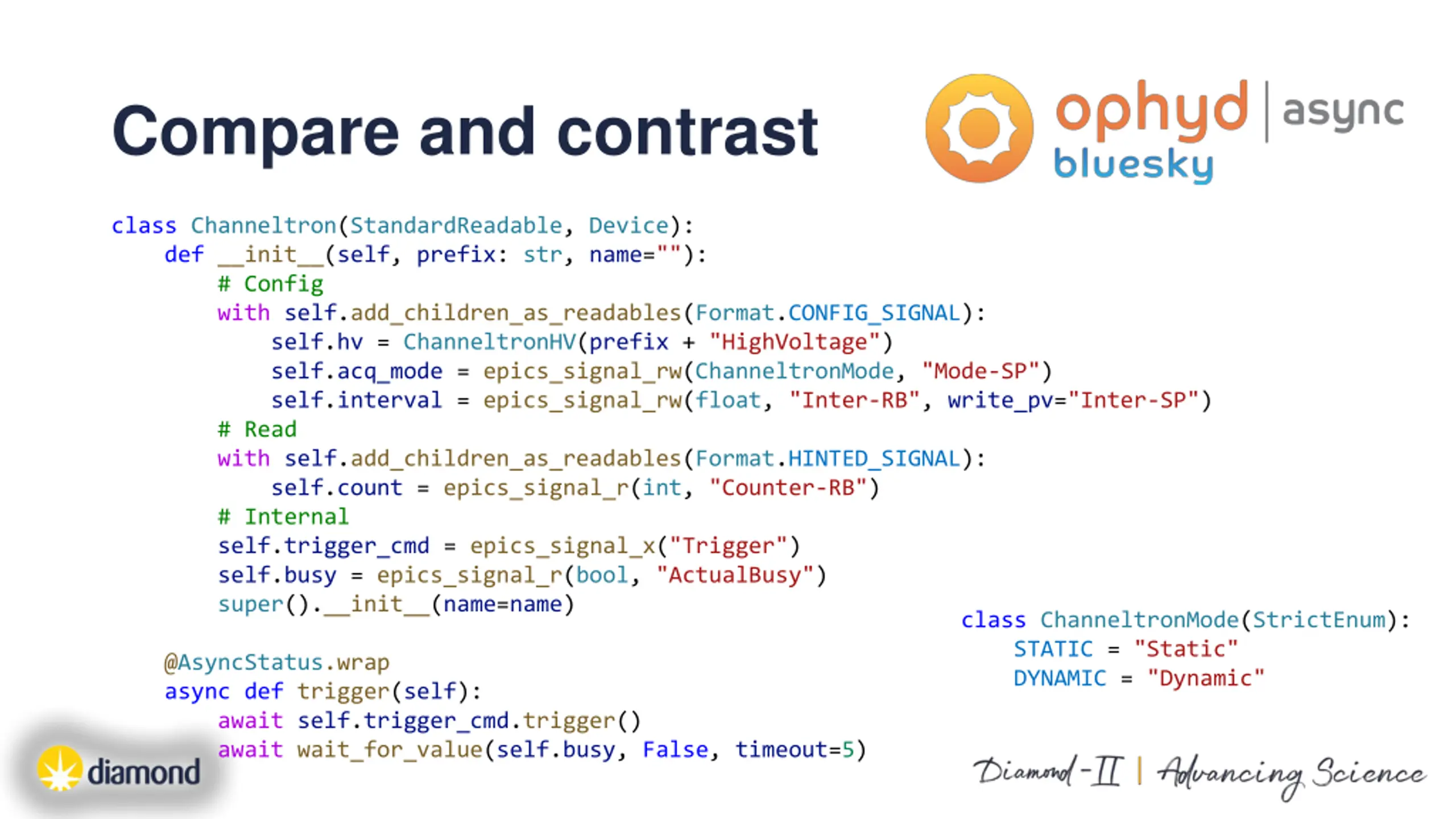

Compare and contrast class Channeltron(StandardReadable, Device): def __init__(self, prefix: str, name=""): # Config with self.add_children_as_readables(Format.CONFIG_SIGNAL): self.hv = ChanneltronHV(prefix + "HighVoltage") self.acq_mode = epics_signal_rw(ChanneltronMode, "Mode-SP") self.interval = epics_signal_rw(float, "Inter-RB", write_pv="Inter-SP") # Read with self.add_children_as_readables(Format.HINTED_SIGNAL): self.count = epics_signal_r(int, "Counter-RB") # Internal self.trigger_cmd = epics_signal_x("Trigger") self.busy = epics_signal_r(bool, "ActualBusy") super().__init__(name=name) class ChanneltronMode(StrictEnum): STATIC = "Static" DYNAMIC = "Dynamic" @AsyncStatus.wrap async def trigger(self): await self.trigger_cmd.trigger() await wait_for_value(self.busy, False, timeout=5)

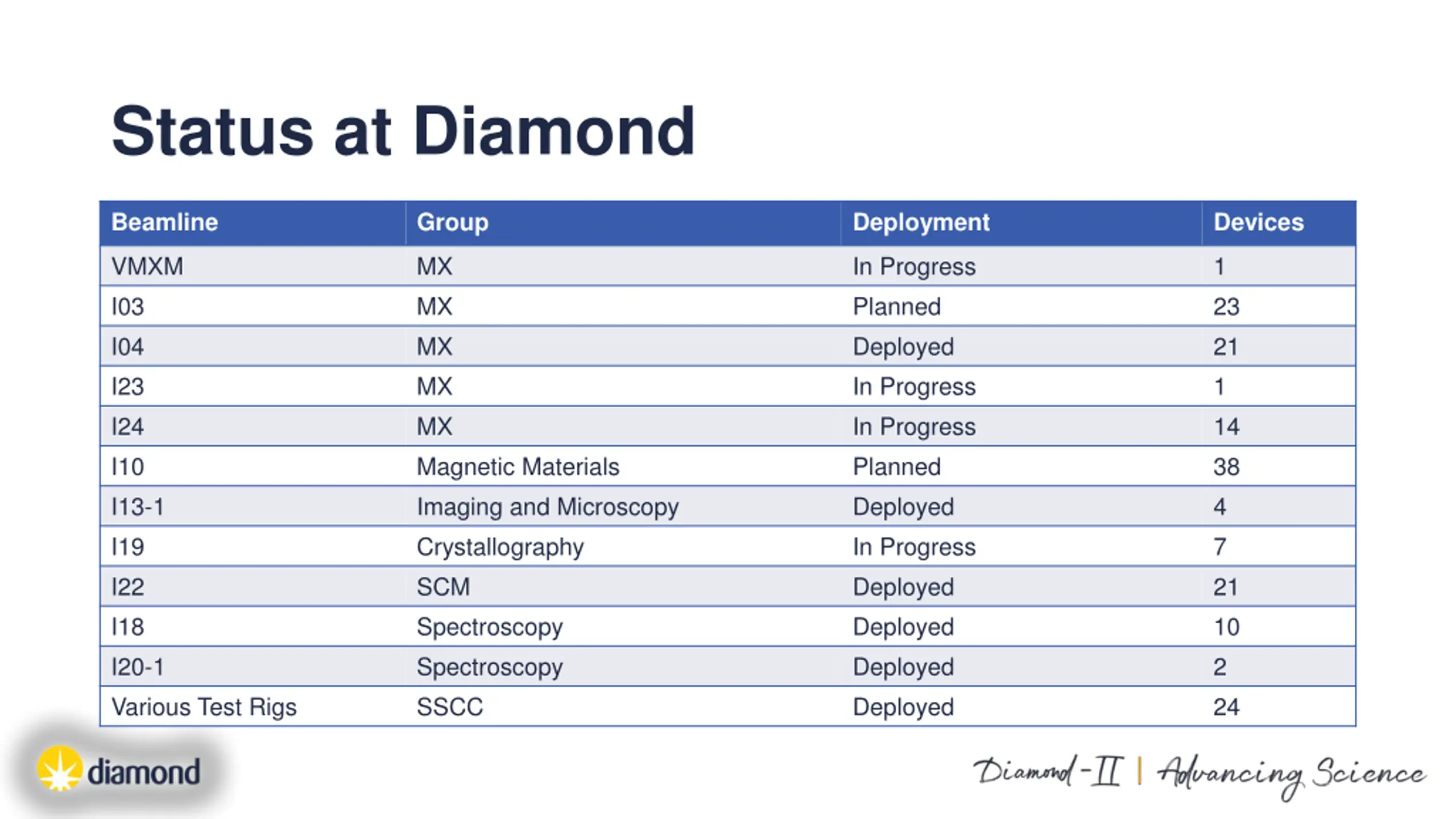

Status at Diamond Beamline Group Deployment Devices VMXM I03 I04 I23 I24 I10 I13-1 I19 I22 I18 I20-1 Various Test Rigs MX MX MX MX MX Magnetic Materials Imaging and Microscopy Crystallography SCM Spectroscopy Spectroscopy SSCC In Progress Planned Deployed In Progress In Progress Planned Deployed In Progress Deployed Deployed Deployed Deployed 1 23 21 1 14 38 4 7 21 10 2 24

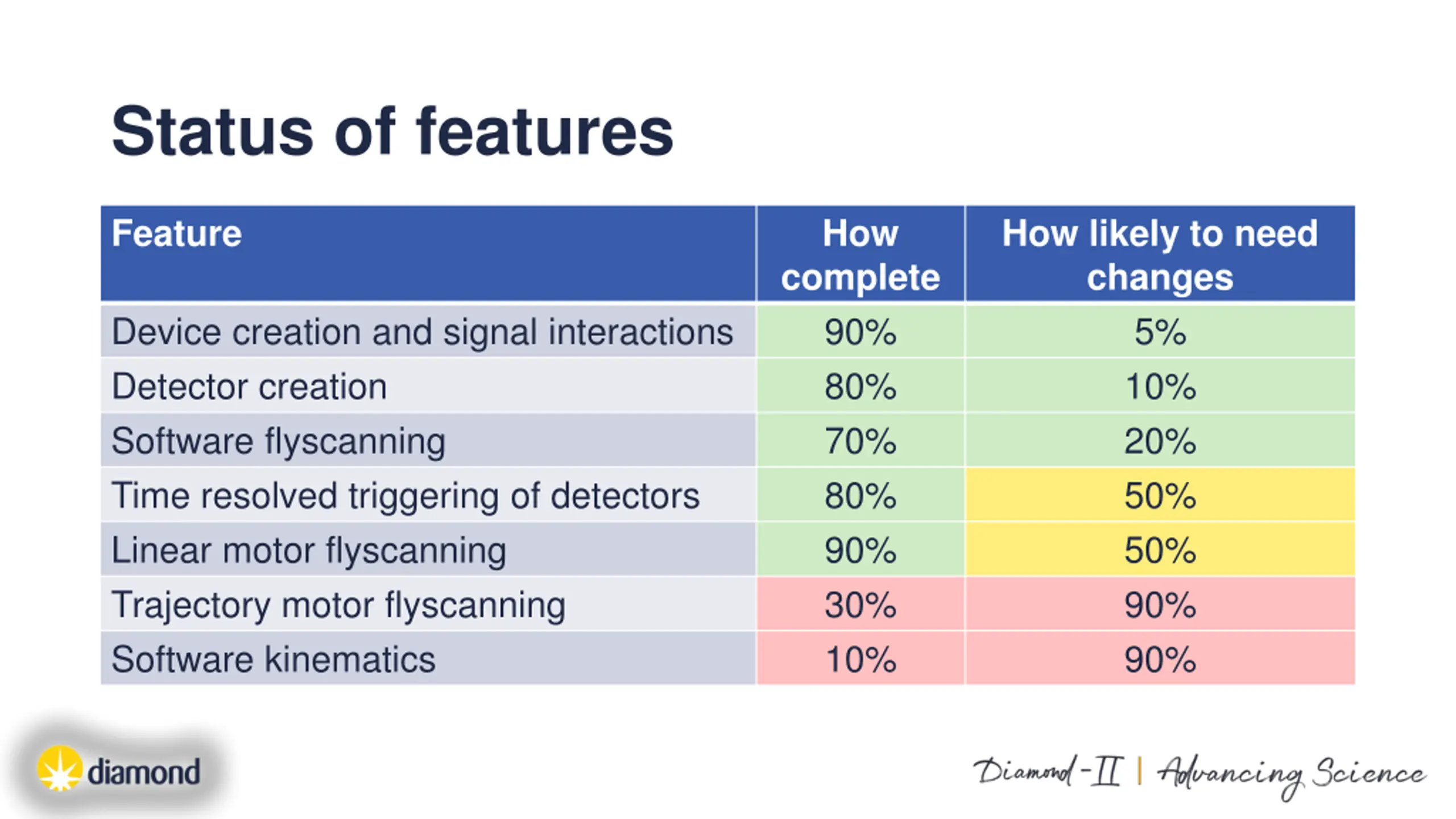

Status of features Feature How complete 90% 80% 70% 80% 90% 30% 10% How likely to need changes 5% 10% 20% 50% 50% 90% 90% Device creation and signal interactions Detector creation Software flyscanning Time resolved triggering of detectors Linear motor flyscanning Trajectory motor flyscanning Software kinematics

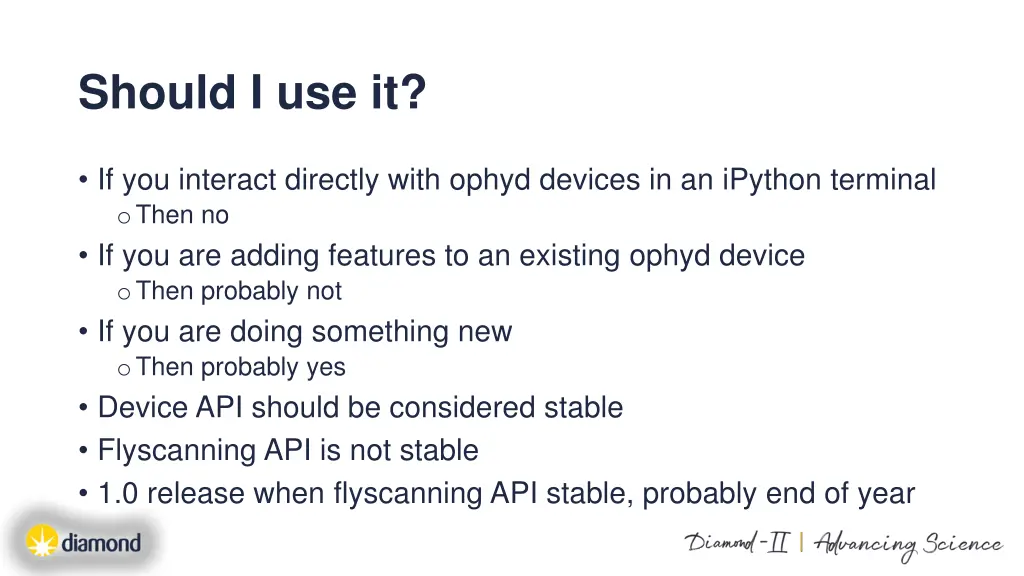

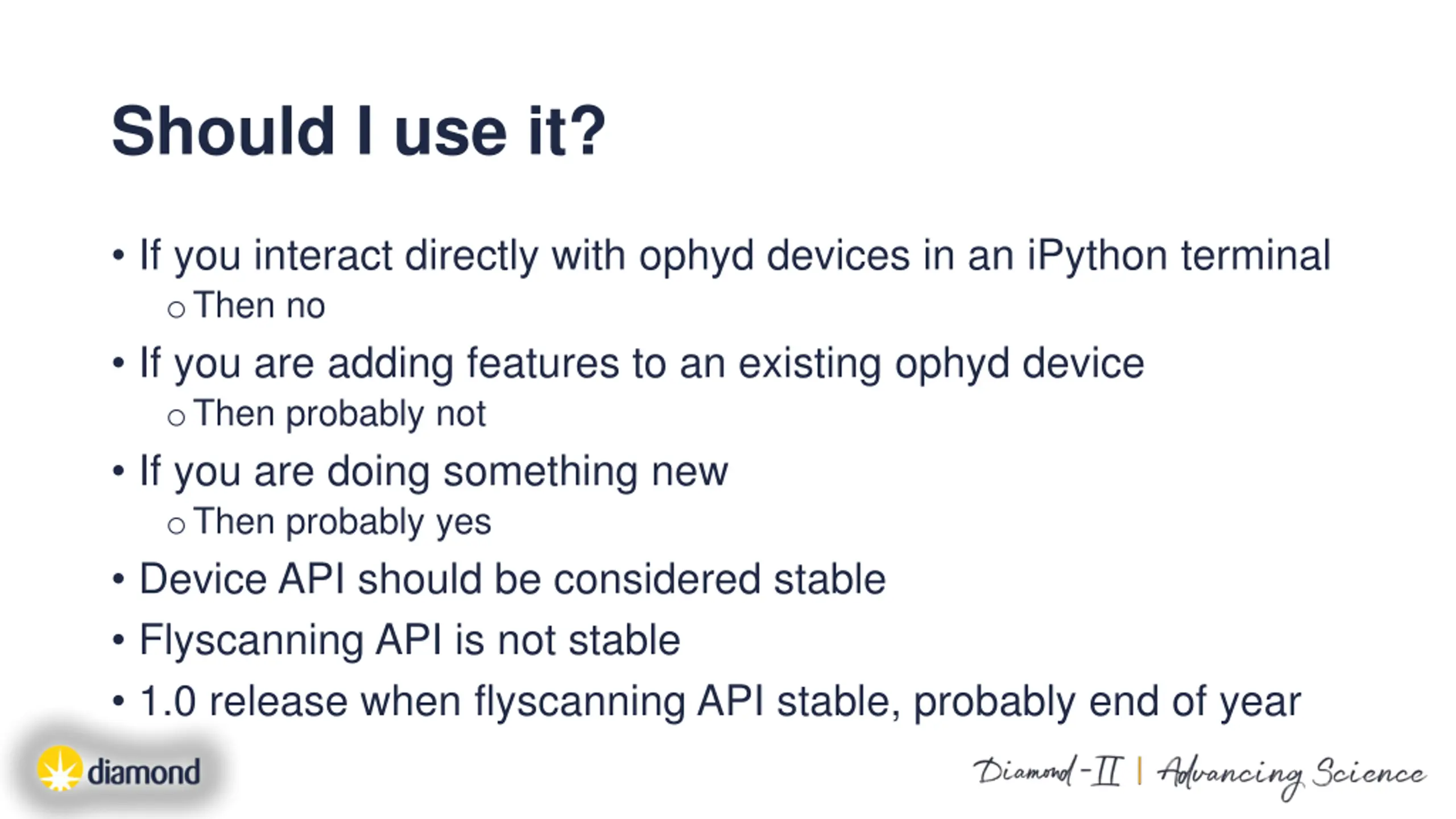

Should I use it? If you interact directly with ophyd devices in an iPython terminal oThen no If you are adding features to an existing ophyd device oThen probably not If you are doing something new oThen probably yes Device API should be considered stable Flyscanning API is not stable 1.0 release when flyscanning API stable, probably end of year

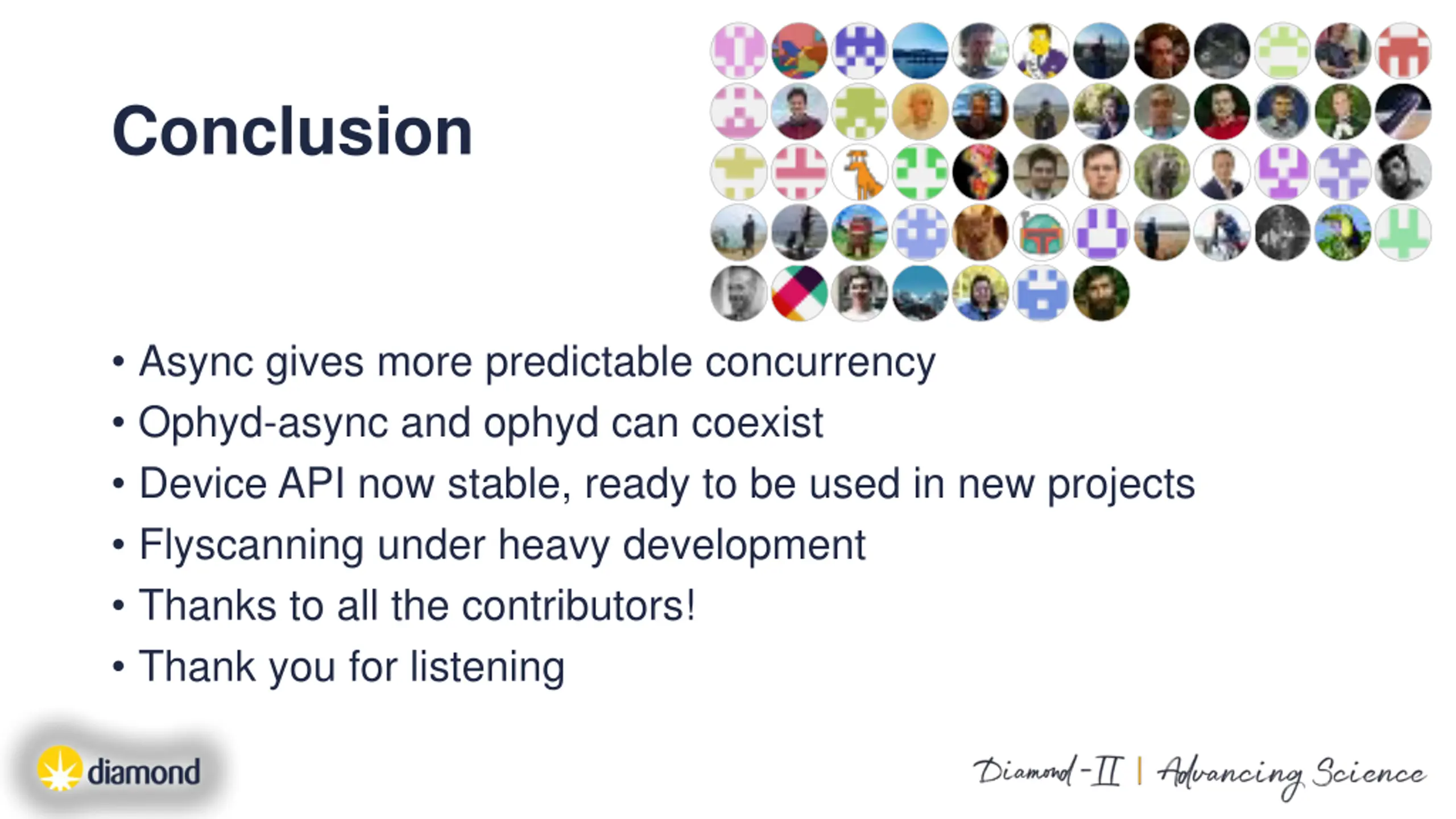

Conclusion Async gives more predictable concurrency Ophyd-async and ophyd can coexist Device API now stable, ready to be used in new projects Flyscanning under heavy development Thanks to all the contributors! Thank you for listening
