Proposal to Extend Parking Lamp Use for Wide Vehicles
This document presents a proposal to allow the use of single-sided parking lamp illumination for vehicles exceeding 2 meters in width. Currently, UN regulations restrict parking lamp installation on vehicles wider than 2 meters, affecting modern M1/N1 vehicles with increased widths due to safety features. The proposed amendment aims to enhance road user safety by permitting parking lamp usage for wider vehicles parked in built-up areas, aligning with evolving vehicle dimensions and safety standards.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

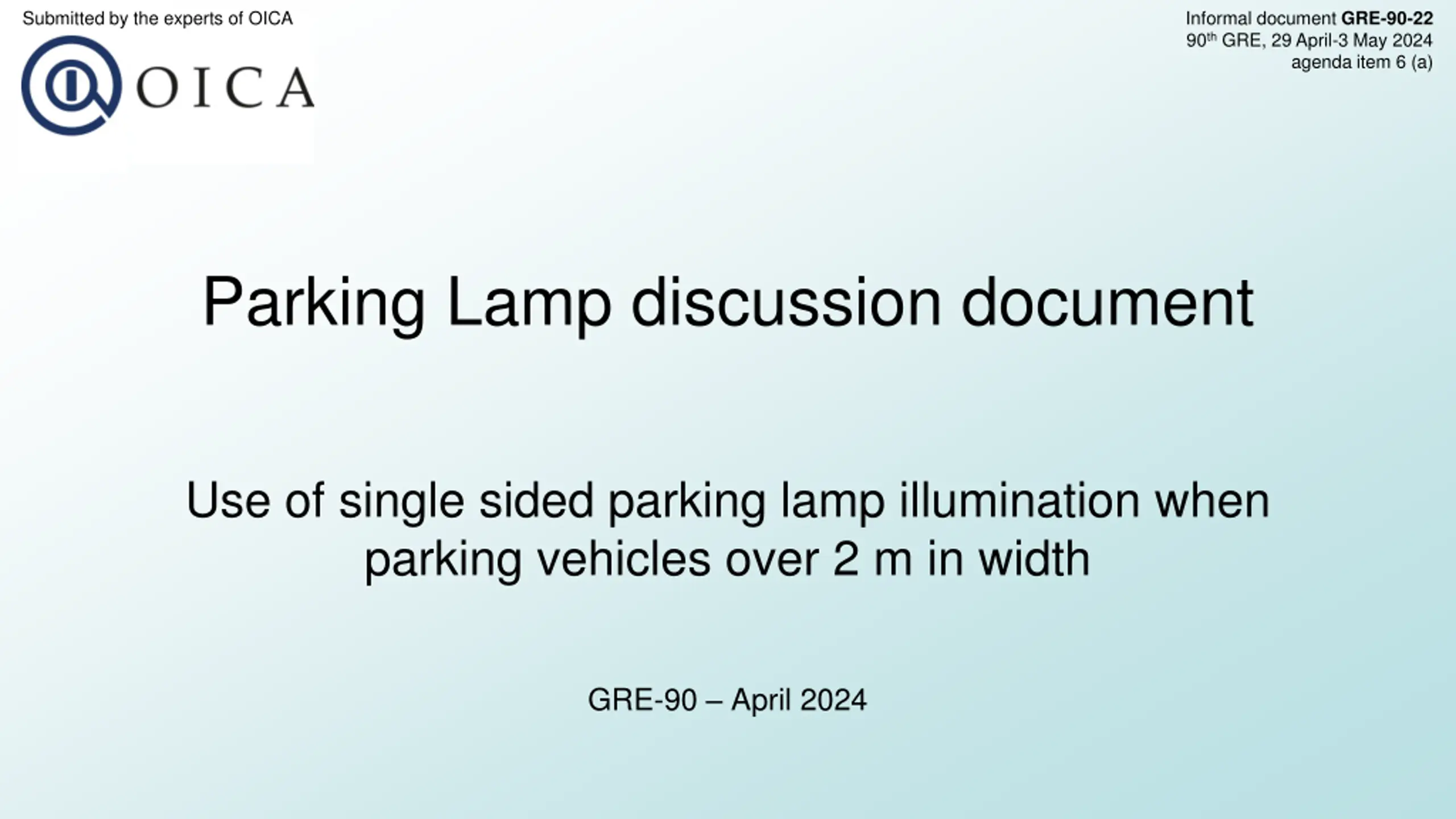

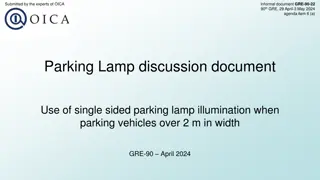

Submitted by the experts of OICA Informal document GRE-90-22 90thGRE, 29 April-3 May 2024 agenda item 6 (a) Parking Lamp discussion document Use of single sided parking lamp illumination when parking vehicles over 2 m in width GRE-90 April 2024

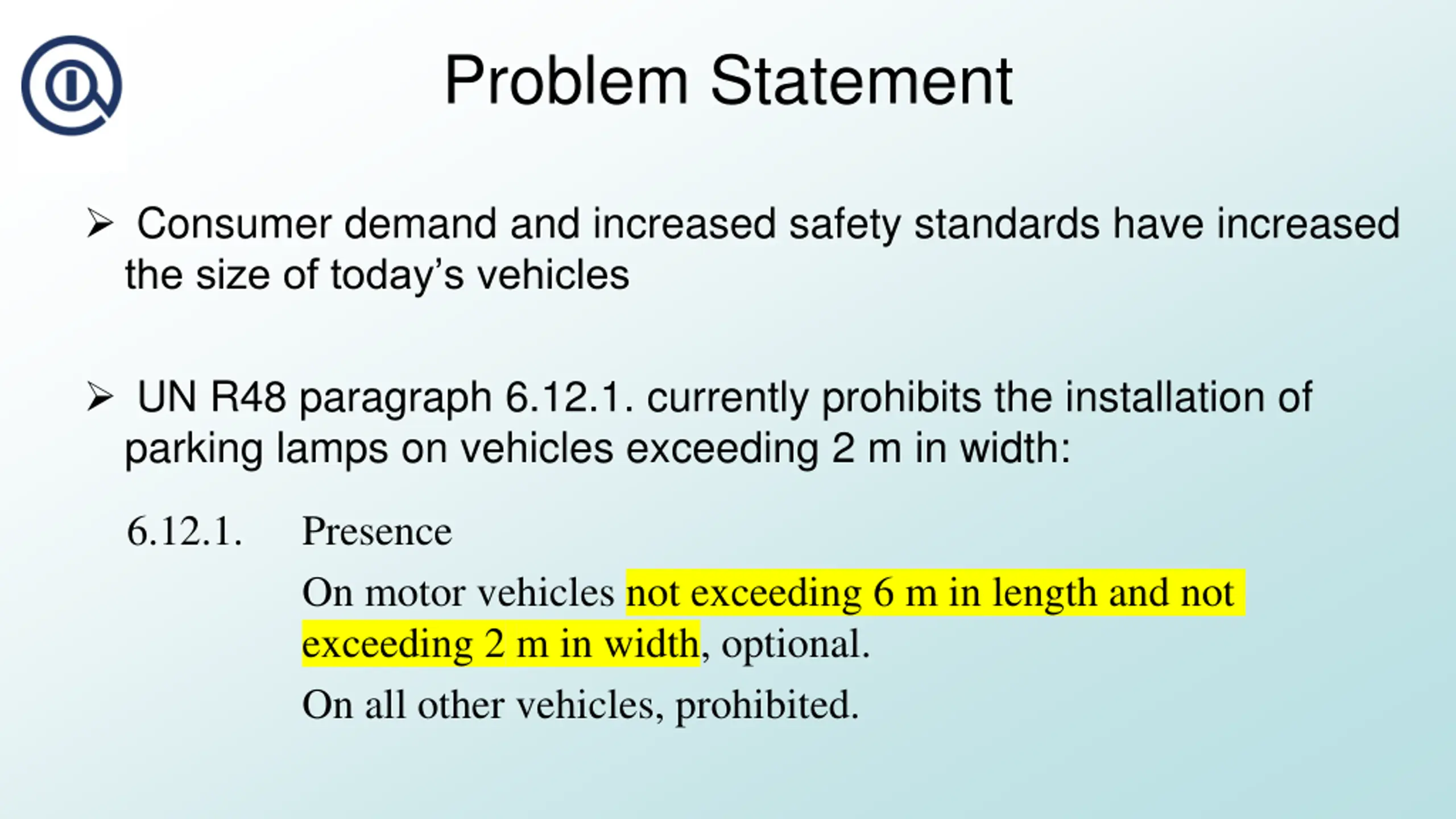

Problem Statement Consumer demand and increased safety standards have increased the size of today s vehicles UN R48 paragraph 6.12.1. currently prohibits the installation of parking lamps on vehicles exceeding 2 m in width: 6.12.1. Presence On motor vehicles not exceeding 6 m in length and not exceeding 2 m in width, optional. On all other vehicles, prohibited.

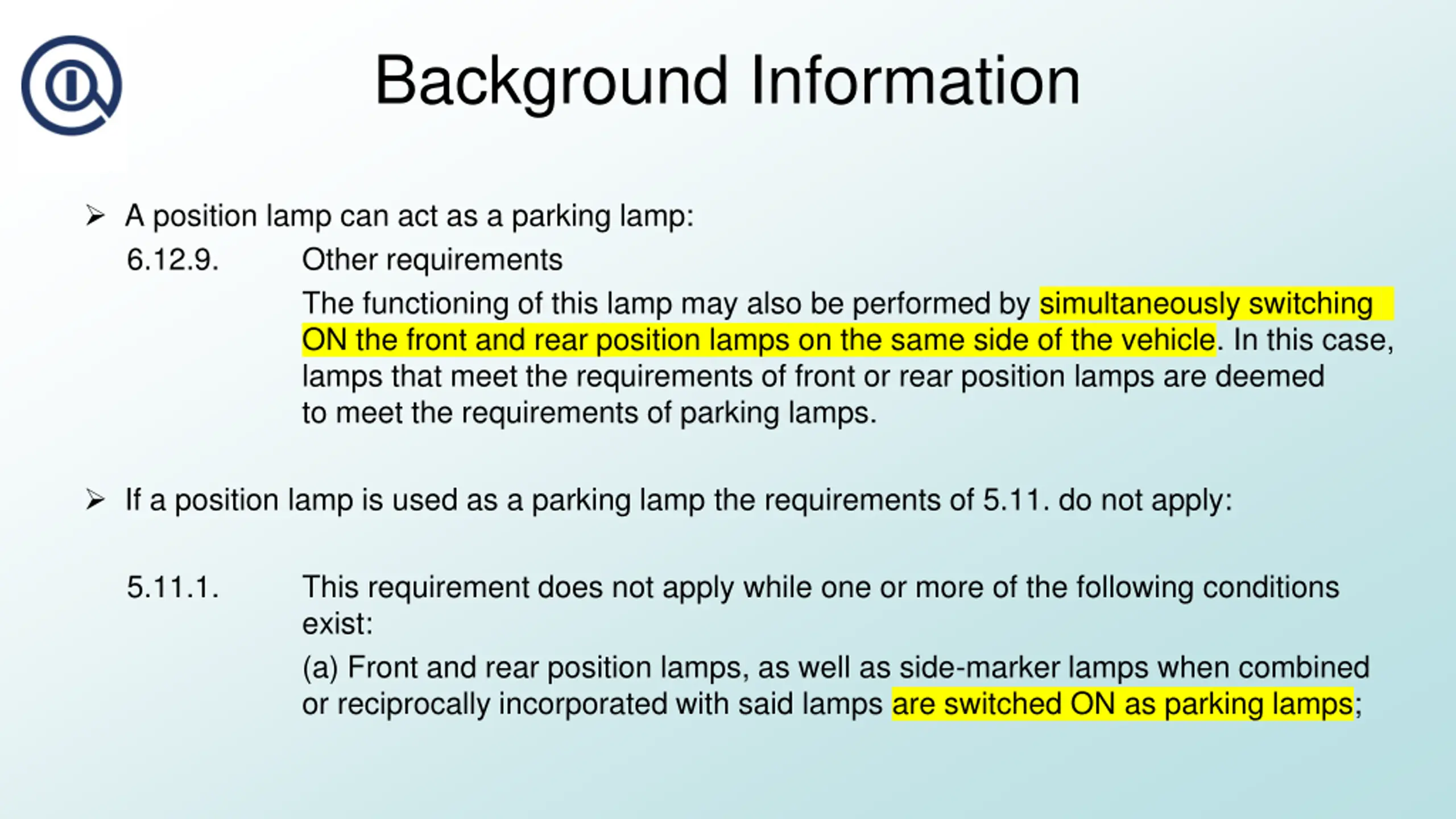

Background Information A position lamp can act as a parking lamp: 6.12.9. Other requirements The functioning of this lamp may also be performed by simultaneously switching ON the front and rear position lamps on the same side of the vehicle. In this case, lamps that meet the requirements of front or rear position lamps are deemed to meet the requirements of parking lamps. If a position lamp is used as a parking lamp the requirements of 5.11. do not apply: 5.11.1. This requirement does not apply while one or more of the following conditions exist: (a) Front and rear position lamps, as well as side-marker lamps when combined or reciprocally incorporated with said lamps are switched ON as parking lamps;

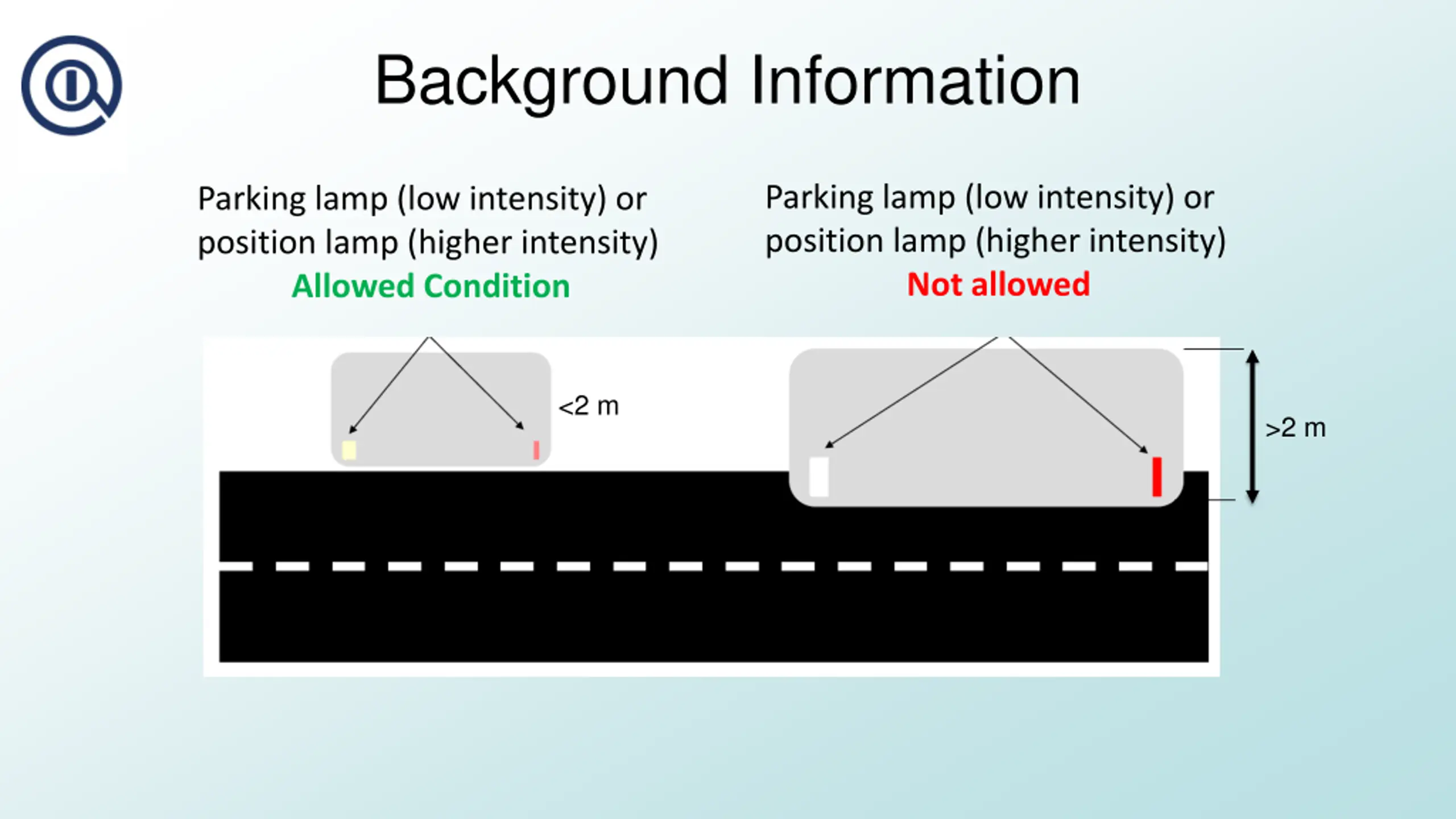

Background Information Parking lamp (low intensity) or position lamp (higher intensity) Not allowed Parking lamp (low intensity) or position lamp (higher intensity) Allowed Condition <2 m >2 m

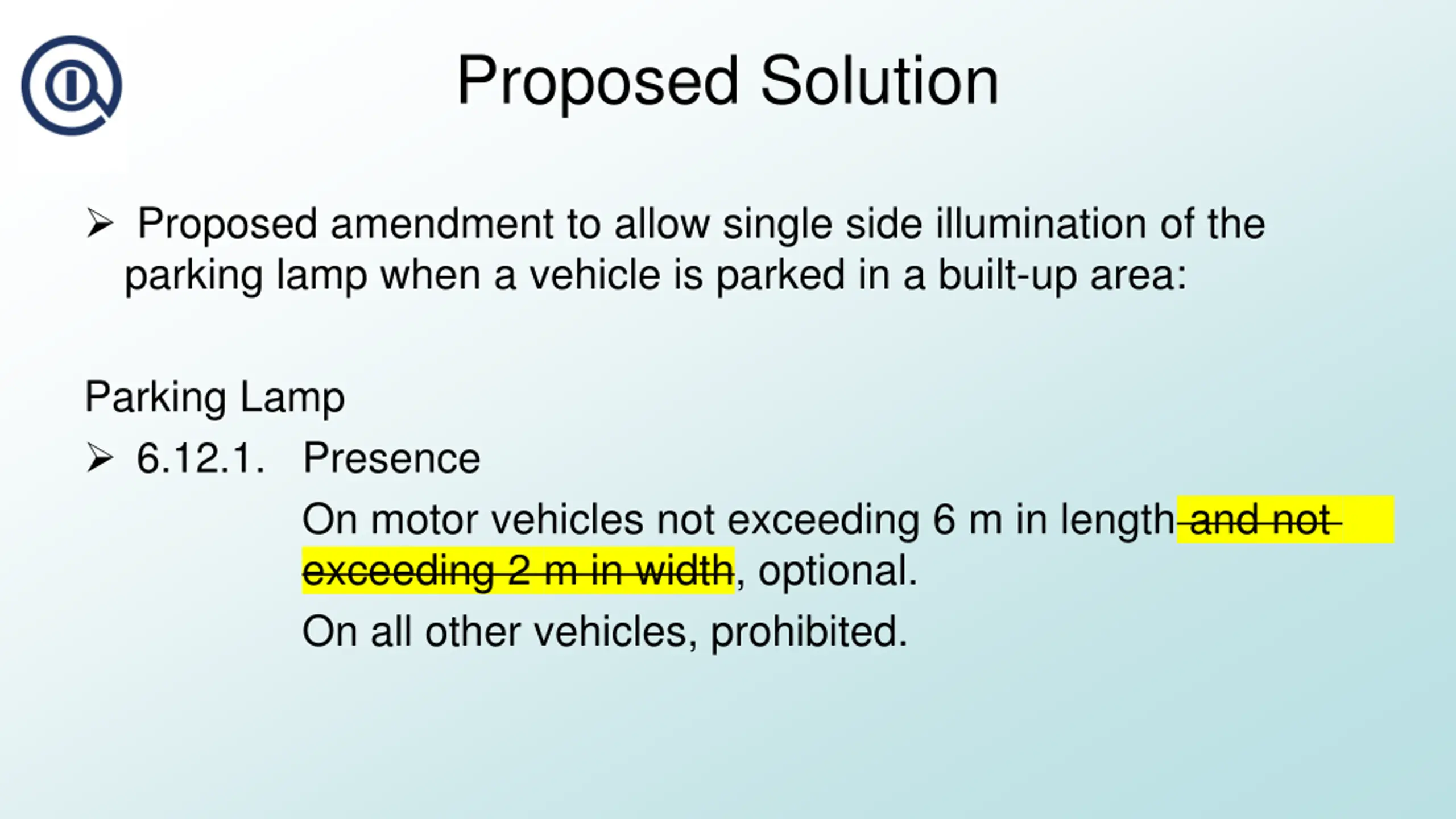

Proposed Solution Proposed amendment to allow single side illumination of the parking lamp when a vehicle is parked in a built-up area: Parking Lamp 6.12.1. Presence On motor vehicles not exceeding 6 m in length and not exceeding 2 m in width, optional. On all other vehicles, prohibited.

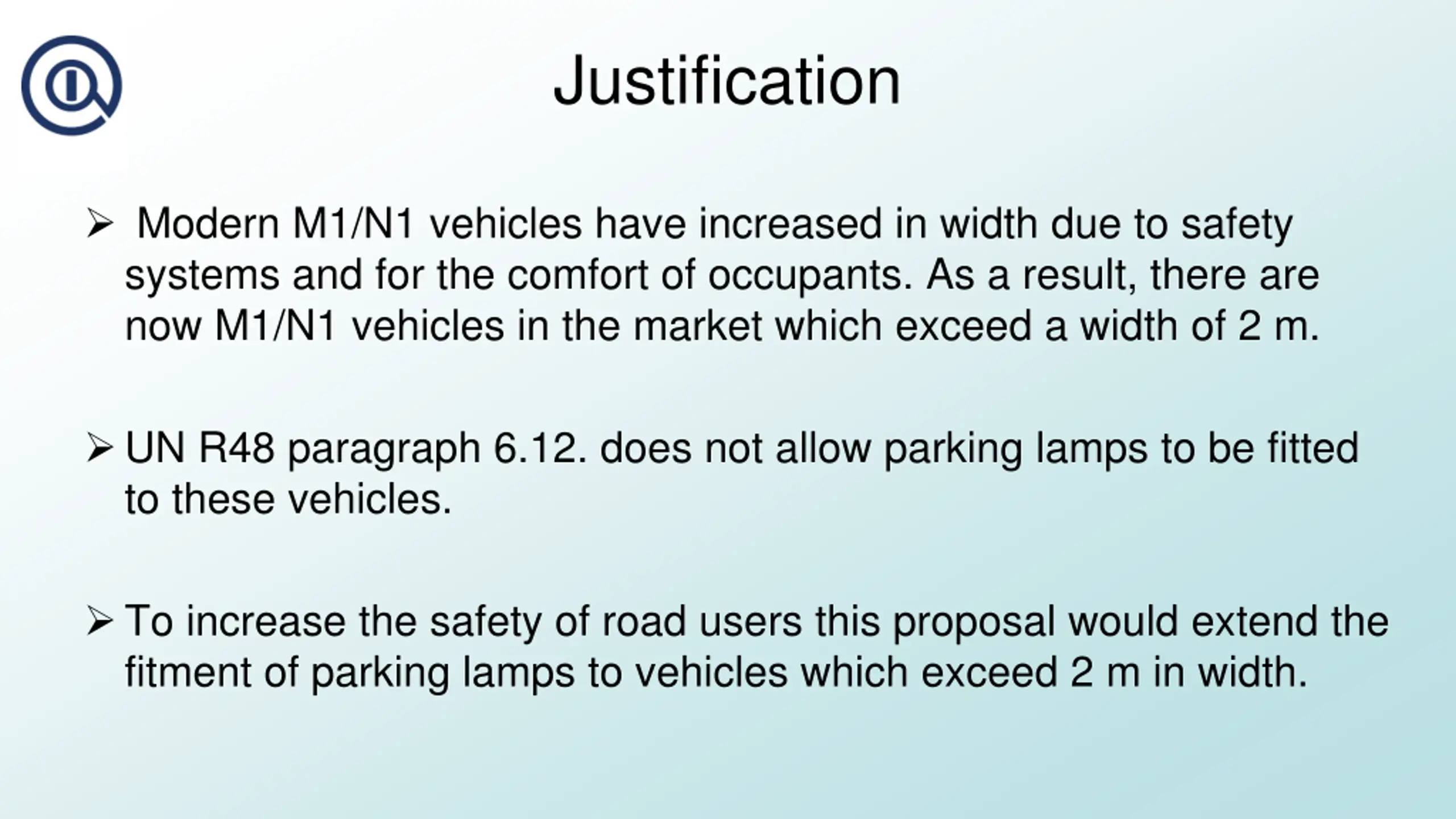

Justification Modern M1/N1 vehicles have increased in width due to safety systems and for the comfort of occupants. As a result, there are now M1/N1 vehicles in the market which exceed a width of 2 m. UN R48 paragraph 6.12. does not allow parking lamps to be fitted to these vehicles. To increase the safety of road users this proposal would extend the fitment of parking lamps to vehicles which exceed 2 m in width.
