1. WELCOME TO MTS PERFORATOR GMBH Titel der Veranstaltung Datum Gesch ftsf hrer: Carsten Wei Gilbert Kimpel Johann-Christian v. Behr Hauptsitz Walkenried: Bei dem Gerichte 37445 Walkenried Tel. +49 5525 201 - 0 Fax +49 5525 201 48 Zweigniederlassung Valluhn: Am Heisterbusch 18 a 19246 Valluhn Tel. +49 38851 327 - 0 Fax +49 38851 327 10 info@mtsperforator.de www.mtsperforator.de 21. Februar 2025

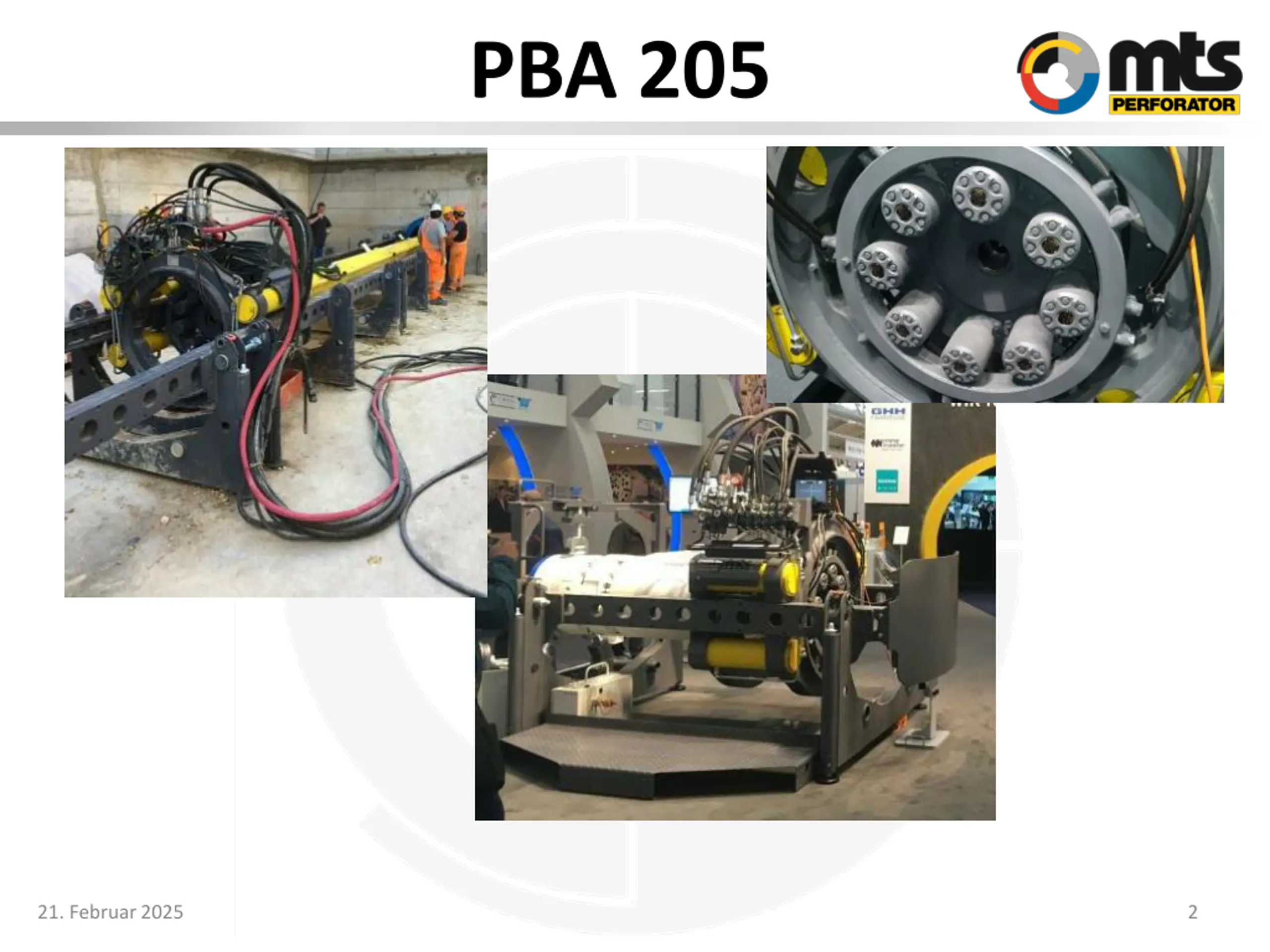

2. PBA 205 21. Februar 2025 2

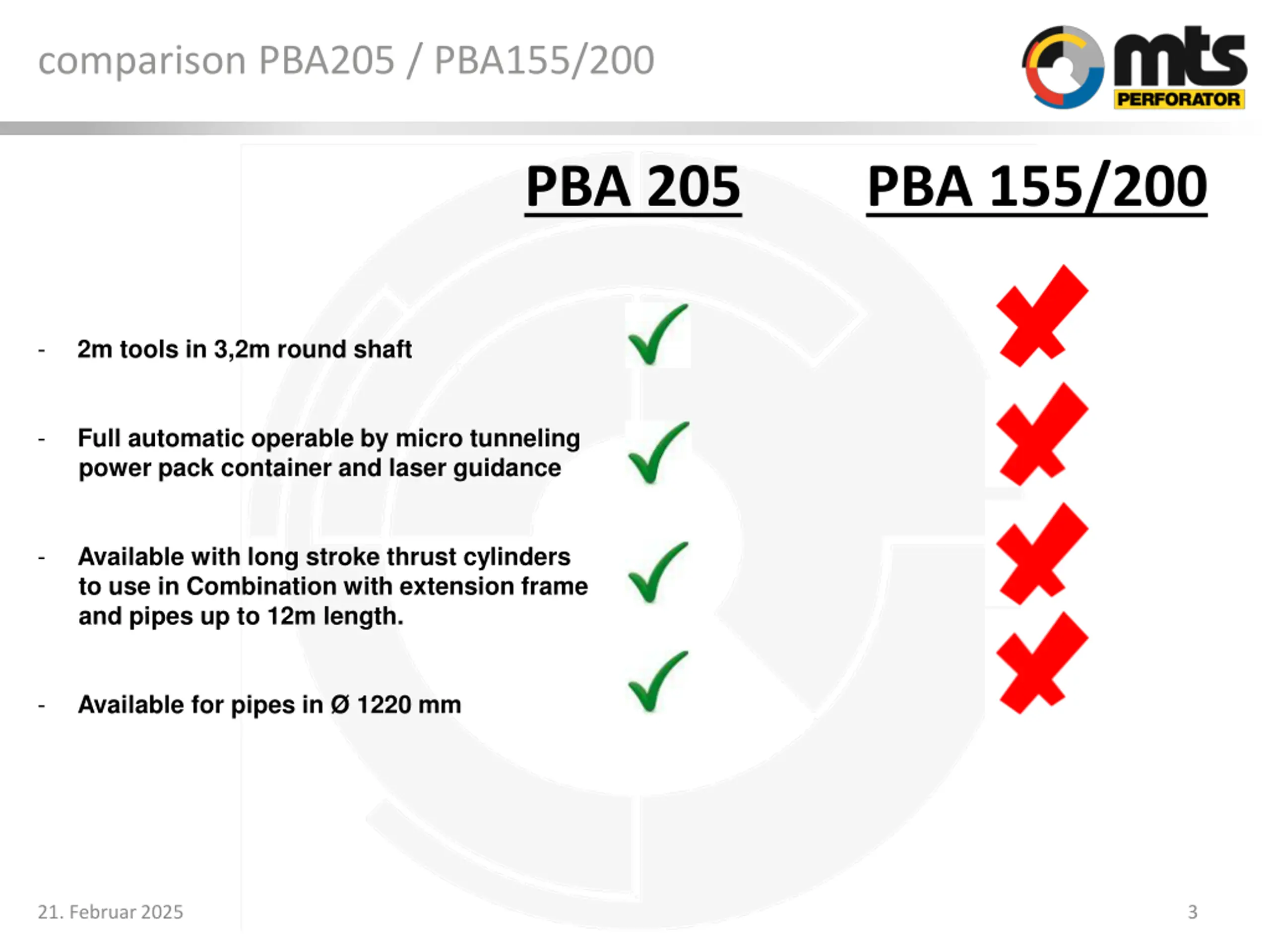

3. comparison PBA205 / PBA155/200 PBA 205 PBA 155/200 - 2m tools in 3,2m round shaft - power pack container and laser guidance Full automatic operable by micro tunneling - and pipes up to 12m length. Available with long stroke thrust cylinders to use in Combination with extension frame - Available for pipes in 1220 mm 21. Februar 2025 3

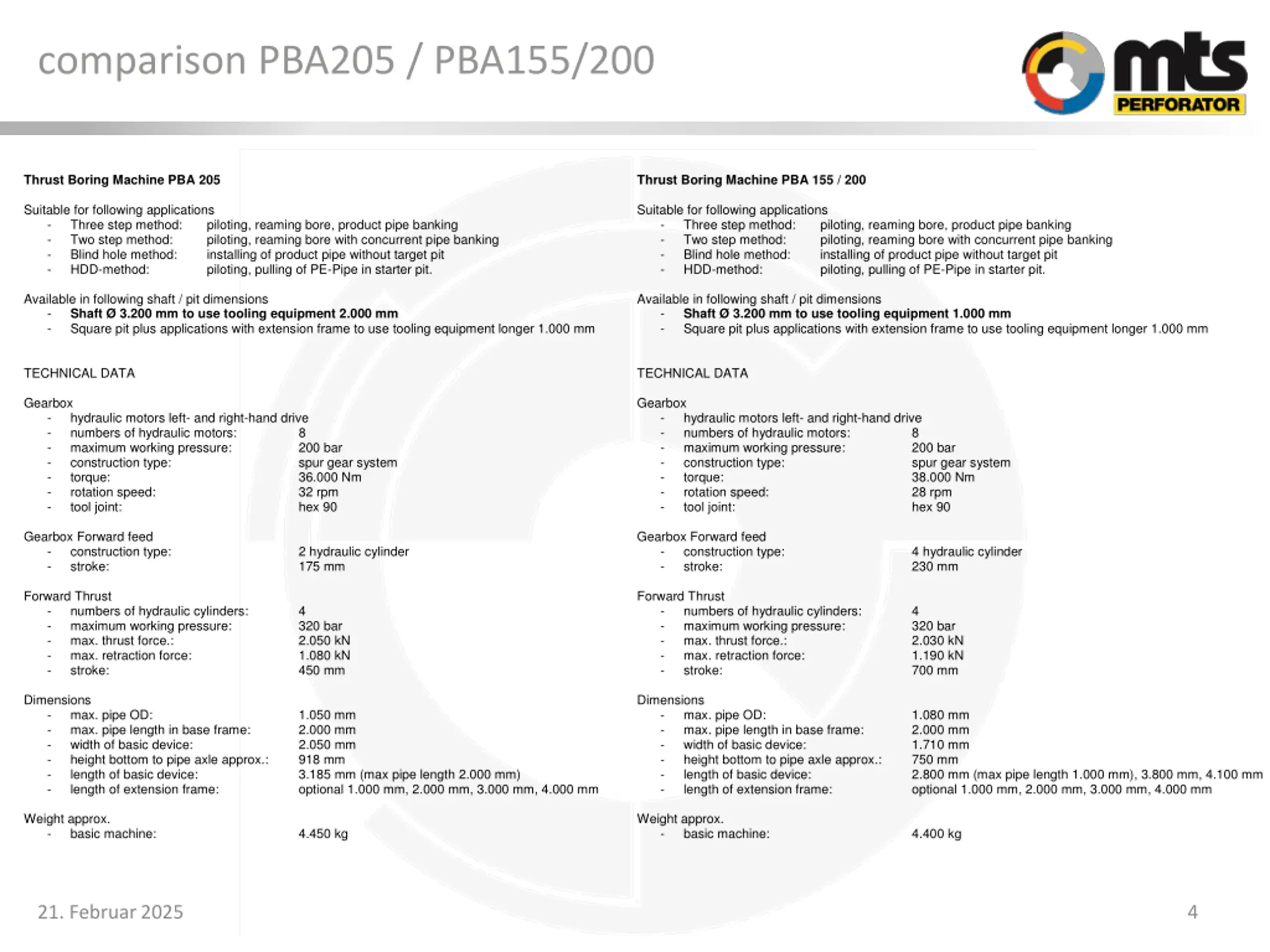

4. comparison PBA205 / PBA155/200 Thrust Boring Machine PBA 205 Suitable for following applications - Three step method: - Two step method: - Blind hole method: - HDD-method: Available in following shaft / pit dimensions - Shaft 3.200 mm to use tooling equipment 2.000 mm - Square pit plus applications with extension frame to use tooling equipment longer 1.000 mm TECHNICAL DATA Gearbox - hydraulic motors left- and right-hand drive - numbers of hydraulic motors: 8 - maximum working pressure: 200 bar - construction type: spur gear system - torque: 36.000 Nm - rotation speed: 32 rpm - tool joint: hex 90 Gearbox Forward feed - construction type: 2 hydraulic cylinder - stroke: 175 mm Forward Thrust - numbers of hydraulic cylinders: 4 - maximum working pressure: 320 bar - max. thrust force.: 2.050 kN - max. retraction force: 1.080 kN - stroke: 450 mm Dimensions - max. pipe OD: 1.050 mm - max. pipe length in base frame: 2.000 mm - width of basic device: 2.050 mm - height bottom to pipe axle approx.: 918 mm - length of basic device: 3.185 mm (max pipe length 2.000 mm) - length of extension frame: optional 1.000 mm, 2.000 mm, 3.000 mm, 4.000 mm Weight approx. - basic machine: 4.450 kg Thrust Boring Machine PBA 155 / 200 Suitable for following applications - Three step method: - Two step method: - Blind hole method: - HDD-method: Available in following shaft / pit dimensions - Shaft 3.200 mm to use tooling equipment 1.000 mm - Square pit plus applications with extension frame to use tooling equipment longer 1.000 mm TECHNICAL DATA Gearbox - hydraulic motors left- and right-hand drive - numbers of hydraulic motors: 8 - maximum working pressure: 200 bar - construction type: spur gear system - torque: 38.000 Nm - rotation speed: 28 rpm - tool joint: hex 90 Gearbox Forward feed - construction type: 4 hydraulic cylinder - stroke: 230 mm Forward Thrust - numbers of hydraulic cylinders: 4 - maximum working pressure: 320 bar - max. thrust force.: 2.030 kN - max. retraction force: 1.190 kN - stroke: 700 mm Dimensions - max. pipe OD: 1.080 mm - max. pipe length in base frame: 2.000 mm - width of basic device: 1.710 mm - height bottom to pipe axle approx.: 750 mm - length of basic device: 2.800 mm (max pipe length 1.000 mm), 3.800 mm, 4.100 mm - length of extension frame: optional 1.000 mm, 2.000 mm, 3.000 mm, 4.000 mm Weight approx. - basic machine: 4.400 kg piloting, reaming bore, product pipe banking piloting, reaming bore with concurrent pipe banking installing of product pipe without target pit piloting, pulling of PE-Pipe in starter pit. piloting, reaming bore, product pipe banking piloting, reaming bore with concurrent pipe banking installing of product pipe without target pit piloting, pulling of PE-Pipe in starter pit. 21. Februar 2025 4

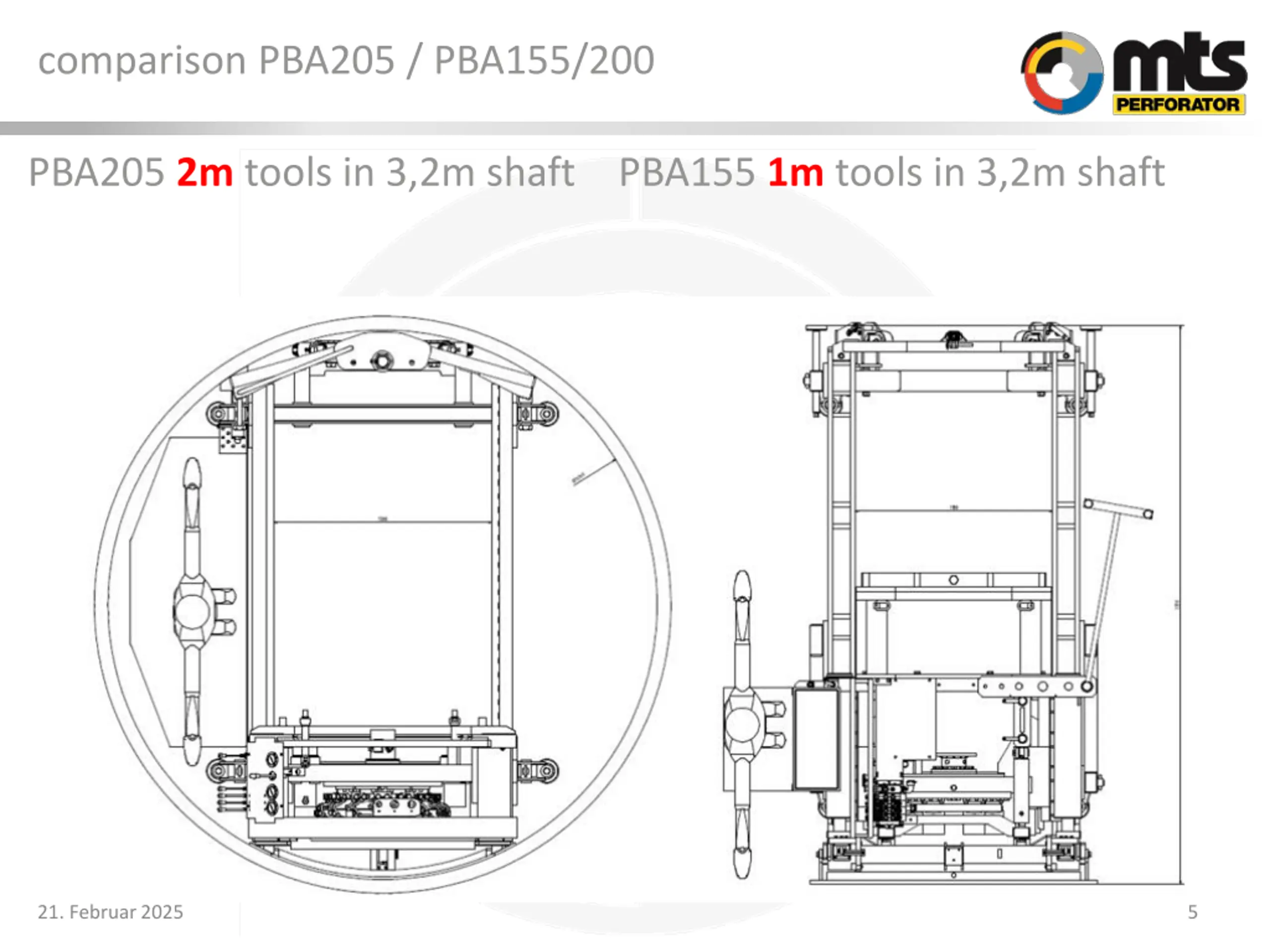

5. comparison PBA205 / PBA155/200 PBA205 2m tools in 3,2m shaft PBA155 1m tools in 3,2m shaft 21. Februar 2025 5

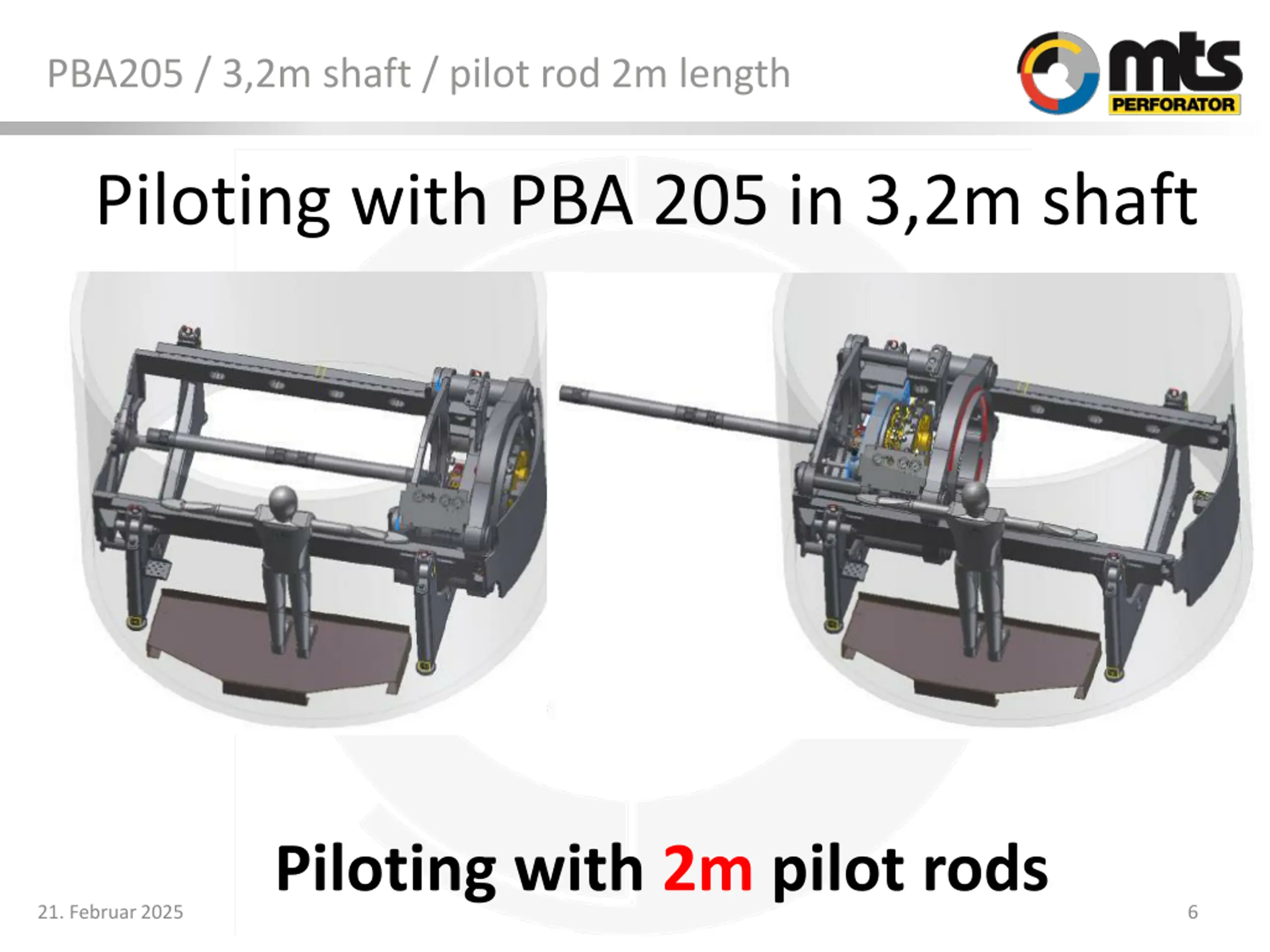

6. PBA205 / 3,2m shaft / pilot rod 2m length Piloting with PBA 205 in 3,2m shaft Piloting with 2m pilot rods 21. Februar 2025 6

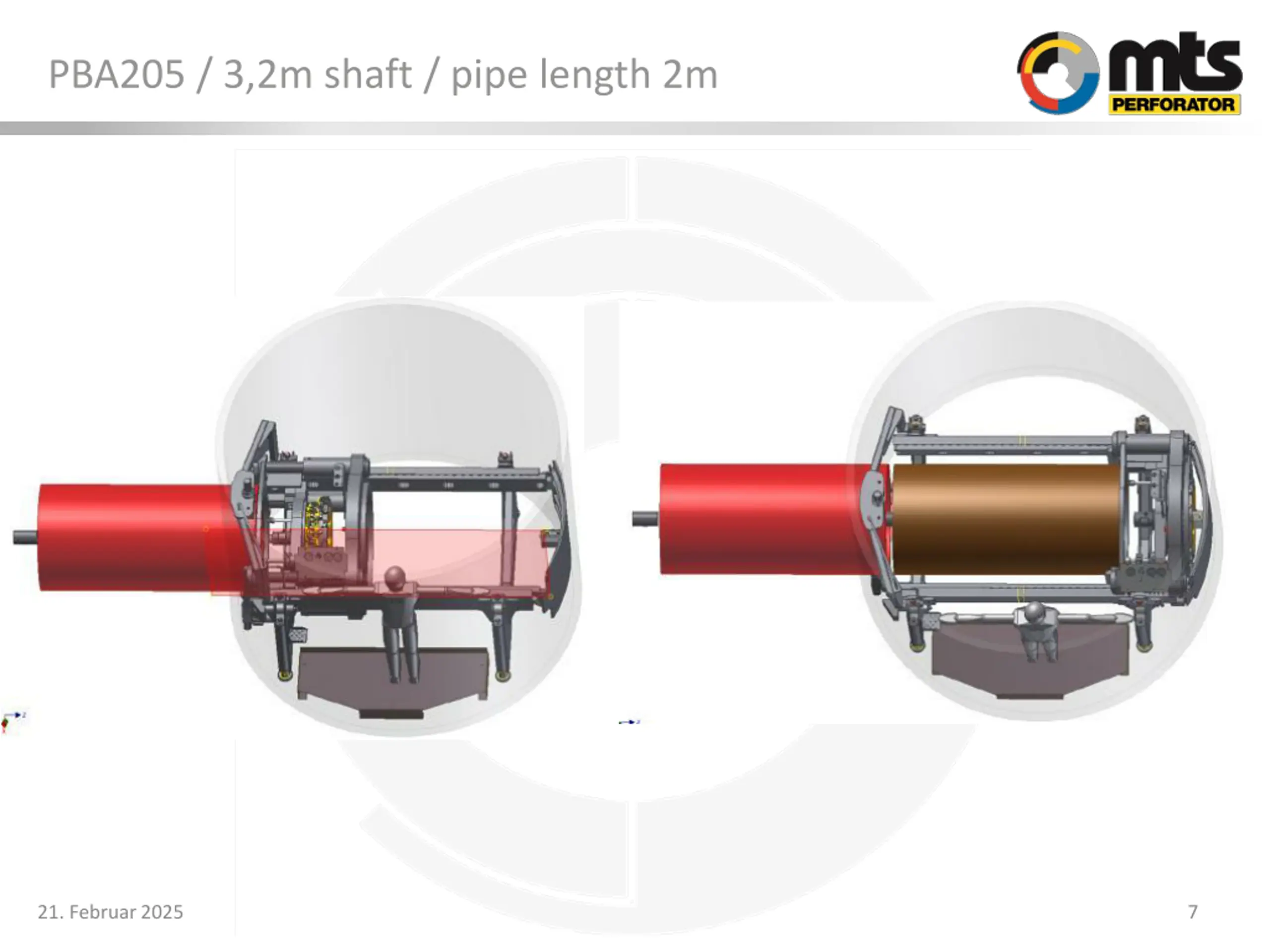

7. PBA205 / 3,2m shaft / pipe length 2m 21. Februar 2025 7

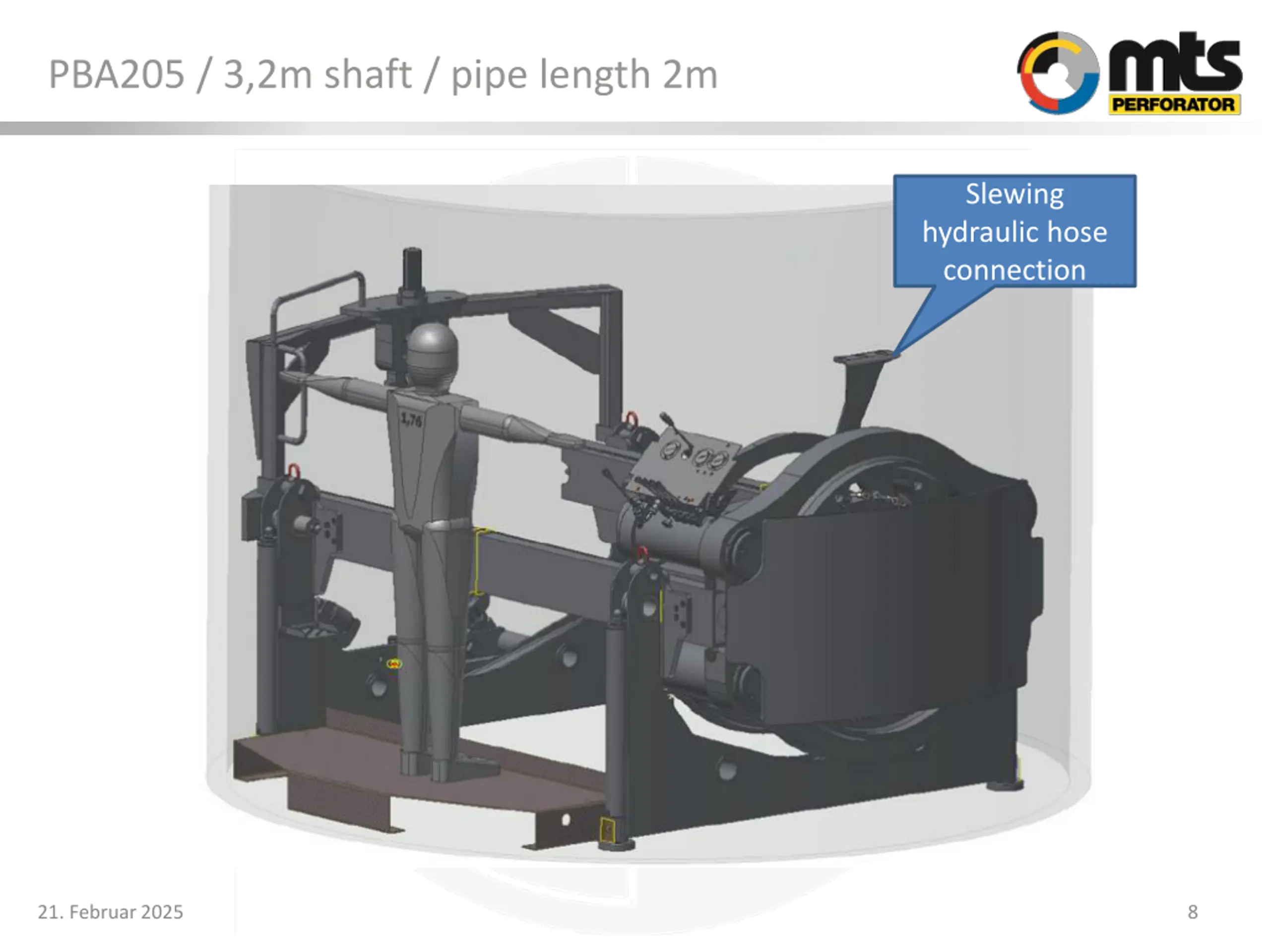

8. PBA205 / 3,2m shaft / pipe length 2m Slewing hydraulic hose connection 21. Februar 2025 8

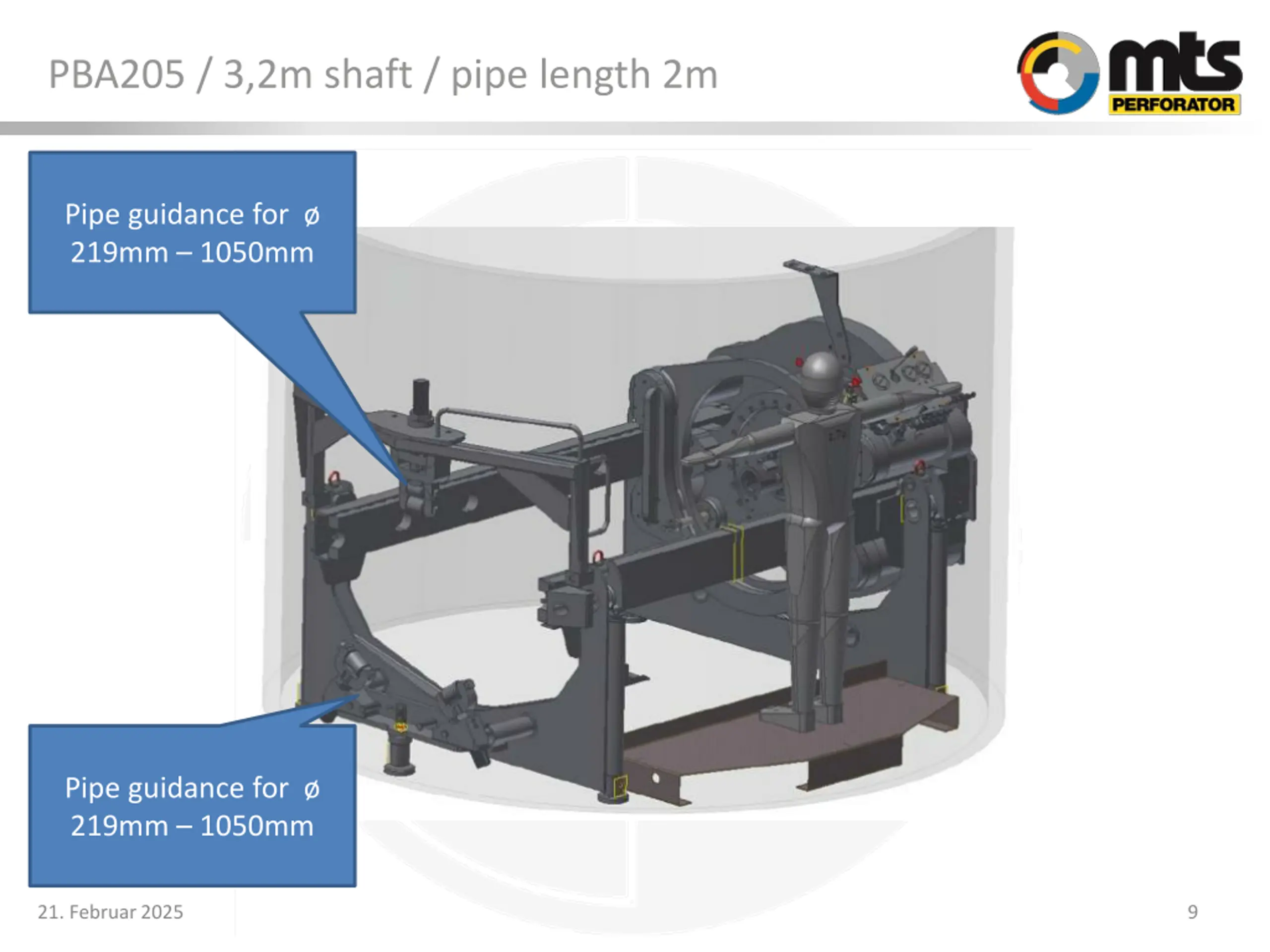

9. PBA205 / 3,2m shaft / pipe length 2m Pipe guidance for 219mm 1050mm Pipe guidance for 219mm 1050mm 21. Februar 2025 9

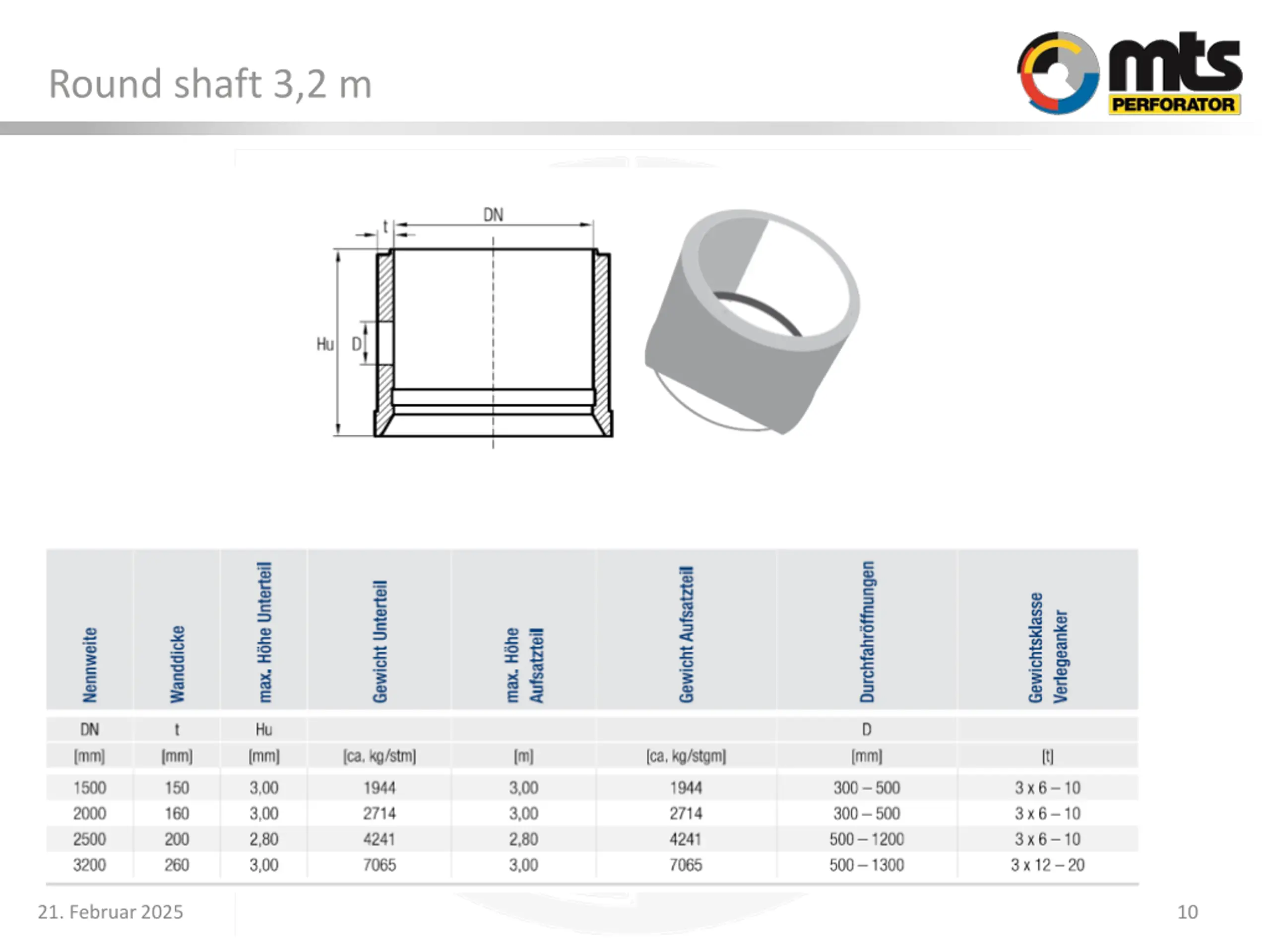

10. Round shaft 3,2 m 21. Februar 2025 10

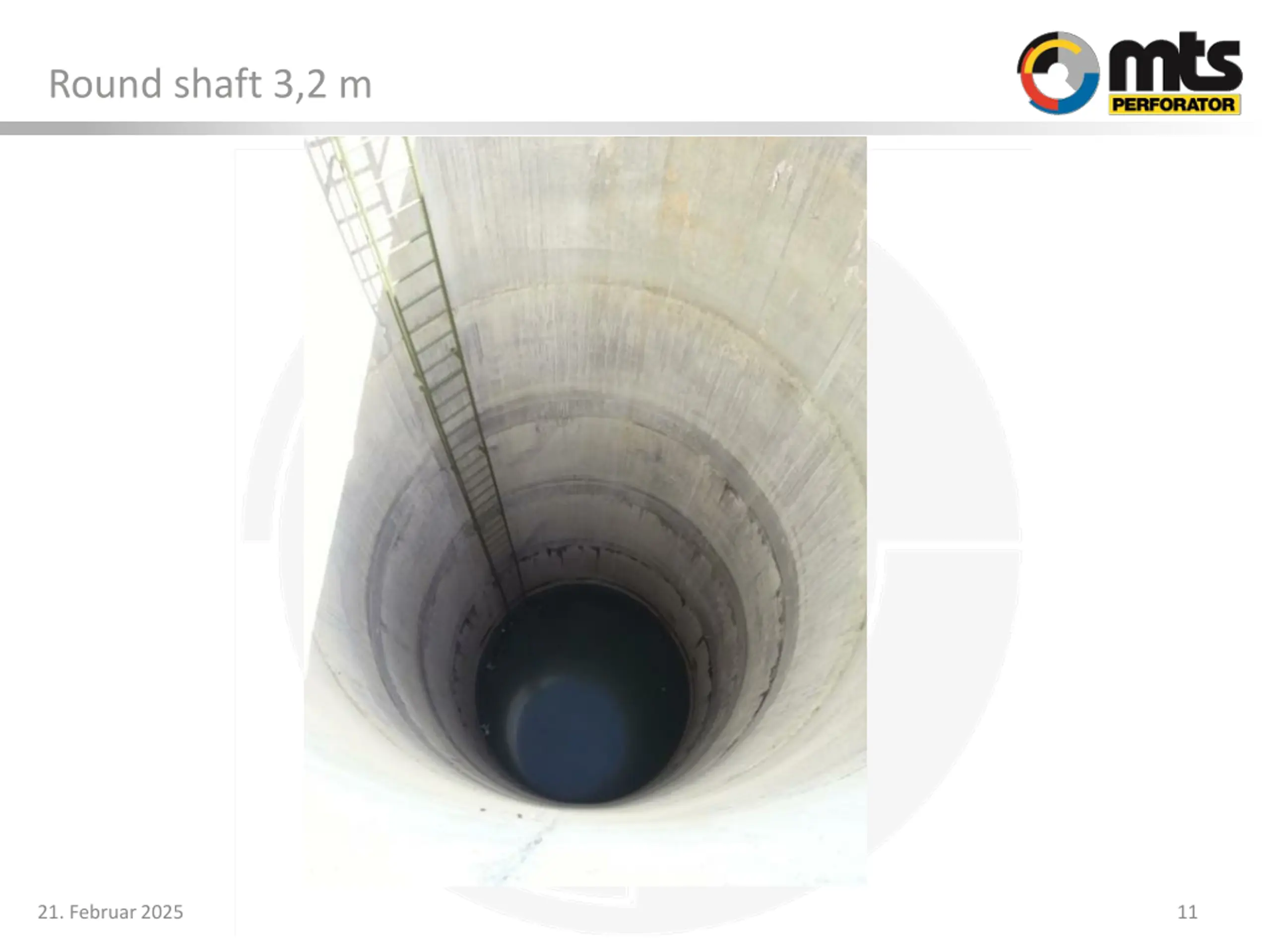

11. Round shaft 3,2 m 21. Februar 2025 11

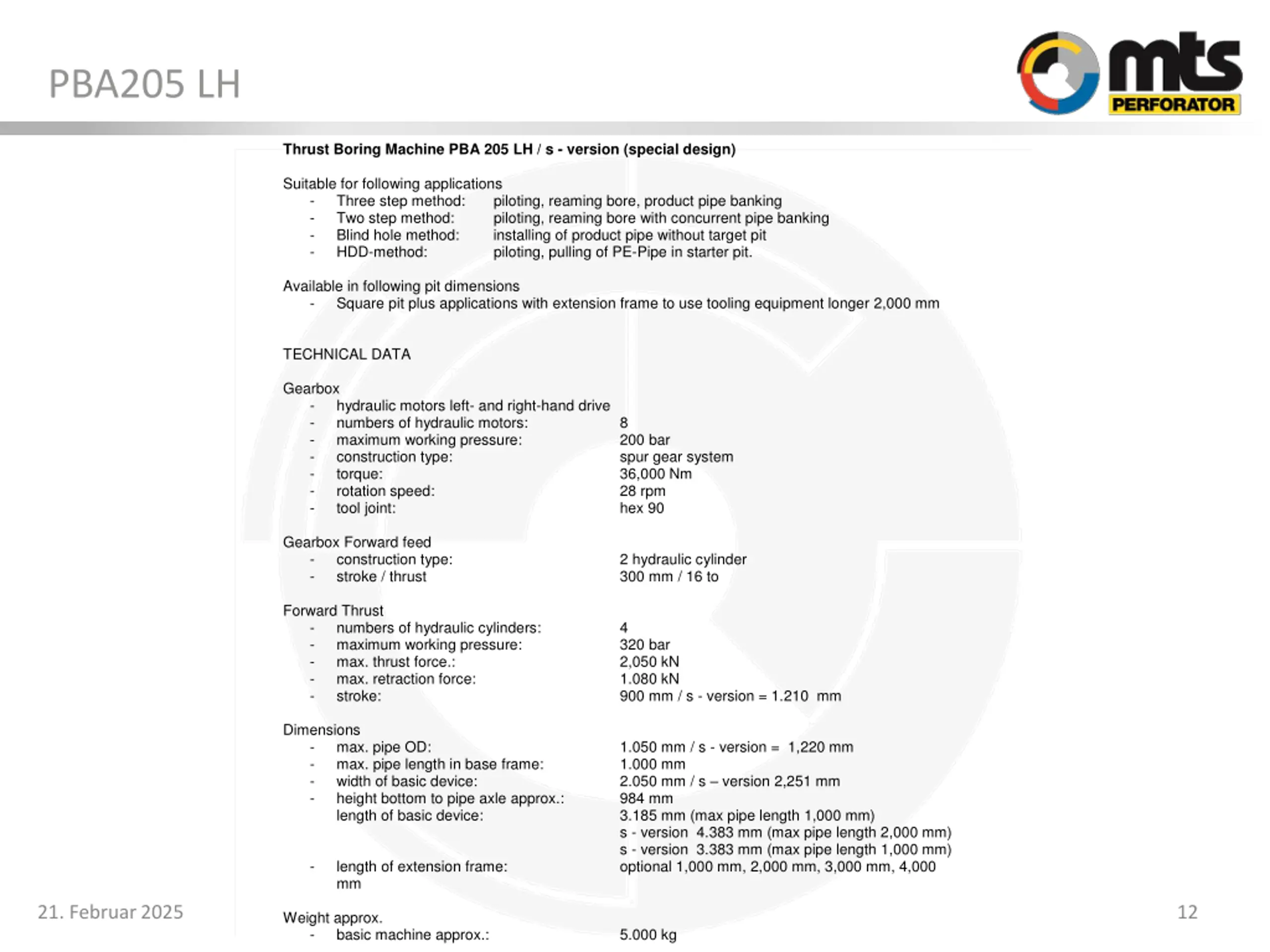

12. PBA205 LH Thrust Boring Machine PBA 205 LH / s - version (special design) Suitable for following applications - Three step method: piloting, reaming bore, product pipe banking - Two step method: piloting, reaming bore with concurrent pipe banking - Blind hole method: installing of product pipe without target pit - HDD-method: piloting, pulling of PE-Pipe in starter pit. Available in following pit dimensions - Square pit plus applications with extension frame to use tooling equipment longer 2,000 mm TECHNICAL DATA Gearbox - hydraulic motors left- and right-hand drive - numbers of hydraulic motors: - maximum working pressure: - construction type: - torque: - rotation speed: - tool joint: Gearbox Forward feed - construction type: - stroke / thrust Forward Thrust - numbers of hydraulic cylinders: - maximum working pressure: - max. thrust force.: - max. retraction force: - stroke: Dimensions - max. pipe OD: - max. pipe length in base frame: - width of basic device: - height bottom to pipe axle approx.: length of basic device: - length of extension frame: mm Weight approx. - basic machine approx.: 8 200 bar spur gear system 36,000 Nm 28 rpm hex 90 2 hydraulic cylinder 300 mm / 16 to 4 320 bar 2,050 kN 1.080 kN 900 mm / s - version = 1.210 mm 1.050 mm / s - version = 1,220 mm 1.000 mm 2.050 mm / s version 2,251 mm 984 mm 3.185 mm (max pipe length 1,000 mm) s - version 4.383 mm (max pipe length 2,000 mm) s - version 3.383 mm (max pipe length 1,000 mm) optional 1,000 mm, 2,000 mm, 3,000 mm, 4,000 21. Februar 2025 12 5.000 kg

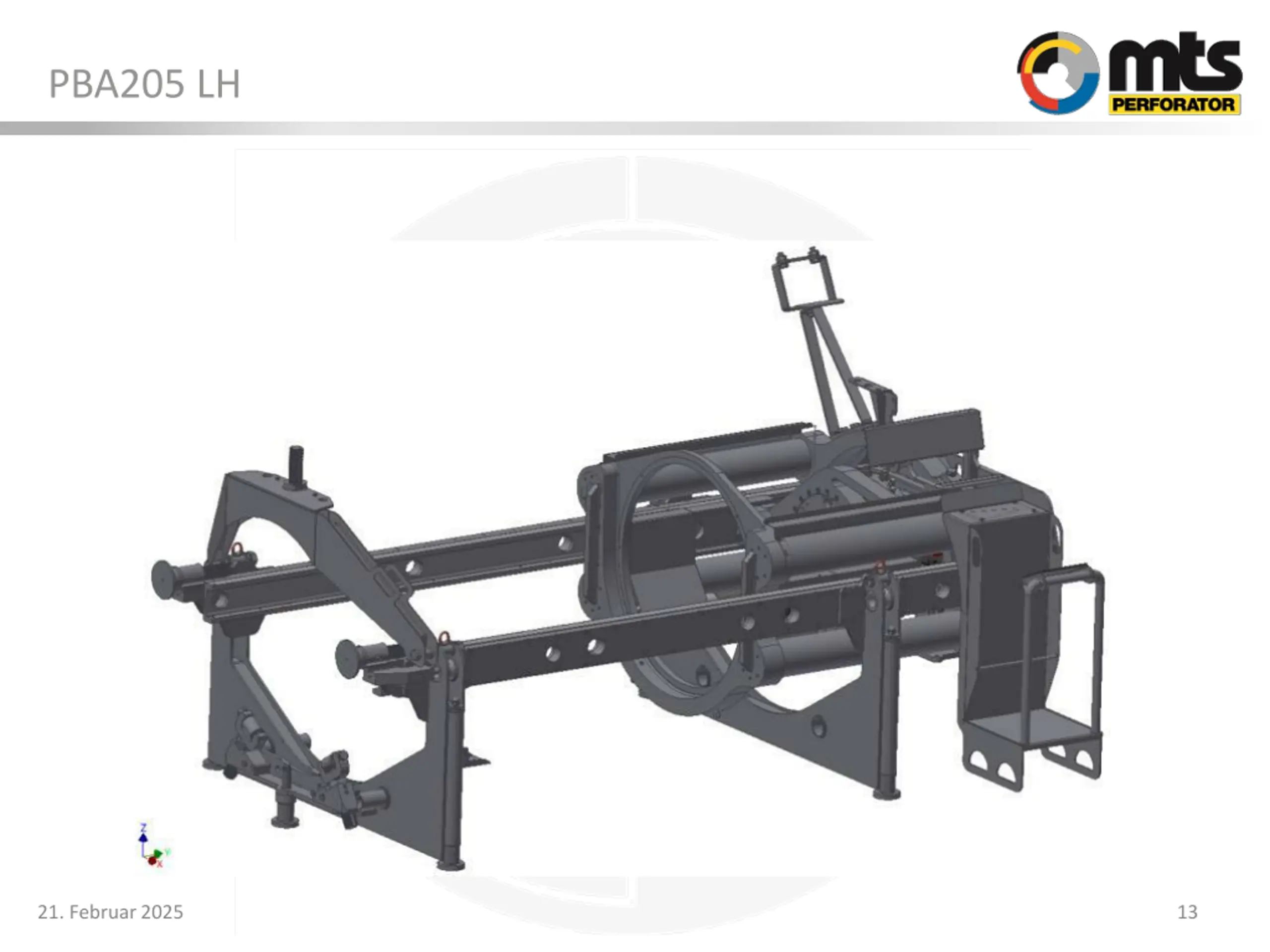

13. PBA205 LH 21. Februar 2025 13

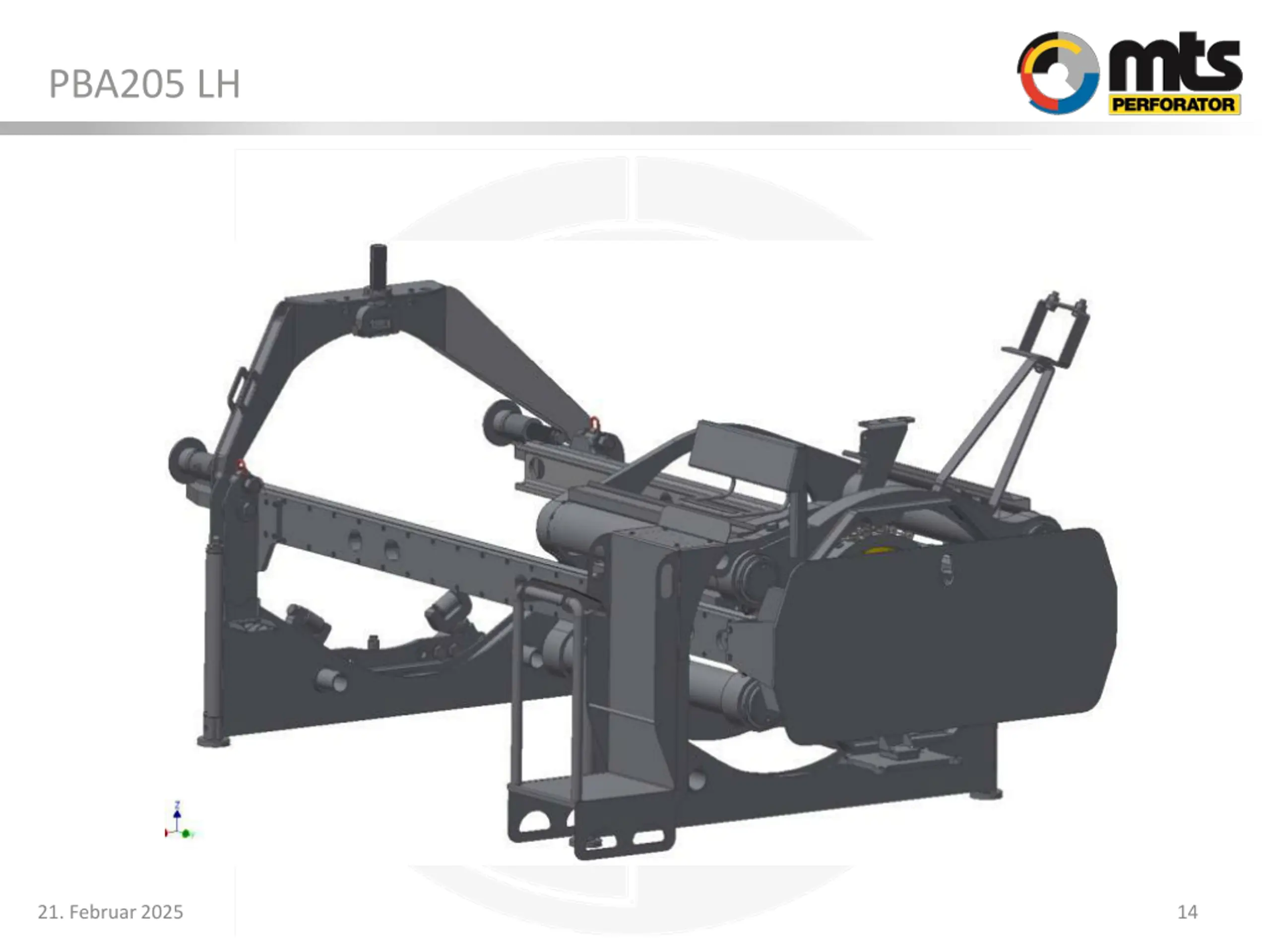

14. PBA205 LH 21. Februar 2025 14

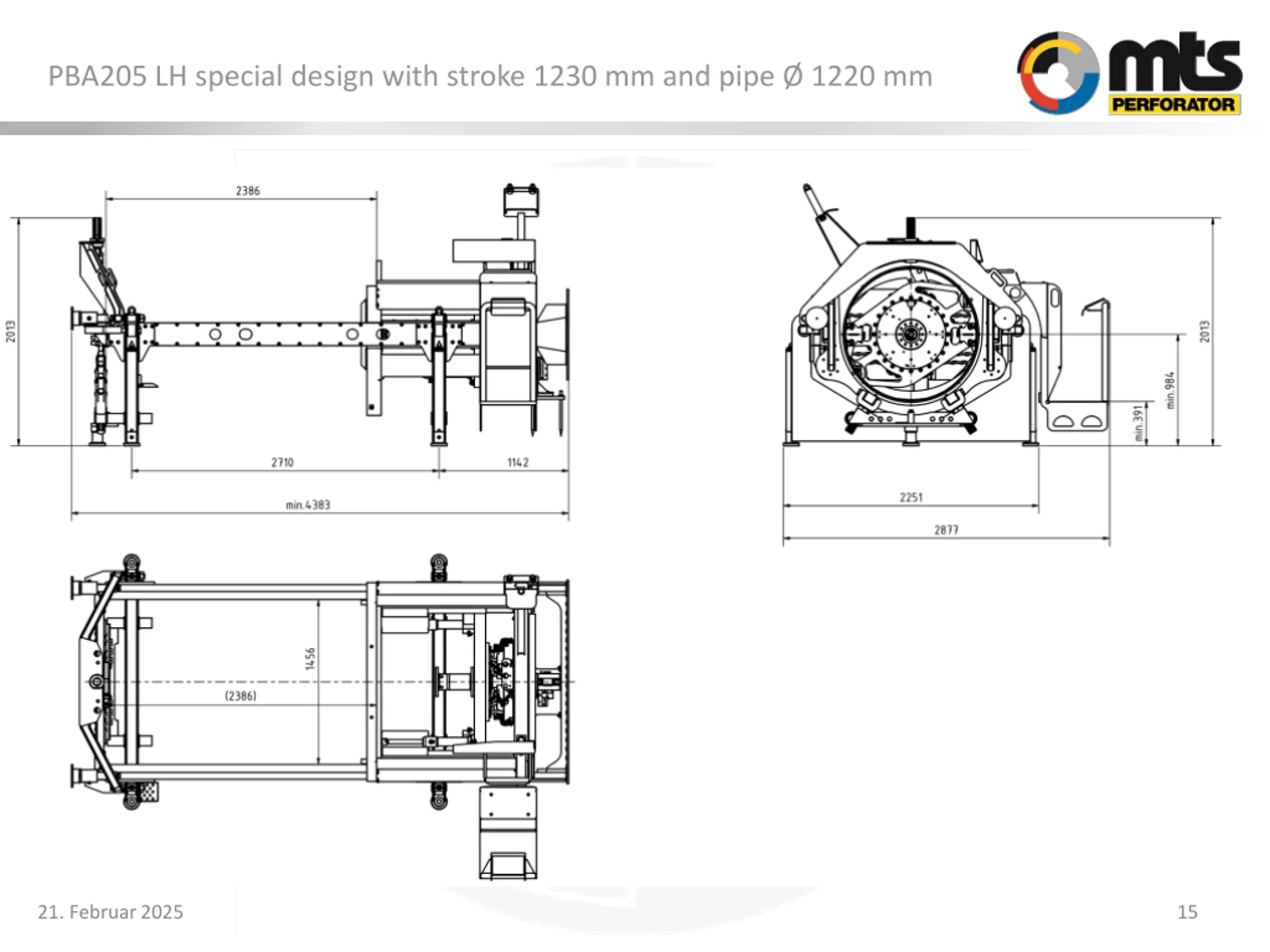

15. PBA205 LH special design with stroke 1230 mm and pipe 1220 mm 21. Februar 2025 15

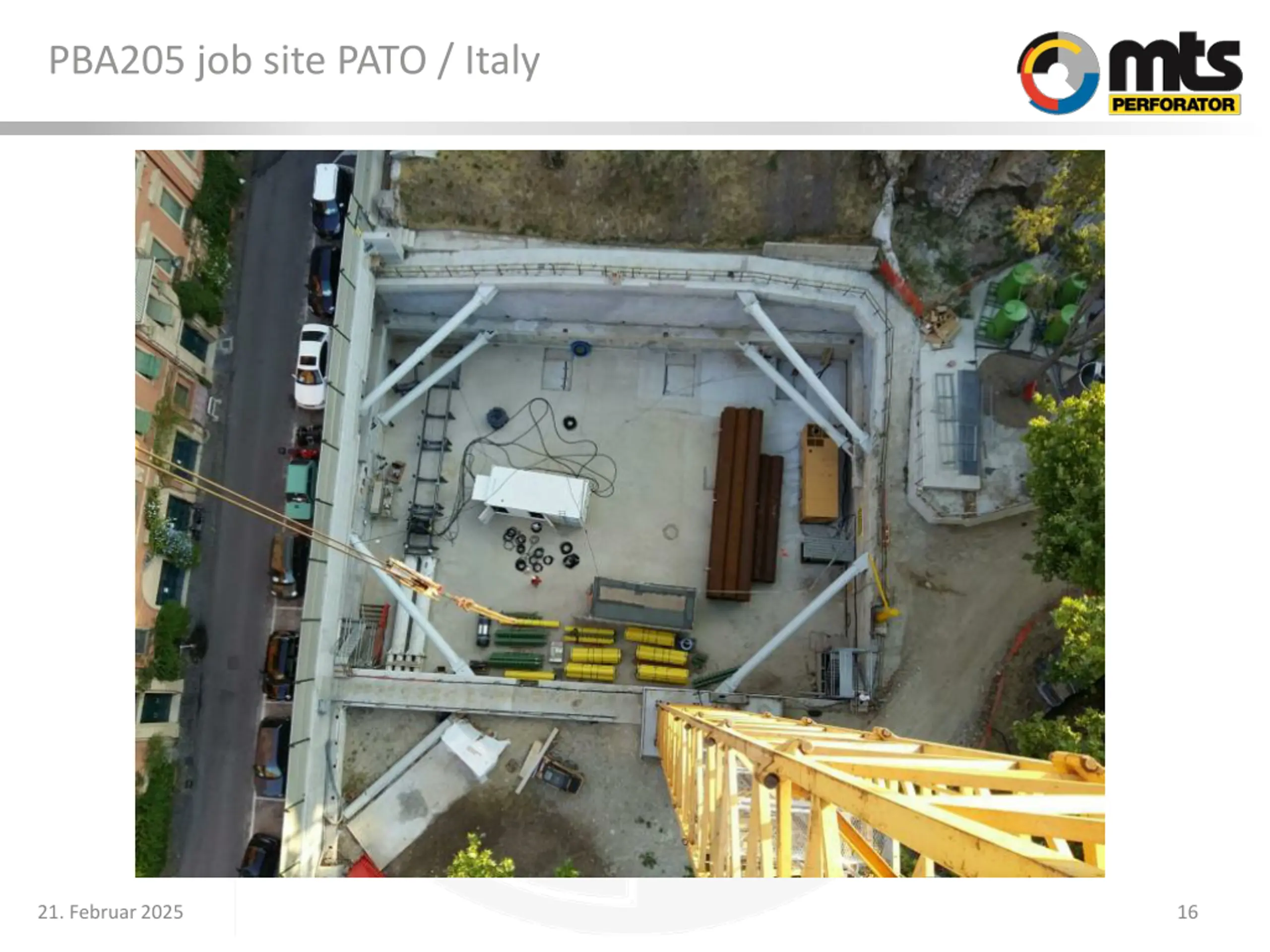

16. PBA205 job site PATO / Italy 21. Februar 2025 16

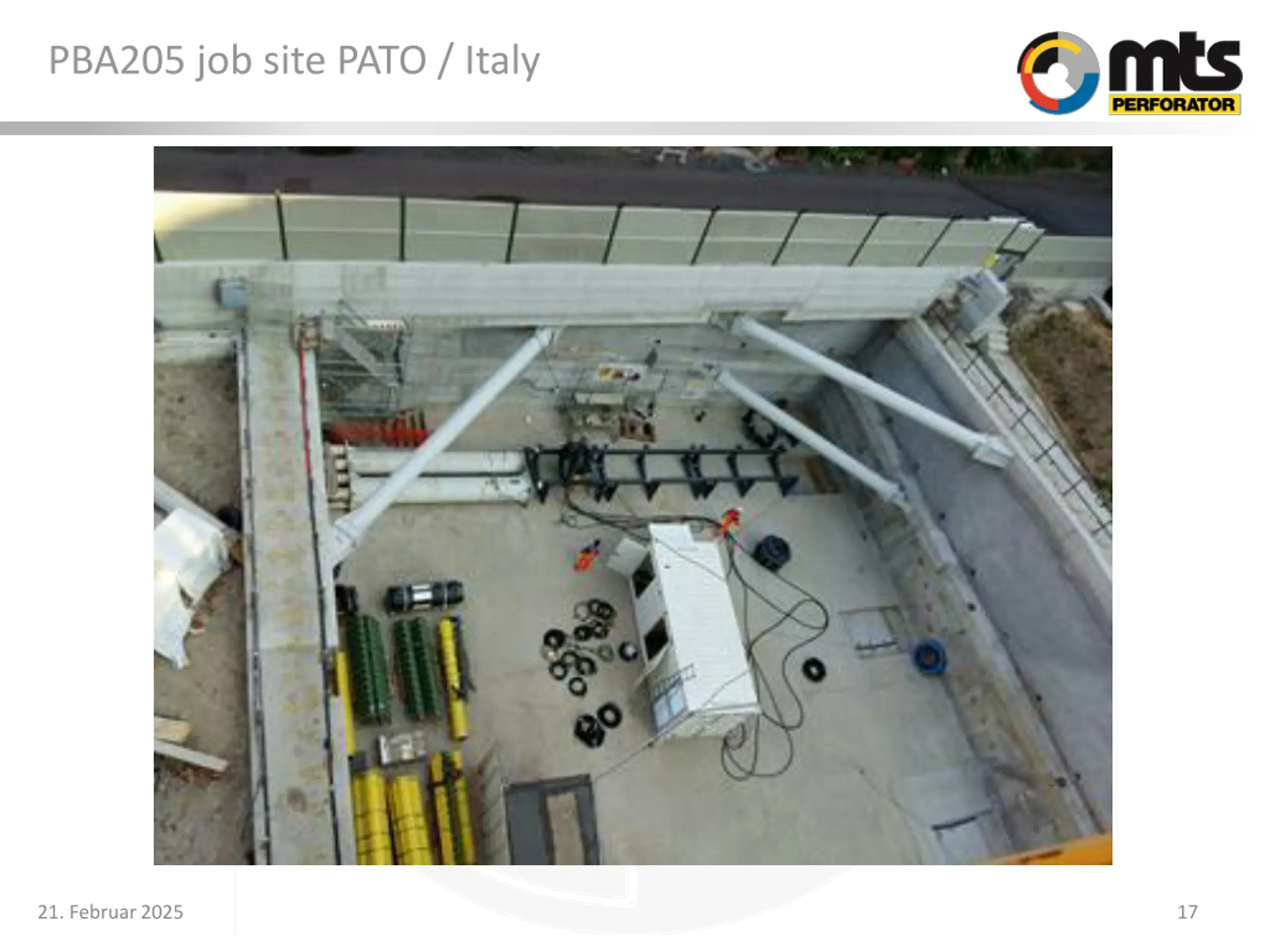

17. PBA205 job site PATO / Italy 21. Februar 2025 17

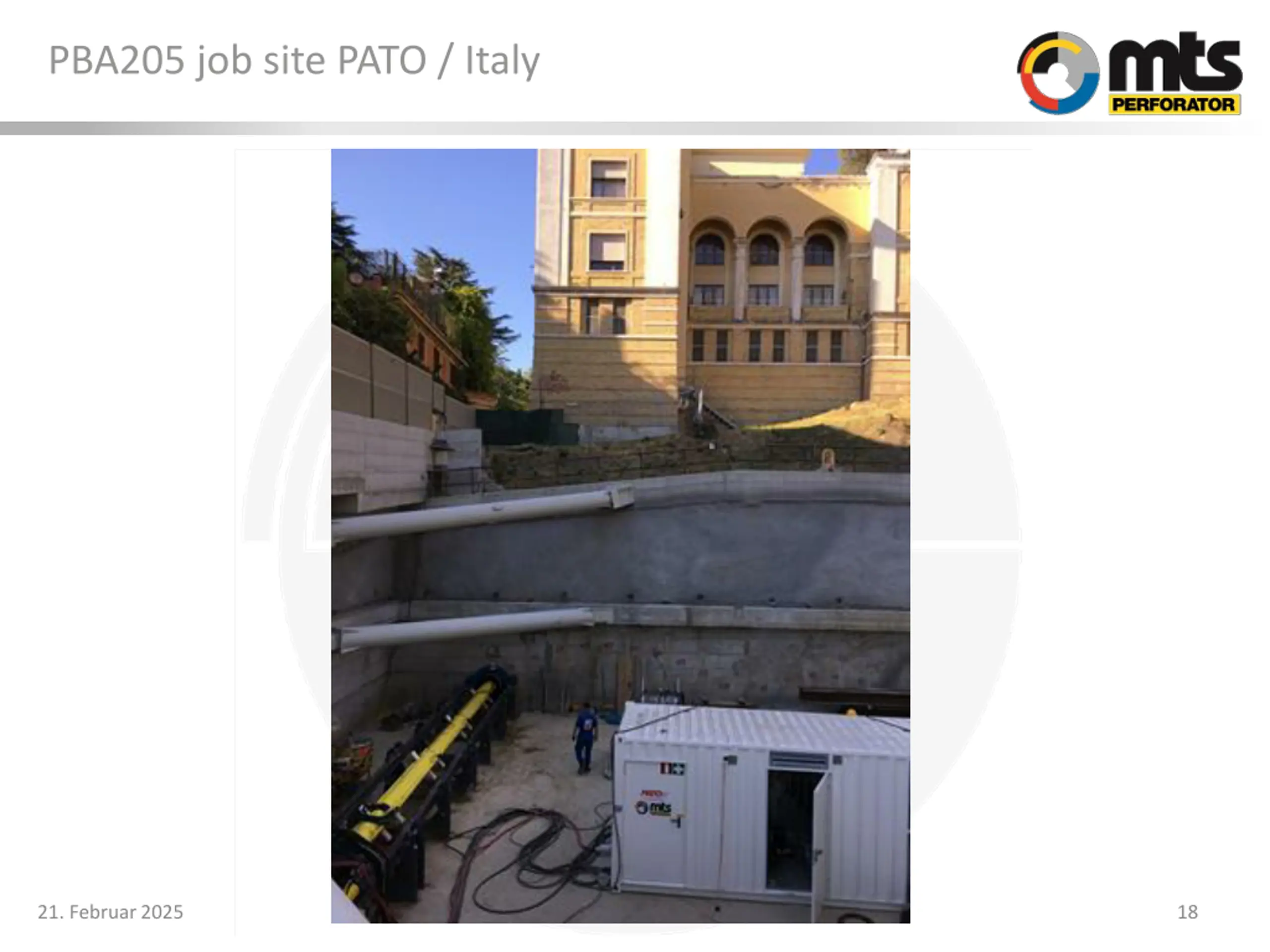

18. PBA205 job site PATO / Italy 21. Februar 2025 18

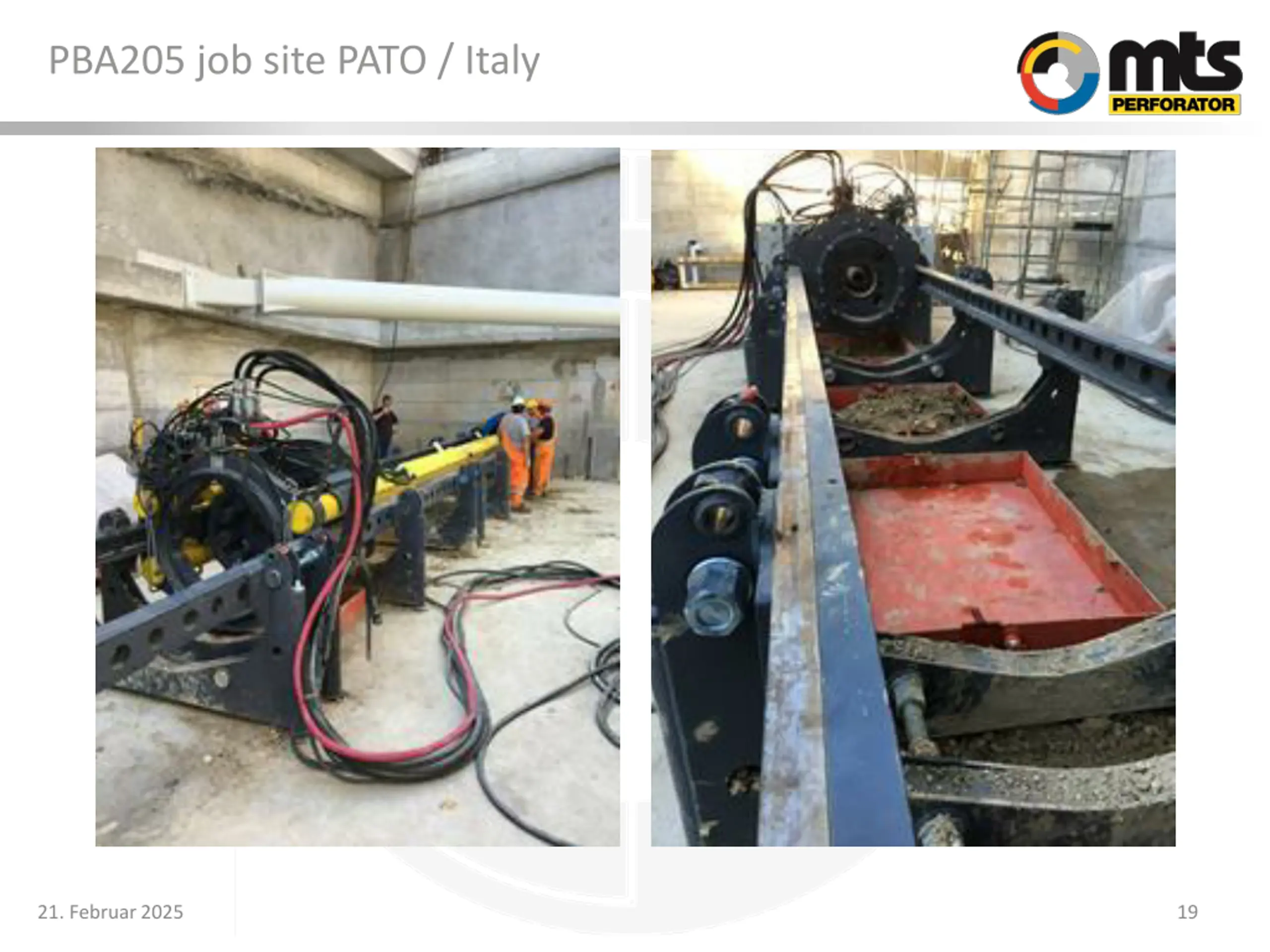

19. PBA205 job site PATO / Italy 21. Februar 2025 19

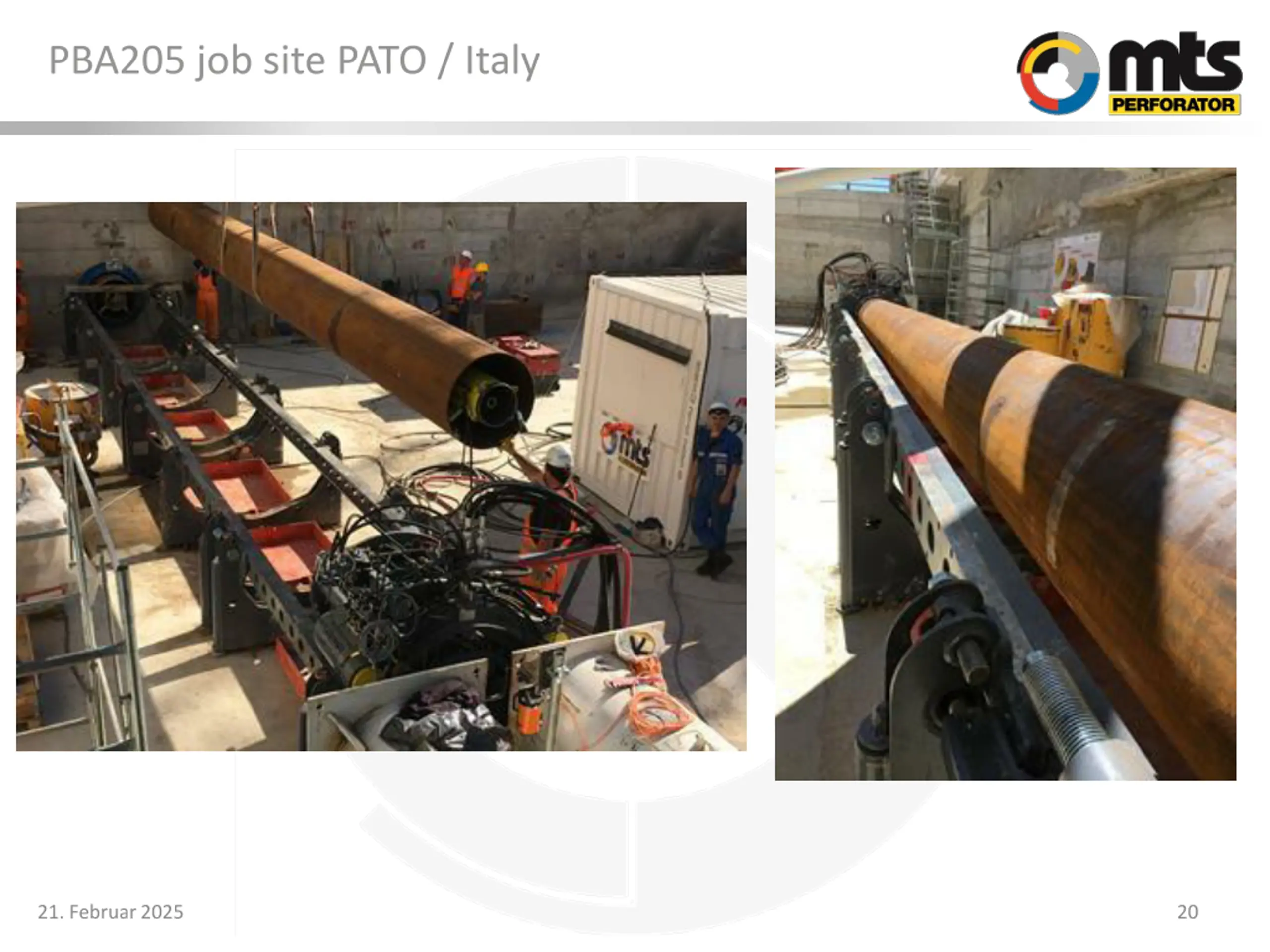

20. PBA205 job site PATO / Italy 21. Februar 2025 20

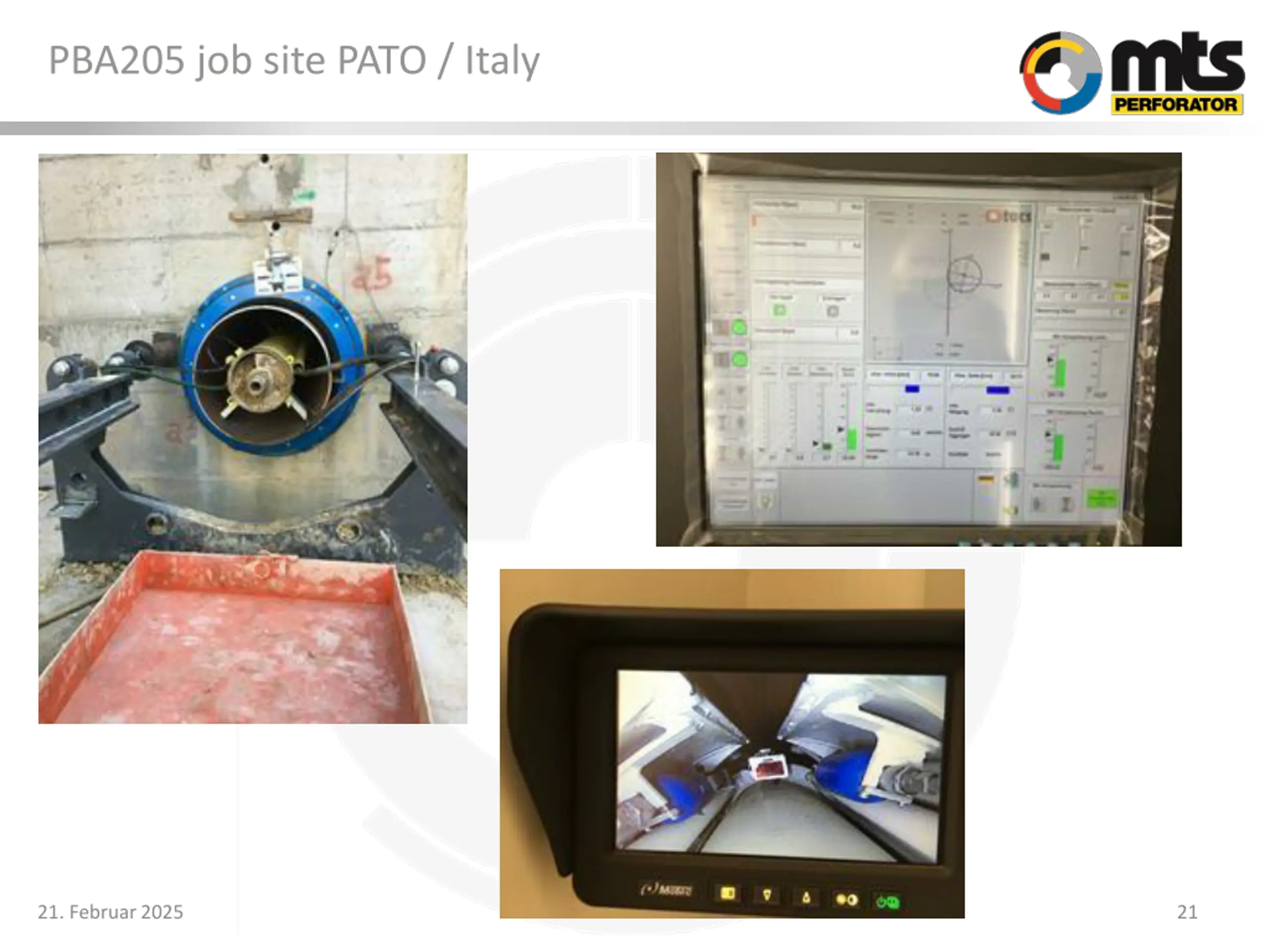

21. PBA205 job site PATO / Italy 21. Februar 2025 21

22. THANK YOU FOR YOUR KIND ATTENTION Gesch ftsf hrer: Carsten Wei Gilbert Kimpel Johann-Christian v. Behr Hauptsitz Walkenried: Bei dem Gerichte 37445 Walkenried Tel. +49 5525 201 - 0 Fax +49 5525 201 48 Zweigniederlassung Valluhn: Am Heisterbusch 18 a 19246 Valluhn Tel. +49 38851 327 - 0 Fax +49 38851 327 10 info@mtsperforator.de www.mtsperforator.de 21. Februar 2025
