Flowcharting: Decision Structure 1

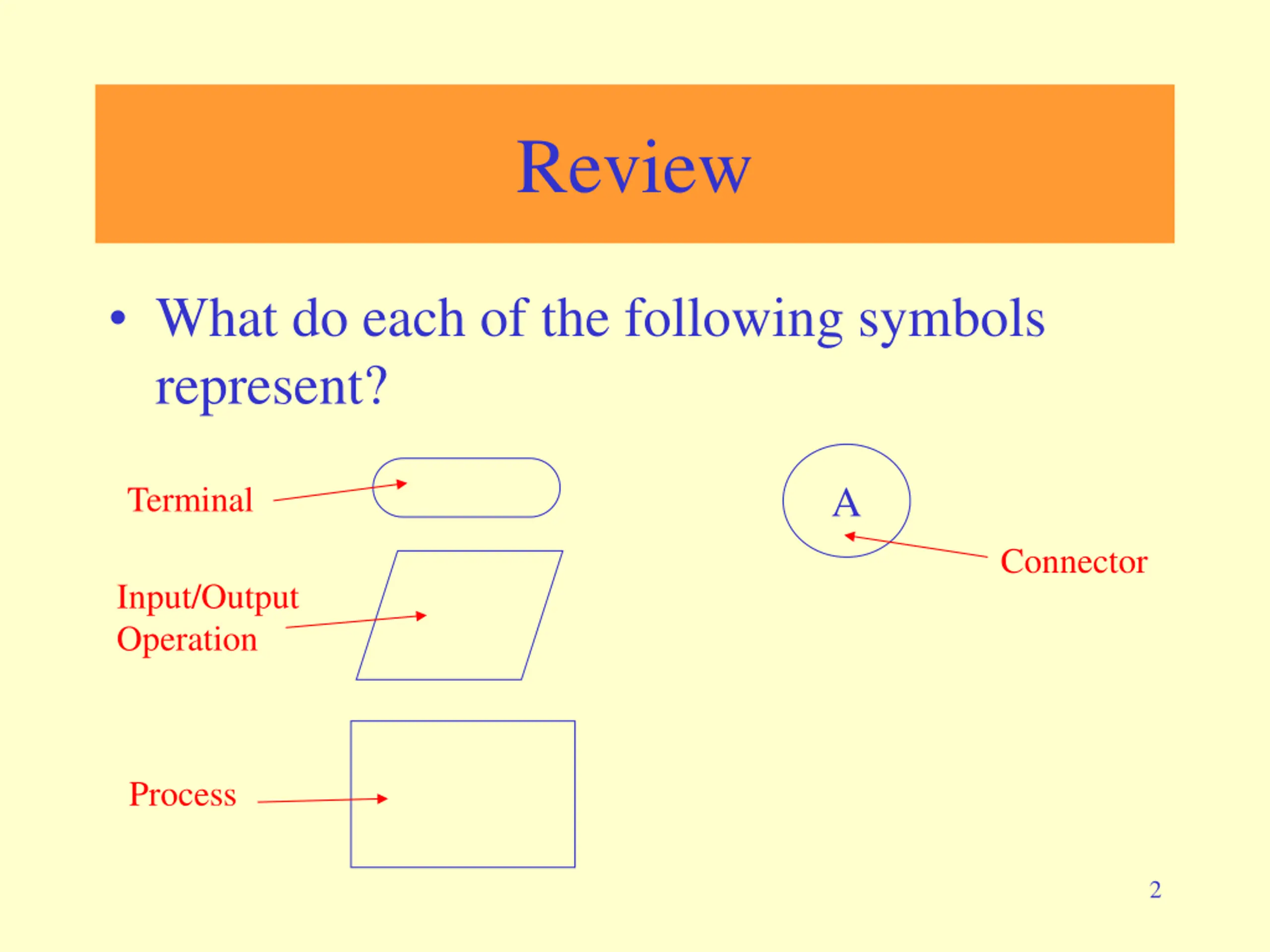

Review What do each of the following symbols represent? A Terminal Connector Input/Output Operation Process 2

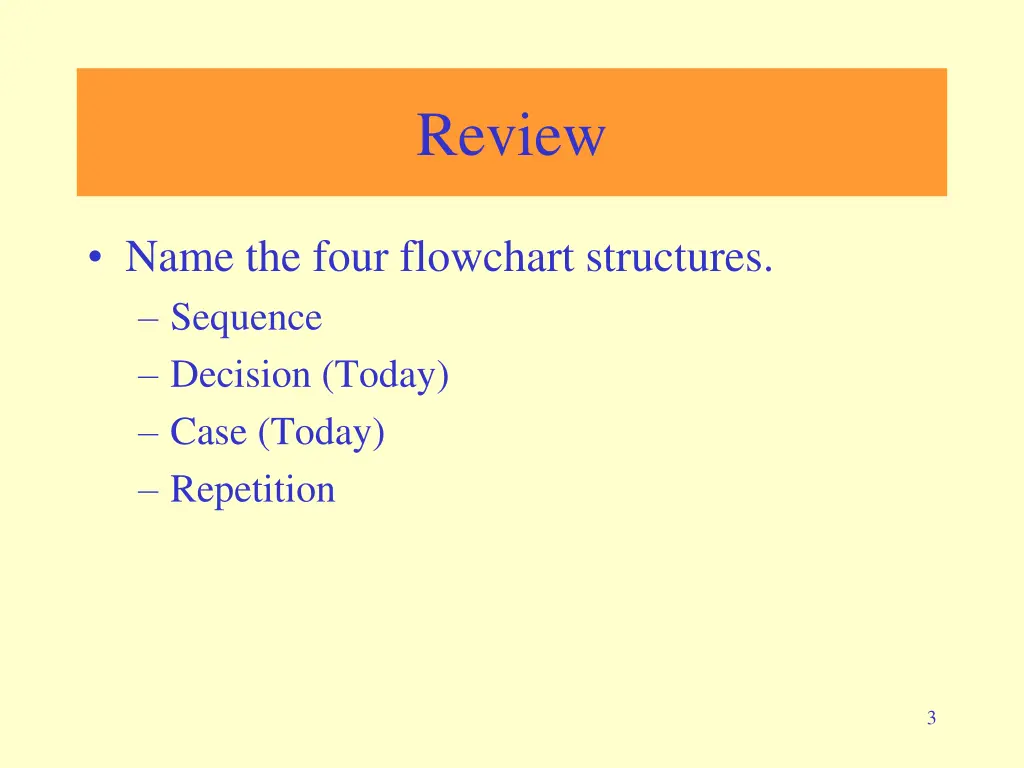

Review Name the four flowchart structures. Sequence Decision (Today) Case (Today) Repetition 3

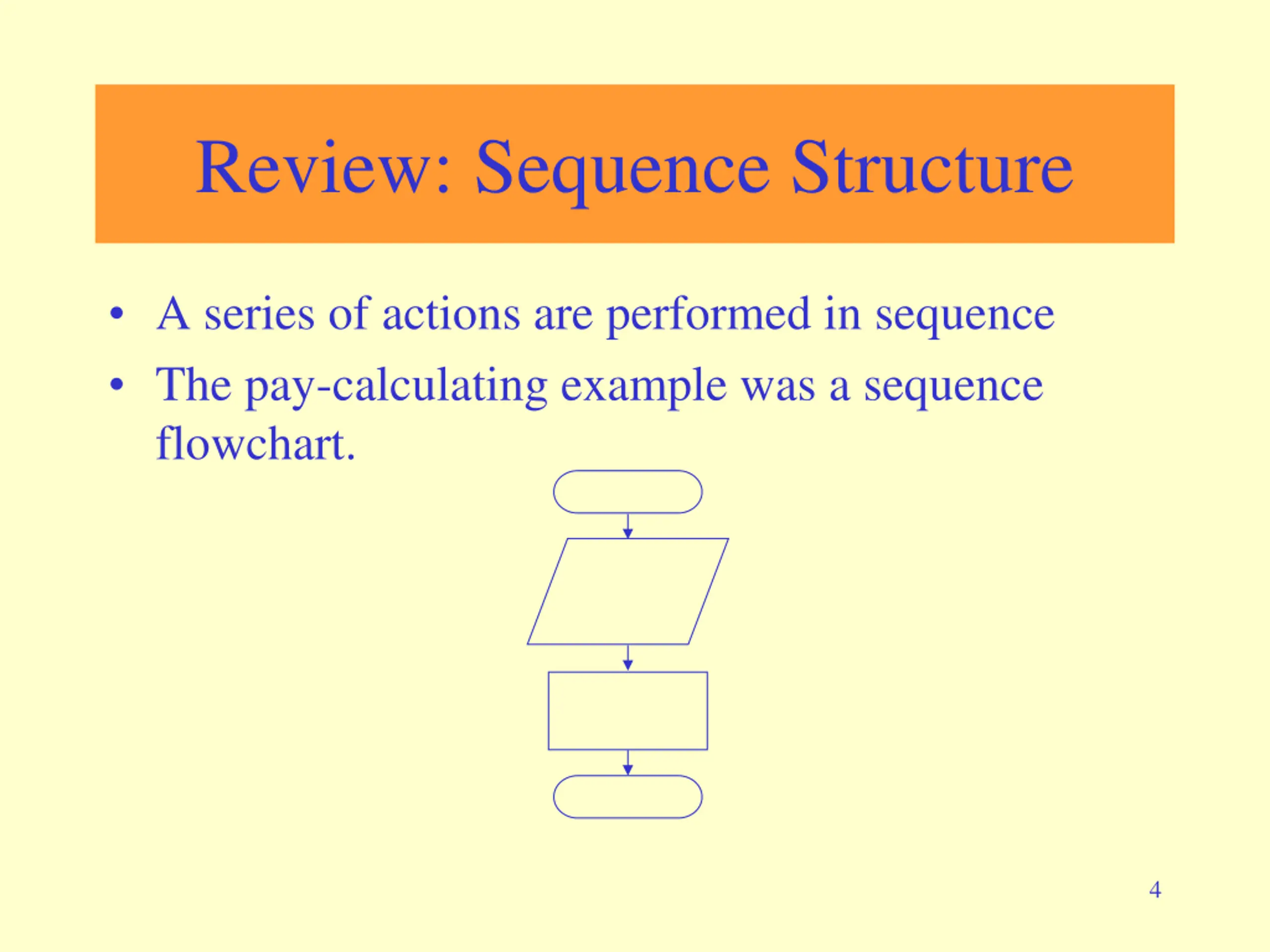

Review: Sequence Structure A series of actions are performed in sequence The pay-calculating example was a sequence flowchart. 4

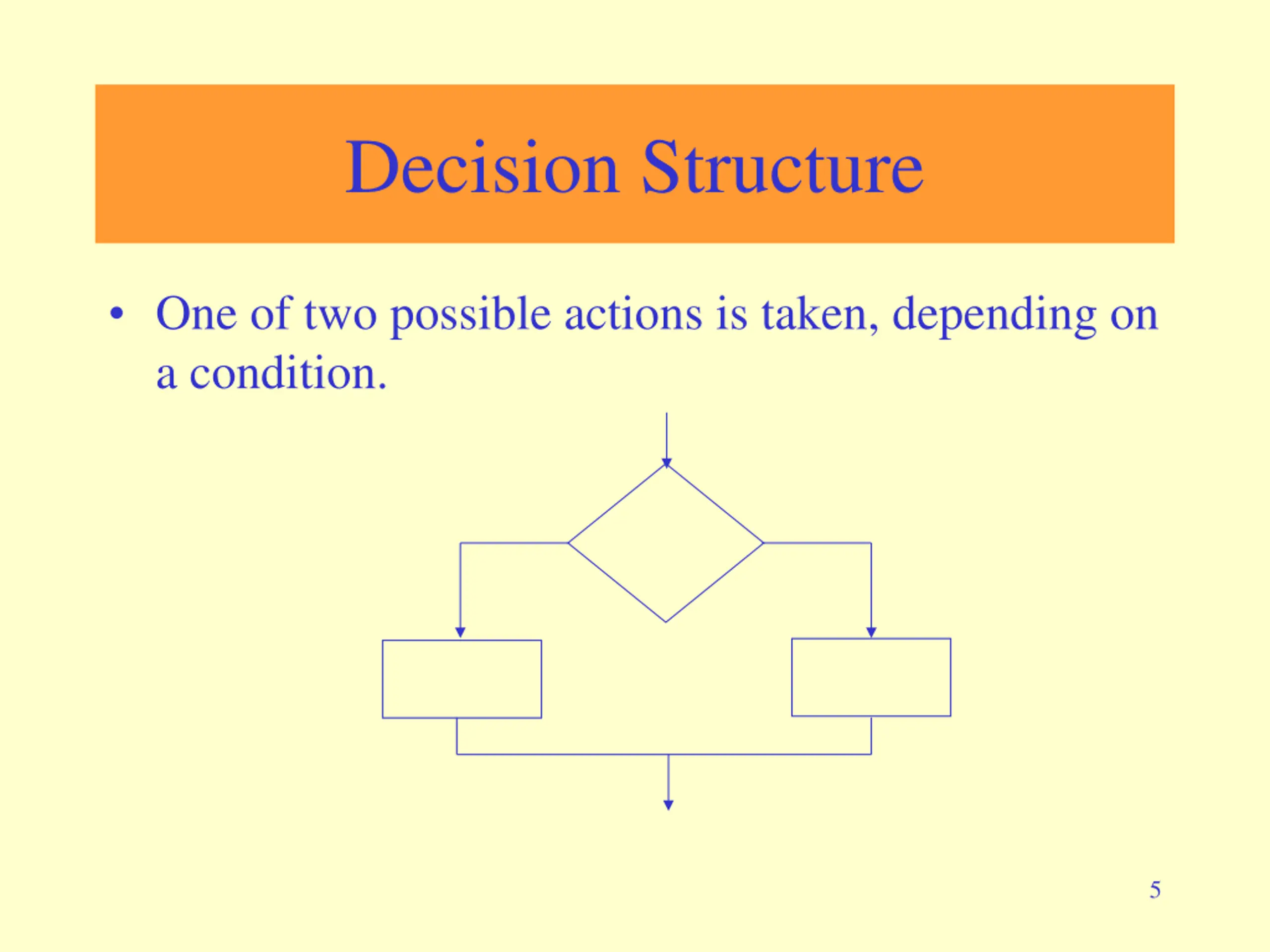

Decision Structure One of two possible actions is taken, depending on a condition. 5

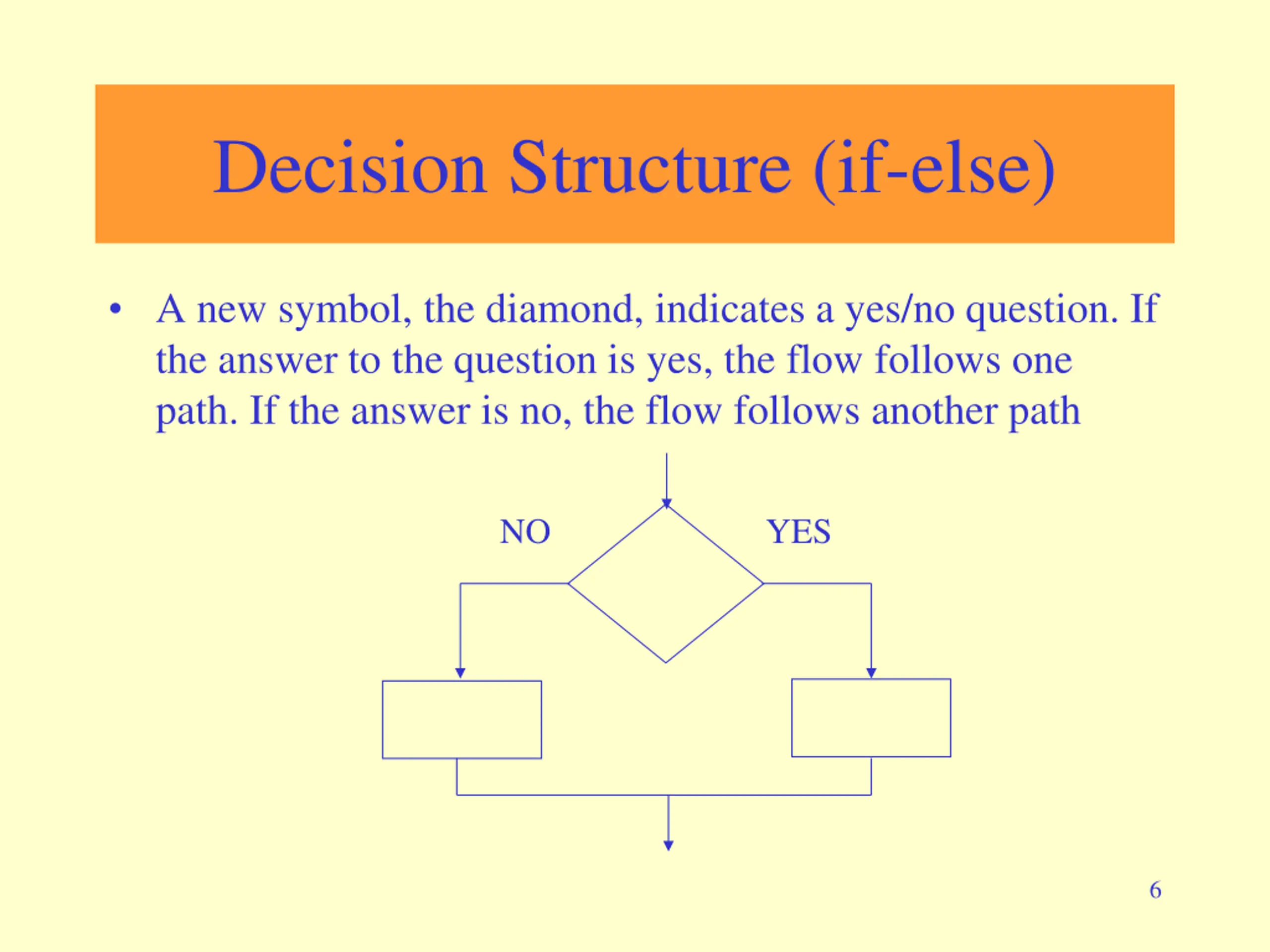

Decision Structure (if-else) A new symbol, the diamond, indicates a yes/no question. If the answer to the question is yes, the flow follows one path. If the answer is no, the flow follows another path NO YES 6

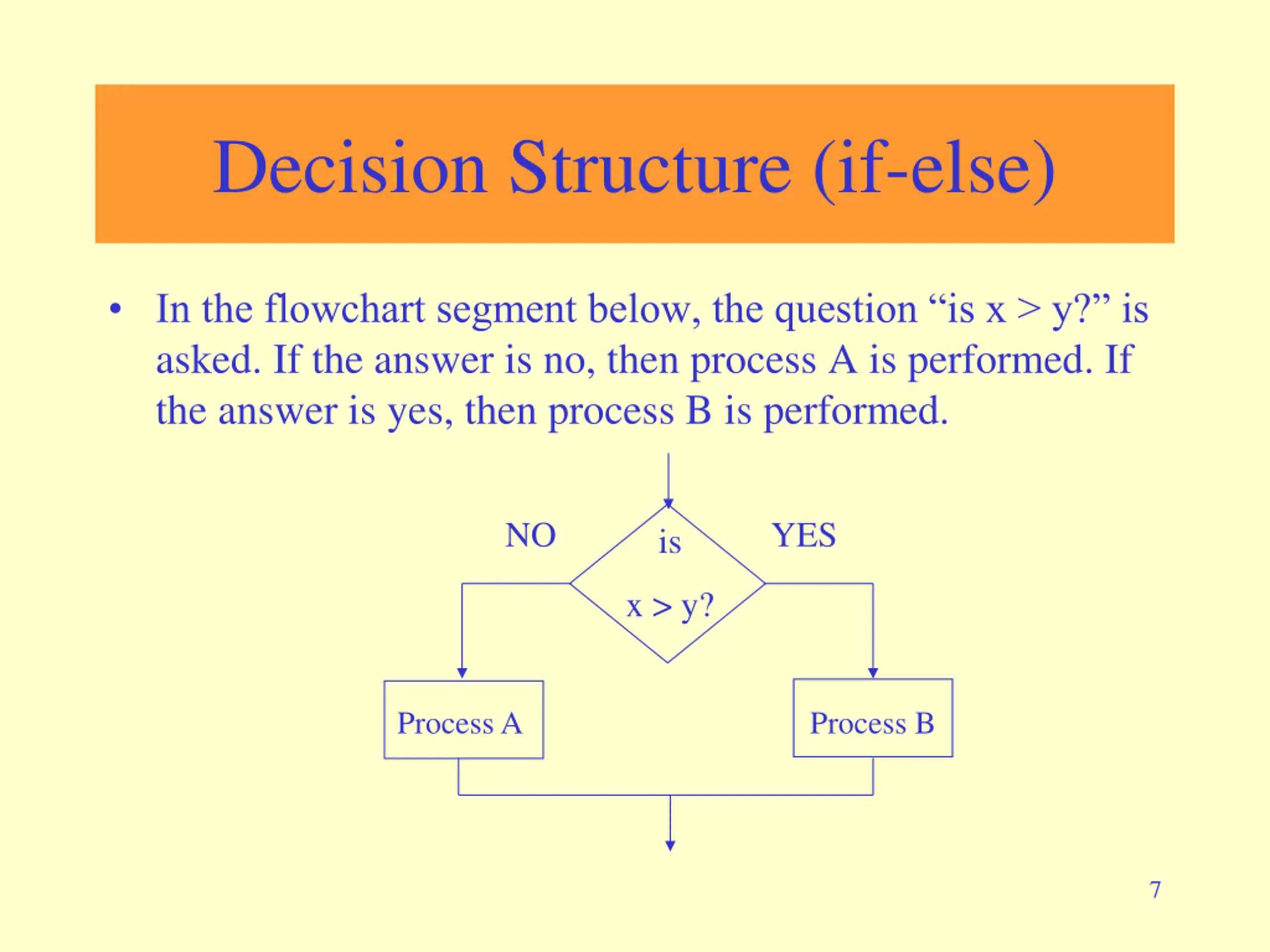

Decision Structure (if-else) In the flowchart segment below, the question is x > y? is asked. If the answer is no, then process A is performed. If the answer is yes, then process B is performed. NO YES is x > y? Process A Process B 7

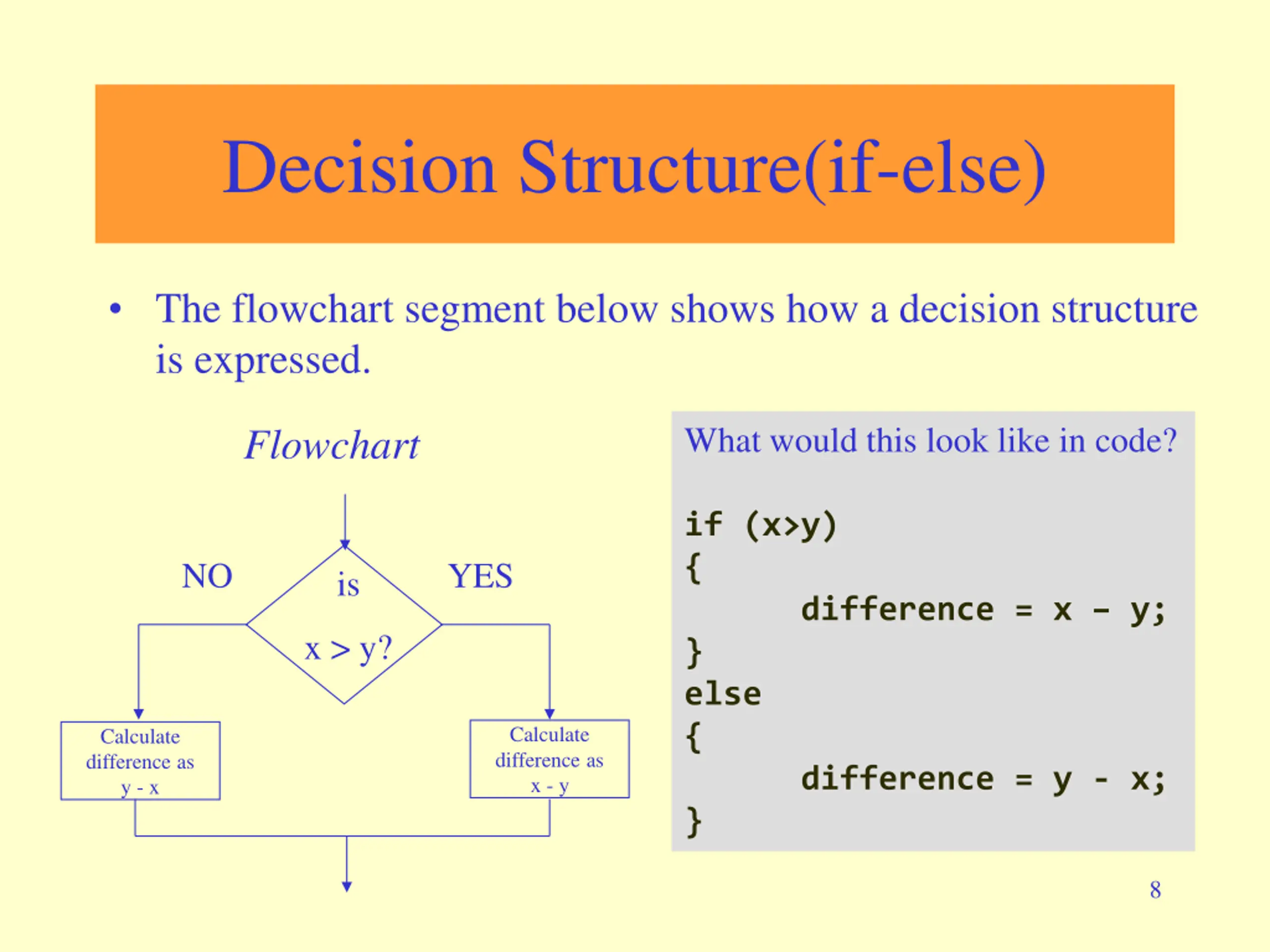

Decision Structure(if-else) The flowchart segment below shows how a decision structure is expressed. What would this look like in code? Flowchart if (x>y) { } else { } NO YES is difference = x y; x > y? Calculate difference as x - y Calculate difference as y - x difference = y - x; 8
Decision Structure (if) The flowchart segment below shows a decision structure with only one action to perform. It is expressed with only one process. Flowchart YES x > y? NO Calculate difference as x - y 9

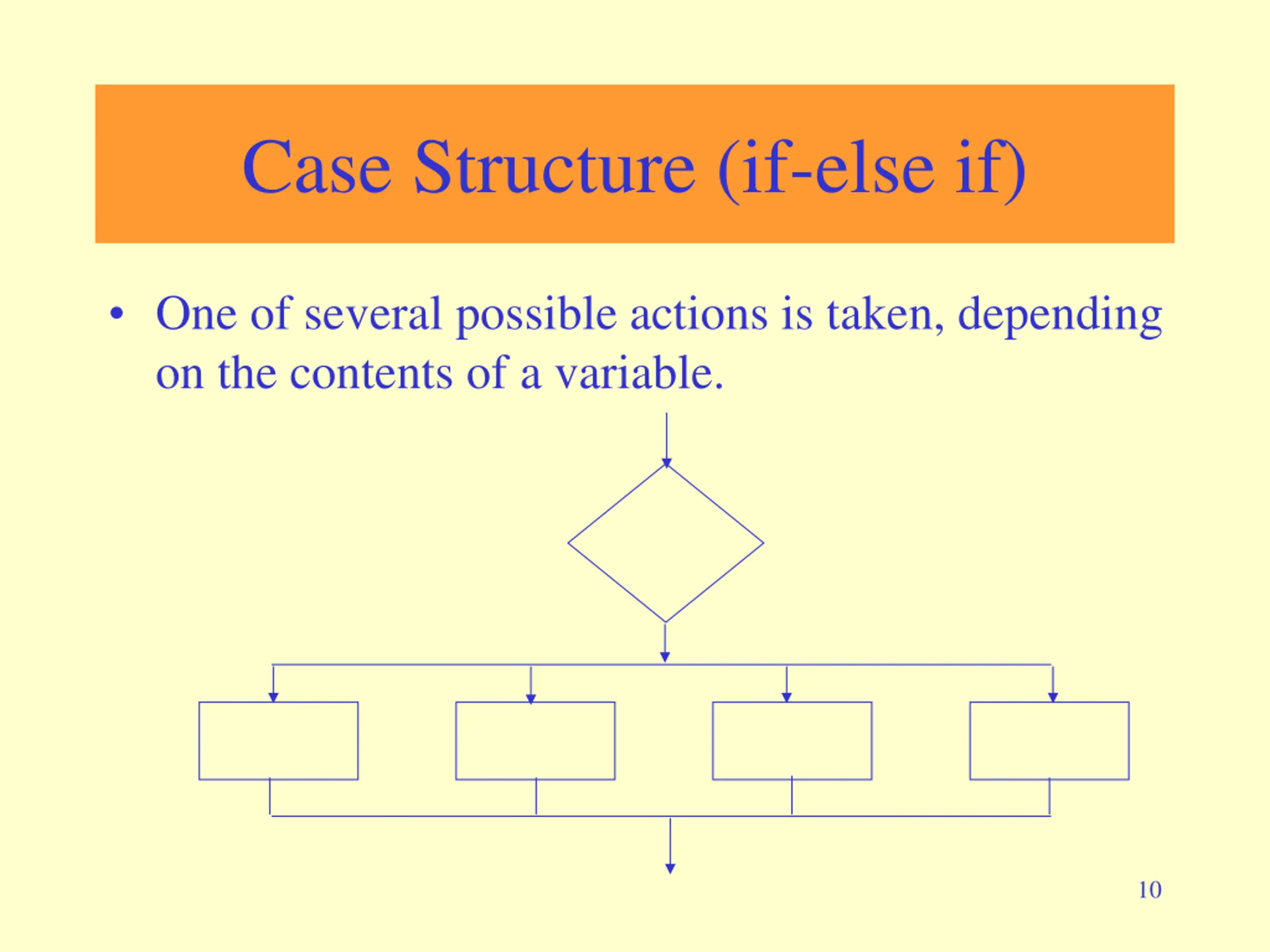

Case Structure (if-else if) One of several possible actions is taken, depending on the contents of a variable. 10

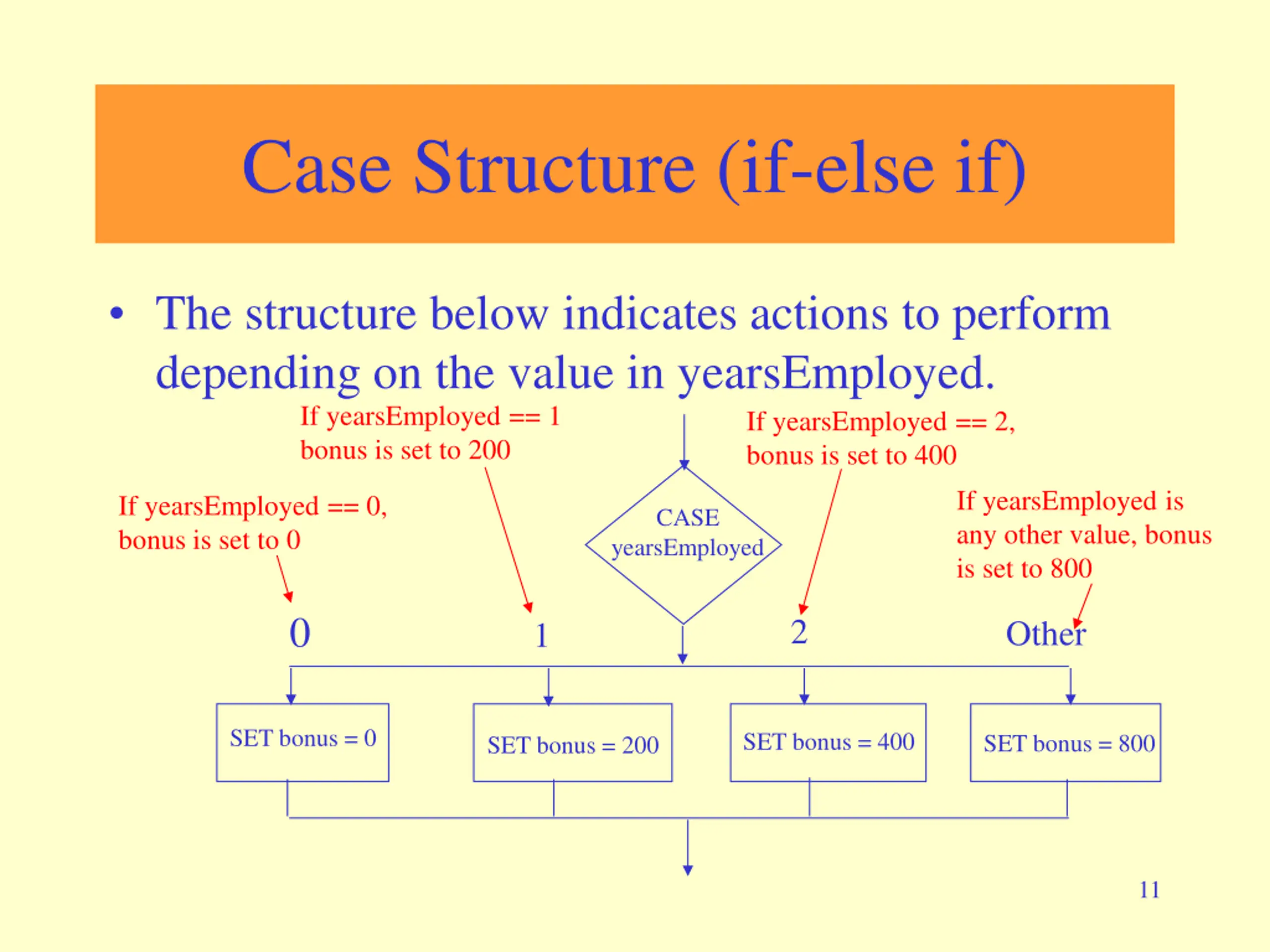

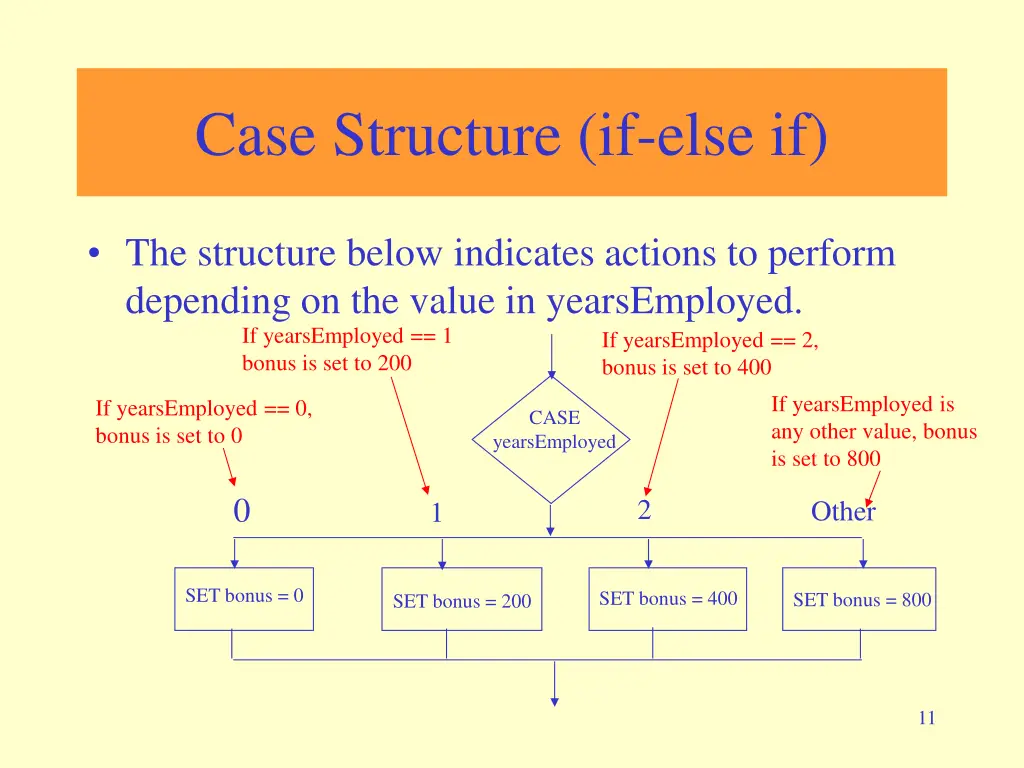

Case Structure (if-else if) The structure below indicates actions to perform depending on the value in yearsEmployed. If yearsEmployed == 1 bonus is set to 200 If yearsEmployed == 2, bonus is set to 400 If yearsEmployed is any other value, bonus is set to 800 If yearsEmployed == 0, bonus is set to 0 CASE yearsEmployed 0 2 Other 1 SET bonus = 0 SET bonus = 400 SET bonus = 800 SET bonus = 200 11

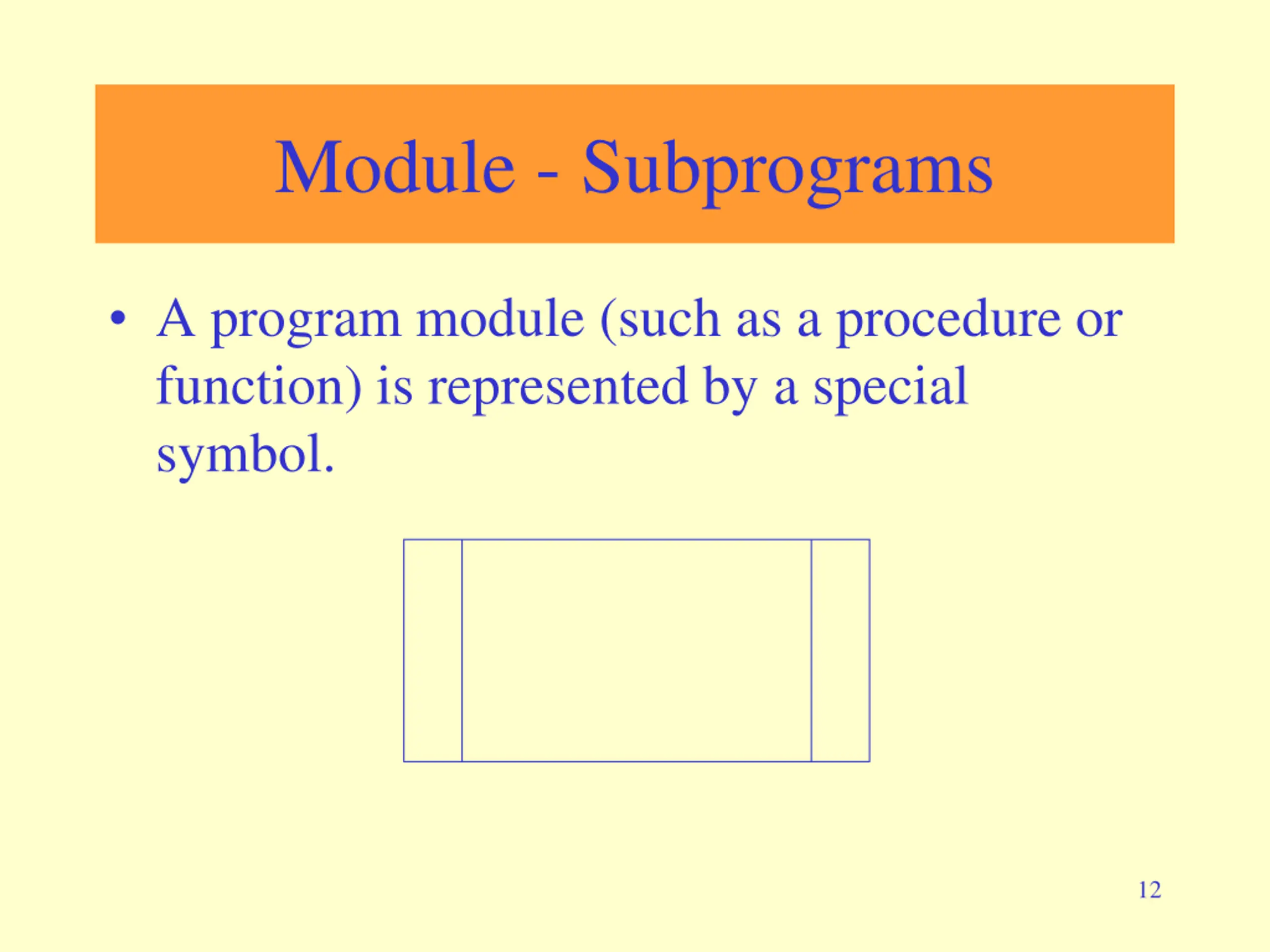

Module - Subprograms A program module (such as a procedure or function) is represented by a special symbol. 12

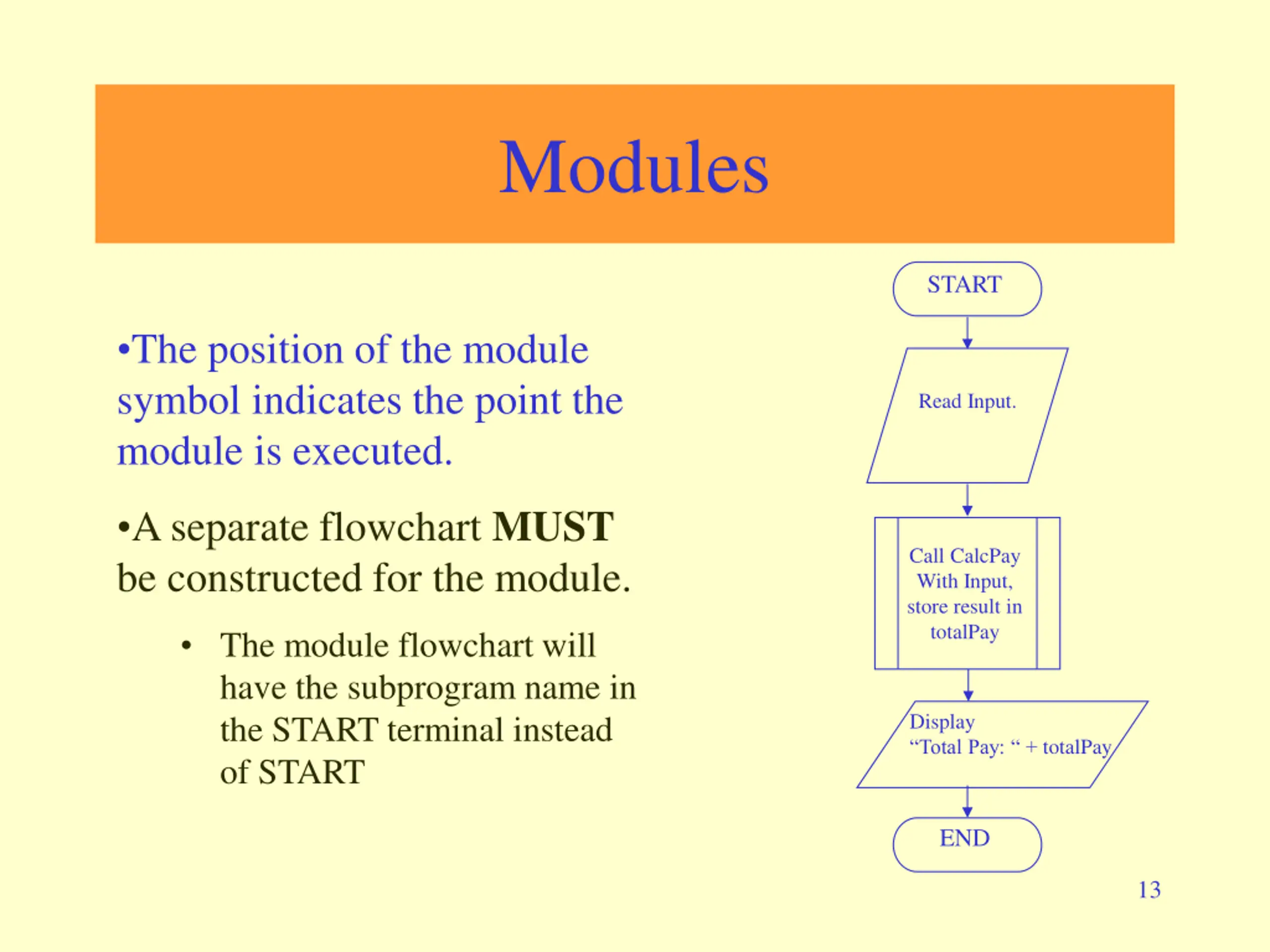

Modules START The position of the module symbol indicates the point the module is executed. Read Input. A separate flowchart MUST be constructed for the module. Call CalcPay With Input, store result in totalPay The module flowchart will have the subprogram name in the START terminal instead of START Display Total Pay: + totalPay END 13

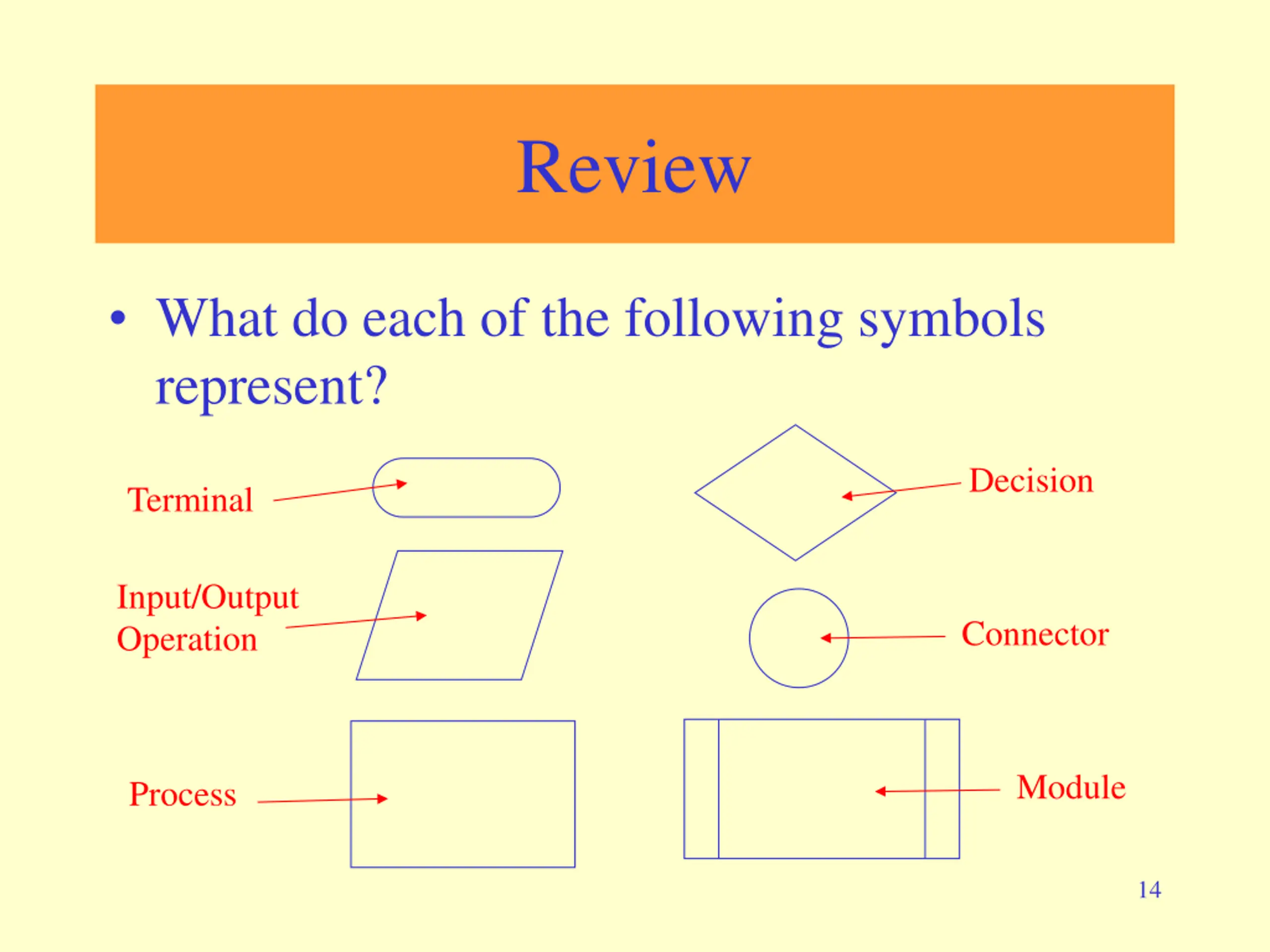

Review What do each of the following symbols represent? Decision Terminal Input/Output Operation Connector Module Process 14
