Understanding GCMP-256 for Enhanced Security
Learn about GCMP-256, a robust security protocol offering 192-bit encryption strength, surpassing CCMP-128. GCMP-256 is recommended for higher throughput due to its efficient MultH function. Discover insights on MIC calculation, encrypted frame structure, and the implementation of GCMP-256 in wireless communication standards.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

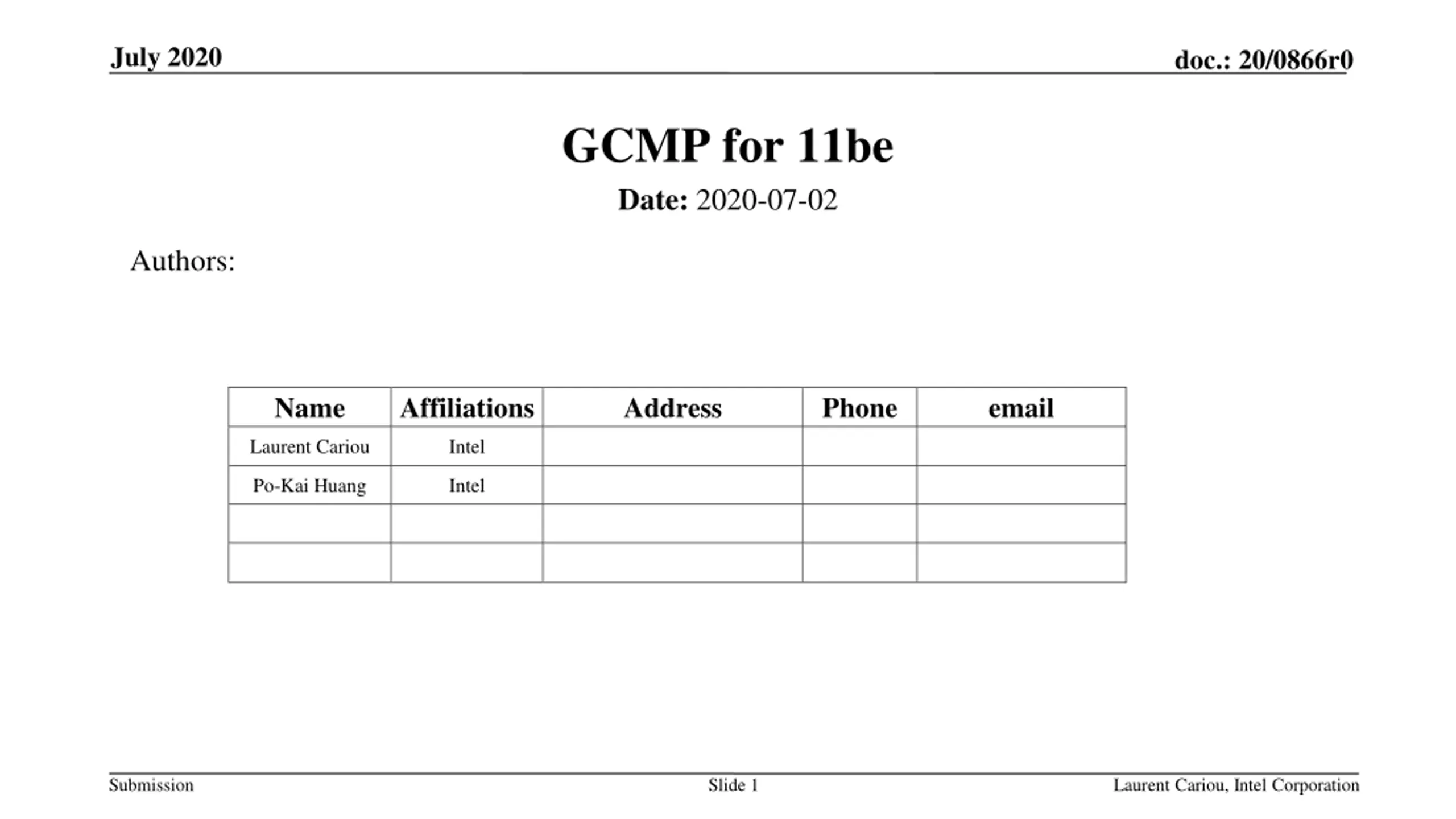

July 2020 doc.: 20/0866r0 GCMP for 11be Date: 2020-07-02 Authors: Name Affiliations Address Phone email Laurent Cariou Intel Po-Kai Huang Intel Submission Slide 1 Laurent Cariou, Intel Corporation

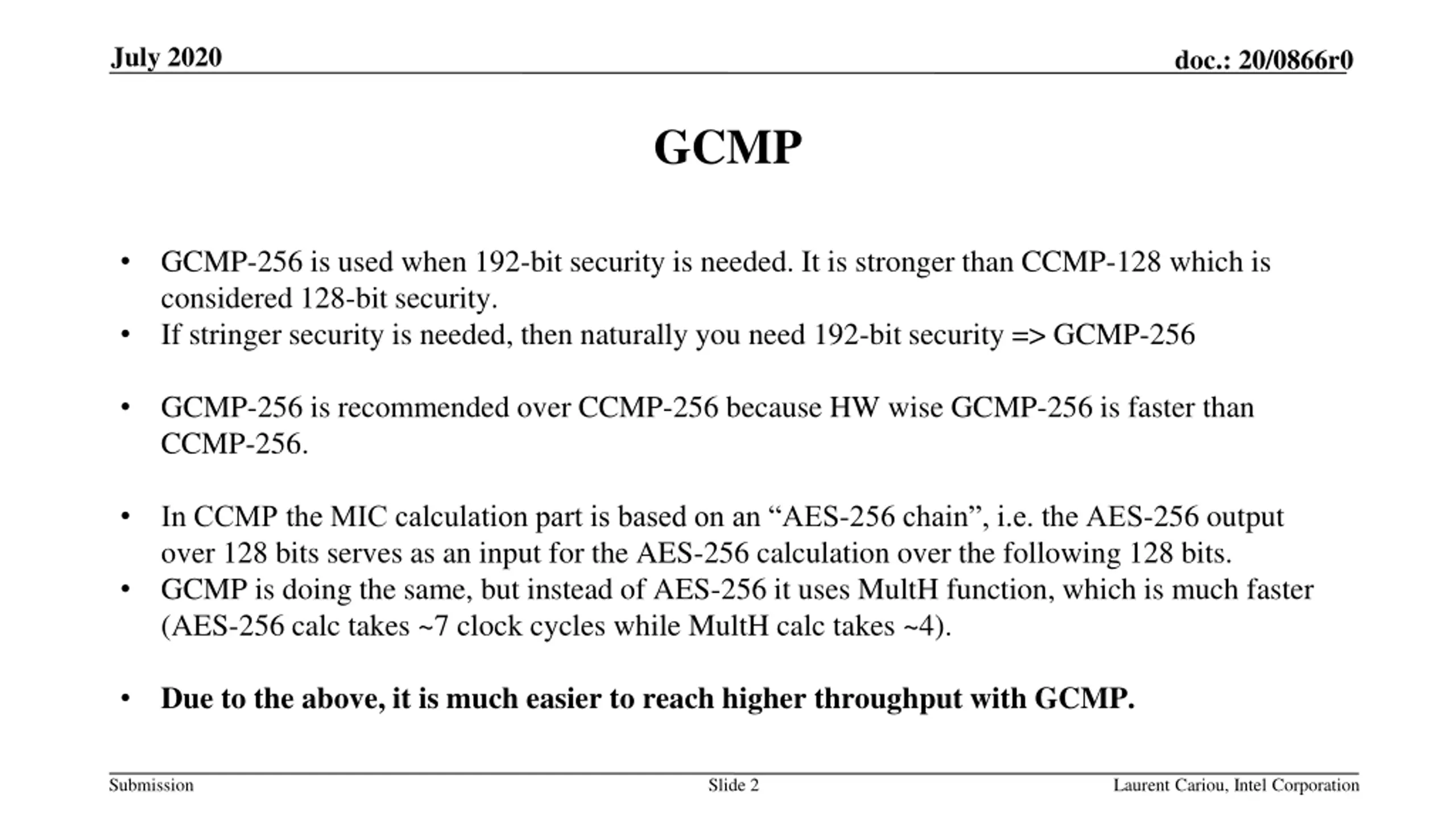

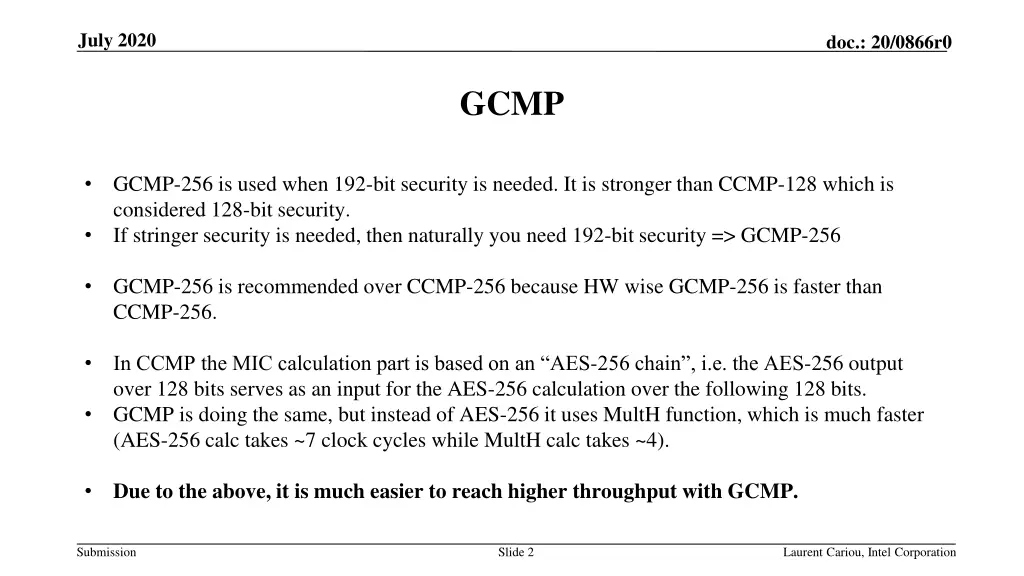

July 2020 doc.: 20/0866r0 GCMP GCMP-256 is used when 192-bit security is needed. It is stronger than CCMP-128 which is considered 128-bit security. If stringer security is needed, then naturally you need 192-bit security => GCMP-256 GCMP-256 is recommended over CCMP-256 because HW wise GCMP-256 is faster than CCMP-256. In CCMP the MIC calculation part is based on an AES-256 chain , i.e. the AES-256 output over 128 bits serves as an input for the AES-256 calculation over the following 128 bits. GCMP is doing the same, but instead of AES-256 it uses MultH function, which is much faster (AES-256 calc takes ~7 clock cycles while MultH calc takes ~4). Due to the above, it is much easier to reach higher throughput with GCMP. Submission Slide 2 Laurent Cariou, Intel Corporation

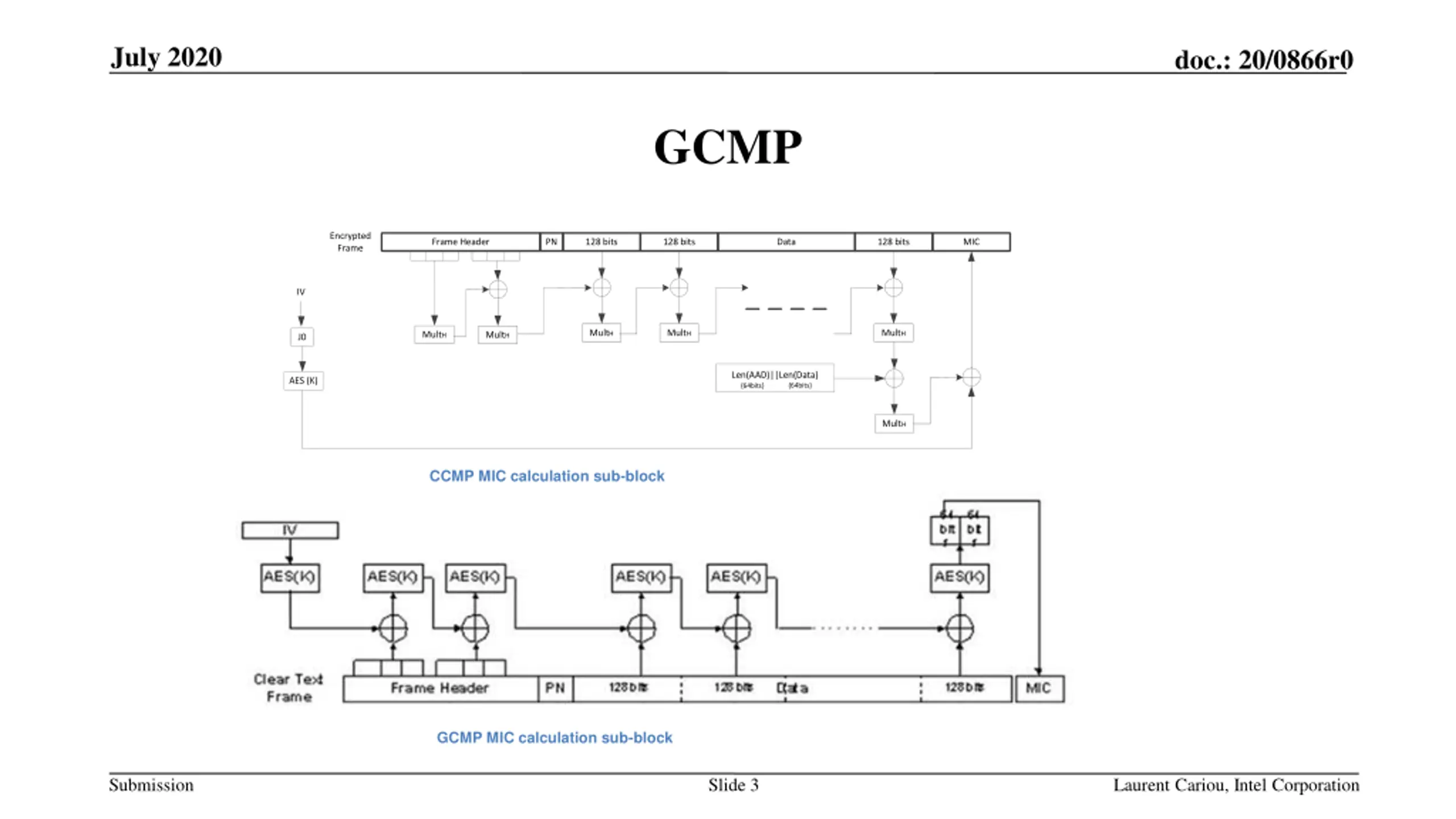

July 2020 doc.: 20/0866r0 GCMP Encrypted Frame Frame Header PN 128 bits 128 bits Data 128 bits MIC IV MultH MultH MultH MultH MultH J0 Len(AAD)||Len(Data) {64bits} AES (K) {64bits} MultH CCMP MIC calculation sub-block GCMP MIC calculation sub-block Submission Slide 3 Laurent Cariou, Intel Corporation

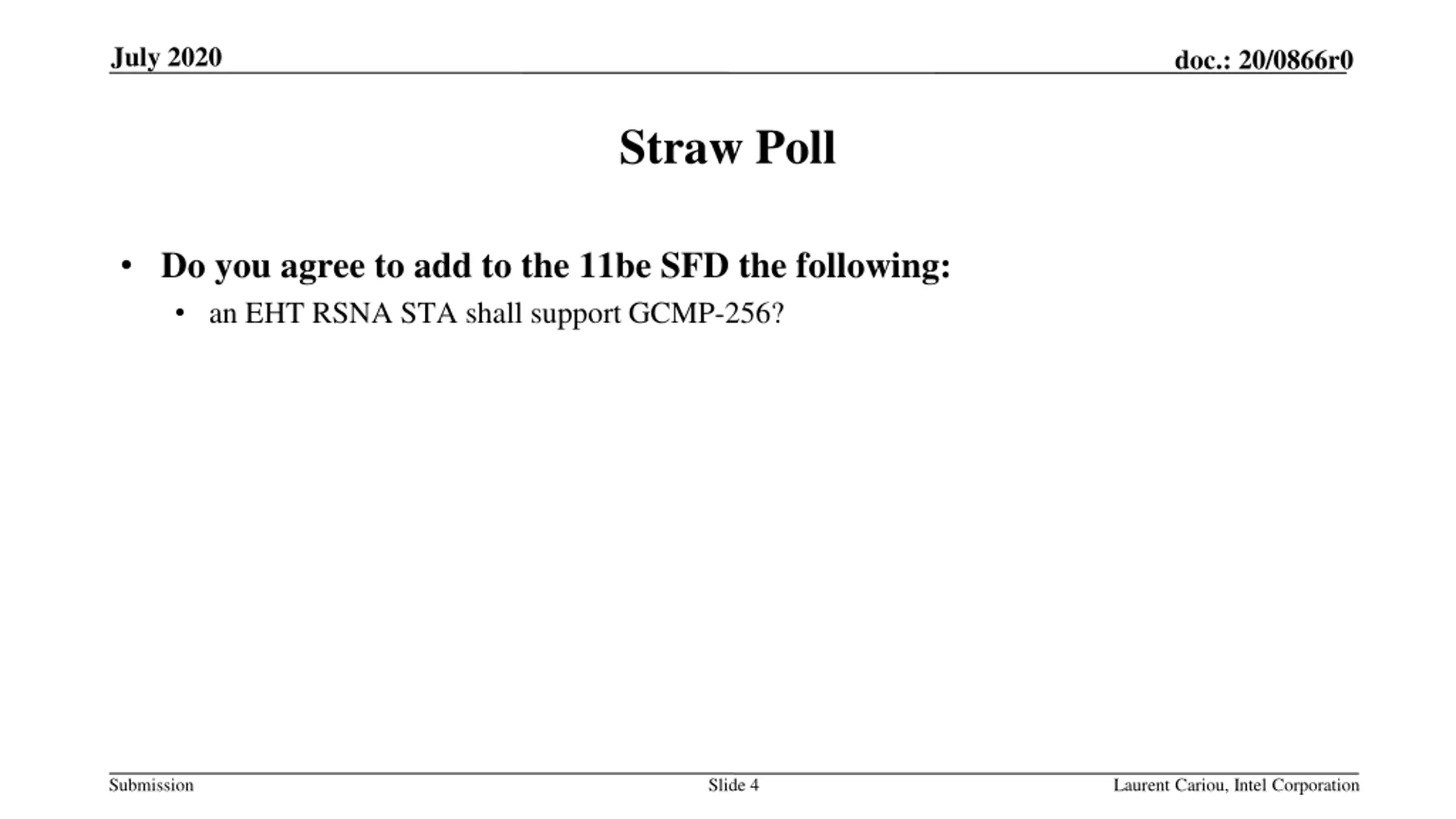

July 2020 doc.: 20/0866r0 Straw Poll Do you agree to add to the 11be SFD the following: an EHT RSNA STA shall support GCMP-256? Submission Slide 4 Laurent Cariou, Intel Corporation
