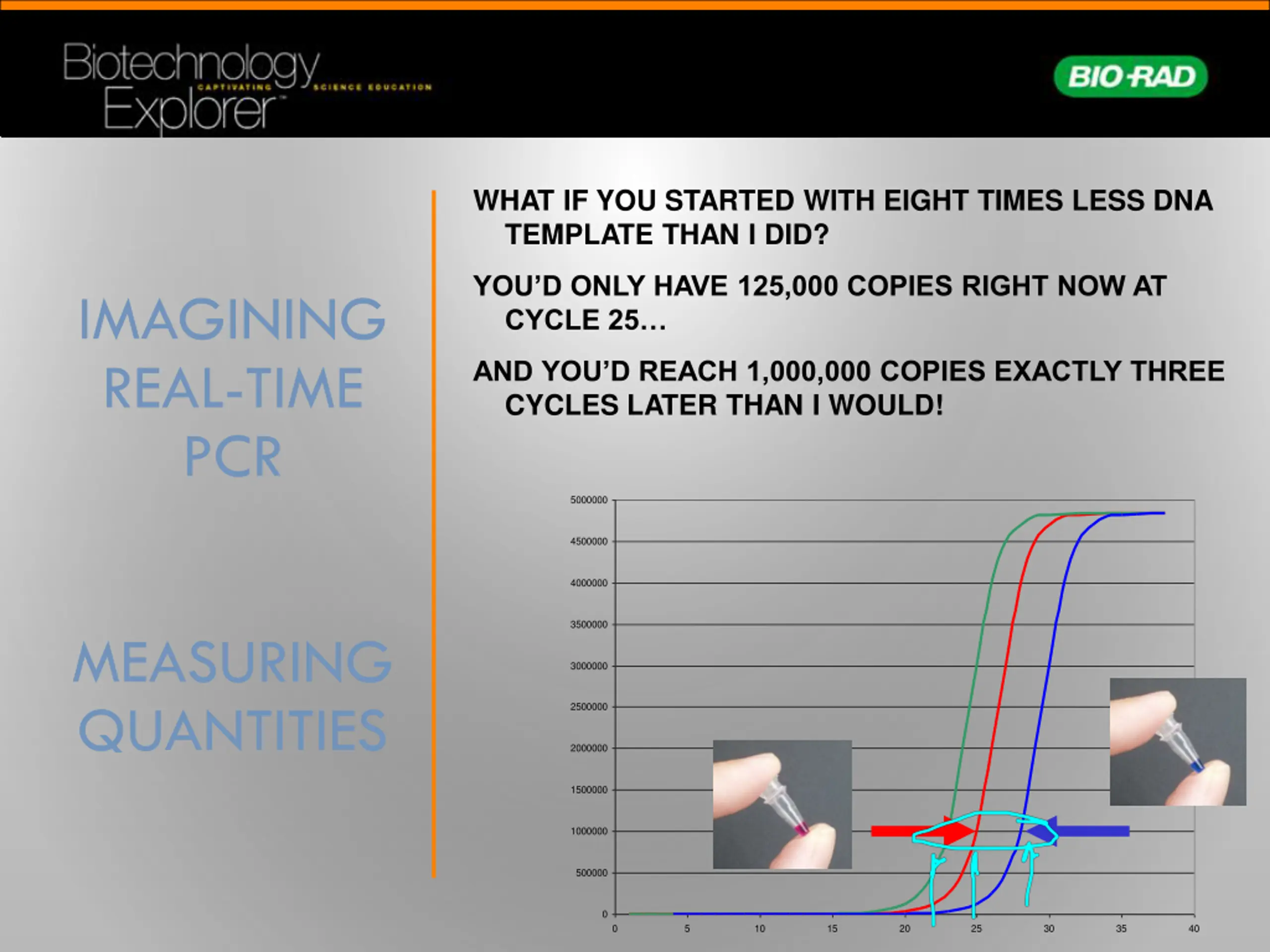

WHAT IF YOU STARTED WITH EIGHT TIMES LESS DNA TEMPLATE THAN I DID? YOU D ONLY HAVE 125,000 COPIES RIGHT NOW AT CYCLE 25 IMAGINING REAL-TIME PCR AND YOU D REACH 1,000,000 COPIES EXACTLY THREE CYCLES LATER THAN I WOULD! 5000000 4500000 4000000 3500000 MEASURING QUANTITIES 3000000 2500000 2000000 1500000 1000000 500000 0 0 5 10 15 20 25 30 35 40

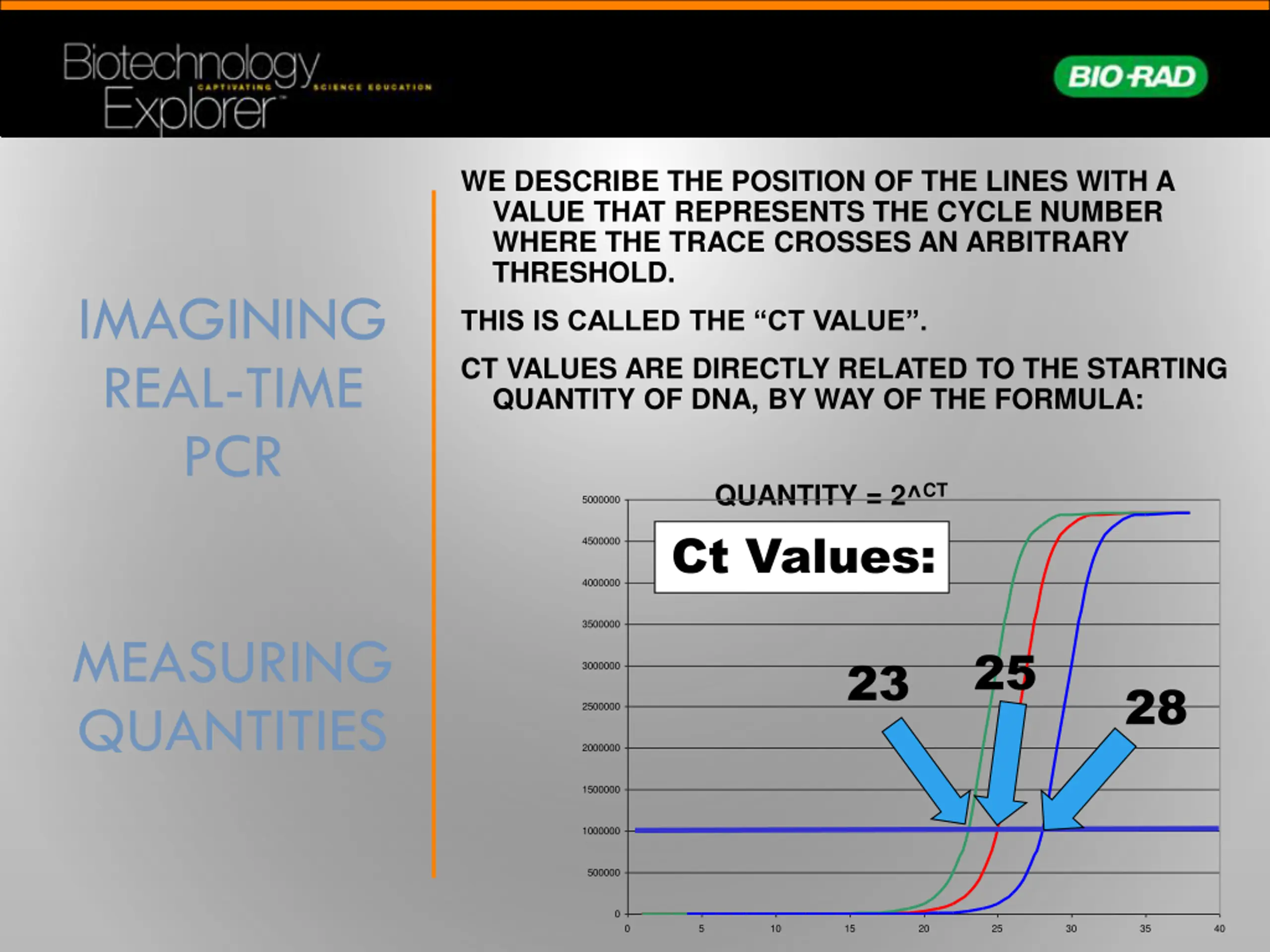

WE DESCRIBE THE POSITION OF THE LINES WITH A VALUE THAT REPRESENTS THE CYCLE NUMBER WHERE THE TRACE CROSSES AN ARBITRARY THRESHOLD. IMAGINING REAL-TIME PCR THIS IS CALLED THE CT VALUE . CT VALUES ARE DIRECTLY RELATED TO THE STARTING QUANTITY OF DNA, BY WAY OF THE FORMULA: QUANTITY = 2^CT Ct Values: 5000000 4500000 4000000 3500000 MEASURING QUANTITIES 25 23 3000000 28 2500000 2000000 1500000 1000000 500000 0 0 5 10 15 20 25 30 35 40

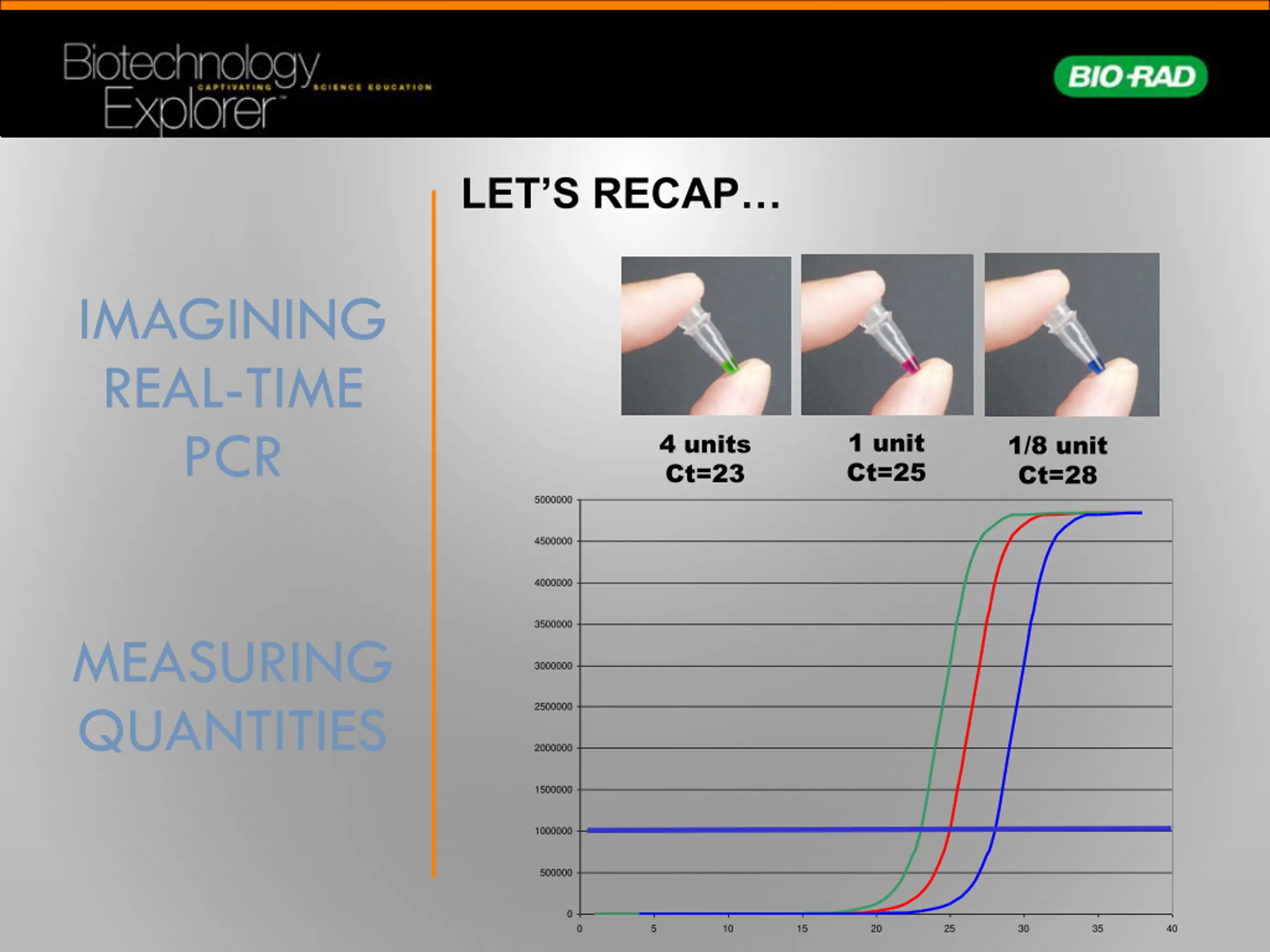

LETS RECAP IMAGINING REAL-TIME PCR 1 unit Ct=25 4 units Ct=23 1/8 unit Ct=28 5000000 4500000 4000000 3500000 MEASURING QUANTITIES 3000000 2500000 2000000 1500000 1000000 500000 0 0 5 10 15 20 25 30 35 40

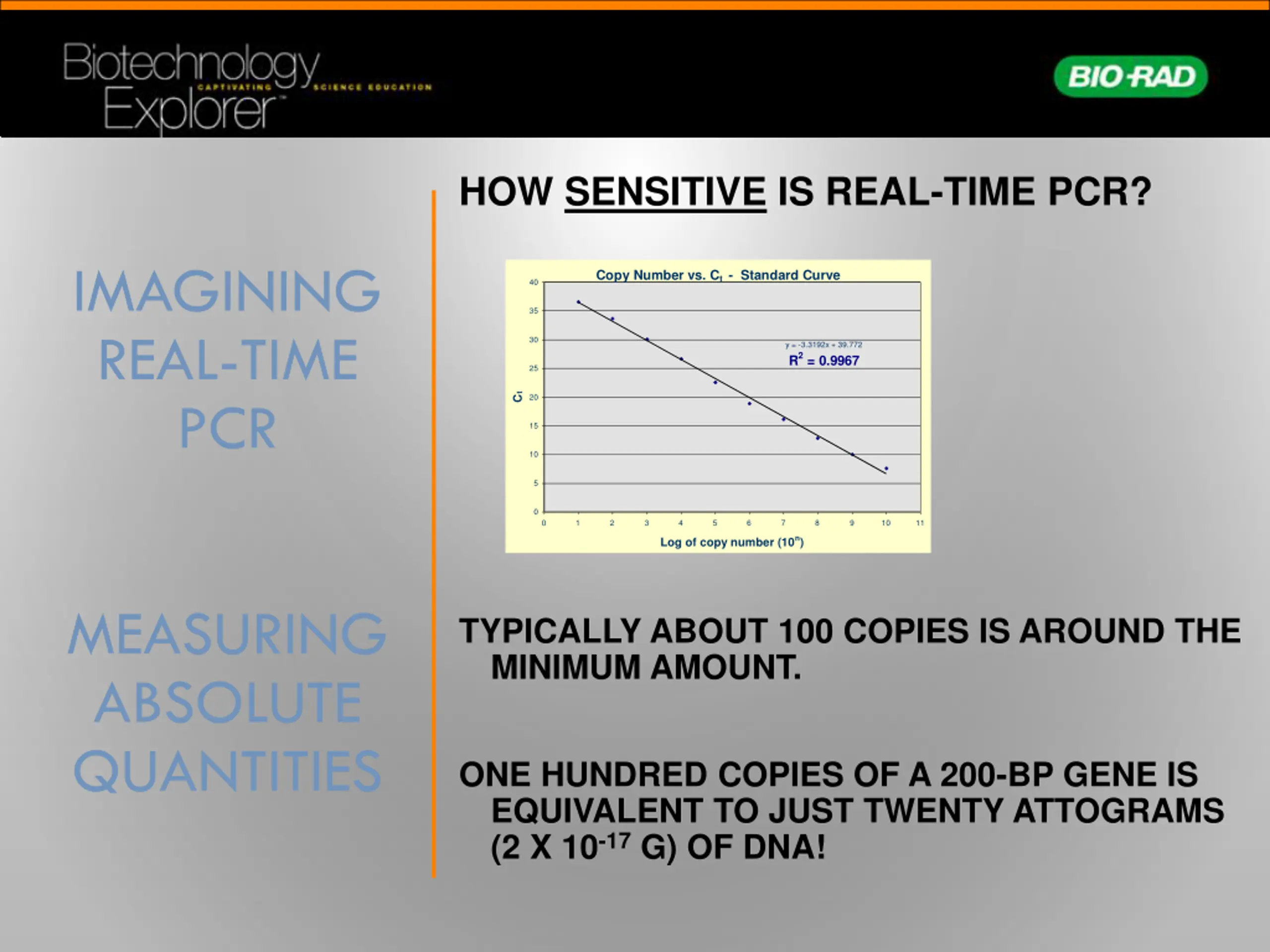

HOW SENSITIVE IS REAL-TIME PCR? IMAGINING REAL-TIME PCR Copy Number vs. Ct - Standard Curve 40 35 30 y = -3.3192x + 39.772 R2 = 0.9967 25 Ct 20 15 10 5 0 0 1 2 3 4 5 6 7 8 9 10 11 Log of copy number (10n) MEASURING ABSOLUTE QUANTITIES TYPICALLY ABOUT 100 COPIES IS AROUND THE MINIMUM AMOUNT. ONE HUNDRED COPIES OF A 200-BP GENE IS EQUIVALENT TO JUST TWENTY ATTOGRAMS (2 X 10-17 G) OF DNA!

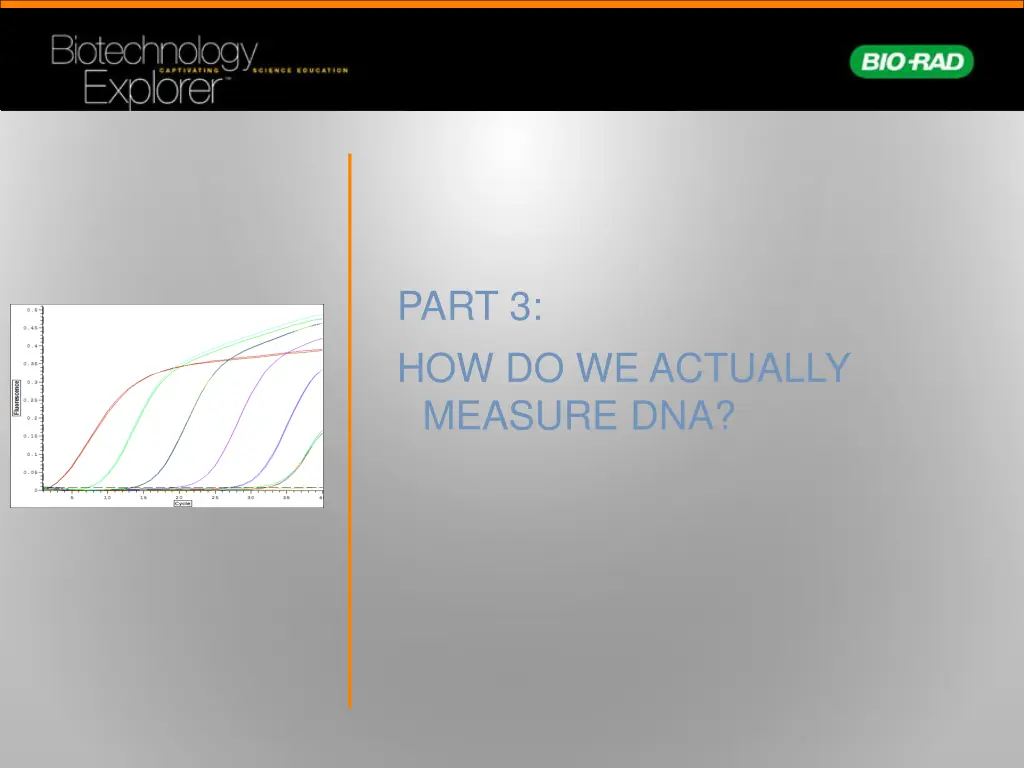

PART 3: HOW DO WE ACTUALLY MEASURE DNA?

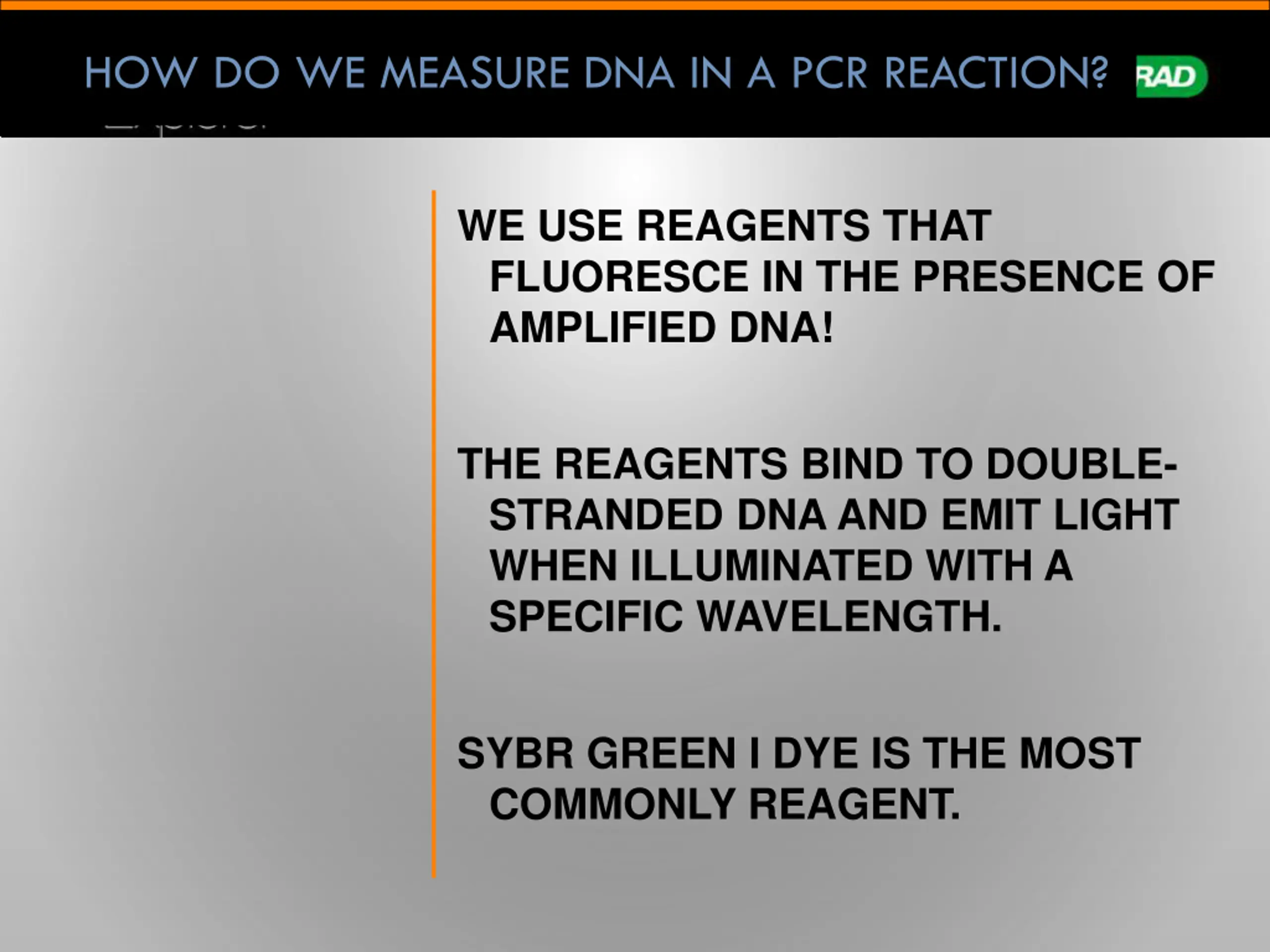

HOW DO WE MEASURE DNA IN A PCR REACTION? WE USE REAGENTS THAT FLUORESCE IN THE PRESENCE OF AMPLIFIED DNA! THE REAGENTS BIND TO DOUBLE- STRANDED DNA AND EMIT LIGHT WHEN ILLUMINATED WITH A SPECIFIC WAVELENGTH. SYBR GREEN I DYE IS THE MOST COMMONLY REAGENT.

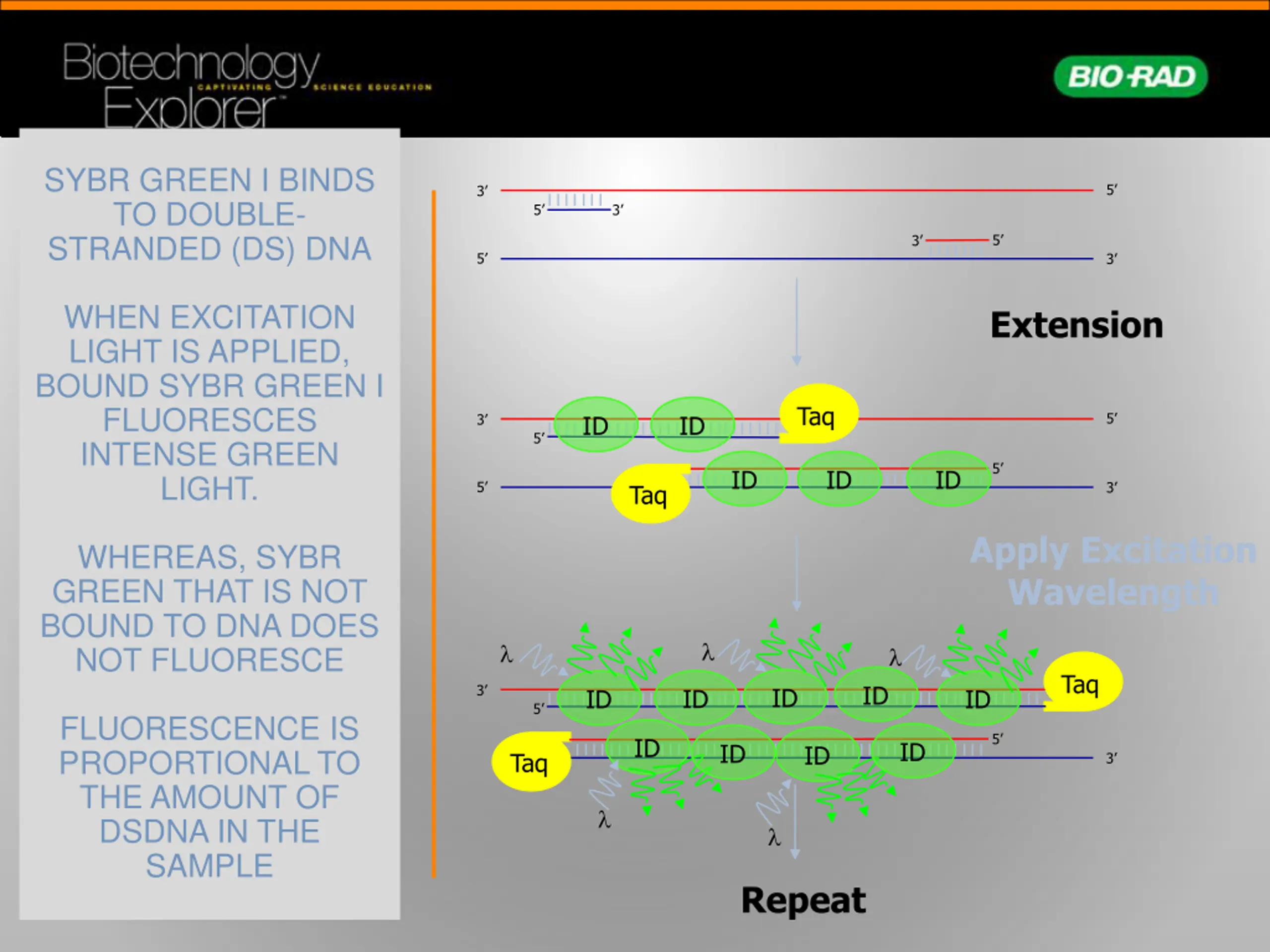

SYBR GREEN I BINDS TO DOUBLE- STRANDED (DS) DNA 5 3 5 3 WHEN EXCITATION LIGHT IS APPLIED, BOUND SYBR GREEN I FLUORESCES INTENSE GREEN LIGHT. Extension Taq 5 ID ID 3 ID ID ID 5 3 Taq Apply Excitation Wavelength WHEREAS, SYBR GREEN THAT IS NOT BOUND TO DNA DOES NOT FLUORESCE Taq ID 5 3 ID ID ID ID FLUORESCENCE IS PROPORTIONAL TO THE AMOUNT OF DSDNA IN THE SAMPLE ID ID ID ID Taq 3 Repeat

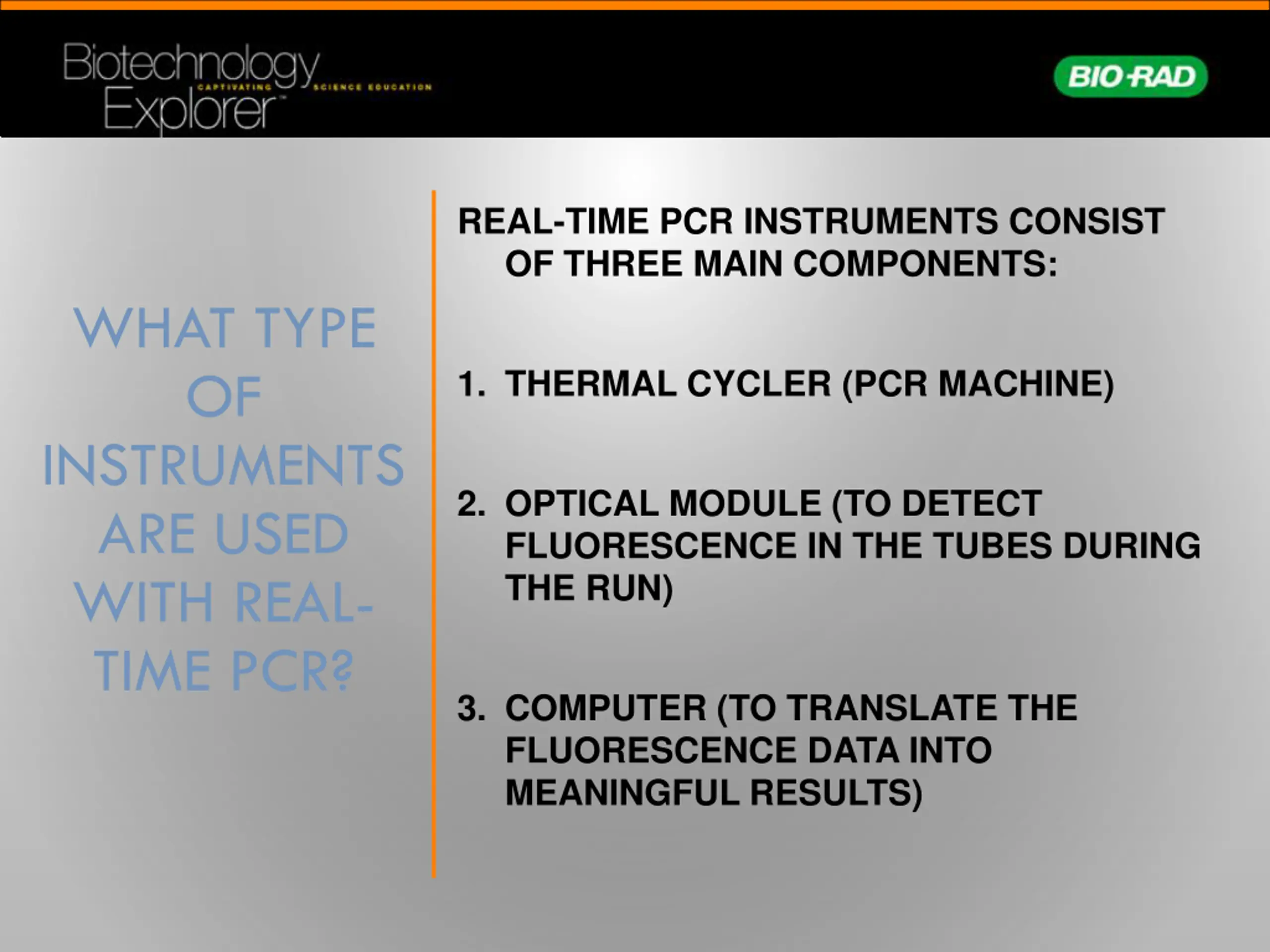

REAL-TIME PCR INSTRUMENTS CONSIST OF THREE MAIN COMPONENTS: WHAT TYPE OF INSTRUMENTS ARE USED WITH REAL- TIME PCR? 1. THERMAL CYCLER (PCR MACHINE) 2. OPTICAL MODULE (TO DETECT FLUORESCENCE IN THE TUBES DURING THE RUN) 3. COMPUTER (TO TRANSLATE THE FLUORESCENCE DATA INTO MEANINGFUL RESULTS)
