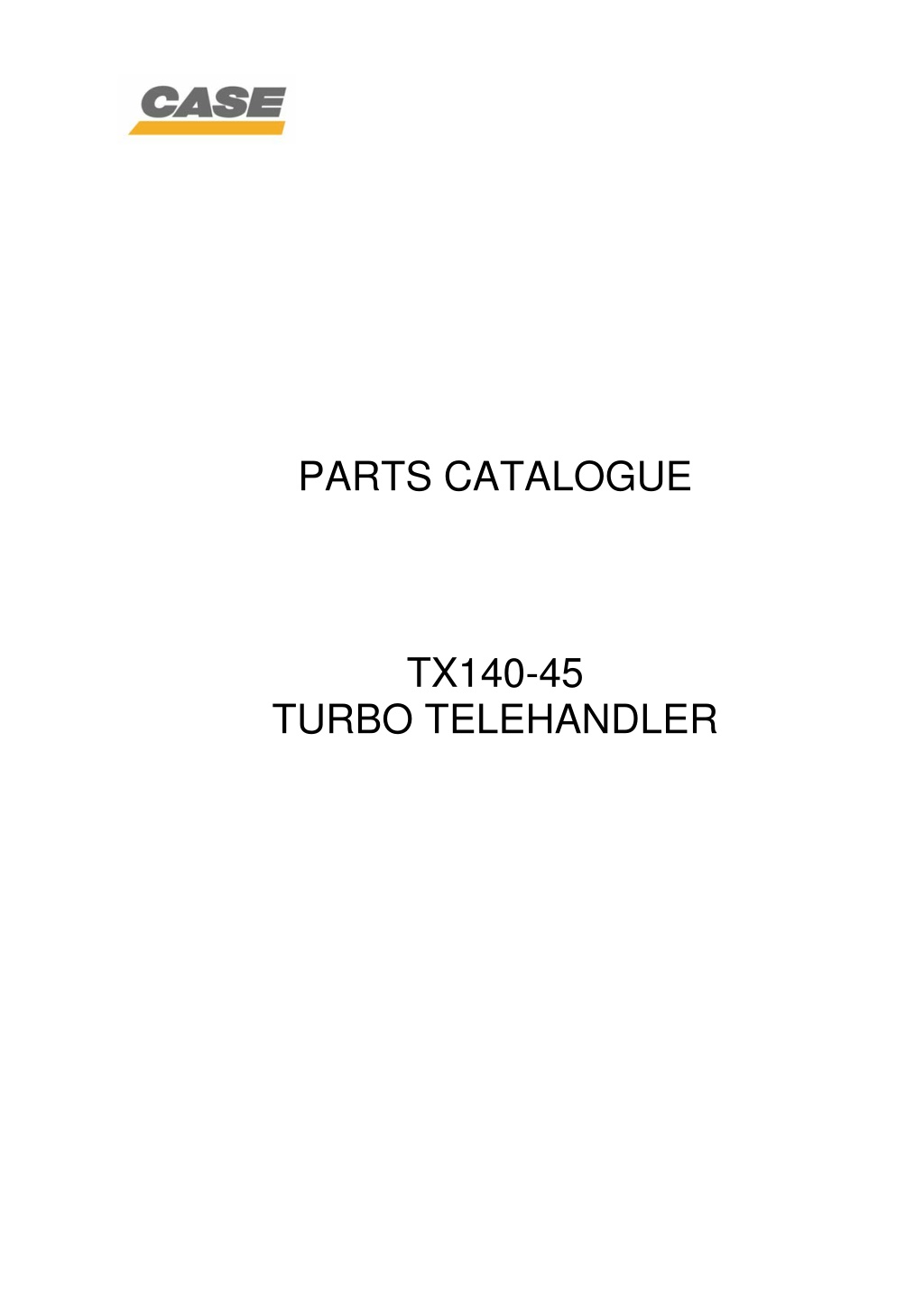

PARTS CATALOGUE TX140-45 TURBO TELEHANDLER
TX140-45 TURBO TELEHANDLER (3/05- ) 0.02.1(01) ENGINE

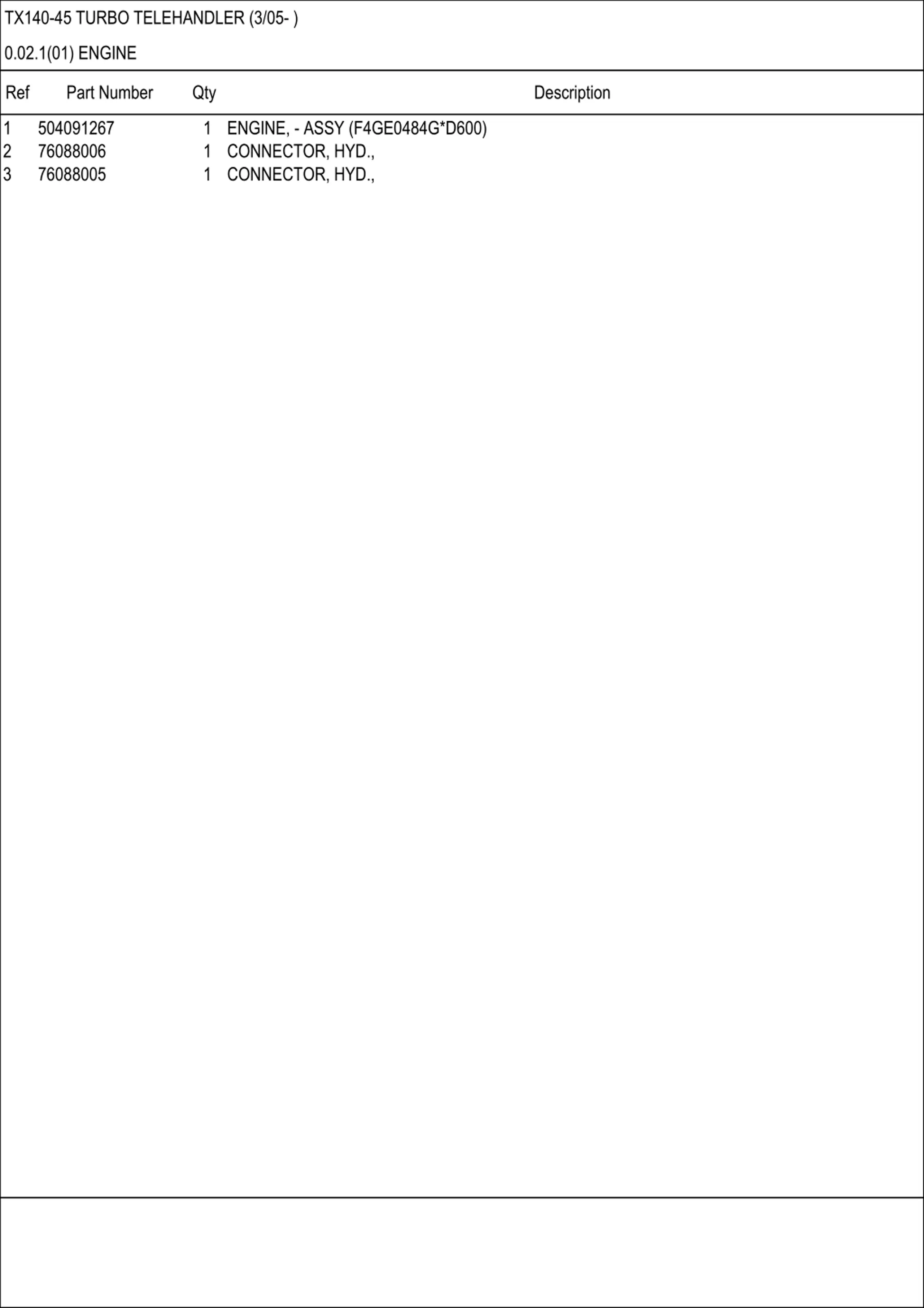

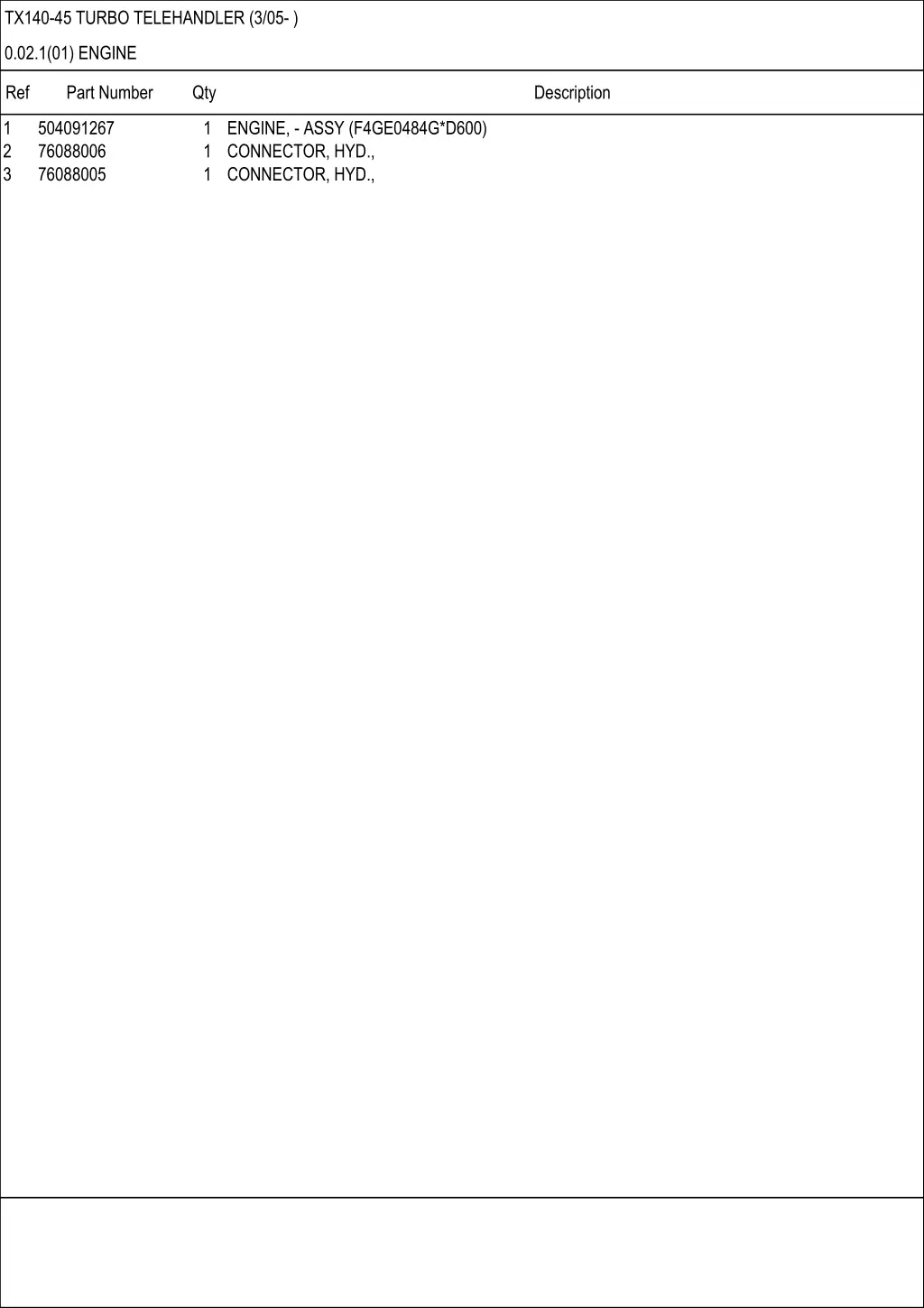

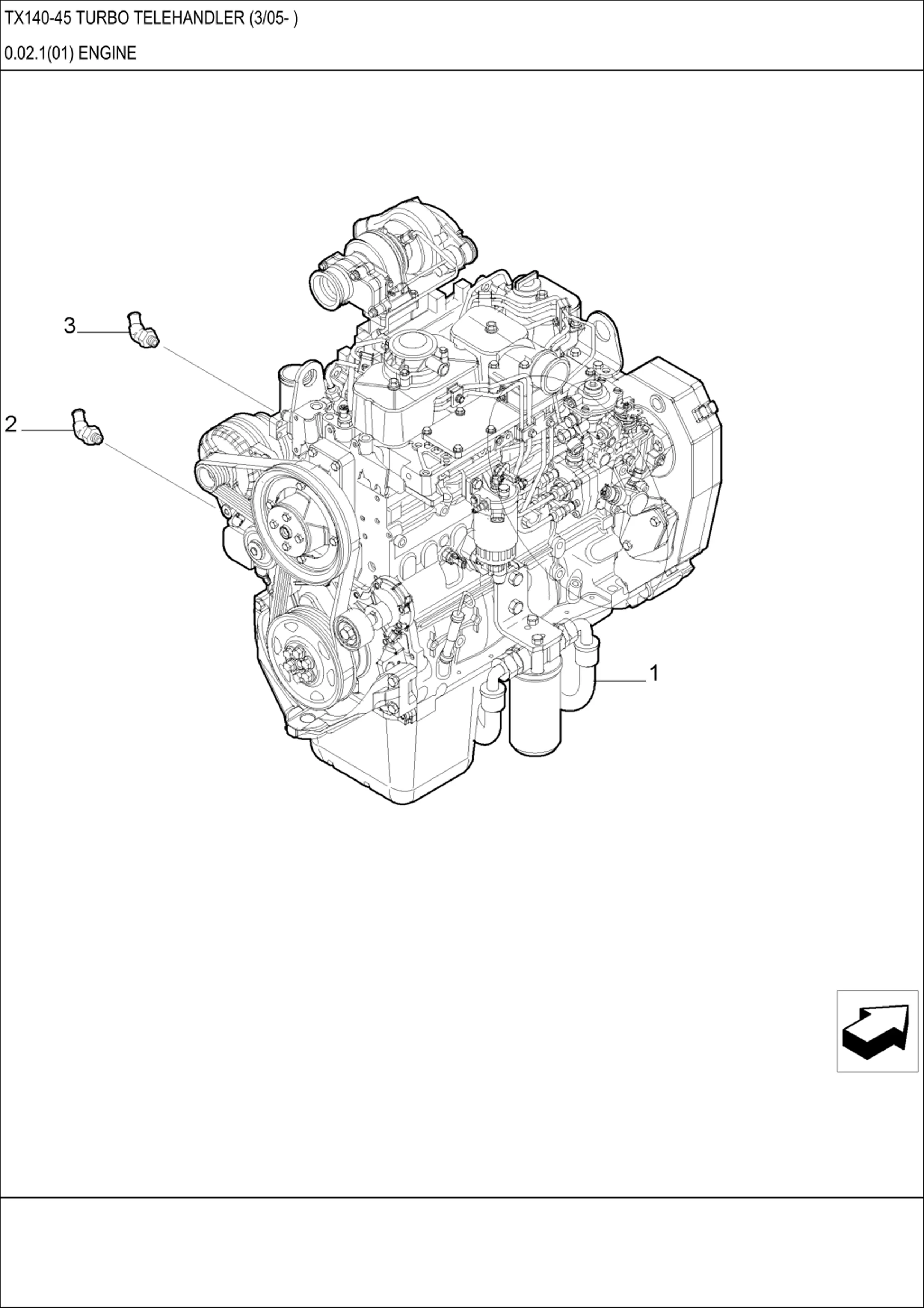

TX140-45 TURBO TELEHANDLER (3/05- ) 0.02.1(01) ENGINE Ref Part Number Qty Description 1 2 3 504091267 76088006 76088005 1 ENGINE, - ASSY (F4GE0484G*D600) 1 CONNECTOR, HYD., 1 CONNECTOR, HYD.,
https://www.ebooklibonline.com Hello dear friend! Thank you very much for reading. Enter the link into your browser. The full manual is available for immediate download. https://www.ebooklibonline.com

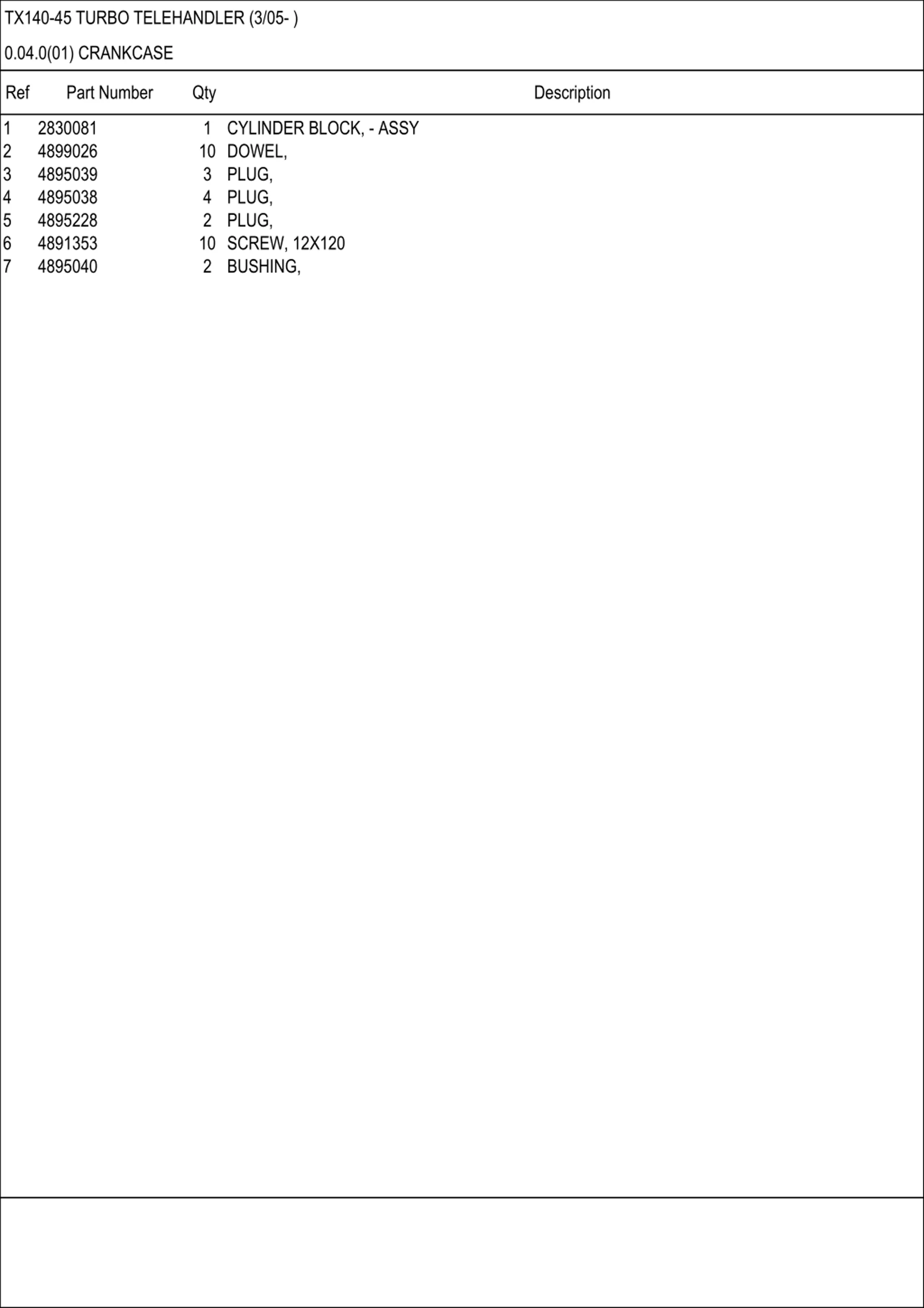

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.0(01) CRANKCASE

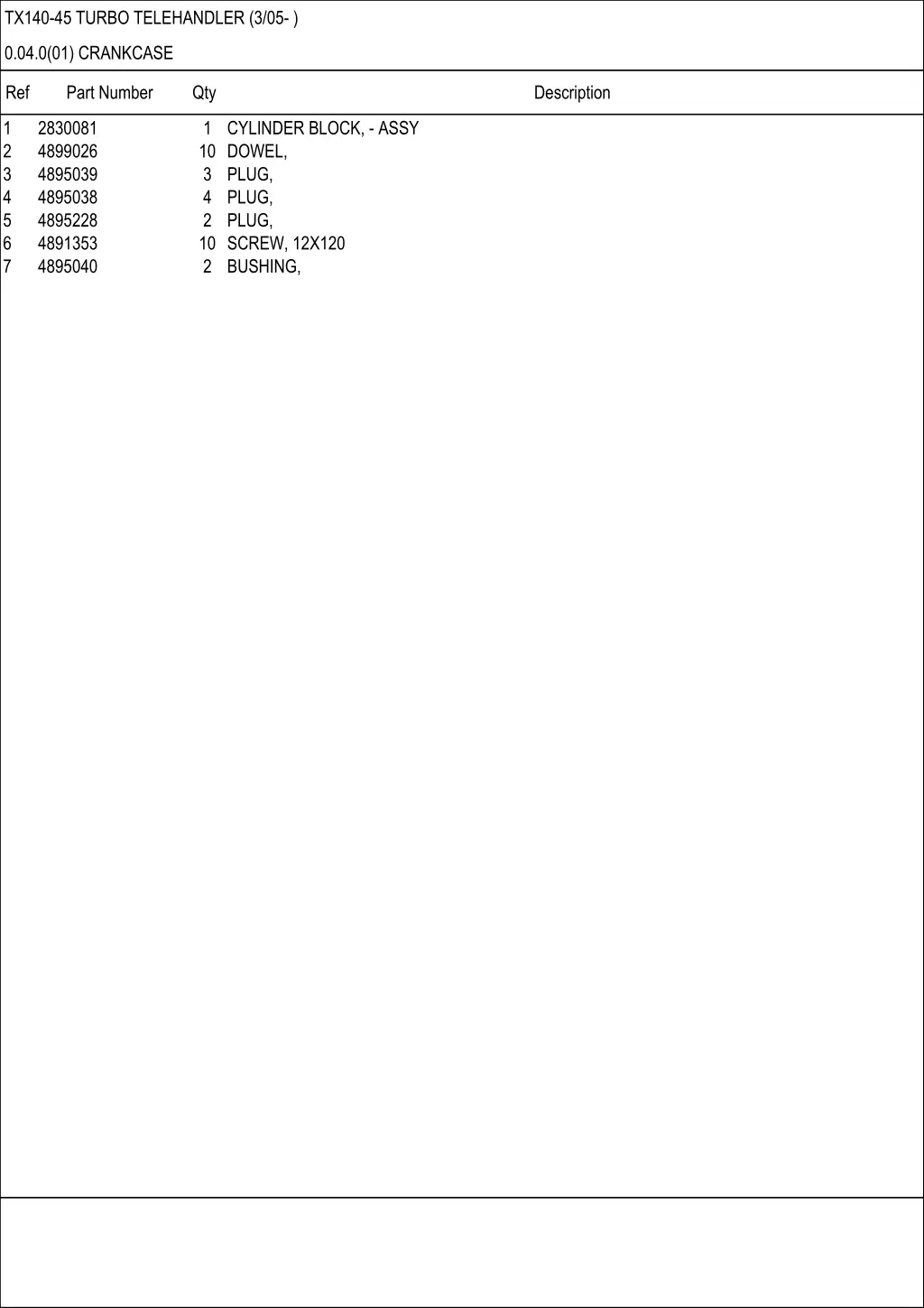

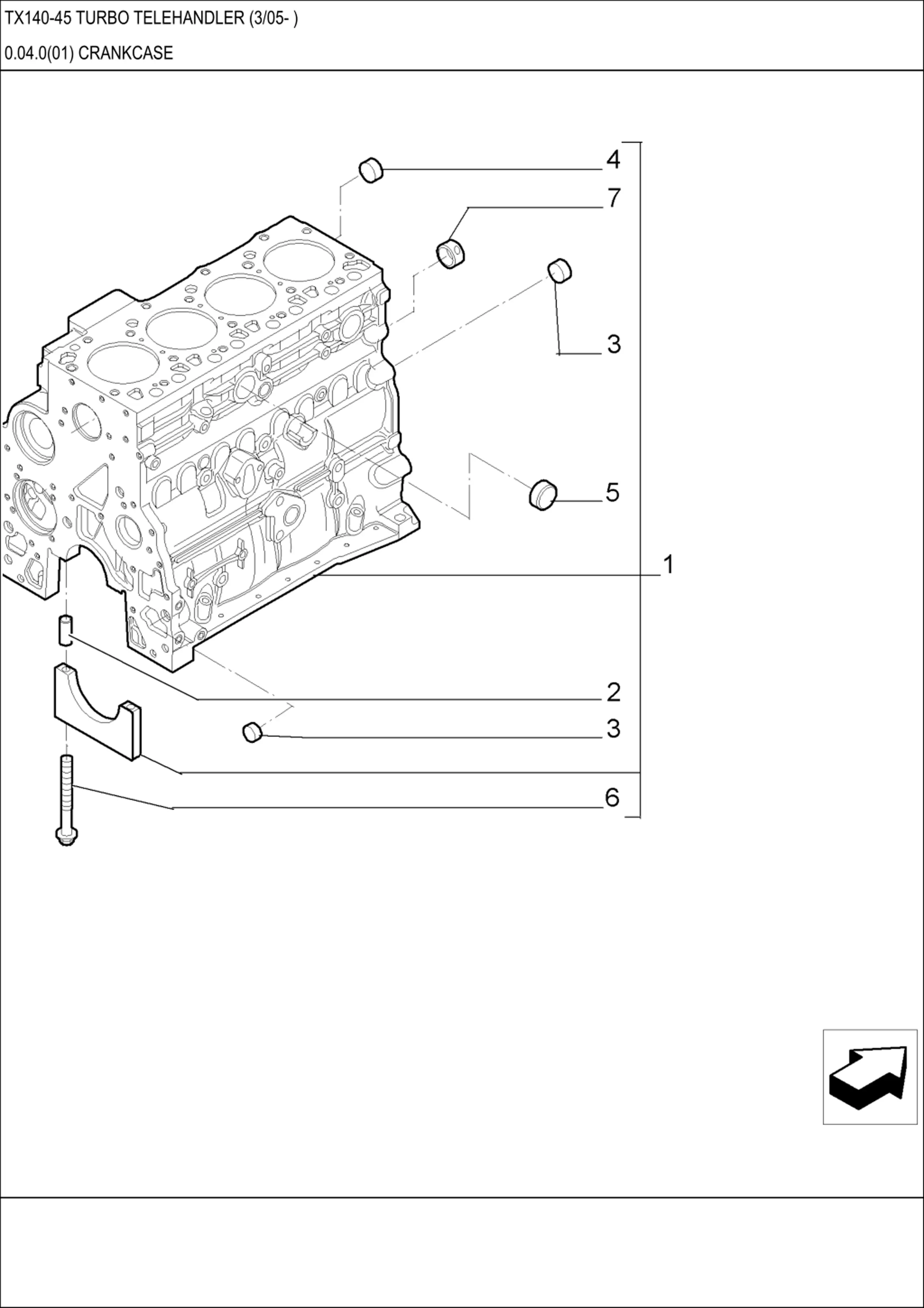

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.0(01) CRANKCASE Ref Part Number Qty Description 1 2 3 4 5 6 7 2830081 4899026 4895039 4895038 4895228 4891353 4895040 1 CYLINDER BLOCK, - ASSY 10 DOWEL, 3 PLUG, 4 PLUG, 2 PLUG, 10 SCREW, 12X120 2 BUSHING,

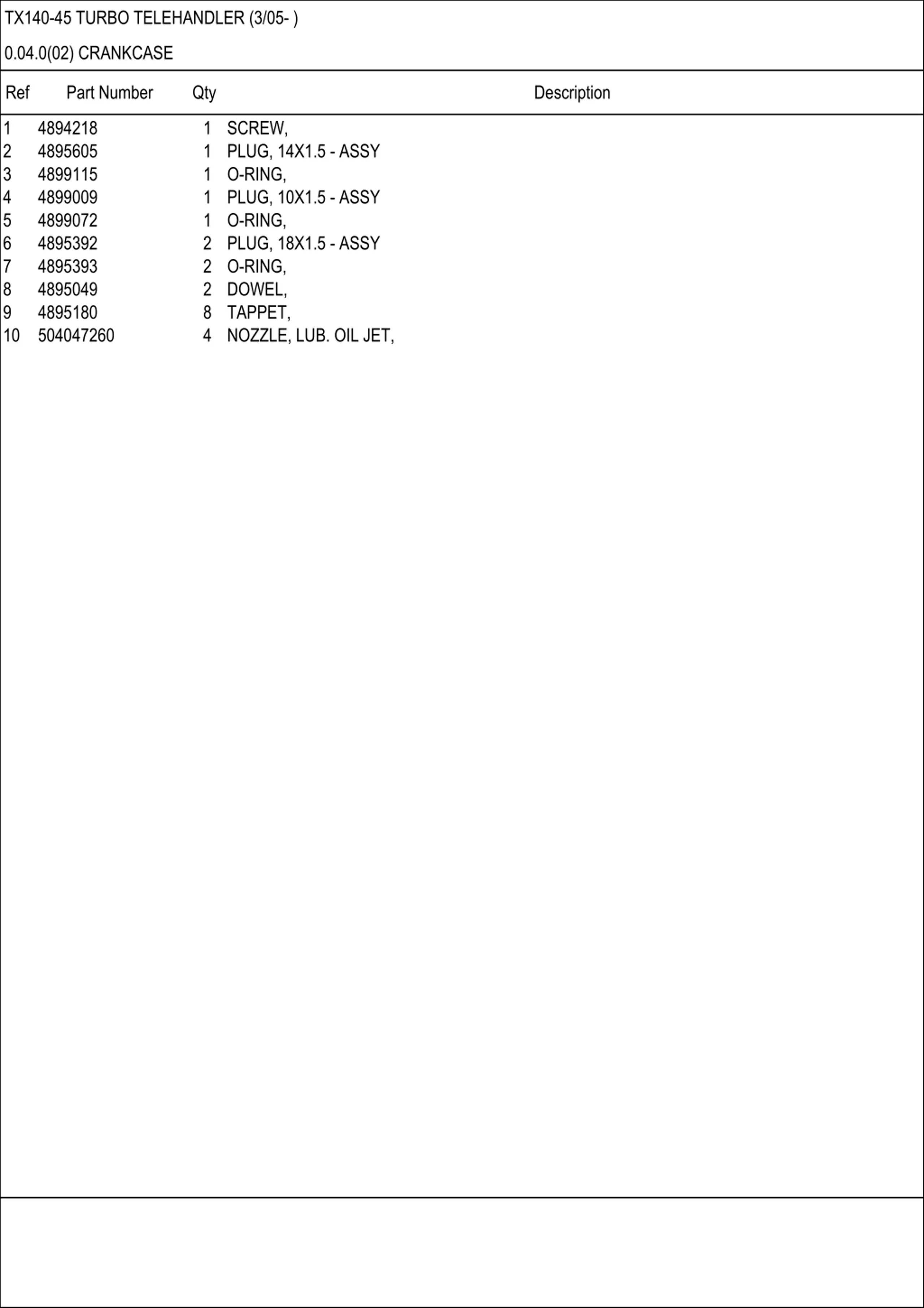

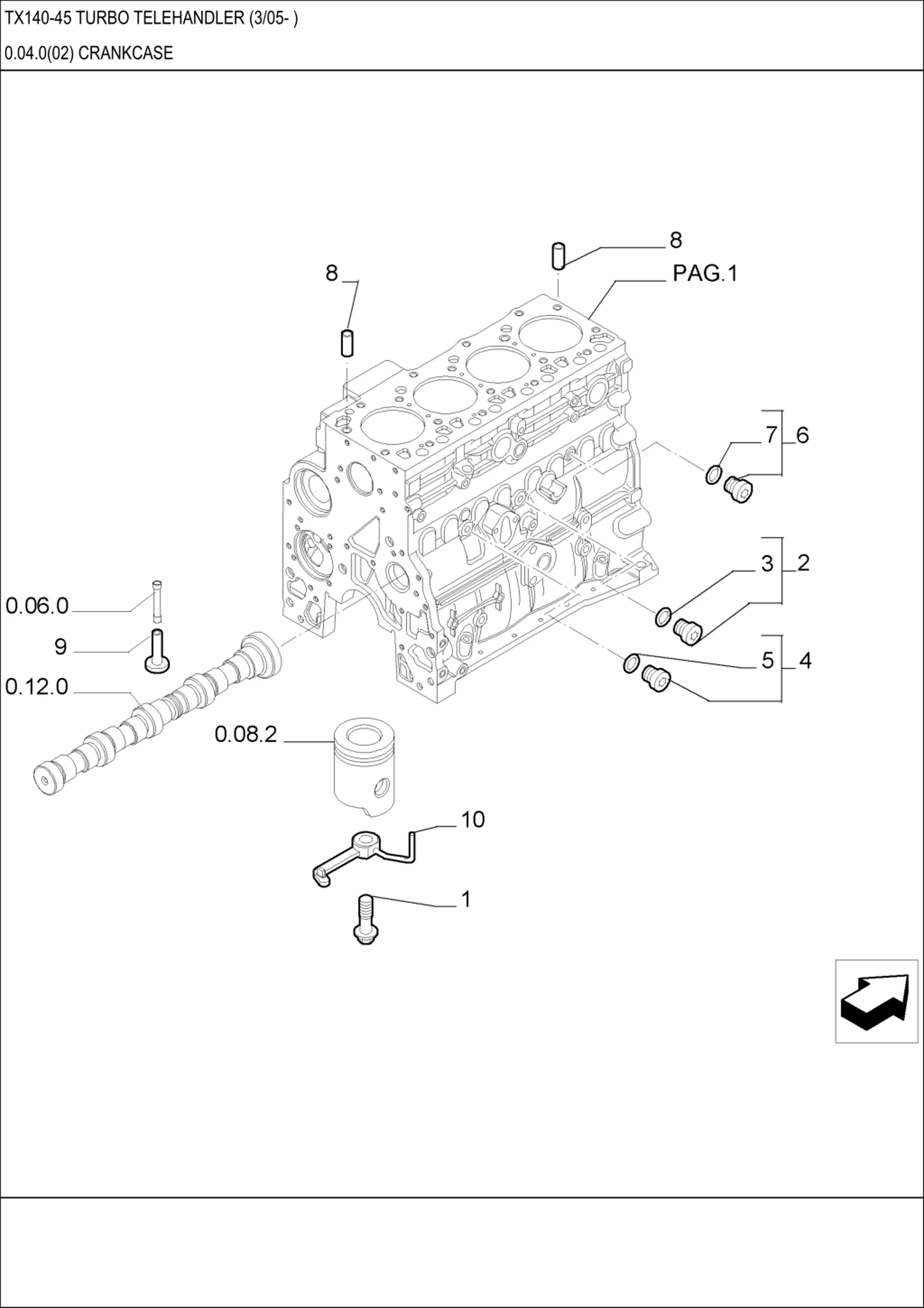

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.0(02) CRANKCASE
TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.0(02) CRANKCASE Ref Part Number Qty Description 1 2 3 4 5 6 7 8 9 10 4894218 4895605 4899115 4899009 4899072 4895392 4895393 4895049 4895180 504047260 1 SCREW, 1 PLUG, 14X1.5 - ASSY 1 O-RING, 1 PLUG, 10X1.5 - ASSY 1 O-RING, 2 PLUG, 18X1.5 - ASSY 2 O-RING, 2 DOWEL, 8 TAPPET, 4 NOZZLE, LUB. OIL JET,

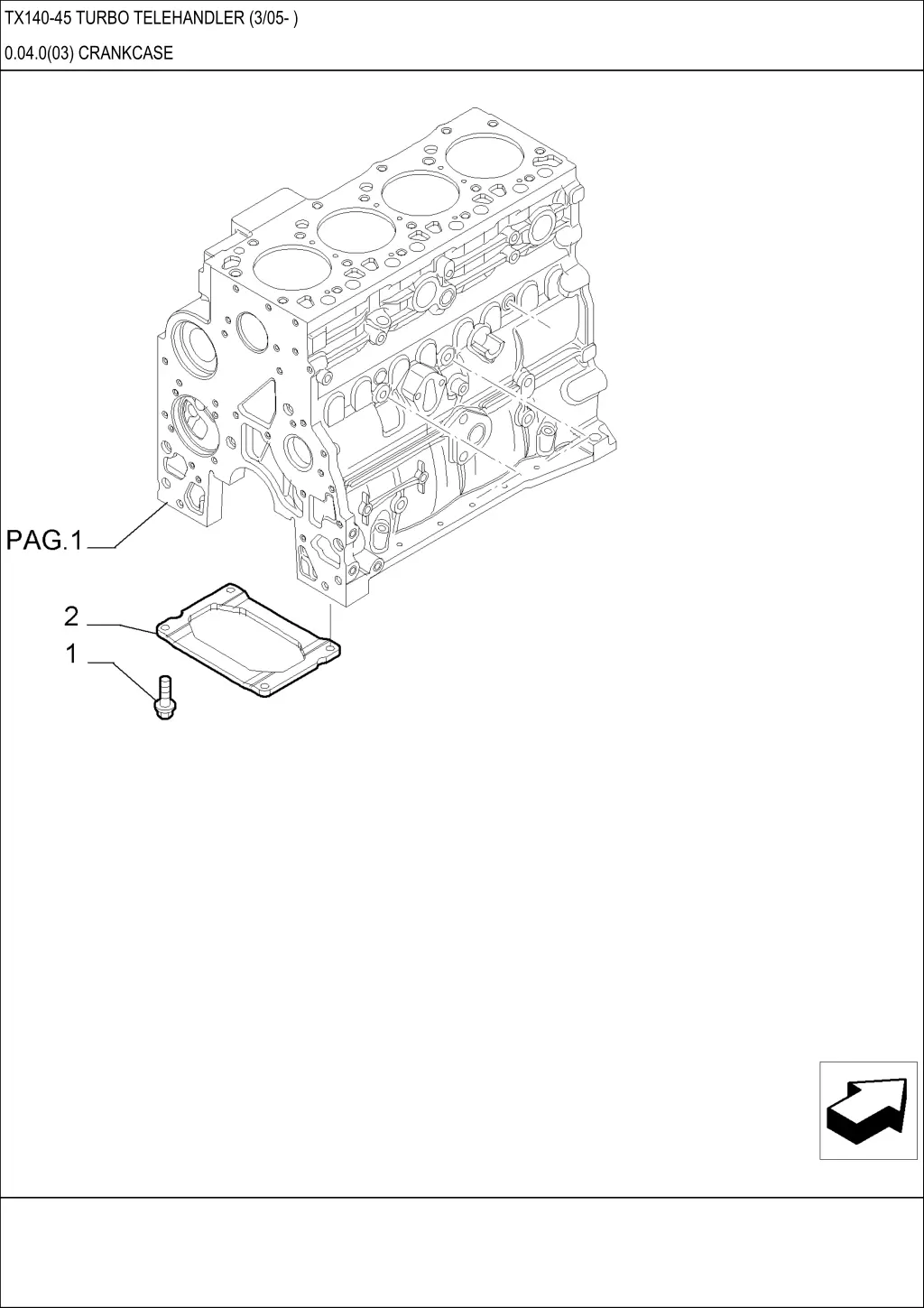

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.0(03) CRANKCASE

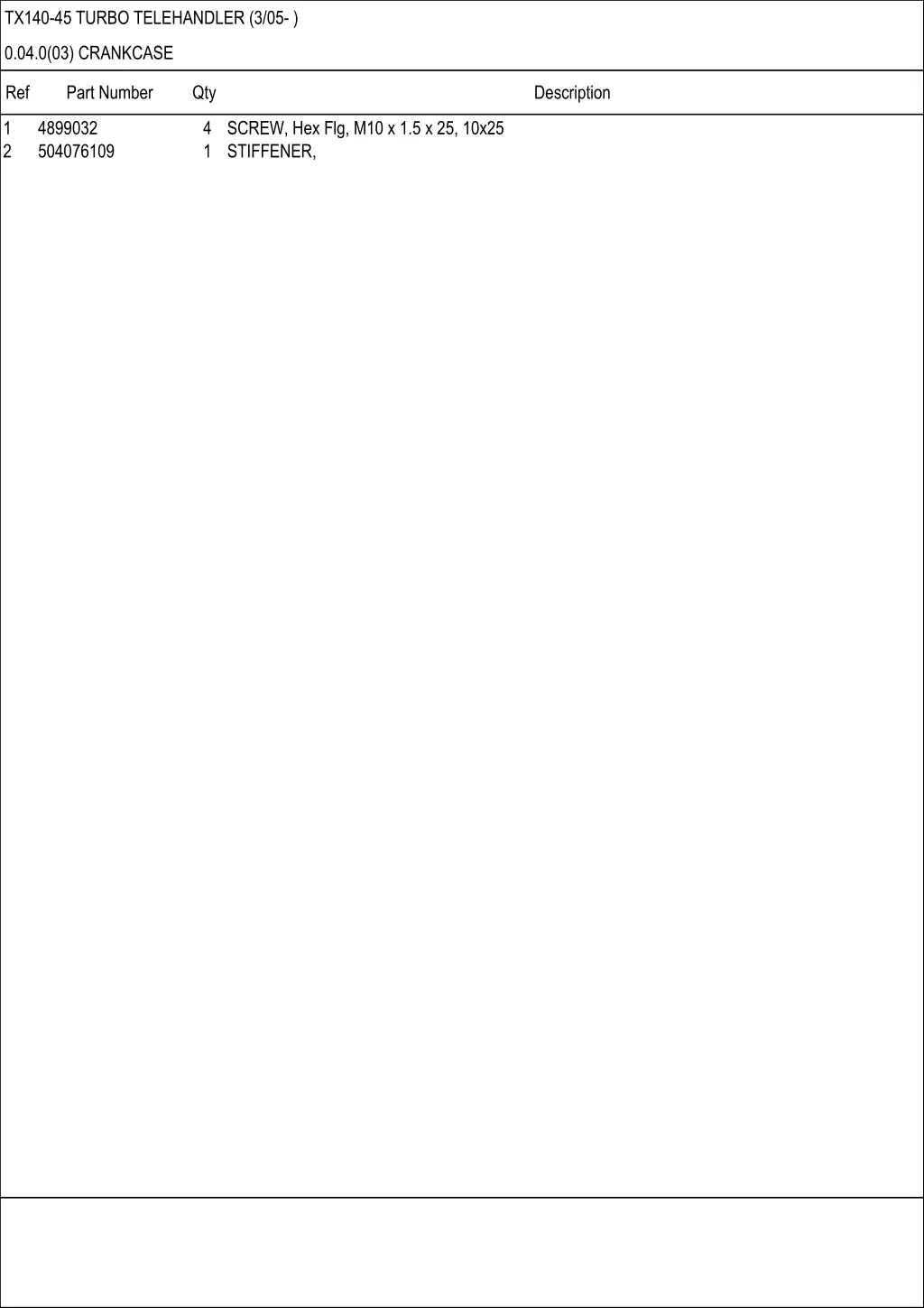

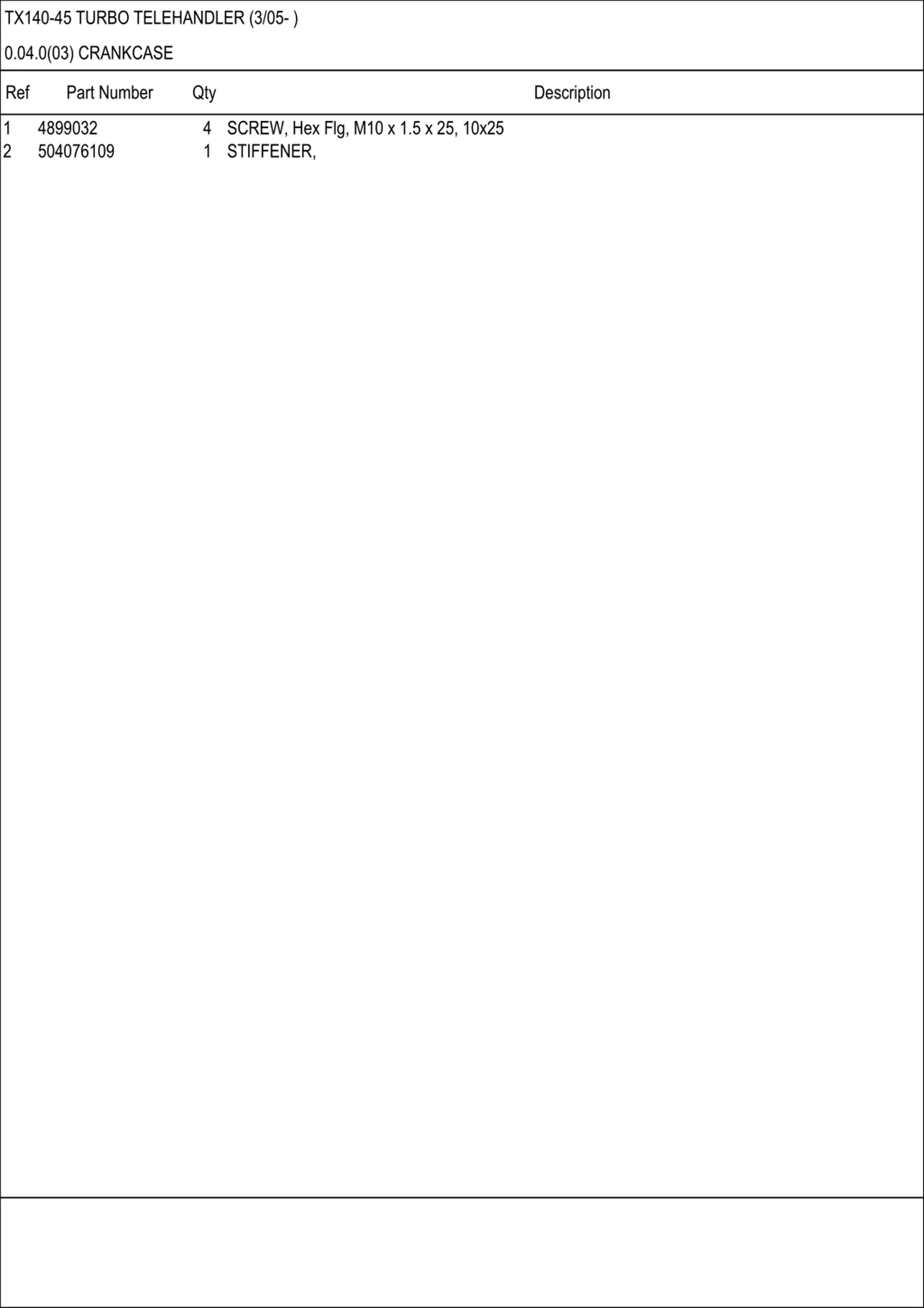

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.0(03) CRANKCASE Ref Part Number Qty Description 1 2 4899032 504076109 4 SCREW, Hex Flg, M10 x 1.5 x 25, 10x25 1 STIFFENER,
TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.2(01) ENGINE OIL SUMP

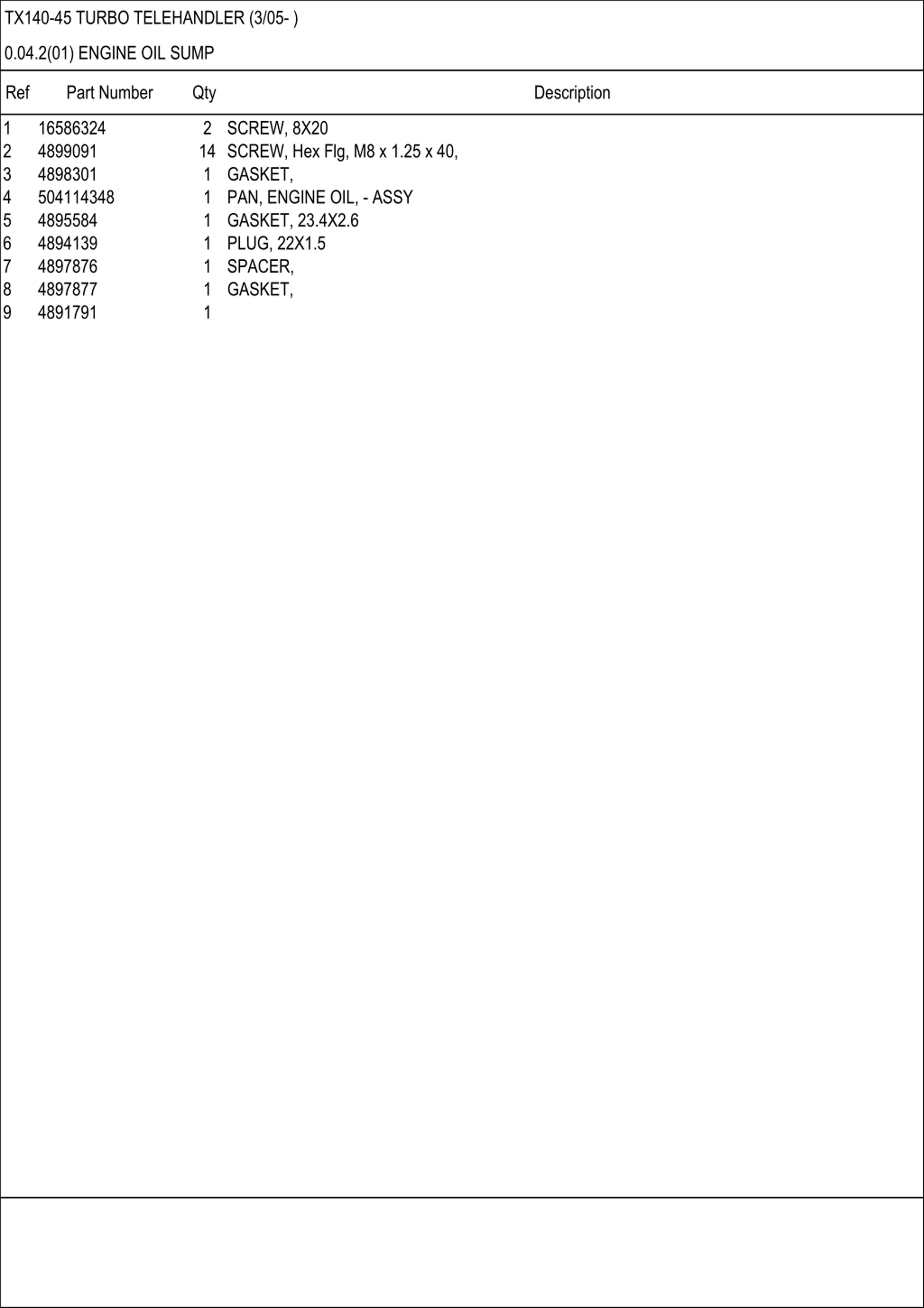

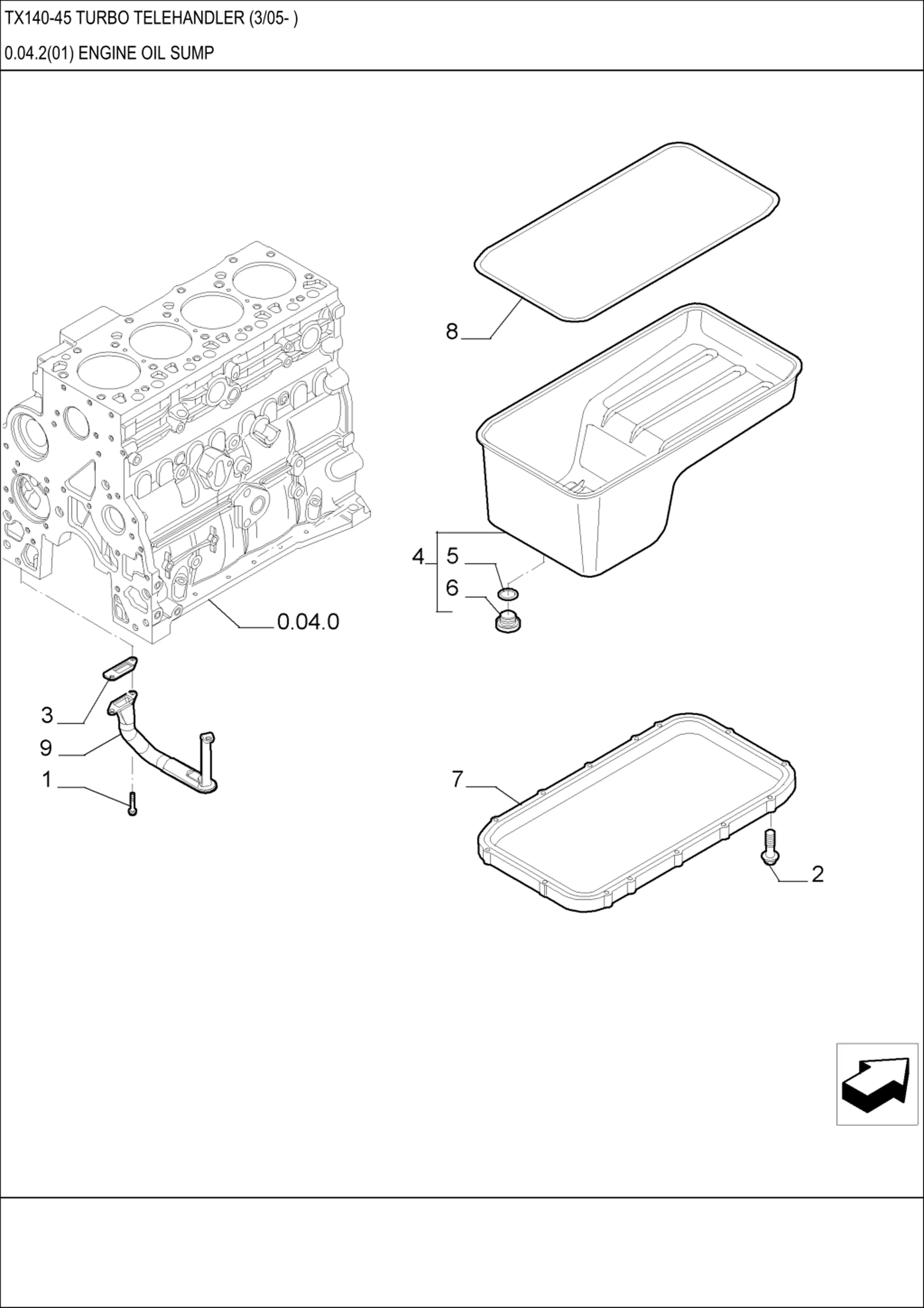

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.2(01) ENGINE OIL SUMP Ref Part Number Qty Description 1 2 3 4 5 6 7 8 9 16586324 4899091 4898301 504114348 4895584 4894139 4897876 4897877 4891791 2 SCREW, 8X20 14 SCREW, Hex Flg, M8 x 1.25 x 40, 1 GASKET, 1 PAN, ENGINE OIL, - ASSY 1 GASKET, 23.4X2.6 1 PLUG, 22X1.5 1 SPACER, 1 GASKET, 1
TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.3(01) CRANKCASE COVERS

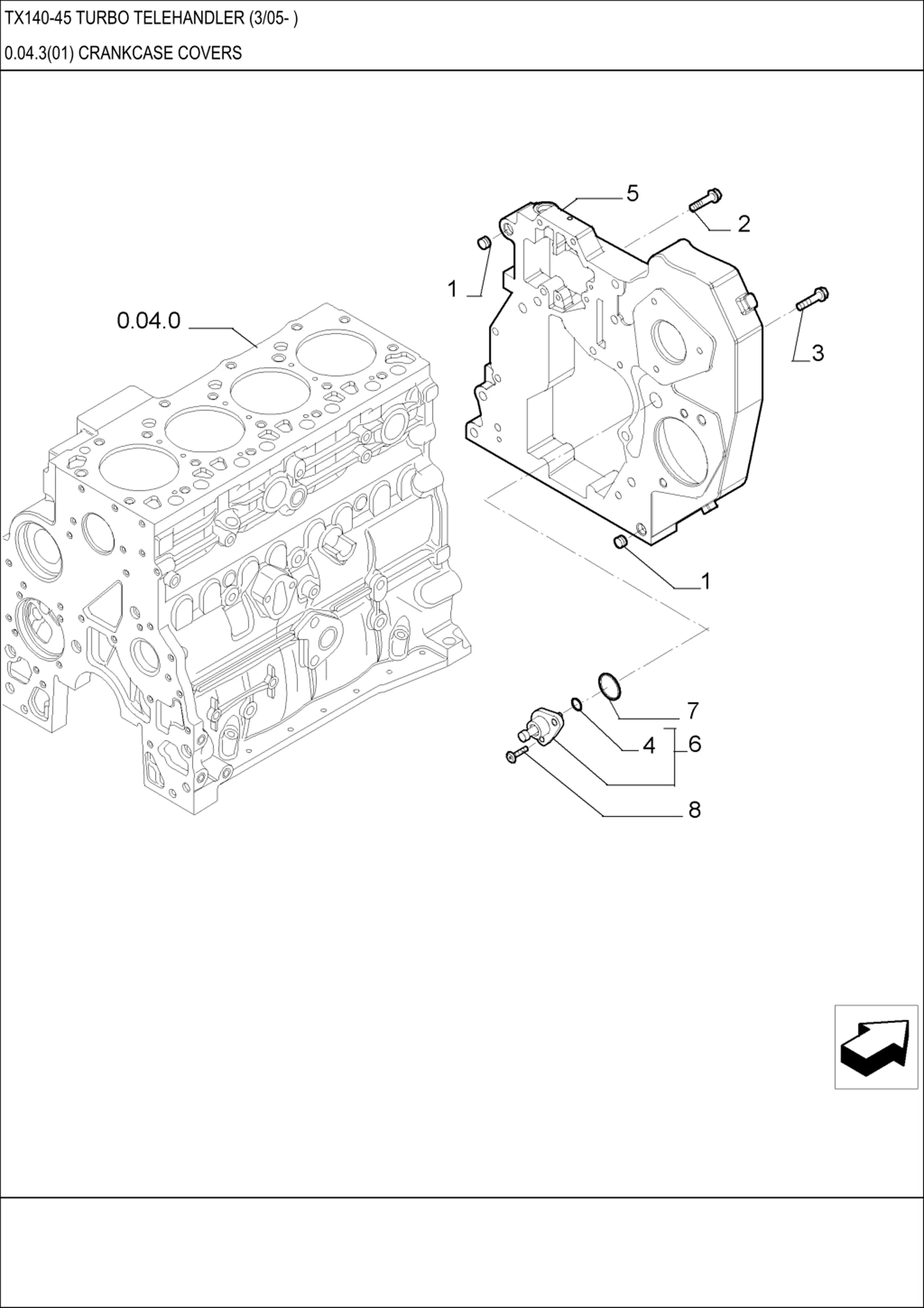

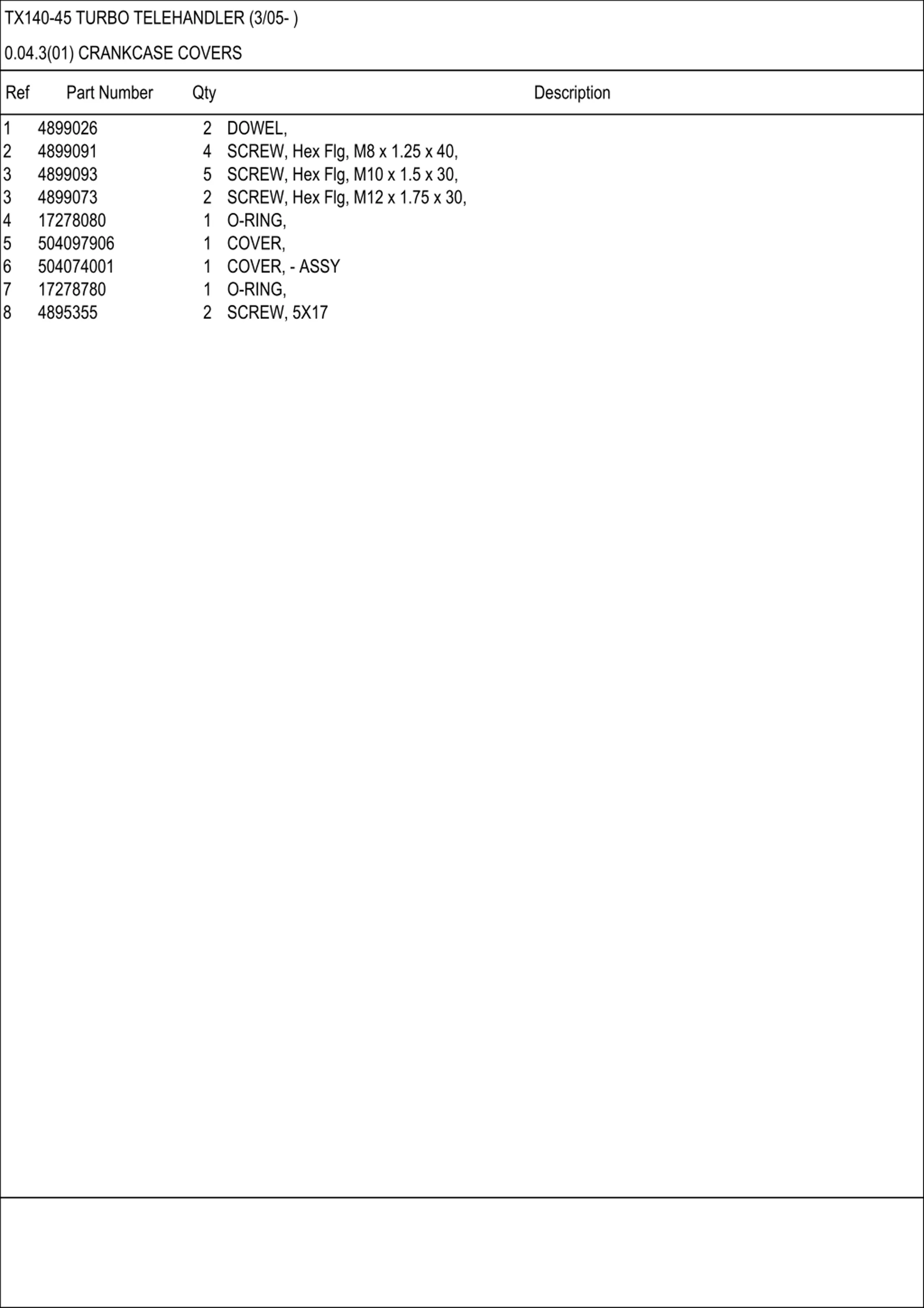

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.3(01) CRANKCASE COVERS Ref Part Number Qty Description 1 2 3 3 4 5 6 7 8 4899026 4899091 4899093 4899073 17278080 504097906 504074001 17278780 4895355 2 DOWEL, 4 SCREW, Hex Flg, M8 x 1.25 x 40, 5 SCREW, Hex Flg, M10 x 1.5 x 30, 2 SCREW, Hex Flg, M12 x 1.75 x 30, 1 O-RING, 1 COVER, 1 COVER, - ASSY 1 O-RING, 2 SCREW, 5X17

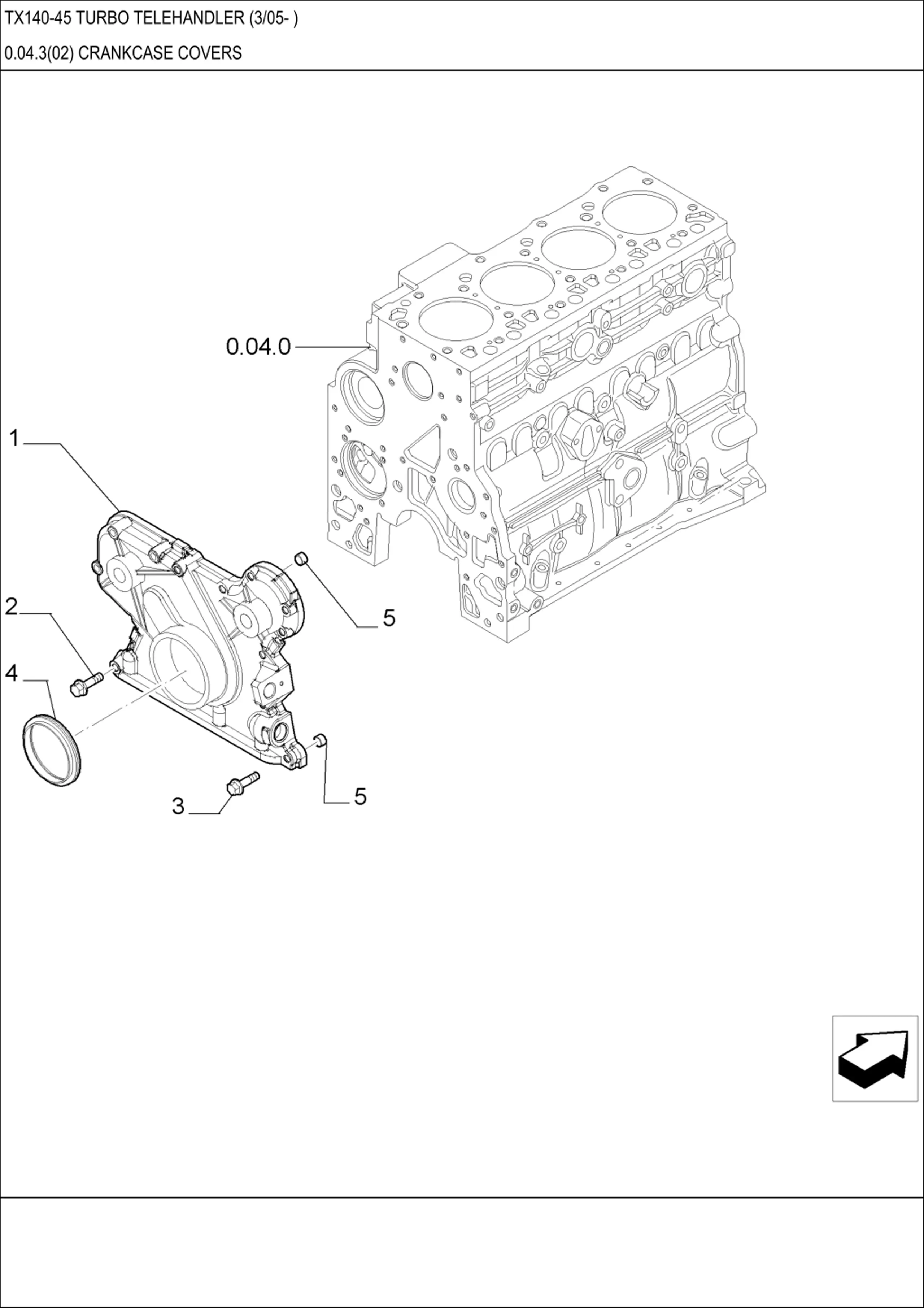

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.3(02) CRANKCASE COVERS

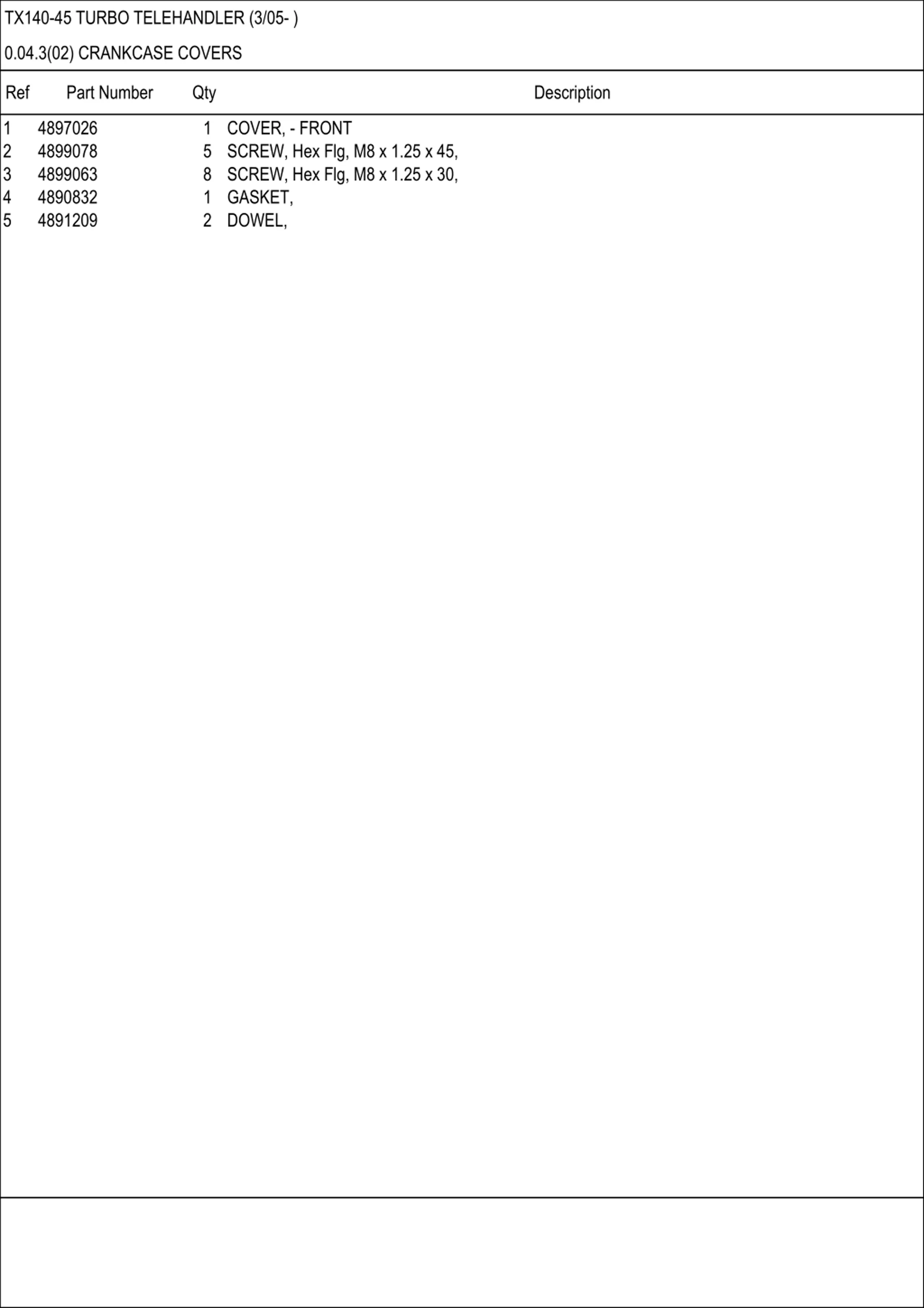

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.3(02) CRANKCASE COVERS Ref Part Number Qty Description 1 2 3 4 5 4897026 4899078 4899063 4890832 4891209 1 COVER, - FRONT 5 SCREW, Hex Flg, M8 x 1.25 x 45, 8 SCREW, Hex Flg, M8 x 1.25 x 30, 1 GASKET, 2 DOWEL,

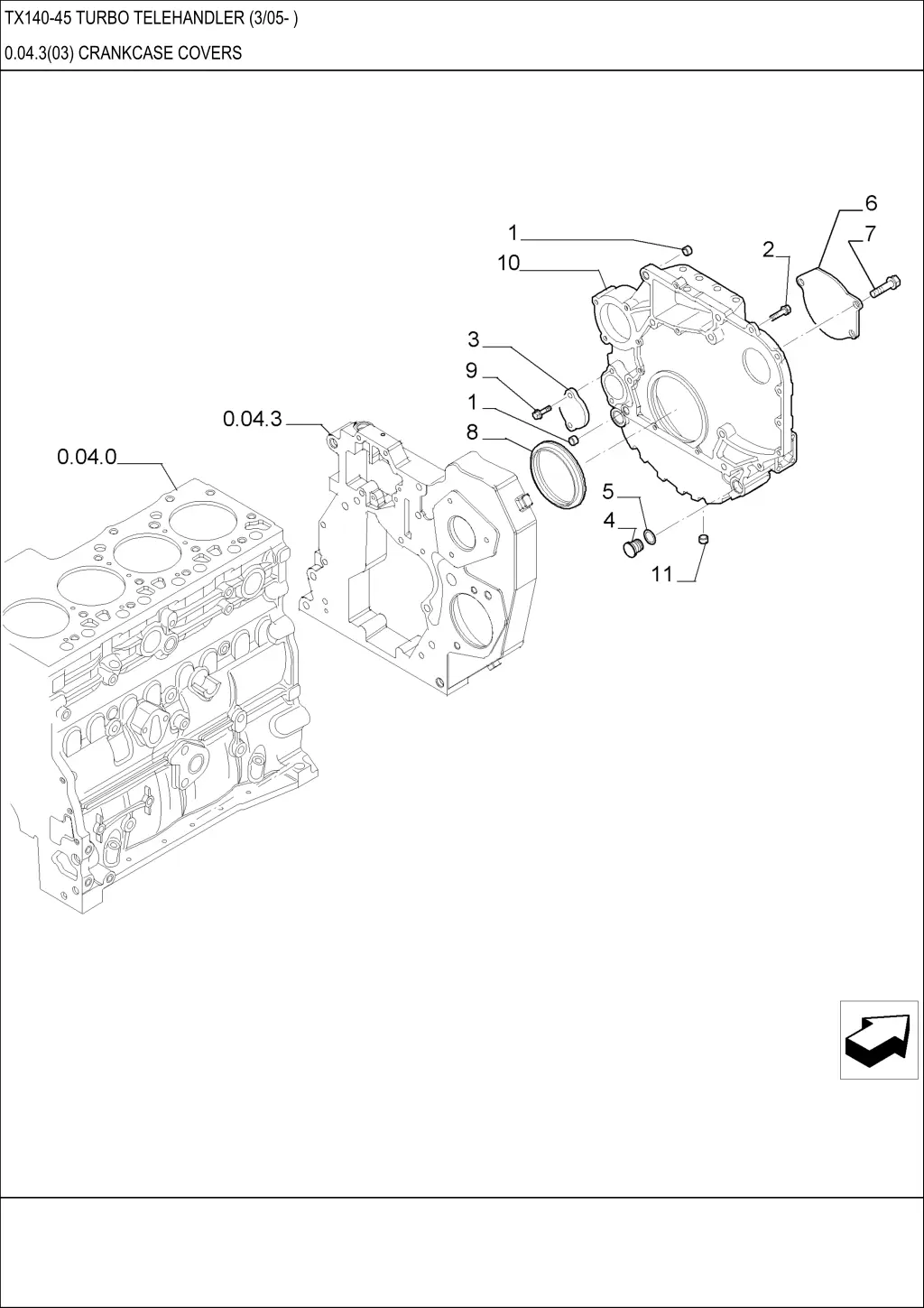

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.3(03) CRANKCASE COVERS

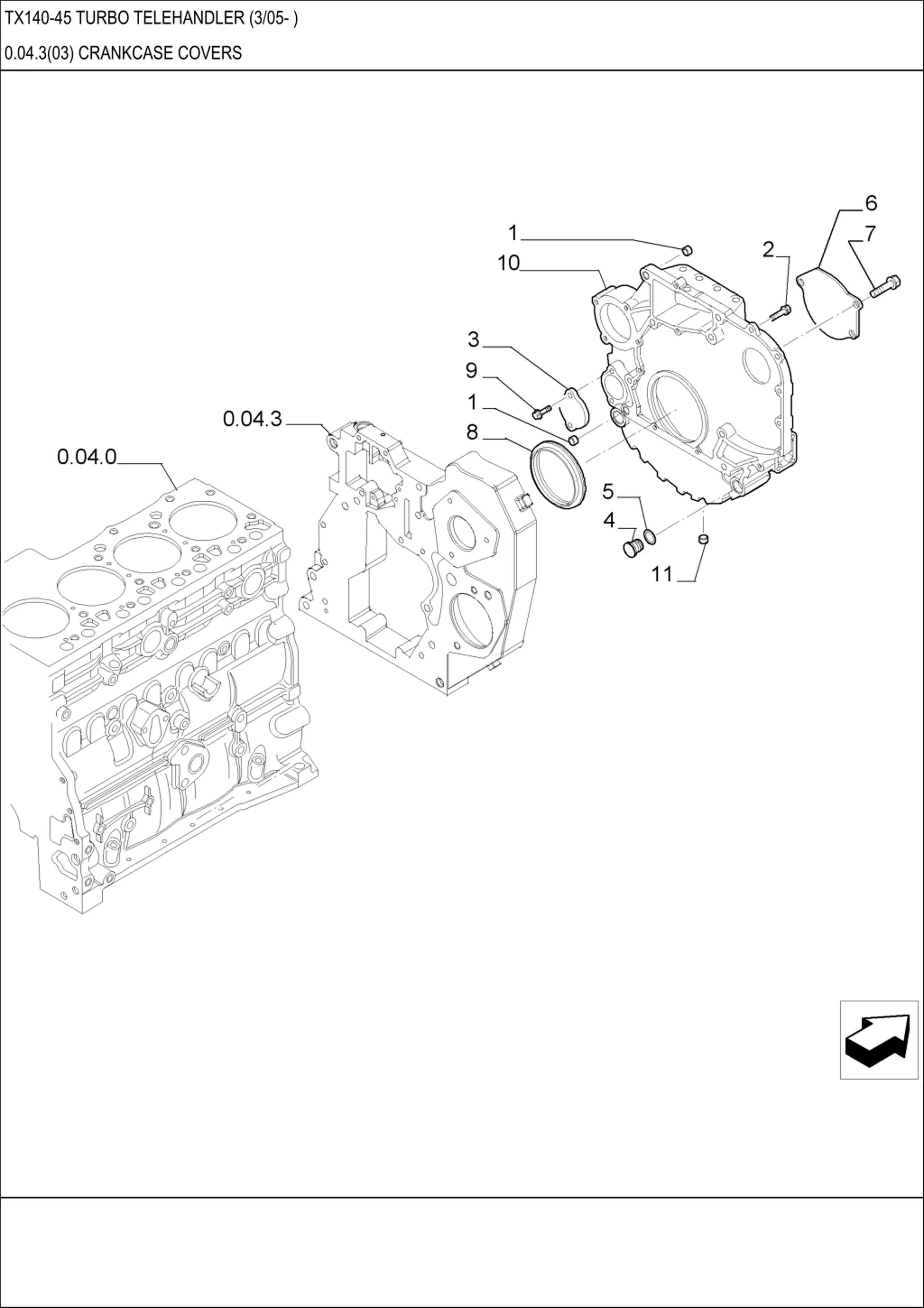

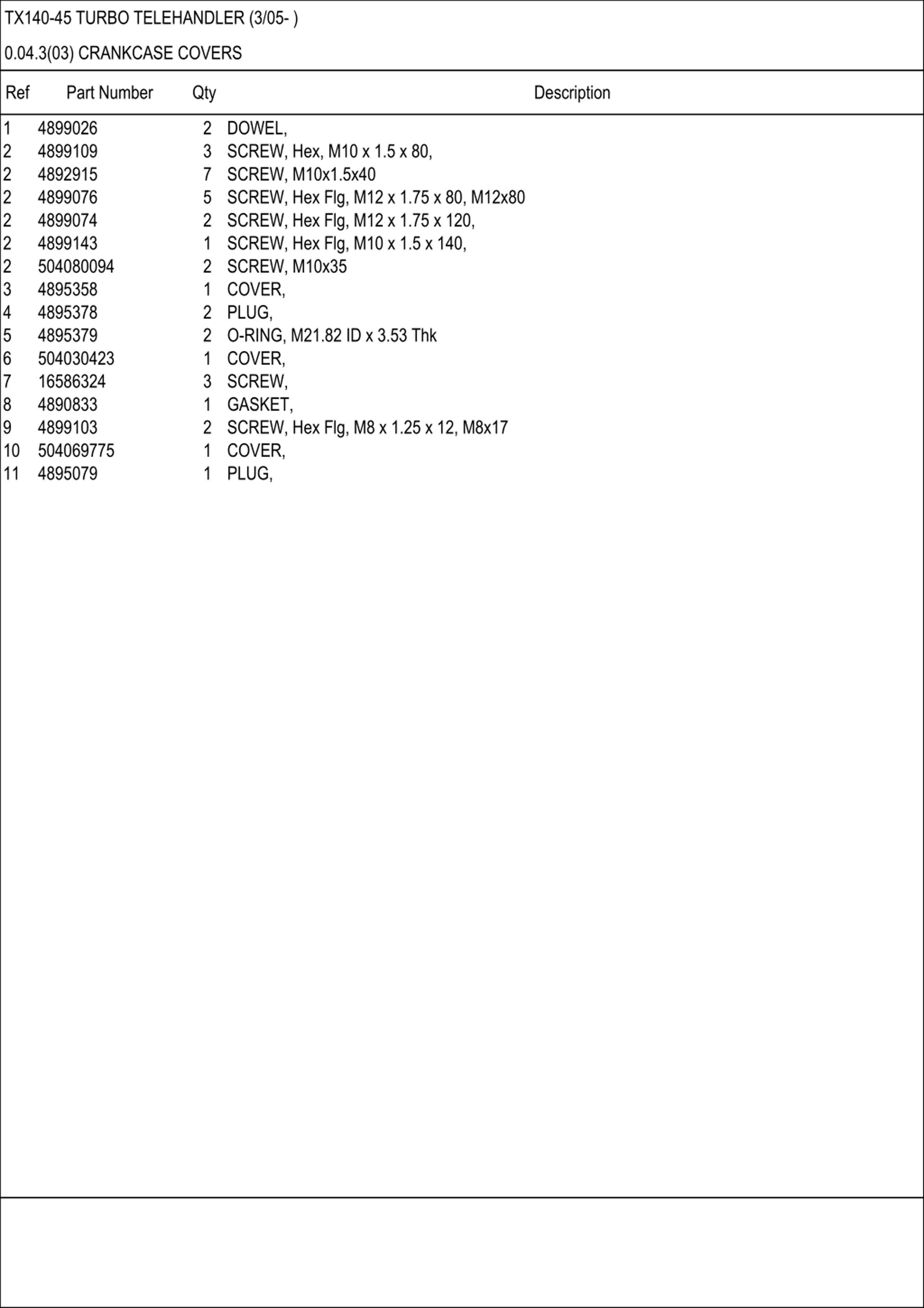

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.3(03) CRANKCASE COVERS Ref Part Number Qty Description 1 2 2 2 2 2 2 3 4 5 6 7 8 9 10 11 4899026 4899109 4892915 4899076 4899074 4899143 504080094 4895358 4895378 4895379 504030423 16586324 4890833 4899103 504069775 4895079 2 DOWEL, 3 SCREW, Hex, M10 x 1.5 x 80, 7 SCREW, M10x1.5x40 5 SCREW, Hex Flg, M12 x 1.75 x 80, M12x80 2 SCREW, Hex Flg, M12 x 1.75 x 120, 1 SCREW, Hex Flg, M10 x 1.5 x 140, 2 SCREW, M10x35 1 COVER, 2 PLUG, 2 O-RING, M21.82 ID x 3.53 Thk 1 COVER, 3 SCREW, 1 GASKET, 2 SCREW, Hex Flg, M8 x 1.25 x 12, M8x17 1 COVER, 1 PLUG,

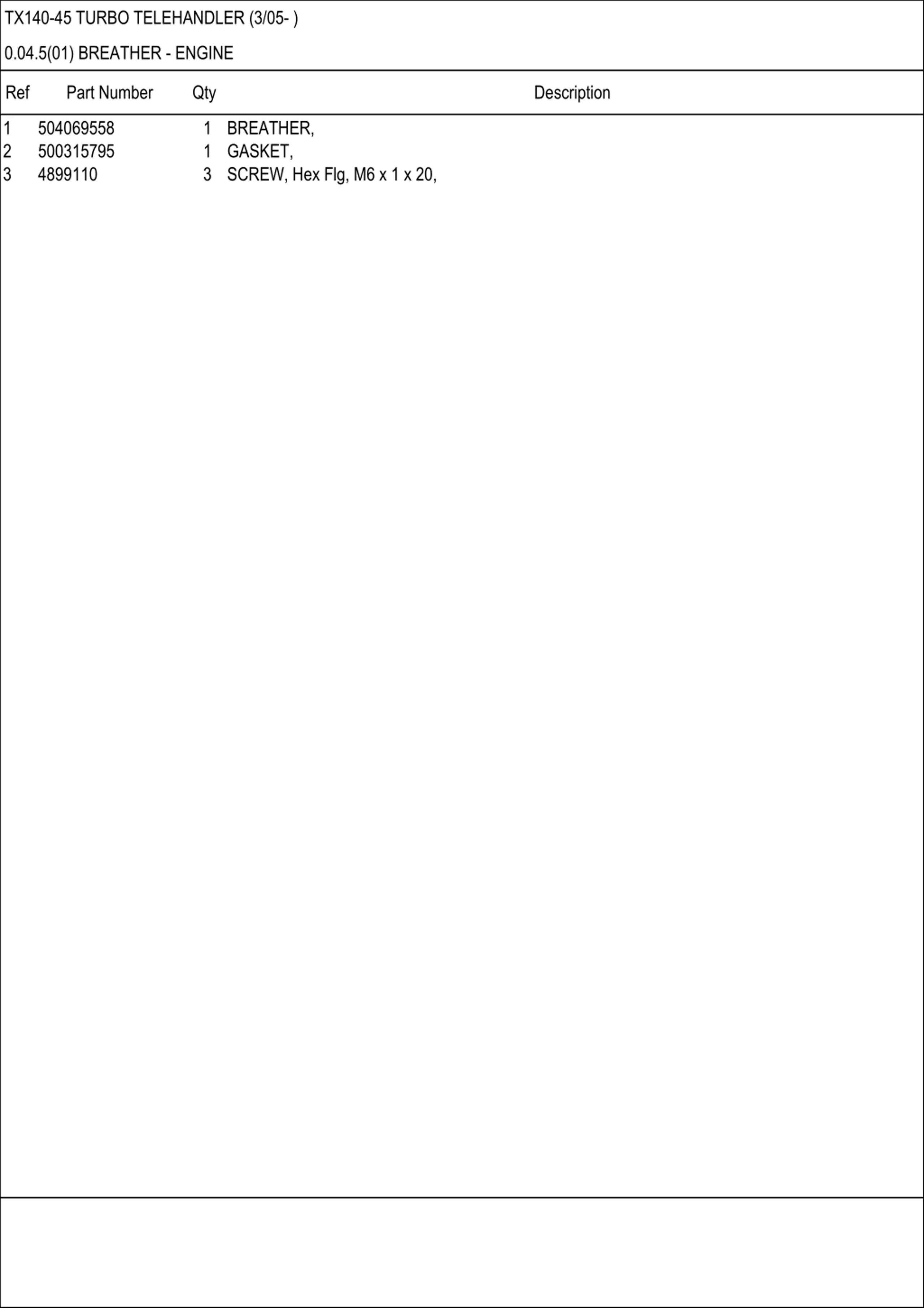

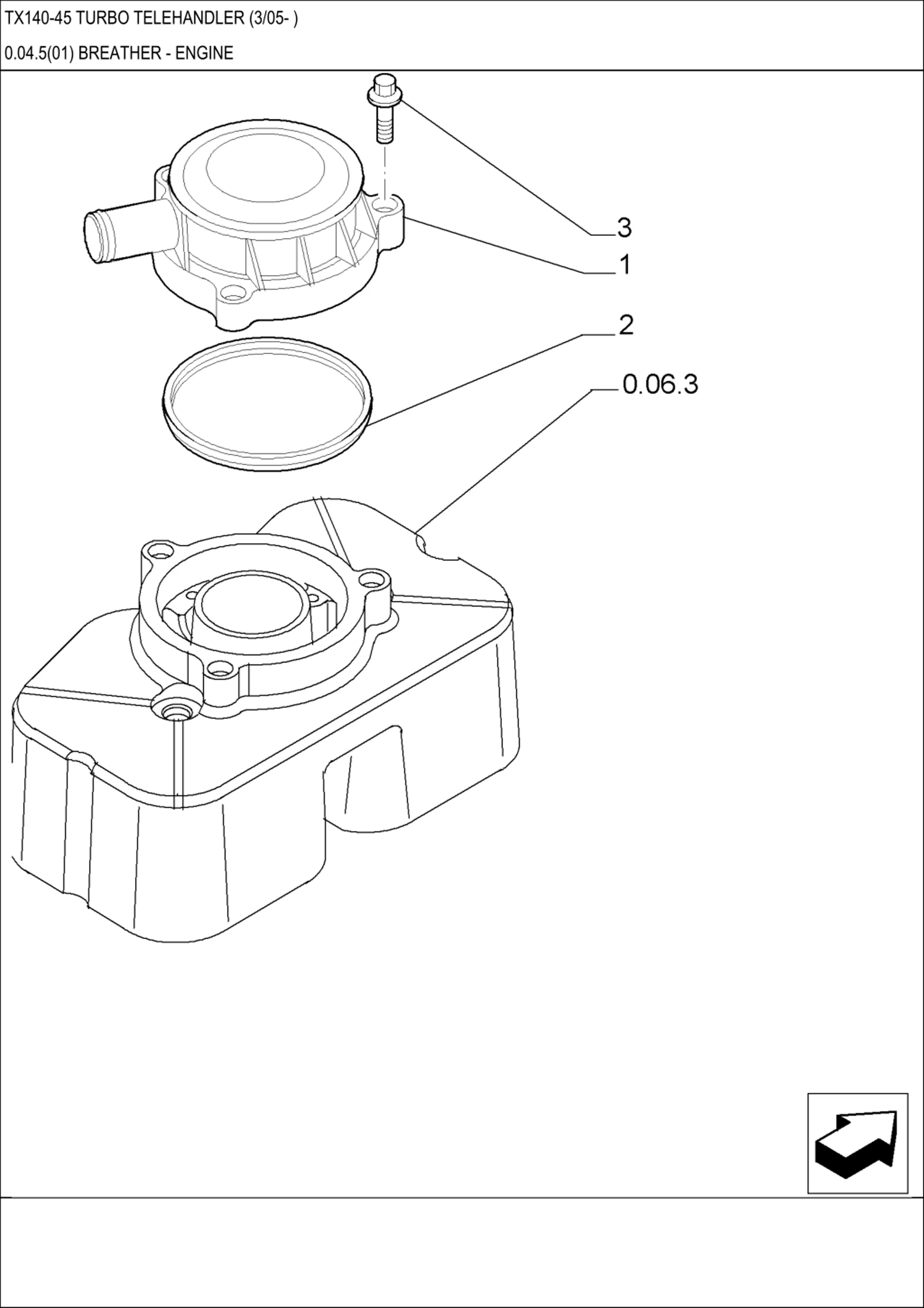

TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.5(01) BREATHER - ENGINE
TX140-45 TURBO TELEHANDLER (3/05- ) 0.04.5(01) BREATHER - ENGINE Ref Part Number Qty Description 1 2 3 504069558 500315795 4899110 1 BREATHER, 1 GASKET, 3 SCREW, Hex Flg, M6 x 1 x 20,

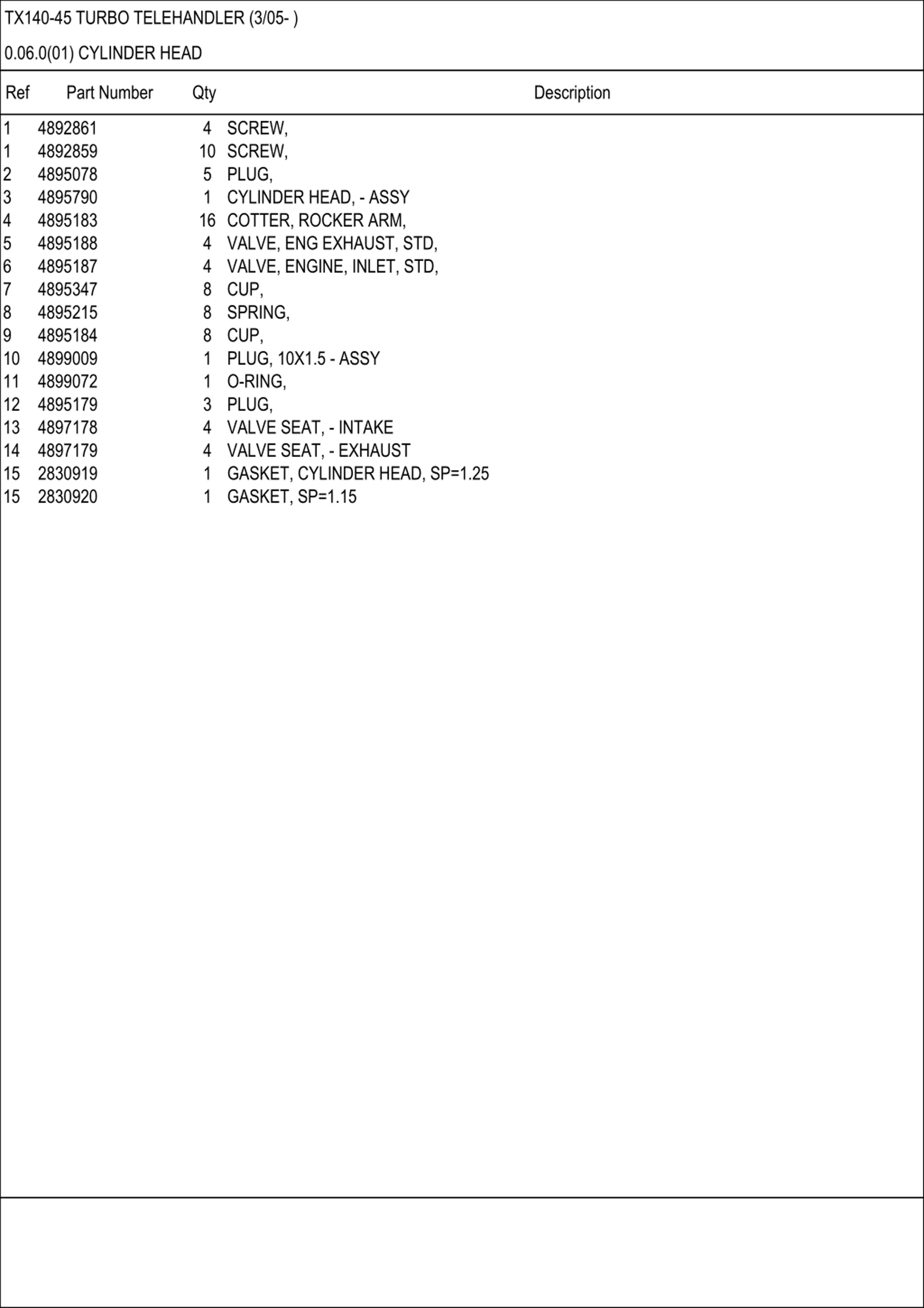

TX140-45 TURBO TELEHANDLER (3/05- ) 0.06.0(01) CYLINDER HEAD

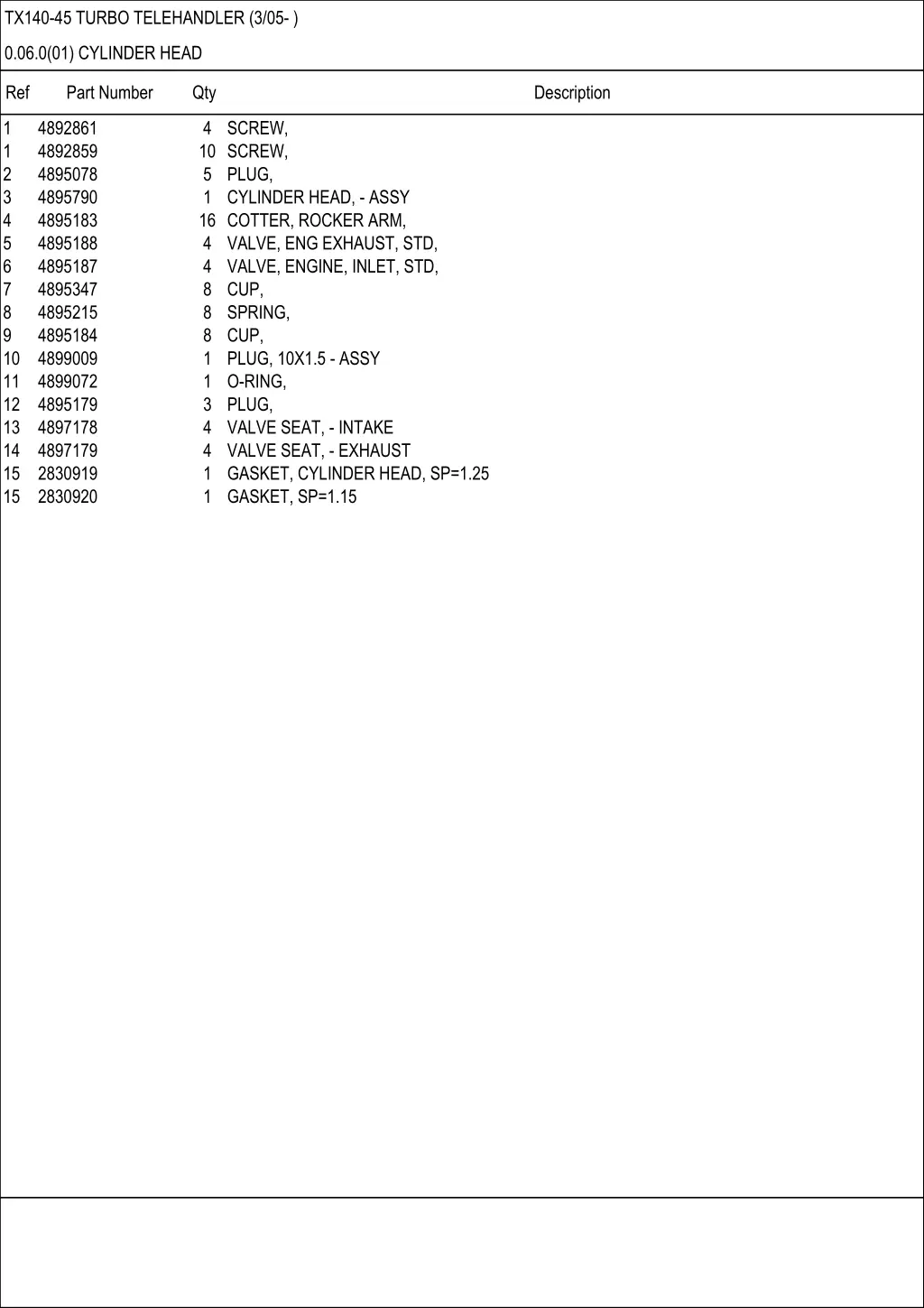

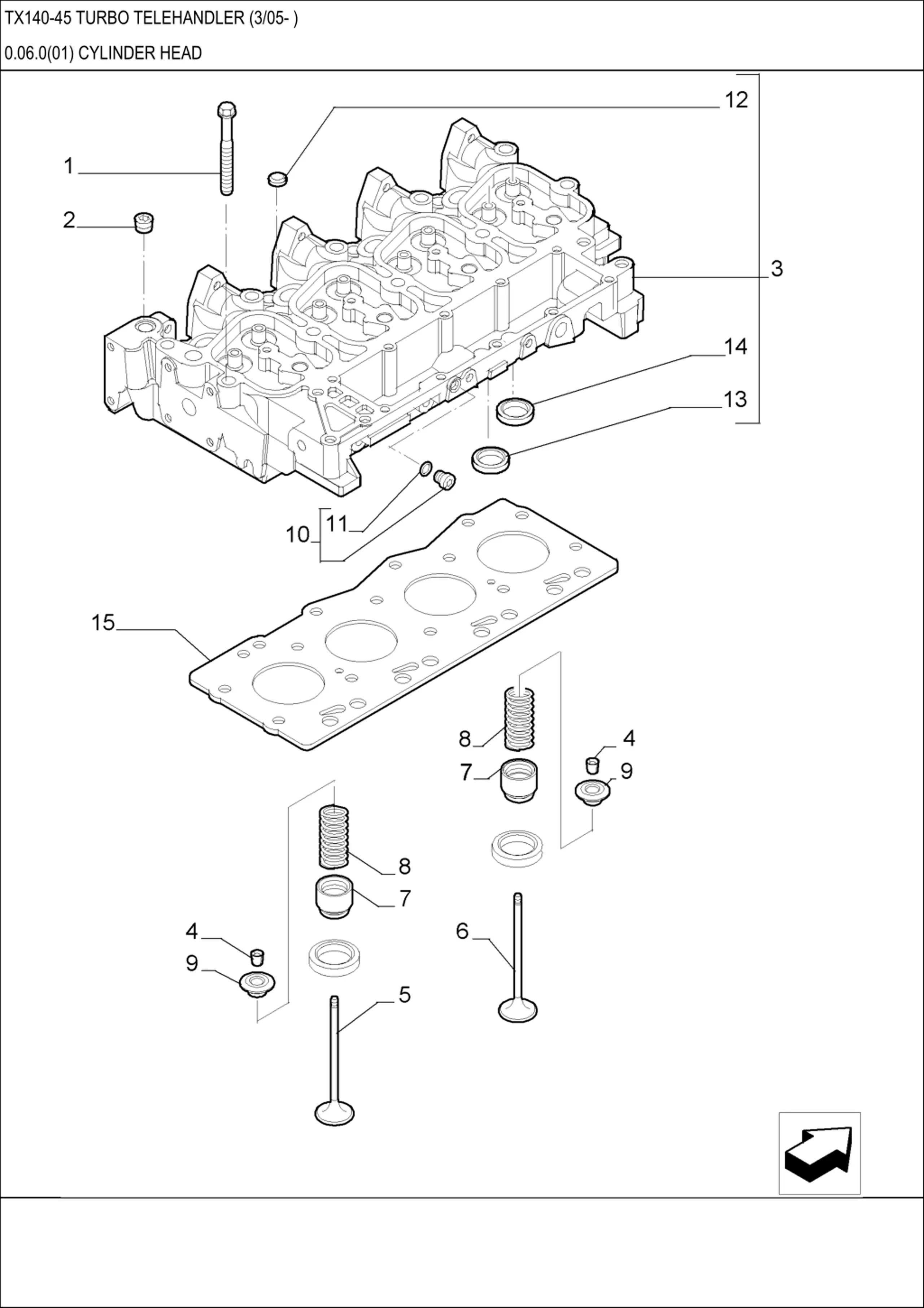

TX140-45 TURBO TELEHANDLER (3/05- ) 0.06.0(01) CYLINDER HEAD Ref Part Number Qty Description 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 15 4892861 4892859 4895078 4895790 4895183 4895188 4895187 4895347 4895215 4895184 4899009 4899072 4895179 4897178 4897179 2830919 2830920 4 SCREW, 10 SCREW, 5 PLUG, 1 CYLINDER HEAD, - ASSY 16 COTTER, ROCKER ARM, 4 VALVE, ENG EXHAUST, STD, 4 VALVE, ENGINE, INLET, STD, 8 CUP, 8 SPRING, 8 CUP, 1 PLUG, 10X1.5 - ASSY 1 O-RING, 3 PLUG, 4 VALVE SEAT, - INTAKE 4 VALVE SEAT, - EXHAUST 1 GASKET, CYLINDER HEAD, SP=1.25 1 GASKET, SP=1.15

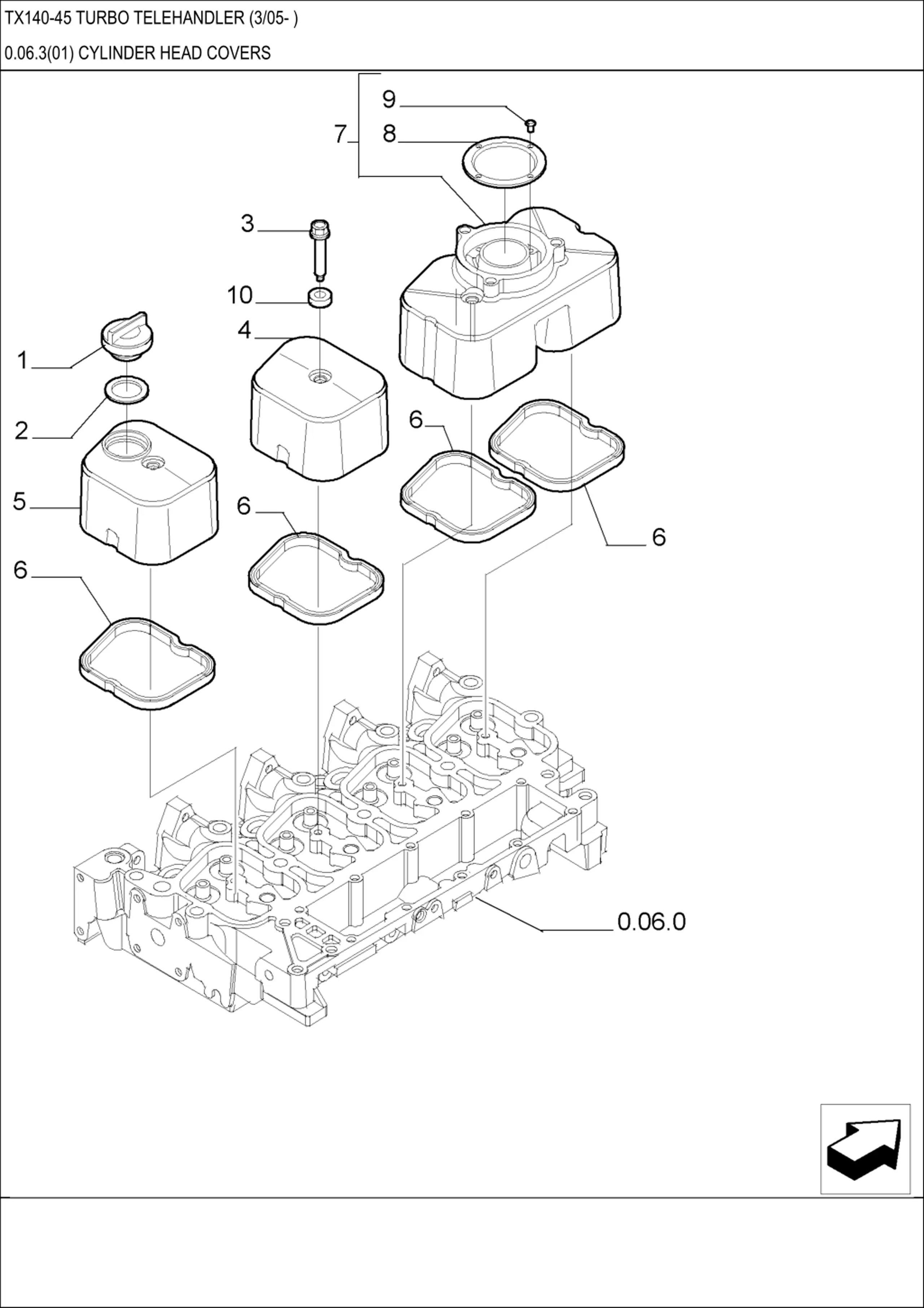

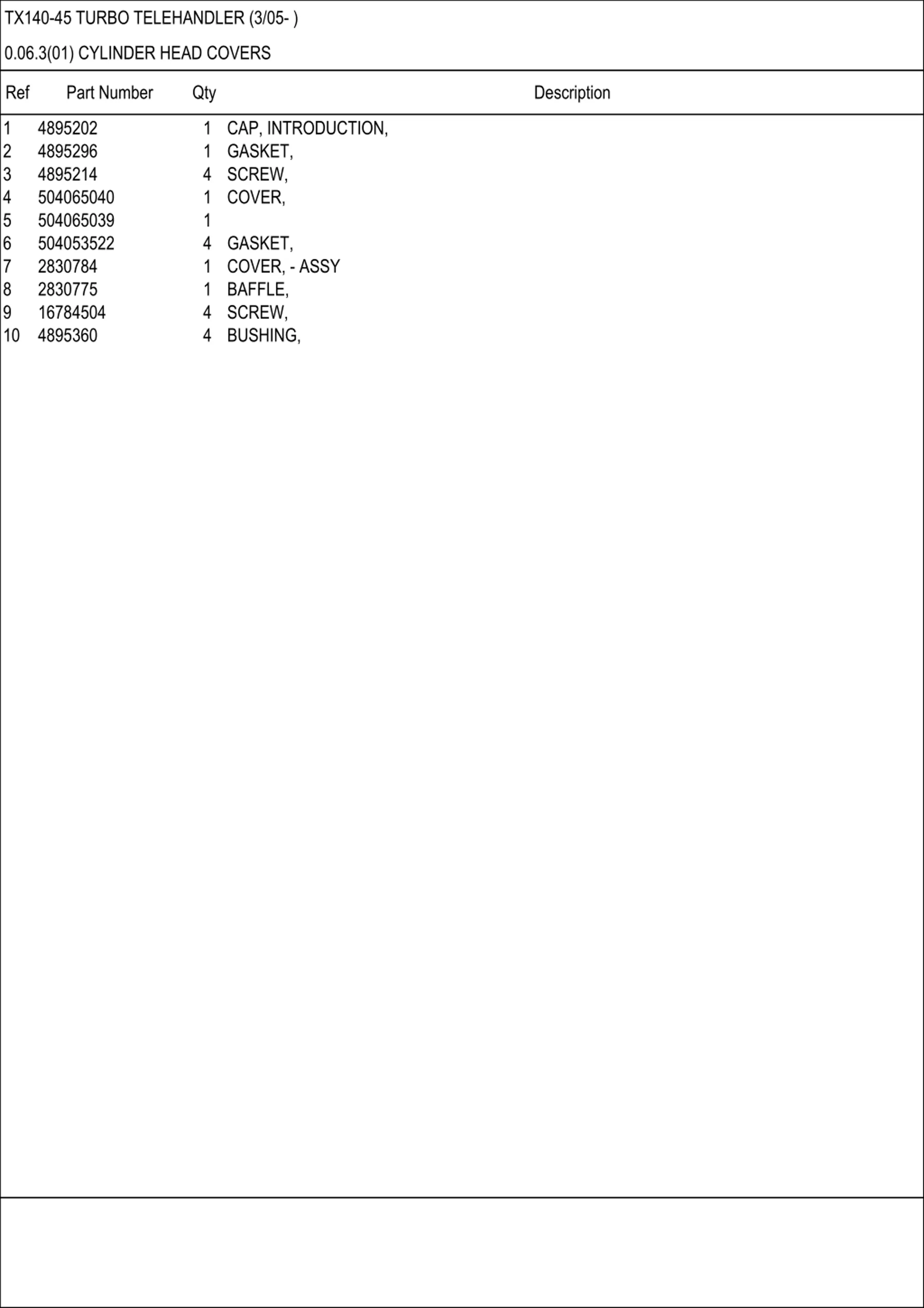

TX140-45 TURBO TELEHANDLER (3/05- ) 0.06.3(01) CYLINDER HEAD COVERS
TX140-45 TURBO TELEHANDLER (3/05- ) 0.06.3(01) CYLINDER HEAD COVERS Ref Part Number Qty Description 1 2 3 4 5 6 7 8 9 10 4895202 4895296 4895214 504065040 504065039 504053522 2830784 2830775 16784504 4895360 1 CAP, INTRODUCTION, 1 GASKET, 4 SCREW, 1 COVER, 1 4 GASKET, 1 COVER, - ASSY 1 BAFFLE, 4 SCREW, 4 BUSHING,

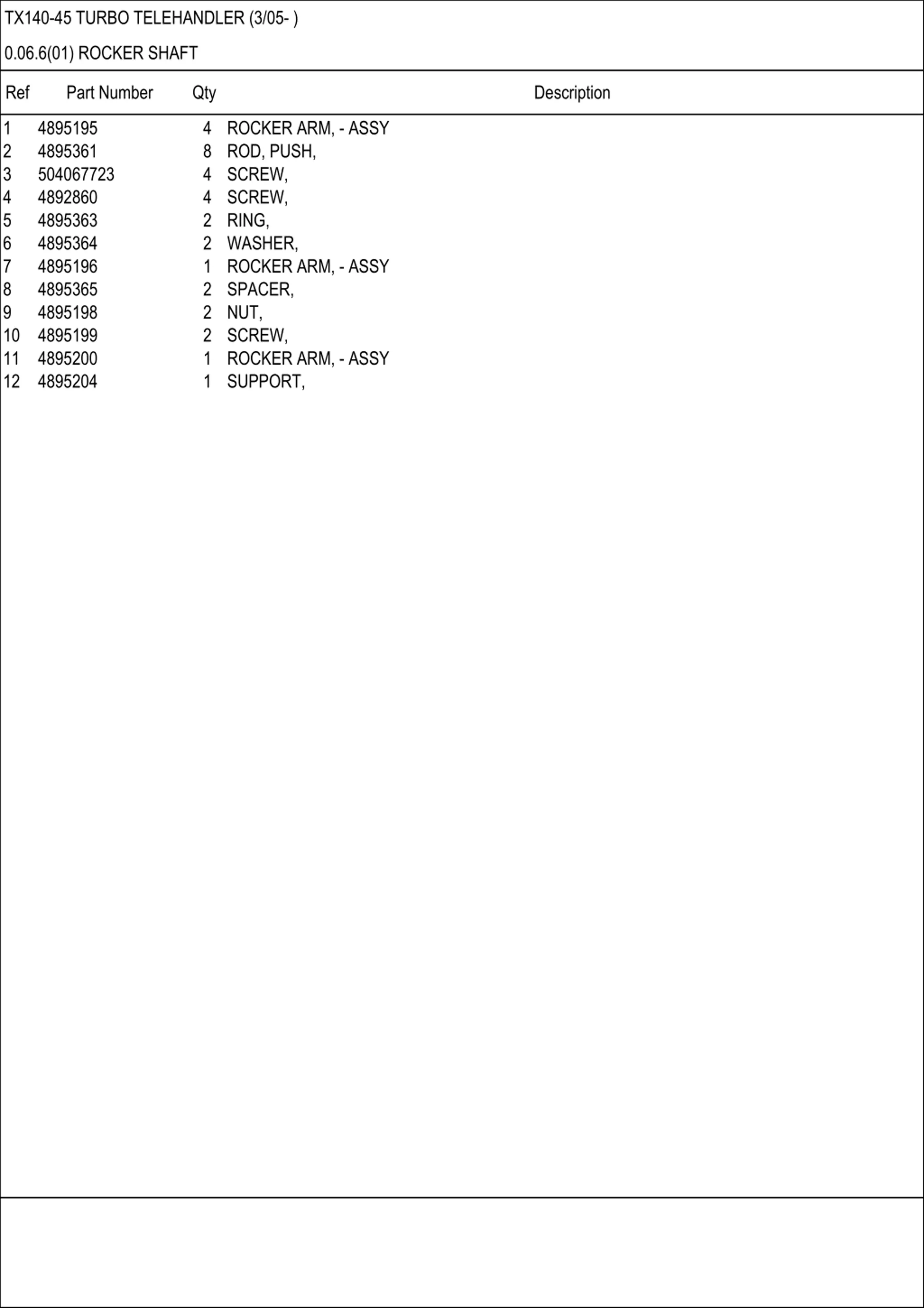

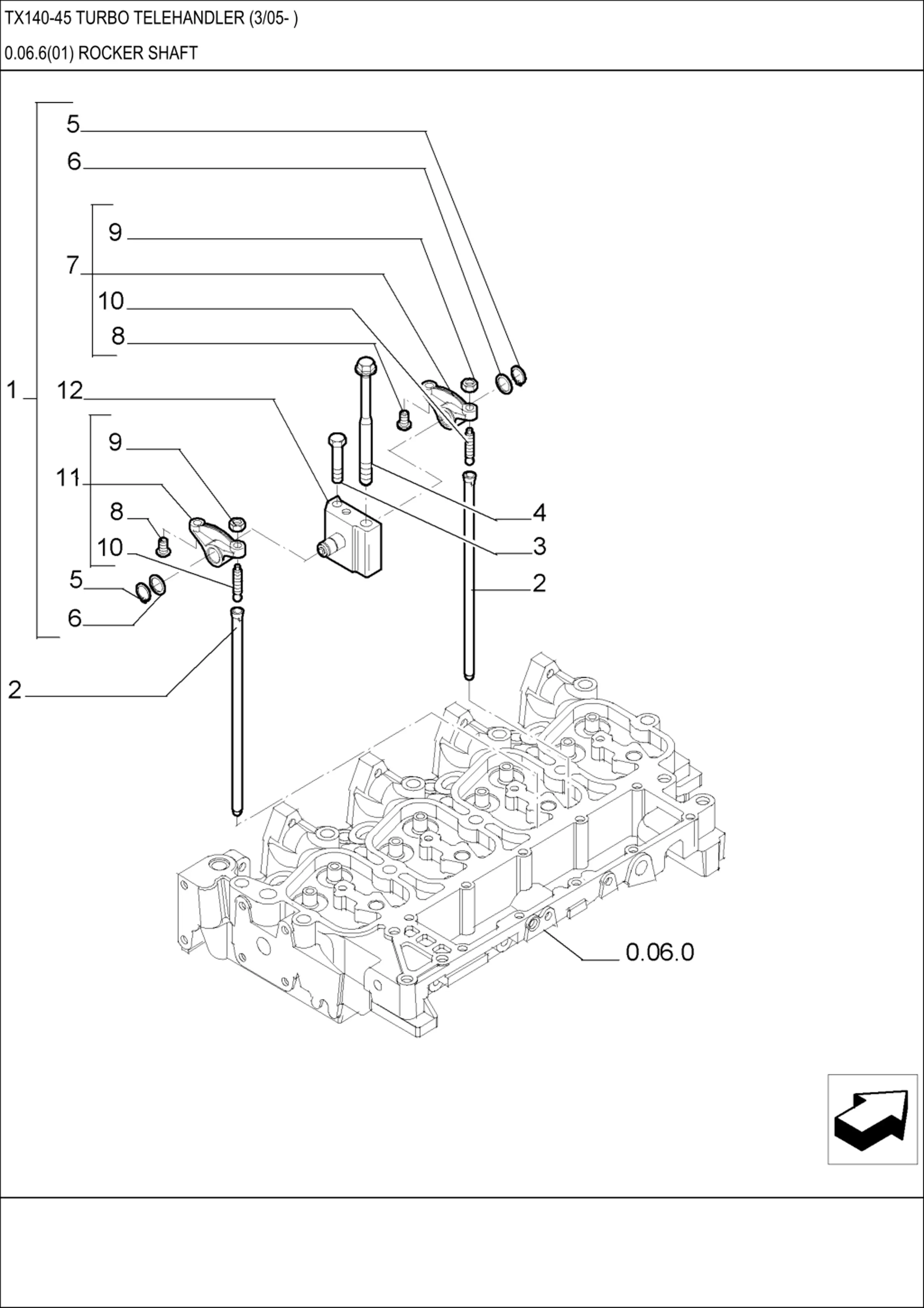

TX140-45 TURBO TELEHANDLER (3/05- ) 0.06.6(01) ROCKER SHAFT
TX140-45 TURBO TELEHANDLER (3/05- ) 0.06.6(01) ROCKER SHAFT Ref Part Number Qty Description 1 2 3 4 5 6 7 8 9 10 11 12 4895195 4895361 504067723 4892860 4895363 4895364 4895196 4895365 4895198 4895199 4895200 4895204 4 ROCKER ARM, - ASSY 8 ROD, PUSH, 4 SCREW, 4 SCREW, 2 RING, 2 WASHER, 1 ROCKER ARM, - ASSY 2 SPACER, 2 NUT, 2 SCREW, 1 ROCKER ARM, - ASSY 1 SUPPORT,
TX140-45 TURBO TELEHANDLER (3/05- ) 0.07.1(01) INTAKE MANIFOLD - VERSION (01-02)

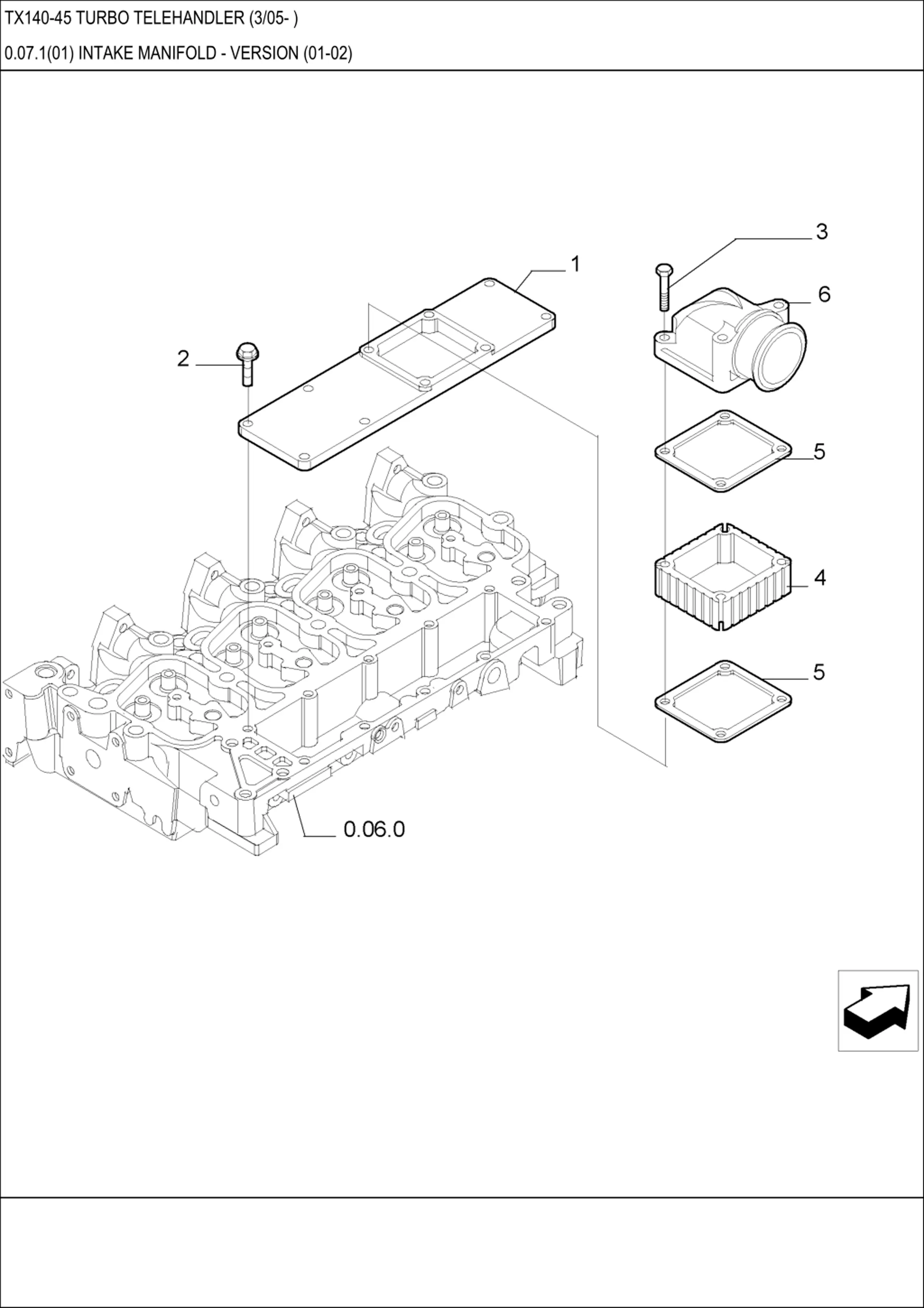

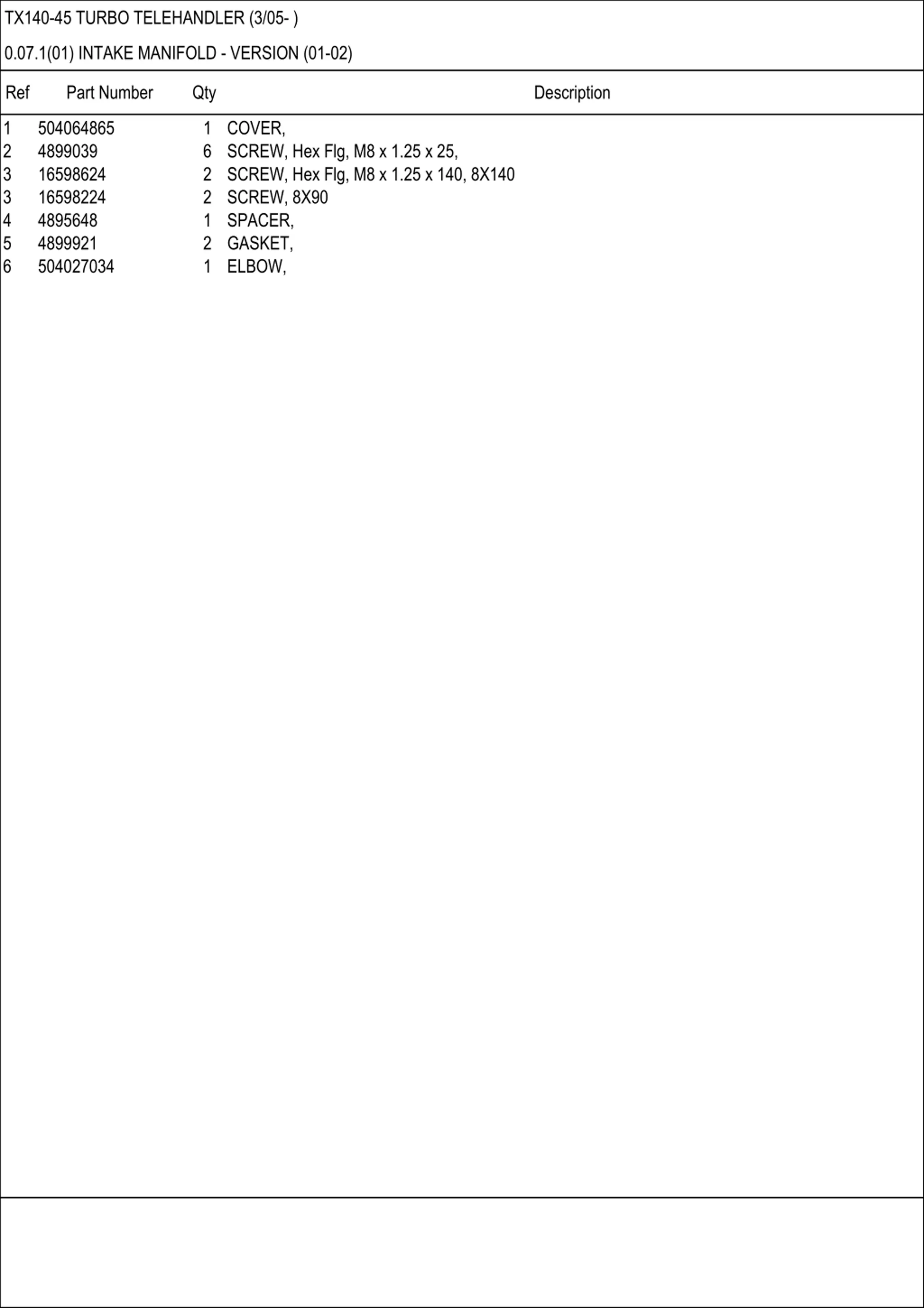

TX140-45 TURBO TELEHANDLER (3/05- ) 0.07.1(01) INTAKE MANIFOLD - VERSION (01-02) Ref Part Number Qty Description 1 2 3 3 4 5 6 504064865 4899039 16598624 16598224 4895648 4899921 504027034 1 COVER, 6 SCREW, Hex Flg, M8 x 1.25 x 25, 2 SCREW, Hex Flg, M8 x 1.25 x 140, 8X140 2 SCREW, 8X90 1 SPACER, 2 GASKET, 1 ELBOW,

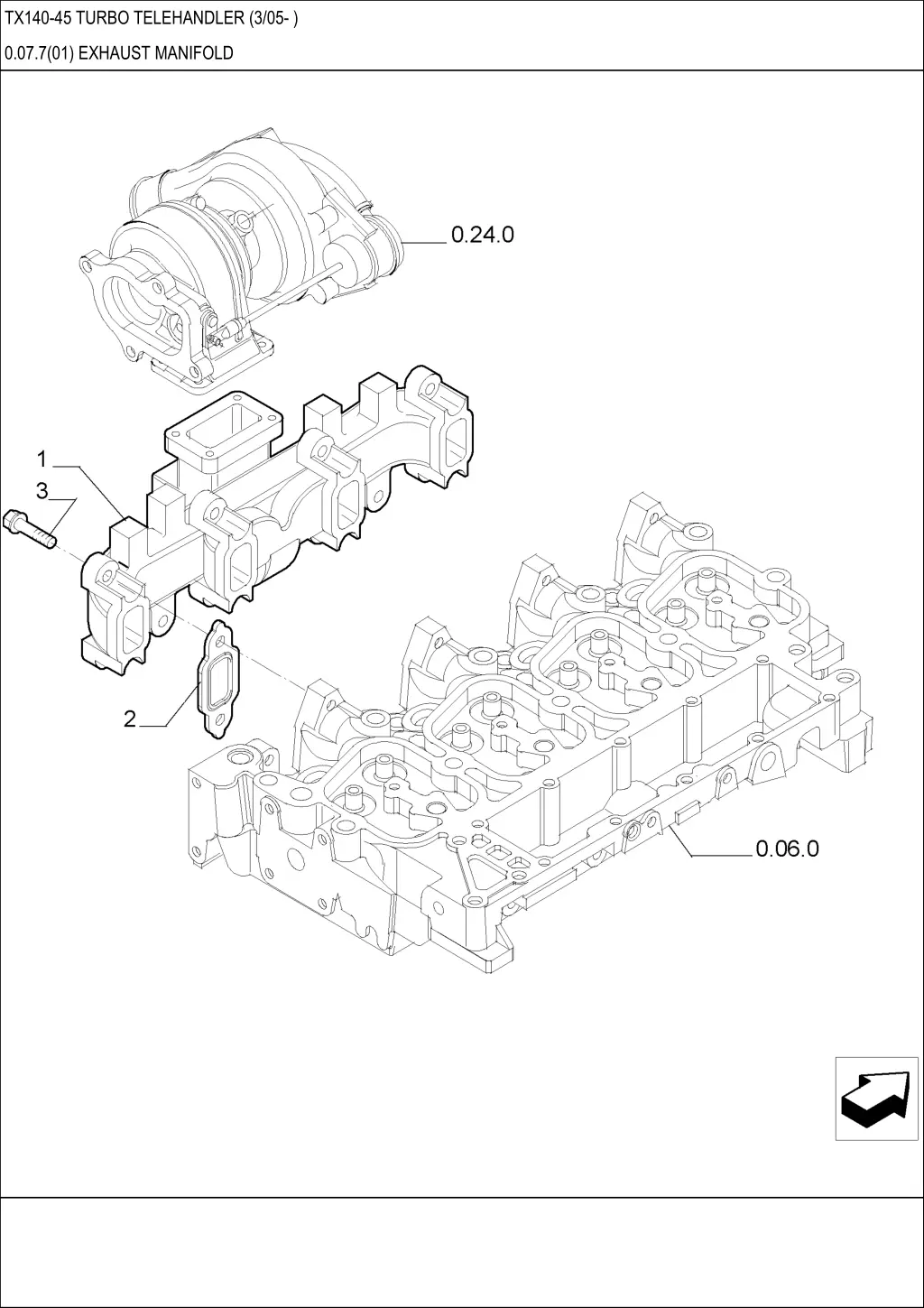

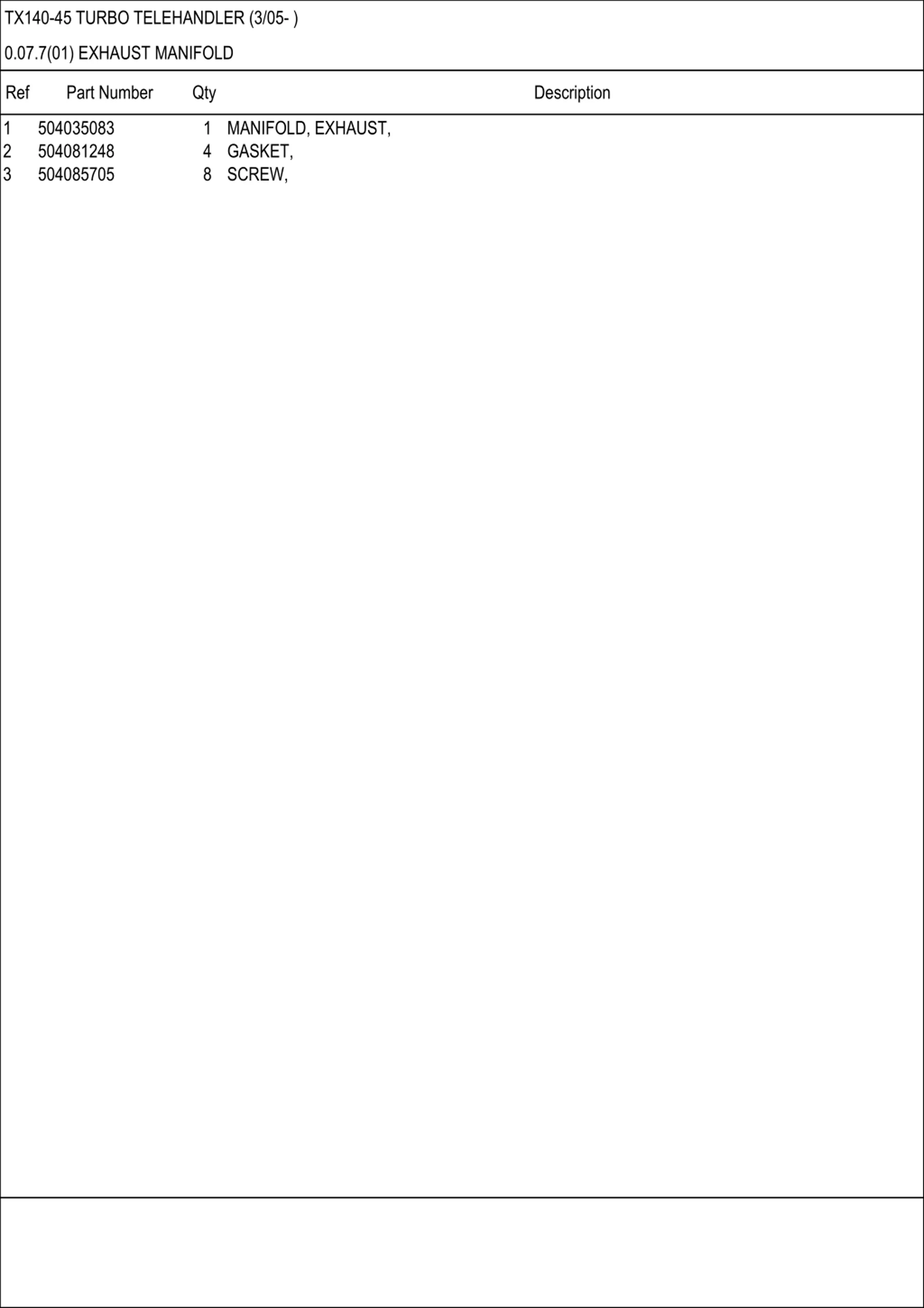

TX140-45 TURBO TELEHANDLER (3/05- ) 0.07.7(01) EXHAUST MANIFOLD

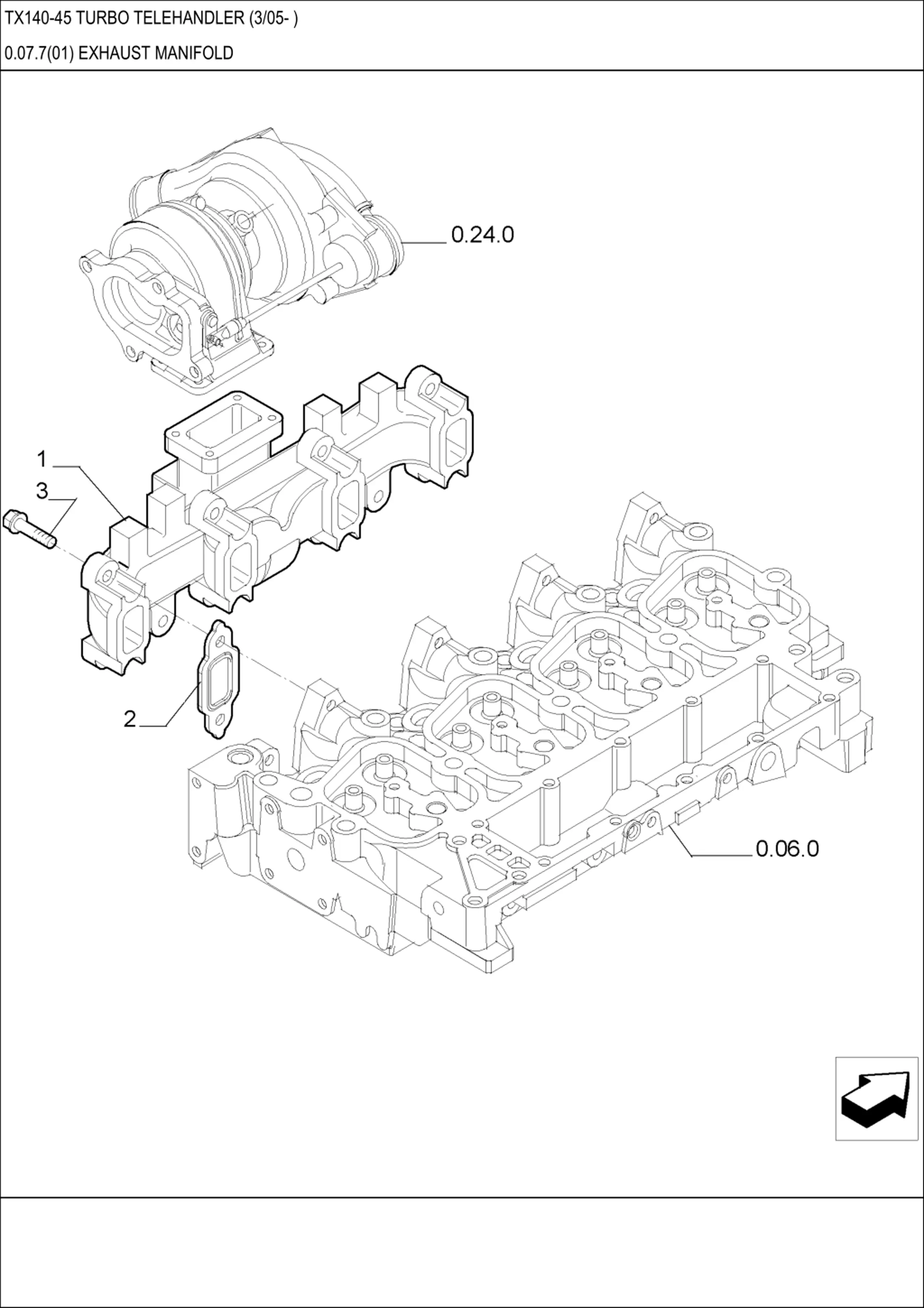

TX140-45 TURBO TELEHANDLER (3/05- ) 0.07.7(01) EXHAUST MANIFOLD Ref Part Number Qty Description 1 2 3 504035083 504081248 504085705 1 MANIFOLD, EXHAUST, 4 GASKET, 8 SCREW,
Suggest: If the above button click is invalid. Please download this document first, and then click the above link to download the complete manual. Thank you so much for reading

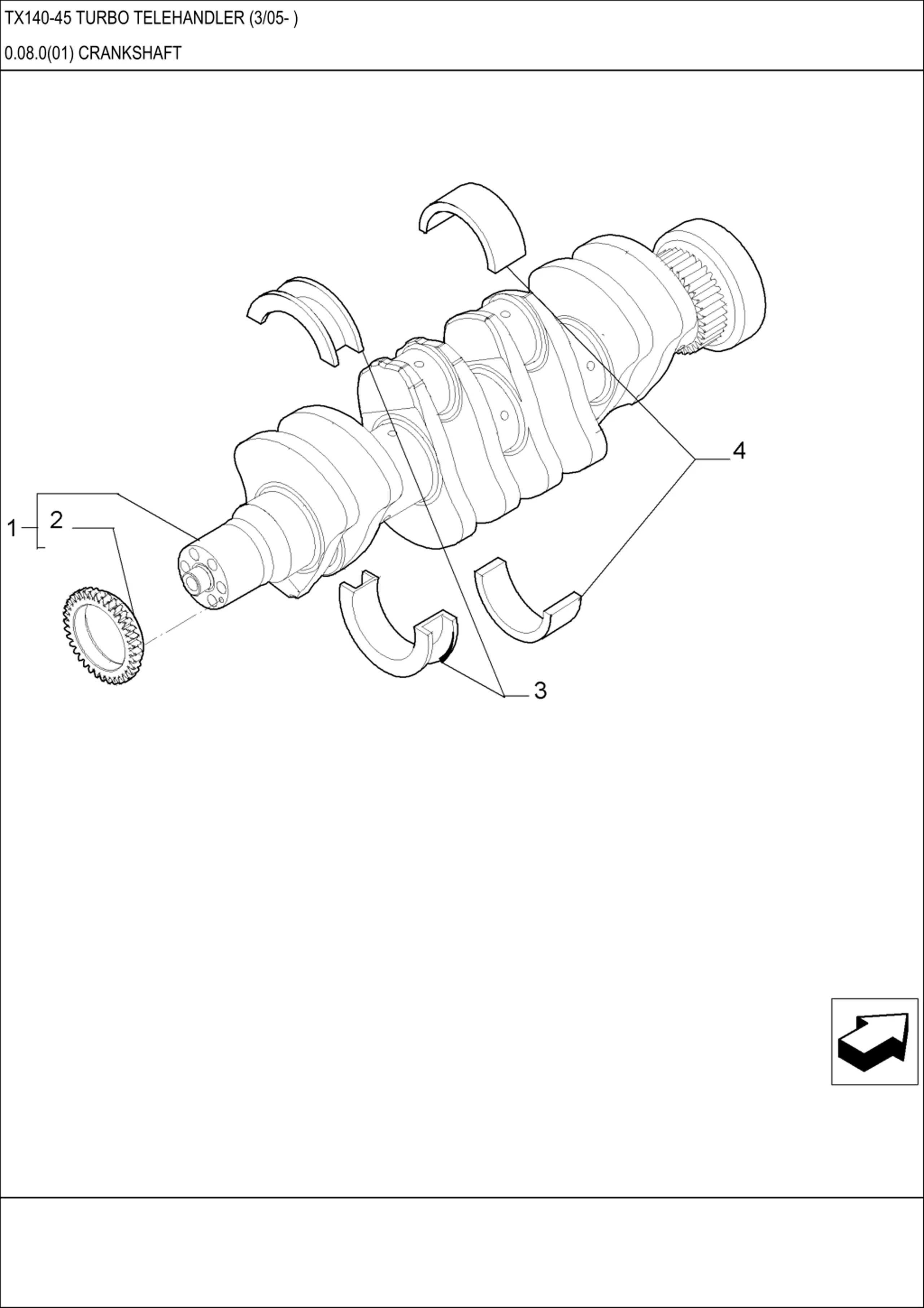

TX140-45 TURBO TELEHANDLER (3/05- ) 0.08.0(01) CRANKSHAFT
