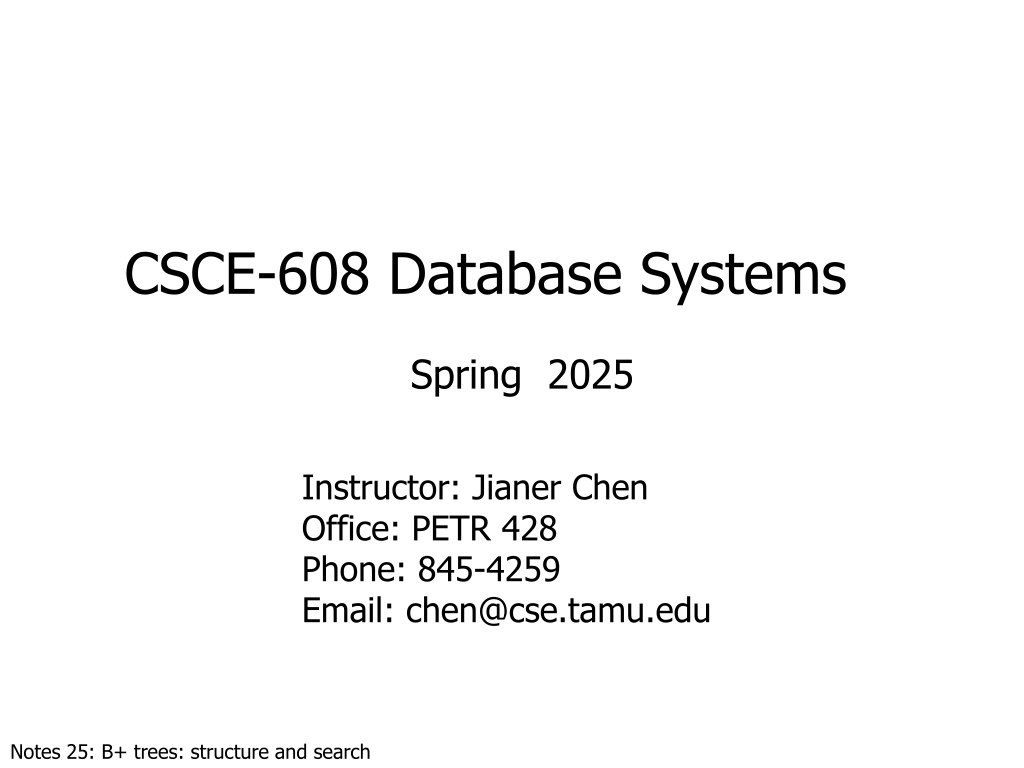

CSCE-608 Database Systems Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 25: B+ trees: structure and search

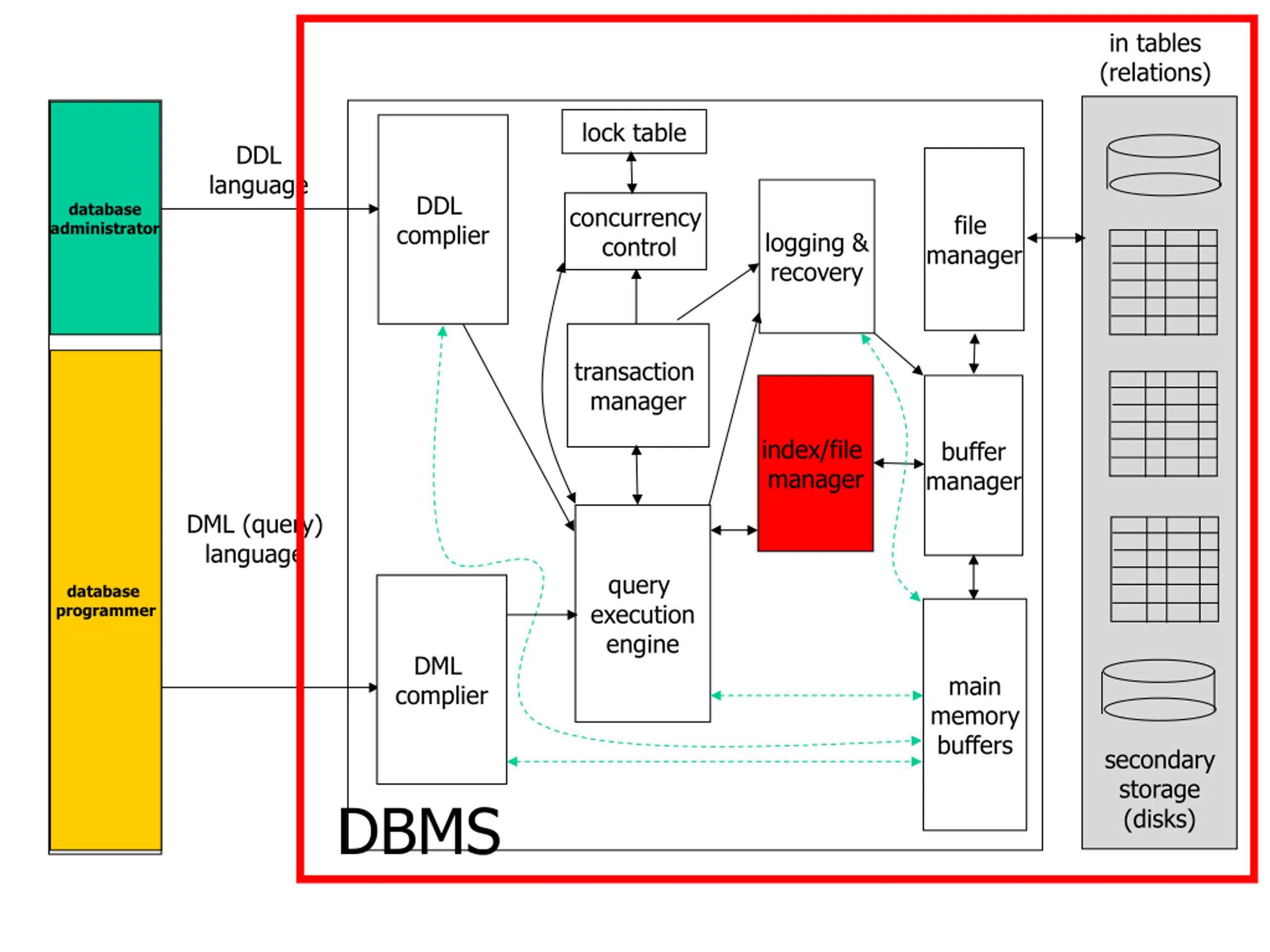

in tables (relations) lock table DDL language DDL complier database administrator concurrency control file logging & recovery manager transaction manager index/file manager buffer manager DML (query) language query execution engine database programmer DML complier main memory buffers secondary storage (disks) DBMS

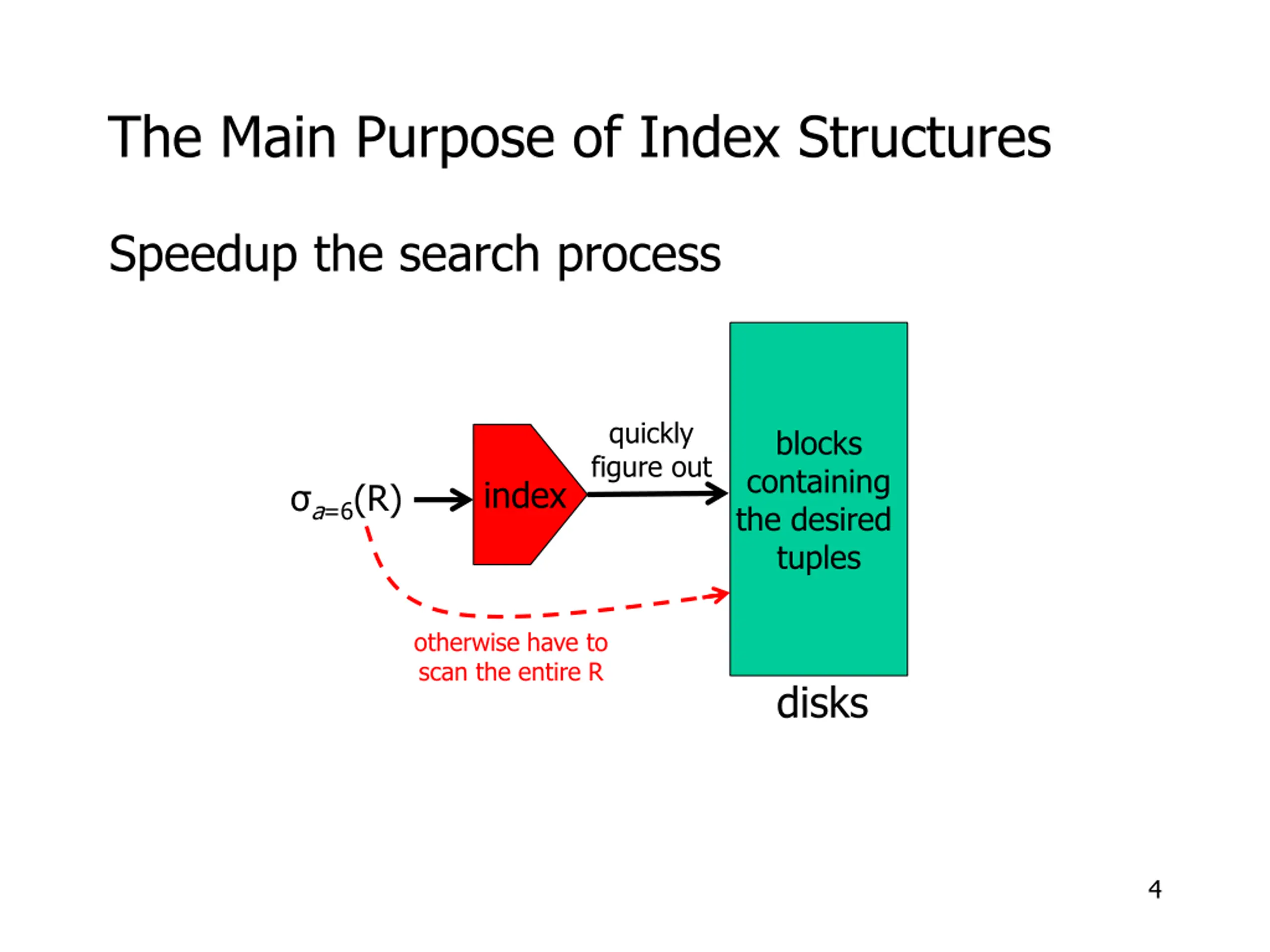

The Main Purpose of Index Structures Speedup the search process quickly figure out blocks containing the desired tuples index a=6(R) disks 3
The Main Purpose of Index Structures Speedup the search process quickly figure out blocks containing the desired tuples index a=6(R) otherwise have to scan the entire R disks 4
The Main Purpose of Index Structures Speedup the search process quickly figure out blocks containing the desired tuples index a=6(R) otherwise have to scan the entire R disks But also need to handle dynamic changes of R 5

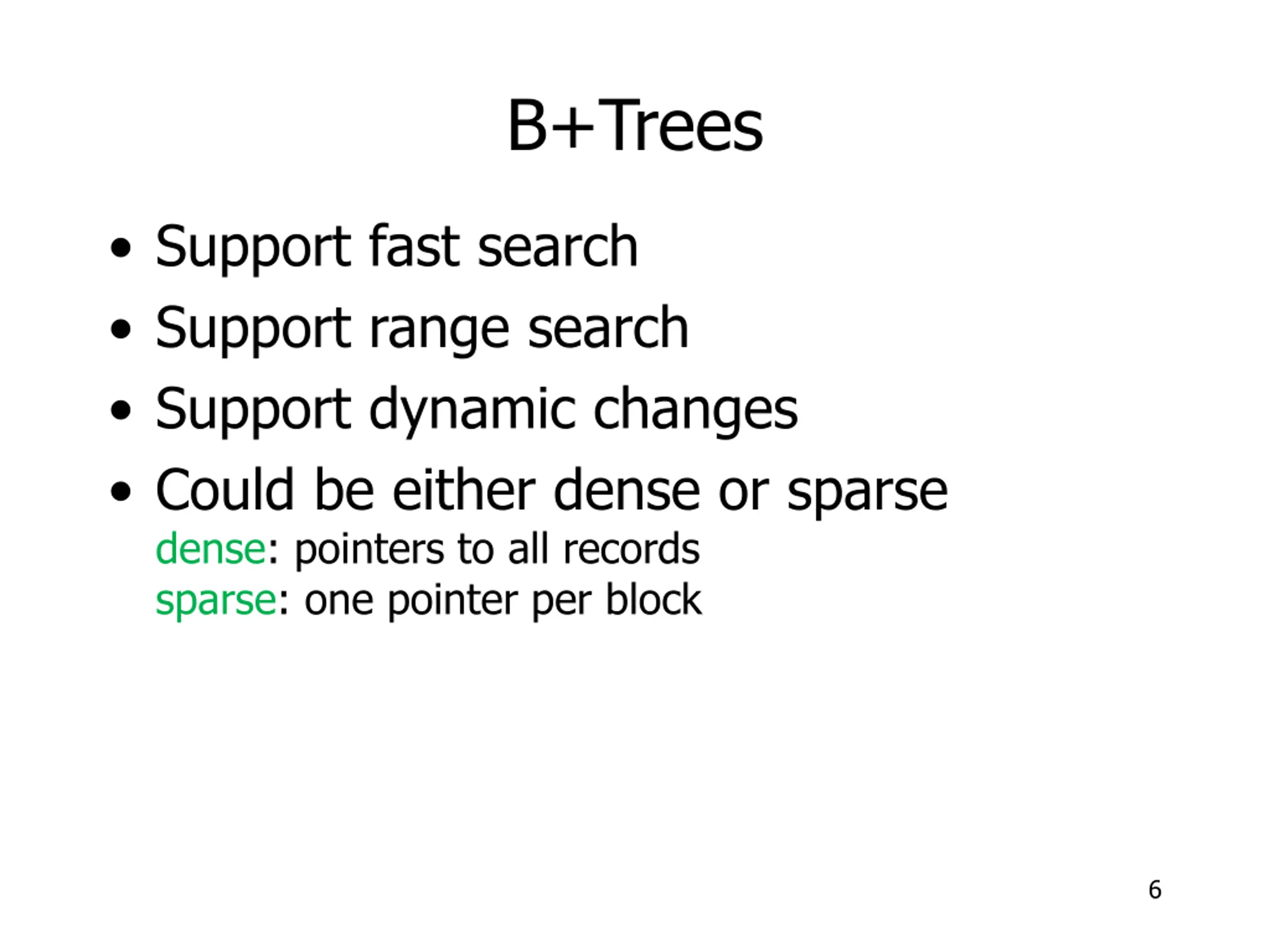

B+Trees Support fast search Support range search Support dynamic changes Could be either dense or sparse dense: pointers to all records sparse: one pointer per block 6

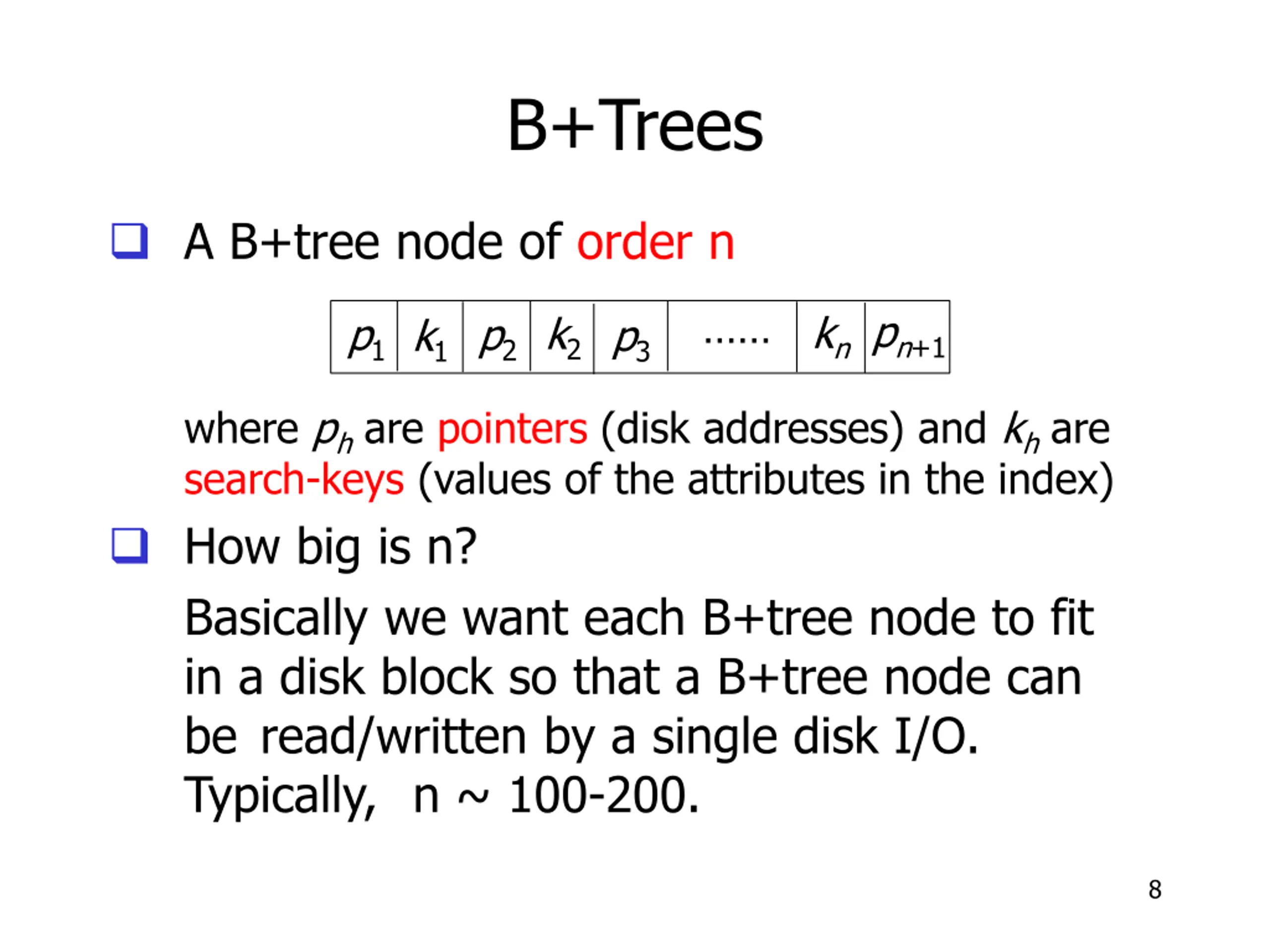

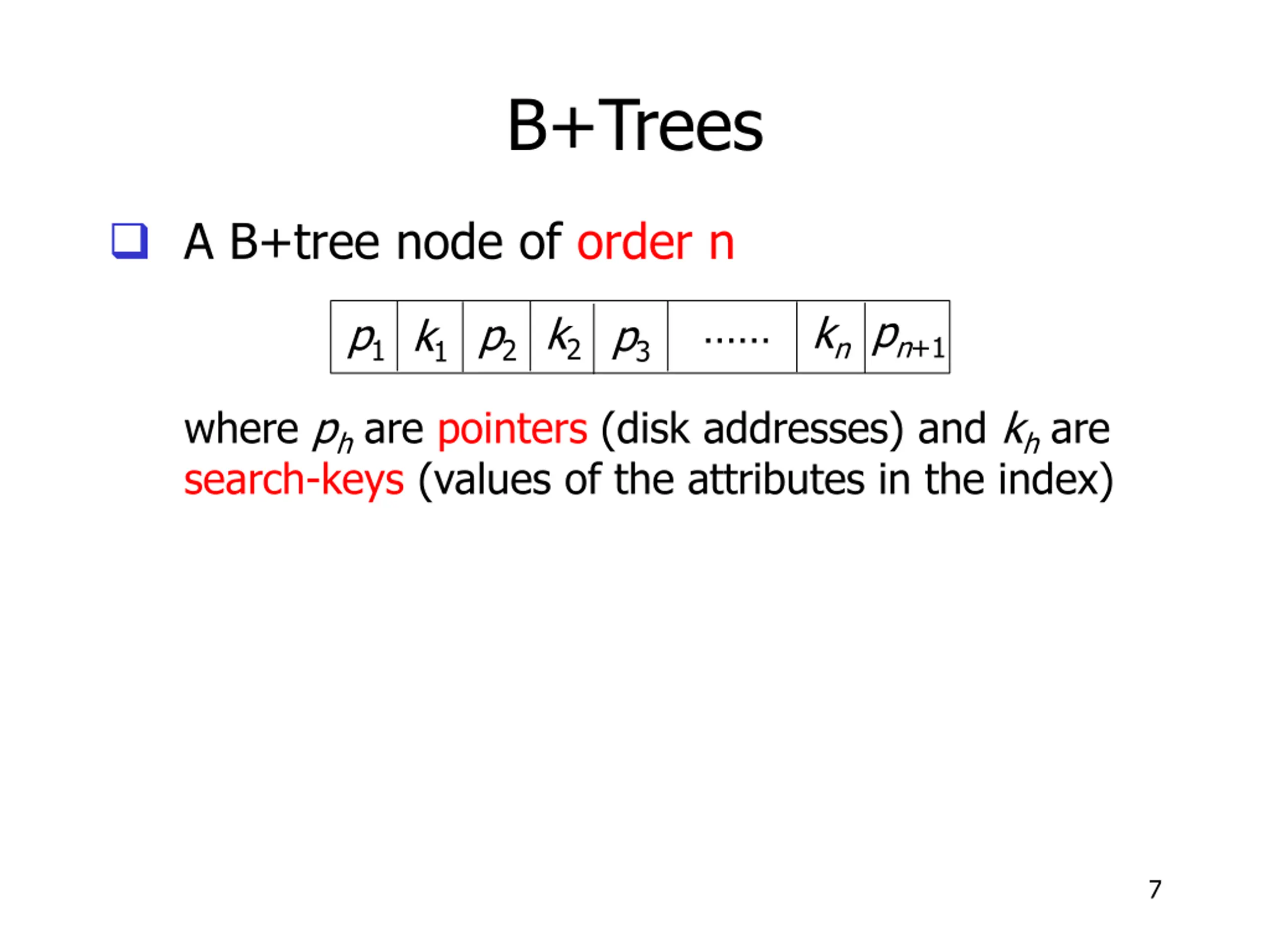

B+Trees A B+tree node of order n pn+1 kn k2 p1 p2 k1 p3 where ph are pointers (disk addresses) and kh are search-keys (values of the attributes in the index) 7
B+Trees A B+tree node of order n pn+1 kn k2 p1 p2 k1 p3 where ph are pointers (disk addresses) and kh are search-keys (values of the attributes in the index) How big is n? Basically we want each B+tree node to fit in a disk block so that a B+tree node can be read/written by a single disk I/O. Typically, n ~ 100-200. 8

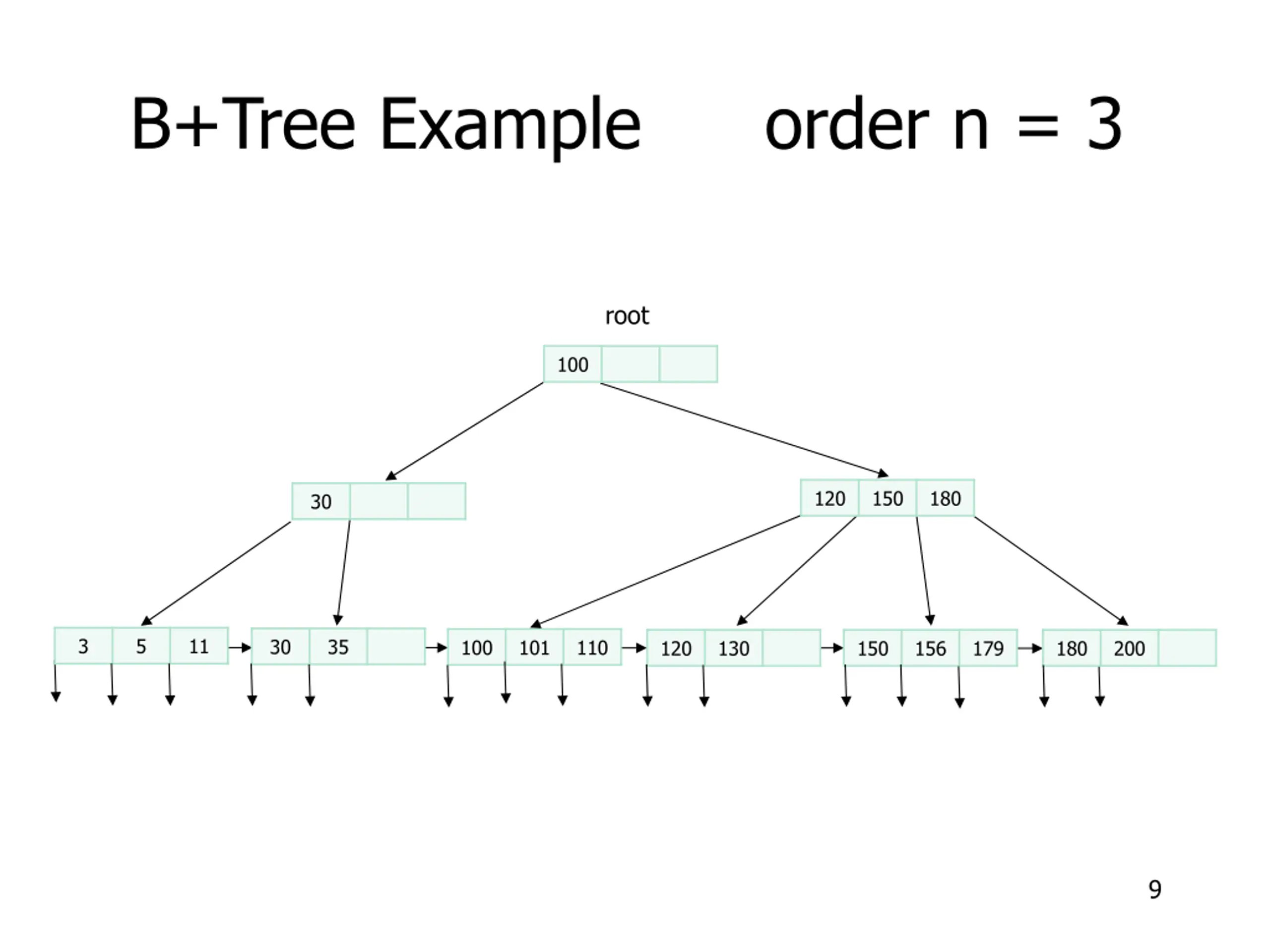

B+Tree Example order n = 3 root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 9

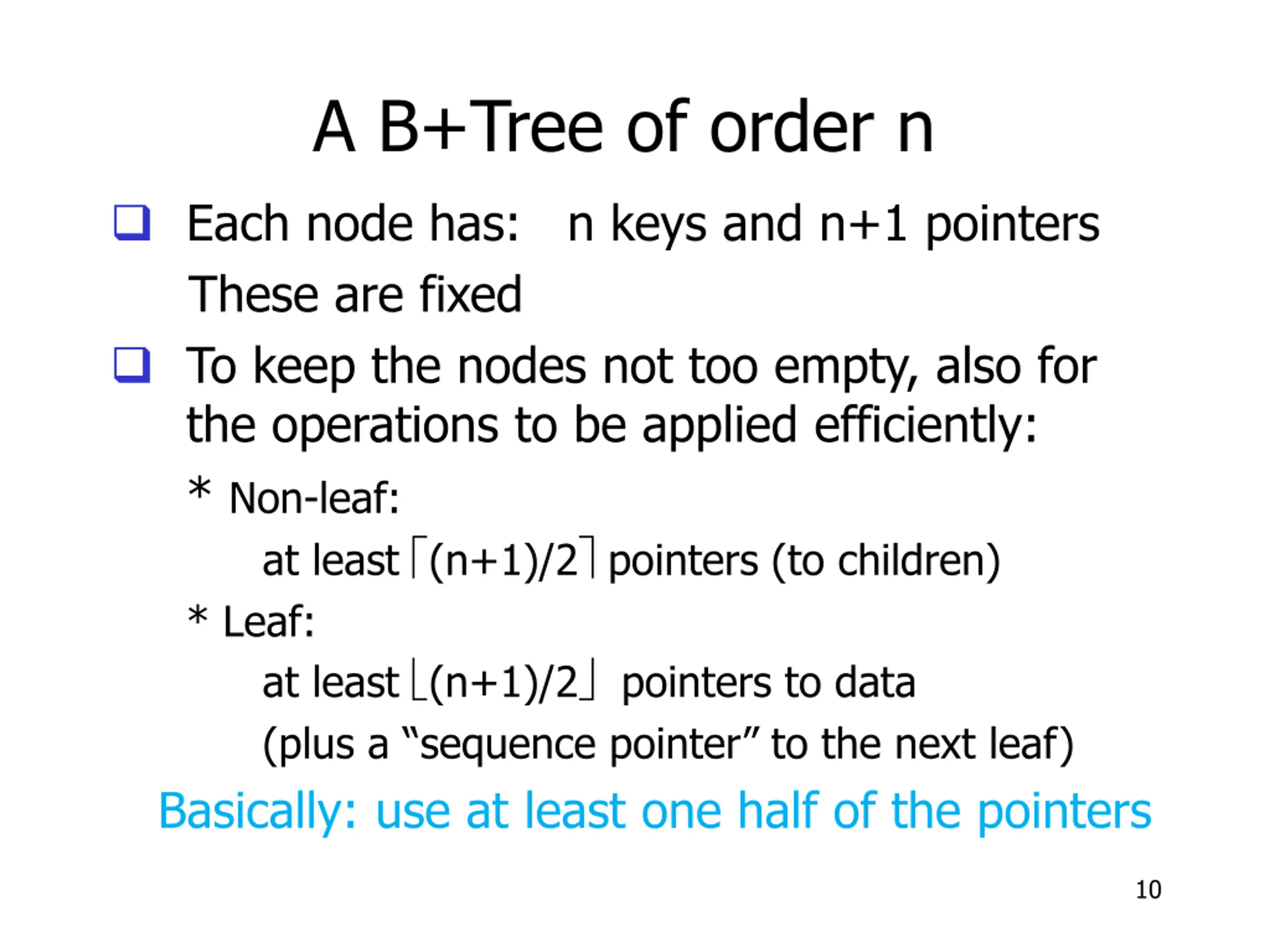

A B+Tree of order n Each node has: n keys and n+1 pointers These are fixed To keep the nodes not too empty, also for the operations to be applied efficiently: * Non-leaf: at least (n+1)/2 pointers (to children) * Leaf: at least (n+1)/2 pointers to data (plus a sequence pointer to the next leaf) Basically: use at least one half of the pointers 10

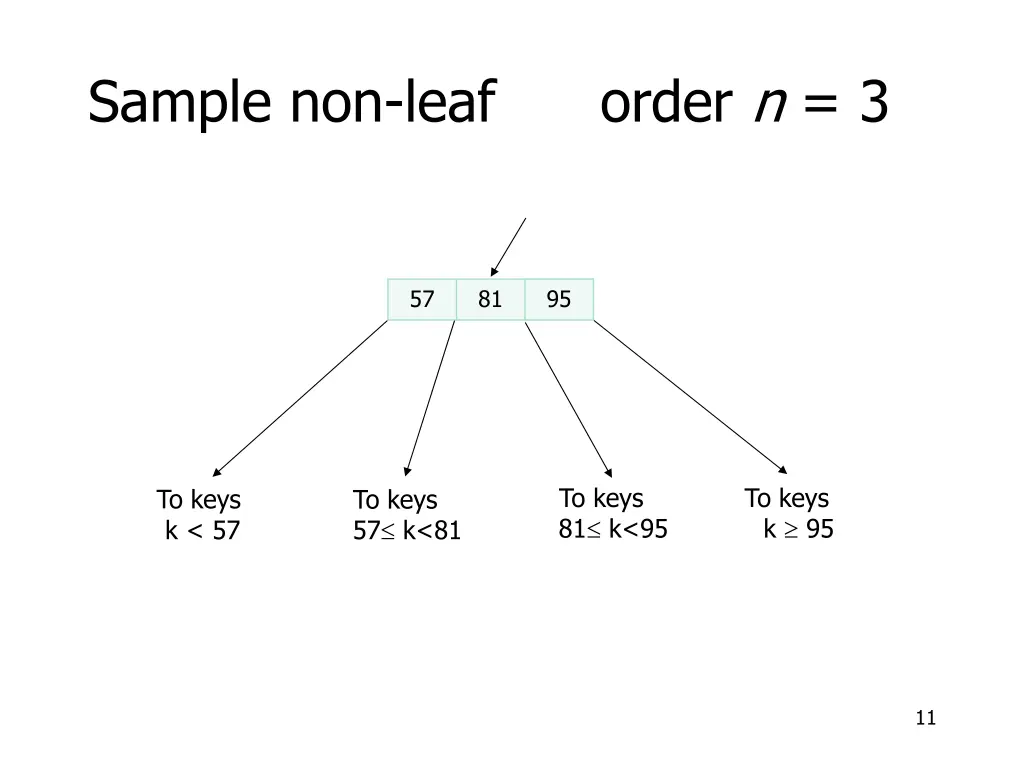

Sample non-leaf order n = 3 57 81 95 To keys 81 k<95 To keys k 95 To keys k < 57 To keys 57 k<81 11

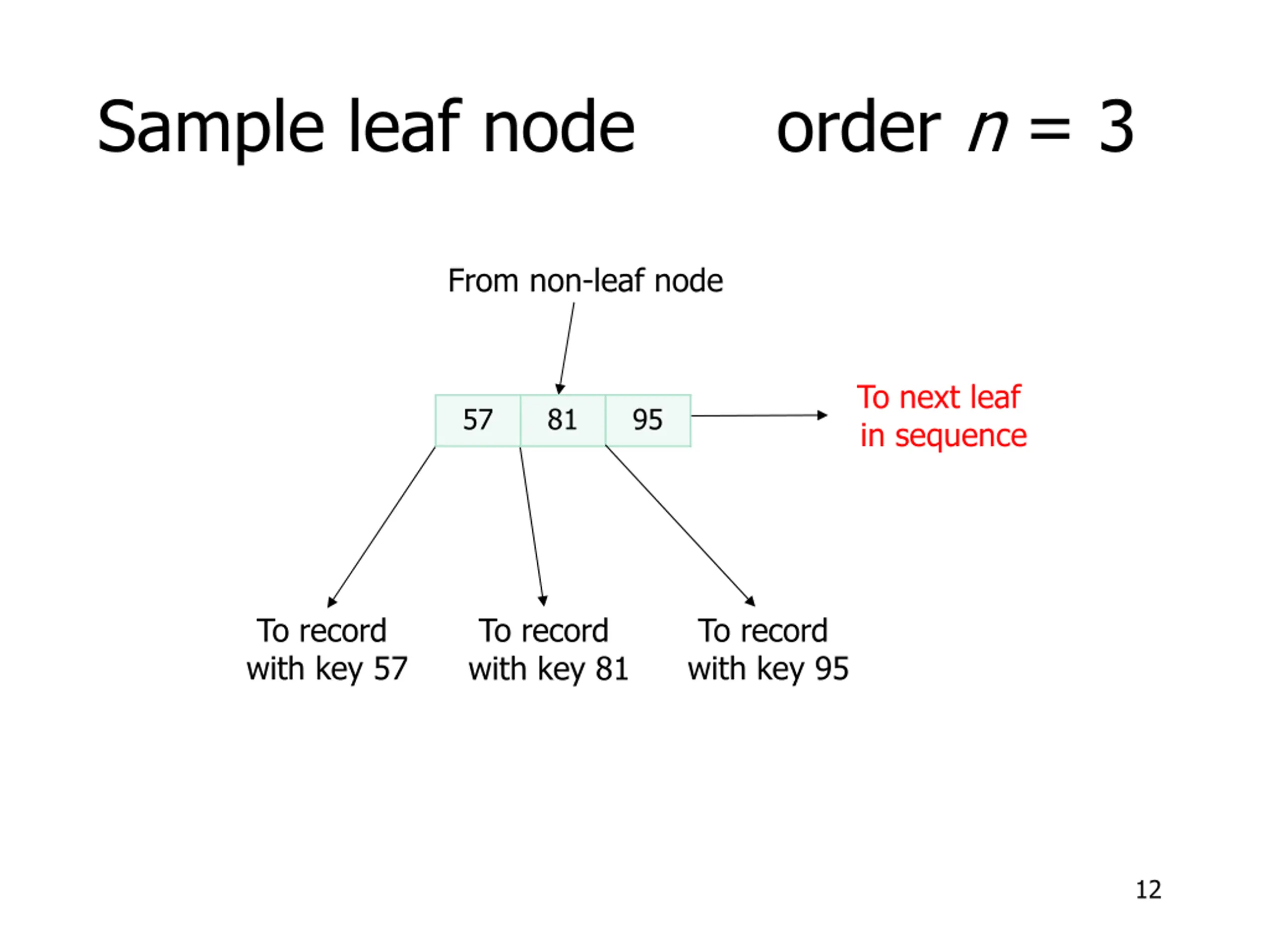

Sample leaf node order n = 3 From non-leaf node To next leaf in sequence 57 81 95 To record with key 57 To record with key 95 To record with key 81 12
Example (B+ tree of order n=3) Min. node Full node 120 150 180 30 Non-leaf 30 35 3 5 11 Leaf 13

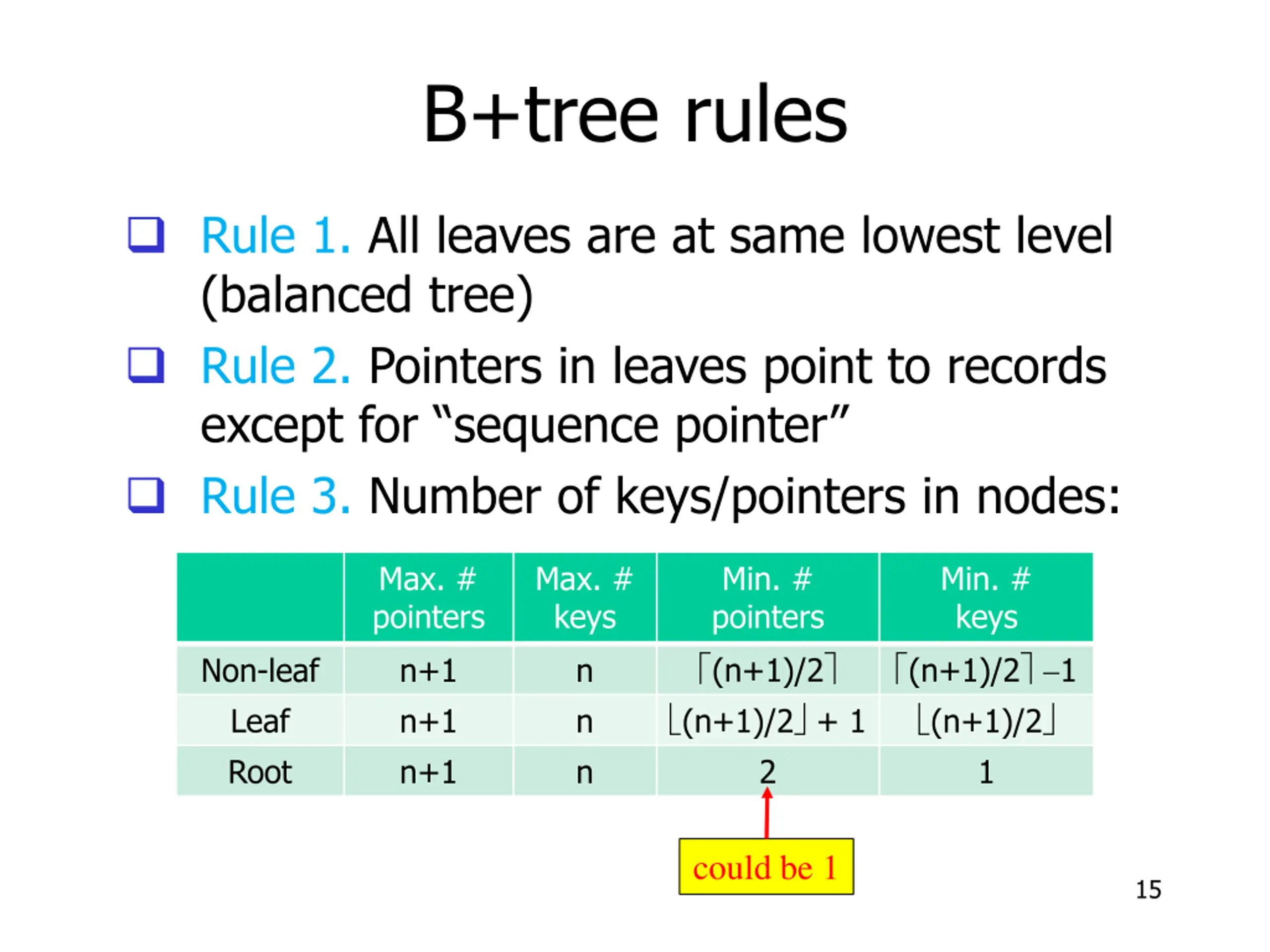

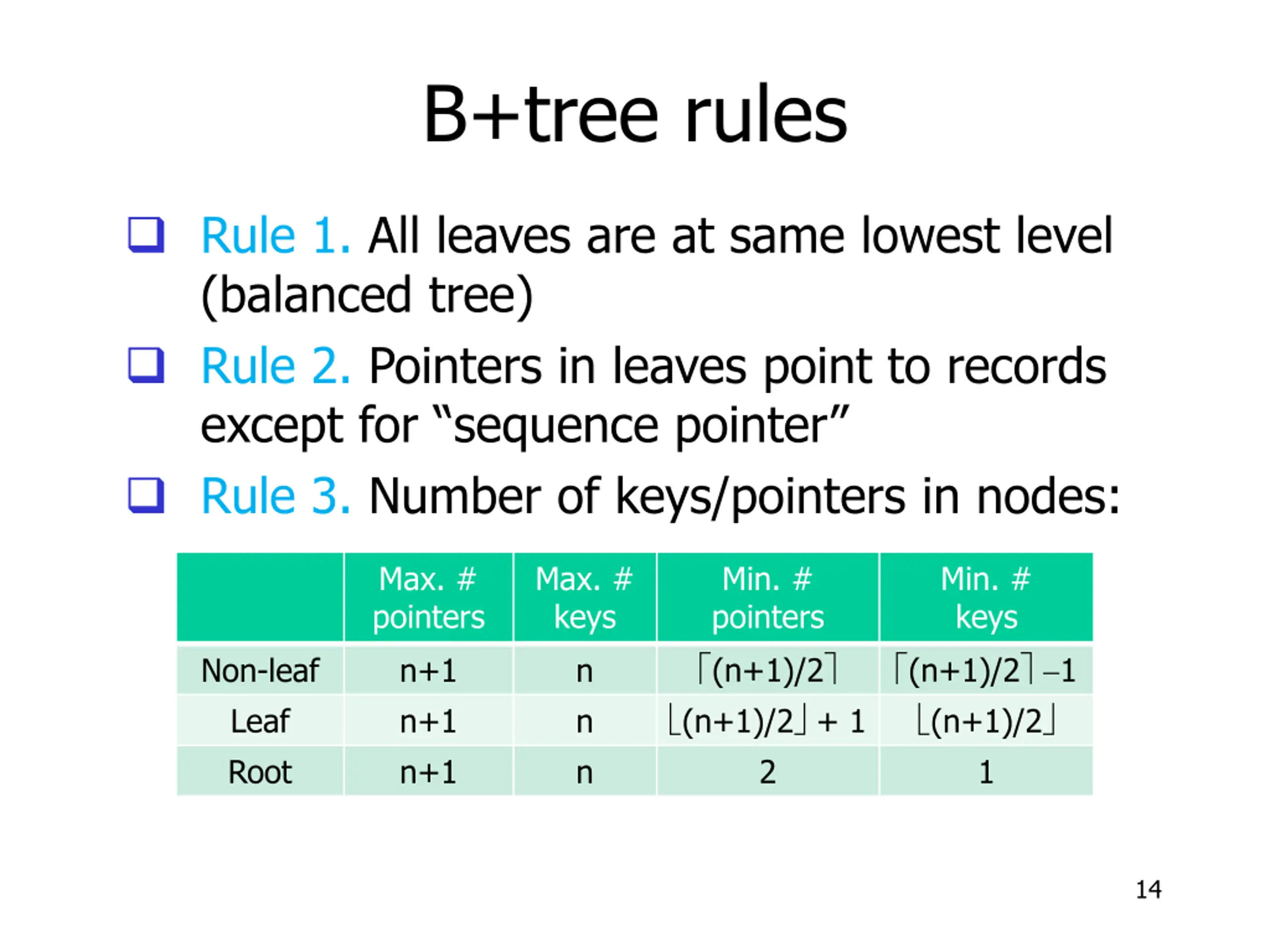

B+tree rules Rule 1. All leaves are at same lowest level (balanced tree) Rule 2. Pointers in leaves point to records except for sequence pointer Rule 3. Number of keys/pointers in nodes: Max. # pointers n+1 n+1 n+1 Max. # keys n n n Min. # pointers (n+1)/2 (n+1)/2 + 1 2 Min. # keys (n+1)/2 1 (n+1)/2 1 Non-leaf Leaf Root 14
B+tree rules Rule 1. All leaves are at same lowest level (balanced tree) Rule 2. Pointers in leaves point to records except for sequence pointer Rule 3. Number of keys/pointers in nodes: Max. # pointers n+1 n+1 n+1 Max. # keys n n n Min. # pointers (n+1)/2 (n+1)/2 + 1 2 Min. # keys (n+1)/2 1 (n+1)/2 1 Non-leaf Leaf Root could be 1 15

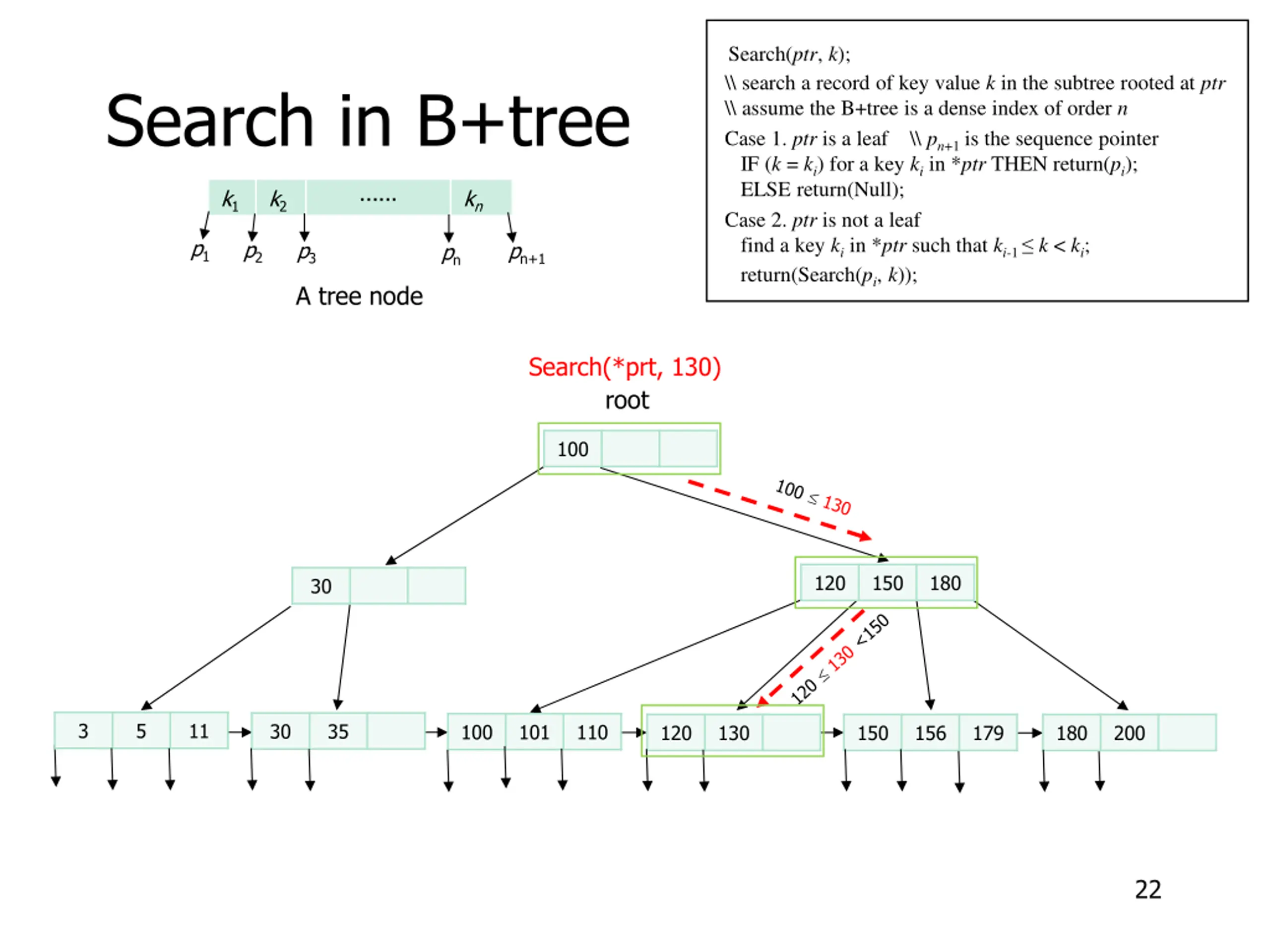

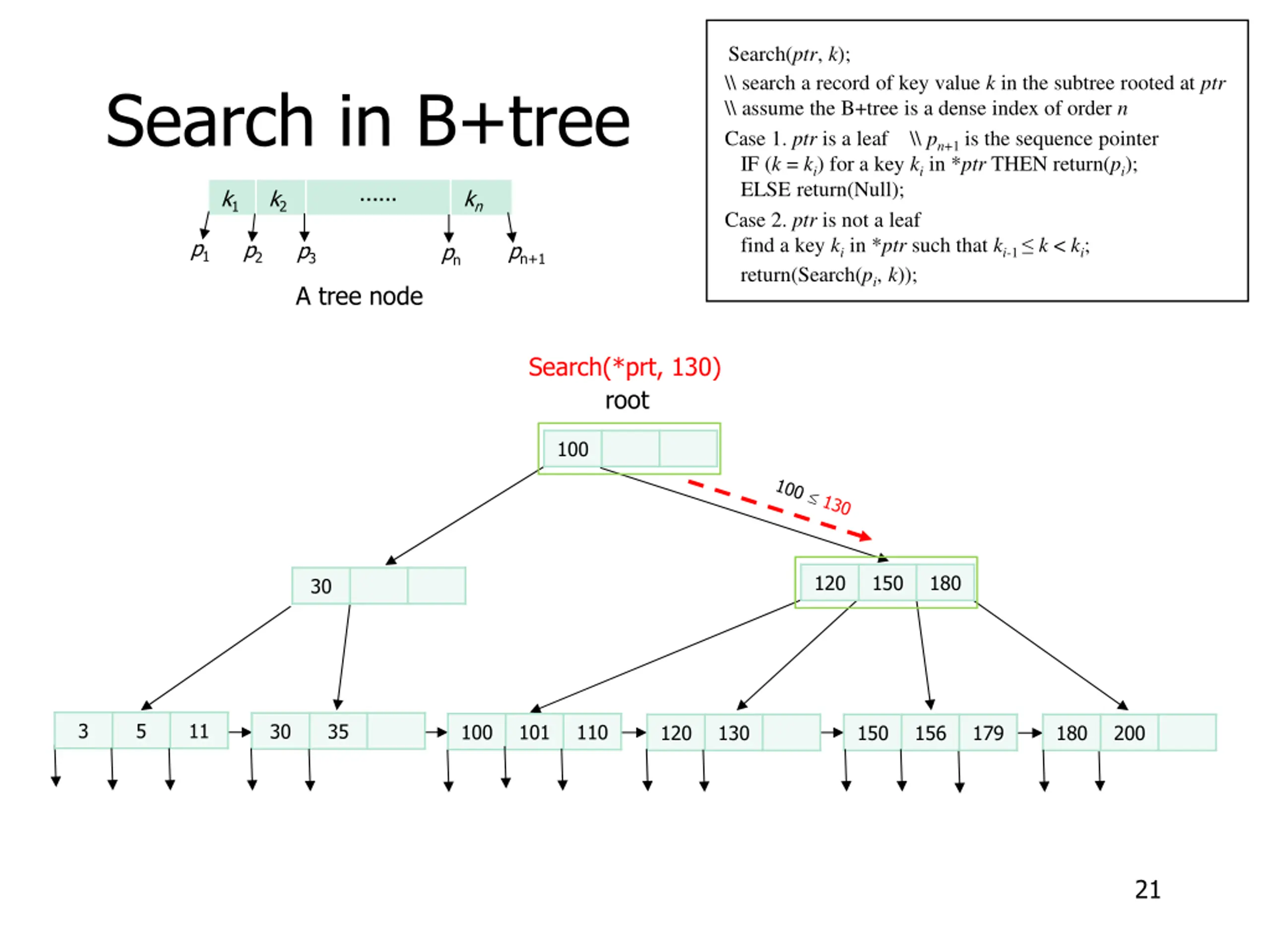

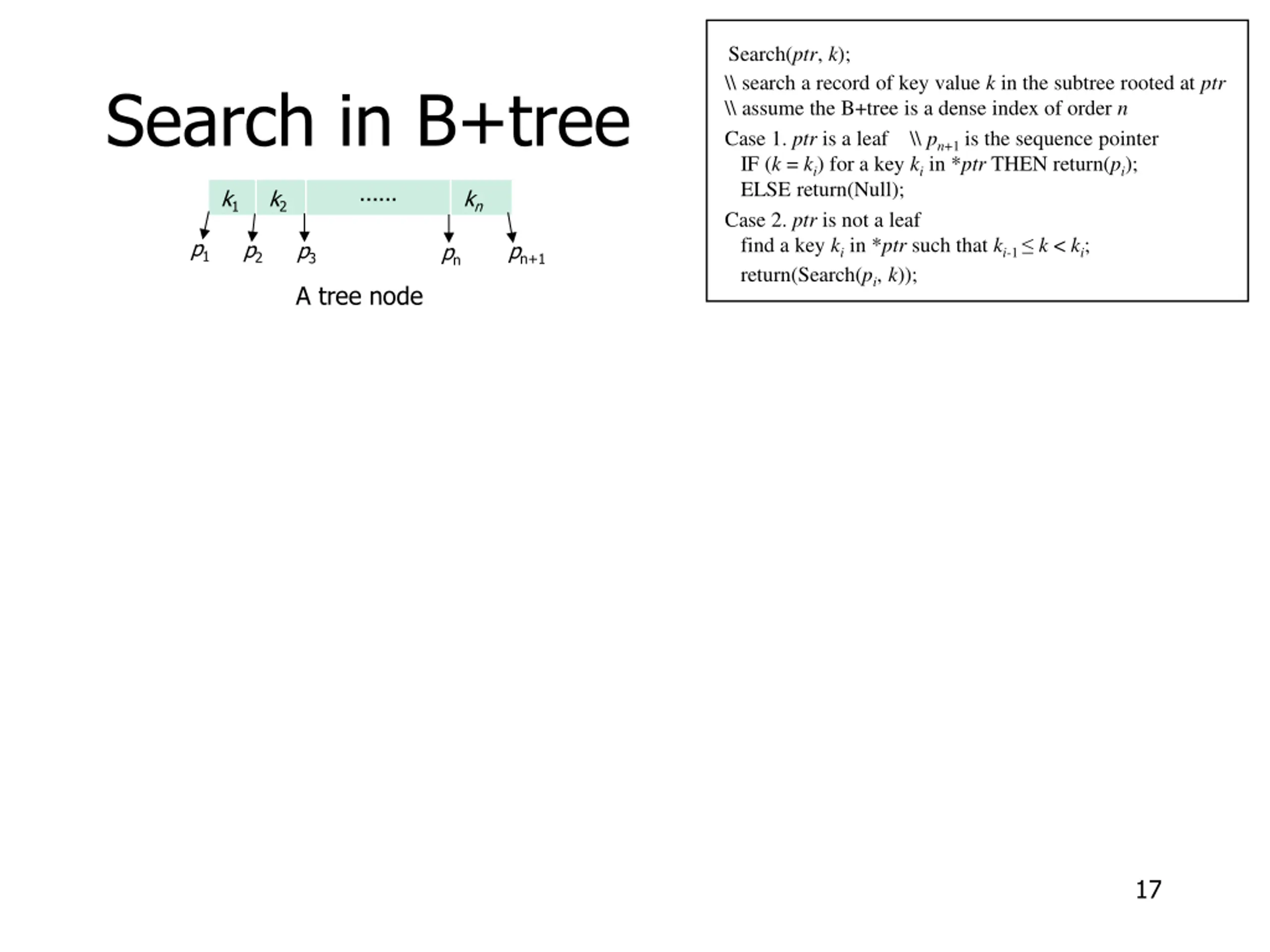

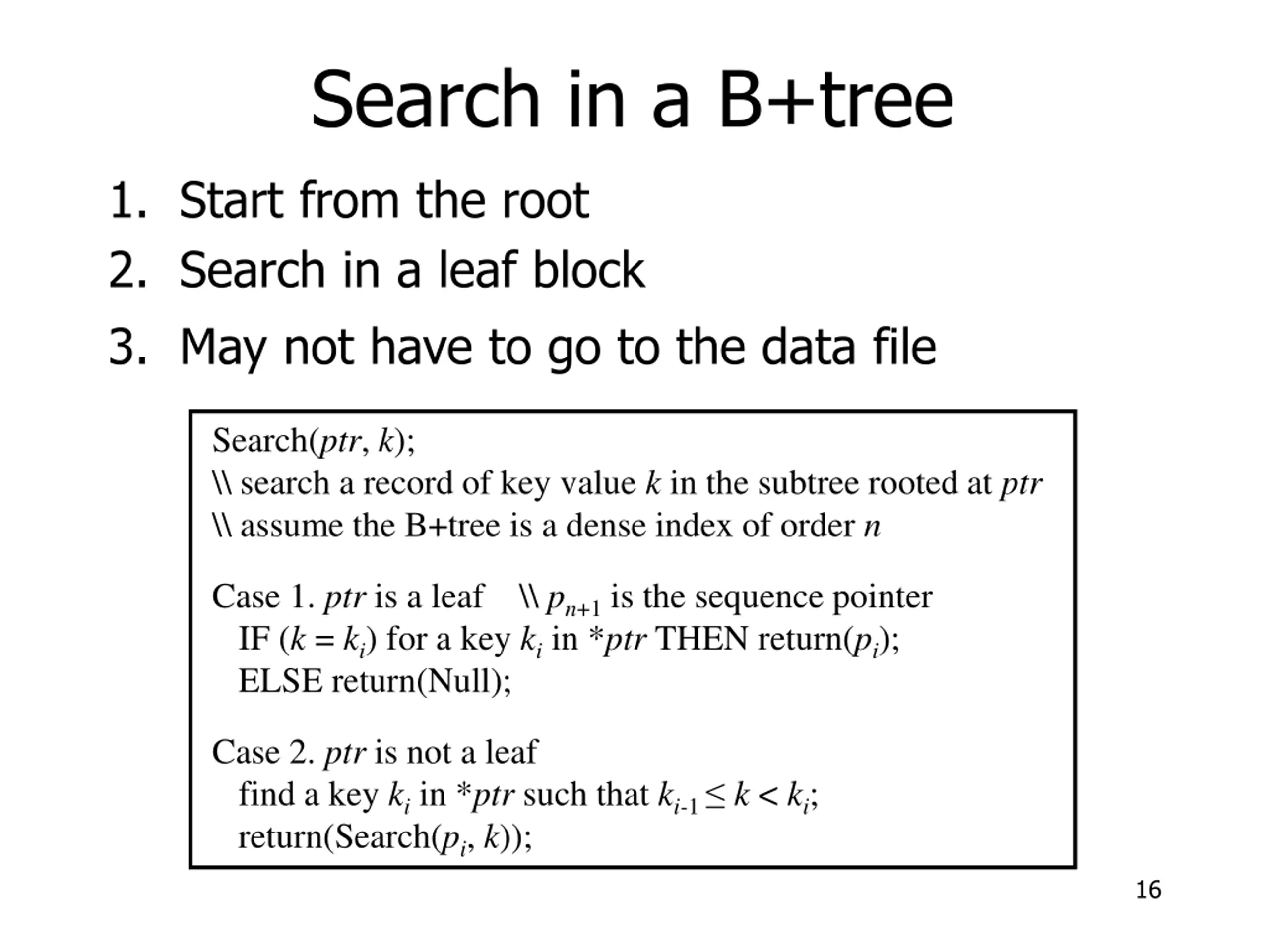

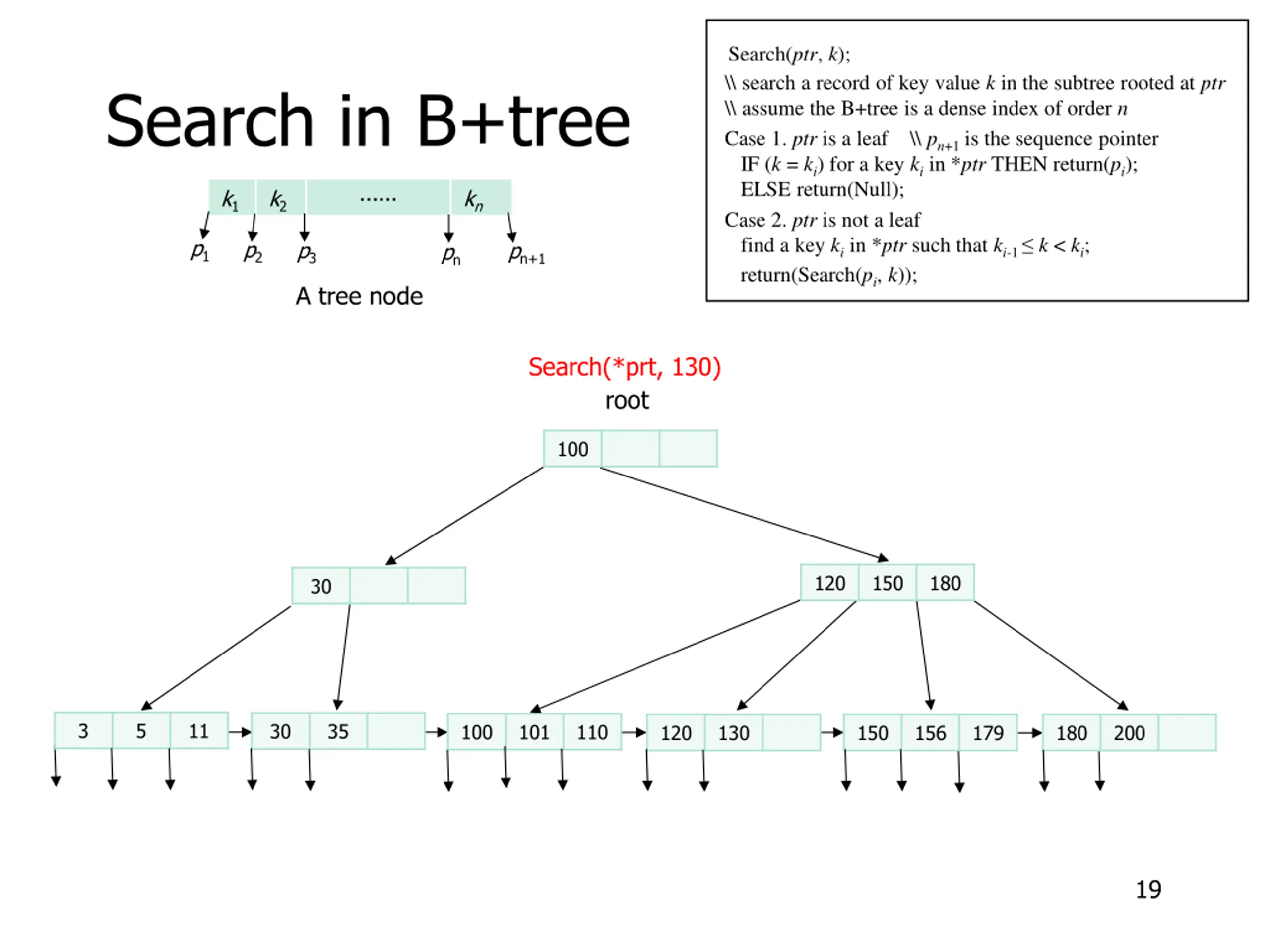

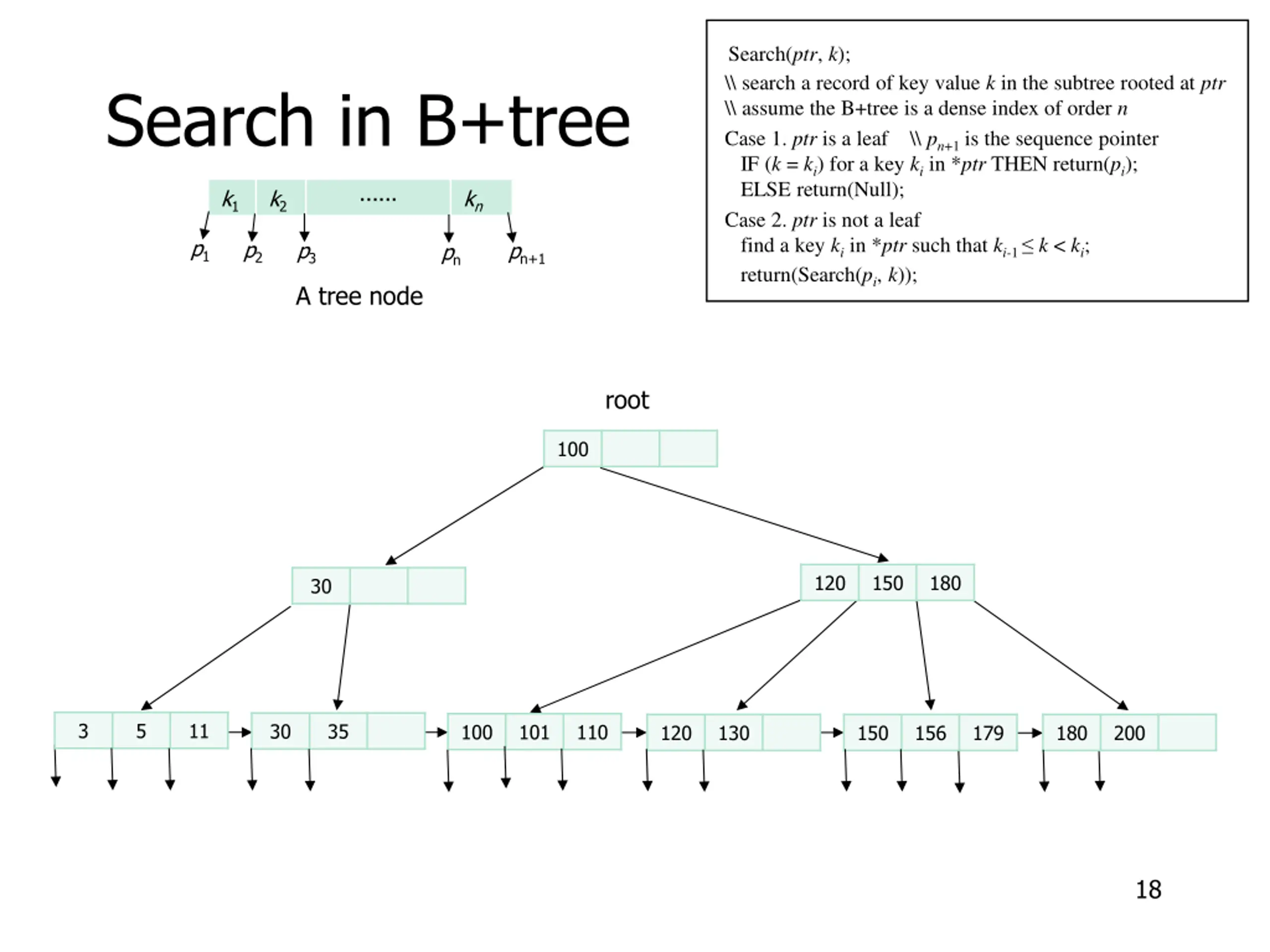

Search in a B+tree 1. Start from the root 2. Search in a leaf block 3. May not have to go to the data file Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); 16
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn A tree node 17
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn A tree node root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 18
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn A tree node Search(*prt, 130) root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 19
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn A tree node Search(*prt, 130) root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 20
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn A tree node Search(*prt, 130) root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 21
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn A tree node Search(*prt, 130) root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 22
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn A tree node Search(*prt, 130) root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 130 =130 return 23

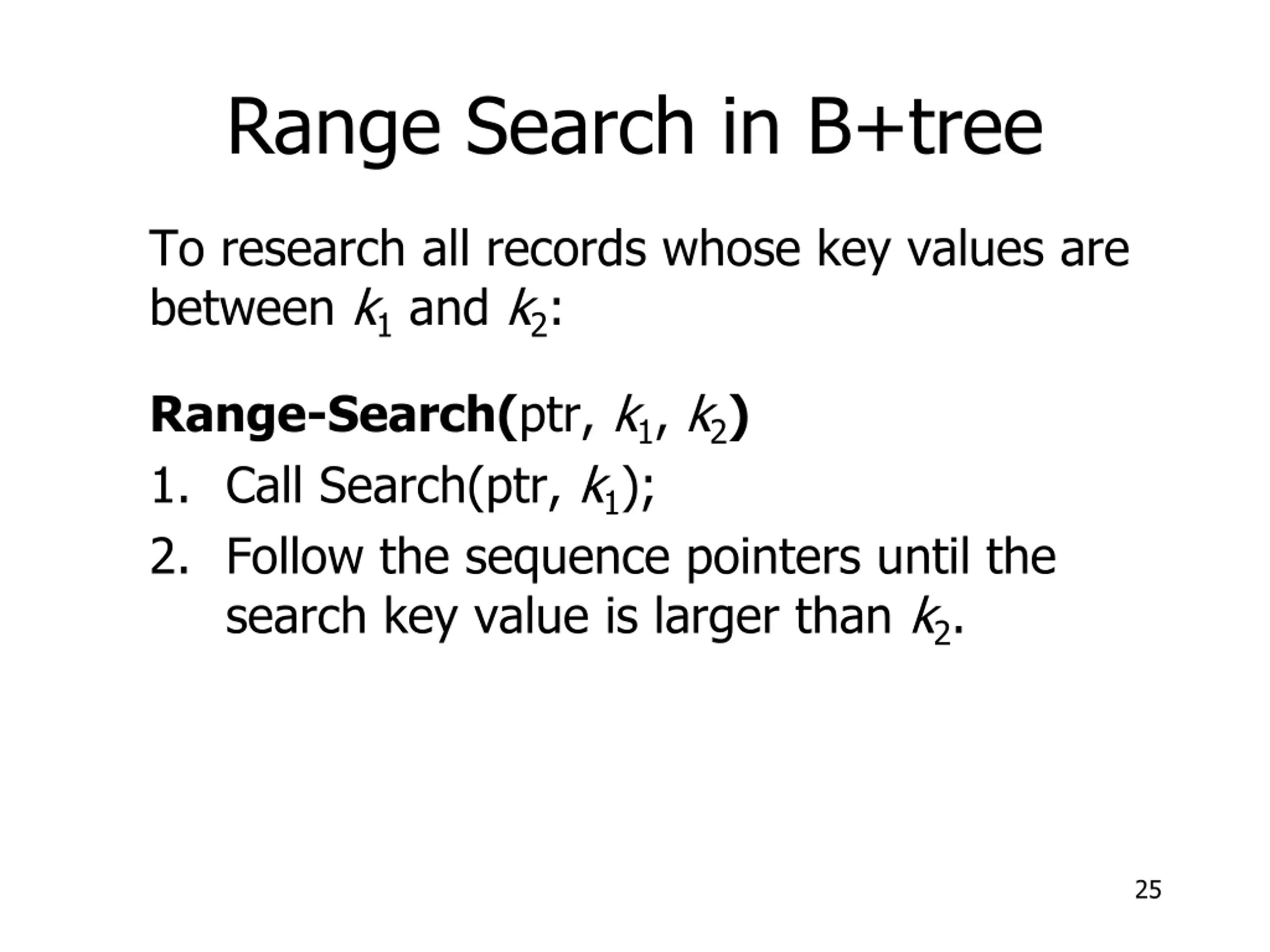

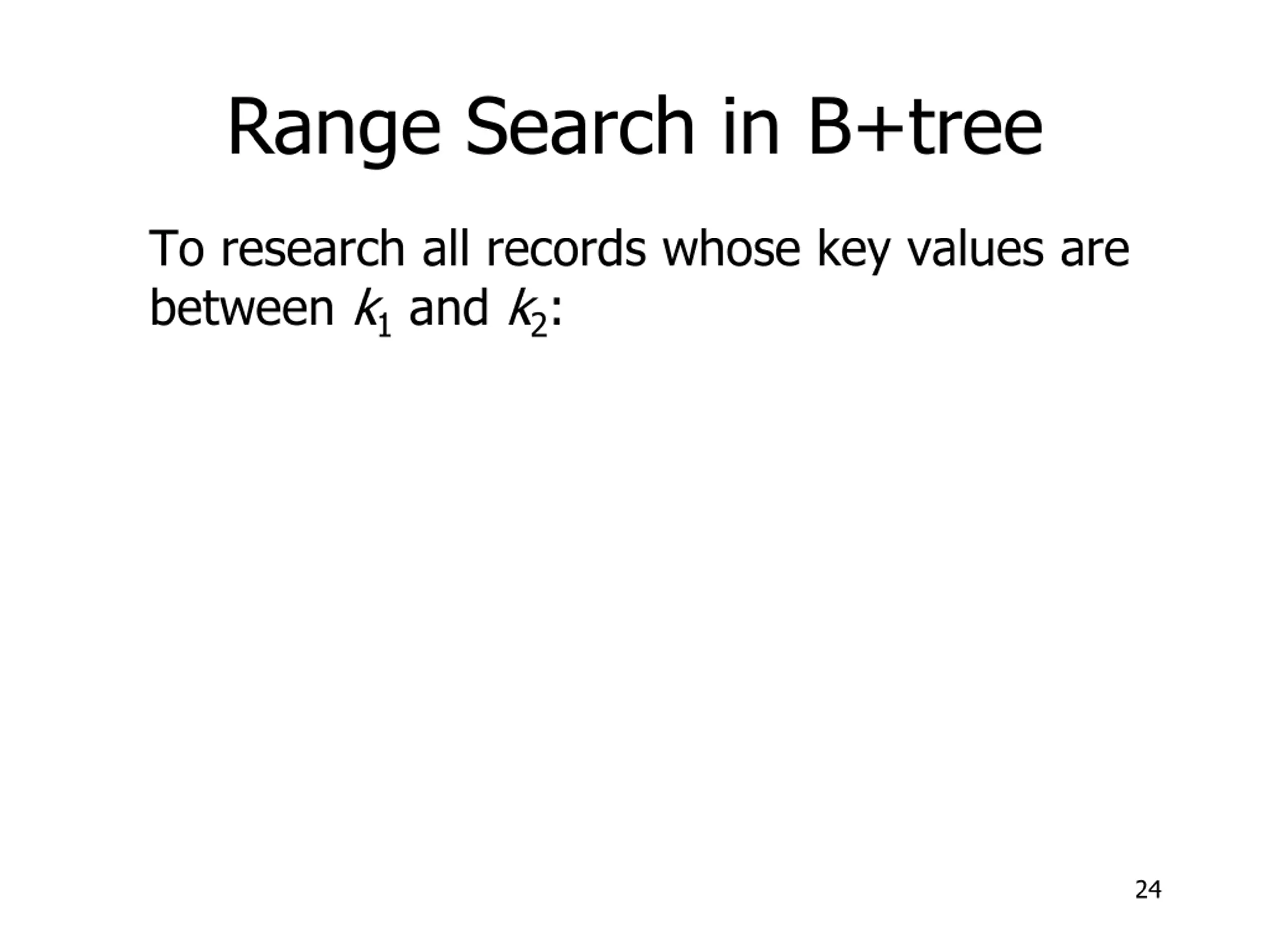

Range Search in B+tree To research all records whose key values are between k1 and k2: 24

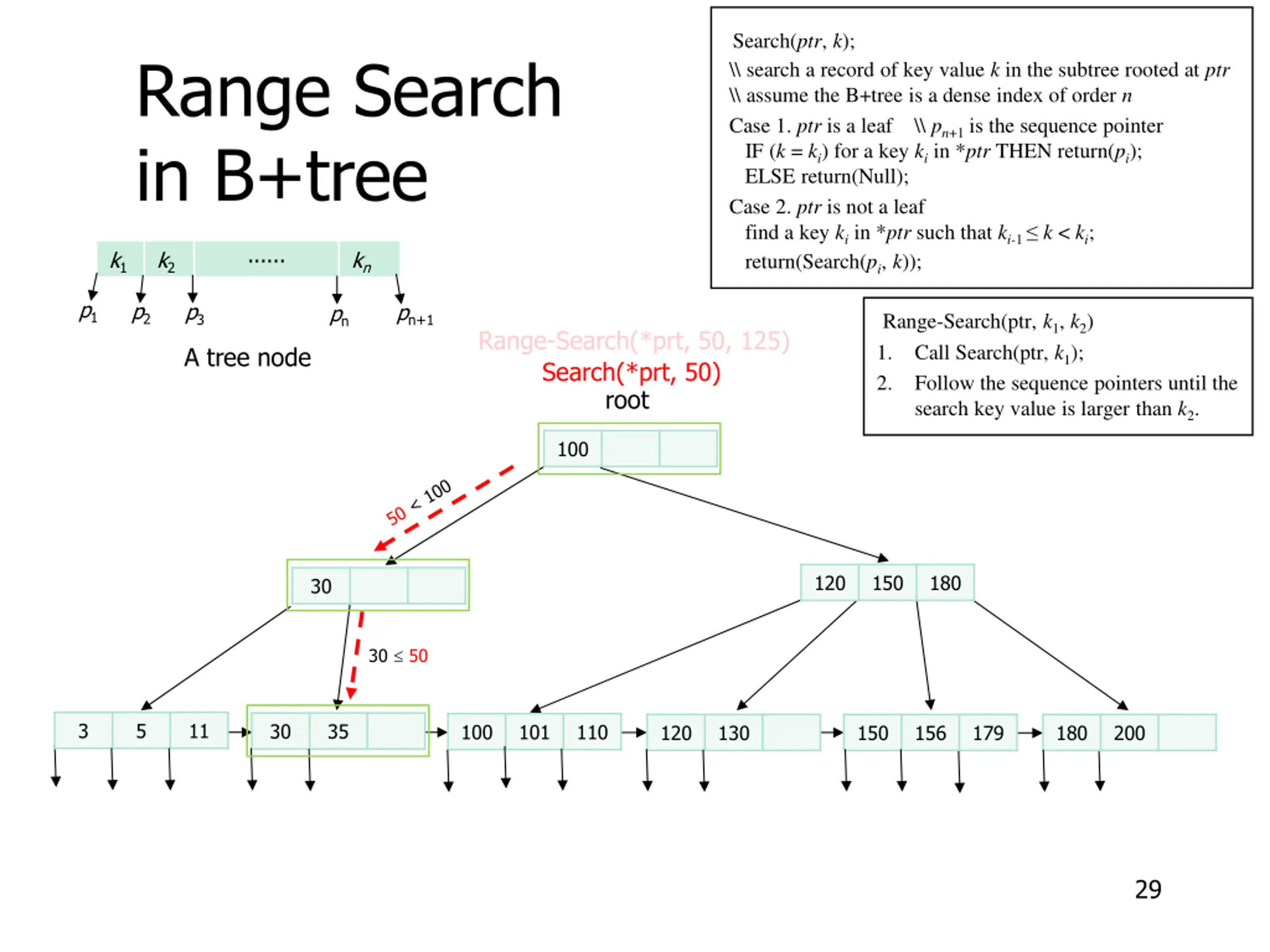

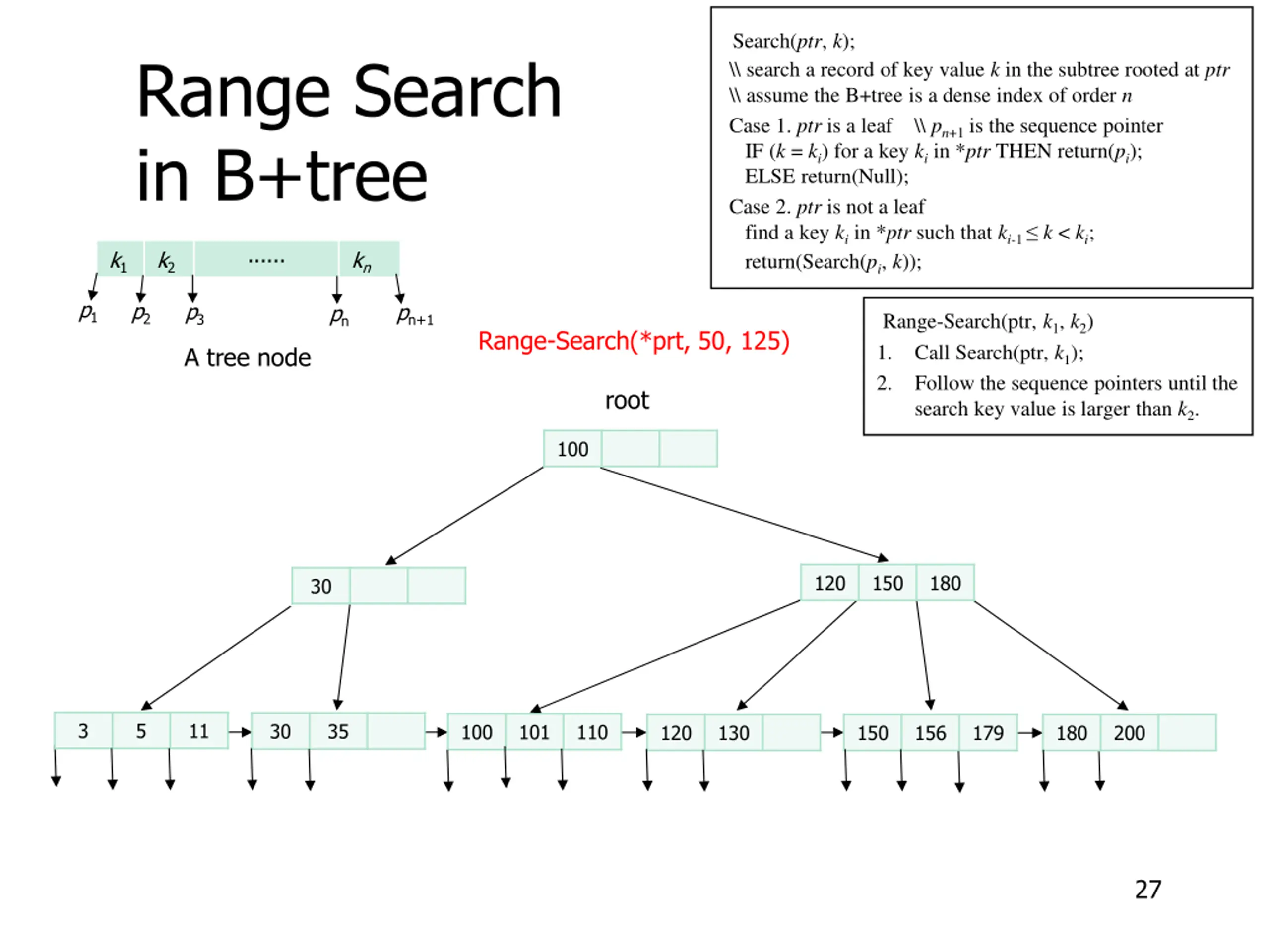

Range Search in B+tree To research all records whose key values are between k1 and k2: Range-Search(ptr, k1, k2) 1. Call Search(ptr, k1); 2. Follow the sequence pointers until the search key value is larger than k2. 25
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Range Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn Range-Search(ptr, k1, k2) 1. Call Search(ptr, k1); 2. Follow the sequence pointers until the search key value is larger than k2. A tree node root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 26
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Range Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn Range-Search(ptr, k1, k2) 1. Call Search(ptr, k1); 2. Follow the sequence pointers until the search key value is larger than k2. Range-Search(*prt, 50, 125) A tree node root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 27
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Range Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn Range-Search(ptr, k1, k2) 1. Call Search(ptr, k1); 2. Follow the sequence pointers until the search key value is larger than k2. Range-Search(*prt, 50, 125) Search(*prt, 50) A tree node root 100 120 150 180 30 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 28
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Range Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn Range-Search(ptr, k1, k2) 1. Call Search(ptr, k1); 2. Follow the sequence pointers until the search key value is larger than k2. Range-Search(*prt, 50, 125) Search(*prt, 50) A tree node root 100 120 150 180 30 30 50 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 29
Search(ptr, k); \\ search a record of key value k in the subtree rooted at ptr \\ assume the B+tree is a dense index of order n Case 1. ptr is a leaf \\ pn+1 is the sequence pointer IF (k = ki) for a key ki in *ptr THEN return(pi); ELSE return(Null); Case 2. ptr is not a leaf find a key ki in *ptr such that ki-1 k < ki; return(Search(pi, k)); Range Search in B+tree k1 k2 kn p1 p2 p3 pn+1 pn Range-Search(ptr, k1, k2) 1. Call Search(ptr, k1); 2. Follow the sequence pointers until the search key value is larger than k2. Range-Search(*prt, 50, 125) Search(*prt, 50) A tree node root 100 120 150 180 30 30 50 3 5 11 30 35 100 101 110 120 130 150 156 179 180 200 35 < 50 Not Return 135 > 125 STOP 110 125 return 100 125 return 101 125 return 120 125 return 30

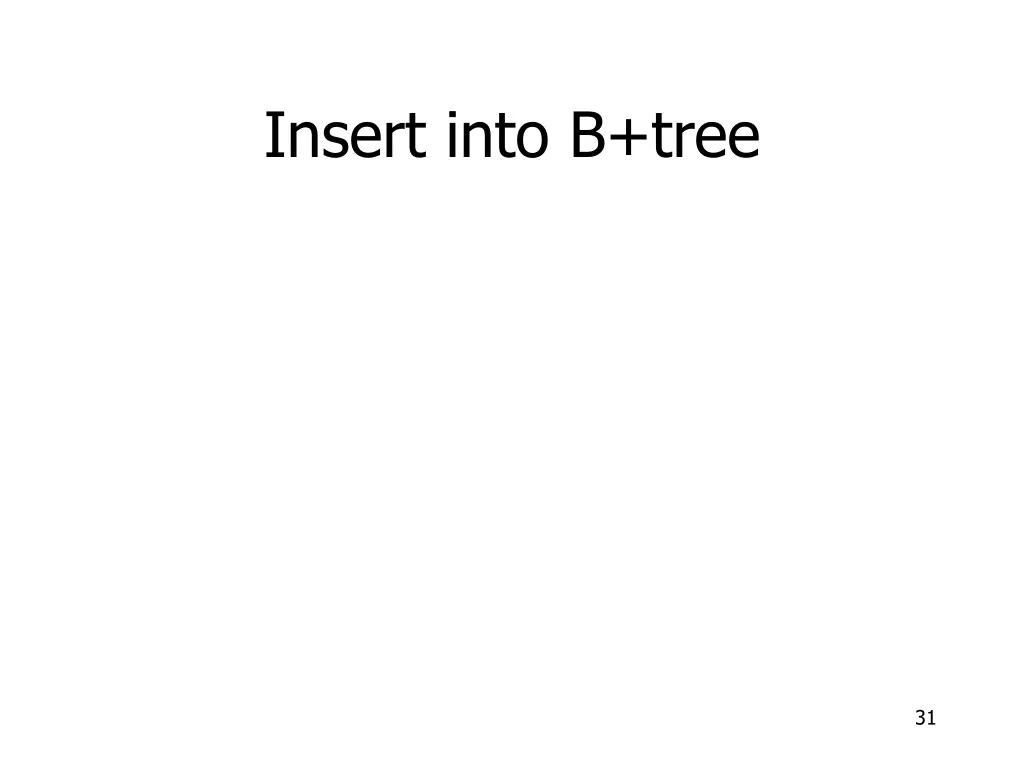

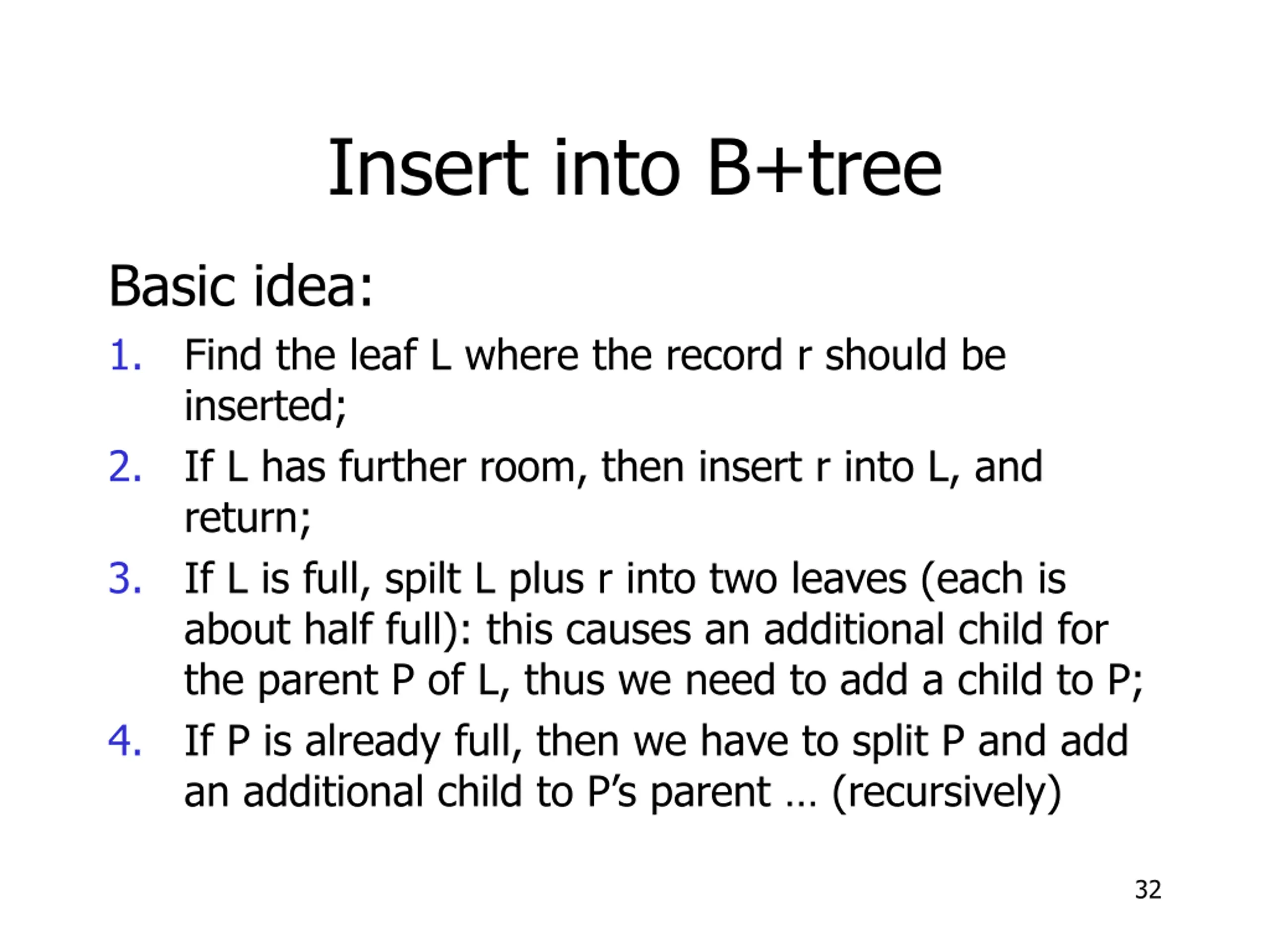

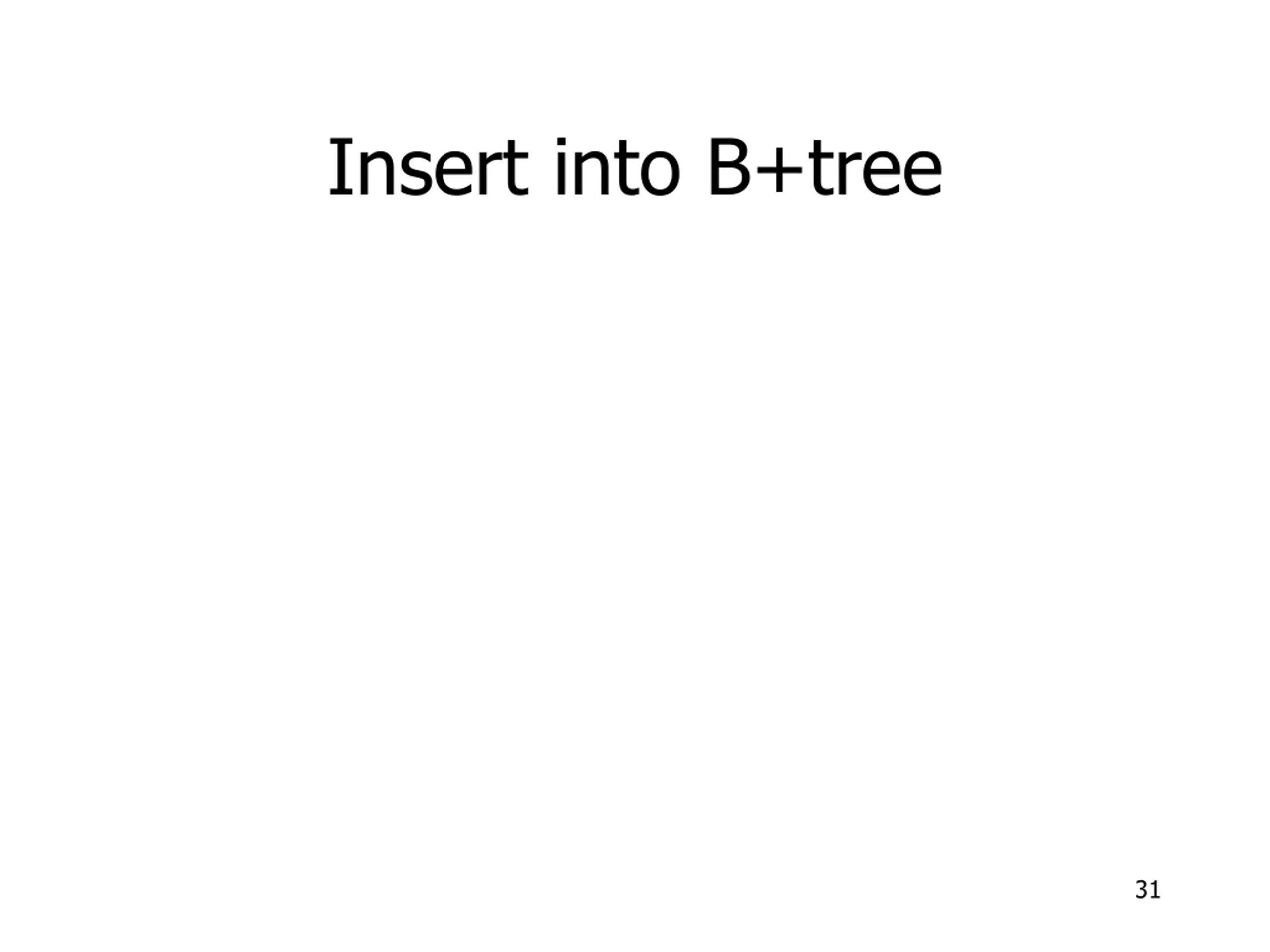

Insert into B+tree Basic idea: 1. Find the leaf L where the record r should be inserted; 2. If L has further room, then insert r into L, and return; 3. If L is full, spilt L plus r into two leaves (each is about half full): this causes an additional child for the parent P of L, thus we need to add a child to P; 4. If P is already full, then we have to split P and add an additional child to P s parent (recursively) 32

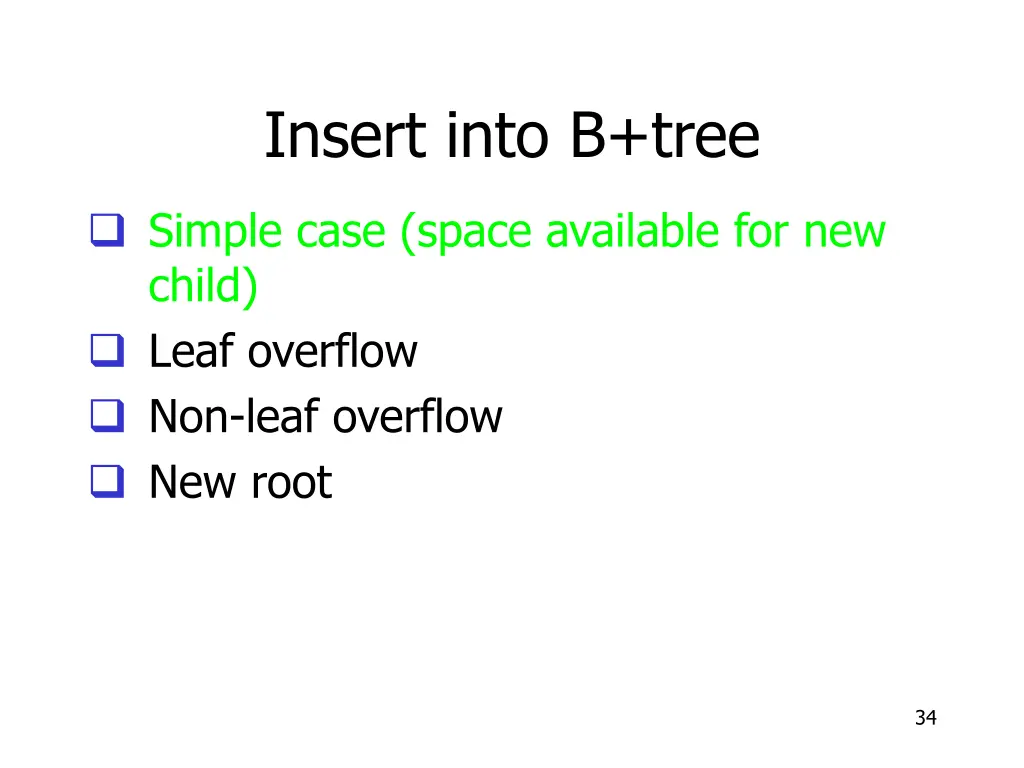

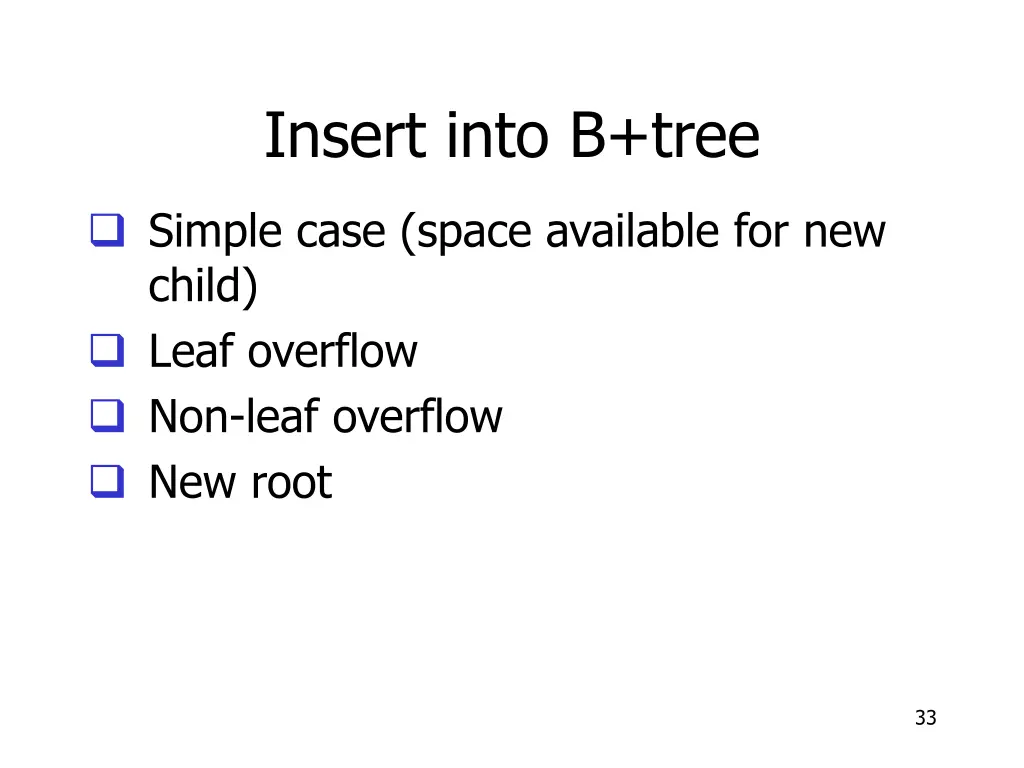

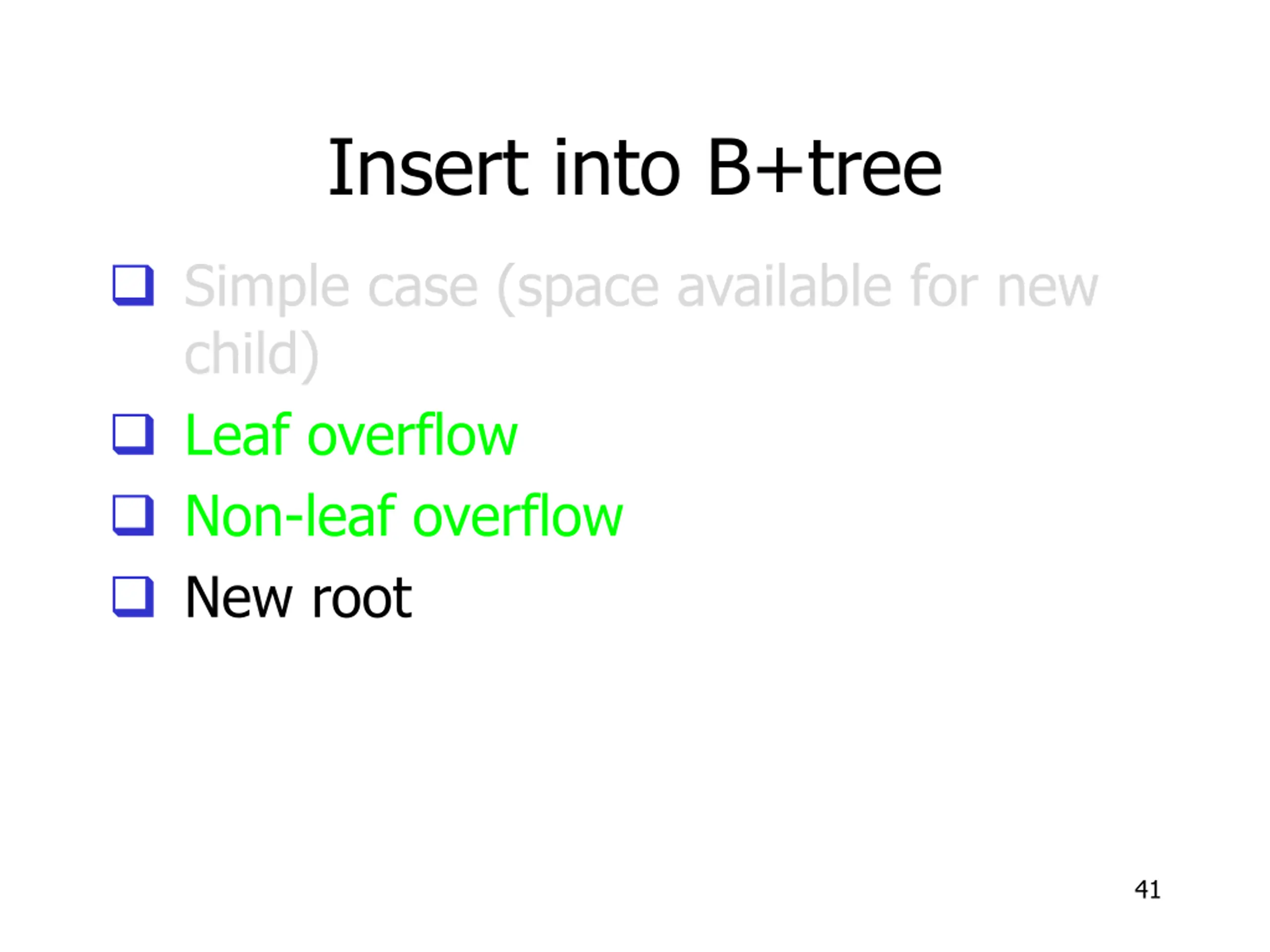

Insert into B+tree Simple case (space available for new child) Leaf overflow Non-leaf overflow New root 33
Insert into B+tree Simple case (space available for new child) Leaf overflow Non-leaf overflow New root 34

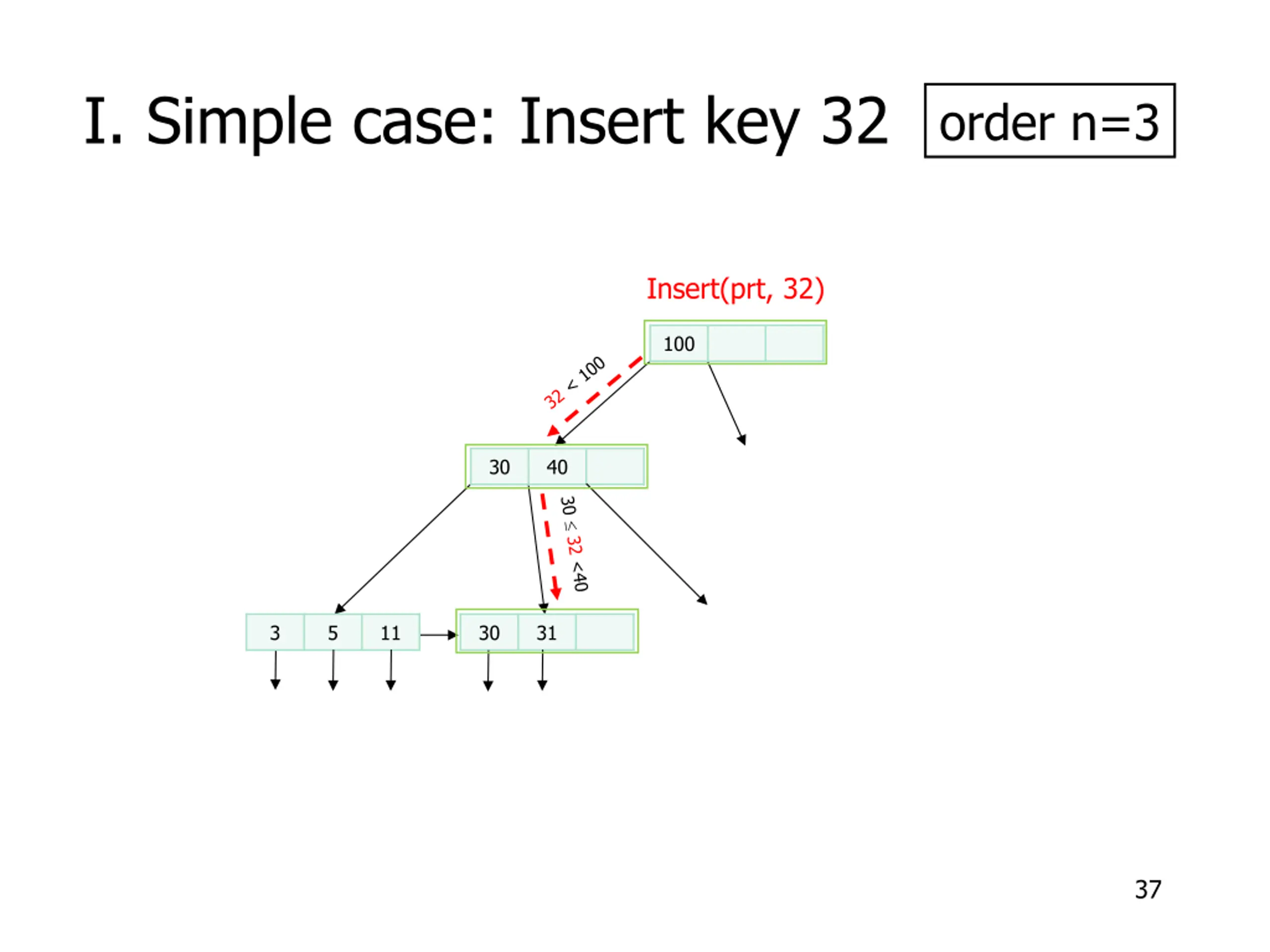

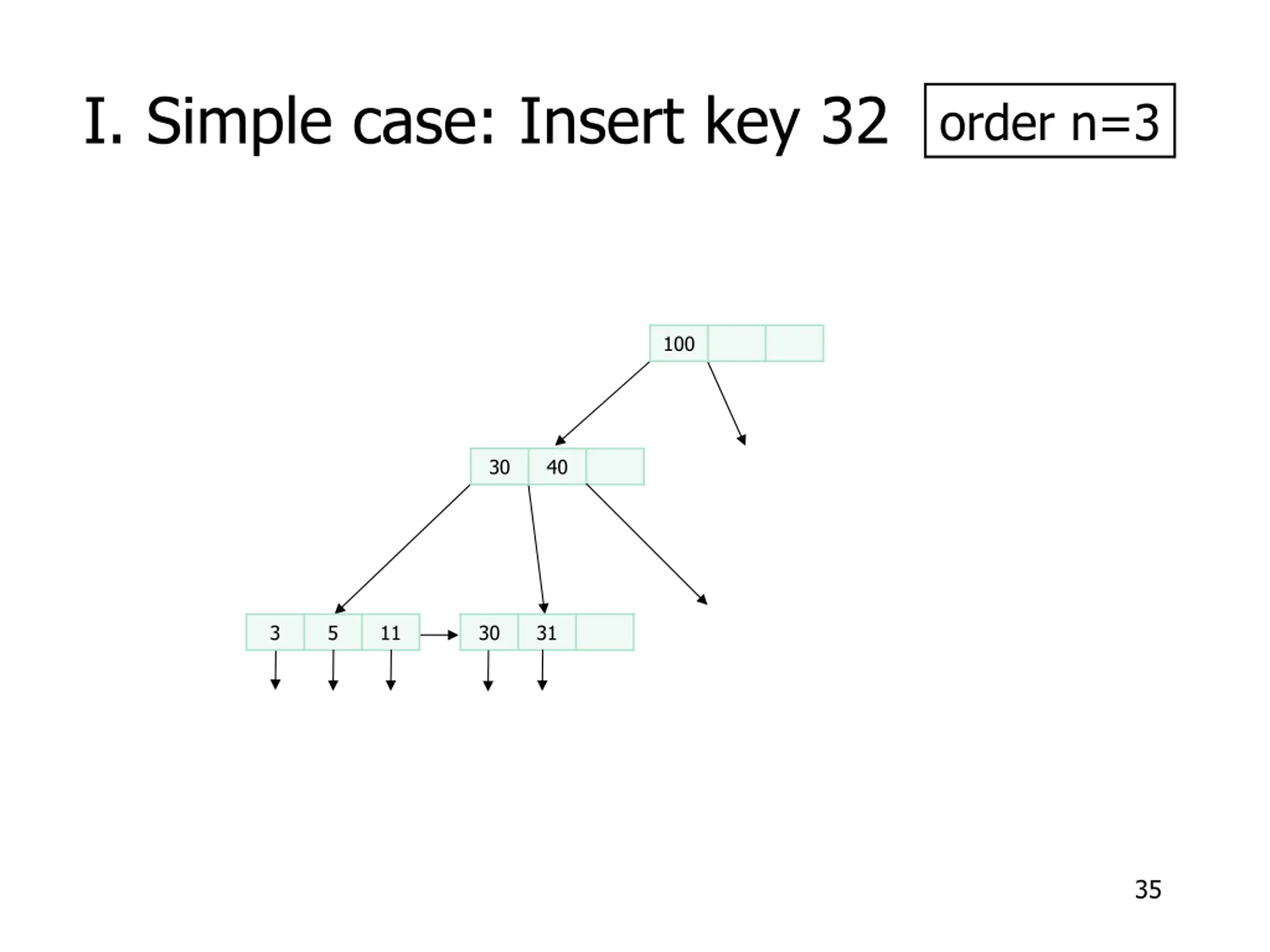

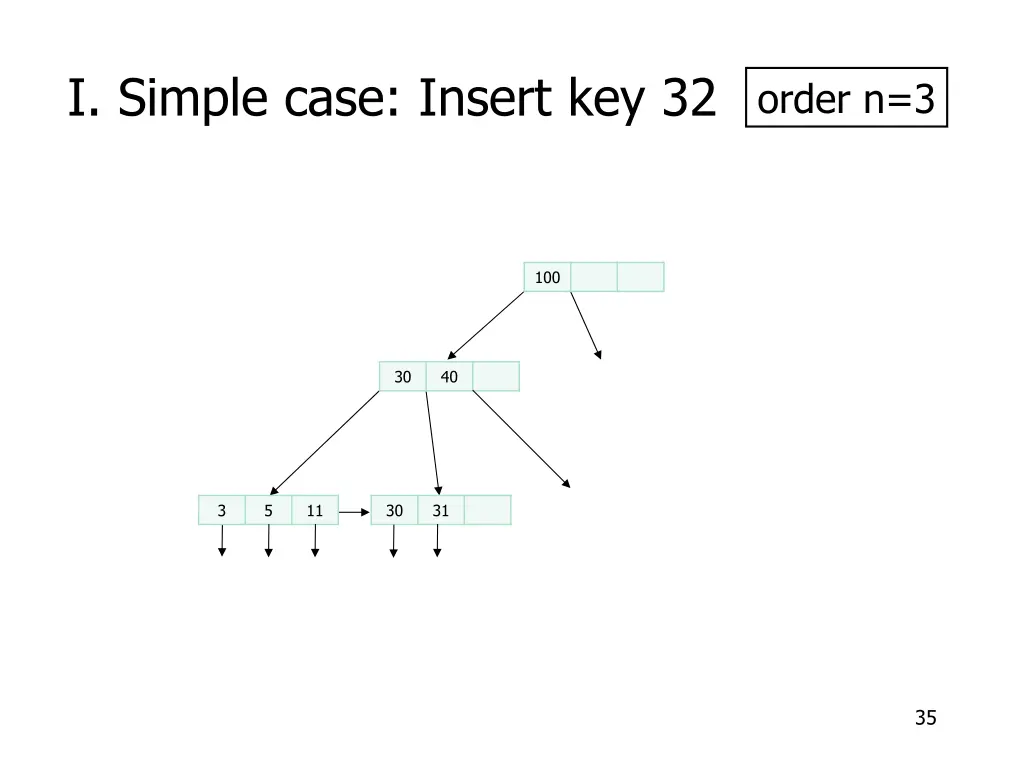

I. Simple case: Insert key 32 order n=3 100 30 40 3 5 11 30 31 35

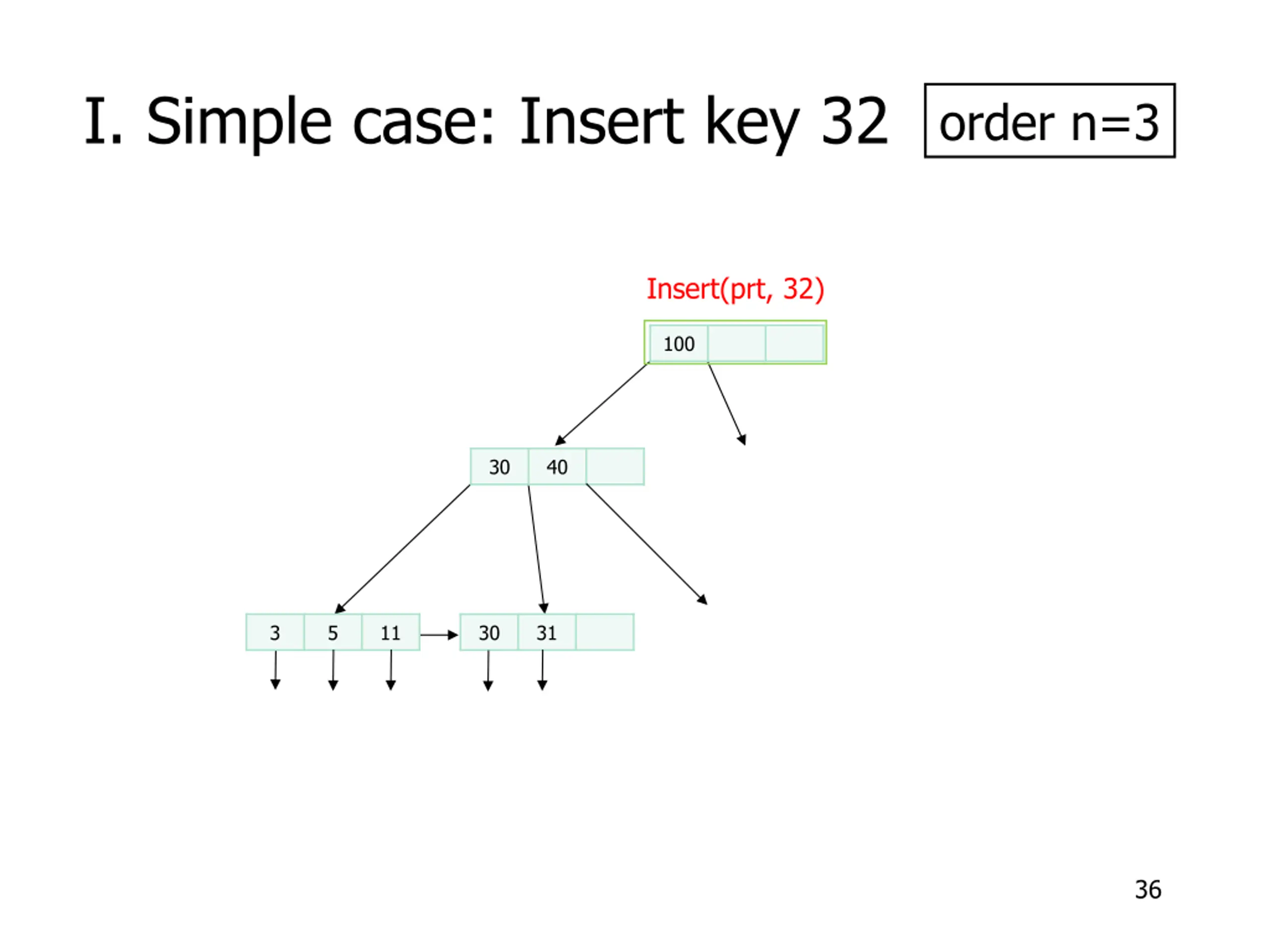

I. Simple case: Insert key 32 order n=3 Insert(prt, 32) 100 30 40 3 5 11 30 31 36
I. Simple case: Insert key 32 order n=3 Insert(prt, 32) 100 30 40 3 5 11 30 31 37

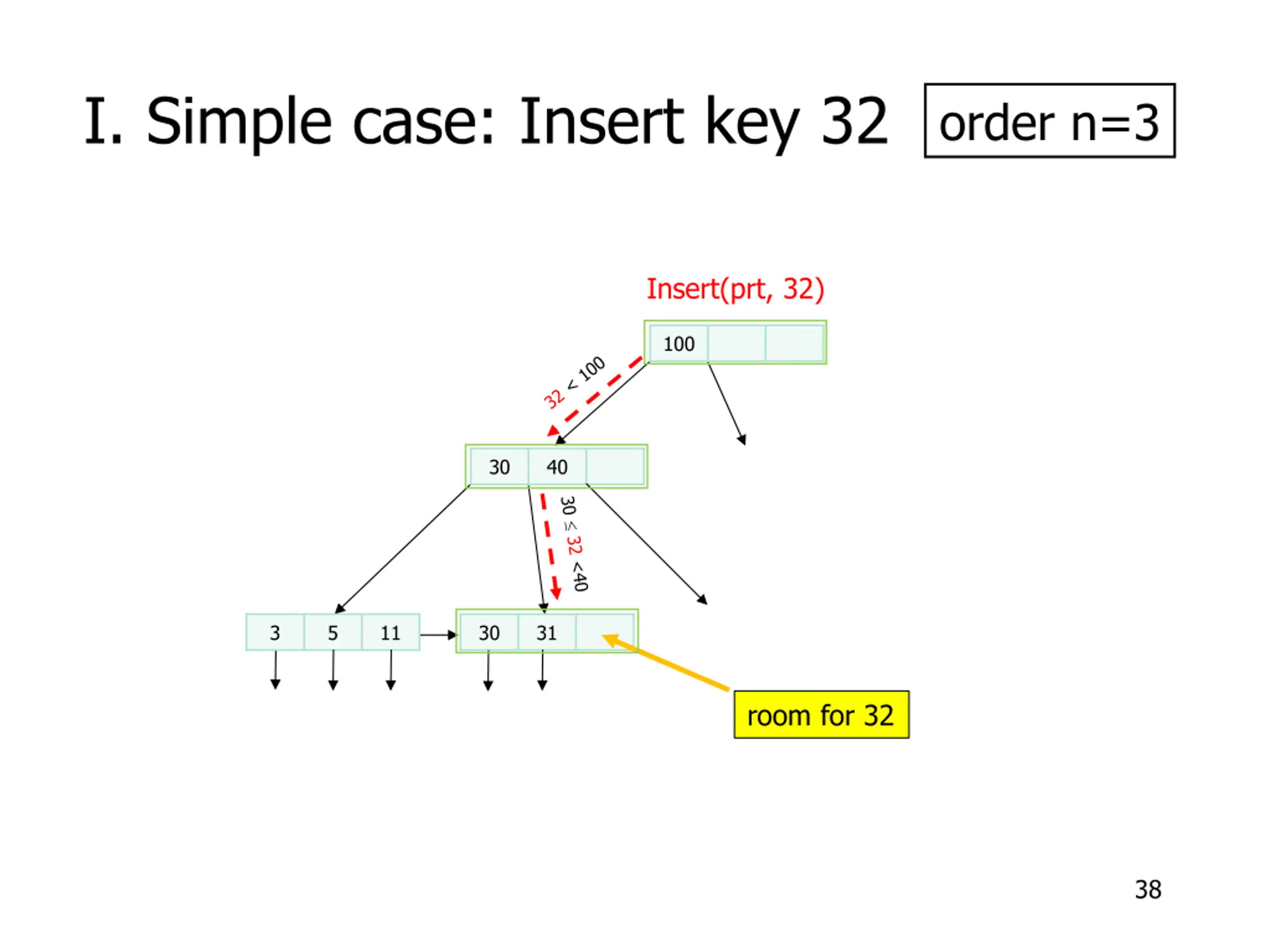

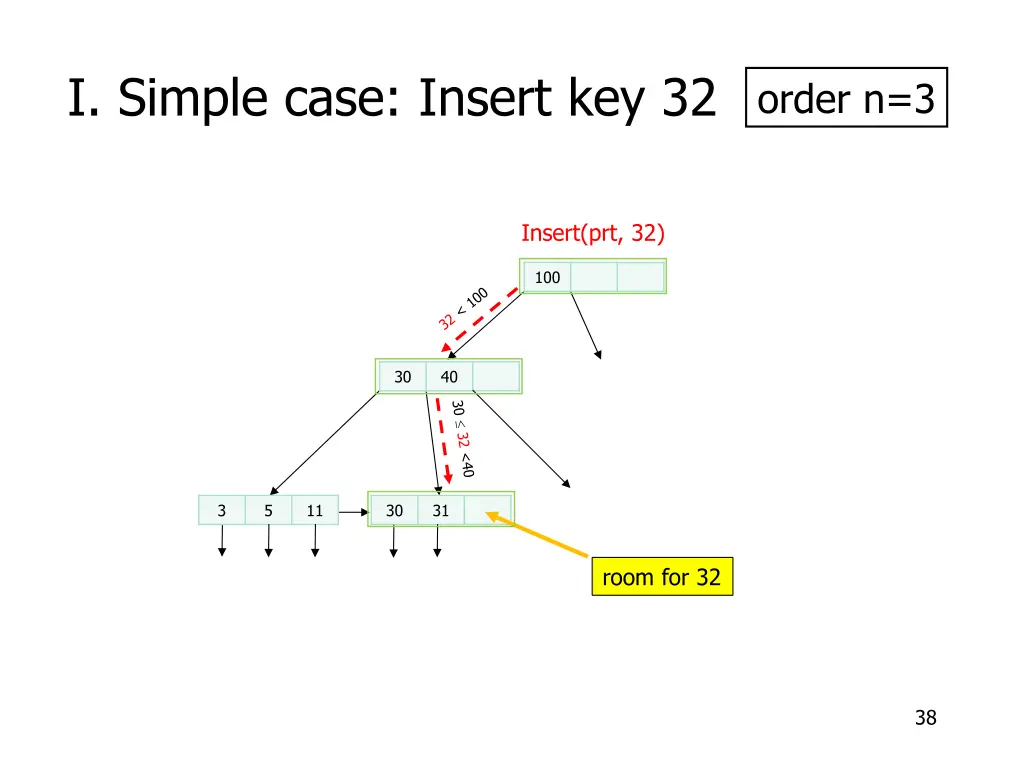

I. Simple case: Insert key 32 order n=3 Insert(prt, 32) 100 30 40 3 5 11 30 31 room for 32 38
I. Simple case: Insert key 32 order n=3 Insert(prt, 32) 100 30 40 3 5 11 30 31 32 39

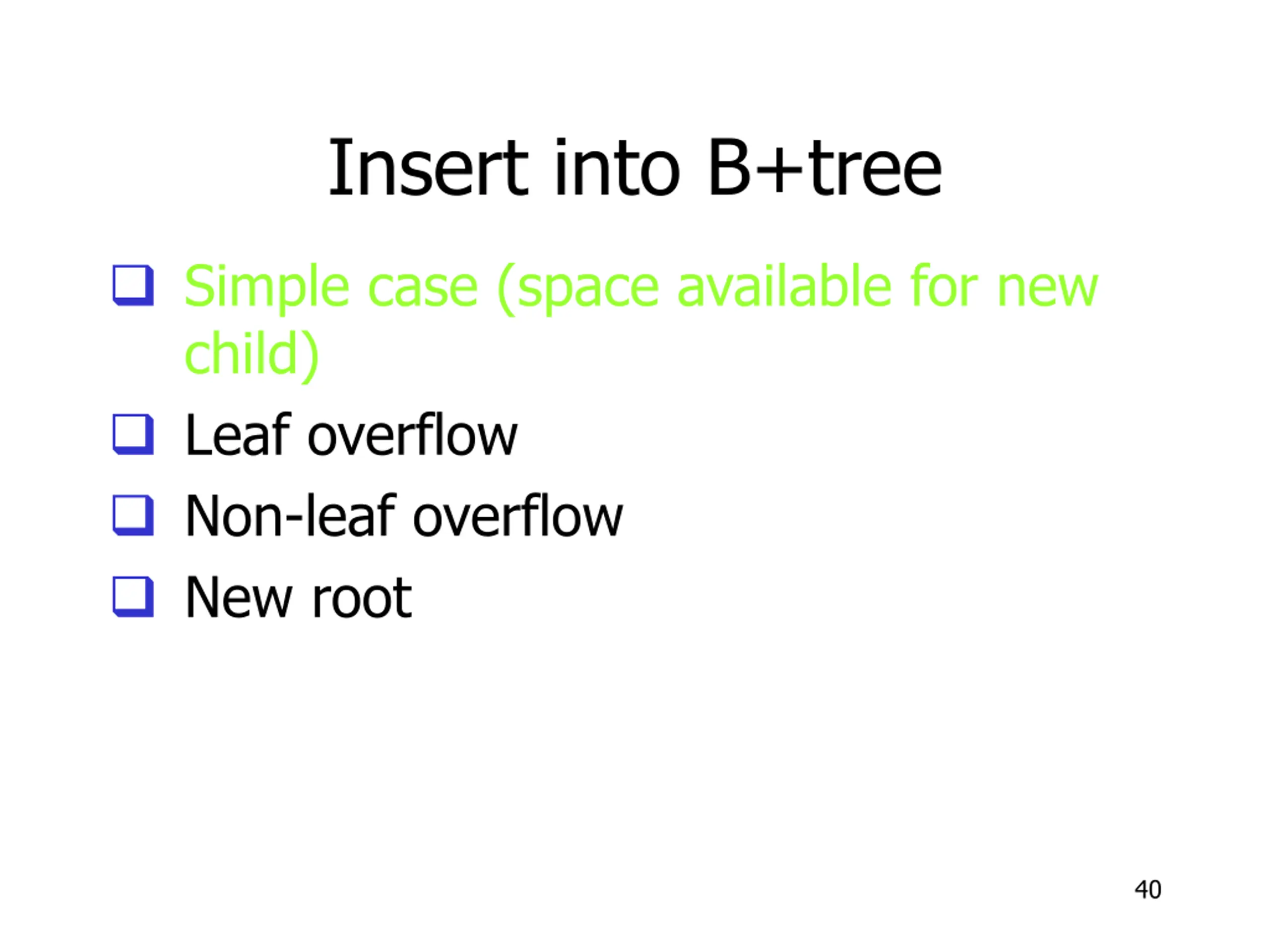

Insert into B+tree Simple case (space available for new child) Leaf overflow Non-leaf overflow New root 40
Insert into B+tree Simple case (space available for new child) Leaf overflow Non-leaf overflow New root 41

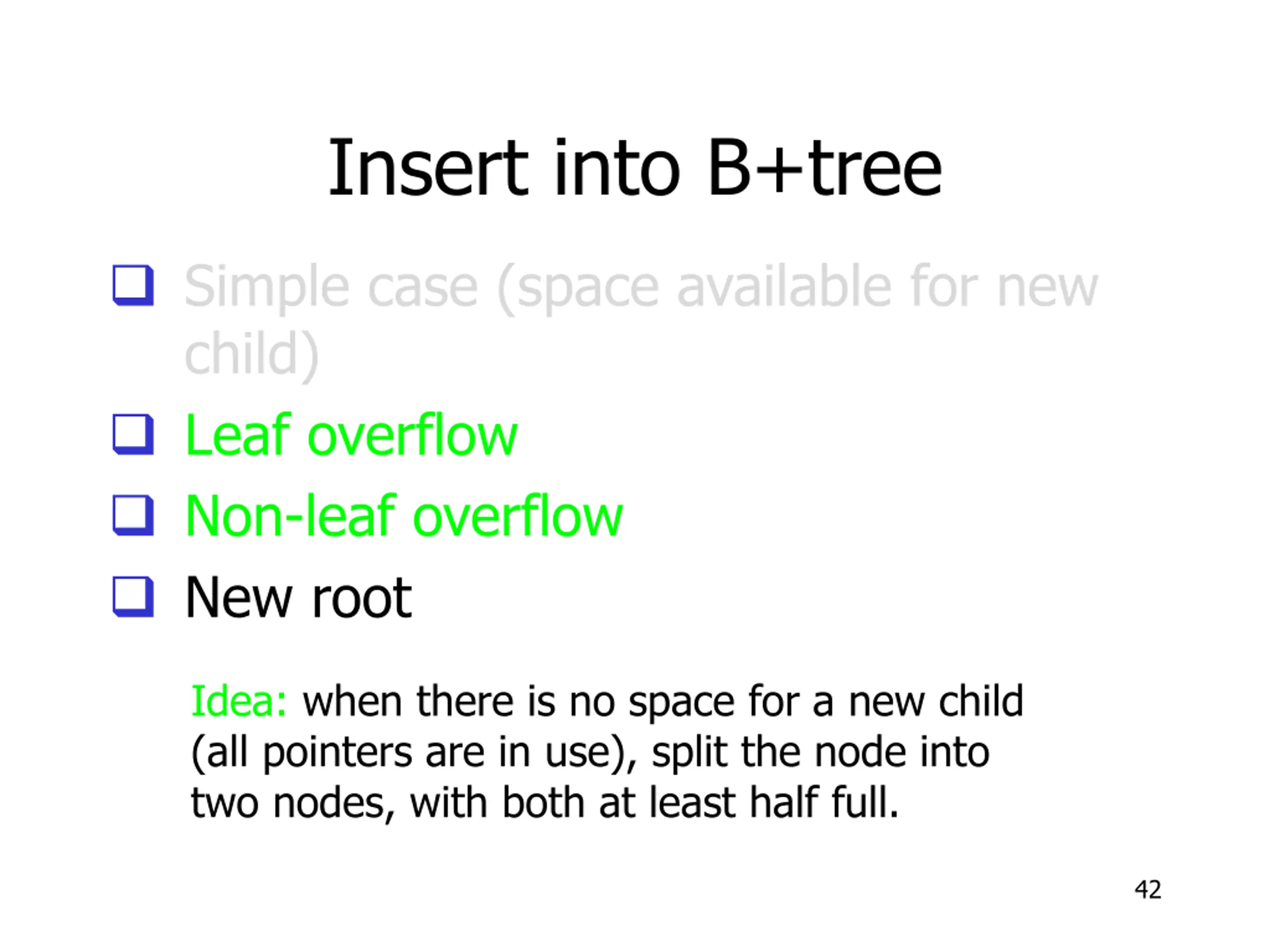

Insert into B+tree Simple case (space available for new child) Leaf overflow Non-leaf overflow New root Idea: when there is no space for a new child (all pointers are in use), split the node into two nodes, with both at least half full. 42

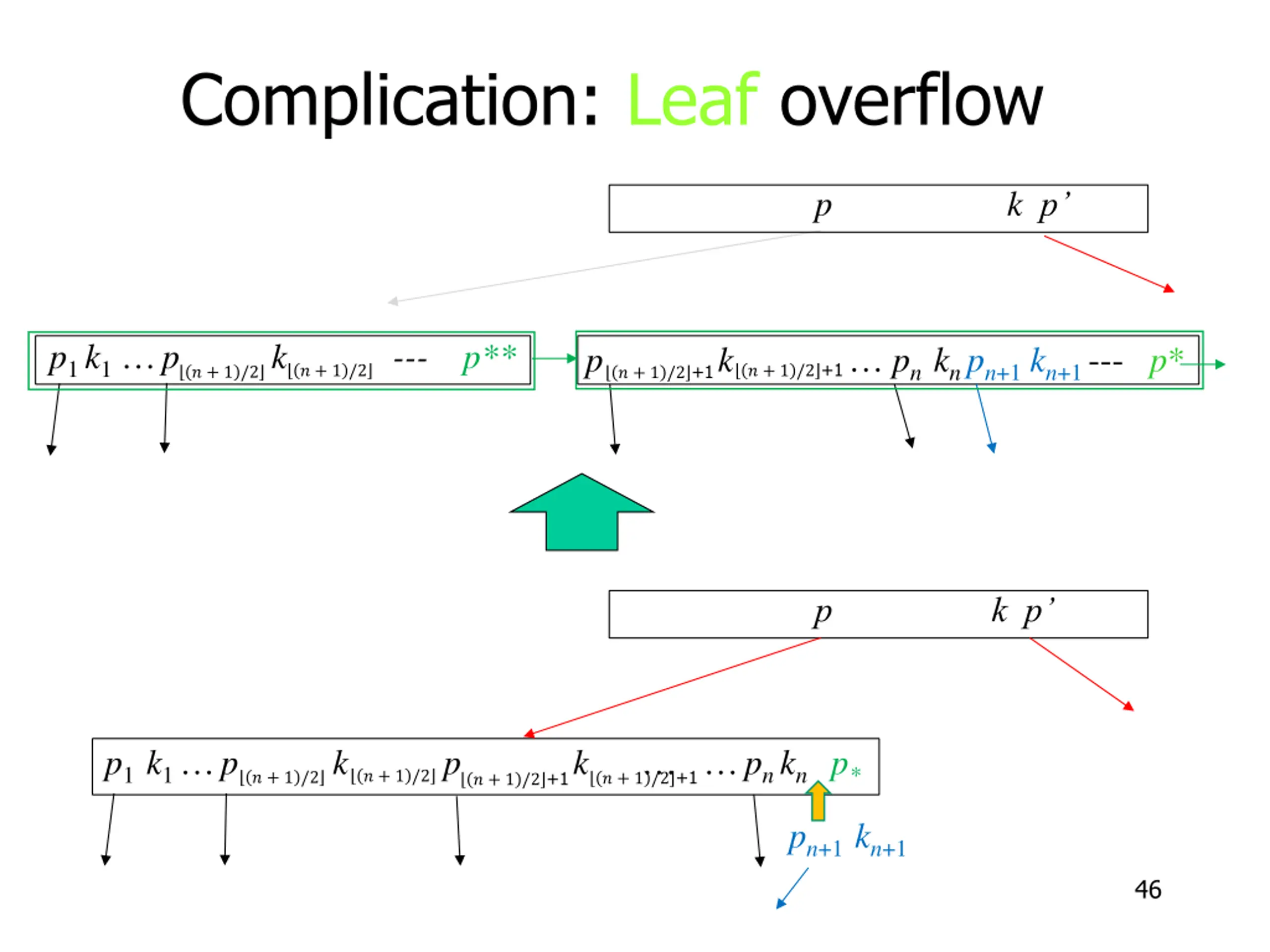

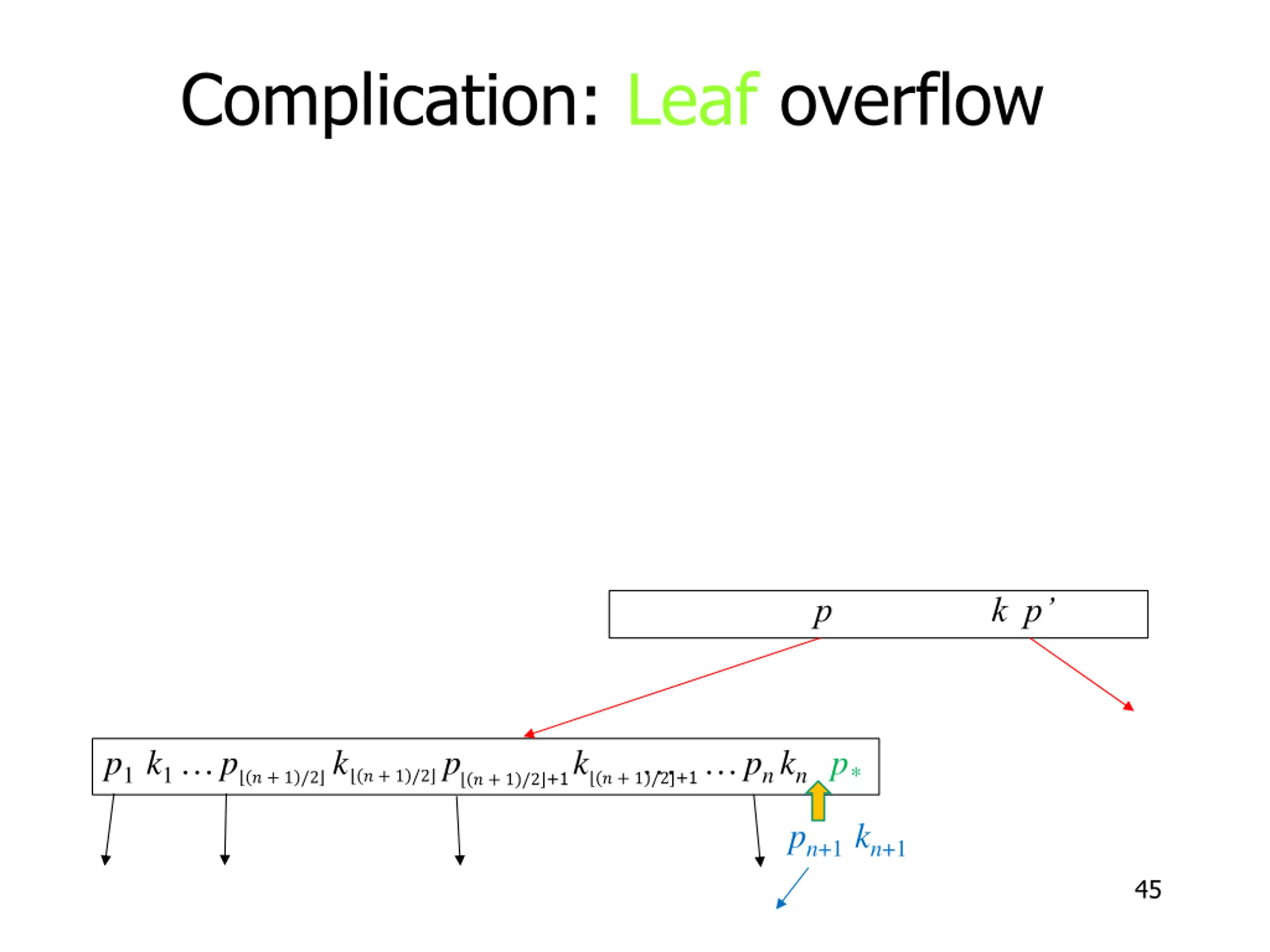

Complication: Leaf overflow p k p k pn kn p* ? + 1 /2 +1 p1 k1 p kp ? + 1 /2 ? + 1 /2 +1 ? + 1 /2 pn+1kn+1 45

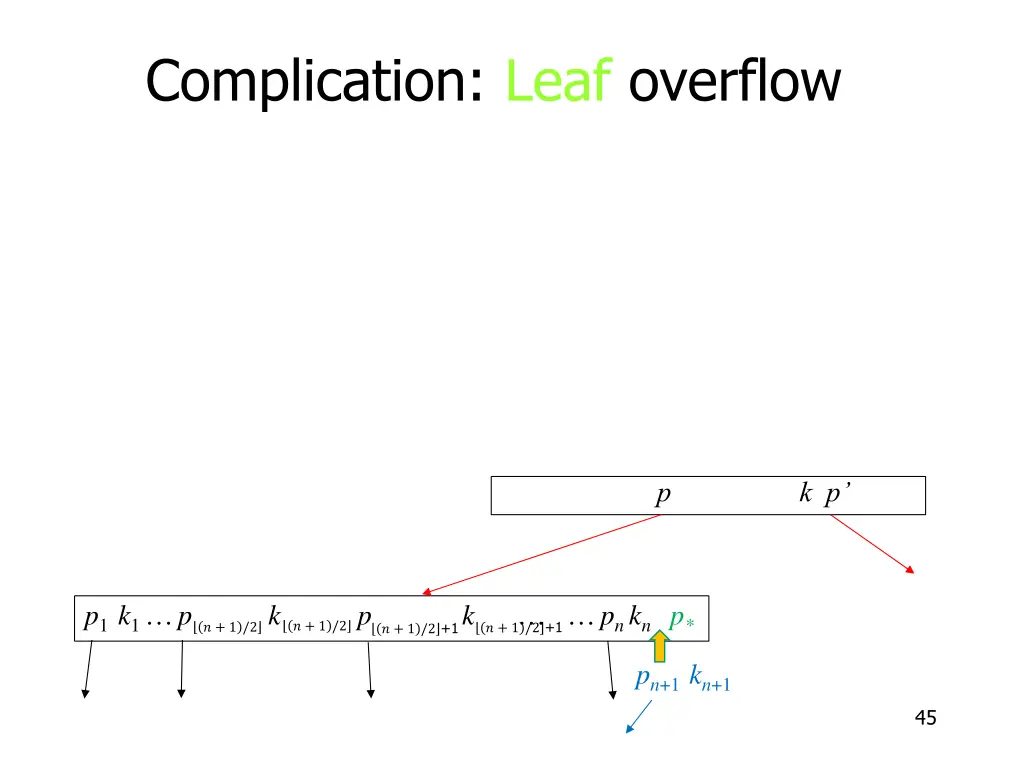

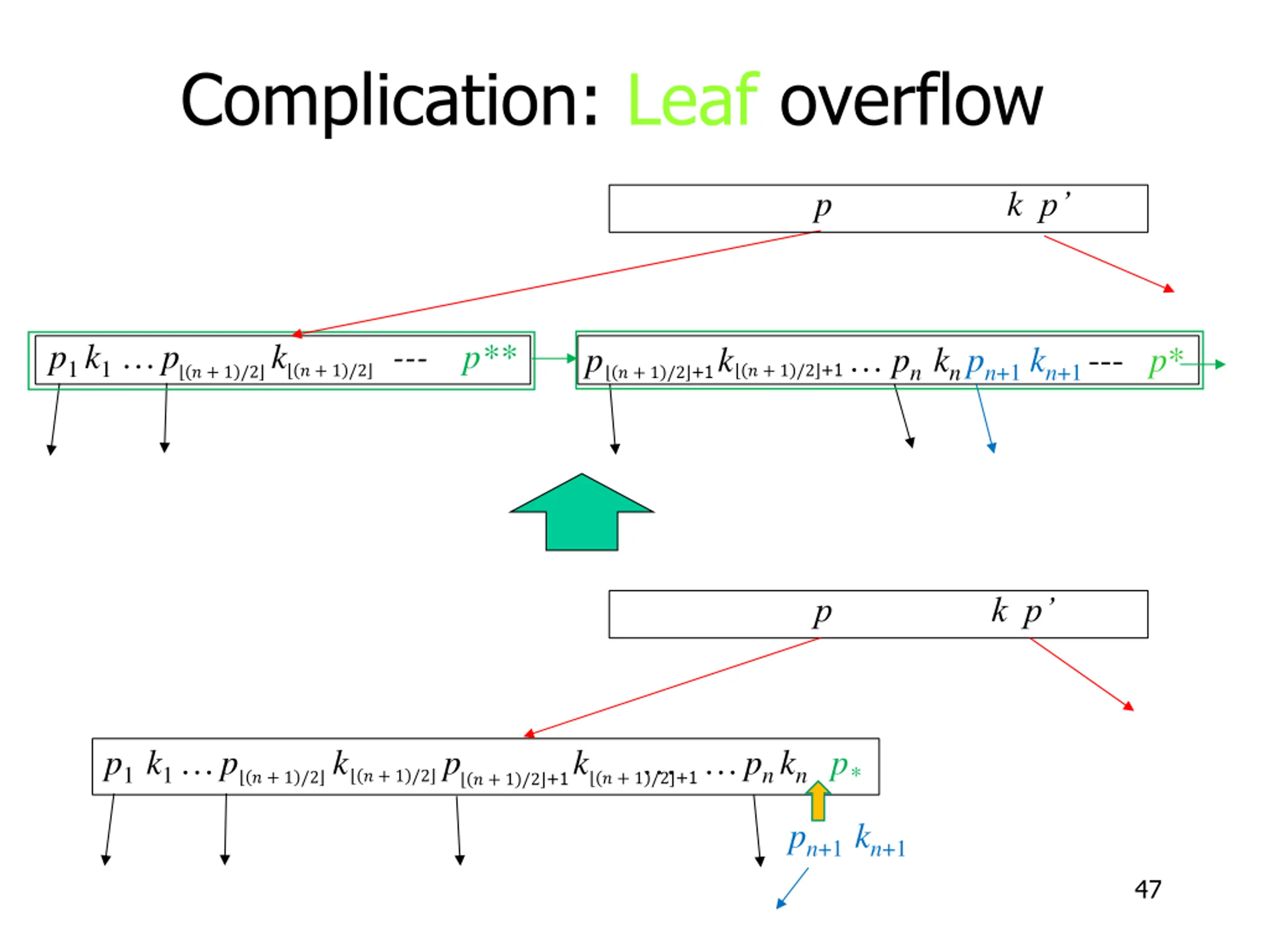

Complication: Leaf overflow p k k p p1 k1 p k --- p** ? + 1 /2 pk pn kn pn+1 kn+1 --- p* ? + 1 /2 +1 ? + 1 /2 +1 ? + 1 /2 p k p k pn kn p* ? + 1 /2 +1 p1 k1 p kp ? + 1 /2 ? + 1 /2 +1 ? + 1 /2 pn+1kn+1 46
Complication: Leaf overflow p k k p p1 k1 p k --- p** ? + 1 /2 pk pn kn pn+1 kn+1 --- p* ? + 1 /2 +1 ? + 1 /2 +1 ? + 1 /2 p k p k pn kn p* ? + 1 /2 +1 p1 k1 p kp ? + 1 /2 ? + 1 /2 +1 ? + 1 /2 pn+1kn+1 47

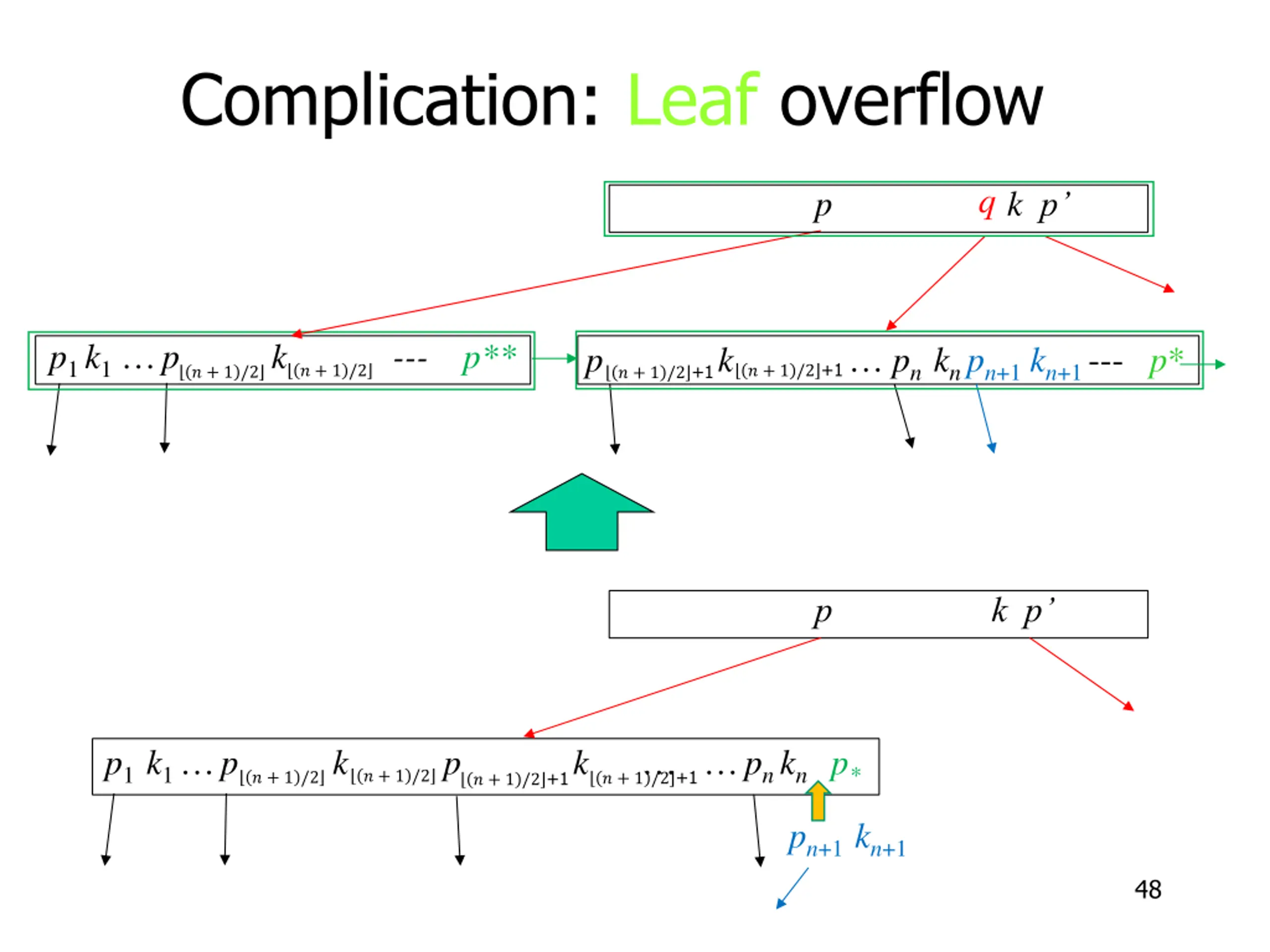

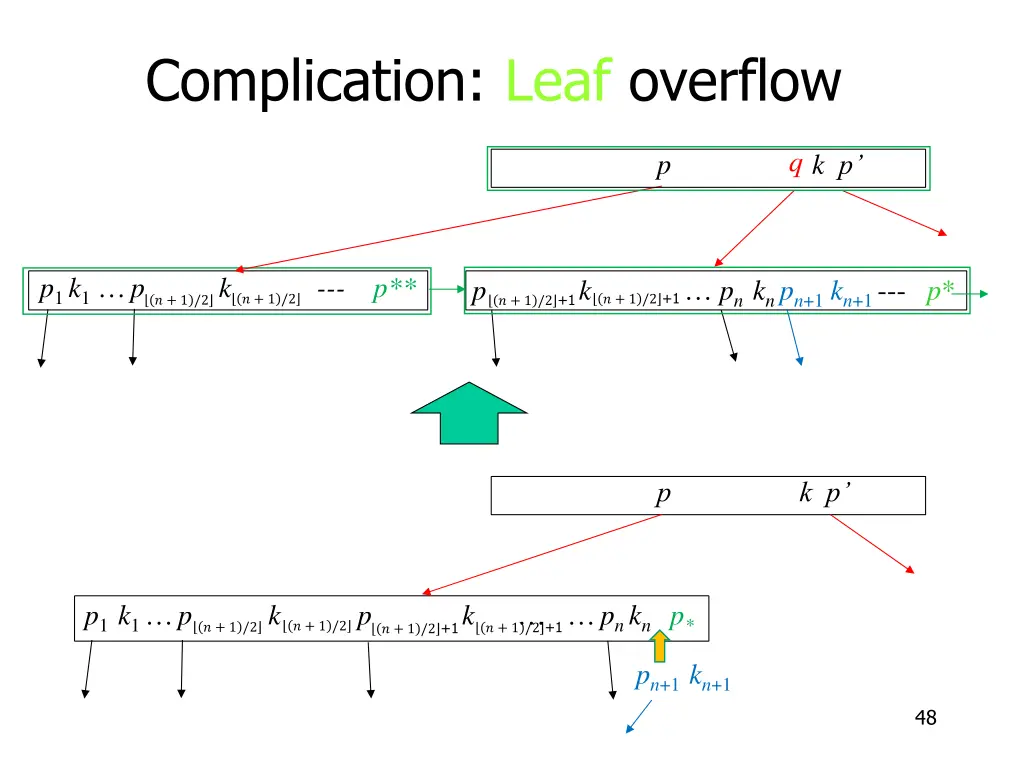

Complication: Leaf overflow q p k k p p1 k1 p k --- p** ? + 1 /2 pk pn kn pn+1 kn+1 --- p* ? + 1 /2 +1 ? + 1 /2 +1 ? + 1 /2 p k p k pn kn p* ? + 1 /2 +1 p1 k1 p kp ? + 1 /2 ? + 1 /2 +1 ? + 1 /2 pn+1kn+1 48

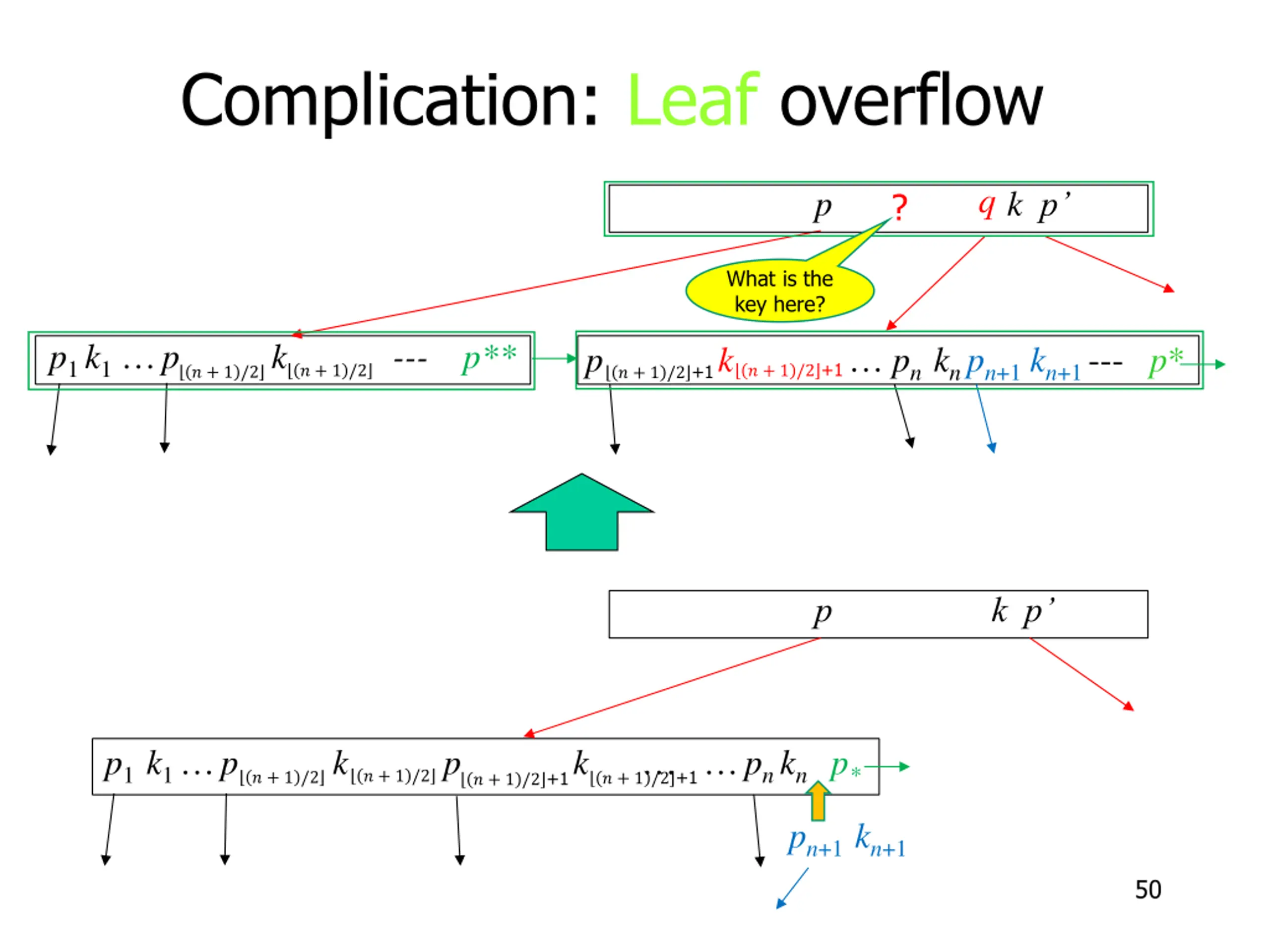

Complication: Leaf overflow q p k k p ? What is the key here? p1 k1 p k --- p** ? + 1 /2 pk pn kn pn+1 kn+1 --- p* ? + 1 /2 +1 ? + 1 /2 +1 ? + 1 /2 p k p k pn kn p* ? + 1 /2 +1 p1 k1 p kp ? + 1 /2 ? + 1 /2 +1 ? + 1 /2 pn+1kn+1 49
Complication: Leaf overflow q p k k p ? What is the key here? p1 k1 p k --- p** ? + 1 /2 pk pn kn pn+1 kn+1 --- p* ? + 1 /2 +1 ? + 1 /2 +1 ? + 1 /2 p k p k pn kn p* ? + 1 /2 +1 p1 k1 p kp ? + 1 /2 ? + 1 /2 +1 ? + 1 /2 pn+1kn+1 50
