ERCOT Frequency Control Report November 2019 ERCOT Operations Planning PDCWG | December 11th, 2019

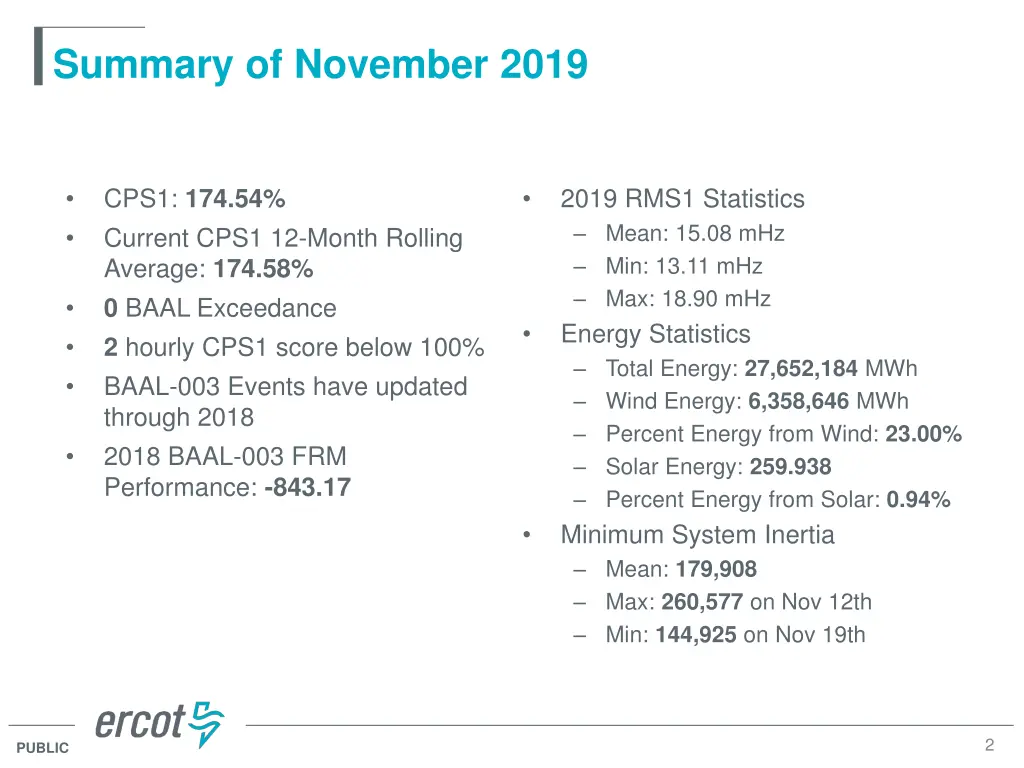

Summary of November 2019 CPS1: 174.54% Current CPS1 12-Month Rolling Average: 174.58% 0 BAAL Exceedance 2 hourly CPS1 score below 100% BAAL-003 Events have updated through 2018 2018 BAAL-003 FRM Performance: -843.17 2019 RMS1 Statistics Mean: 15.08 mHz Min: 13.11 mHz Max: 18.90 mHz Energy Statistics Total Energy: 27,652,184 MWh Wind Energy: 6,358,646 MWh Percent Energy from Wind: 23.00% Solar Energy: 259.938 Percent Energy from Solar: 0.94% Minimum System Inertia Mean: 179,908 Max: 260,577 on Nov 12th Min: 144,925 on Nov 19th 2 PUBLIC

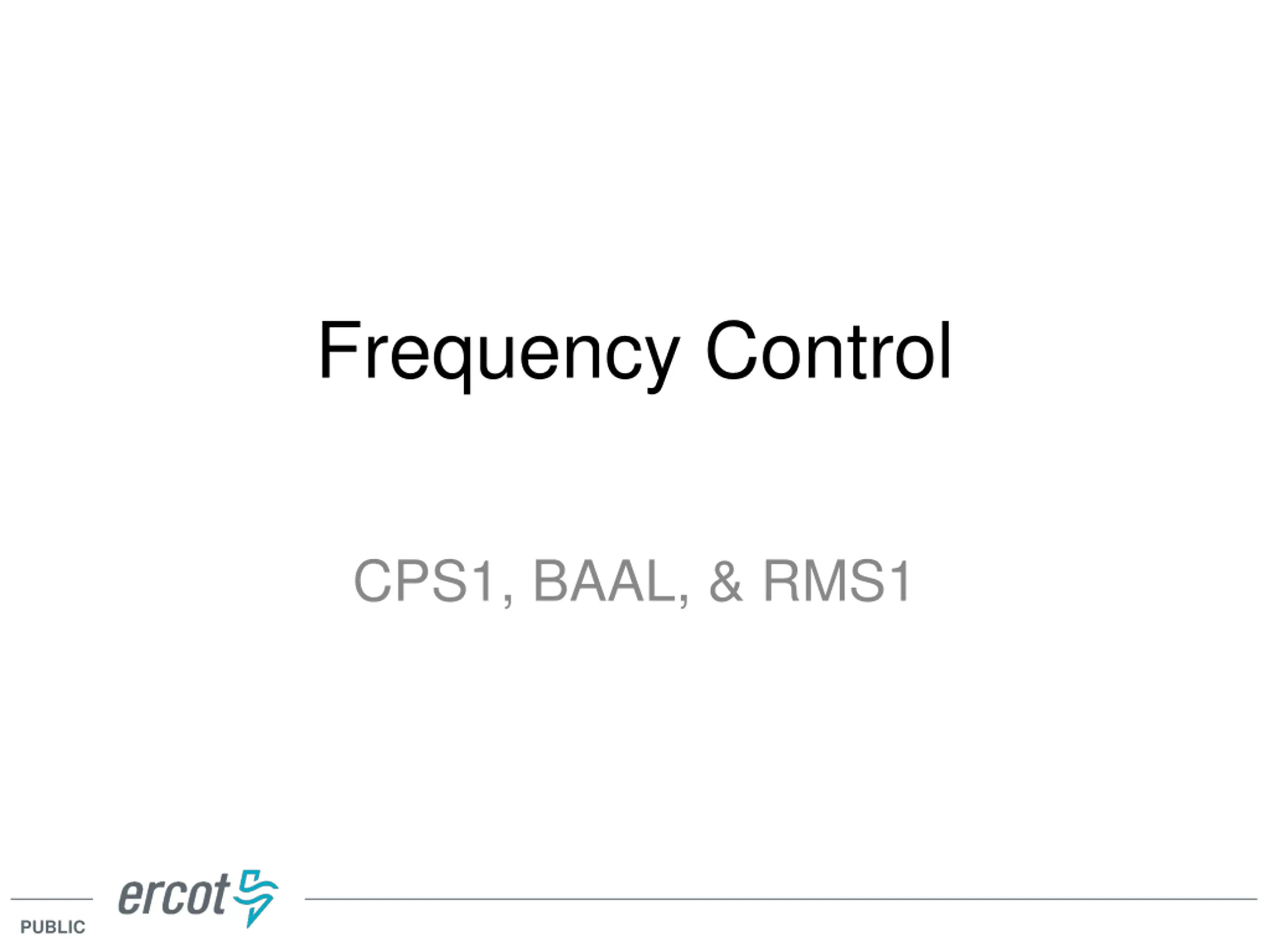

Frequency Control CPS1, BAAL, & RMS1 PUBLIC

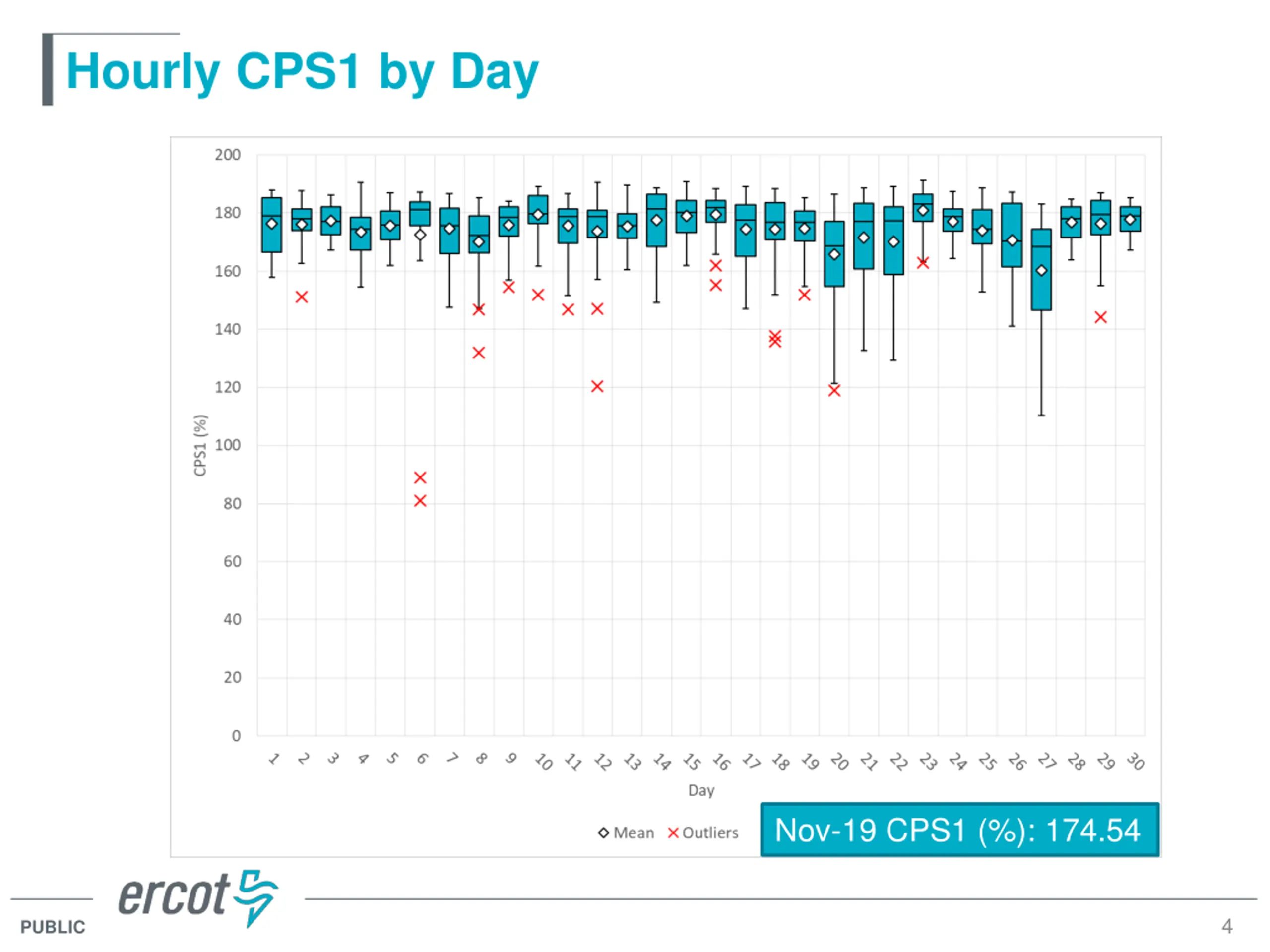

Hourly CPS1 by Day Nov-19 CPS1 (%): 174.54 4 PUBLIC

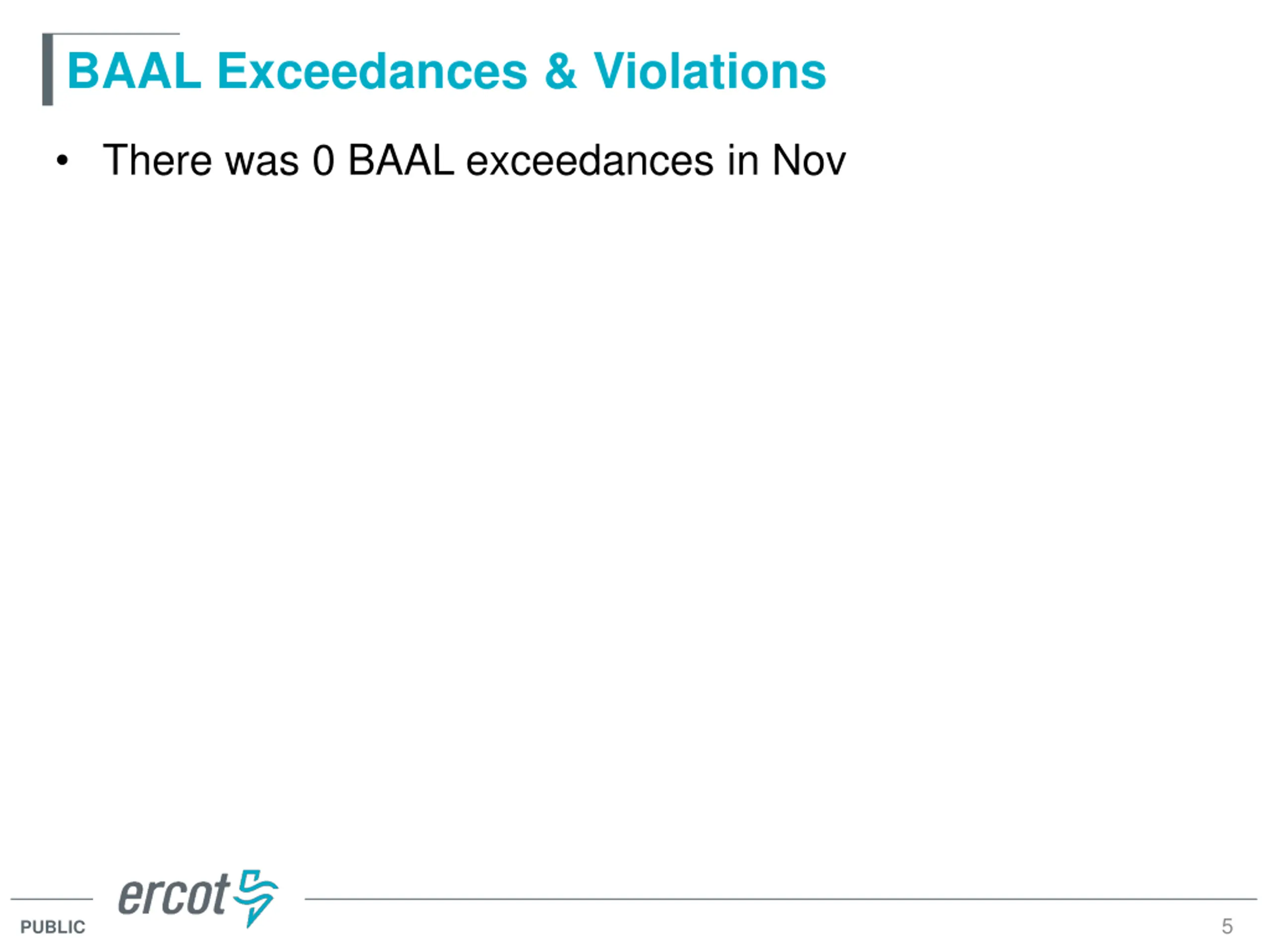

BAAL Exceedances & Violations There was 0 BAAL exceedances in Nov 5 PUBLIC

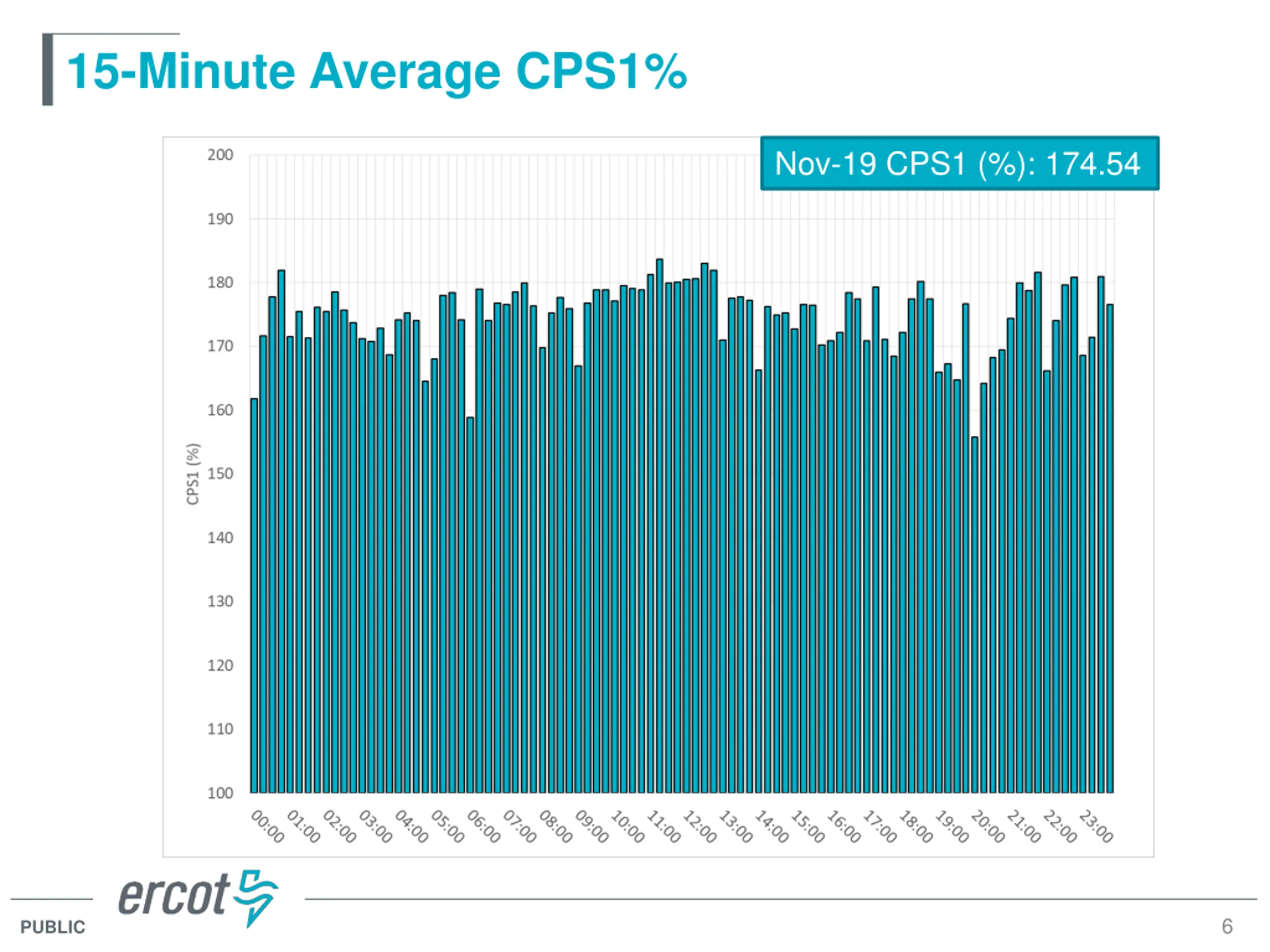

15-Minute Average CPS1% Nov-19 CPS1 (%): 174.54 6 PUBLIC

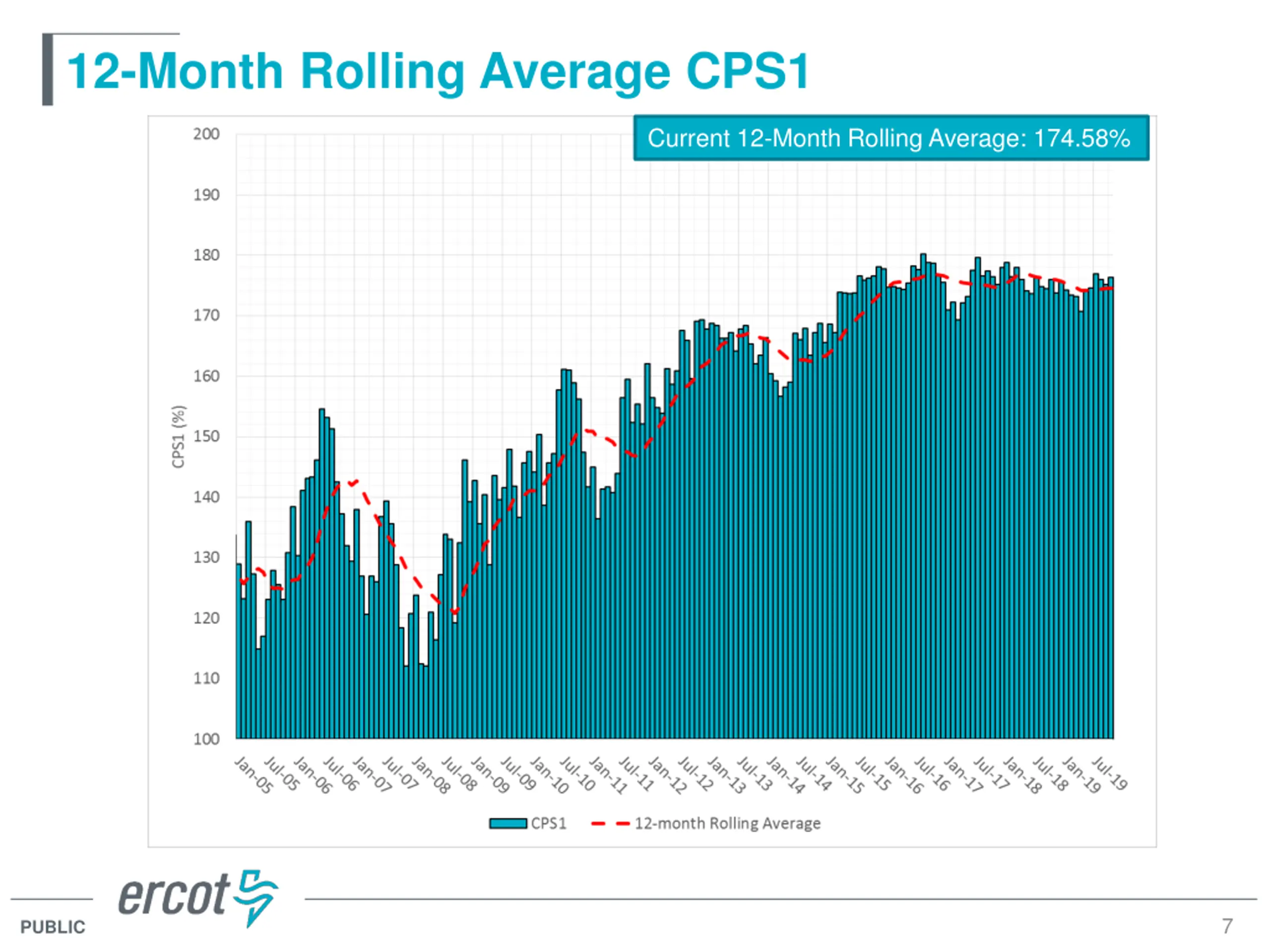

12-Month Rolling Average CPS1 Current 12-Month Rolling Average: 174.58% 7 PUBLIC

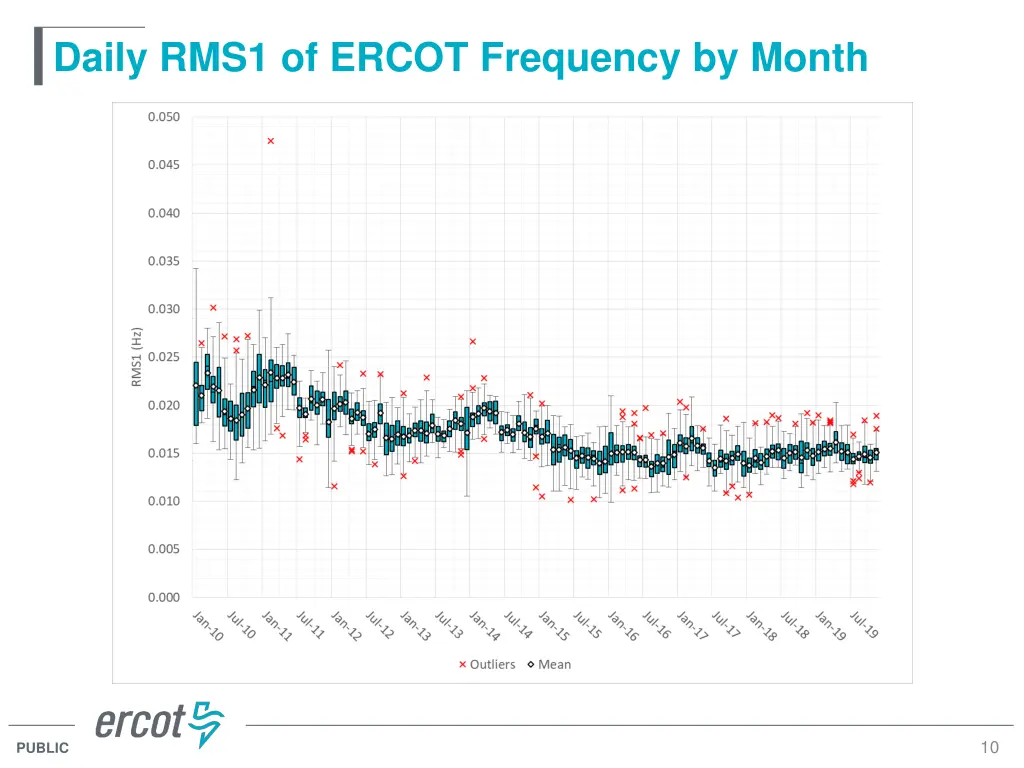

Daily RMS1 of ERCOT Frequency by Month 10 PUBLIC

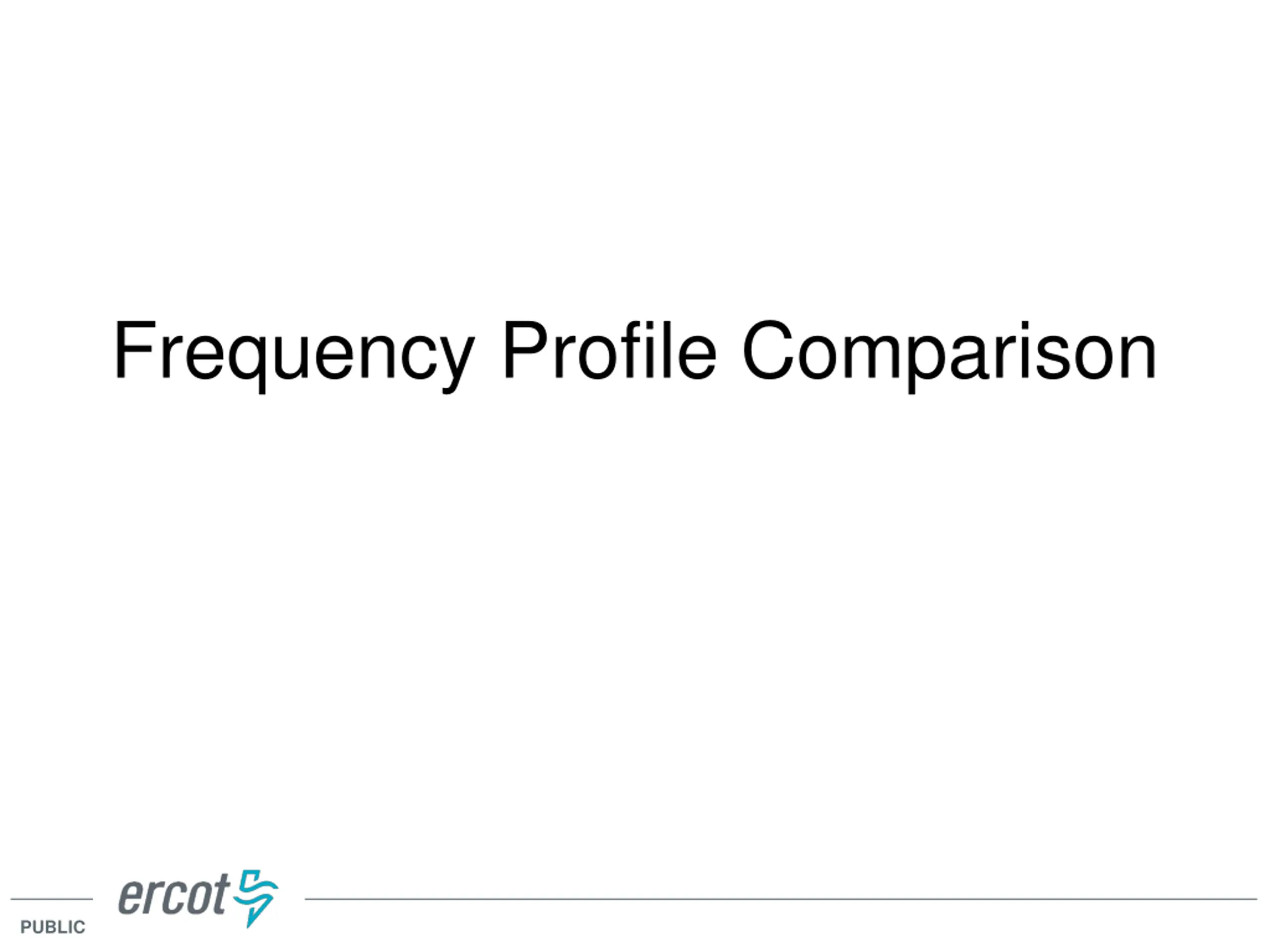

Frequency Profile Comparison PUBLIC
Frequency Profile Comparison 12 PUBLIC

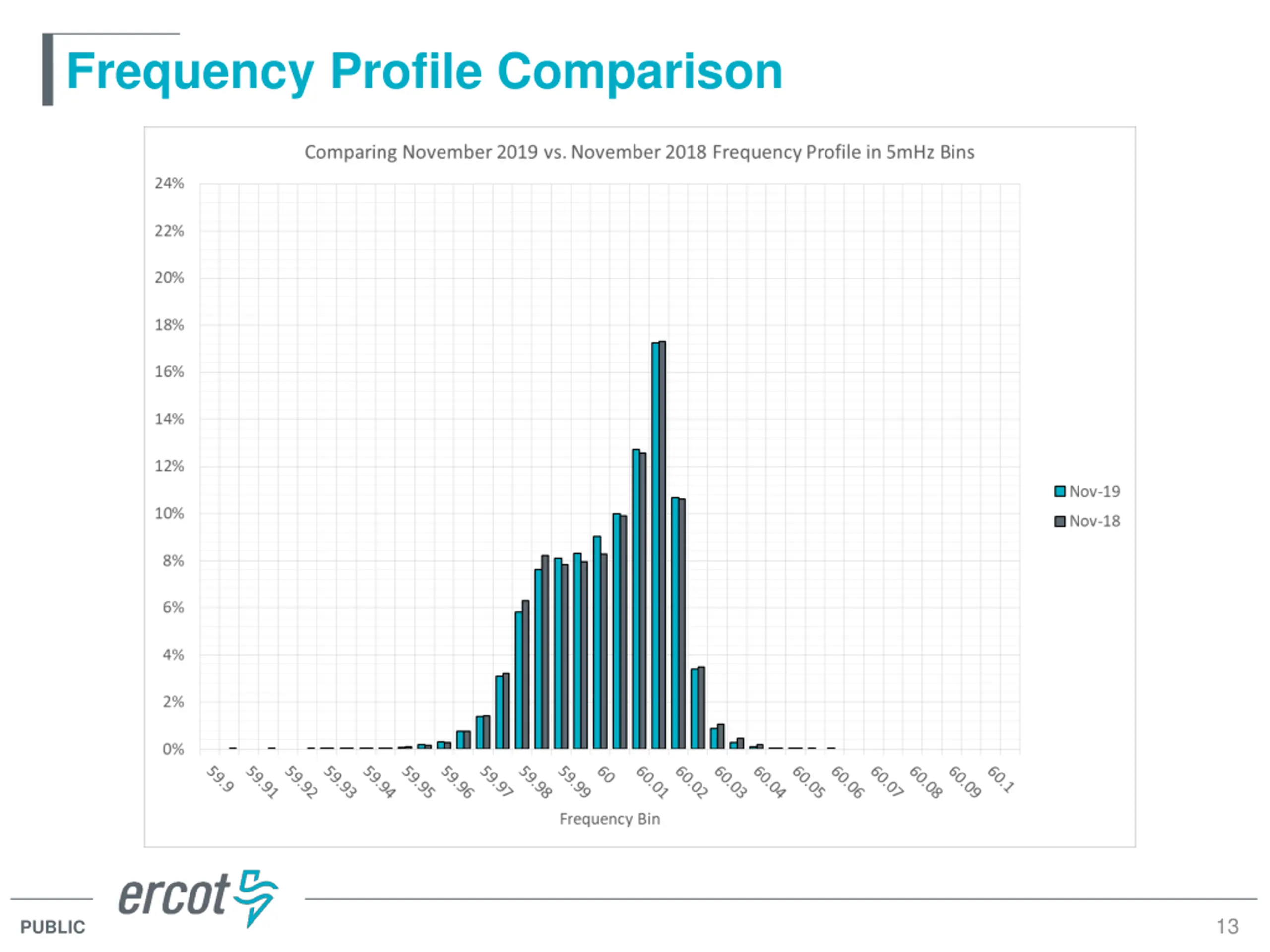

Frequency Profile Comparison 13 PUBLIC
Time Error Correction PUBLIC

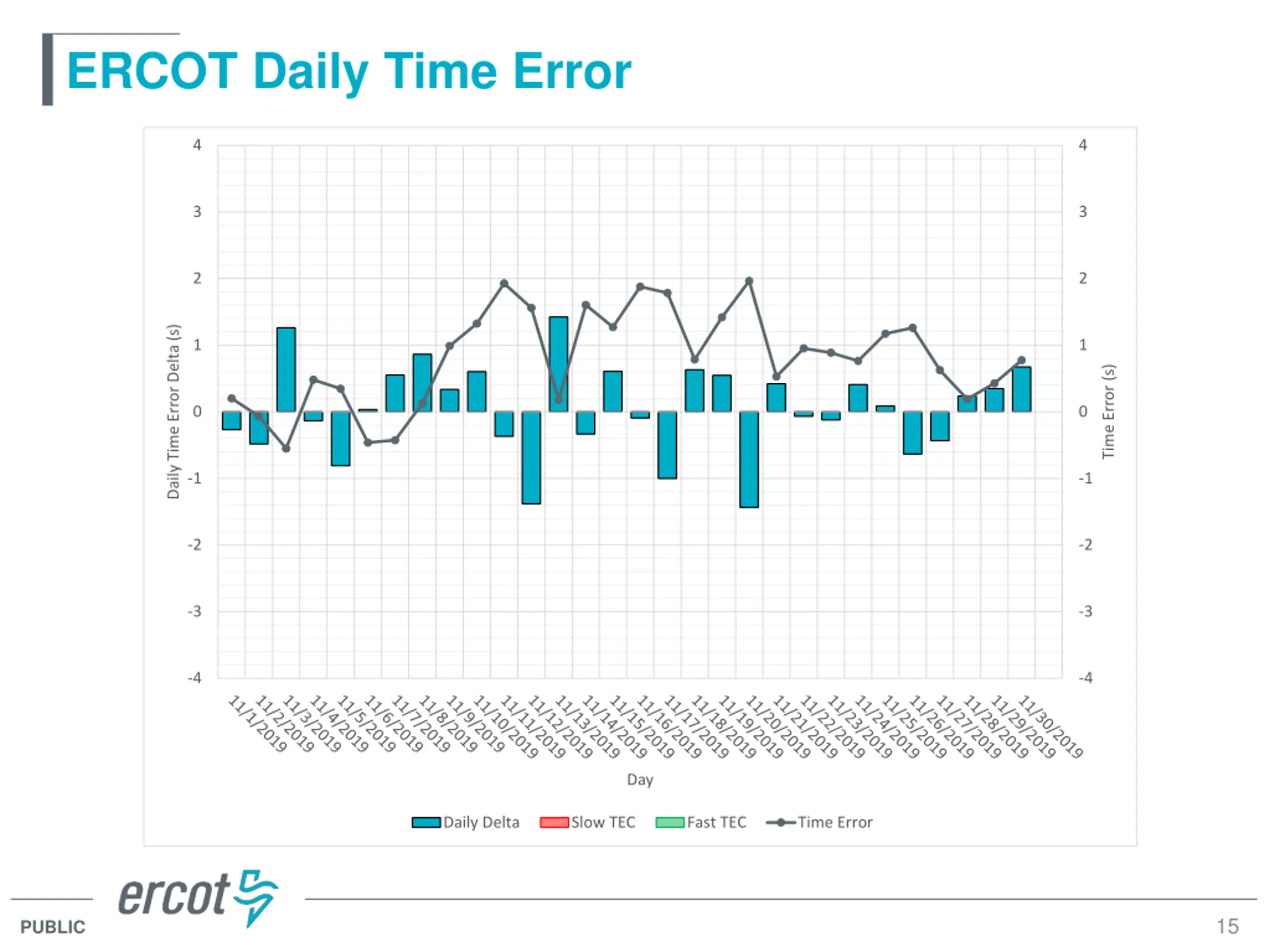

ERCOT Daily Time Error 4 4 3 3 2 2 Daily Time Error Delta (s) 1 1 Time Error (s) 0 0 -1 -1 -2 -2 -3 -3 -4 -4 Day Daily Delta Slow TEC Fast TEC Time Error 15 PUBLIC

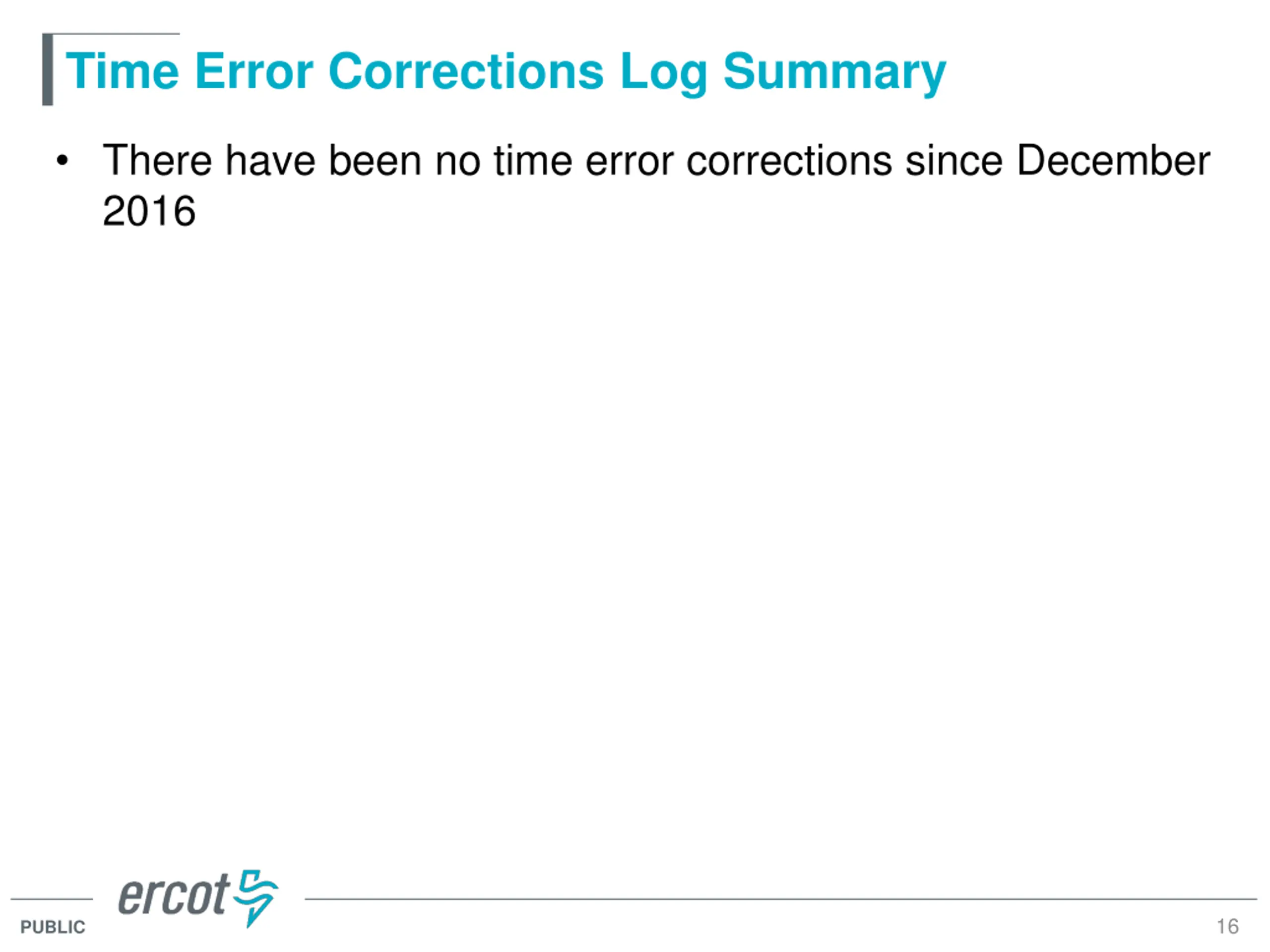

Time Error Corrections Log Summary There have been no time error corrections since December 2016 16 PUBLIC

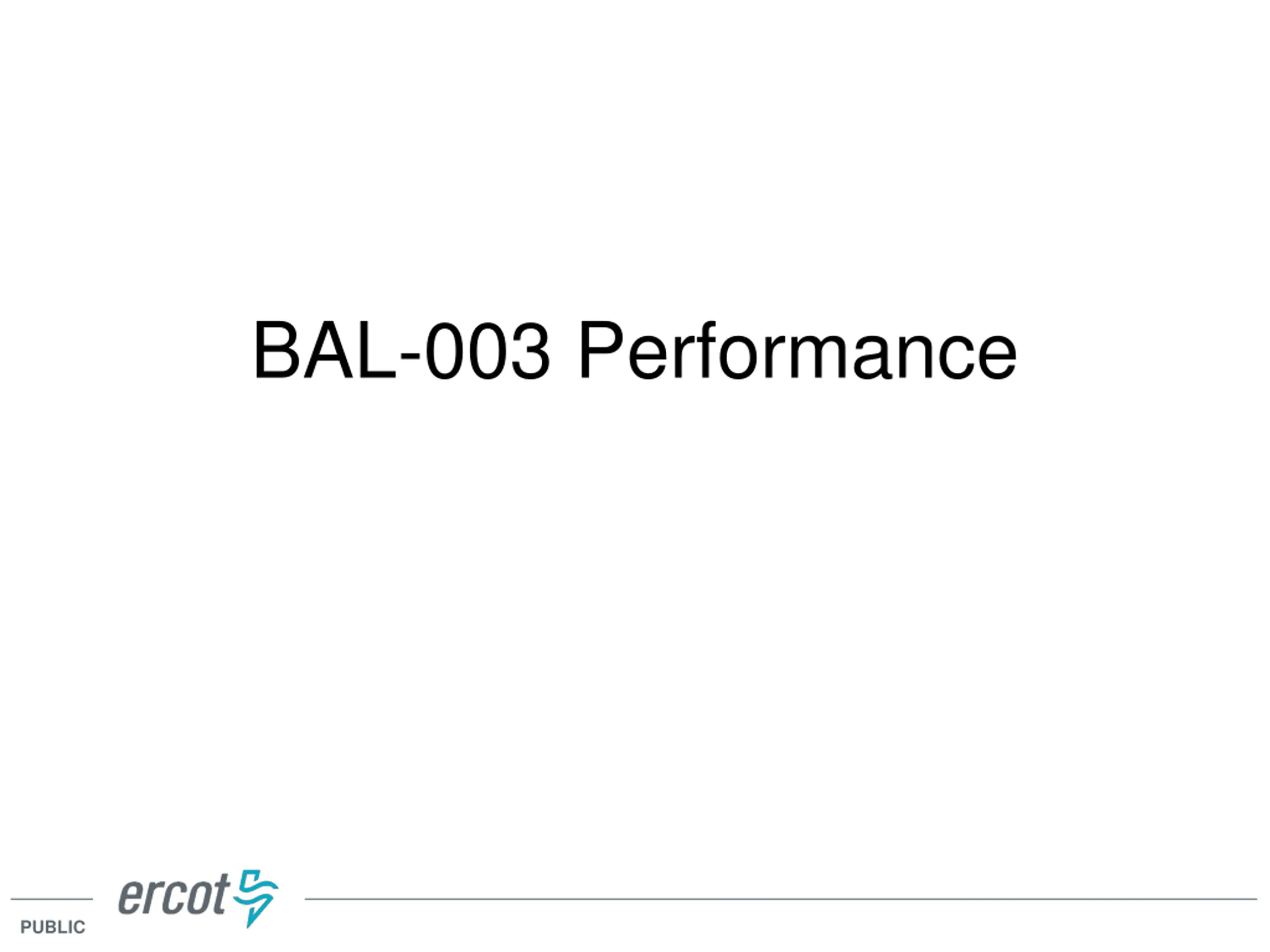

BAL-003 Performance PUBLIC

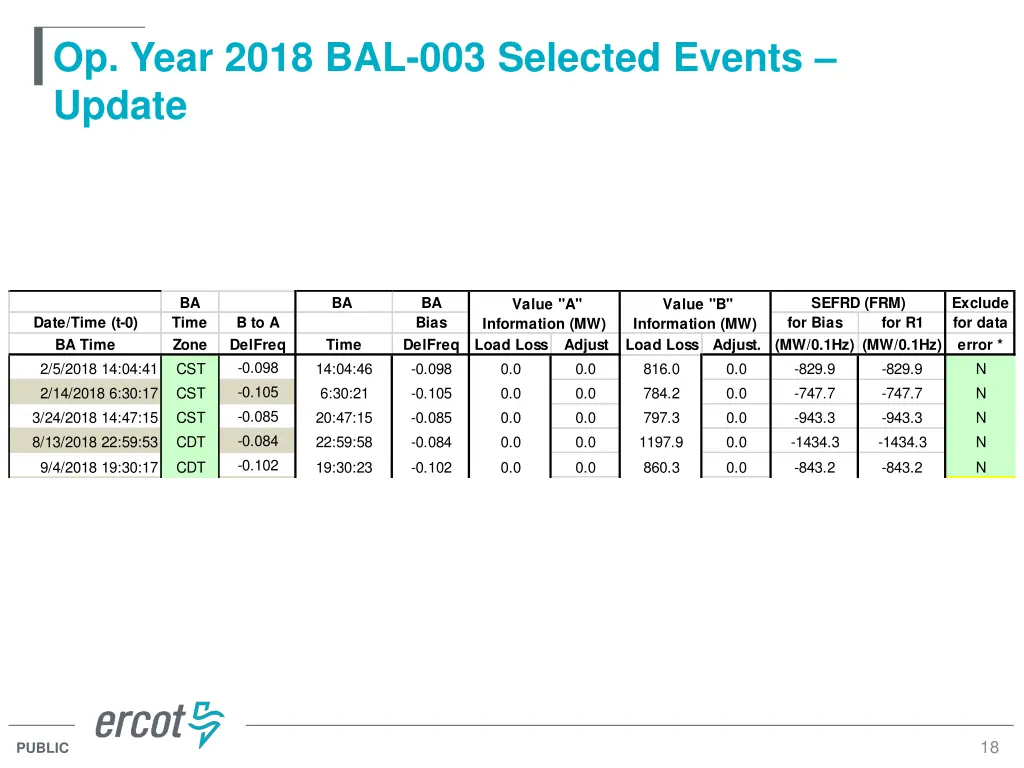

Op. Year 2018 BAL-003 Selected Events Update BA Time Zone CST CST CST CDT BA BA Bias DelFreq -0.098 -0.105 -0.085 -0.084 SEFRD (FRM) for Bias (MW/0.1Hz) (MW/0.1Hz) -829.9 -747.7 -943.3 -1434.3 Exclude for data error * N N N N Value "A" Information (MW) Value "B" Information (MW) Date/Time (t-0) BA Time 2/5/2018 14:04:41 2/14/2018 6:30:17 3/24/2018 14:47:15 8/13/2018 22:59:53 B to A DelFreq -0.098 -0.105 -0.085 -0.084 -0.102 for R1 Time 14:04:46 6:30:21 20:47:15 22:59:58 Load Loss 0.0 0.0 0.0 0.0 Adjust 0.0 0.0 0.0 0.0 Load Loss Adjust. 816.0 784.2 797.3 1197.9 0.0 0.0 0.0 0.0 -829.9 -747.7 -943.3 -1434.3 9/4/2018 19:30:17 CDT 19:30:23 -0.102 0.0 0.0 860.3 0.0 -843.2 -843.2 N 18 PUBLIC

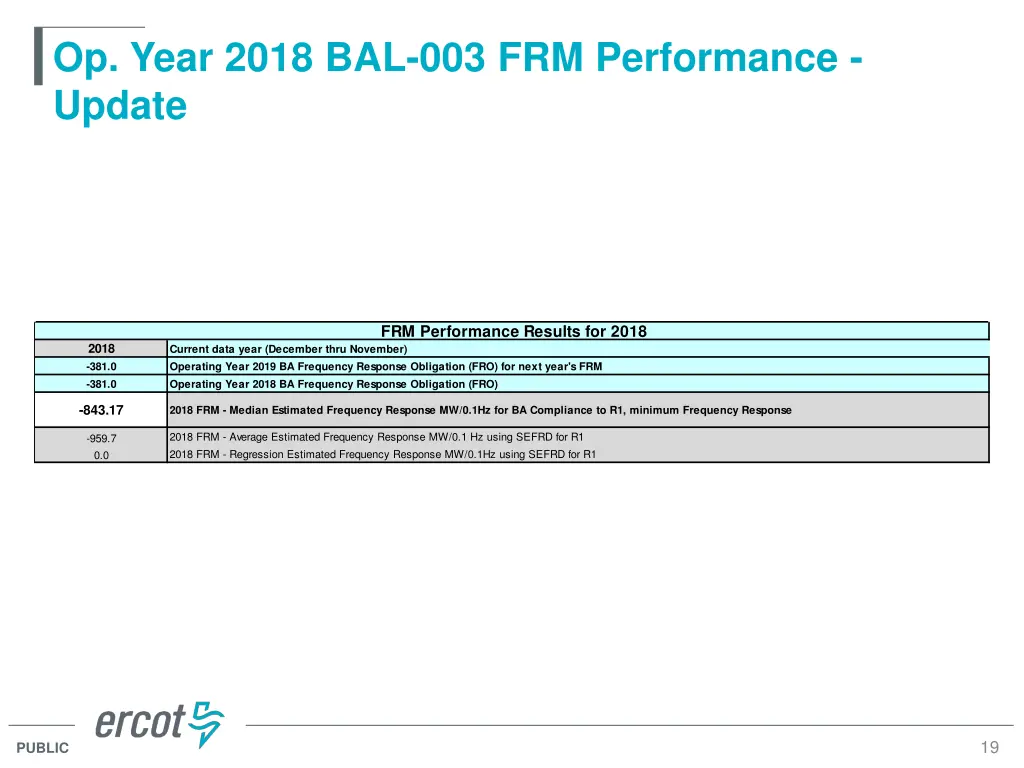

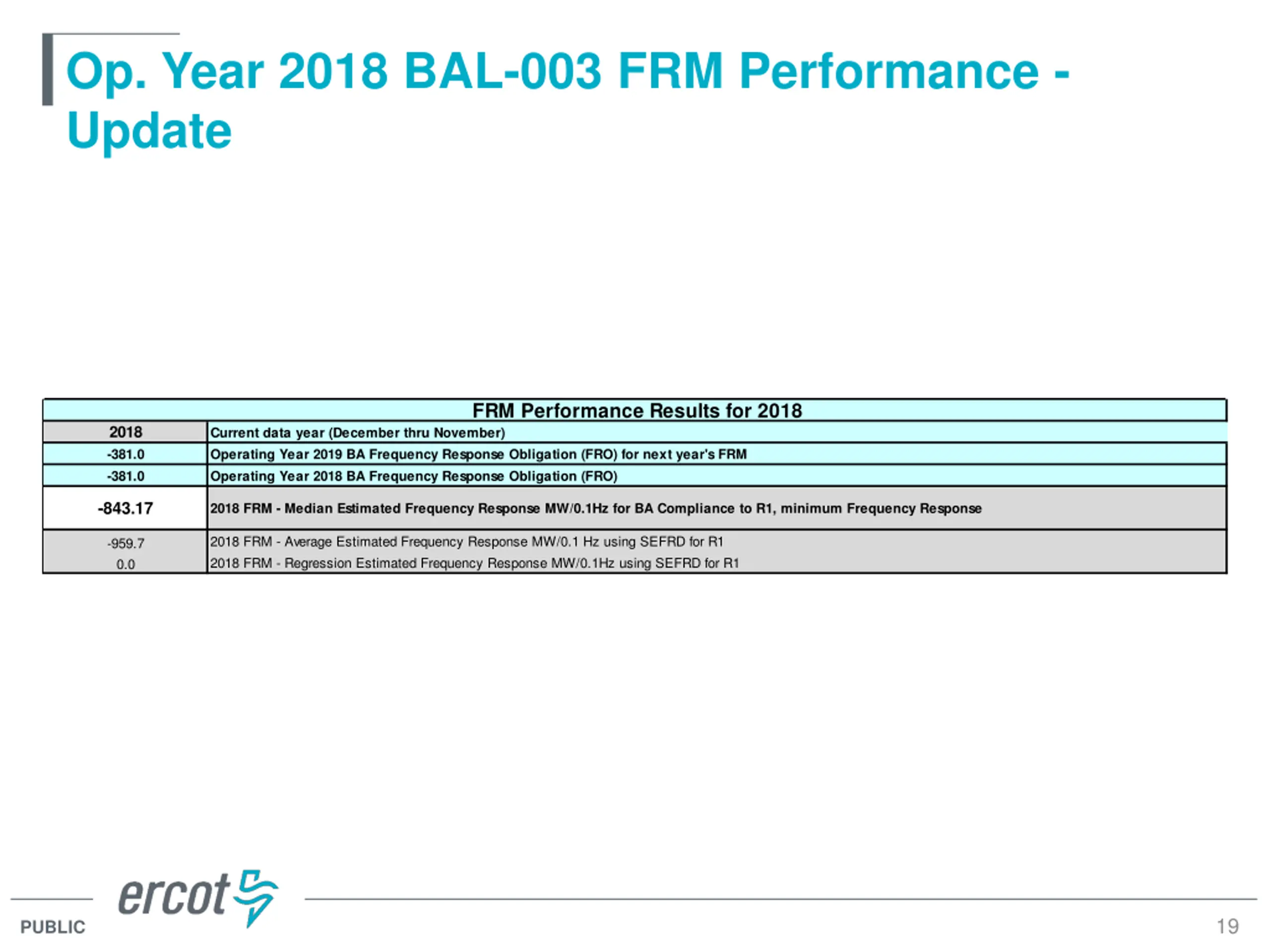

Op. Year 2018 BAL-003 FRM Performance - Update FRM Performance Results for 2018 2018 -381.0 -381.0 Current data year (December thru November) Operating Year 2019 BA Frequency Response Obligation (FRO) for next year's FRM Operating Year 2018 BA Frequency Response Obligation (FRO) -843.17 2018 FRM - Median Estimated Frequency Response MW/0.1Hz for BA Compliance to R1, minimum Frequency Response 2018 FRM - Average Estimated Frequency Response MW/0.1 Hz using SEFRD for R1 2018 FRM - Regression Estimated Frequency Response MW/0.1Hz using SEFRD for R1 -959.7 0.0 19 PUBLIC

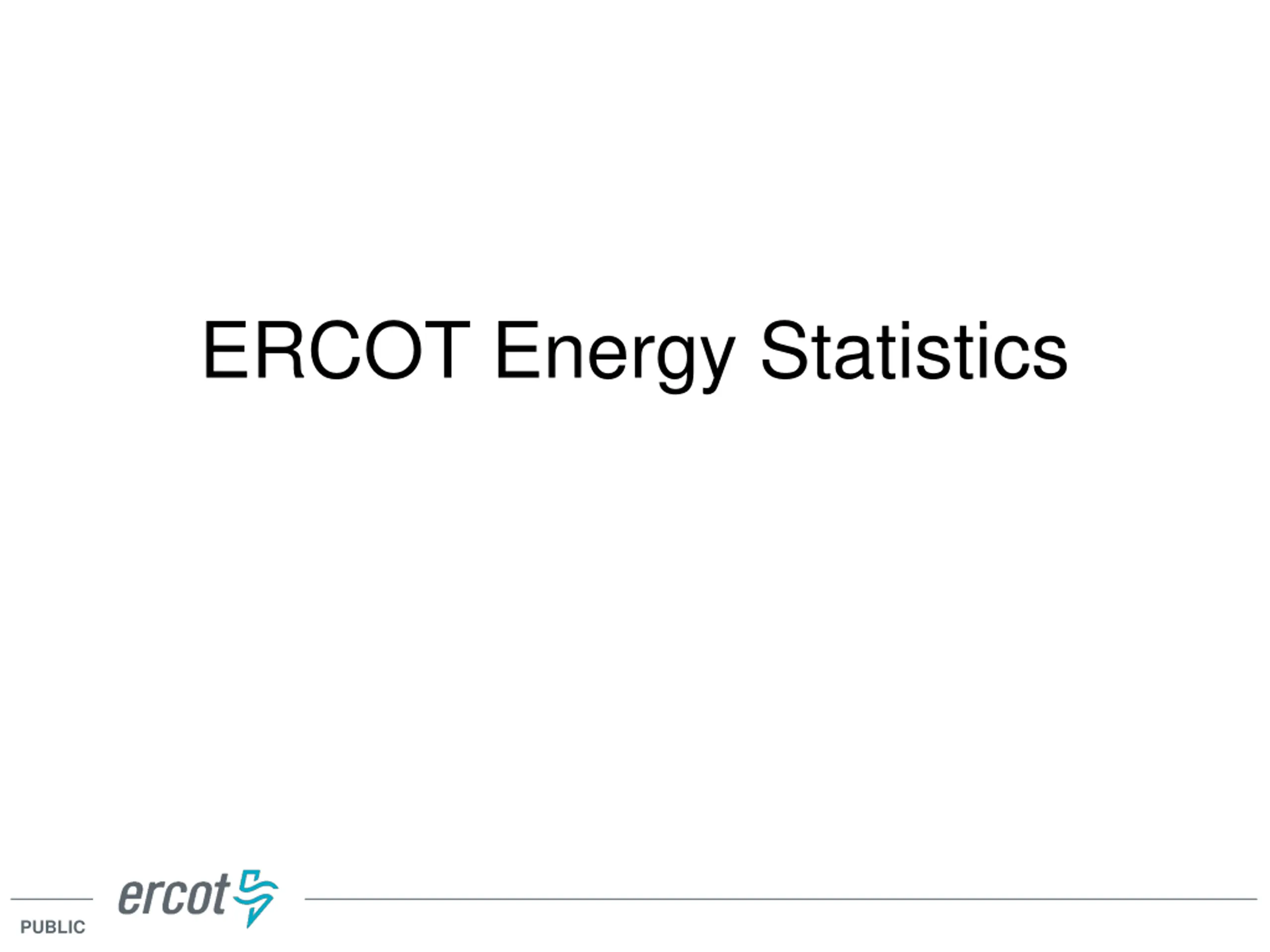

ERCOT Energy Statistics PUBLIC
Total Energy 21 PUBLIC

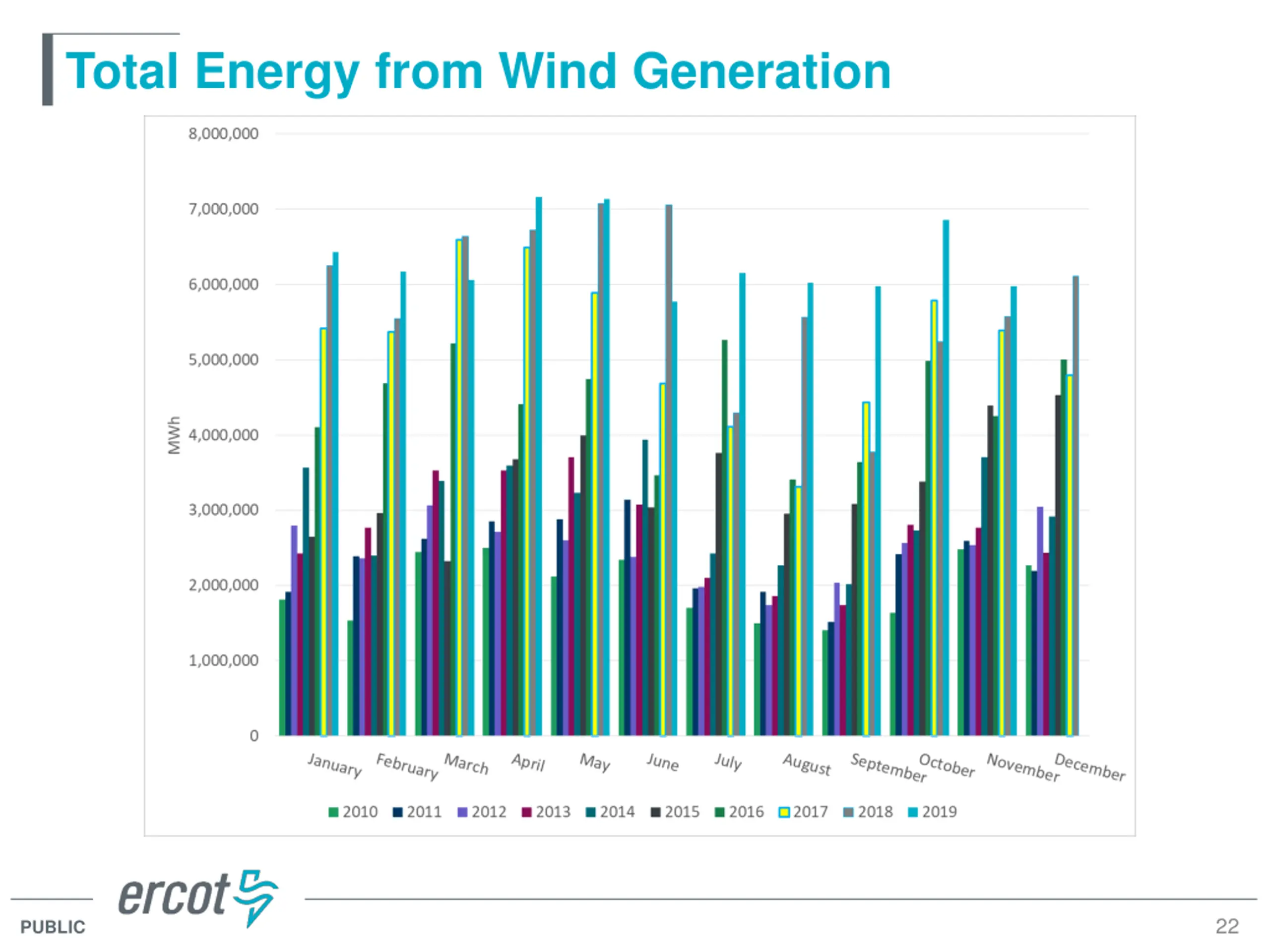

Total Energy from Wind Generation 22 PUBLIC

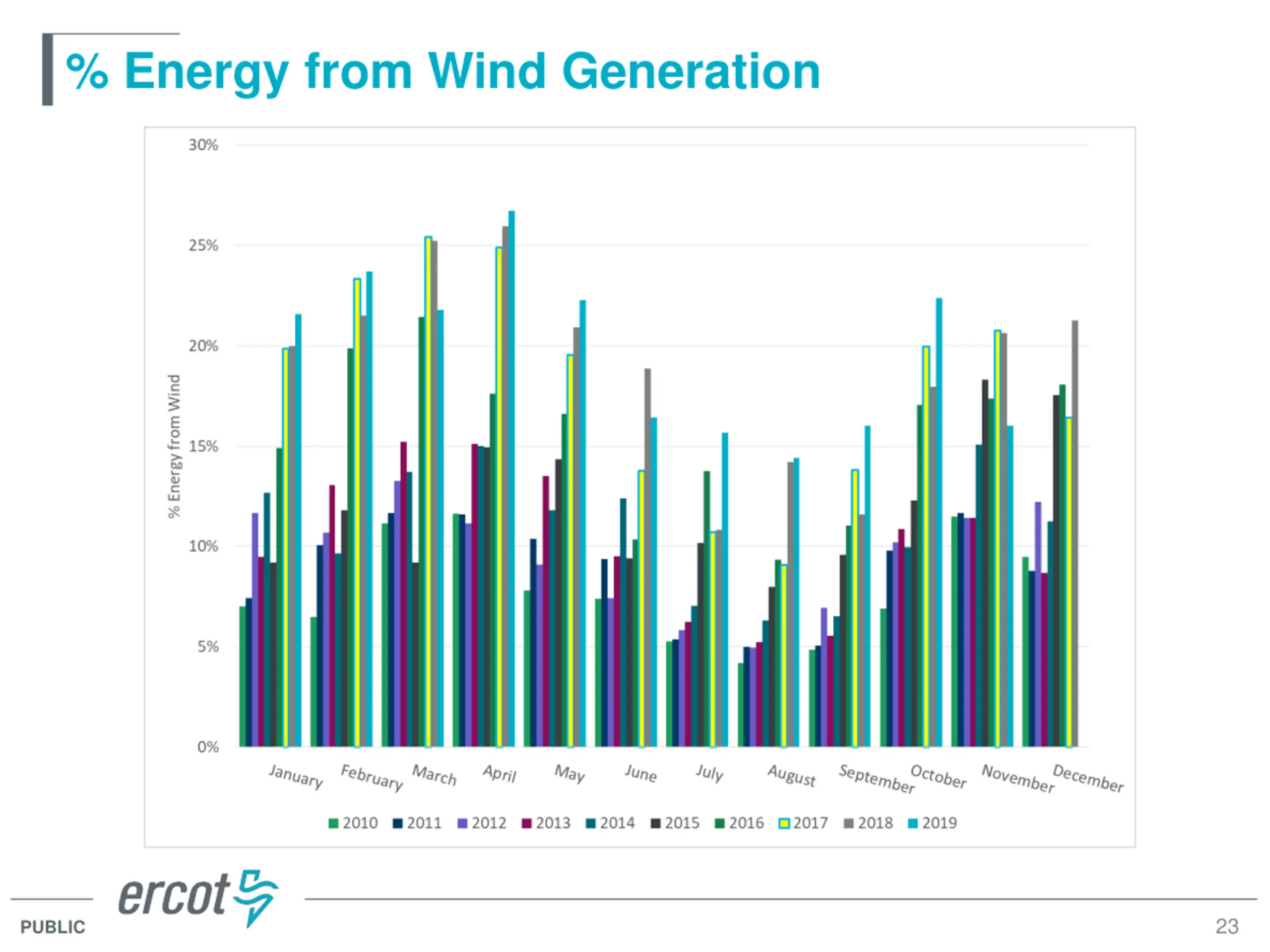

% Energy from Wind Generation 23 PUBLIC

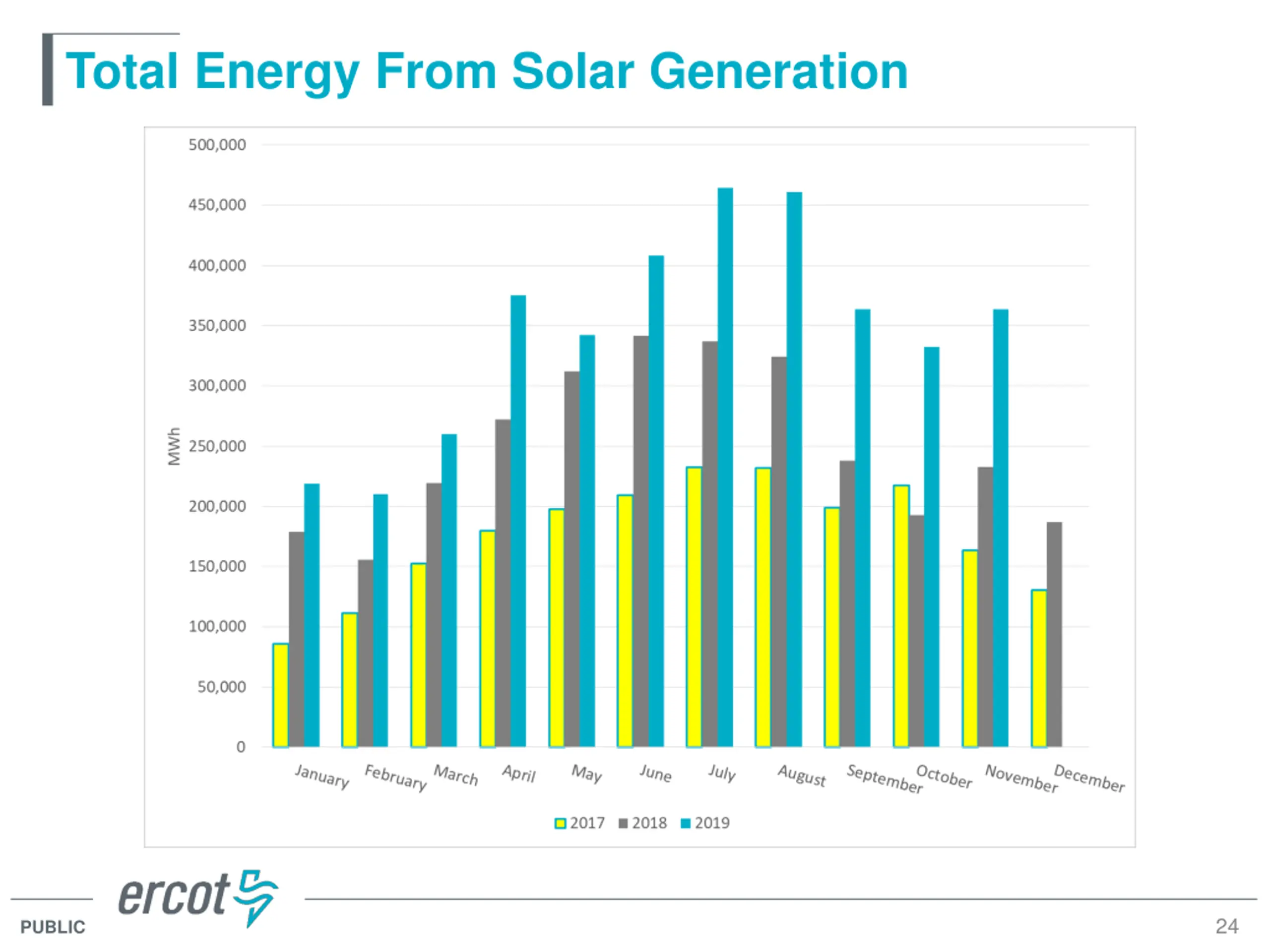

Total Energy From Solar Generation 24 PUBLIC

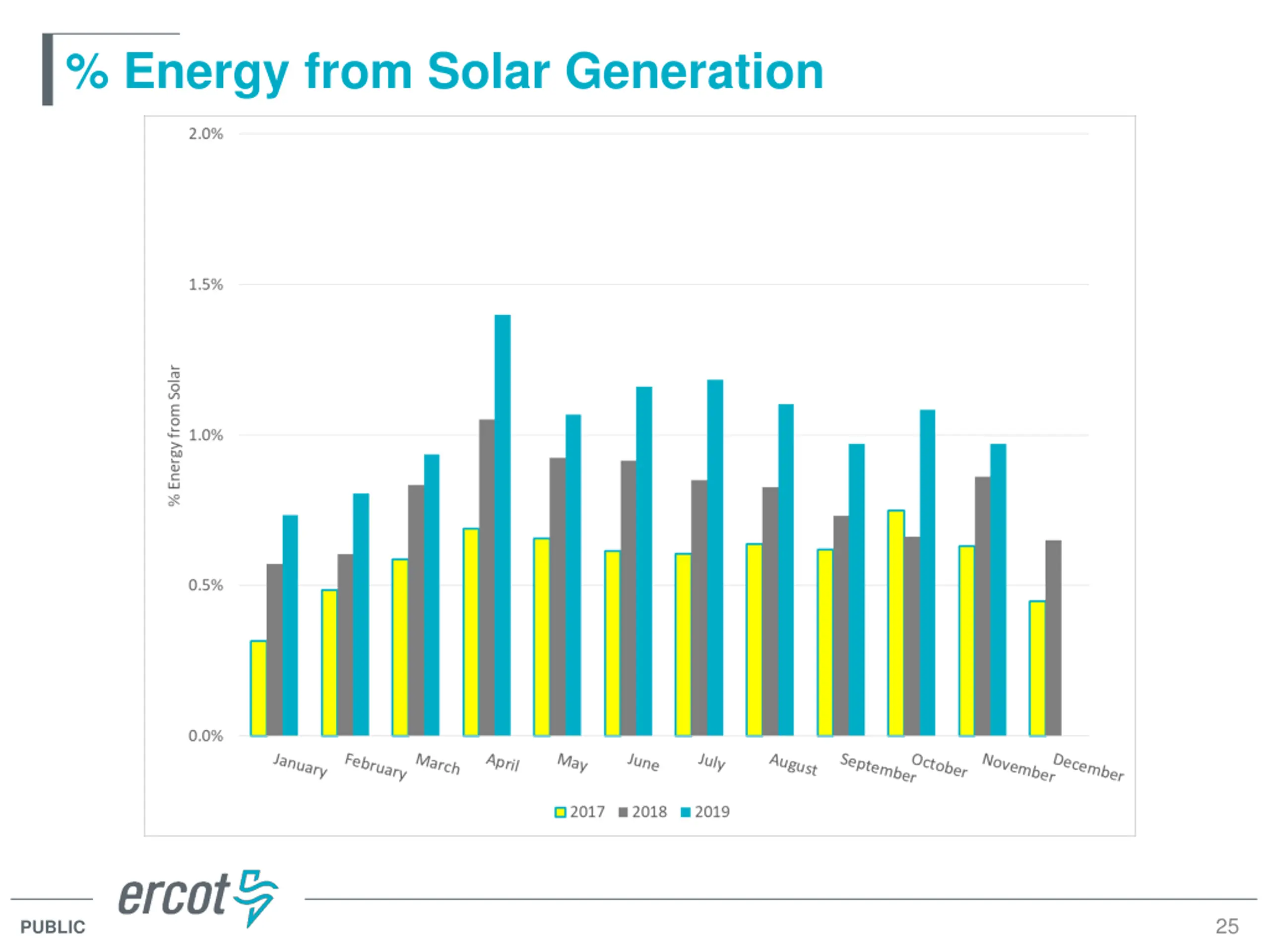

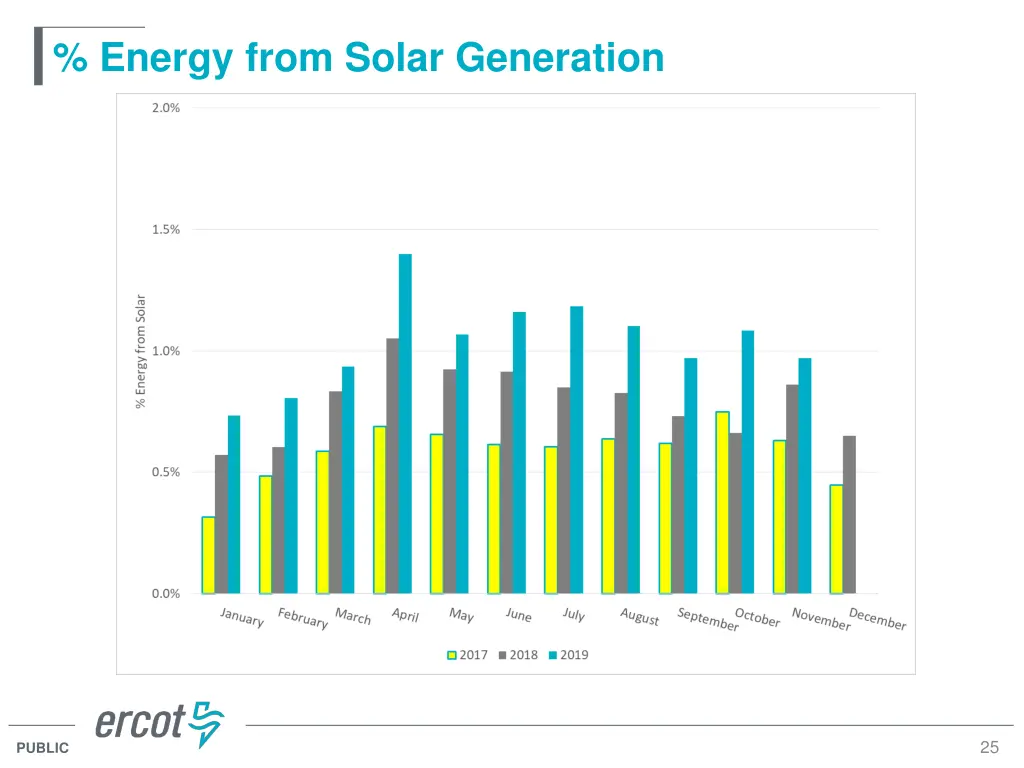

% Energy from Solar Generation 25 PUBLIC

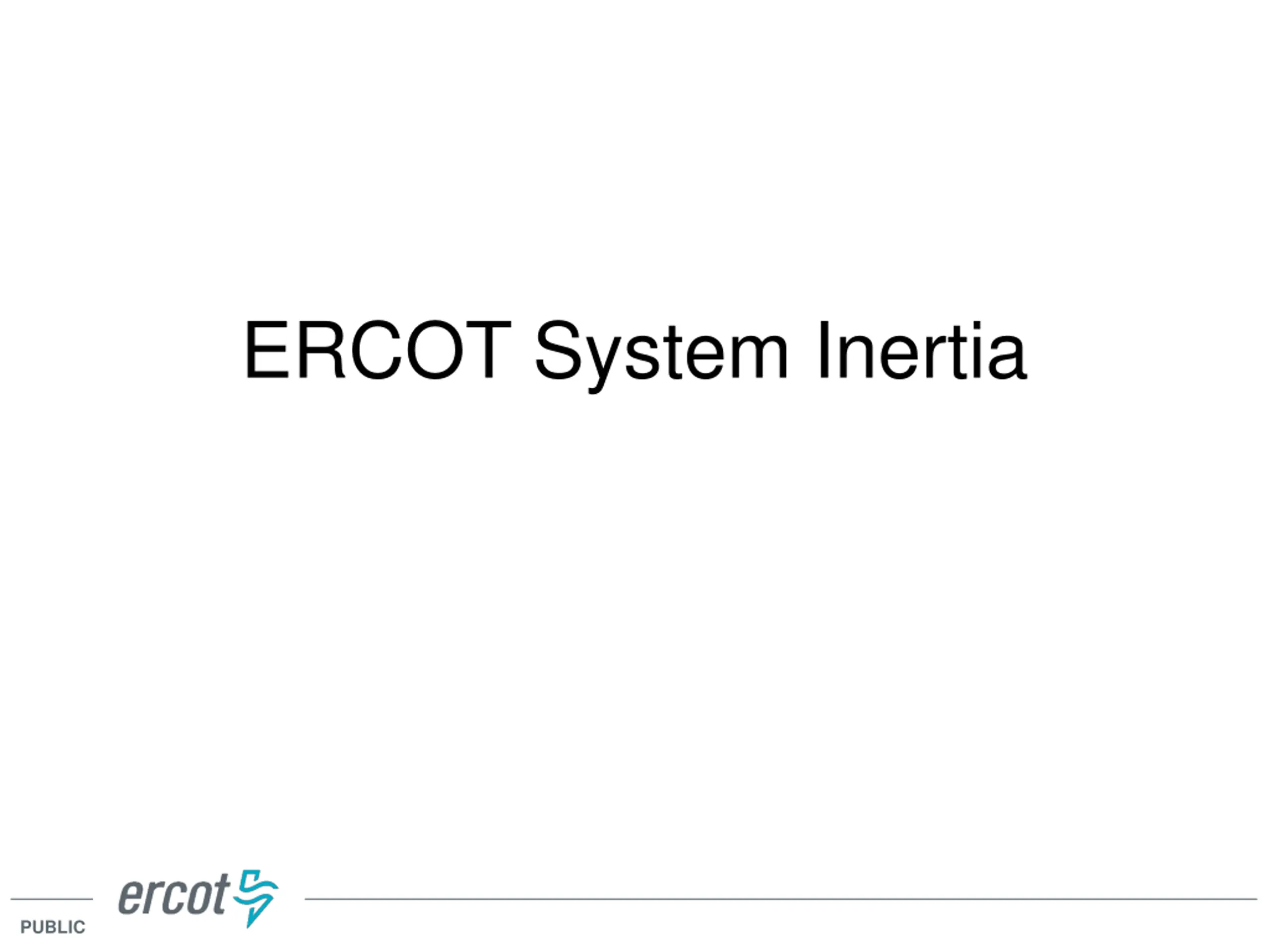

ERCOT System Inertia PUBLIC

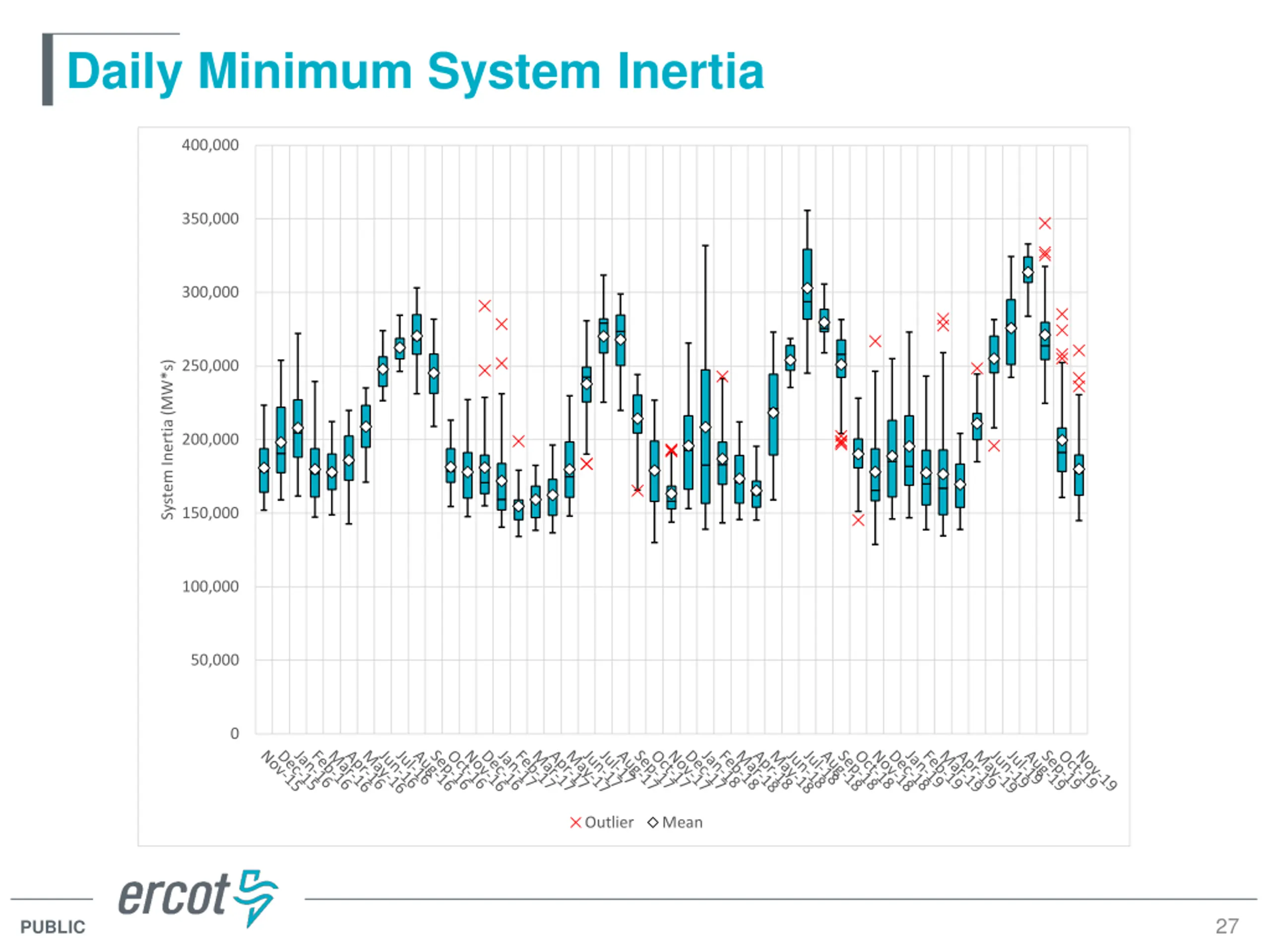

Daily Minimum System Inertia 400,000 350,000 300,000 250,000 System Inertia (MW*s) 200,000 150,000 100,000 50,000 0 Outlier Mean 27 PUBLIC
Questions? Thank you! PUBLIC
