ERM5-020-050-L-DV-K-TR PCB 8-Layer Front-End Board
This PCB, with model number ERM5-020-050-L-DV-K-TR, features 8 layers (potentially 10) and HDI vias. It includes various connections such as C1-C2, C2-C3, C3-C6, C6-C7, C7-C8, Pth vias, and more. The front-end board is designed with a 16x BGA layout and dimensions of 350x350 mm. Accompanying it is the Carrier Board for Kria SOM, providing I2C, CLK320, FCMD, and Soft/Hard Rstb functionalities. The unit price for this setup is $400. Consider using cooling pipes with diameters of 5mm or preferred 2-3mm for optimal performance.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

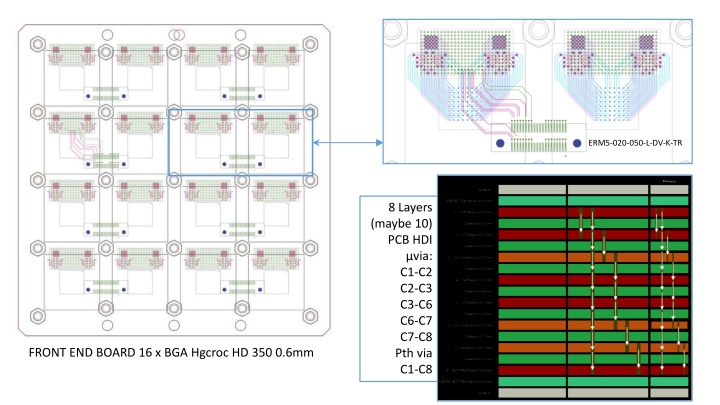

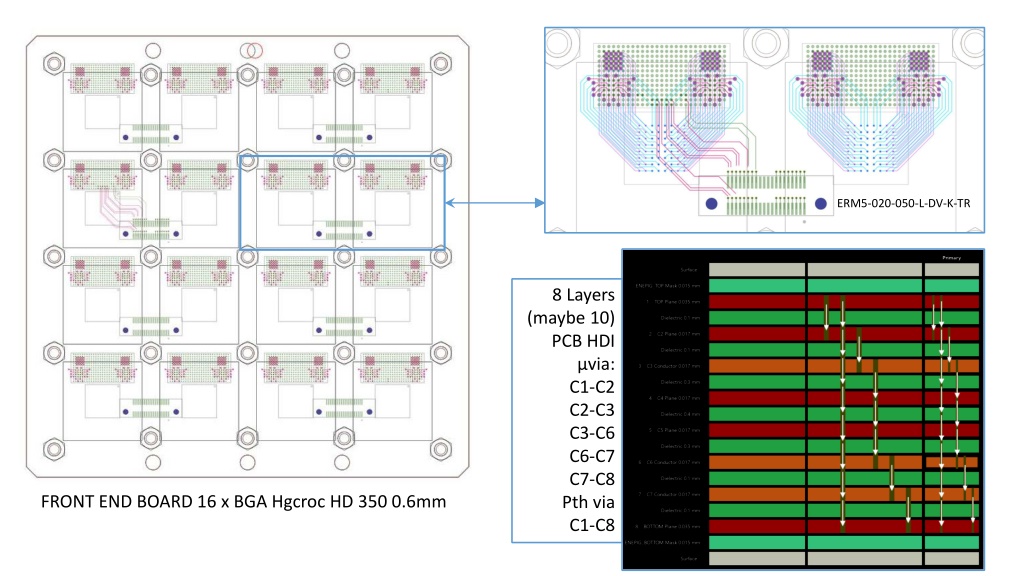

ERM5-020-050-L-DV-K-TR 8 Layers (maybe 10) PCB HDI via: C1-C2 C2-C3 C3-C6 C6-C7 C7-C8 Pth via C1-C8 FRONT END BOARD 16 x BGA Hgcroc HD 350 0.6mm

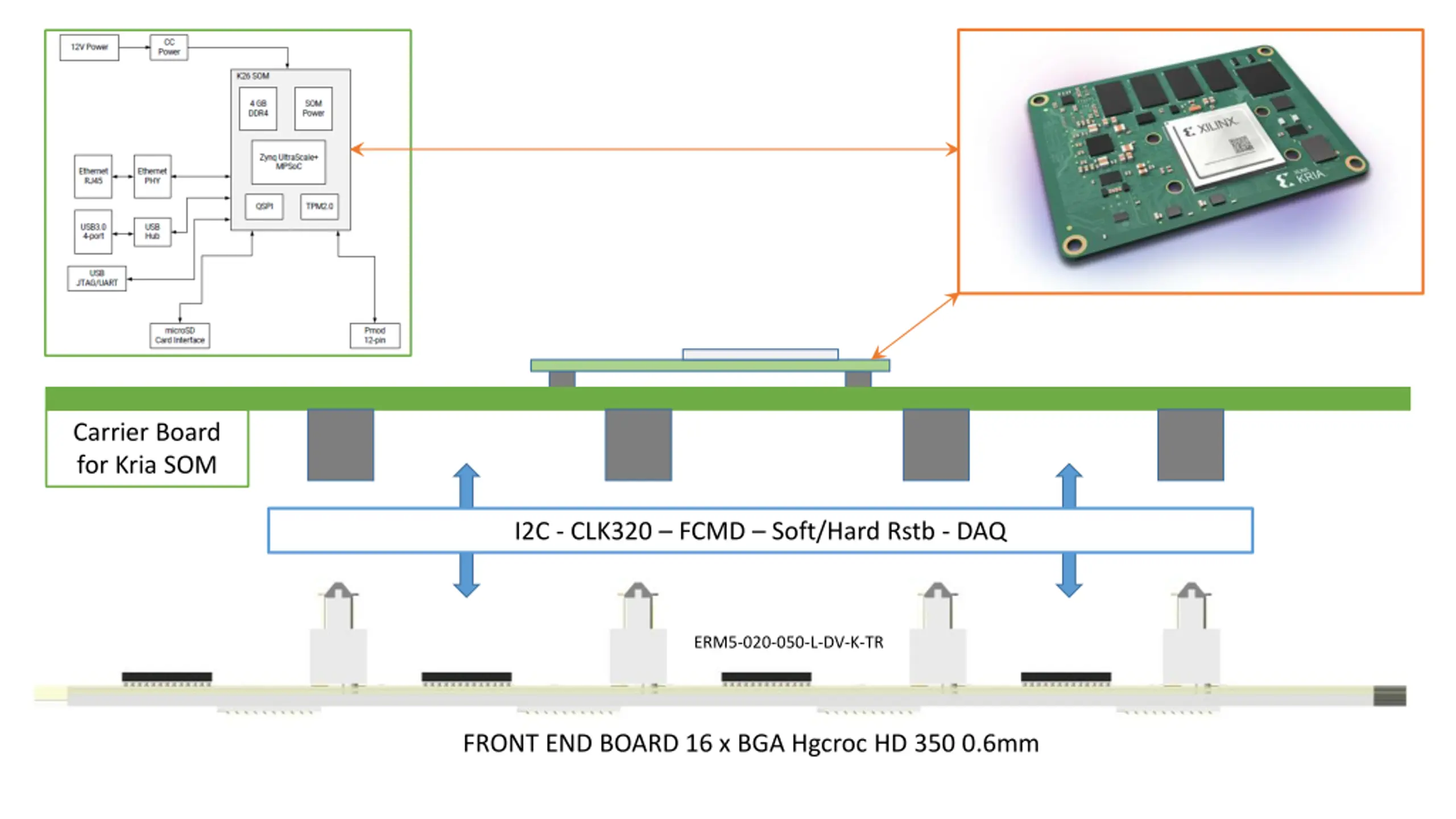

Carrier Board for Kria SOM I2C - CLK320 FCMD Soft/Hard Rstb - DAQ ERM5-020-050-L-DV-K-TR FRONT END BOARD 16 x BGA Hgcroc HD 350 0.6mm

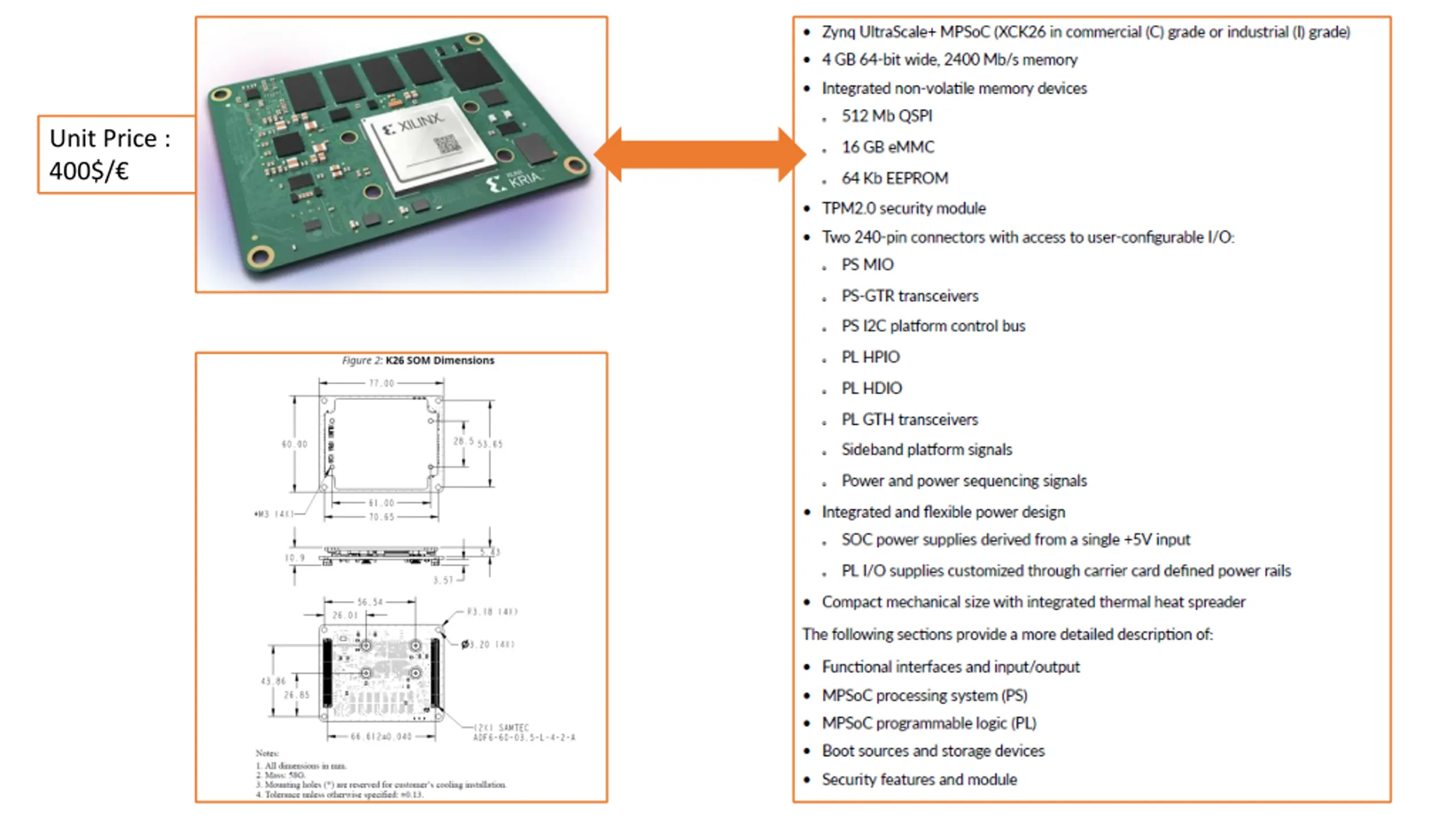

Unit Price : 400$/

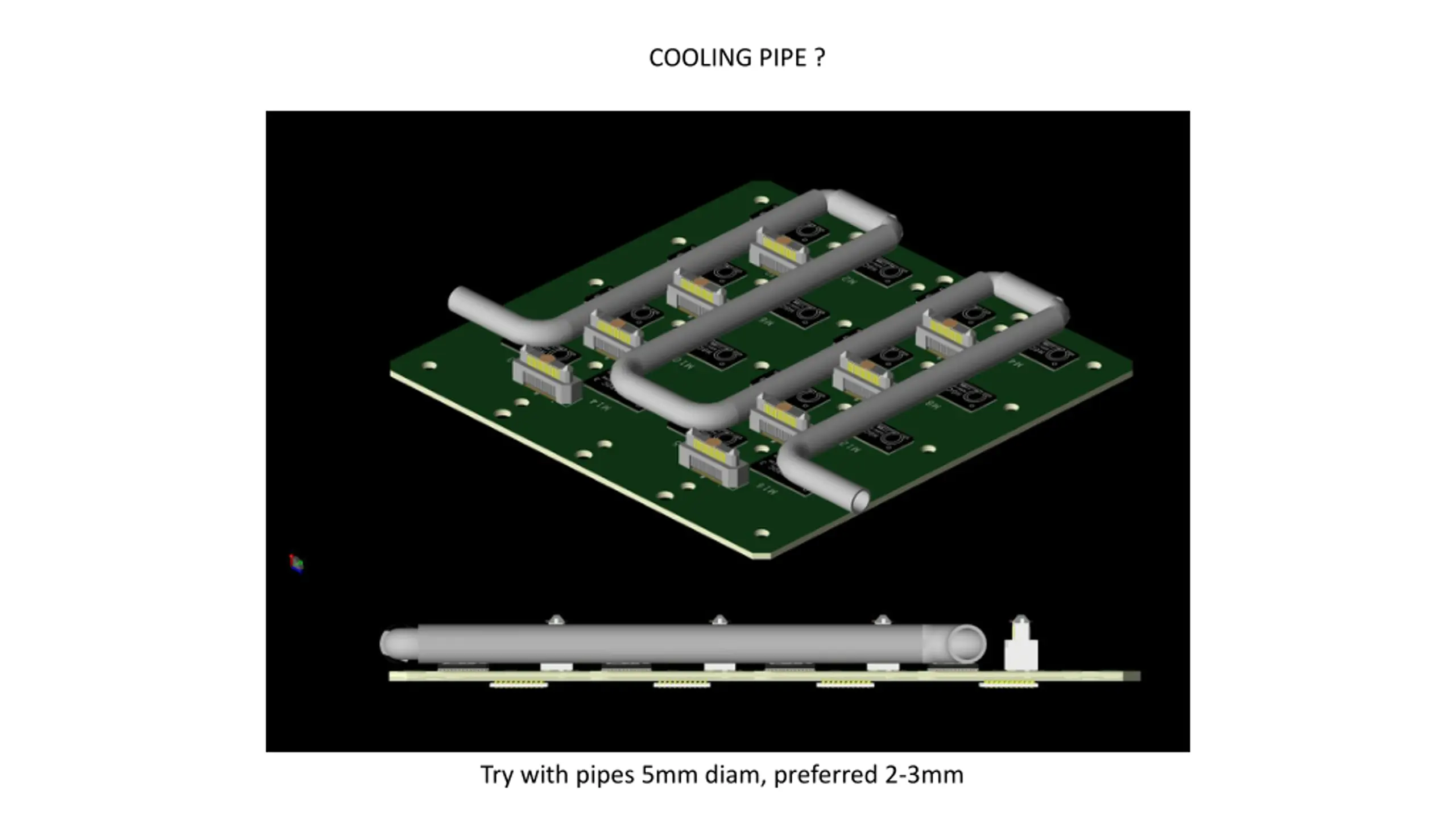

COOLING PIPE ? Try with pipes 5mm diam, preferred 2-3mm
