STATUS 11/8/15 Itamar, Meny, Sacha, Yan

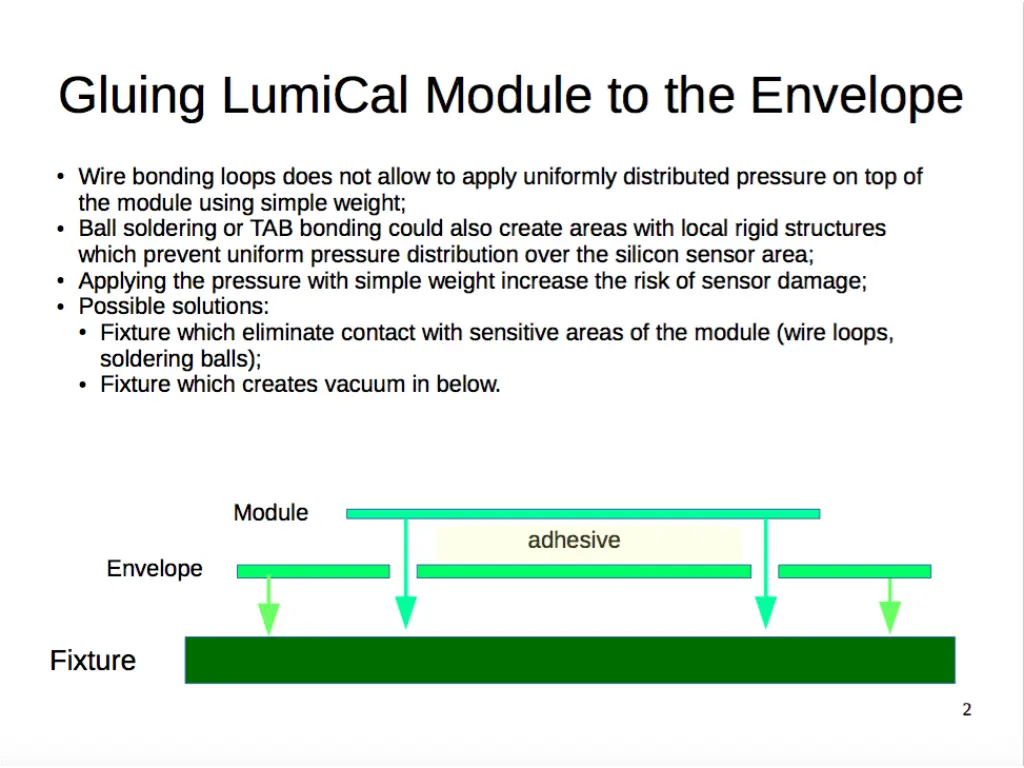

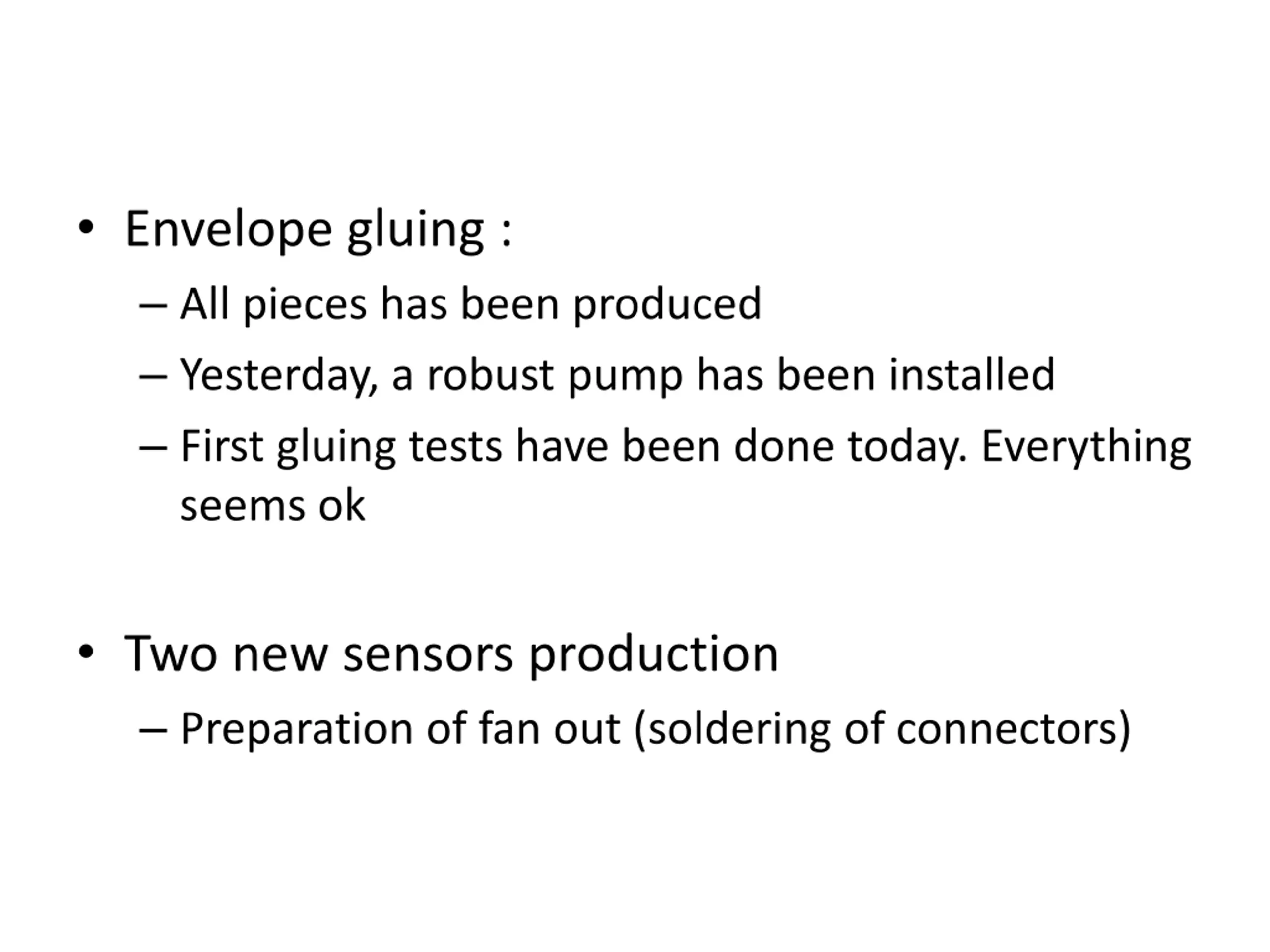

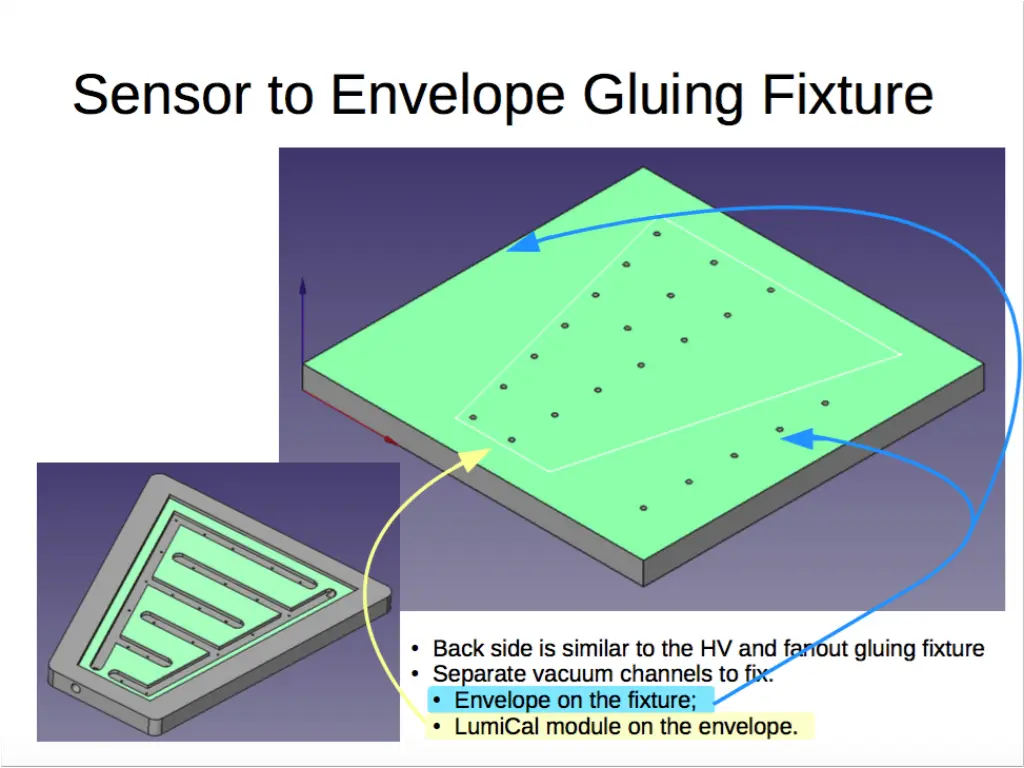

Envelope gluing : All pieces has been produced Yesterday, a robust pump has been installed First gluing tests have been done today. Everything seems ok Two new sensors production Preparation of fan out (soldering of connectors)

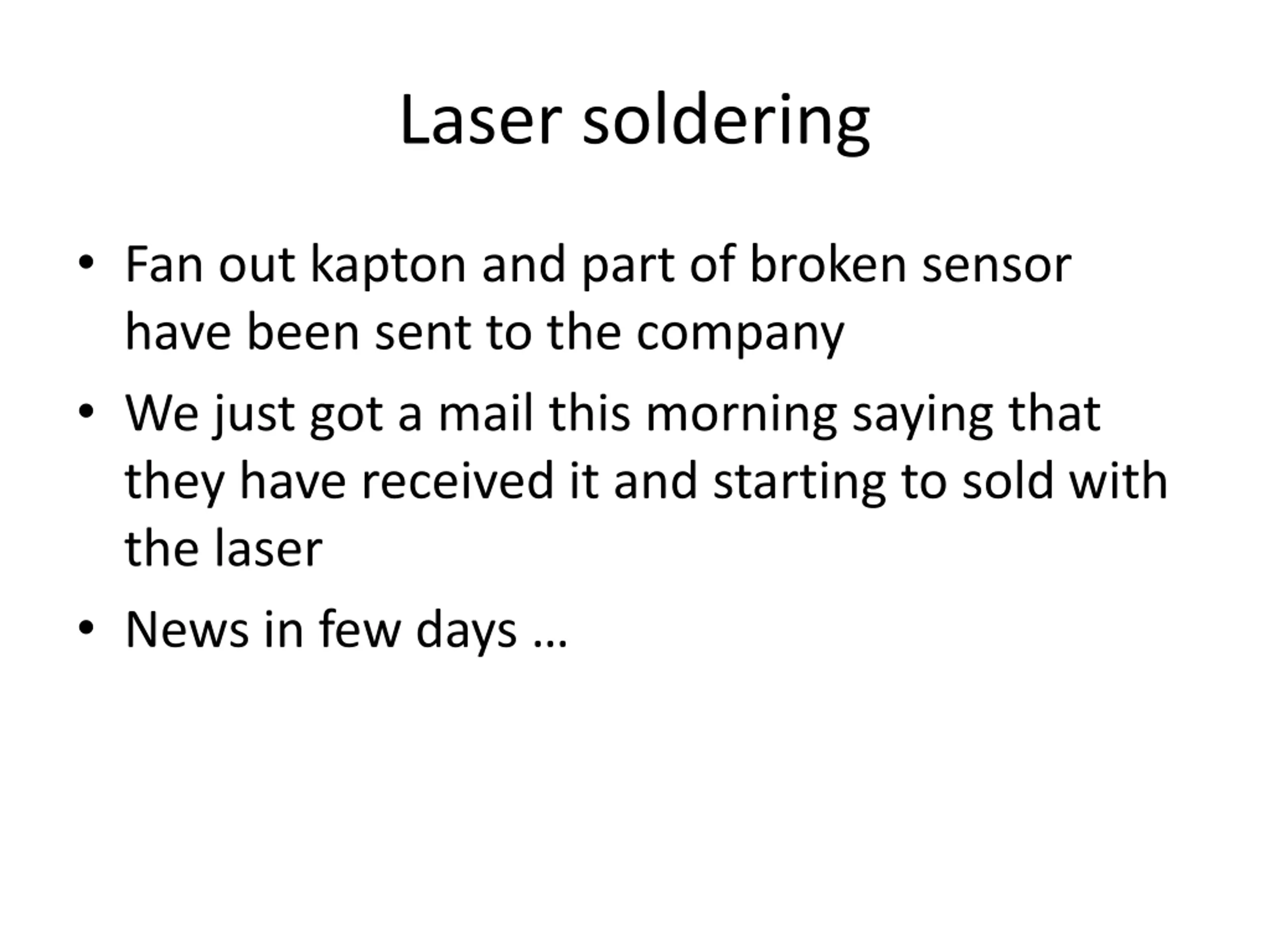

Laser soldering Fan out kapton and part of broken sensor have been sent to the company We just got a mail this morning saying that they have received it and starting to sold with the laser News in few days

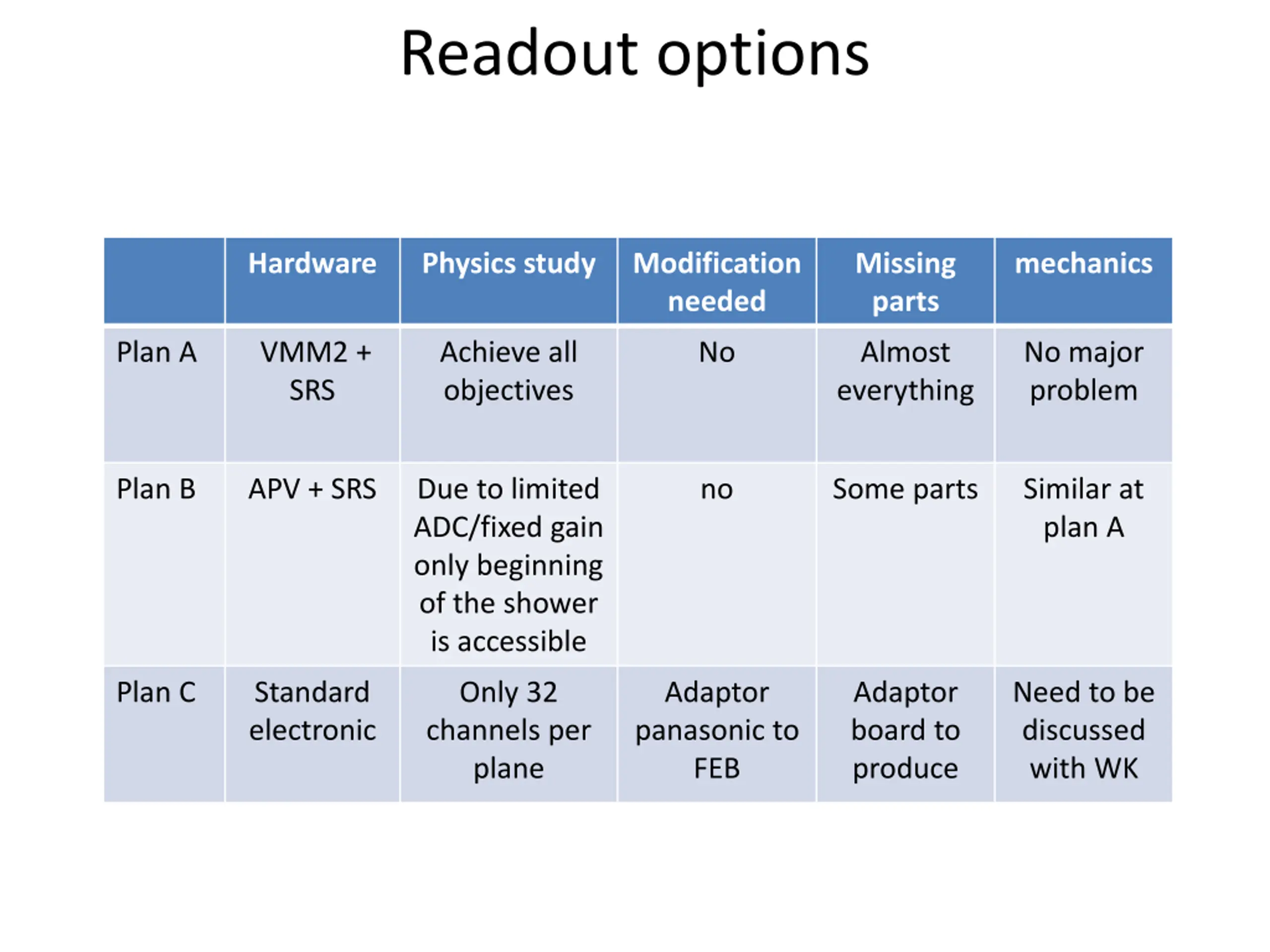

Readout options Hardware Physics study Modification needed Missing parts mechanics Plan A VMM2 + SRS Achieve all objectives No Almost everything No major problem Plan B APV + SRS Due to limited ADC/fixed gain only beginning of the shower is accessible no Some parts Similar at plan A Plan C Standard electronic Only 32 channels per plane Adaptor panasonic to FEB Adaptor board to produce Need to be discussed with WK

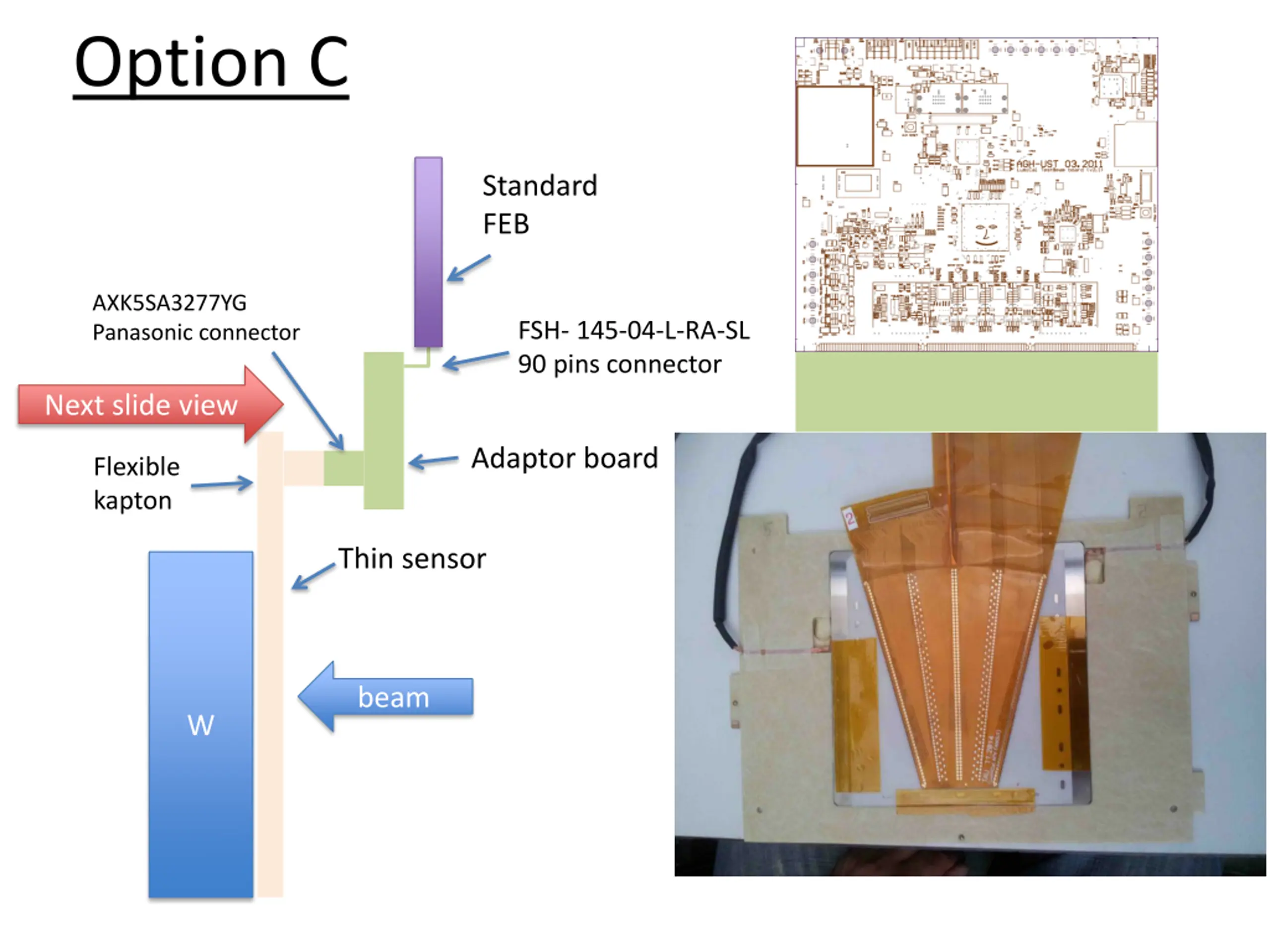

Option C Standard FEB AXK5SA3277YG Panasonic connector FSH- 145-04-L-RA-SL 90 pins connector Next slide view Adaptor board Flexible kapton Thin sensor beam W

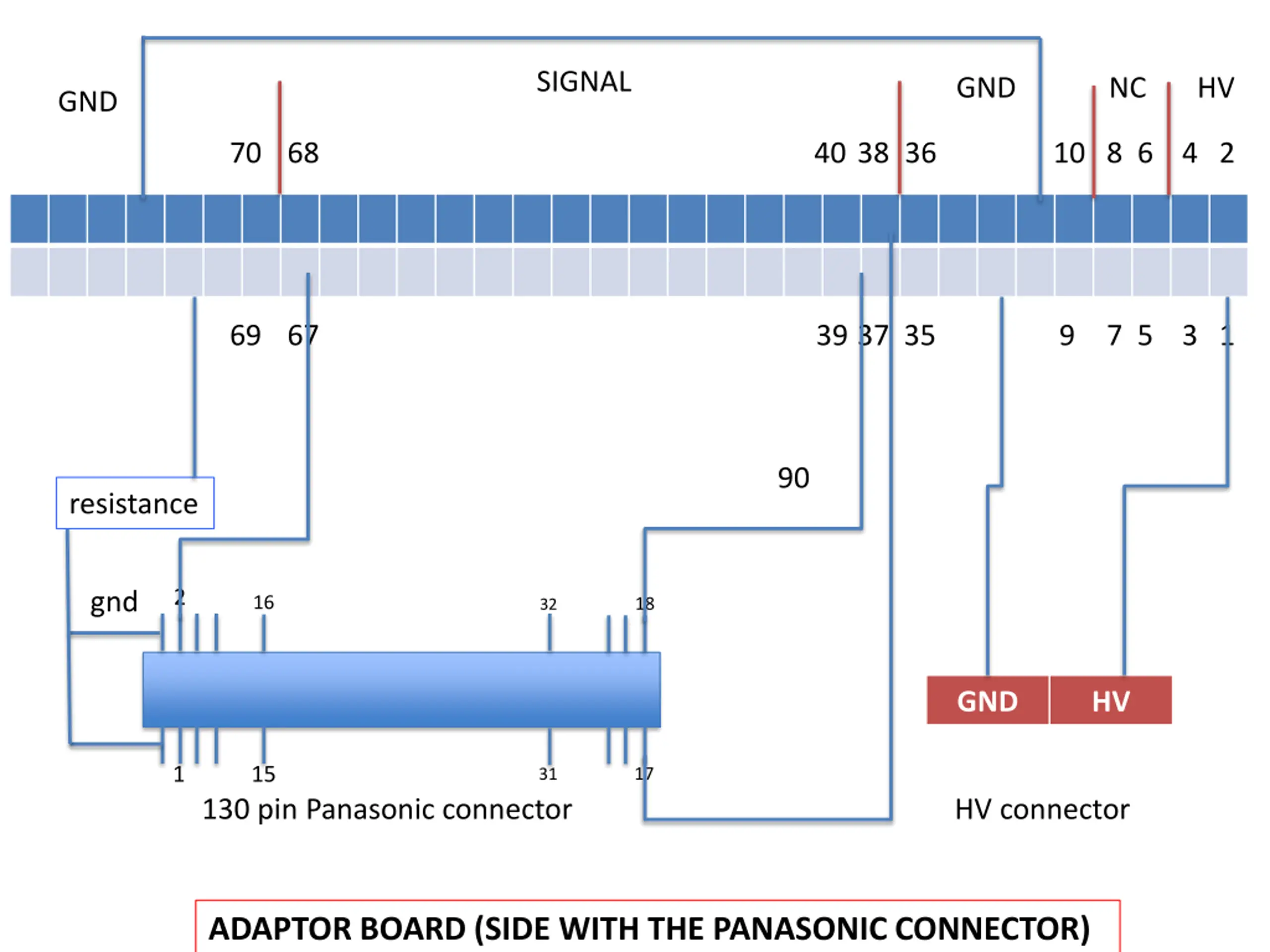

SIGNAL GND NC HV GND 70 68 40 38 36 10 8 6 4 2 69 67 39 37 35 9 7 5 3 1 90 resistance 2 gnd 16 18 32 GND HV 1 15 17 31 130 pin Panasonic connector HV connector ADAPTOR BOARD (SIDE WITH THE PANASONIC CONNECTOR)
