Micromechanical Analysis of Lamina Coefficients of Thermal Expansion
This chapter delves into the micromechanical analysis of lamina coefficients of thermal expansion in composite materials, specifically focusing on the Glass/Epoxy lamina with calculations and properties provided by Dr. Autar Kaw. The equations and diagrams presented offer insights into understanding thermal expansion behaviors within the composite lamina.
Uploaded on Mar 07, 2025 | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Chapter 3 Micromechanical Analysis of a Lamina Coefficients of Thermal Expansion Dr. Autar Kaw Department of Mechanical Engineering University of South Florida, Tampa, FL 33620 Courtesy of the Textbook Mechanics of Composite Materials by Kaw

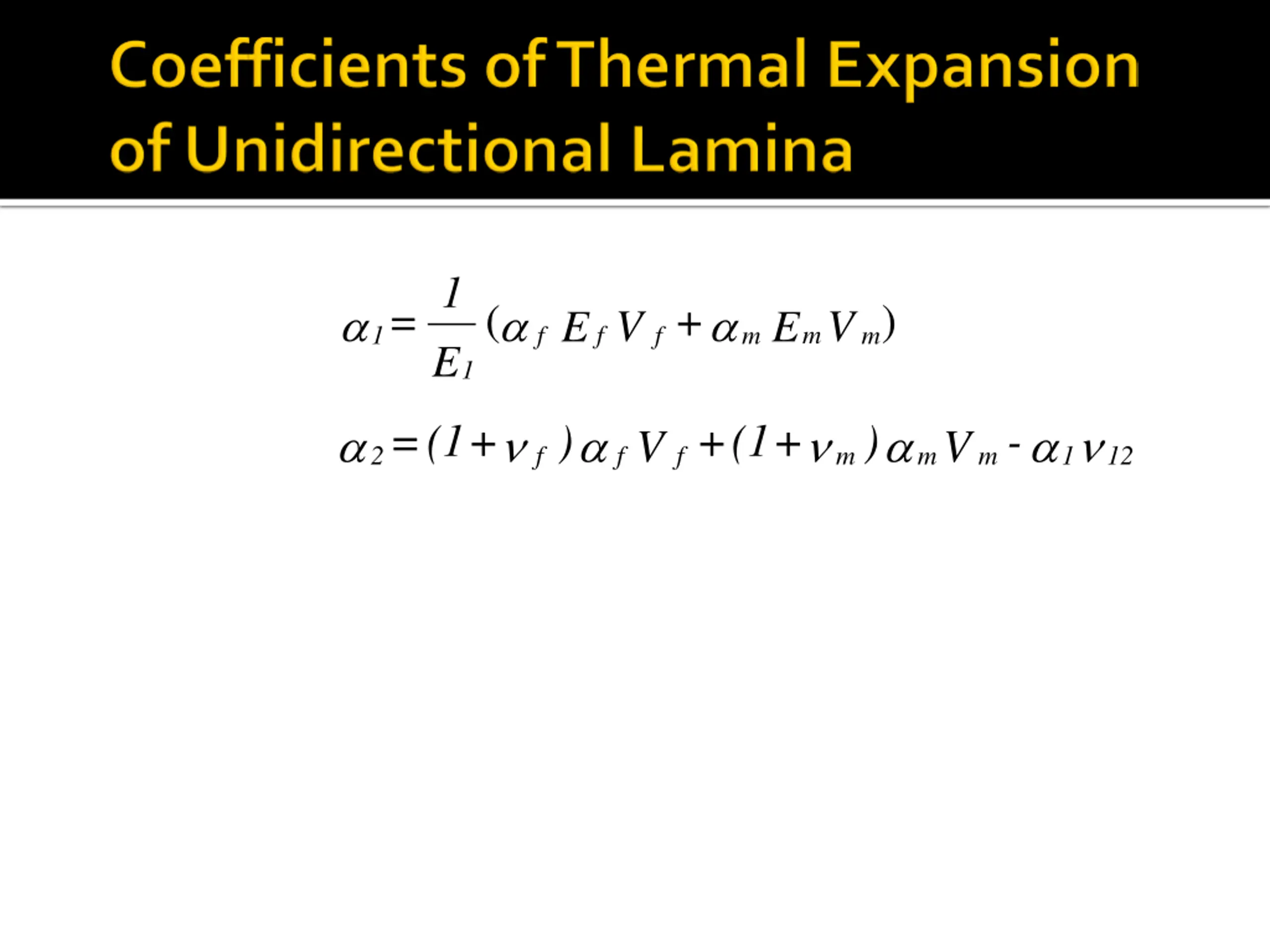

1 ( ) = 1 E f V f + f E m V m m E 1 2 = + (1 ) f V f + + (1 ) m V m - 1 f m 12

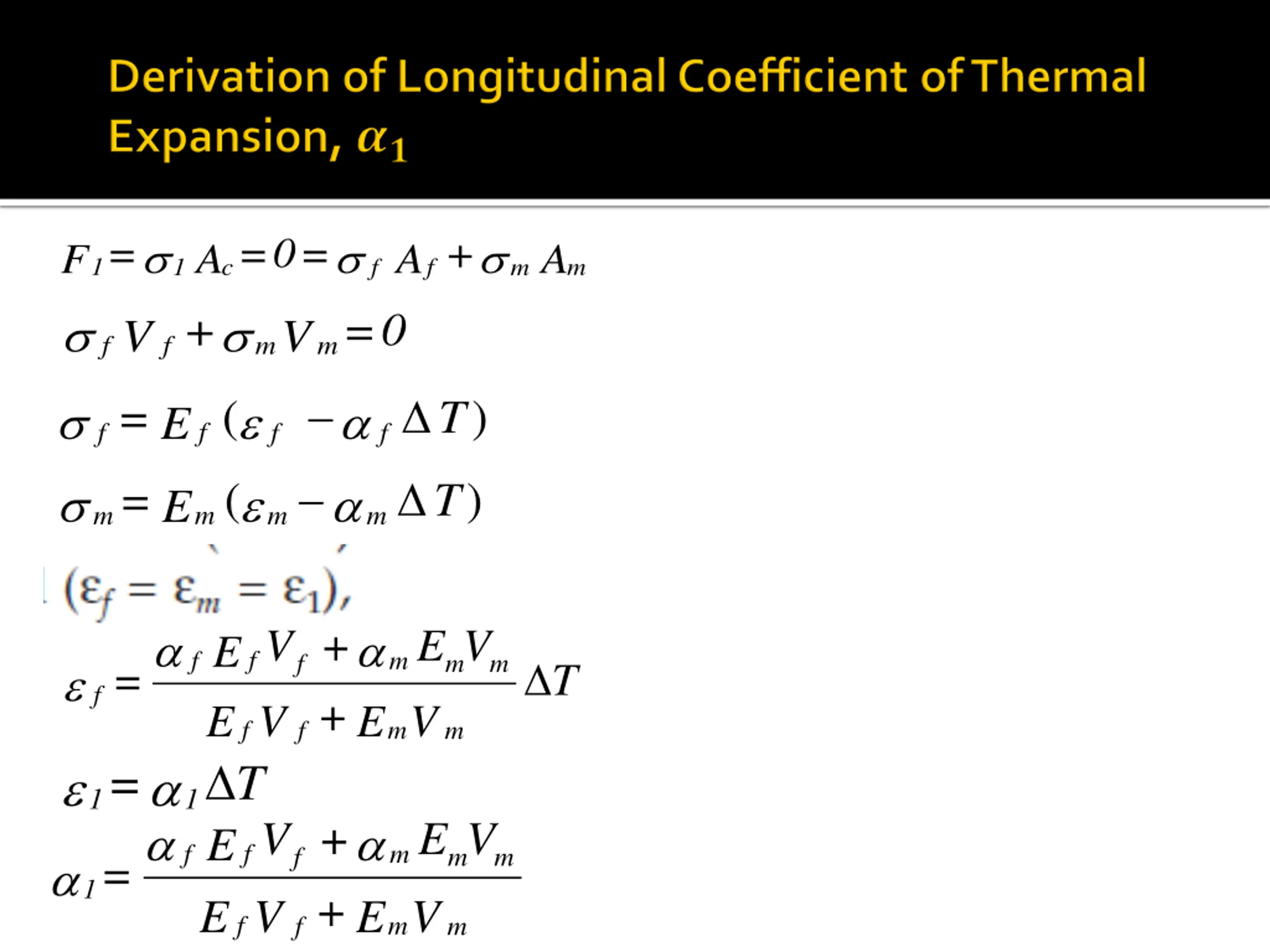

= 1 V f = 0 = A c V + f + f 0 = m F A A m 1 f m m where f : T ( and ) , E = f f f T ( ) E = m m m m V + E V E f f m f m m = f T E + f V V E E f m m = 1 T 1 V + E V f f m f m m = 1 E + f V V E f m m
V + E V E f f m f m m = 1 E + f V V E f m m 1 ( ) = 1 E f V + E m V m m f f E 1 E E V f E f V = + m E m 1 f m 1 1

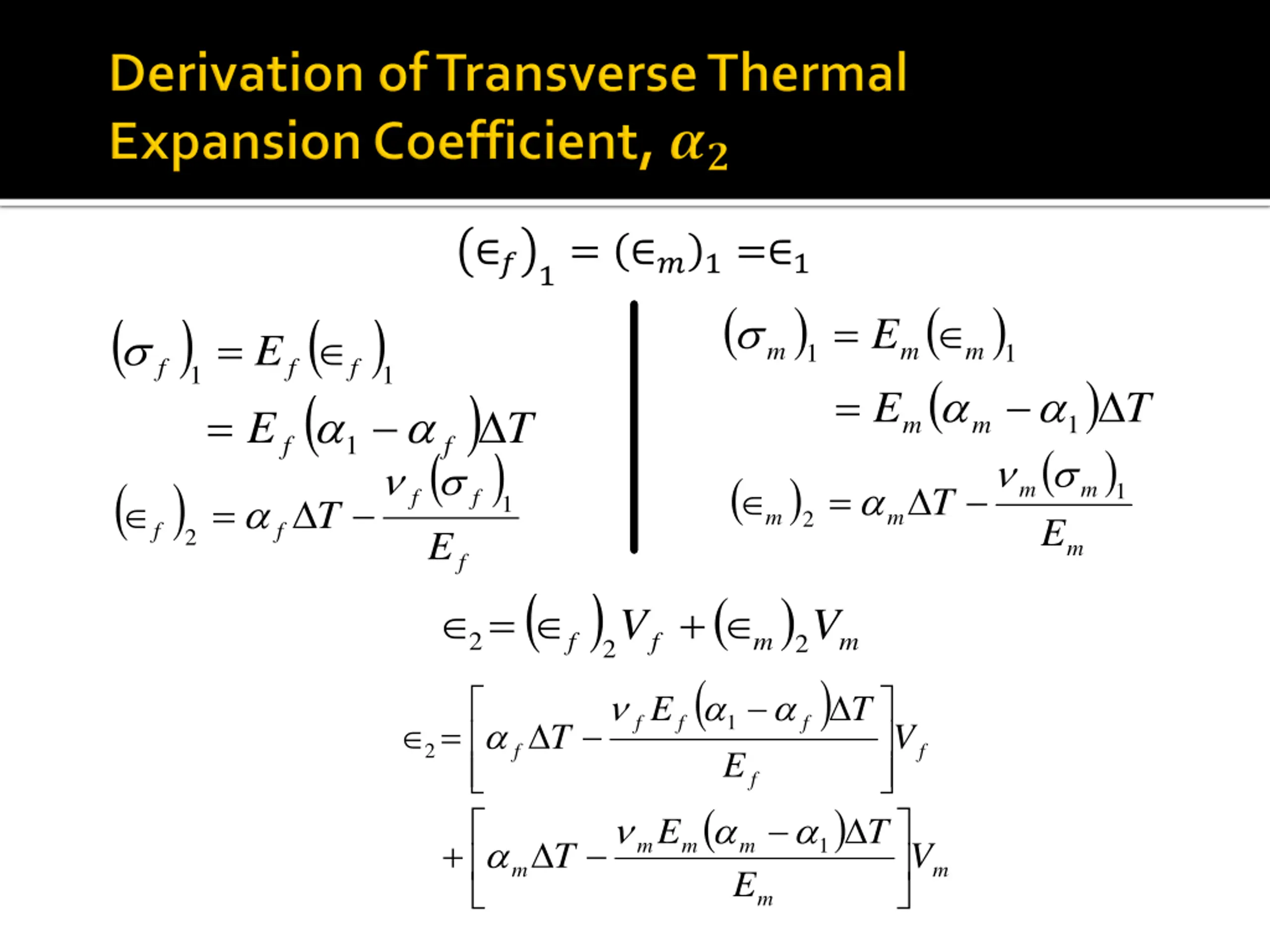

?1= ? 1=1 ( ) ( ( )1 ( ) ( )1 f ( 1 = = E = = E m m m 1 f f 1 ) T ) m 1 ) T ) f ( m E E E 1 m m f f ( E ( ( ) ) = T f = 1 T m m 2 f f 2 m f ( ) ( ) = + V V ) 2 f f m m 2 2 ( E T 1 f f f = T V 2 f f E f ( ) E T + 1 m m m E T V m m m

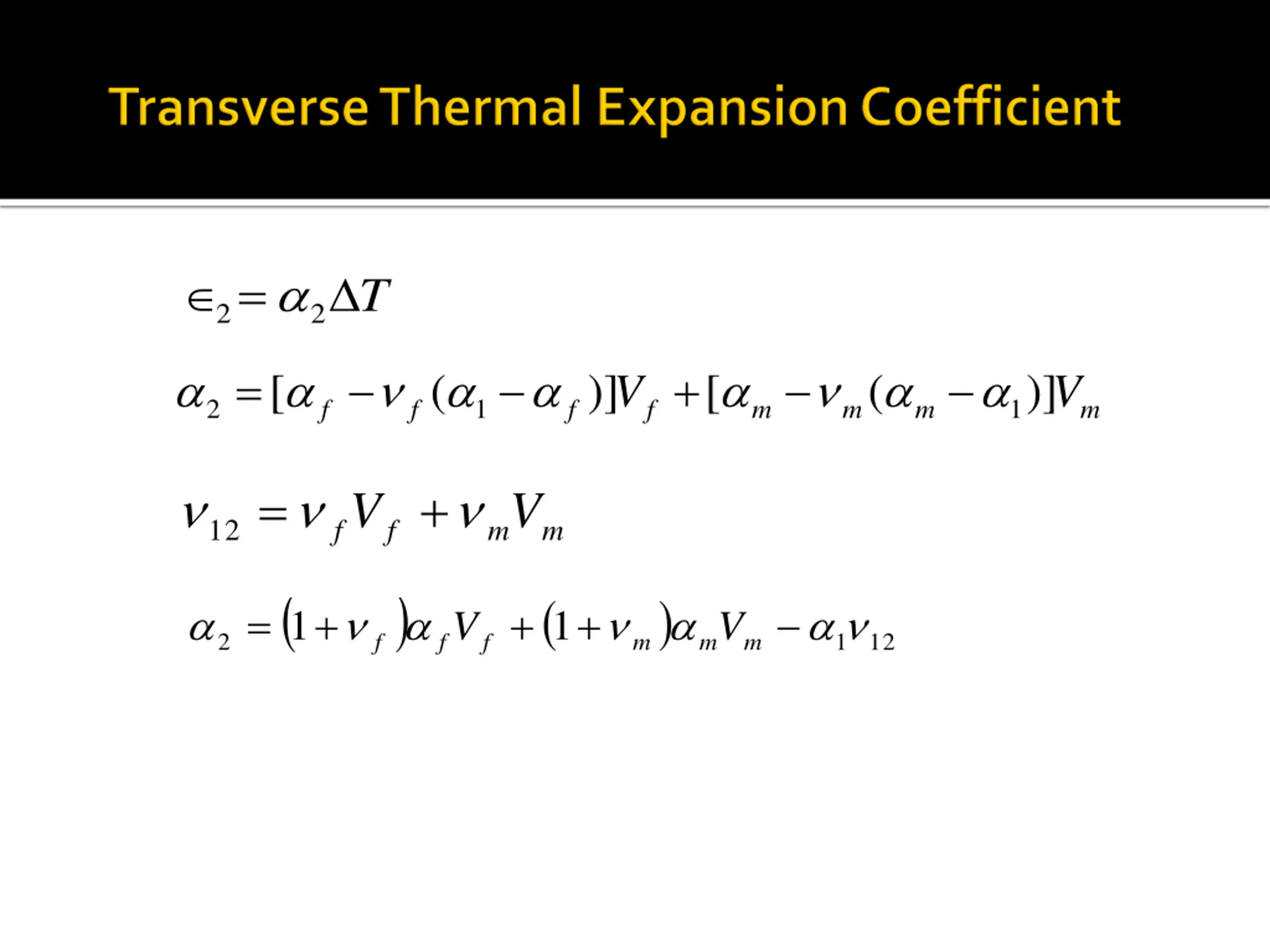

2 = T 2 = + [ ( )] [ ( )] V V 2 1 1 f f f f m m m m = + V V 12 f f m m ( 1 ) ( ) = + + + 1 1 V V 2 12 f f f m m m

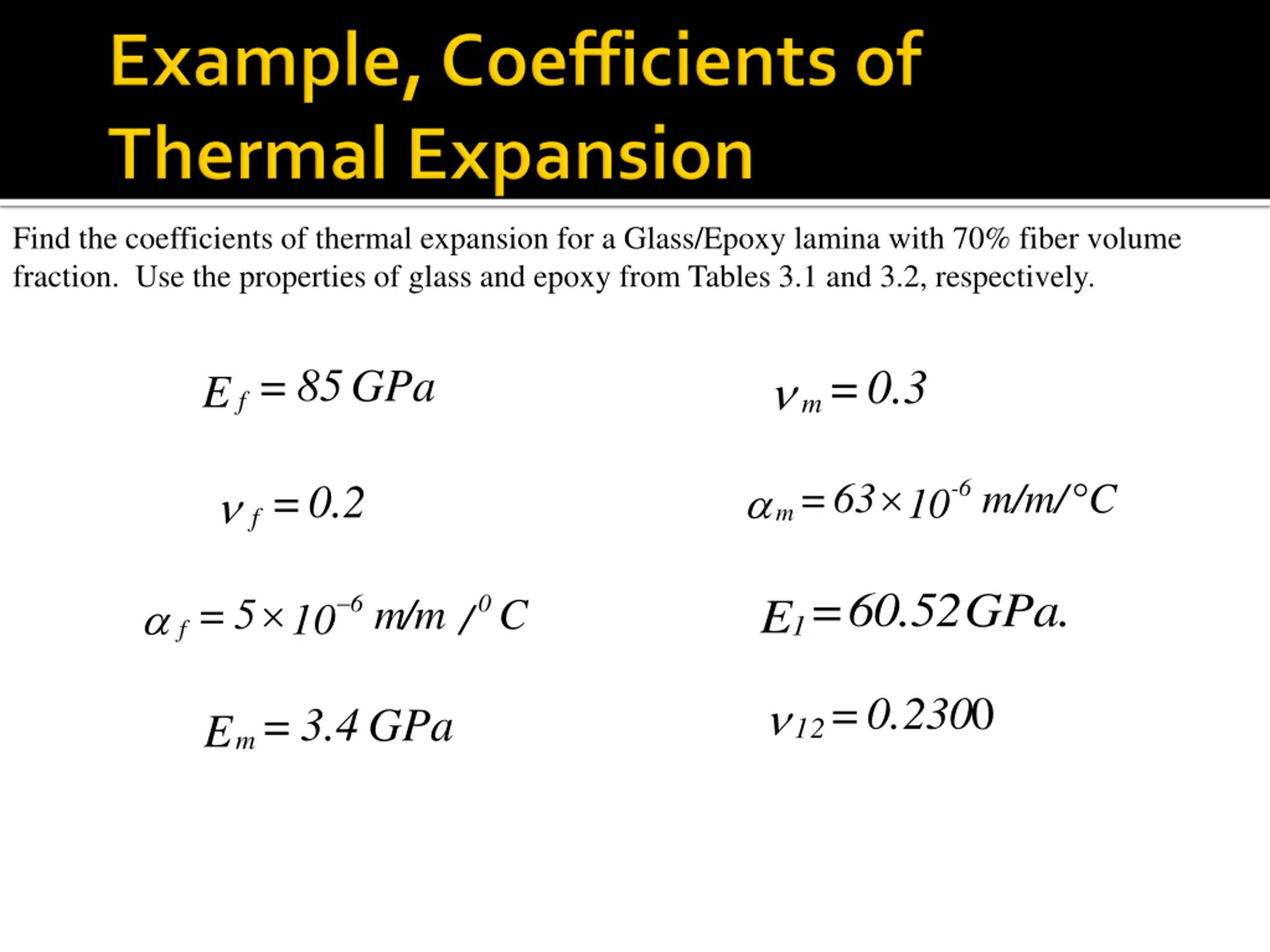

Find the coefficients of thermal expansion for a Glass/Epoxy lamina with 70% fiber volume fraction. Use the properties of glass and epoxy from Tables 3.1 and 3.2, respectively. GPa 85 = E f = m 0.3 -6 = m 63 m/m/ C = f 0.2 10 60.52 = E1 GPa. 10 6 0 5 = f m/m C / 0 = 12 0.230 = 3.4 GPa Em

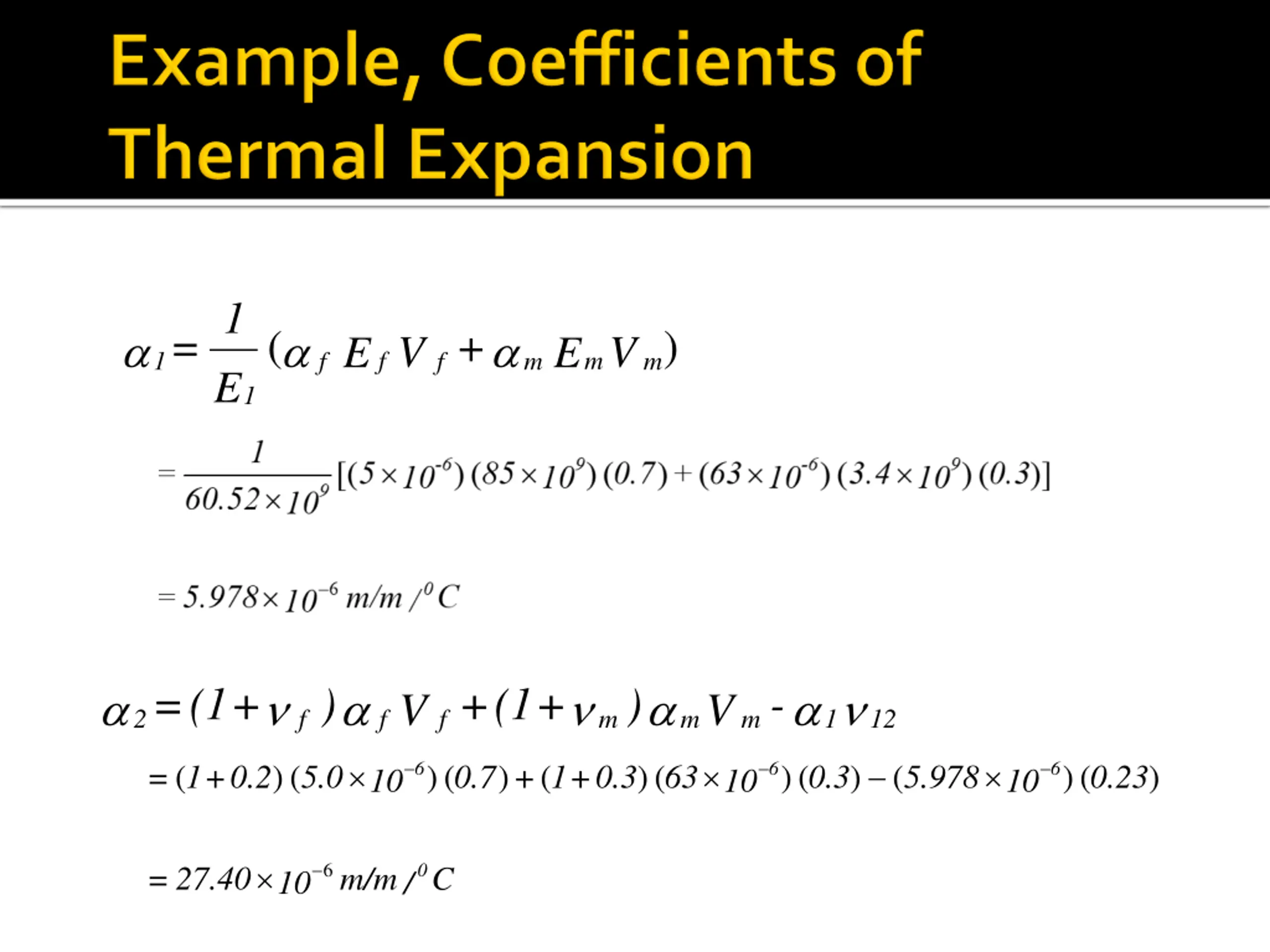

1 ( ) = 1 E f V f + f E m V m m E 1 2 = + (1 ) f V f + + (1 ) m V m - 1 f m 12 6 6 6 + 1 ( ( ) ( ) + ) + 1 ( ( ) ( ) ) ( ( ) ) = 2 0.2 5.0 0.7 0.3 63 0.3 5.978 0.23 10 10 10 6 0 = 27.40 m/m C 10 /

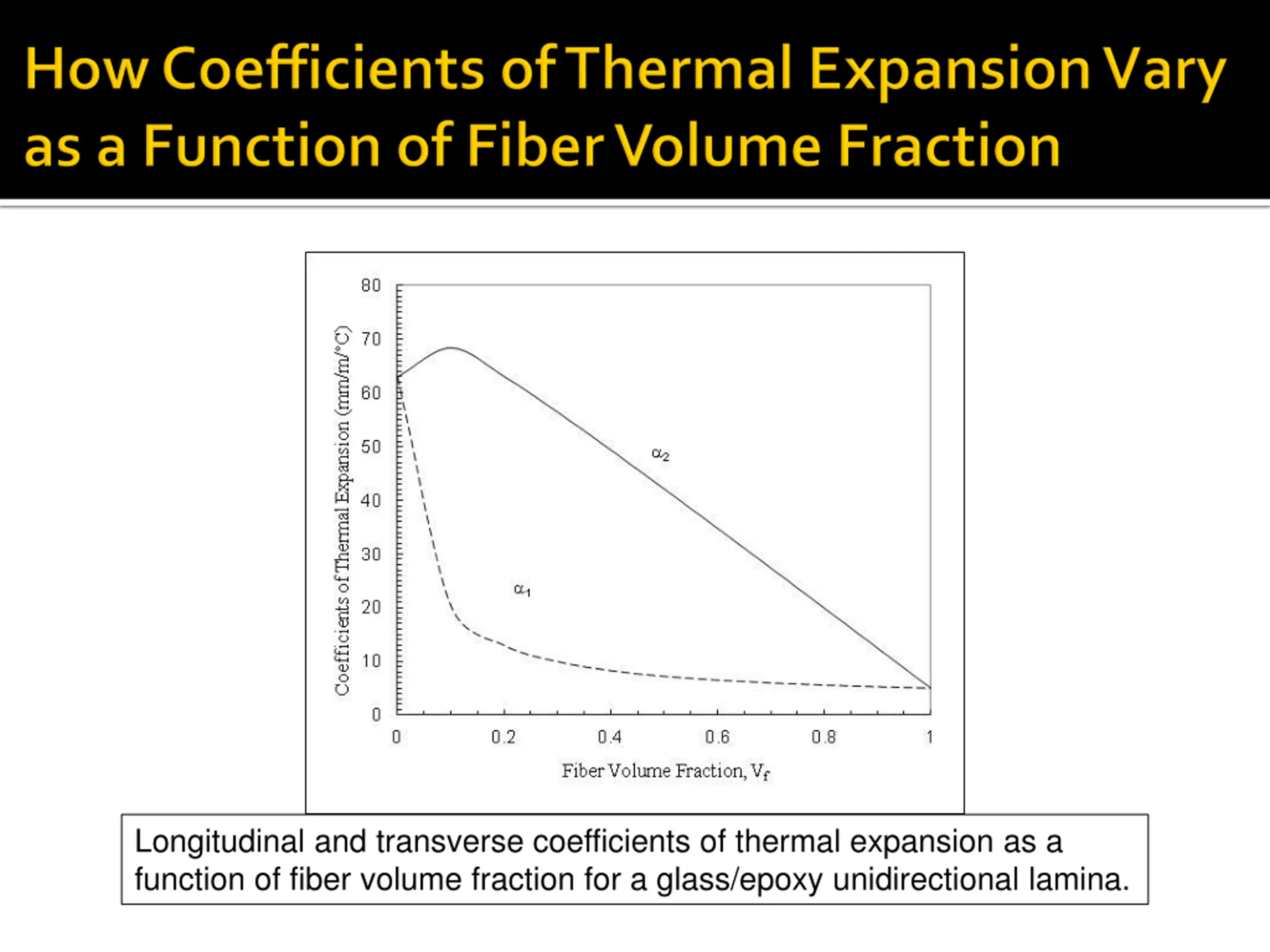

Longitudinal and transverse coefficients of thermal expansion as a function of fiber volume fraction for a glass/epoxy unidirectional lamina.

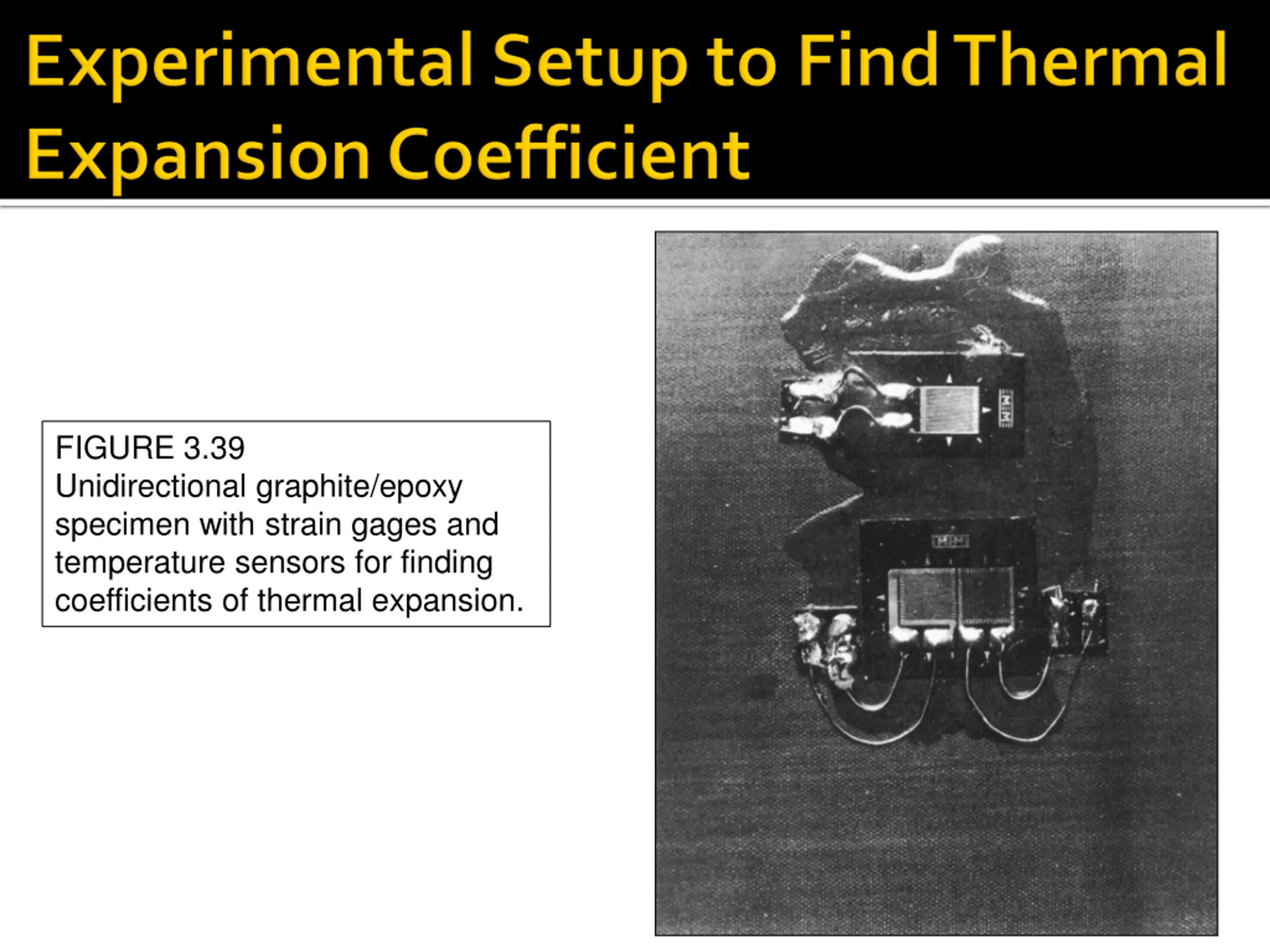

FIGURE 3.39 Unidirectional graphite/epoxy specimen with strain gages and temperature sensors for finding coefficients of thermal expansion.

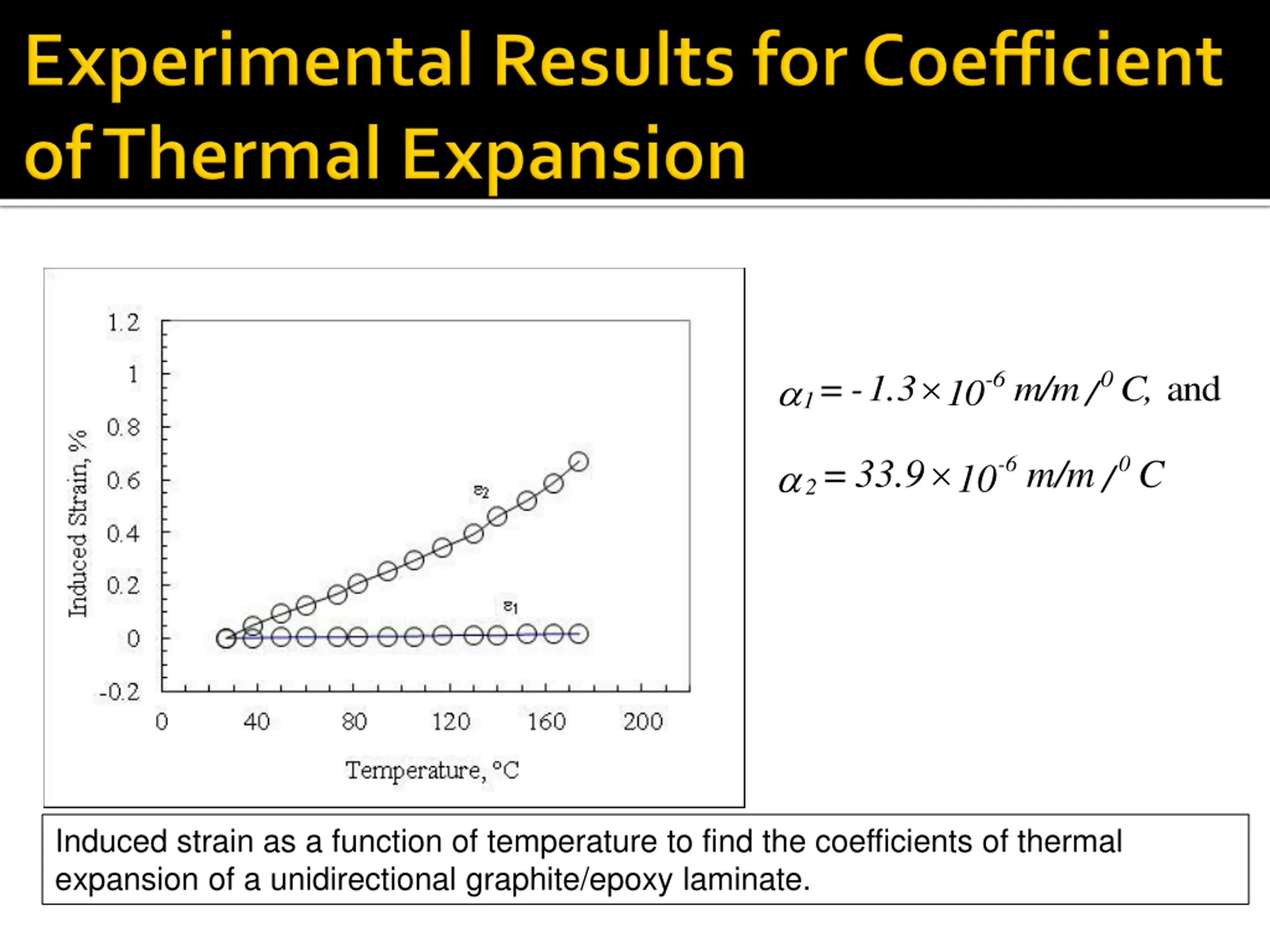

10 -6 0 and C, - = 1 1.3 m/m / 10 -6 0 = 2 33.9 m/m C / Induced strain as a function of temperature to find the coefficients of thermal expansion of a unidirectional graphite/epoxy laminate.
