Micromechanical Analysis of Lamina Ultimate Strengths in Composite Materials
Explore the micromechanical analysis of the ultimate strengths of a unidirectional lamina in composite materials. Derive formulas for transverse tensile and compressive strengths, and calculate the ultimate transverse compressive strength for a Glass/Epoxy lamina with 70% fiber volume fraction. Discover the stress-strain curve for a graphite/epoxy laminate under transverse compressive load and determine the ultimate shear strength for a Glass/Epoxy lamina with fiber volume fraction.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

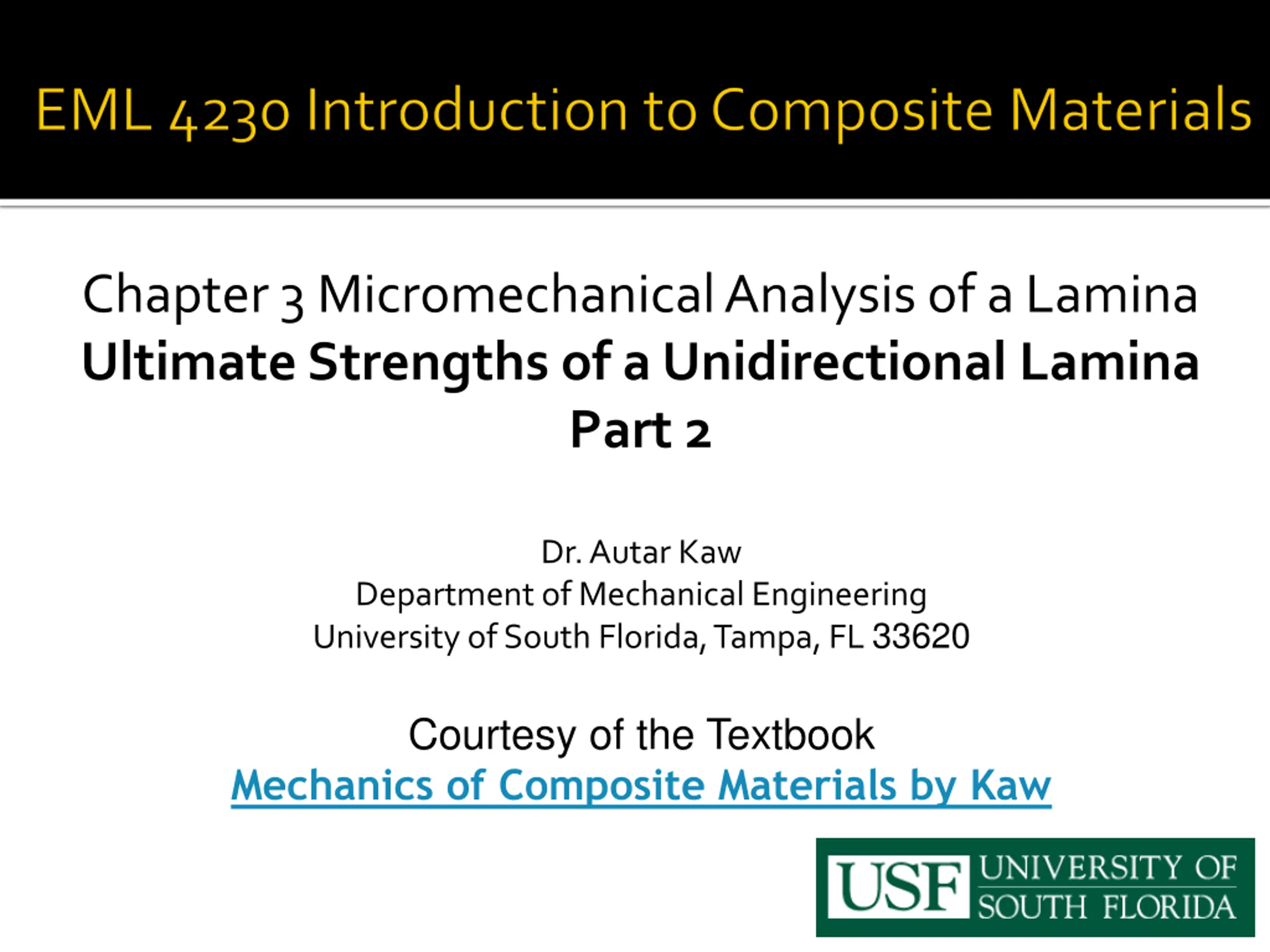

Chapter 3 Micromechanical Analysis of a Lamina Ultimate Strengths of a Unidirectional Lamina Part 2 Dr. Autar Kaw Department of Mechanical Engineering University of South Florida, Tampa, FL 33620 Courtesy of the Textbook Mechanics of Composite Materials by Kaw
Remember for the transverse tensile strength formula derivation T 2 T 2 ( ( E = ) ) 2 ult ult d d E m T 2 T m ( ( = + - 1 ) ) ult ult s s E f Following same logic C 2 C 2 ( ( where , E = ult ) ) 2 ult E d d + C 2 C m ( 1 ( m = ) ) ult ult s E s f

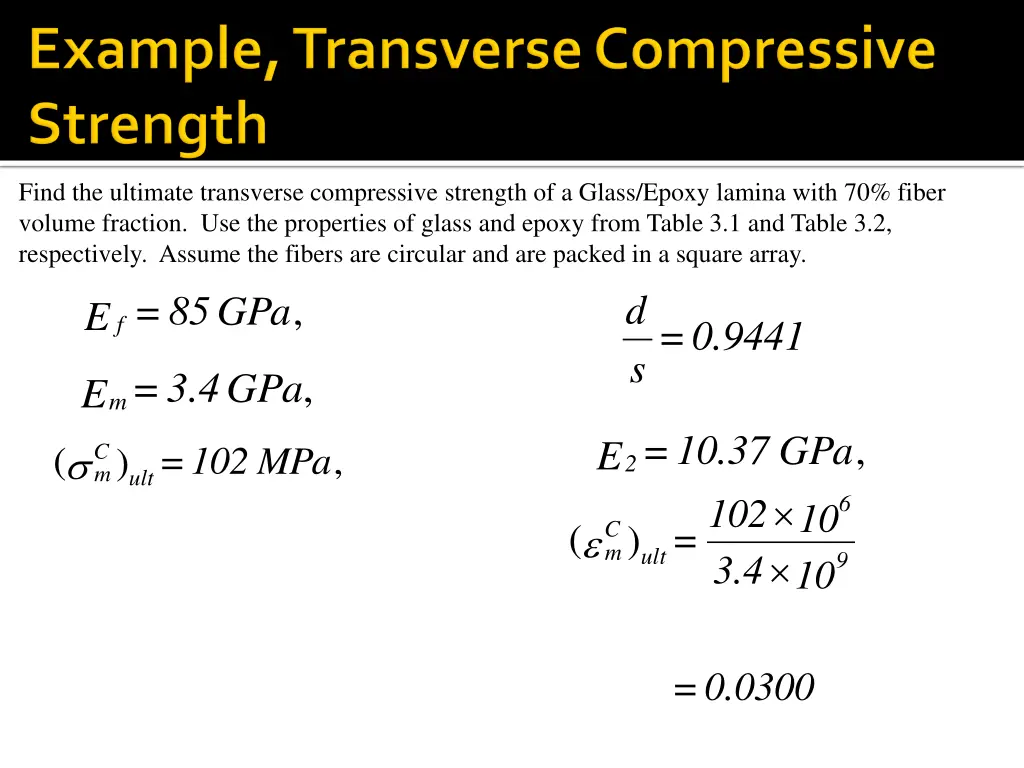

Find the ultimate transverse compressive strength of a Glass/Epoxy lamina with 70% fiber volume fraction. Use the properties of glass and epoxy from Table 3.1 and Table 3.2, respectively. Assume the fibers are circular and are packed in a square array. , GPa 85 = E f d 0.9441 = s , = 3.4 GPa Em , = 10.37 GPa E2 C m ( , = ult 102 MPa ) 102 and 6 10 C m ( = ult ) 9 3.4 10 0.0300 =

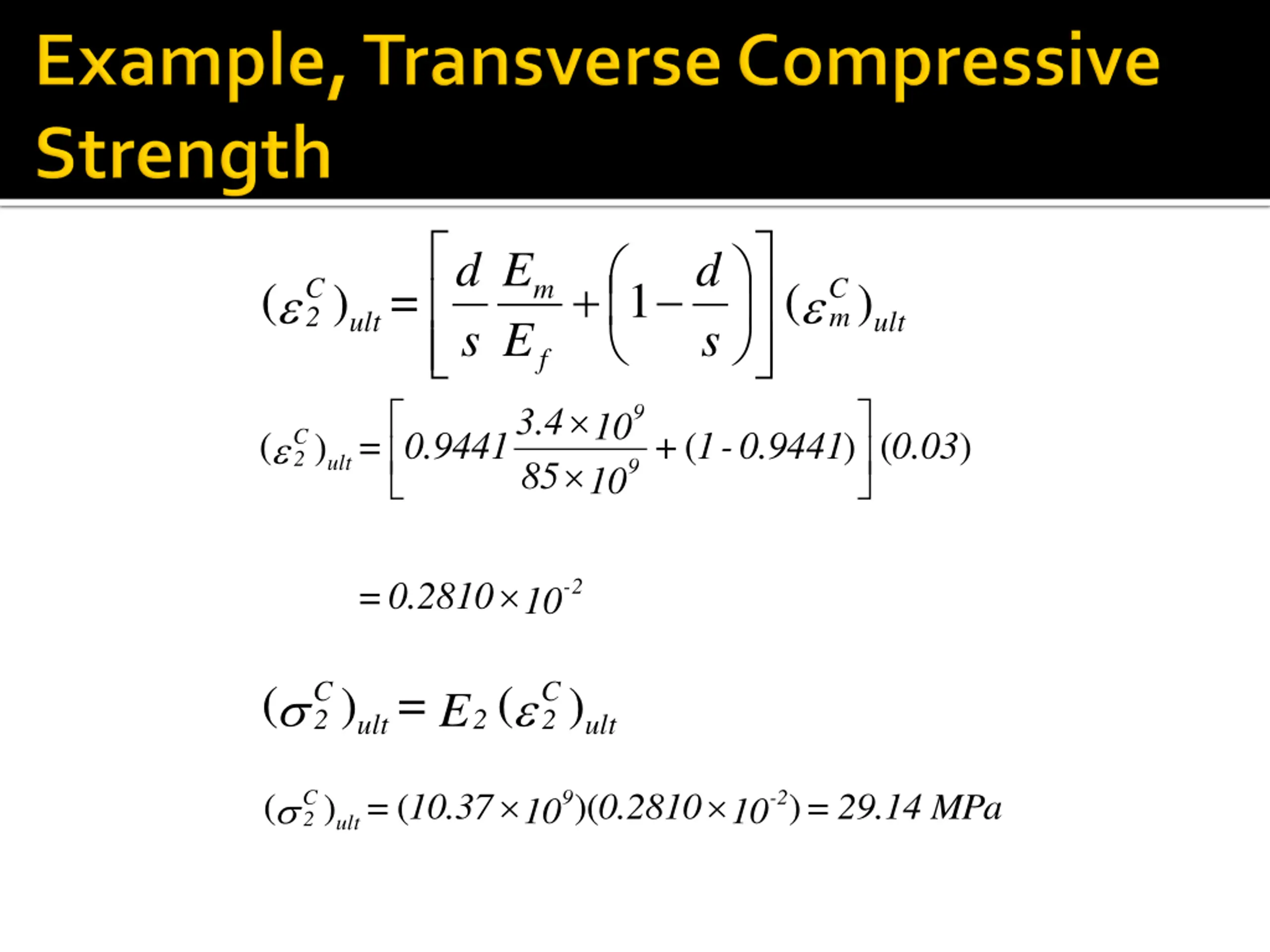

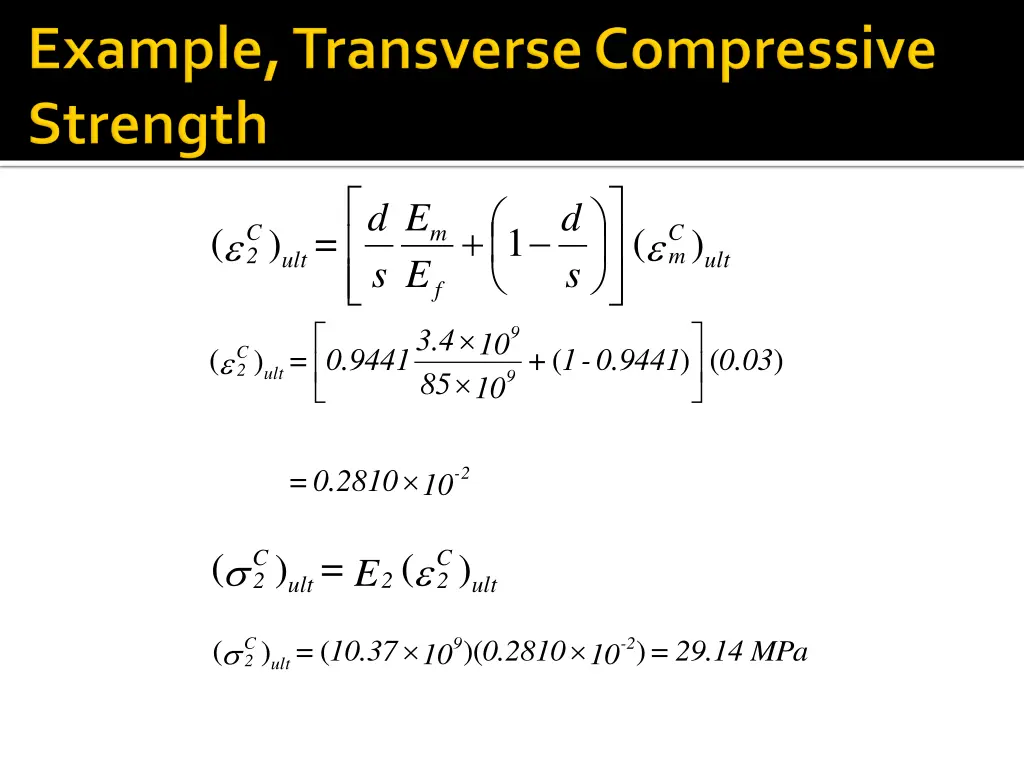

E d d + C 2 C m ( 1 ( m = ) ) ult ult s E s f 9 3.4 10 C 2 ( 0.9441 - 1 ( ) 0.03 ( ) = ult 0.9441 + ) 9 85 10 2 - 0.2810 = 10 C 2 C 2 ( ( where , E = ult ) ) 2 ult C 2 9 -2 ( 10.37 ( 0.2810 )( = ) = ult ) 29.14 MPa 10 10

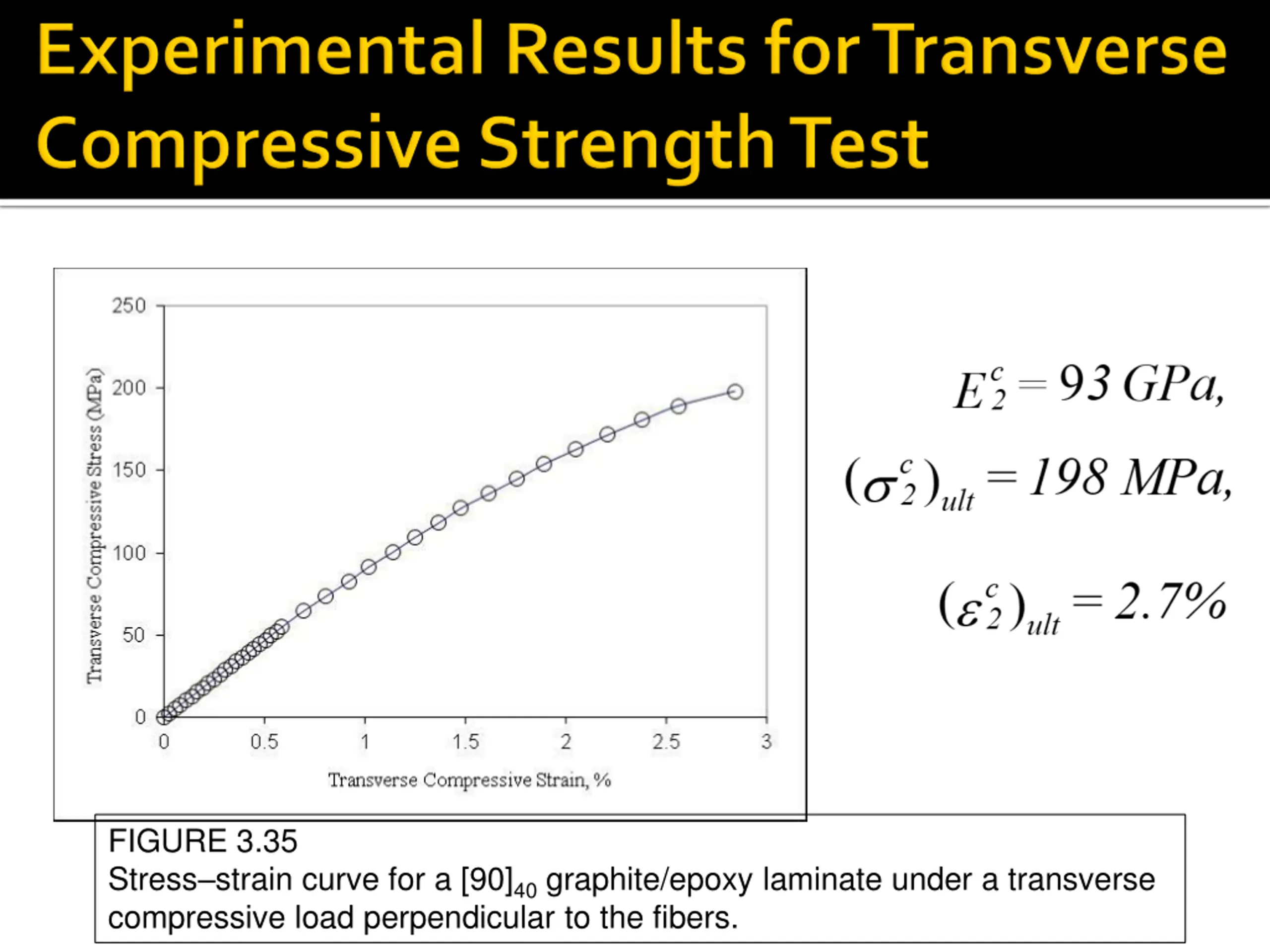

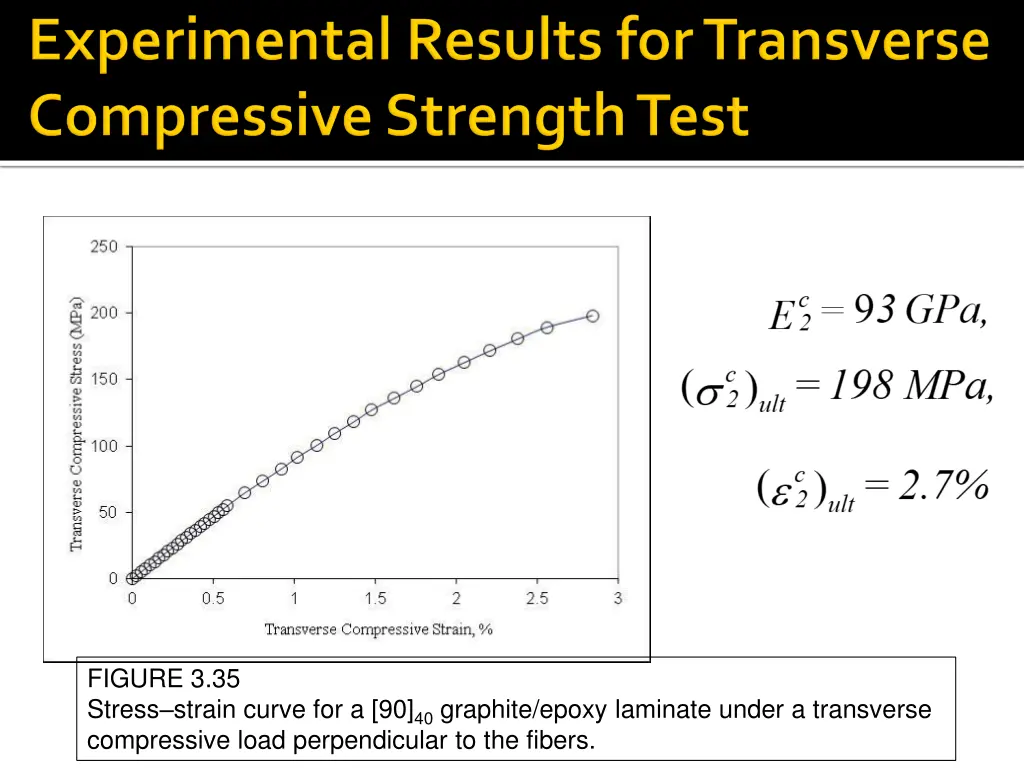

FIGURE 3.35 Stress strain curve for a [90]40 graphite/epoxy laminate under a transverse compressive load perpendicular to the fibers.

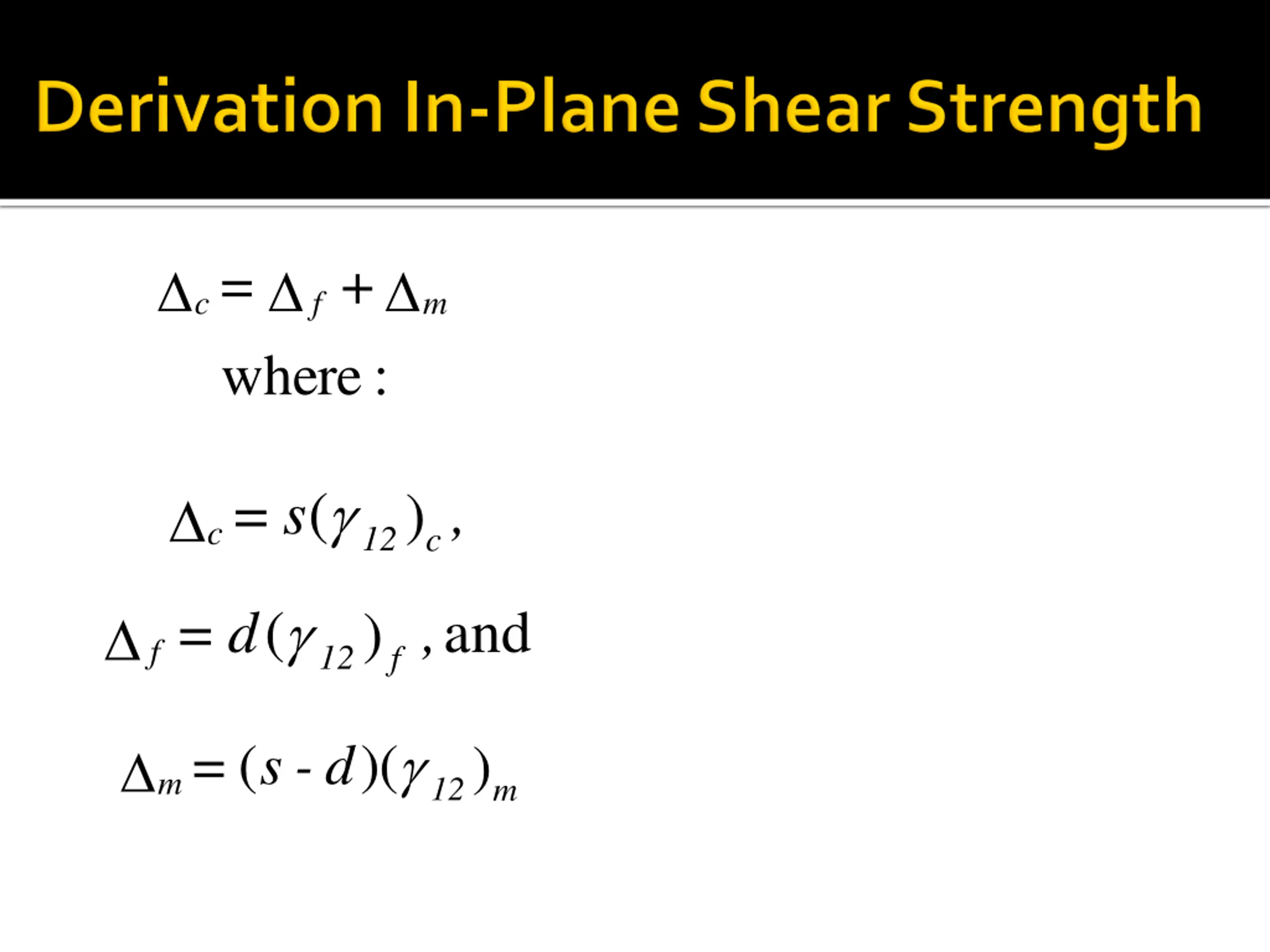

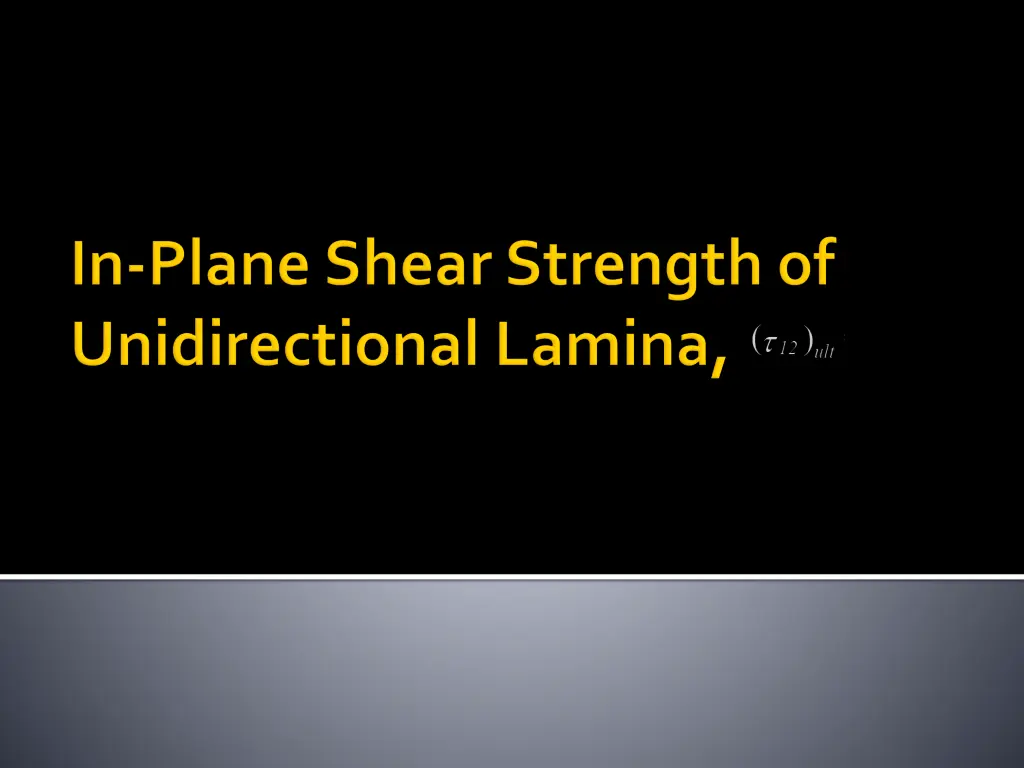

c = f + m where : ( = c s , ) 12 c ( and , d = f ) 12 f ( )( m = d - s ) 12 m

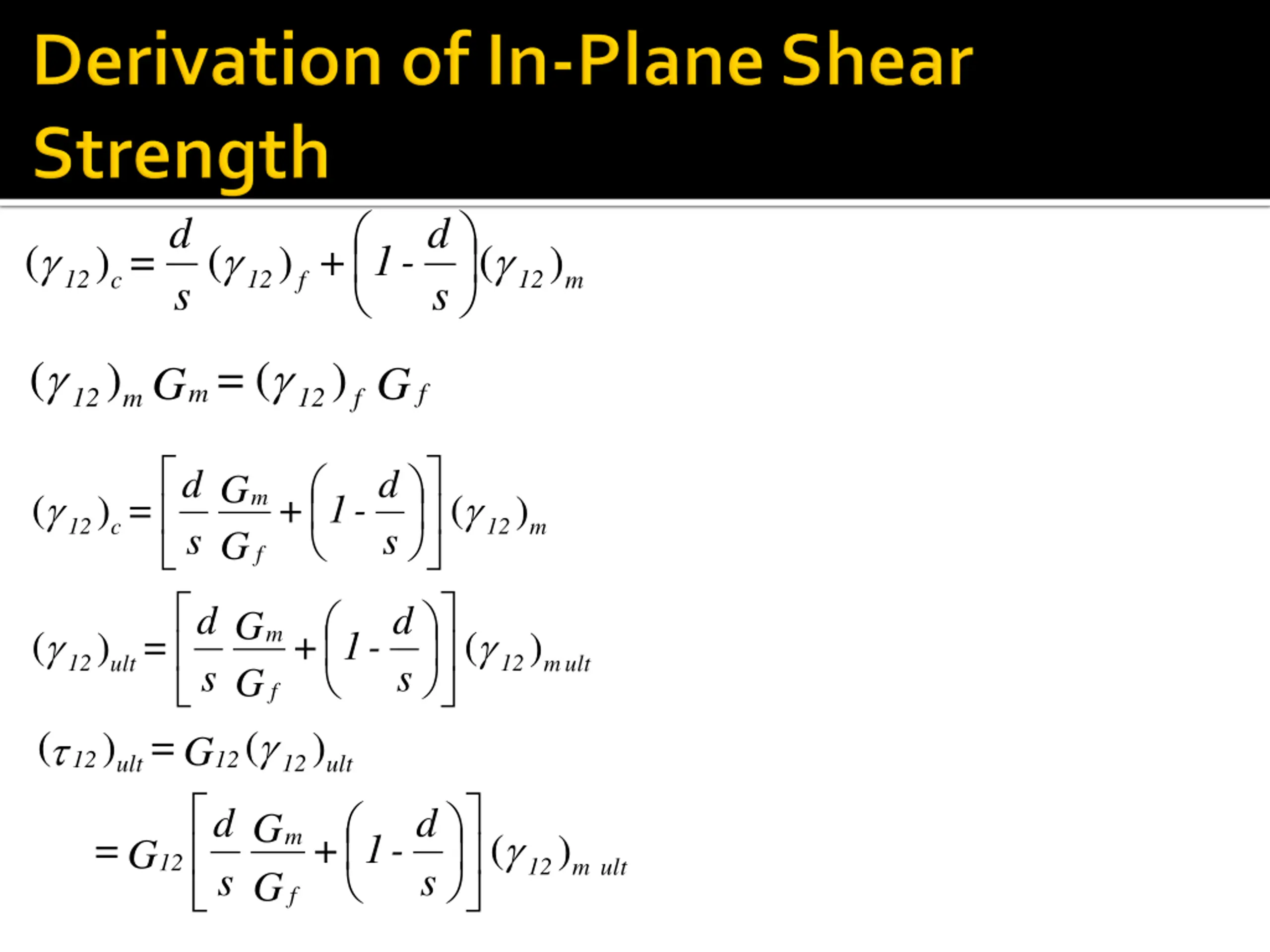

d d ( ( ( c = f + - 1 ) ) ) 12 12 12 m s s ( ( G m = m G ) ) f 12 12 f d d G m ( ( c = + - 1 ) ) 12 12 m s s G f d d G m ( ( = + - 1 ) ) G 12 12 ult m ult s s G ( f ( = ) ) 12 12 12 ult ult d d G m ( = + - 1 ) G 12 12 ult m s s G f

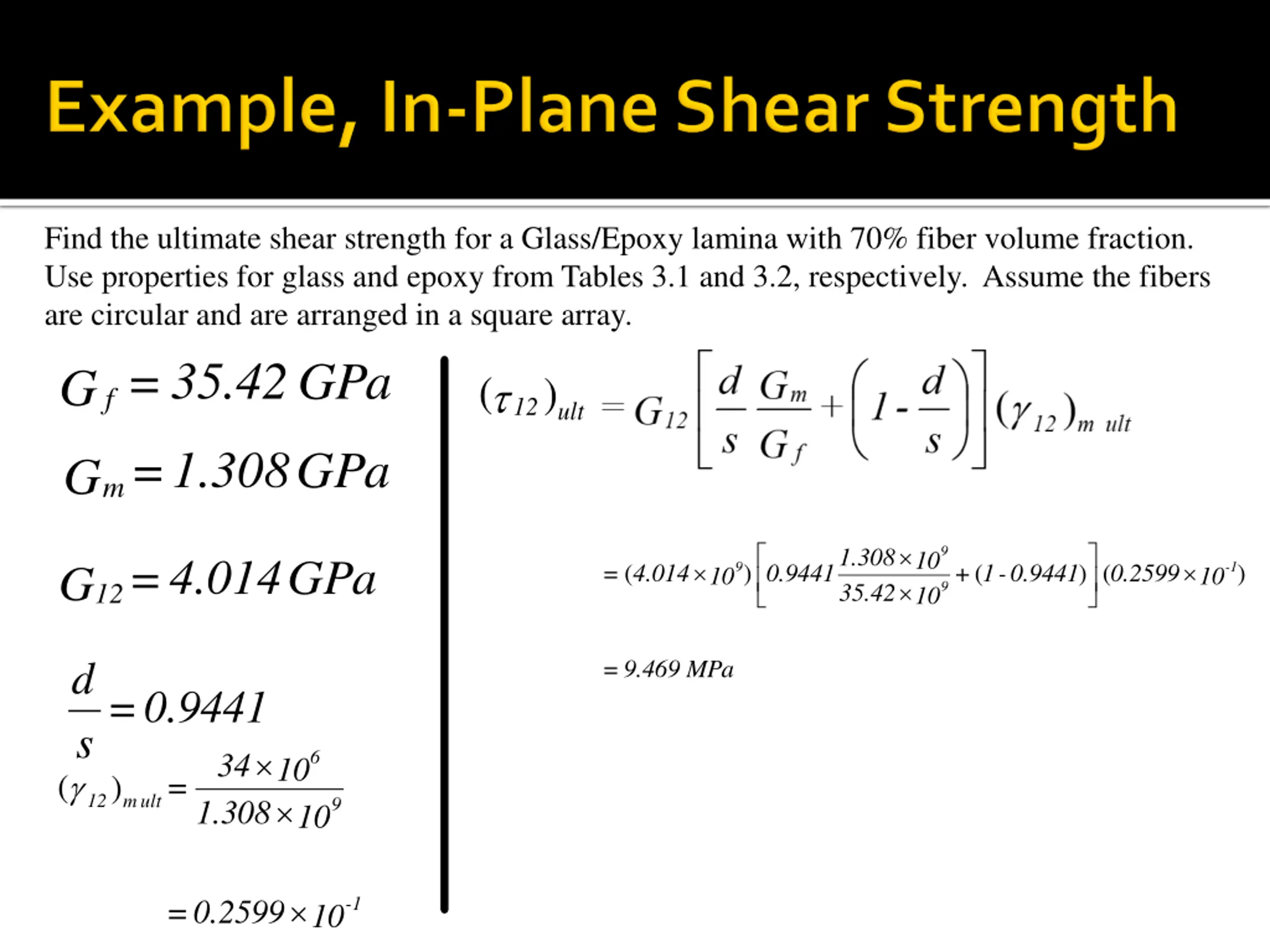

Find the ultimate shear strength for a Glass/Epoxy lamina with 70% fiber volume fraction. Use properties for glass and epoxy from Tables 3.1 and 3.2, respectively. Assume the fibers are circular and are arranged in a square array. GPa 35.42 = Gf GPa 1.308 = Gm 12 G = ( ( = ) ) G 12 12 12 ult ult d d G m ( + - 1 ) 4.014 10 12 ult m s s G 10 f 9 1.308 = 4.014 GPa G12 9 1 - ( ( ) 0.9441 - 1 ( ) 0.2599 ( ) = ult ) 0.9441 + 9 10 12 35.42 10 d 9.469 = MPa 0.9441 = s = ult m 12 ) ( 6 34 10 9 1.308 10 1 - 0.2599 = 10

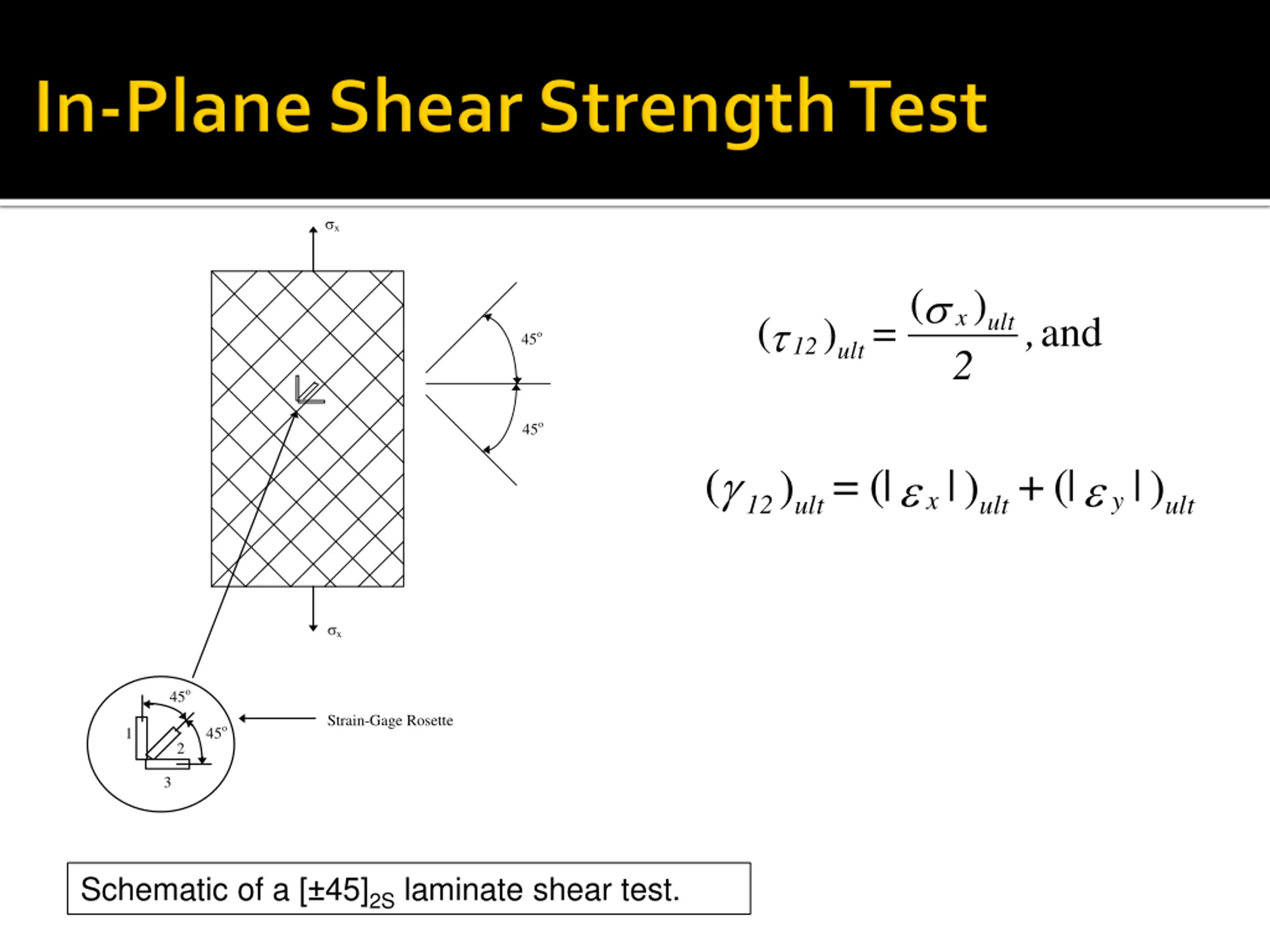

x ( ) x ( and , ult = ult ) 45o 12 2 45o ( ( ( | = | | + | ) ) ) x y 12 ult ult ult x 45o Strain-Gage Rosette 45o 1 2 3 Schematic of a [ 45]2S laminate shear test.

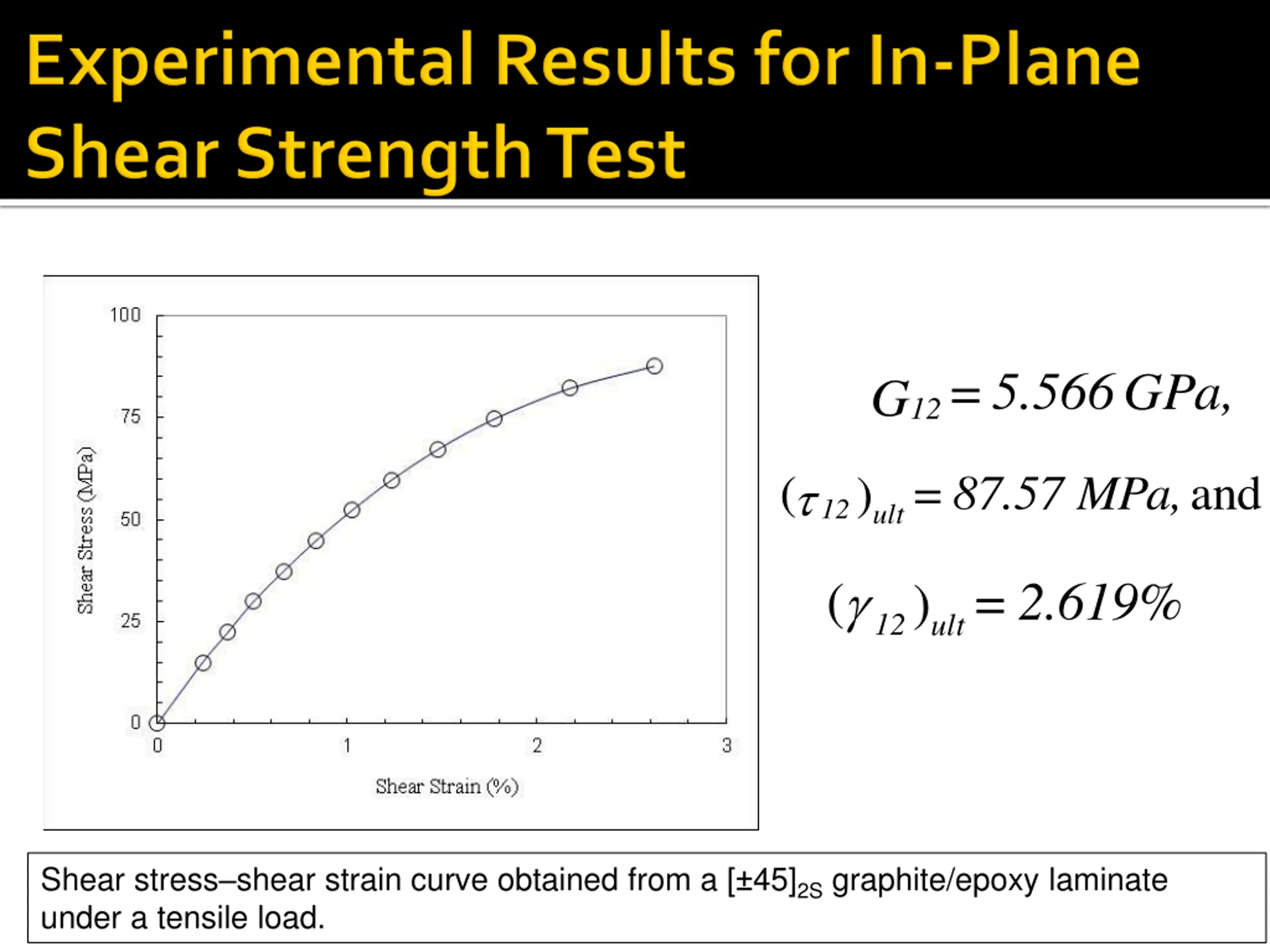

= 5.566 GPa, G12 ( and = ult 87.57 MPa, ) 12 ( 2.619% = ult 12) Shear stress shear strain curve obtained from a [ 45]2S graphite/epoxy laminate under a tensile load.
