Revit Family File ITEV-0200P-0360P Chiller Details
Explore the detailed information and images of the ITEV-0200P-0360P Revit Family file, including model descriptions, dimensions, service clearance options, and connector details. These comprehensive data will assist MEP users in material take-off jobs and BOM preparation. The content also showcases various views and service areas related to the chiller model.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Revit Family file ITEV-0200P-0360P AIR COOLED CHILLER

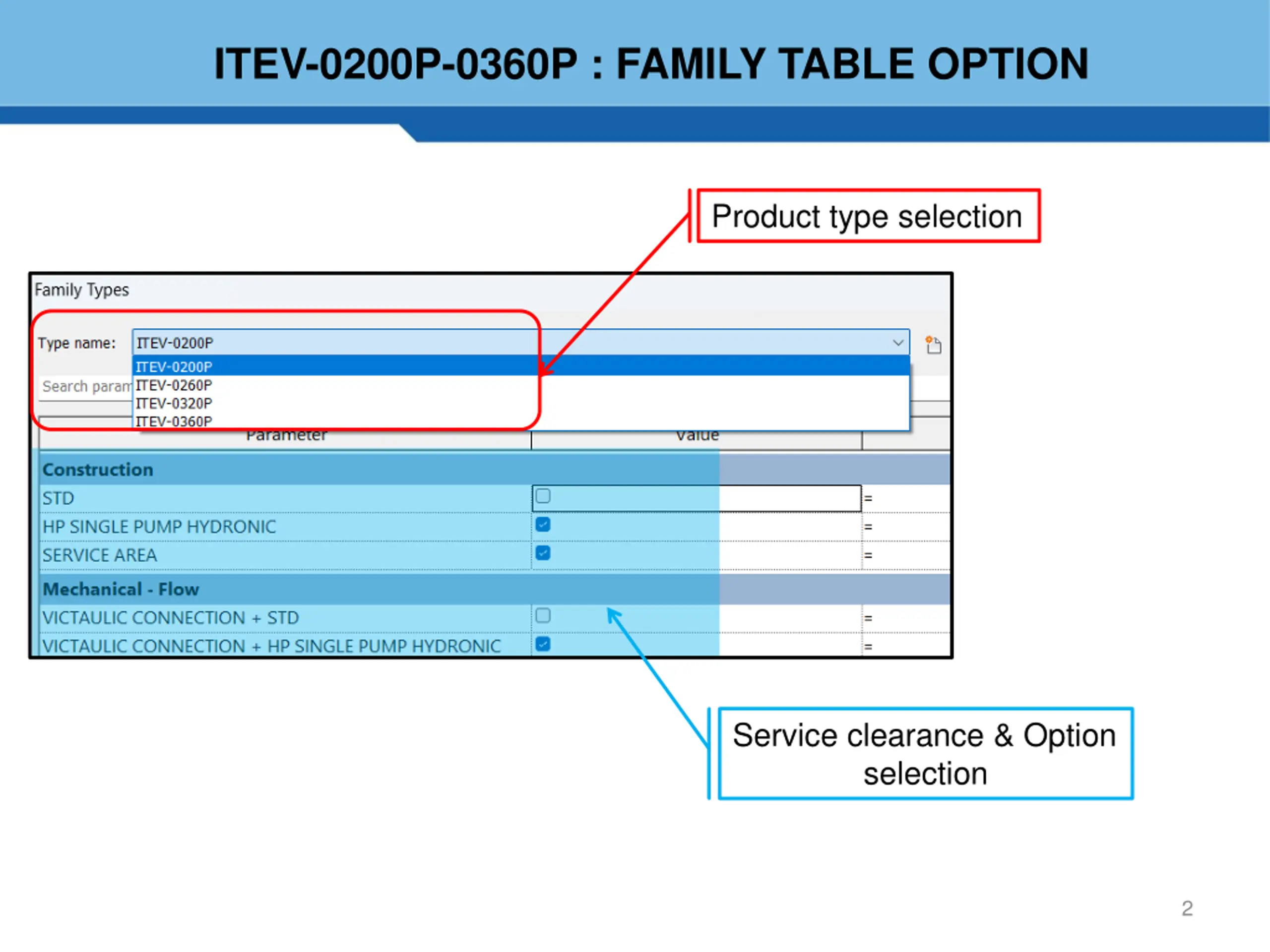

ITEV-0200P-0360P : FAMILY TABLE OPTION Product type selection Service clearance & Option selection 2

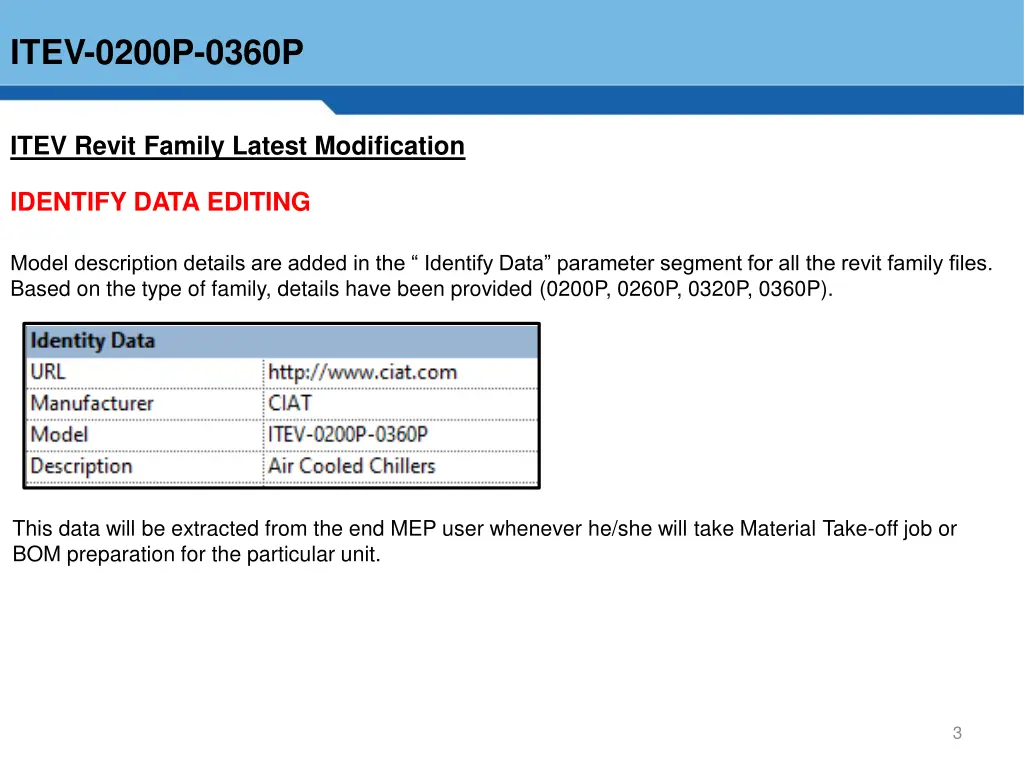

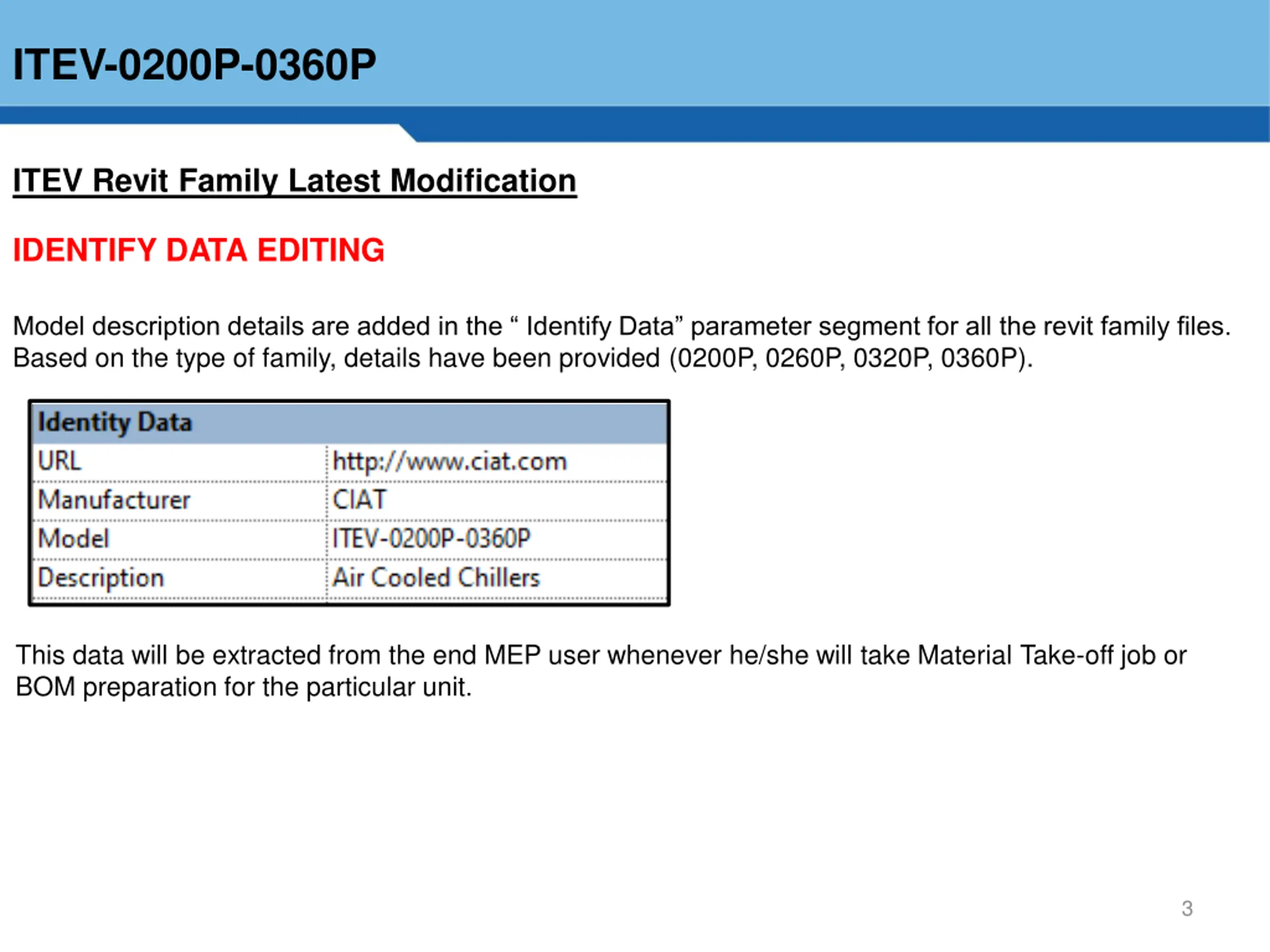

ITEV-0200P-0360P ITEV Revit Family Latest Modification IDENTIFY DATA EDITING Model description details are added in the Identify Data parameter segment for all the revit family files. Based on the type of family, details have been provided (0200P, 0260P, 0320P, 0360P). This data will be extracted from the end MEP user whenever he/she will take Material Take-off job or BOM preparation for the particular unit. 3

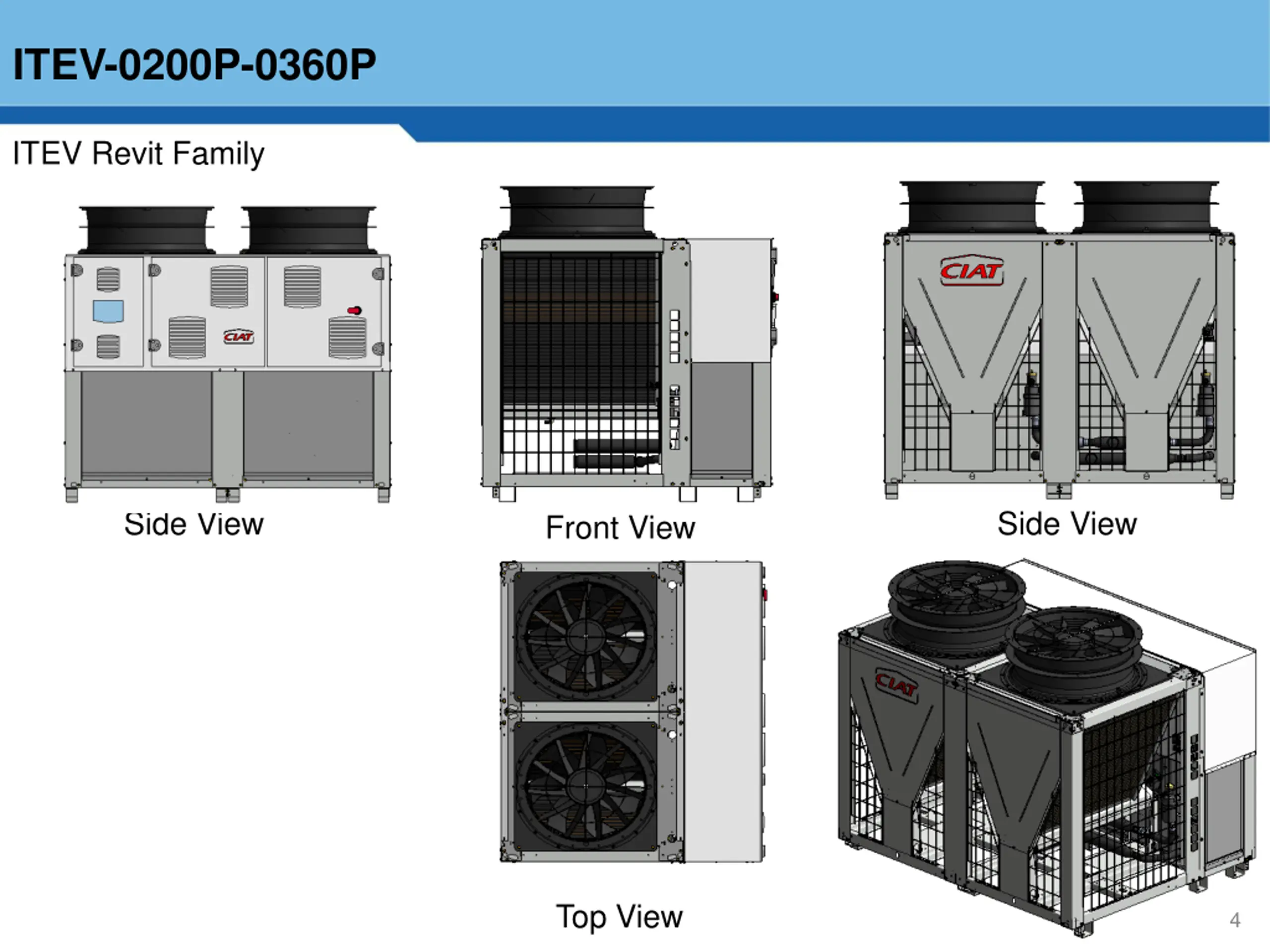

ITEV-0200P-0360P ITEV Revit Family Side View Side View Front View Top View 4

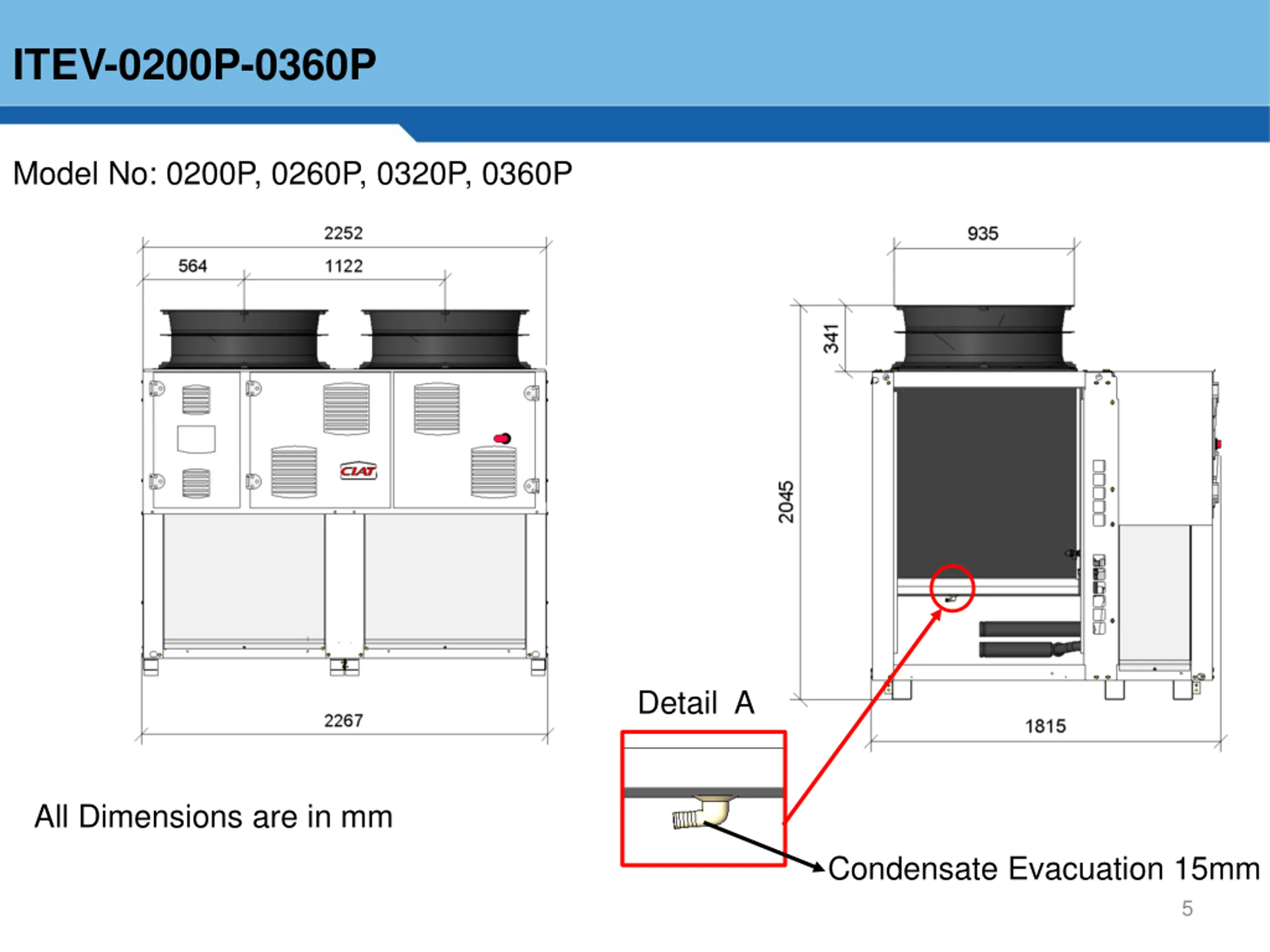

ITEV-0200P-0360P Model No: 0200P, 0260P, 0320P, 0360P Detail A All Dimensions are in mm Condensate Evacuation 15mm 5

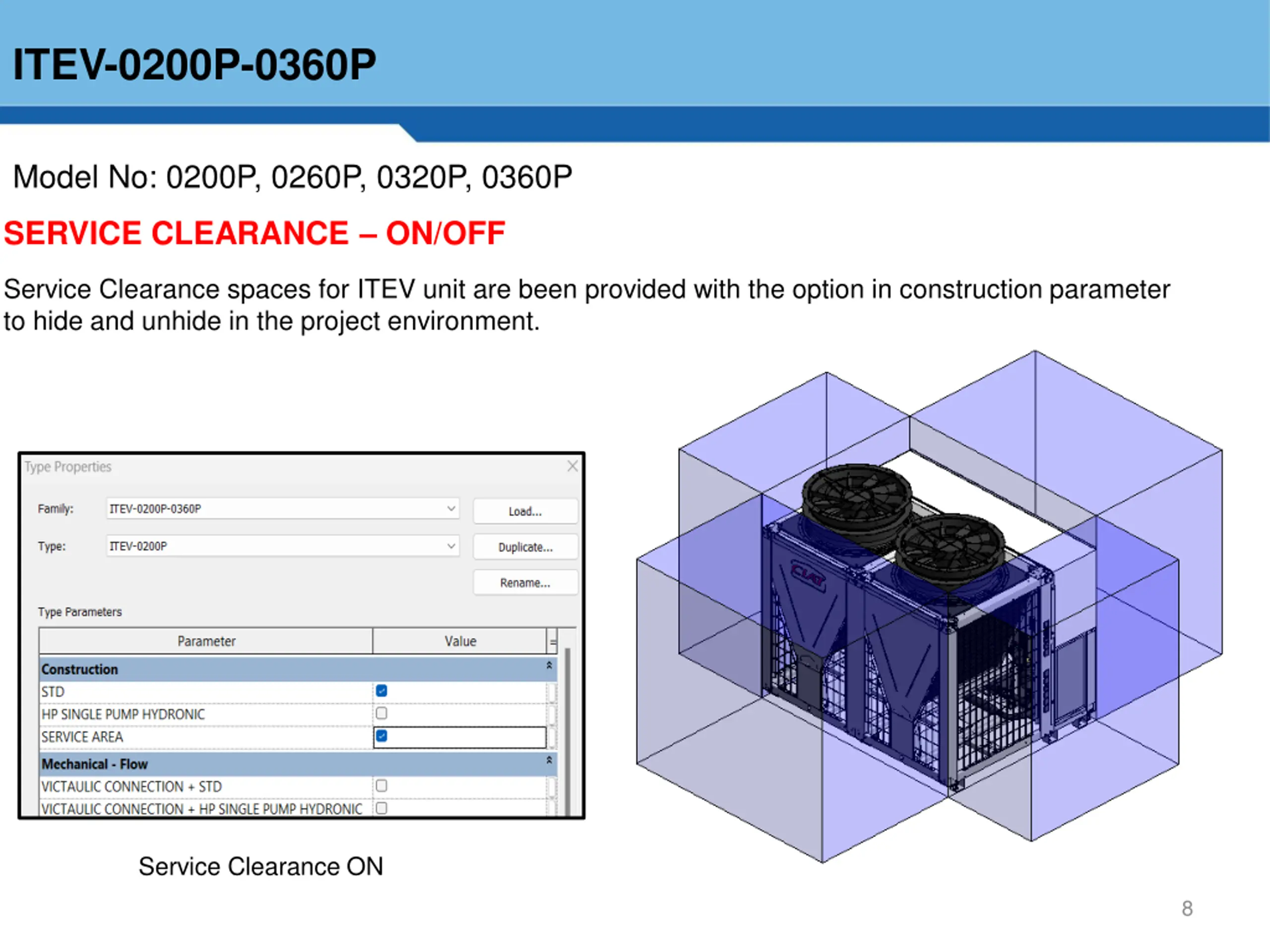

ITEV-0200P-0360P Model No: 0200P, 0260P, 0320P, 0360P SERVICE CLEARANCE ON/OFF Service Clearance spaces for ITEV unit are been provided with the option in construction parameter to hide and unhide in the project environment. Service Clearance ON 8

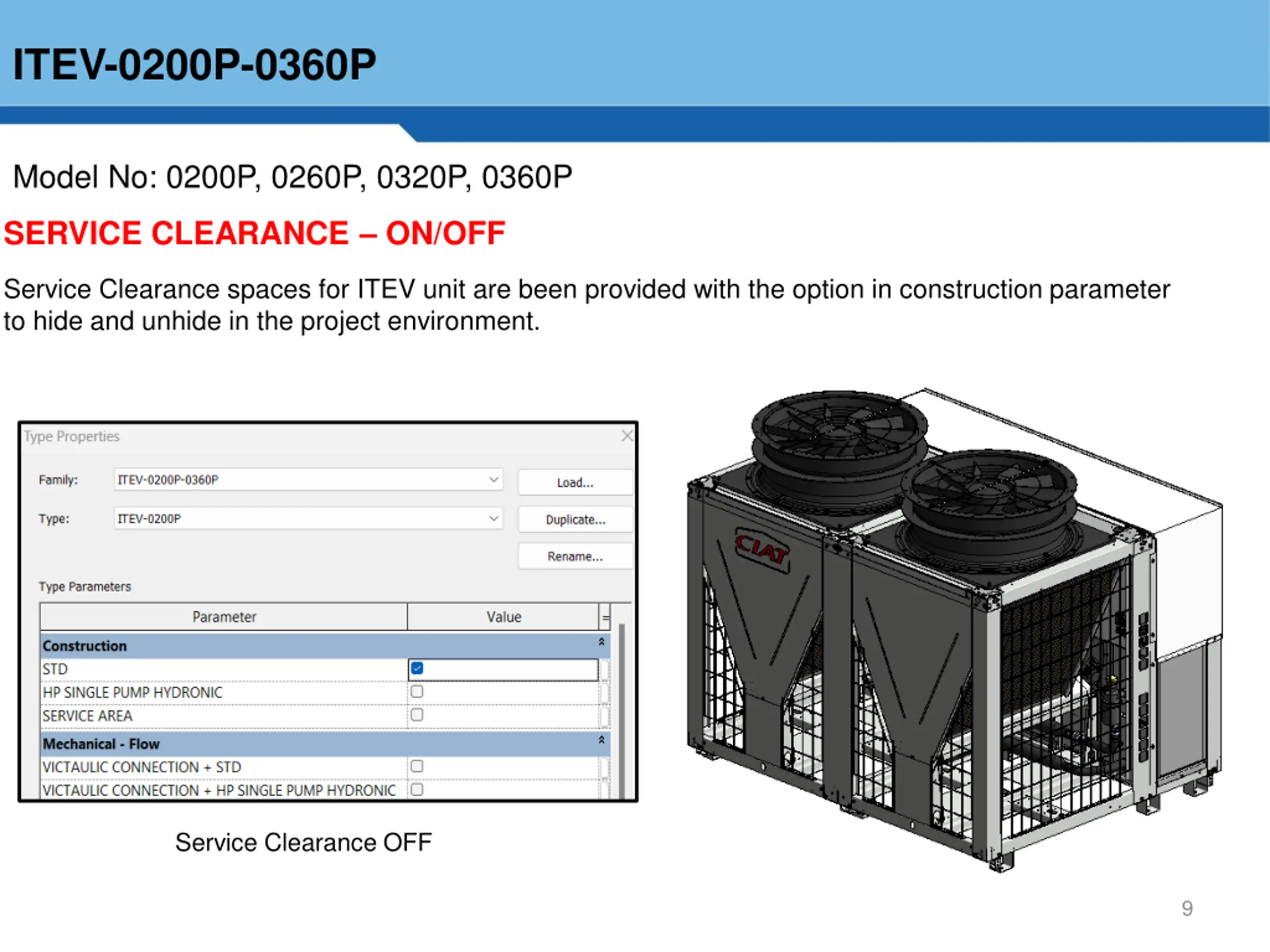

ITEV-0200P-0360P Model No: 0200P, 0260P, 0320P, 0360P SERVICE CLEARANCE ON/OFF Service Clearance spaces for ITEV unit are been provided with the option in construction parameter to hide and unhide in the project environment. Service Clearance OFF 9

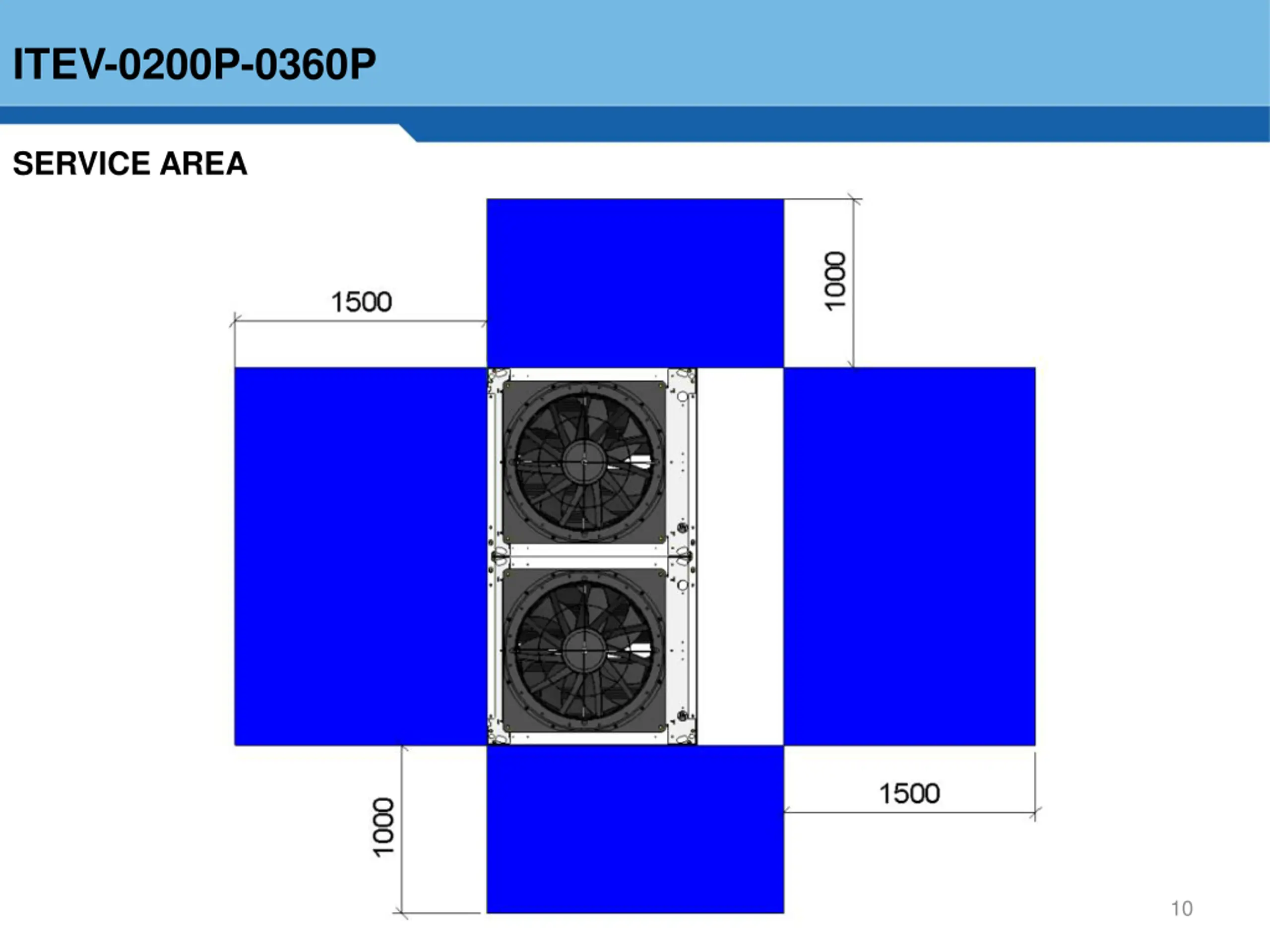

ITEV-0200P-0360P SERVICE AREA 10

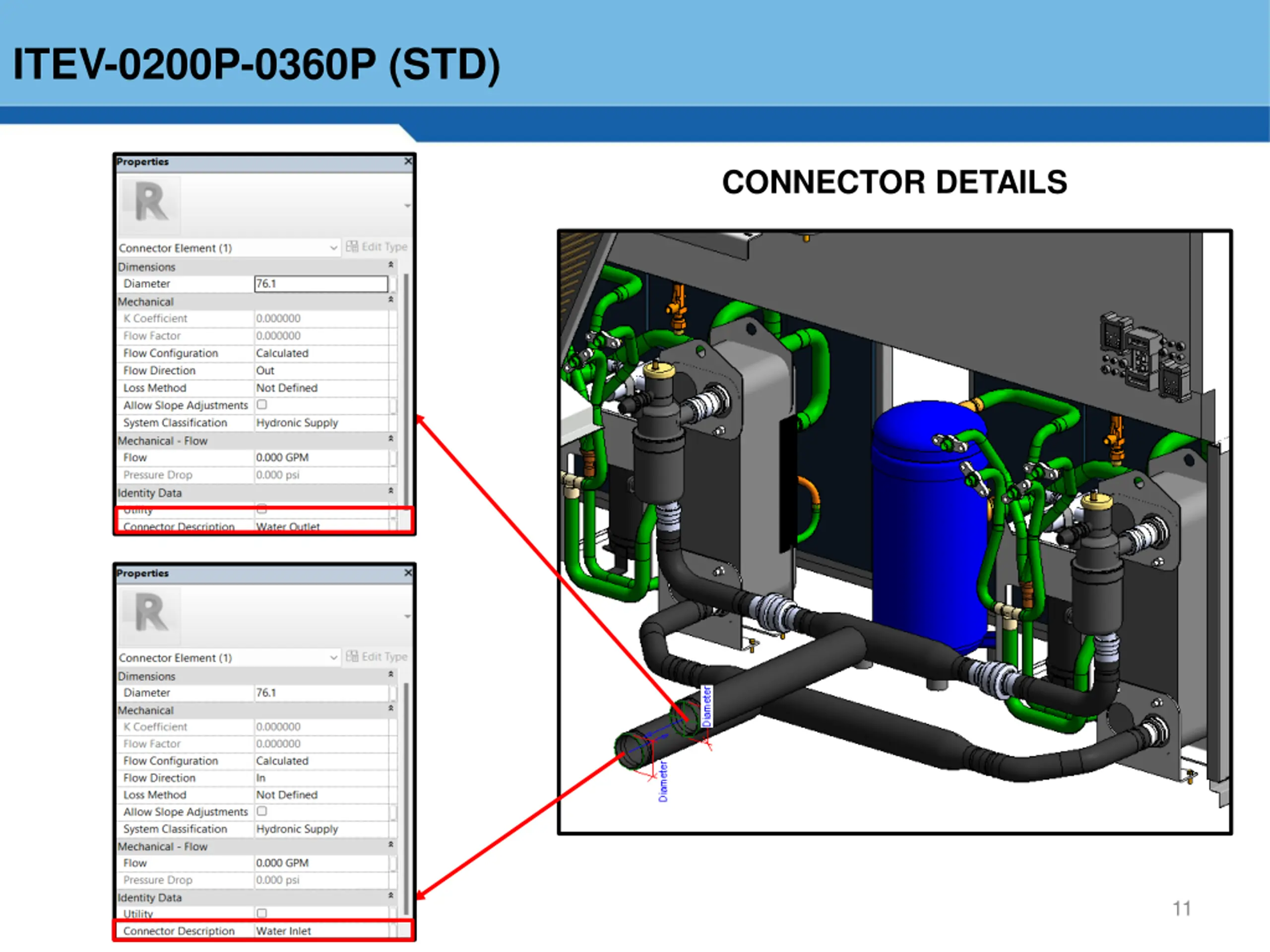

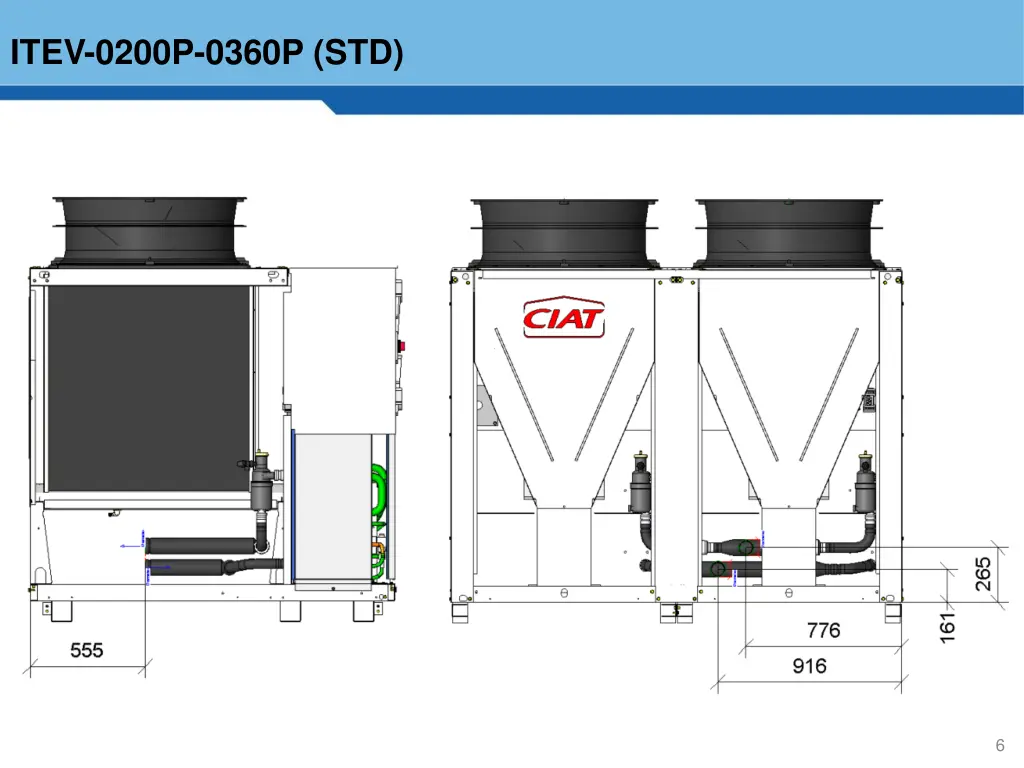

ITEV-0200P-0360P (STD) CONNECTOR DETAILS 11

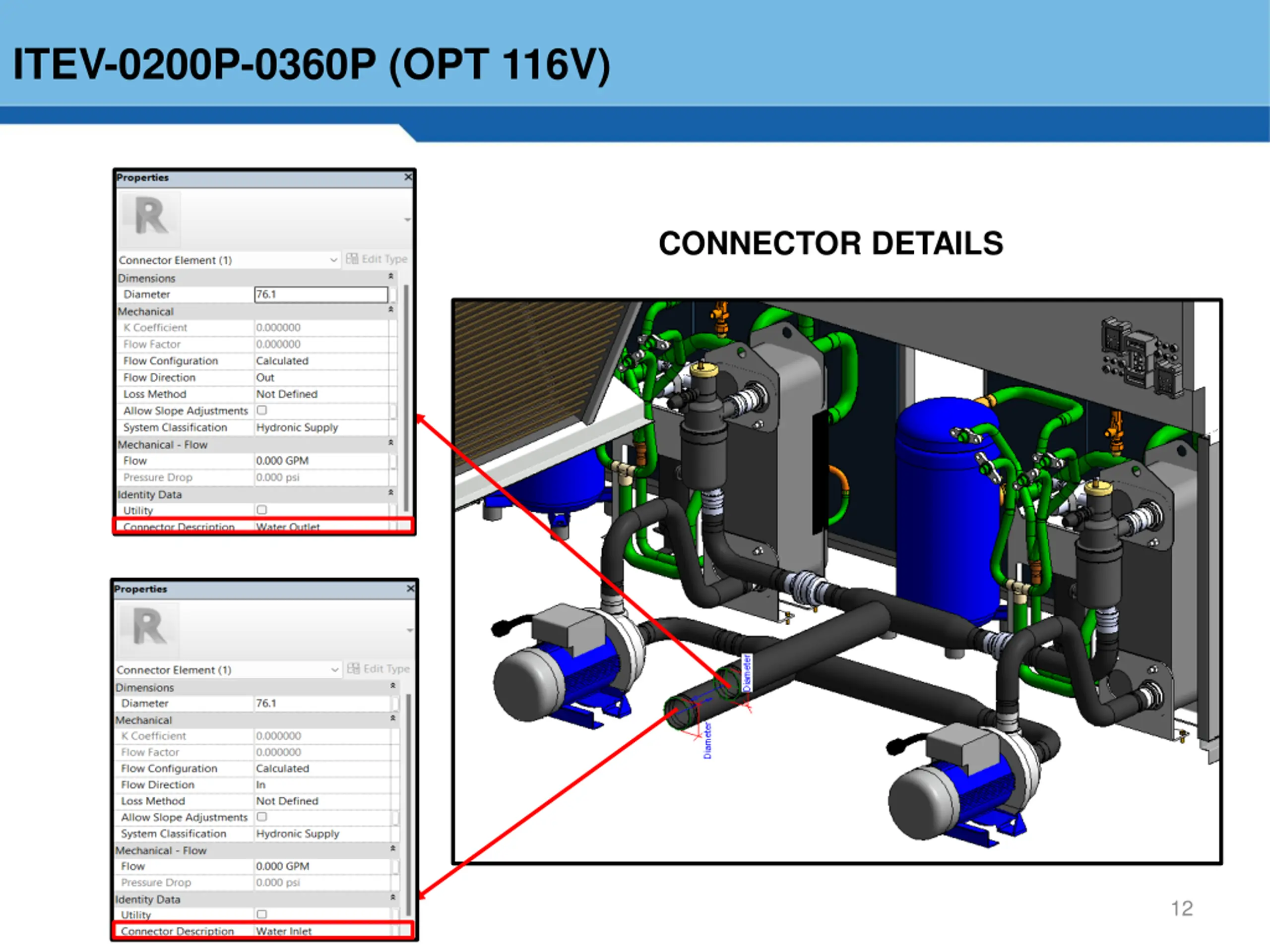

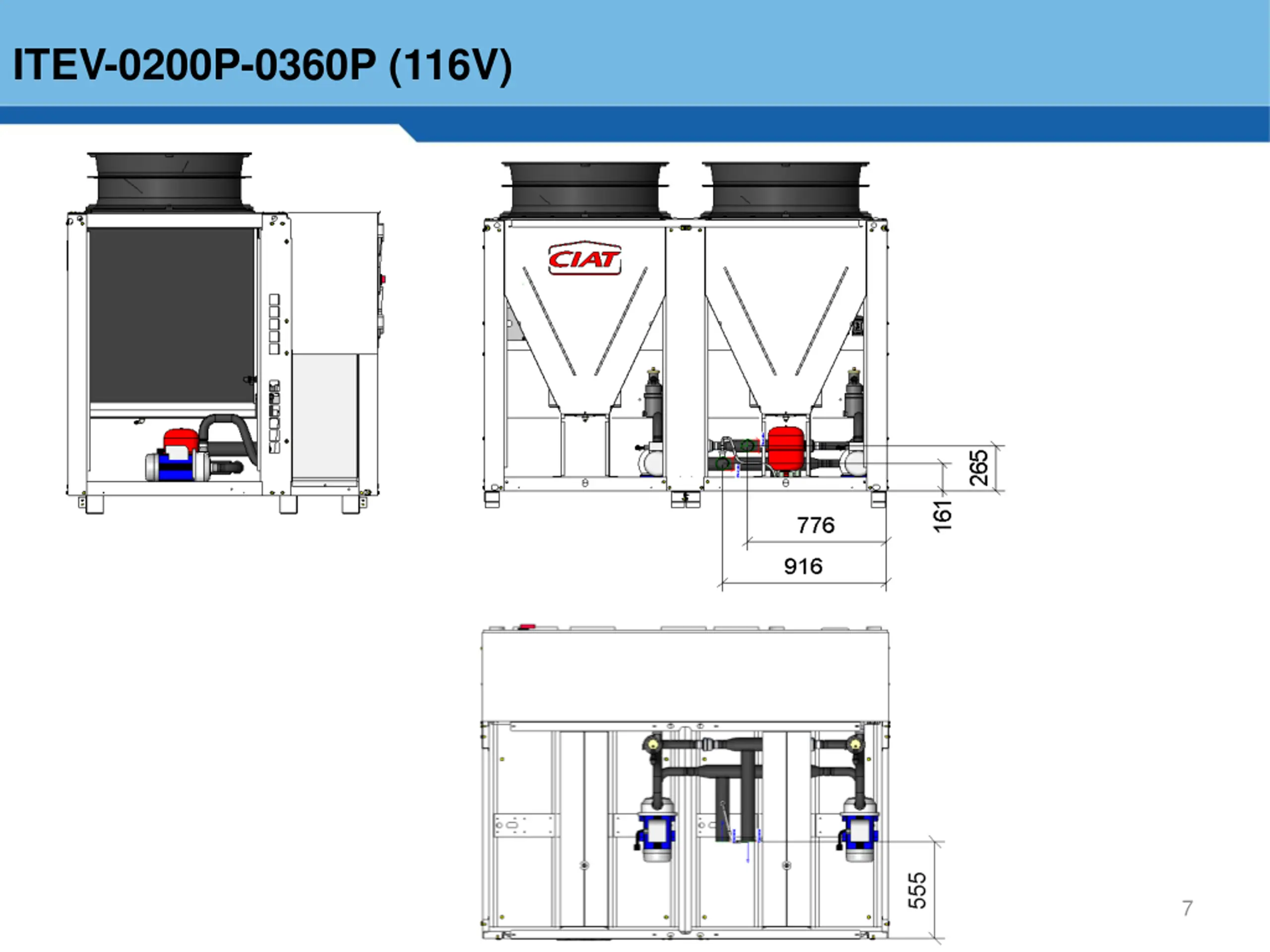

ITEV-0200P-0360P (OPT 116V) CONNECTOR DETAILS 12

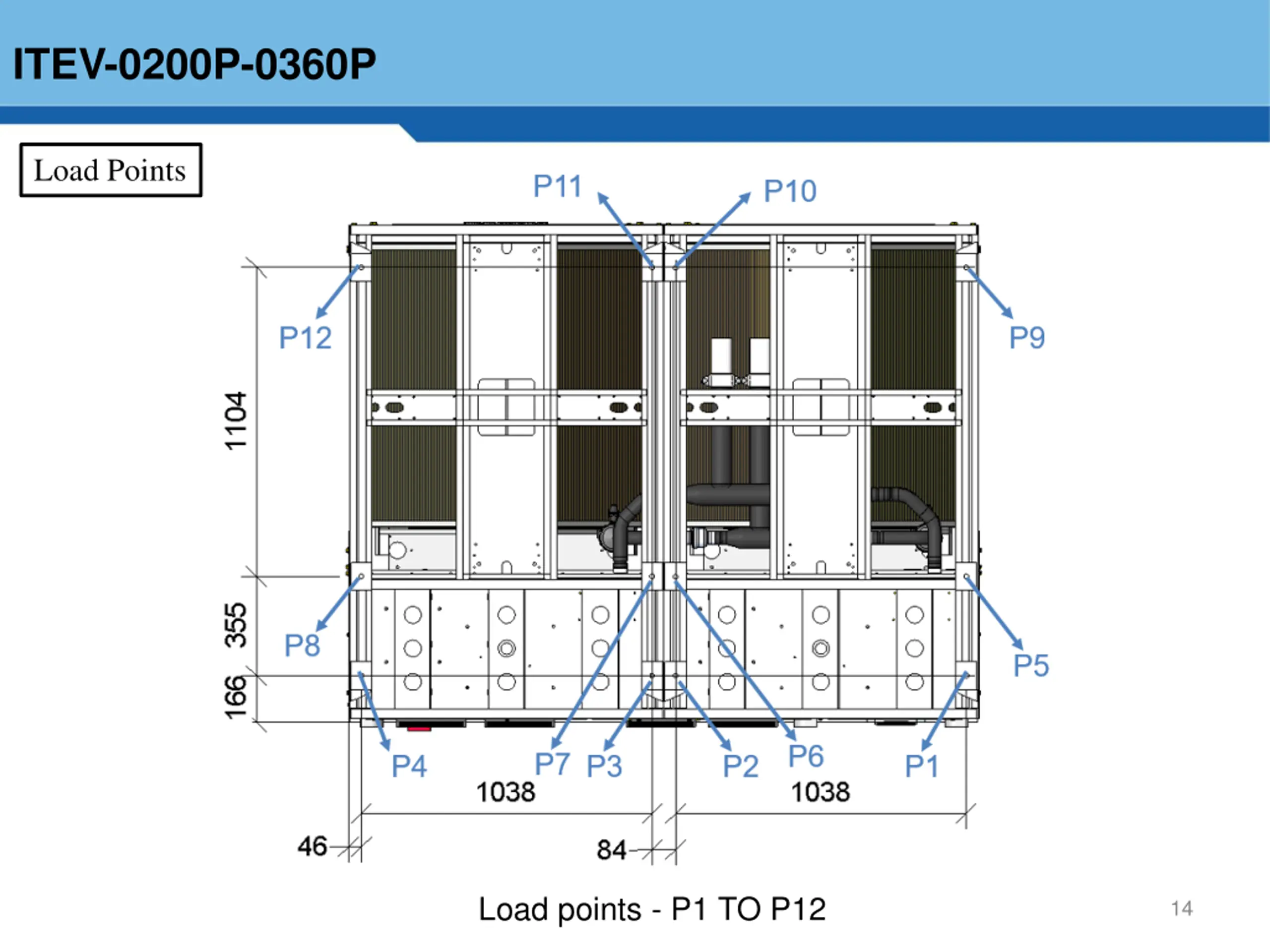

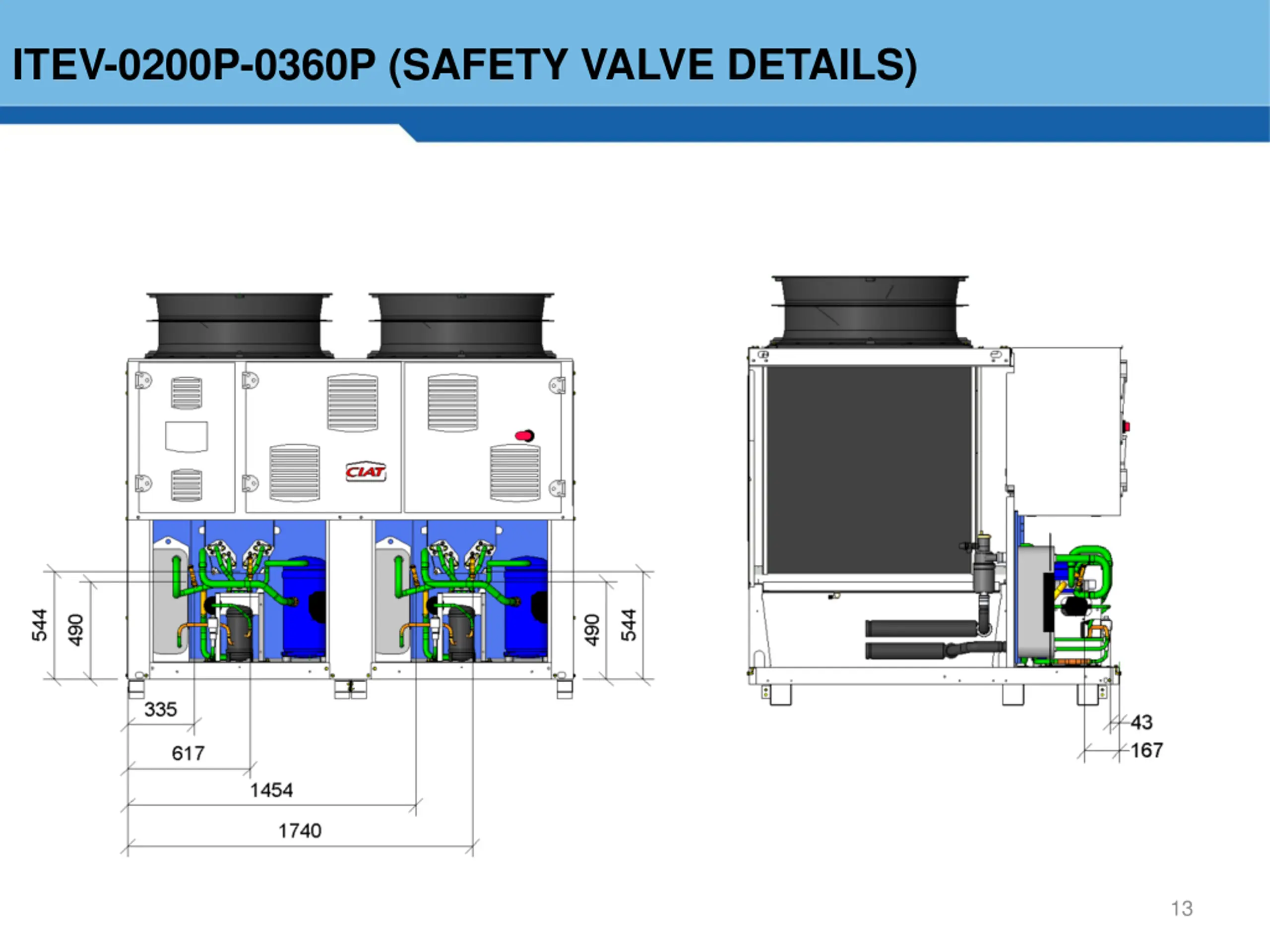

ITEV-0200P-0360P Load Points Load points - P1 TO P12 14

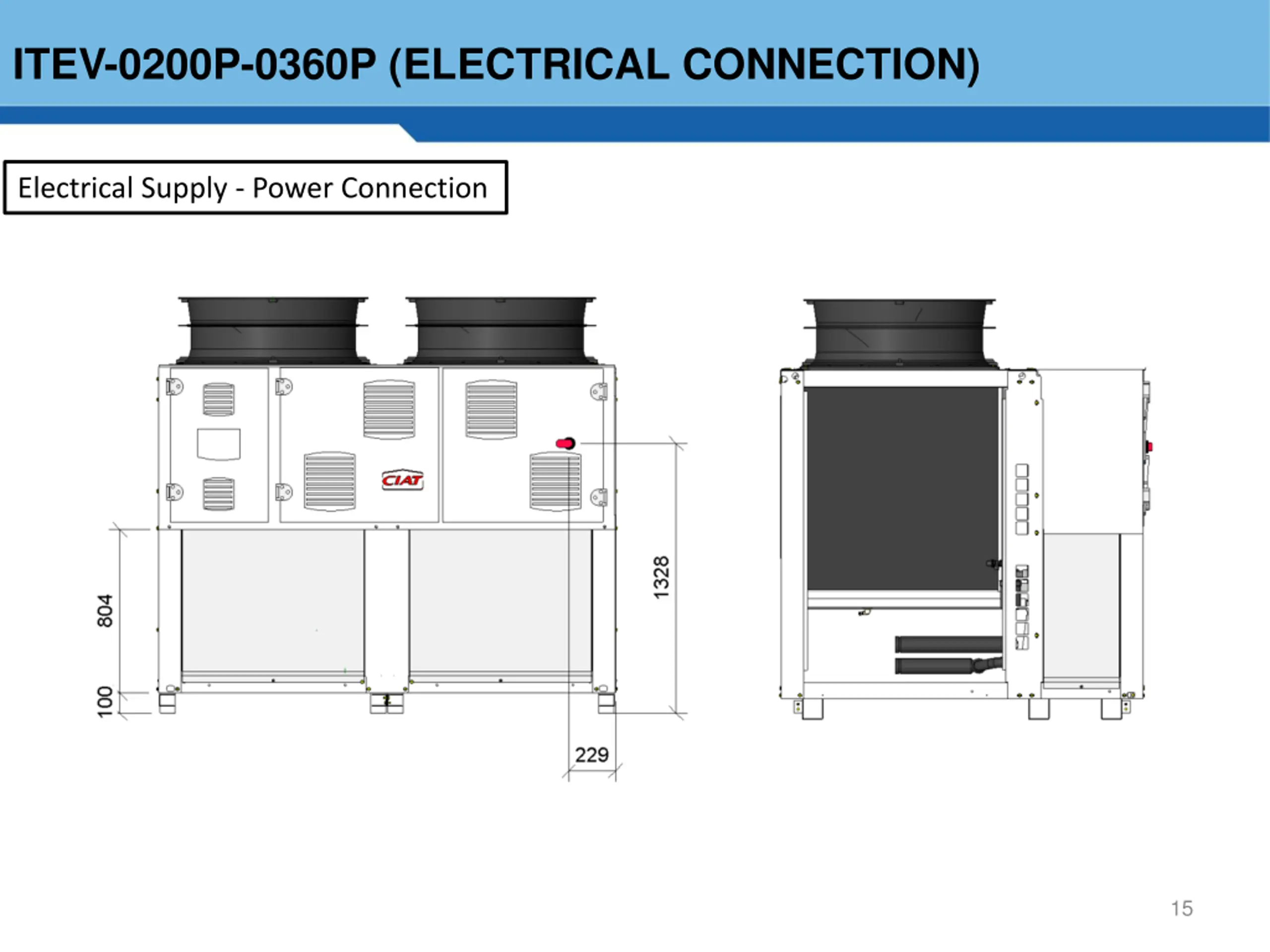

ITEV-0200P-0360P (ELECTRICAL CONNECTION) Electrical Supply - Power Connection 15

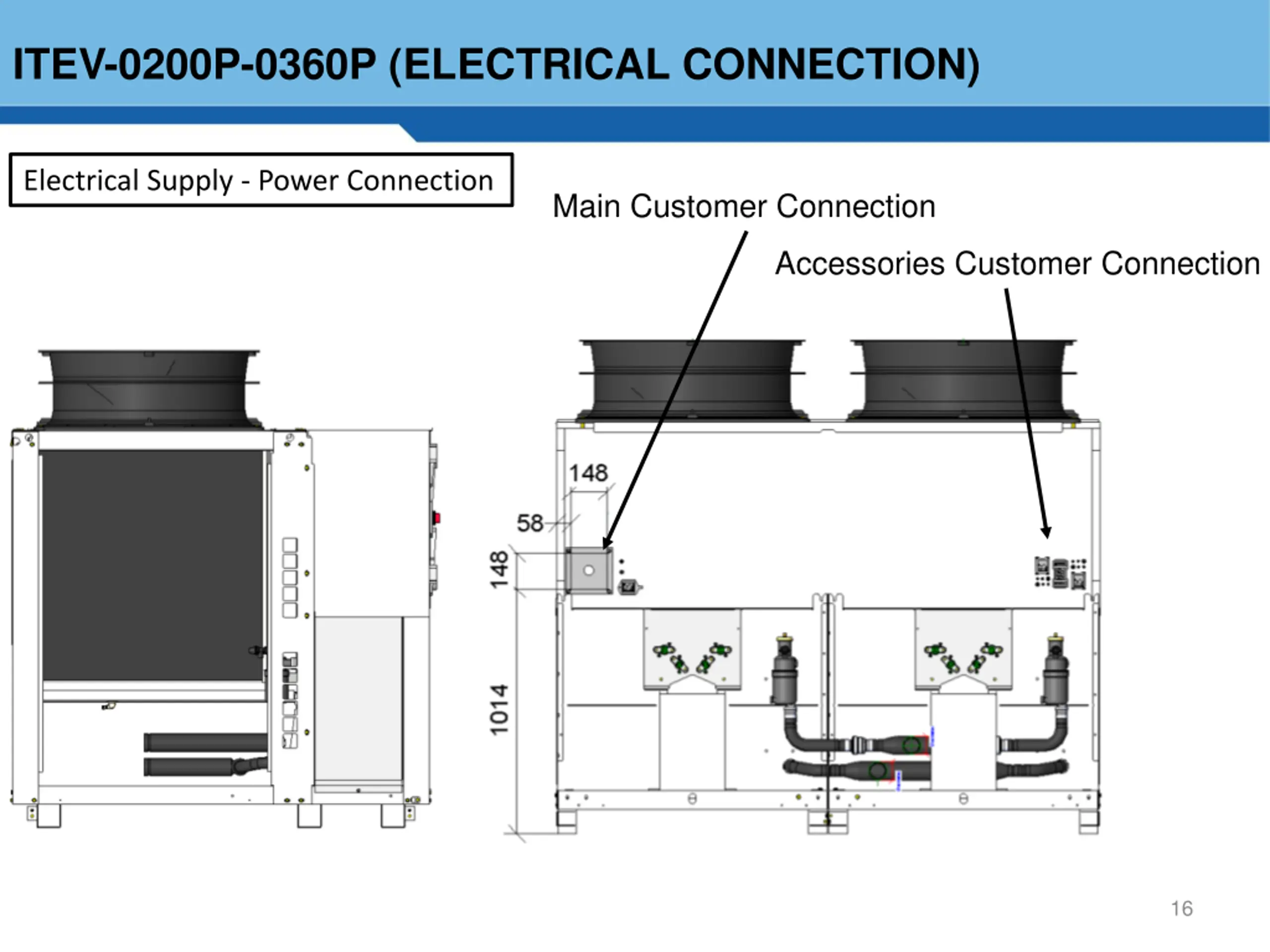

ITEV-0200P-0360P (ELECTRICAL CONNECTION) Electrical Supply - Power Connection Main Customer Connection Accessories Customer Connection 16

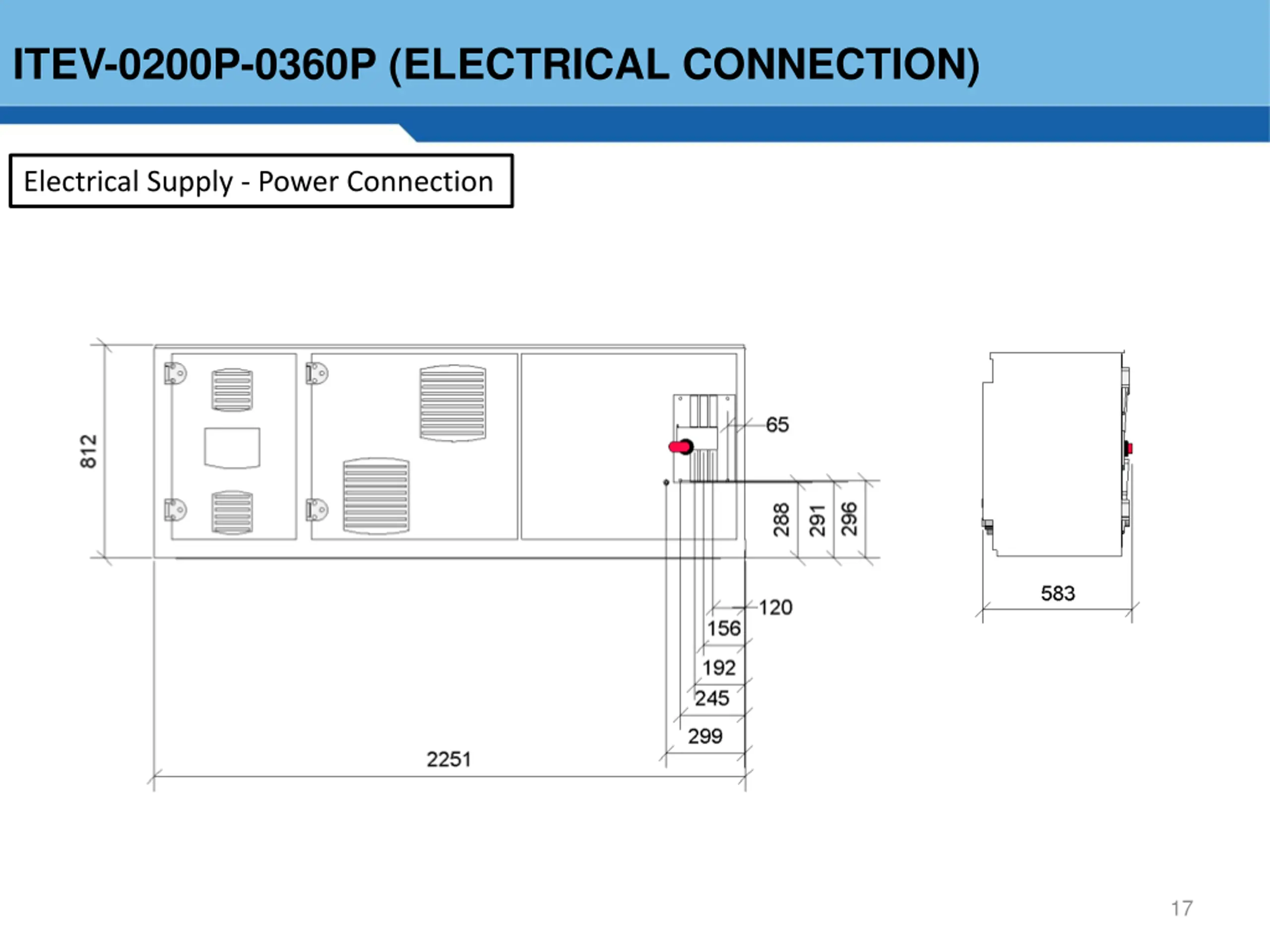

ITEV-0200P-0360P (ELECTRICAL CONNECTION) Electrical Supply - Power Connection 17

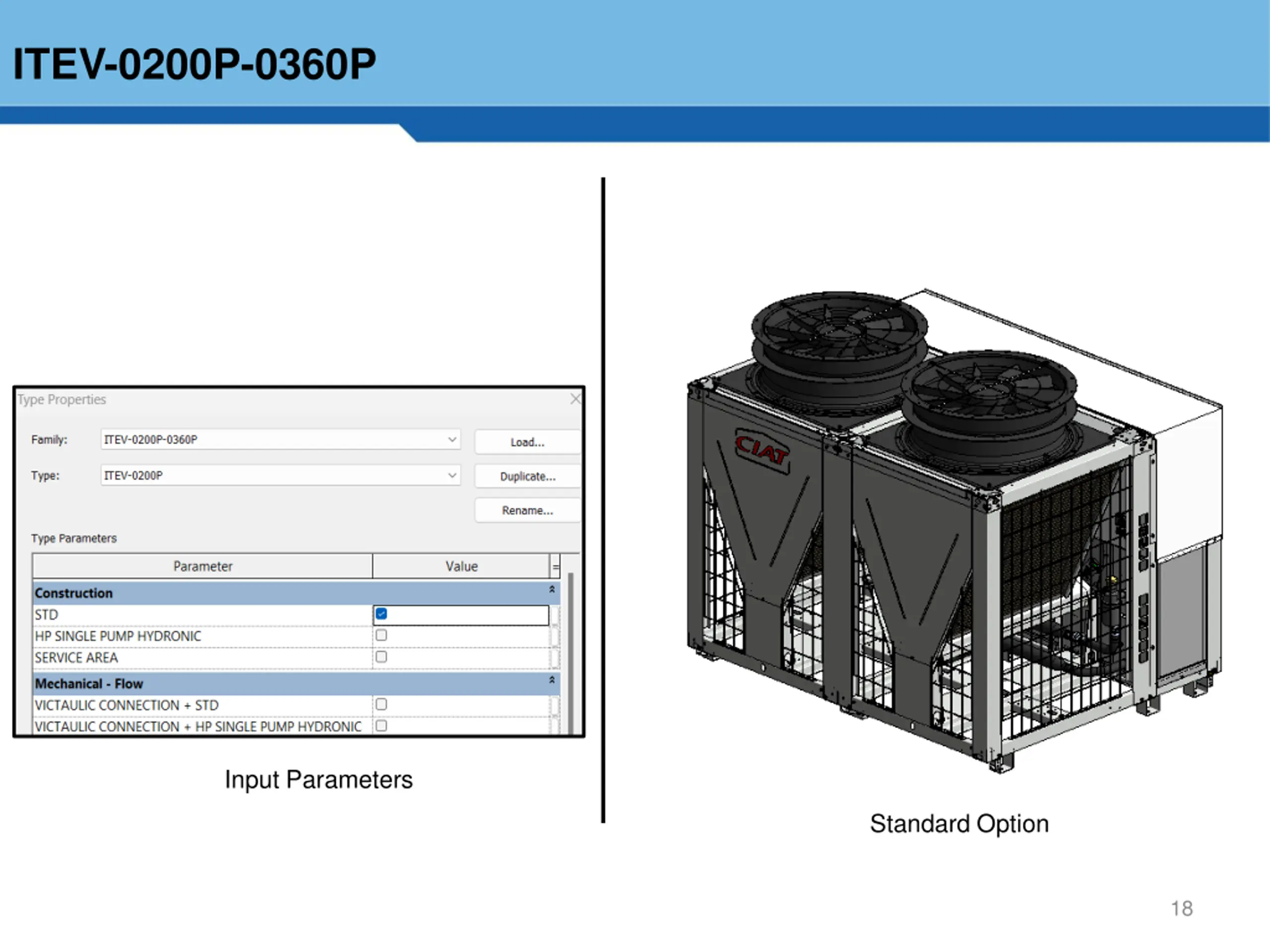

ITEV-0200P-0360P Input Parameters Standard Option 18

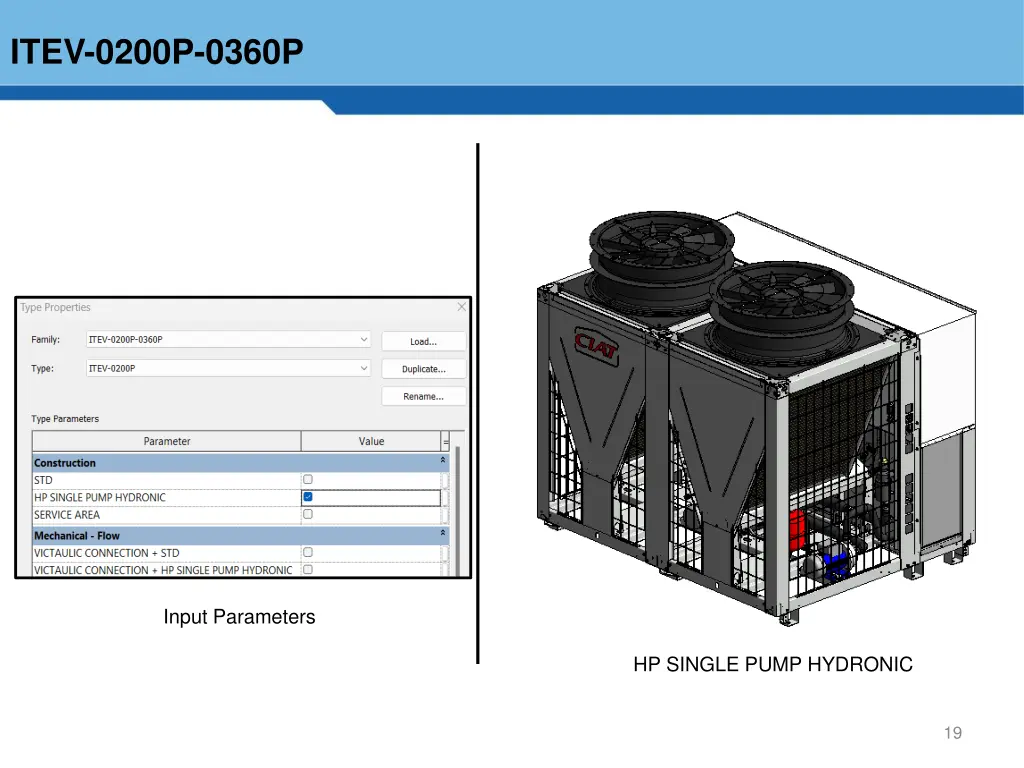

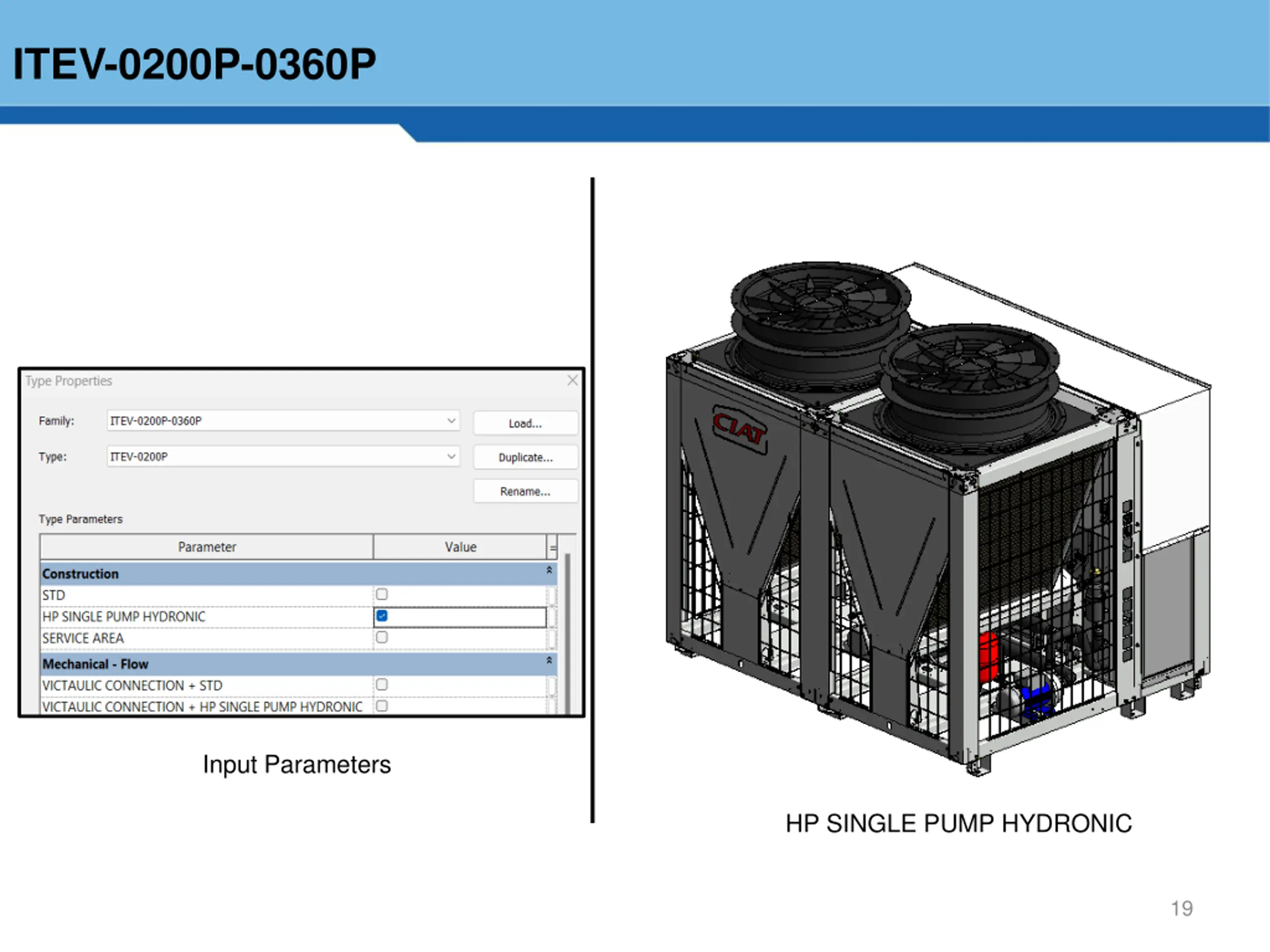

ITEV-0200P-0360P Input Parameters HP SINGLE PUMP HYDRONIC 19

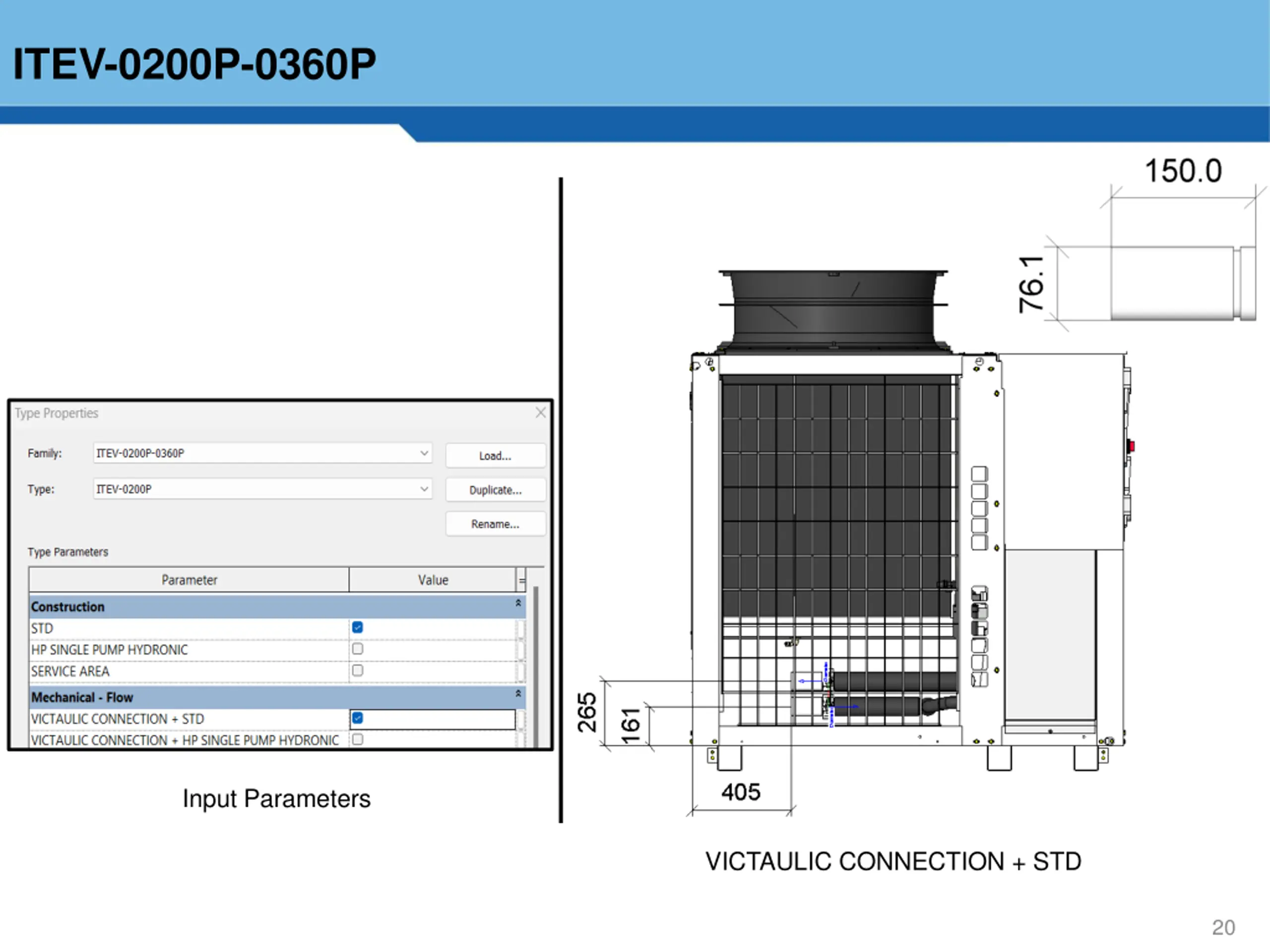

ITEV-0200P-0360P Input Parameters VICTAULIC CONNECTION + STD 20

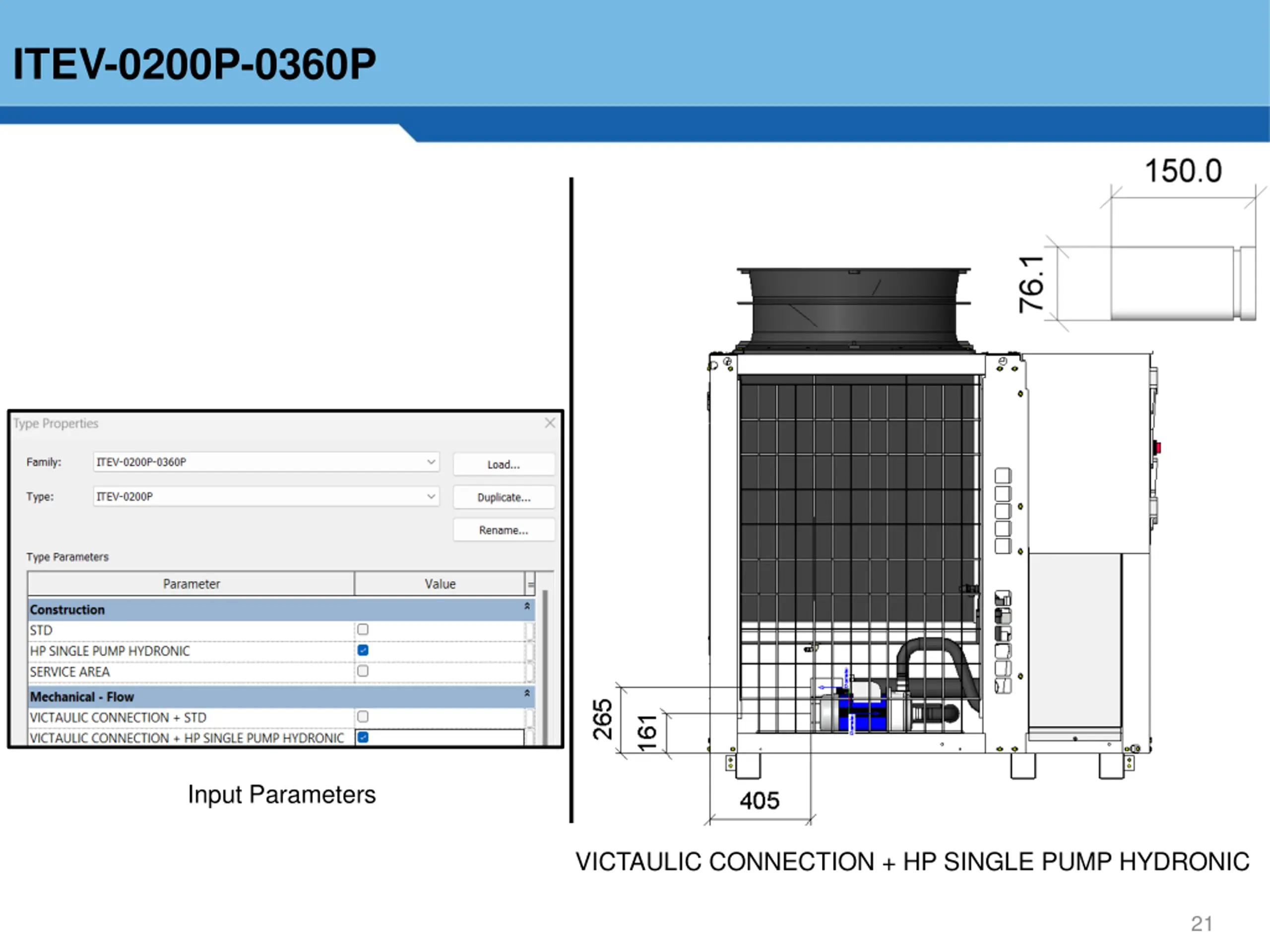

ITEV-0200P-0360P Input Parameters VICTAULIC CONNECTION + HP SINGLE PUMP HYDRONIC 21
