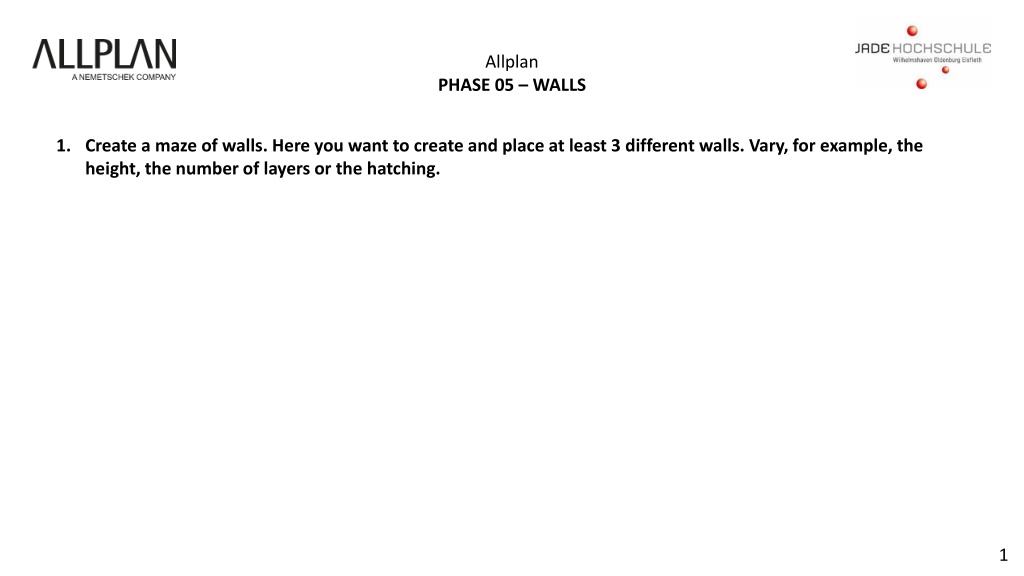

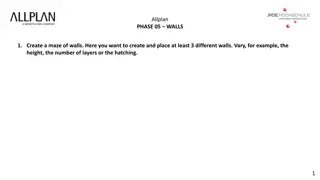

Allplan PHASE 05 WALLS 1. Create a maze of walls. Here you want to create and place at least 3 different walls. Vary, for example, the height, the number of layers or the hatching. 1

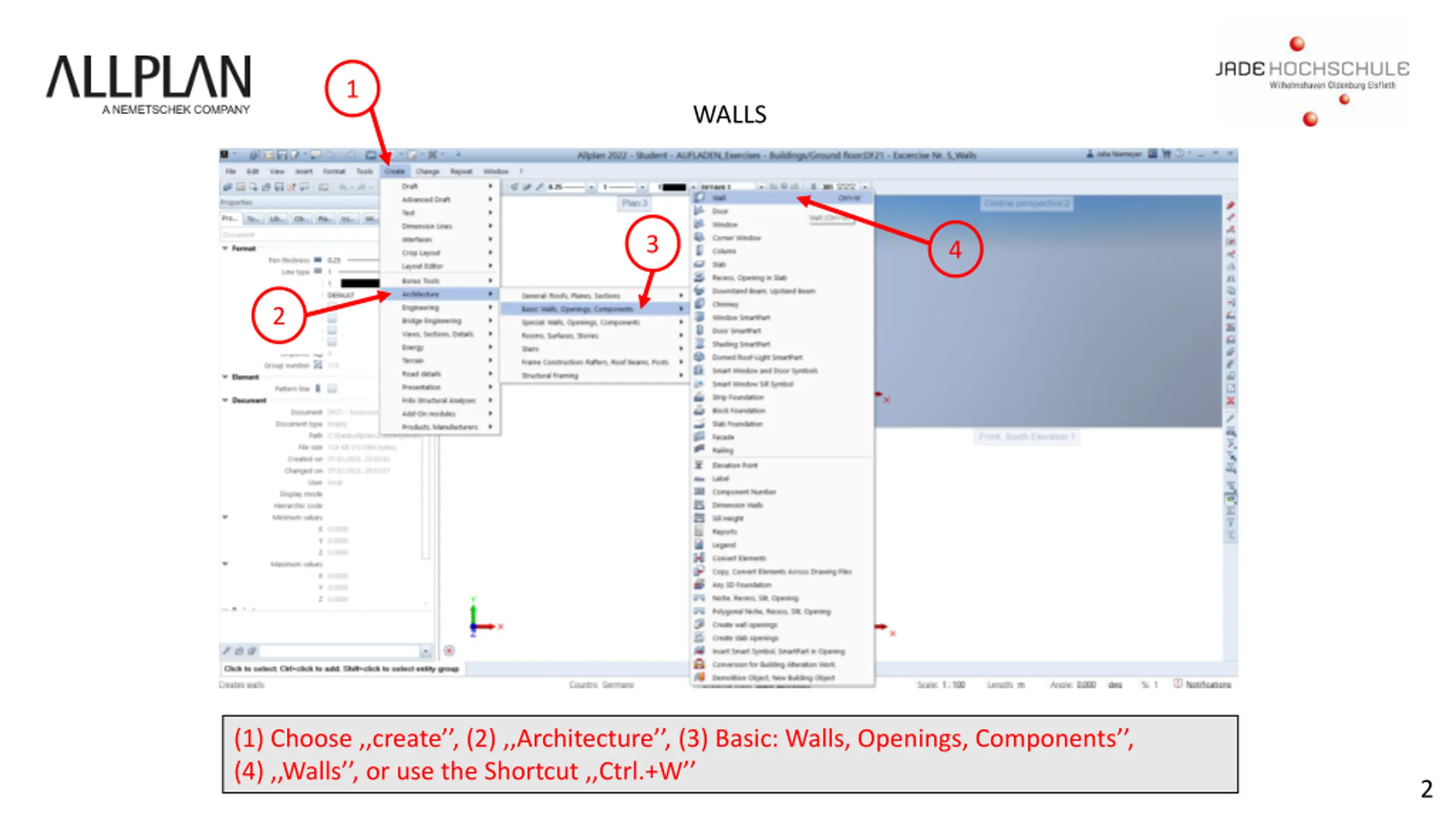

1 WALLS 3 4 2 (1) Choose ,,create , (2) ,,Architecture , (3) Basic: Walls, Openings, Components , (4) ,,Walls , or use the Shortcut ,,Ctrl.+W 2

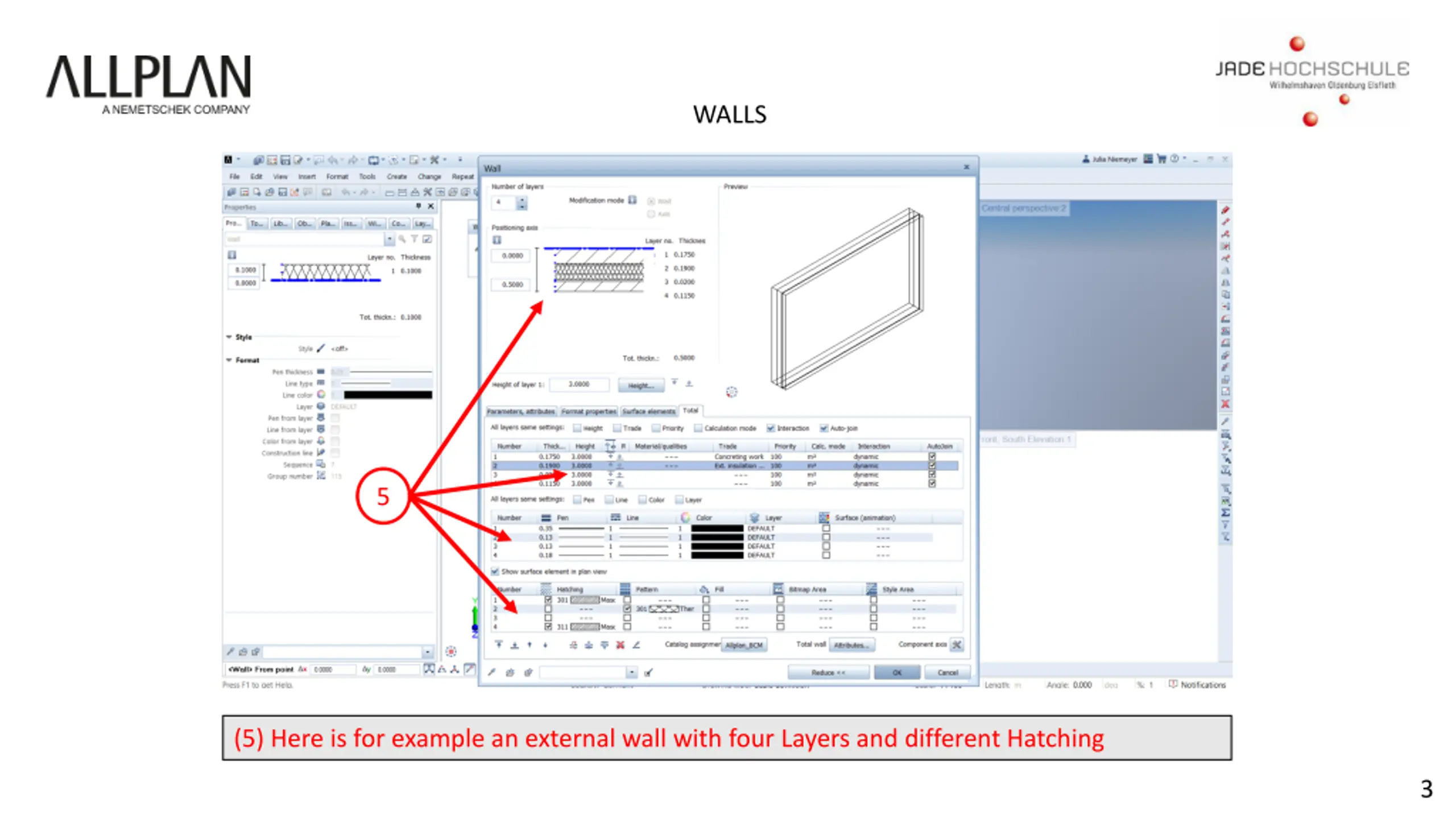

WALLS 5 (5) Here is for example an external wall with four Layers and different Hatching 3

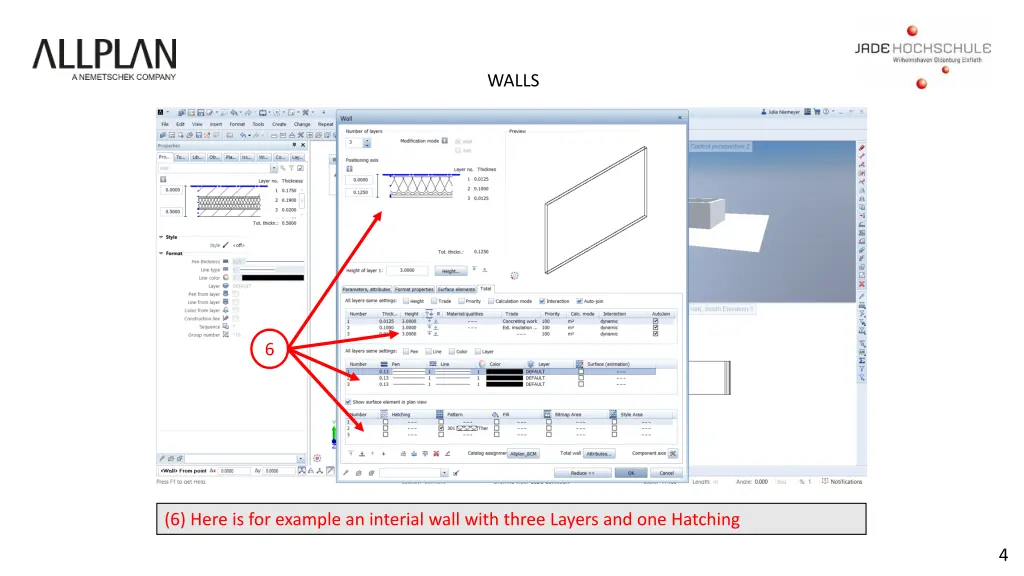

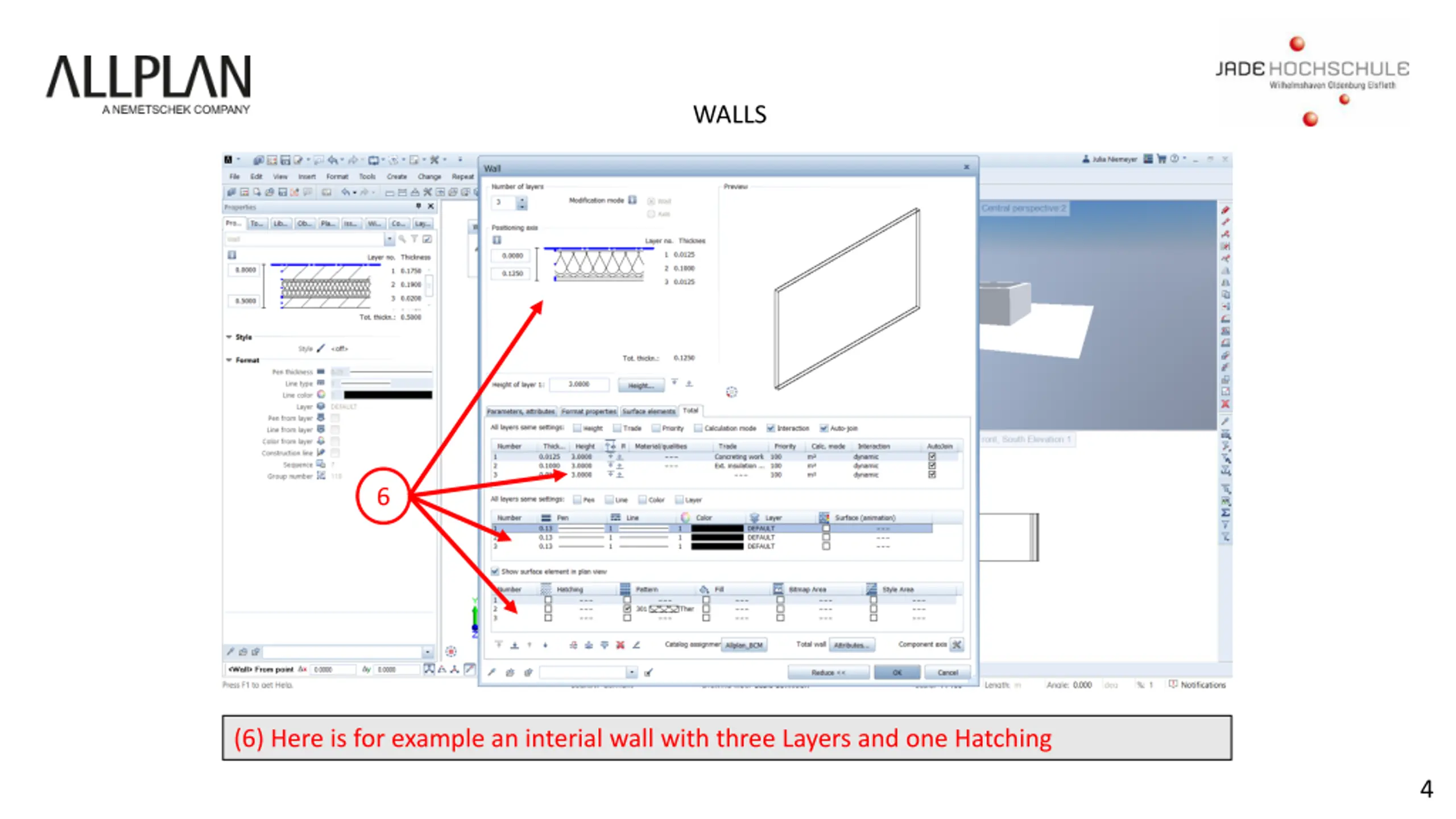

WALLS 6 (6) Here is for example an interial wall with three Layers and one Hatching 4

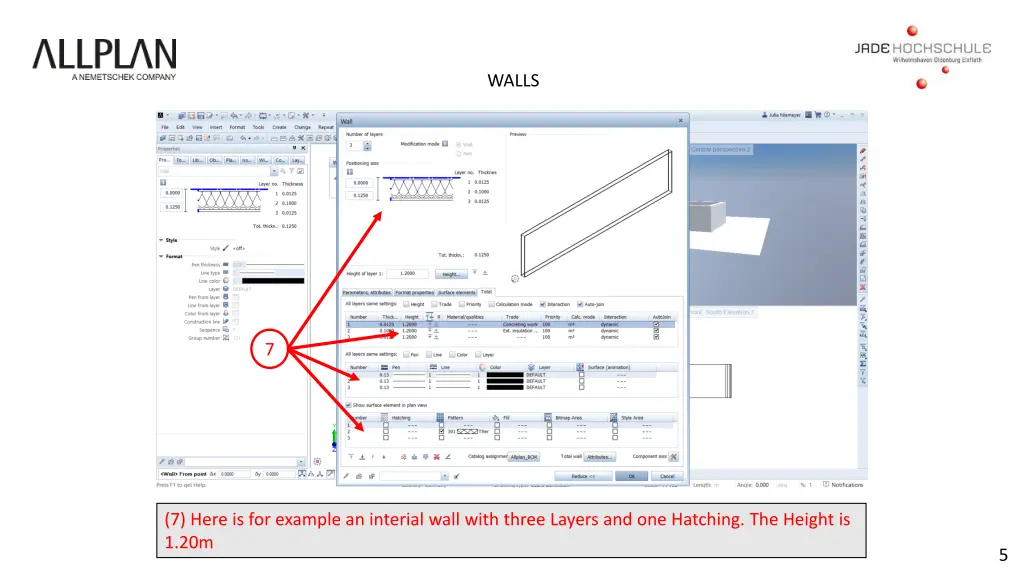

WALLS 7 (7) Here is for example an interial wall with three Layers and one Hatching. The Height is 1.20m 5

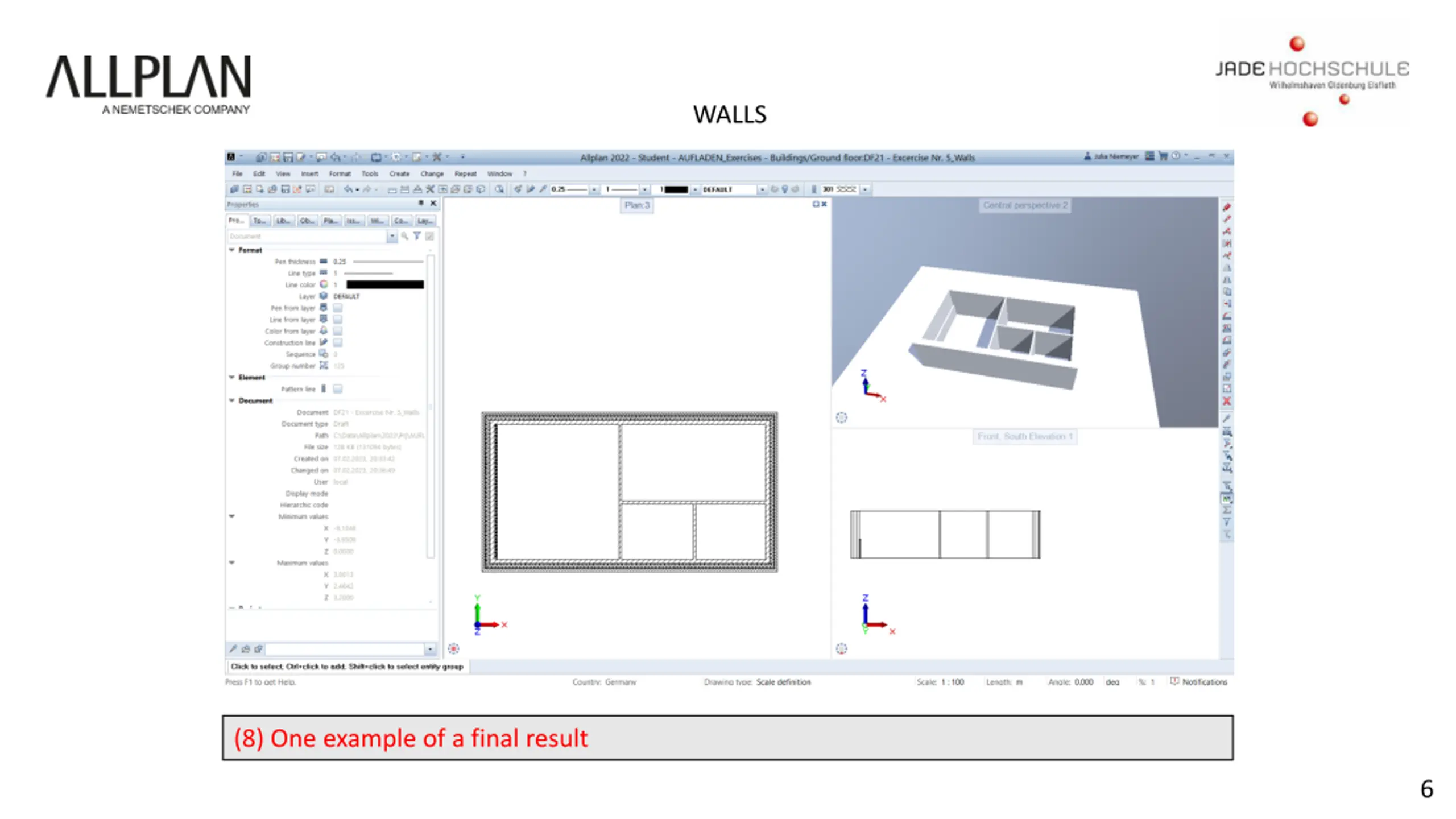

WALLS (8) One example of a final result 6
