EECE.3220 Data Structures Instructor: Dr. Michael Geiger Fall 2019 Lecture 11: Dynamic allocation

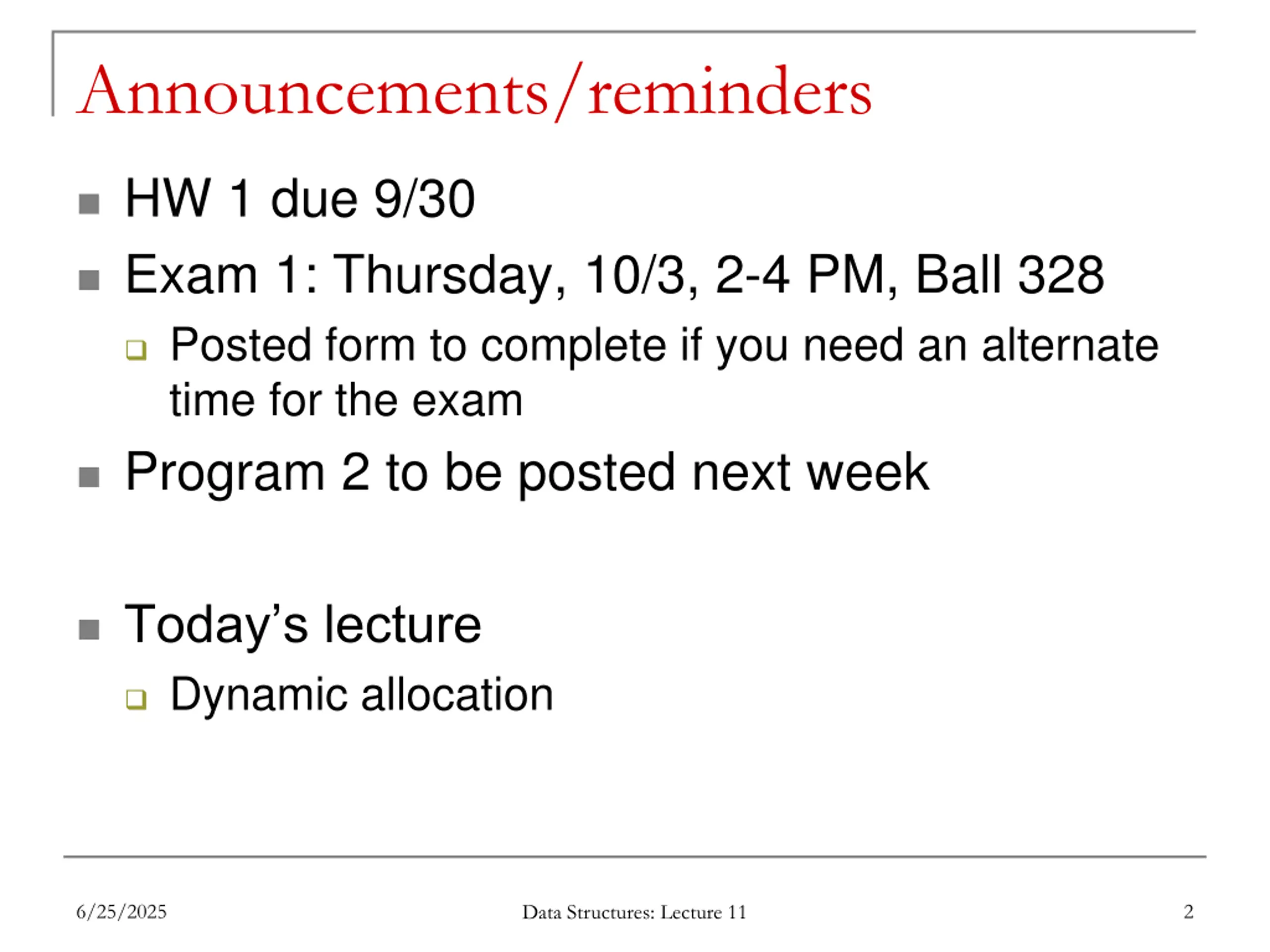

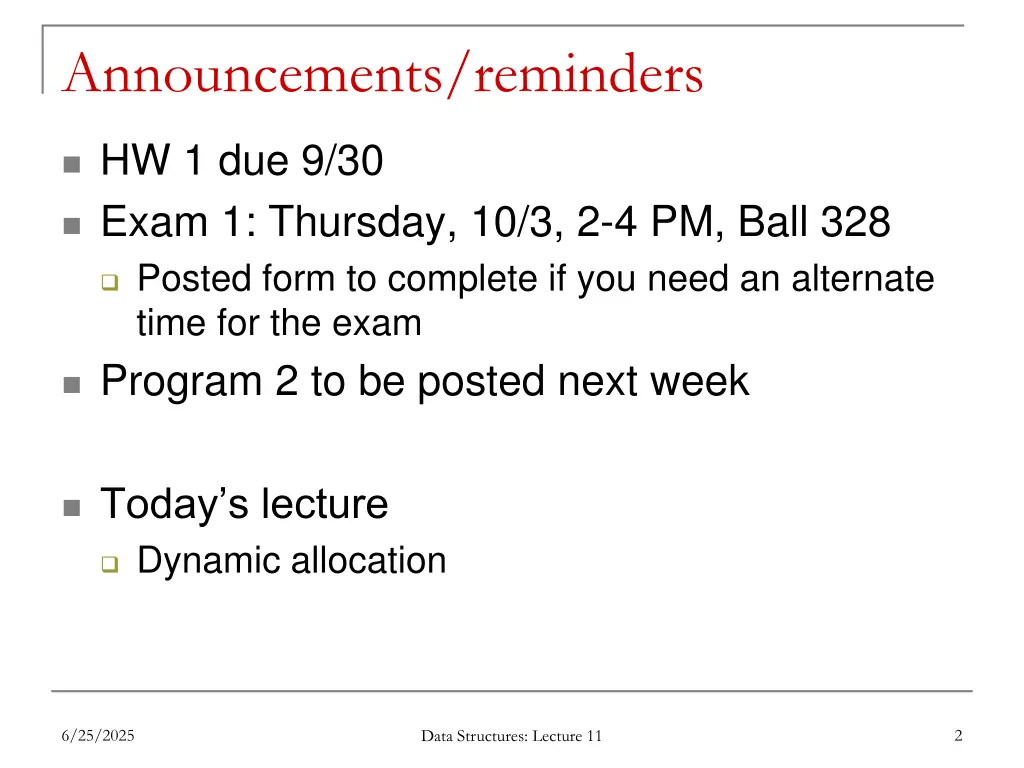

Announcements/reminders HW 1 due 9/30 Exam 1: Thursday, 10/3, 2-4 PM, Ball 328 Posted form to complete if you need an alternate time for the exam Program 2 to be posted next week Today s lecture Dynamic allocation 6/25/2025 2 Data Structures: Lecture 11

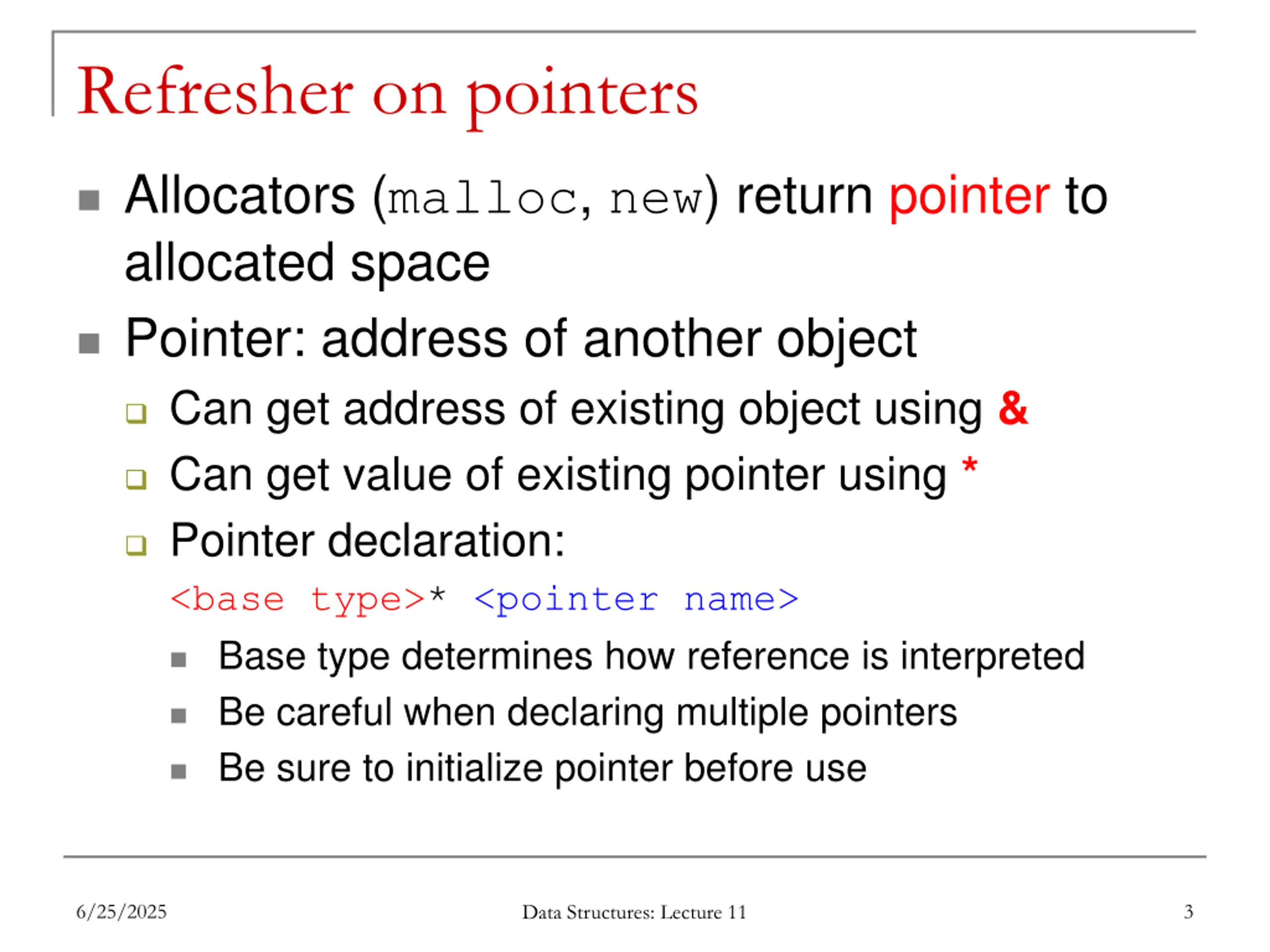

Refresher on pointers Allocators (malloc, new) return pointer to allocated space Pointer: address of another object Can get address of existing object using & Can get value of existing pointer using * Pointer declaration: <base type>* <pointer name> Base type determines how reference is interpreted Be careful when declaring multiple pointers Be sure to initialize pointer before use 6/25/2025 3 Data Structures: Lecture 11

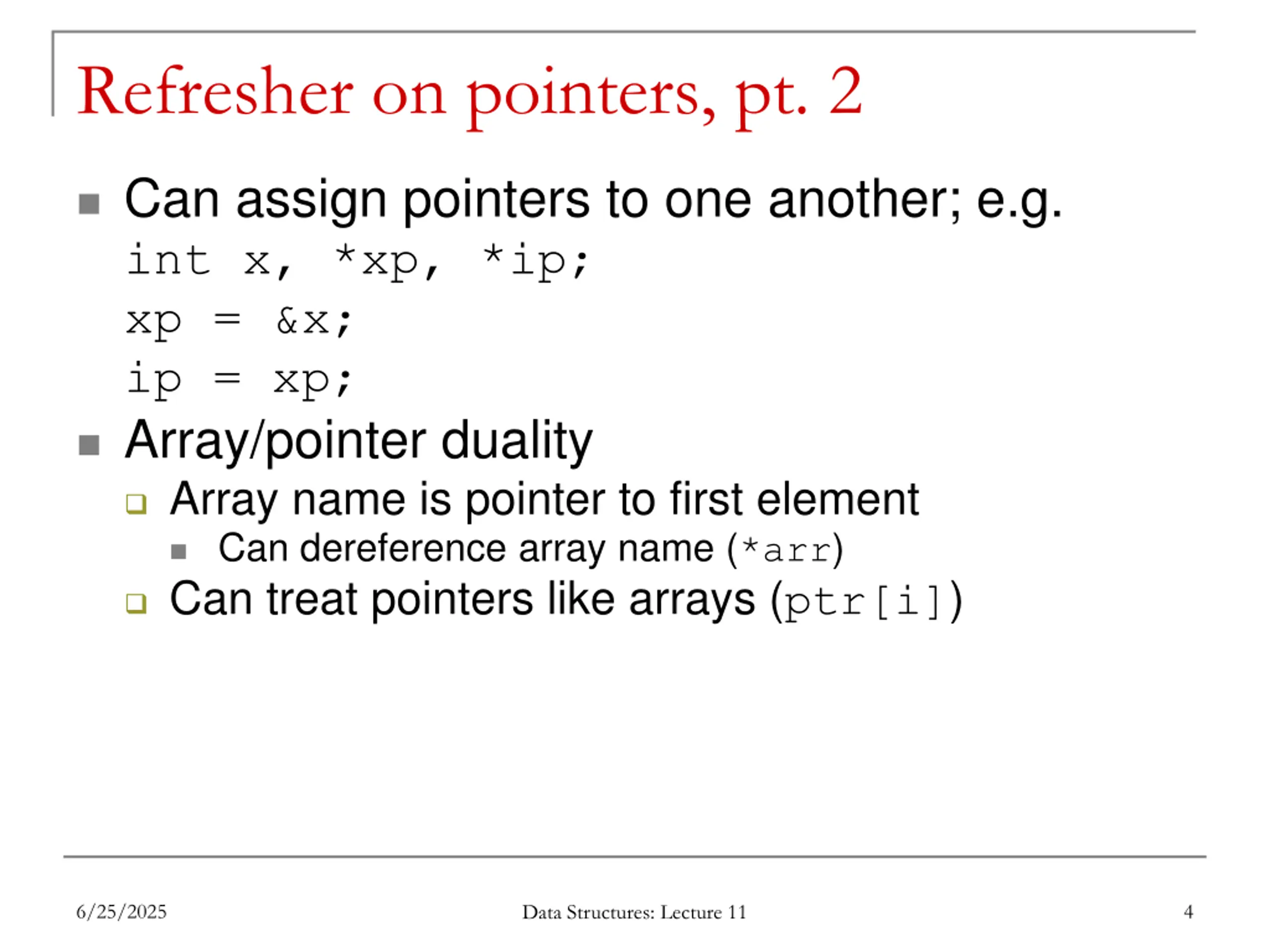

Refresher on pointers, pt. 2 Can assign pointers to one another; e.g. int x, *xp, *ip; xp = &x; ip = xp; Array/pointer duality Array name is pointer to first element Can dereference array name (*arr) Can treat pointers like arrays (ptr[i]) 6/25/2025 4 Data Structures: Lecture 11

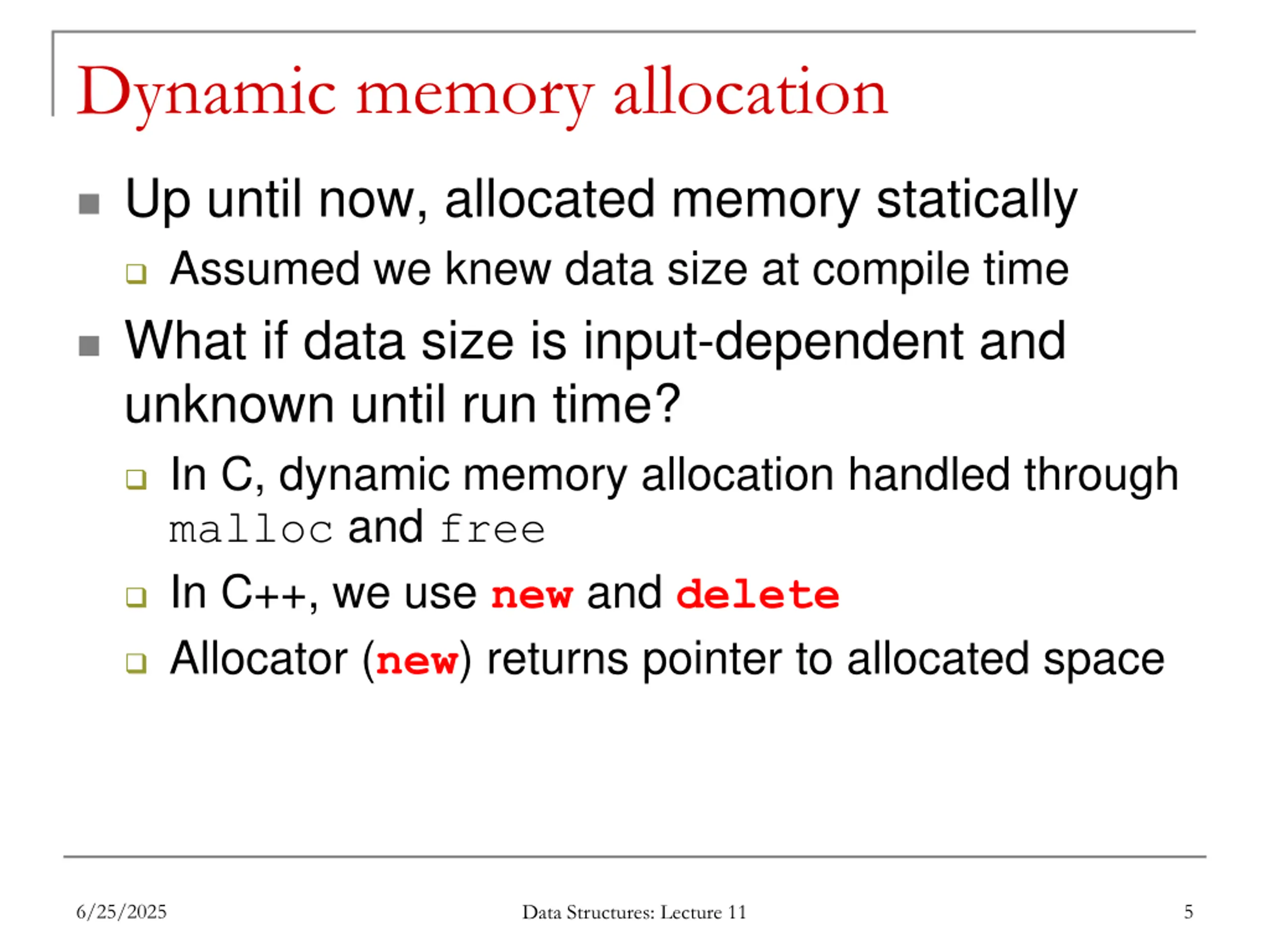

Dynamic memory allocation Up until now, allocated memory statically Assumed we knew data size at compile time What if data size is input-dependent and unknown until run time? In C, dynamic memory allocation handled through malloc and free In C++, we use newanddelete Allocator (new) returns pointer to allocated space 6/25/2025 5 Data Structures: Lecture 11

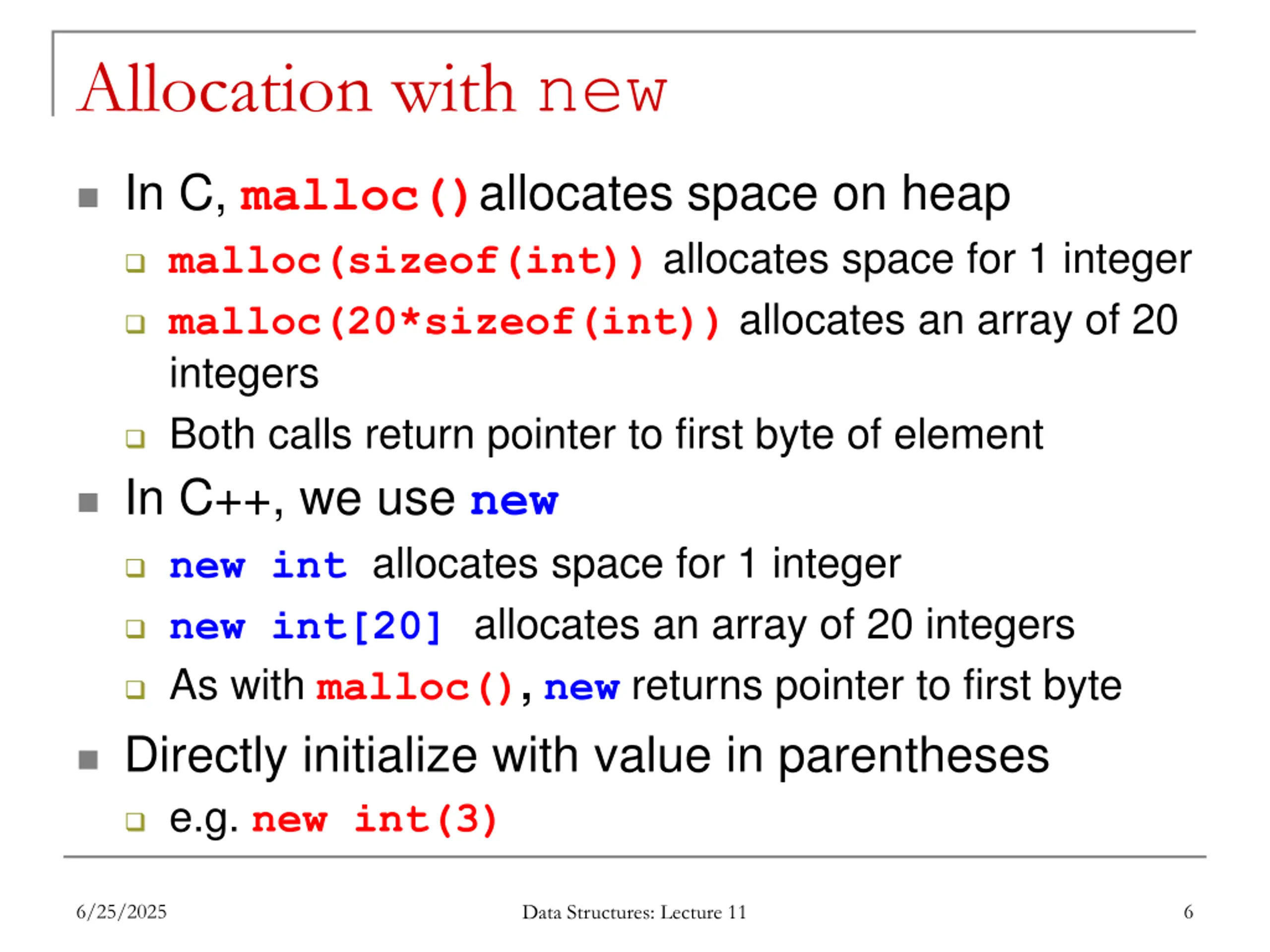

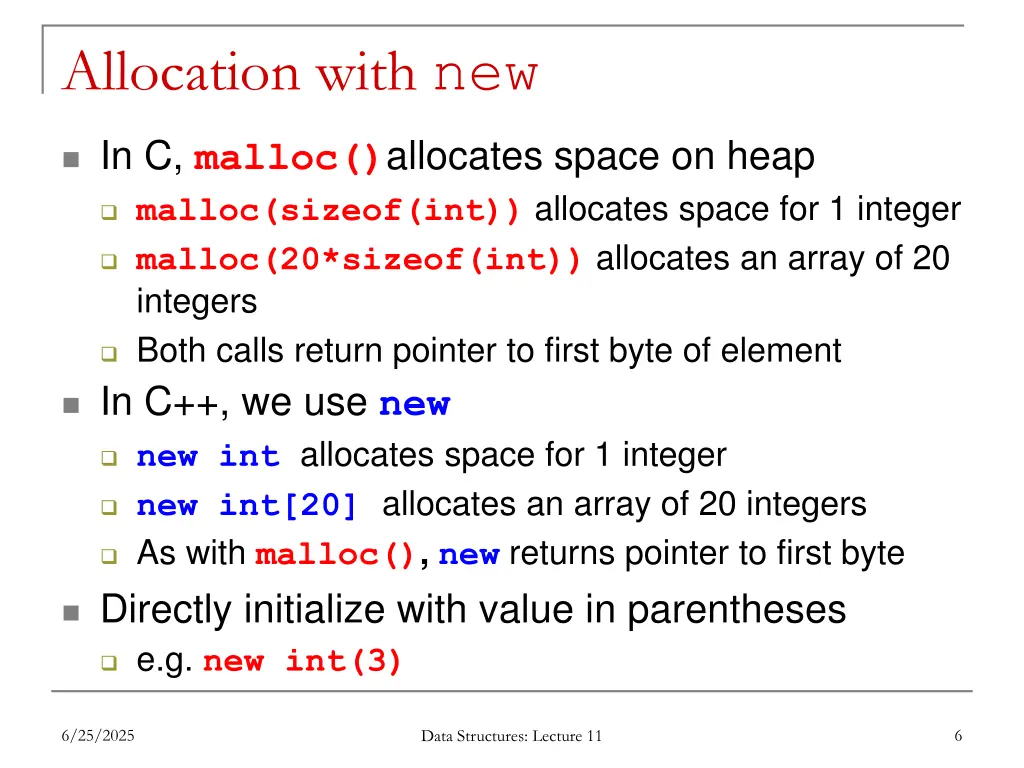

Allocation with new In C, malloc()allocates space on heap malloc(sizeof(int))allocates space for 1 integer malloc(20*sizeof(int))allocates an array of 20 integers Both calls return pointer to first byte of element In C++, we use new new int allocates space for 1 integer new int[20] allocates an array of 20 integers As with malloc(), newreturns pointer to first byte Directly initialize with value in parentheses e.g. new int(3) 6/25/2025 6 Data Structures: Lecture 11

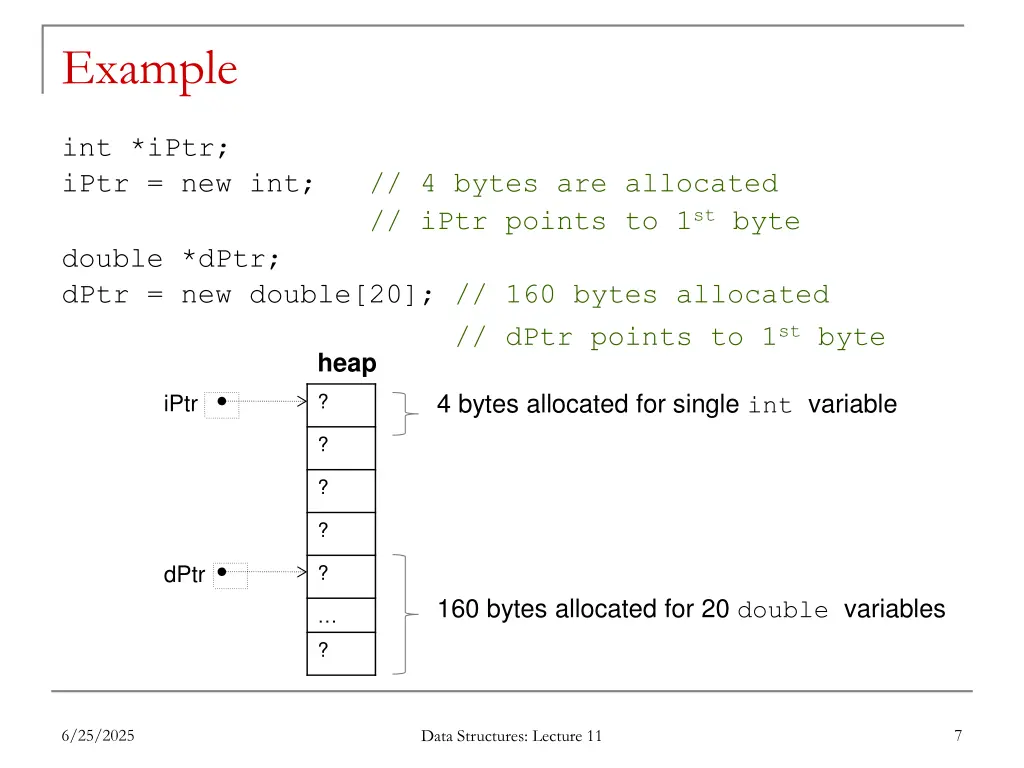

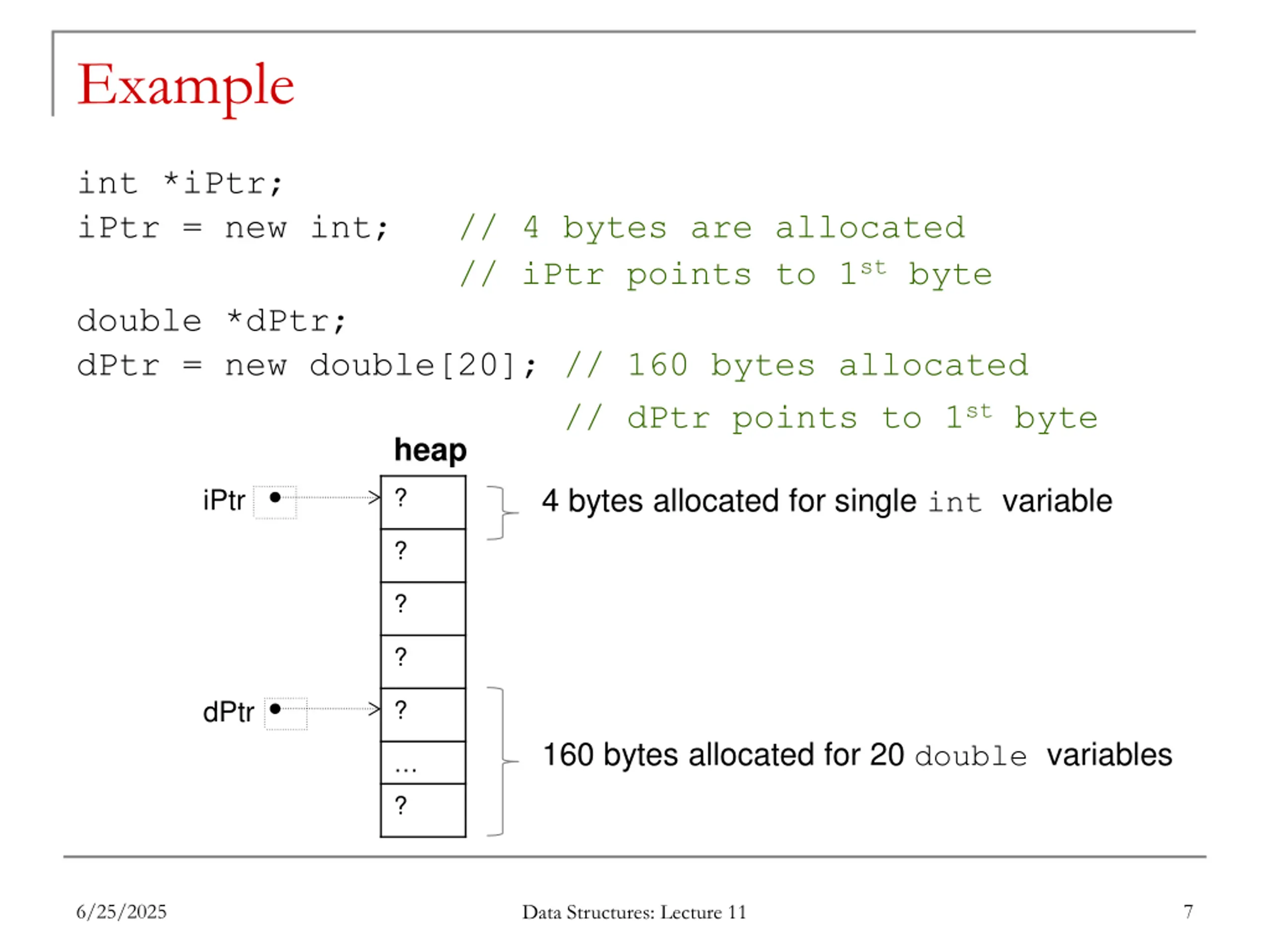

Example int *iPtr; iPtr = new int; double *dPtr; dPtr = new double[20]; // 160 bytes allocated // dPtr points to 1st byte ? iPtr 4 bytes allocated for single int variable // 4 bytes are allocated // iPtr points to 1st byte heap ? ? ? dPtr ? 160 bytes allocated for 20 double variables ? 6/25/2025 7 Data Structures: Lecture 11

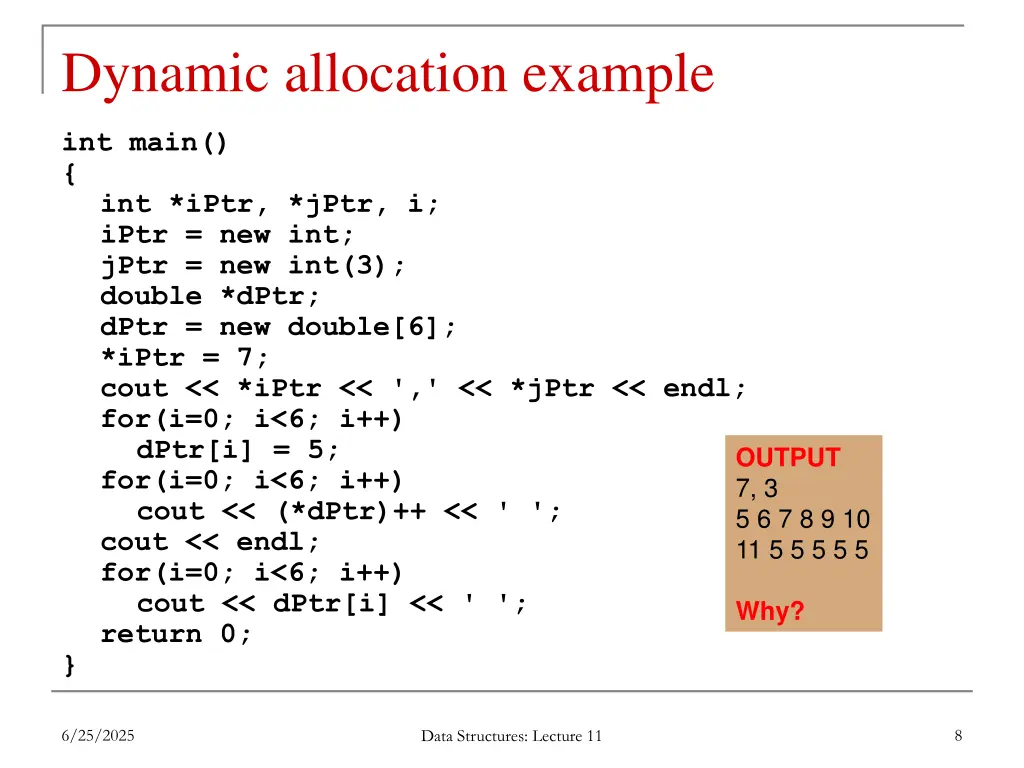

Dynamic allocation example int main() { int *iPtr, *jPtr, i; iPtr = new int; jPtr = new int(3); double *dPtr; dPtr = new double[6]; *iPtr = 7; cout << *iPtr << ',' << *jPtr << endl; for(i=0; i<6; i++) dPtr[i] = 5; for(i=0; i<6; i++) cout << (*dPtr)++ << ' '; cout << endl; for(i=0; i<6; i++) cout << dPtr[i] << ' '; return 0; } OUTPUT 7, 3 5 6 7 8 9 10 11 5 5 5 5 5 Why? 6/25/2025 8 Data Structures: Lecture 11

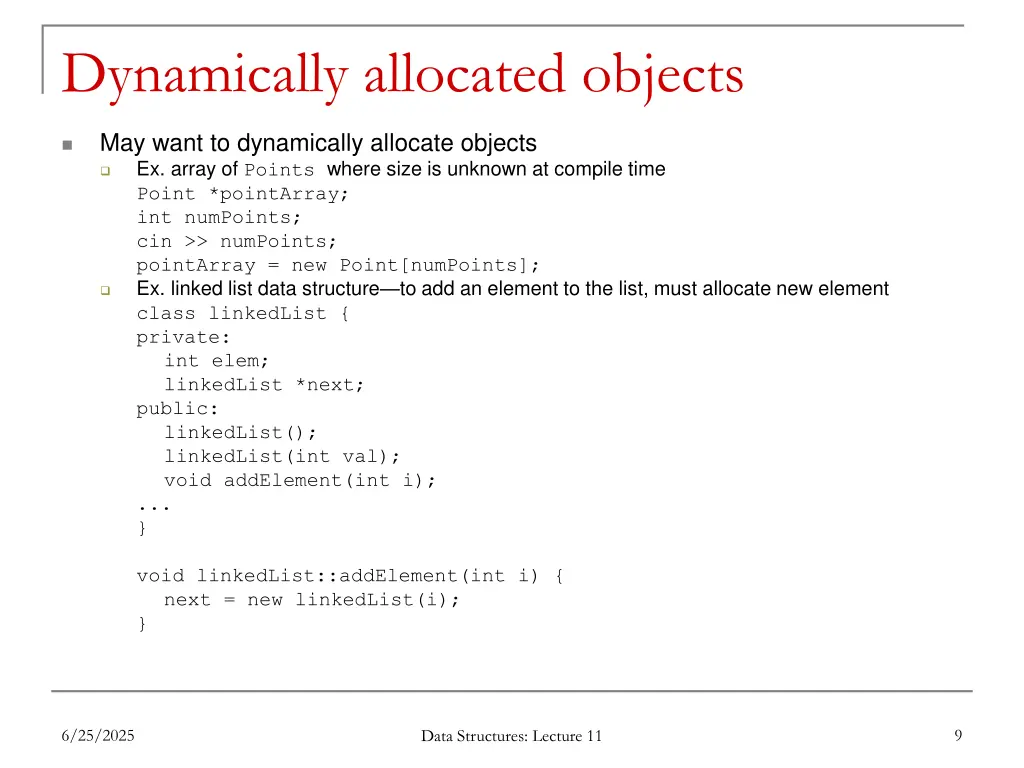

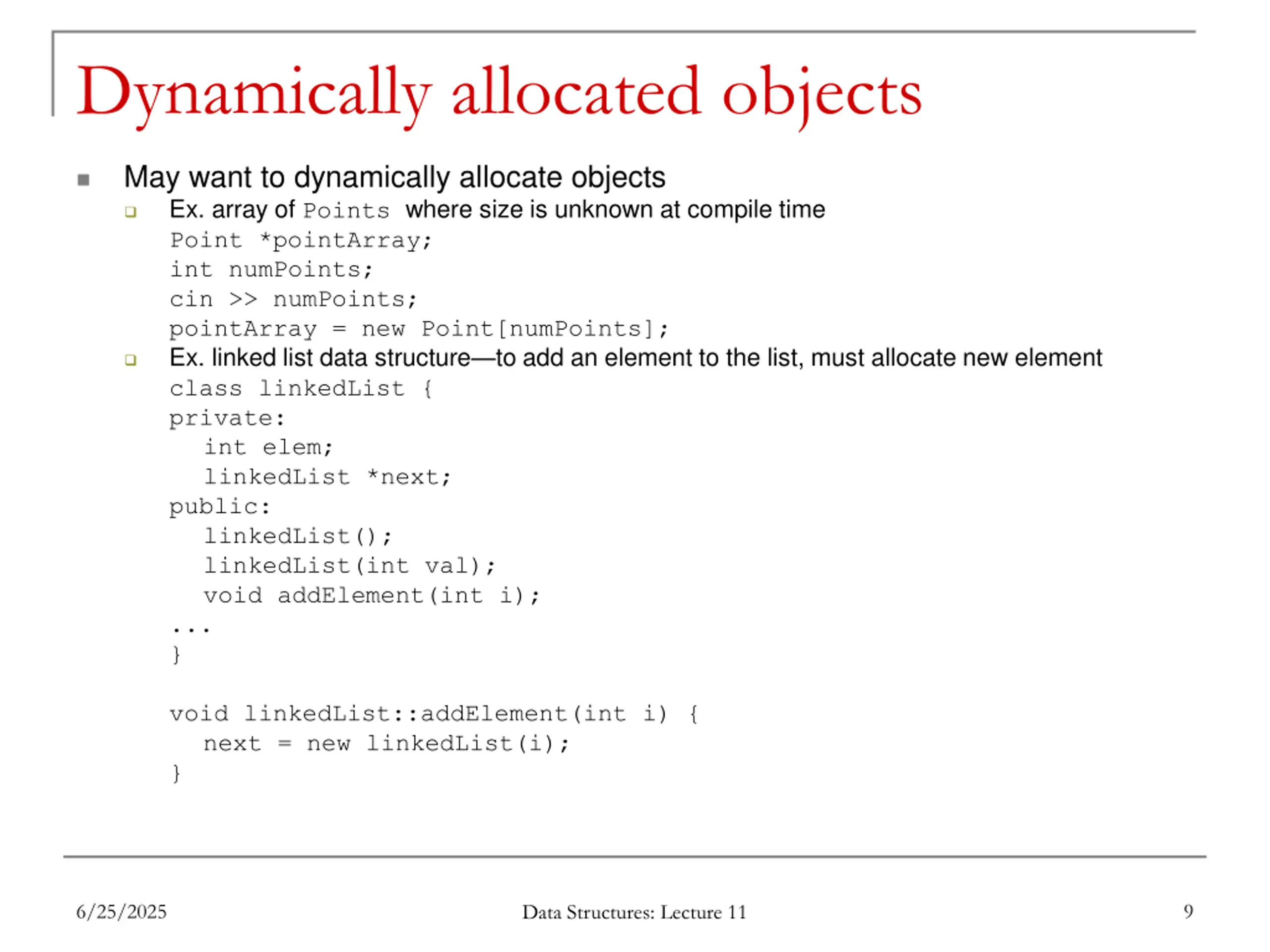

Dynamically allocated objects May want to dynamically allocate objects Ex. array of Points where size is unknown at compile time Point *pointArray; int numPoints; cin >> numPoints; pointArray = new Point[numPoints]; Ex. linked list data structure to add an element to the list, must allocate new element class linkedList { private: int elem; linkedList *next; public: linkedList(); linkedList(int val); void addElement(int i); ... } void linkedList::addElement(int i) { next = new linkedList(i); } 6/25/2025 9 Data Structures: Lecture 11

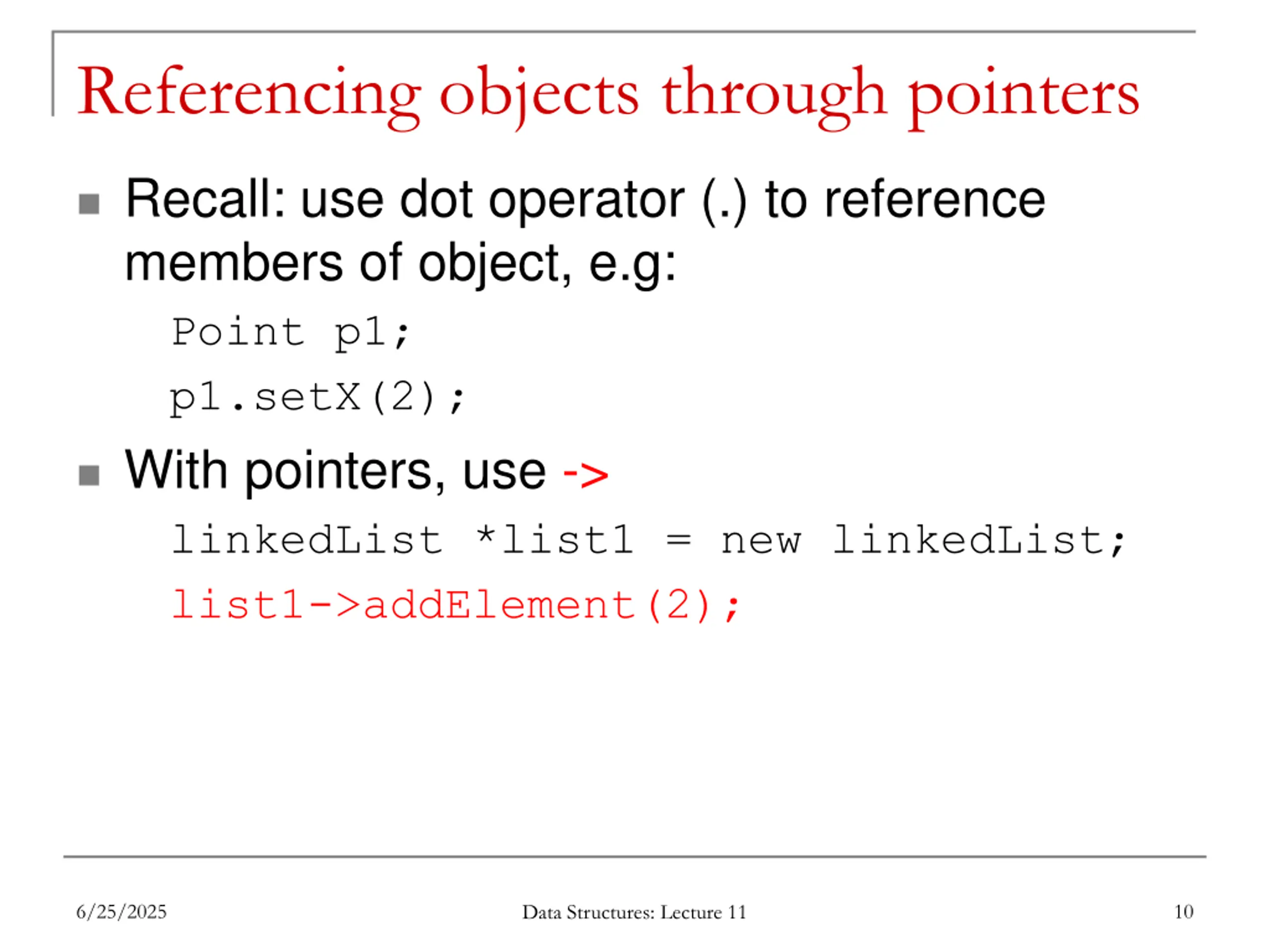

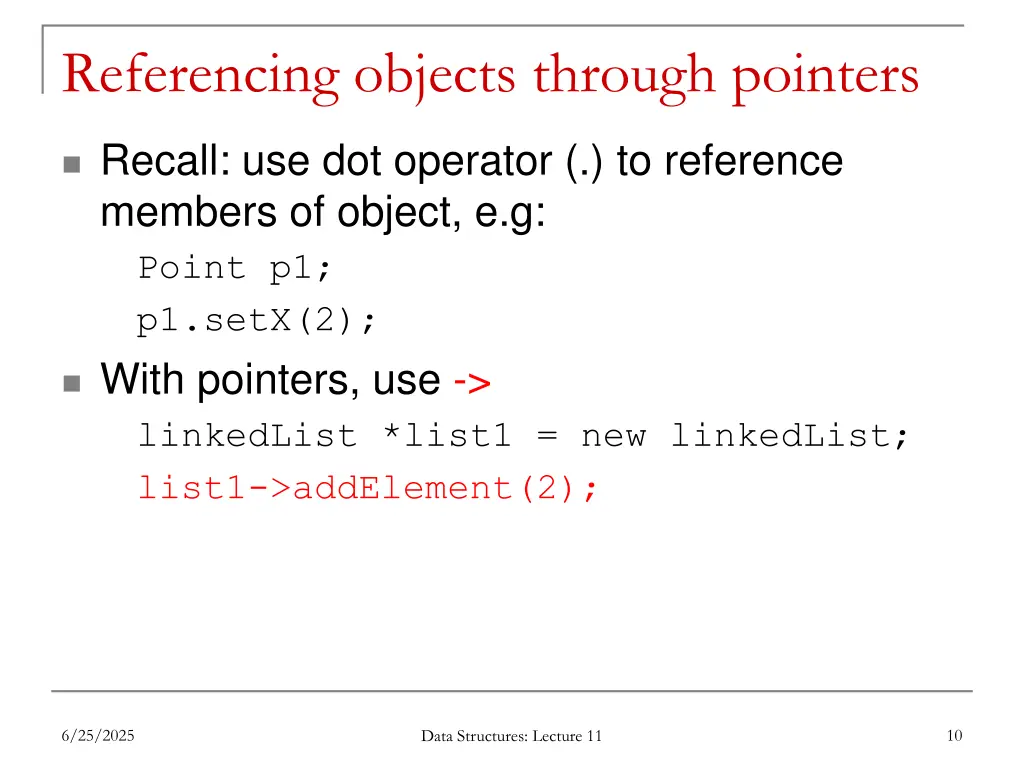

Referencing objects through pointers Recall: use dot operator (.) to reference members of object, e.g: Point p1; p1.setX(2); With pointers, use -> linkedList *list1 = new linkedList; list1->addElement(2); 6/25/2025 10 Data Structures: Lecture 11

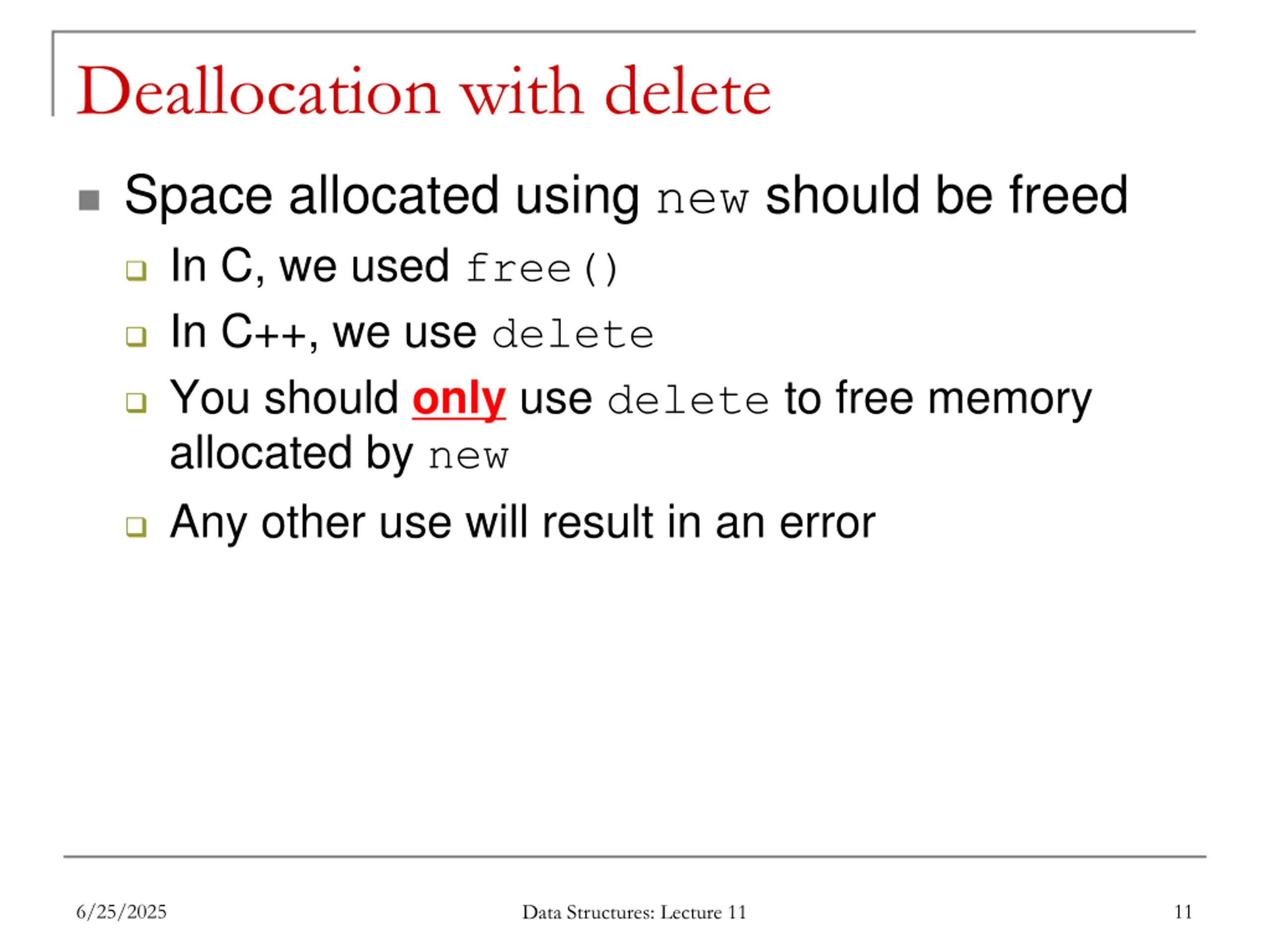

Deallocation with delete Space allocated using new should be freed In C, we used free() In C++, we use delete You should only use delete to free memory allocated by new Any other use will result in an error 6/25/2025 11 Data Structures: Lecture 11

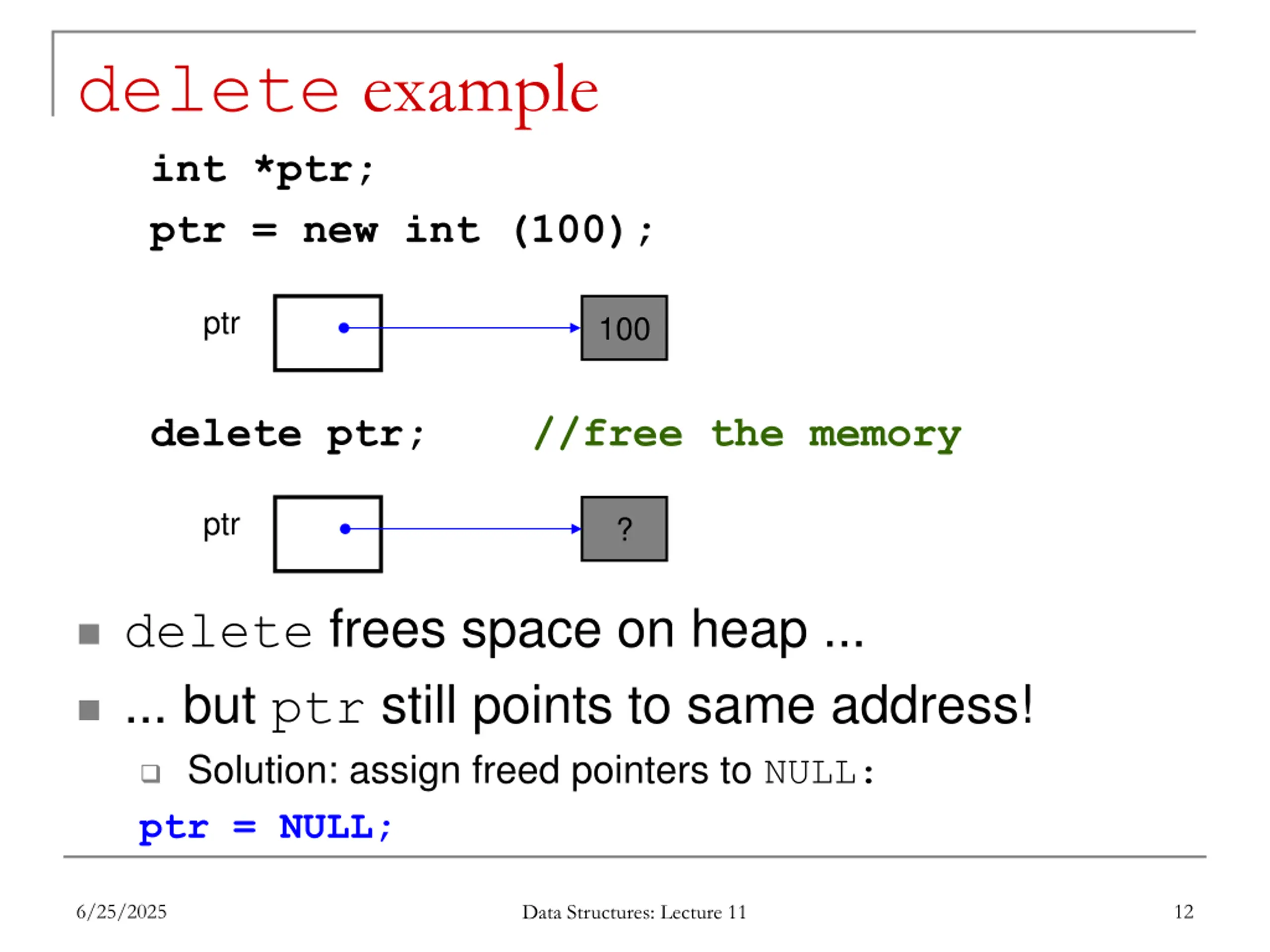

delete example int *ptr; ptr = new int (100); ptr 100 delete ptr; //free the memory ptr ? delete frees space on heap ... ... but ptr still points to same address! Solution: assign freed pointers to NULL: ptr = NULL; 6/25/2025 12 Data Structures: Lecture 11

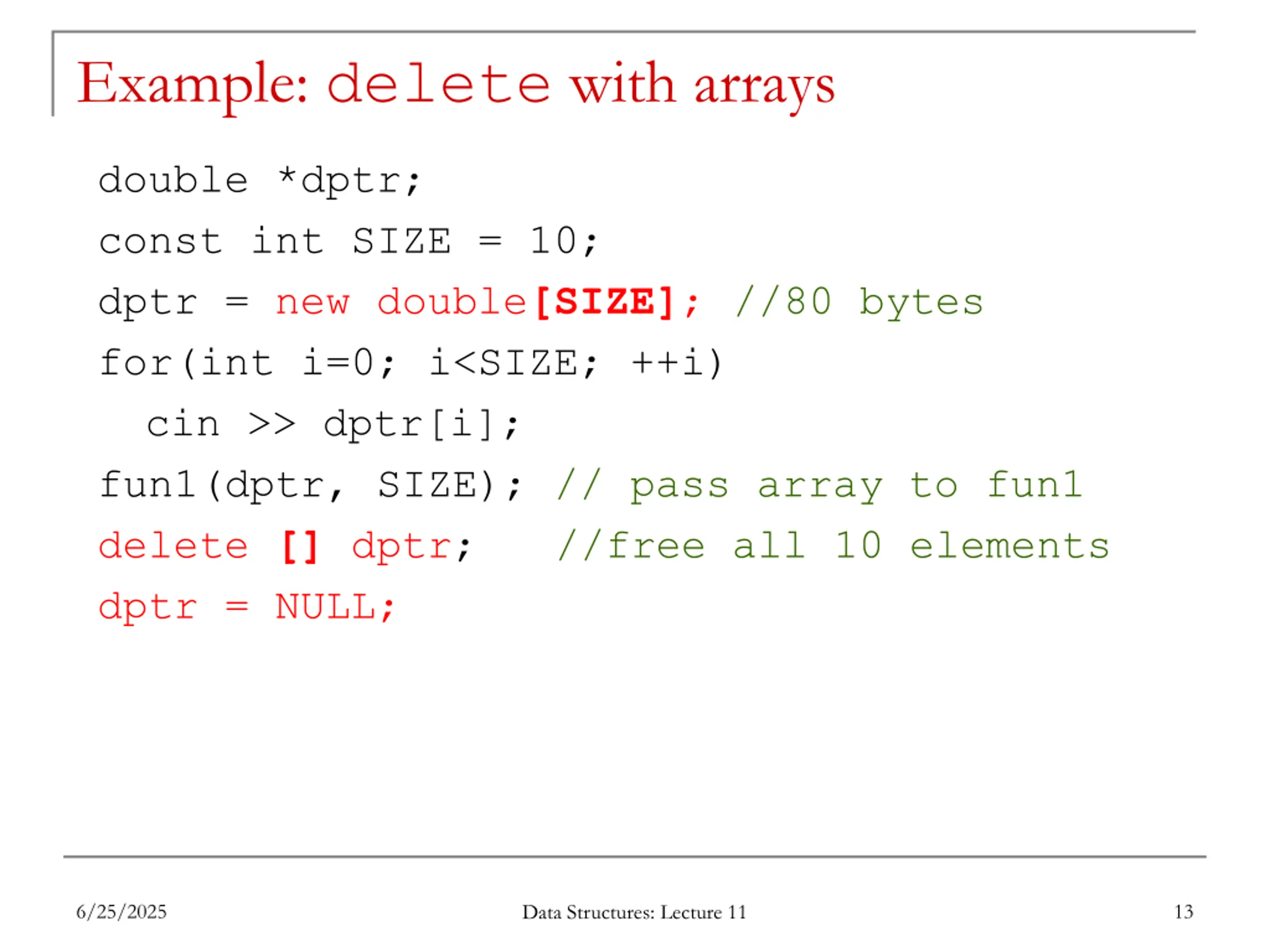

Example: delete with arrays double *dptr; const int SIZE = 10; dptr = new double[SIZE]; //80 bytes for(int i=0; i<SIZE; ++i) cin >> dptr[i]; fun1(dptr, SIZE); // pass array to fun1 delete [] dptr; //free all 10 elements dptr = NULL; 6/25/2025 13 Data Structures: Lecture 11

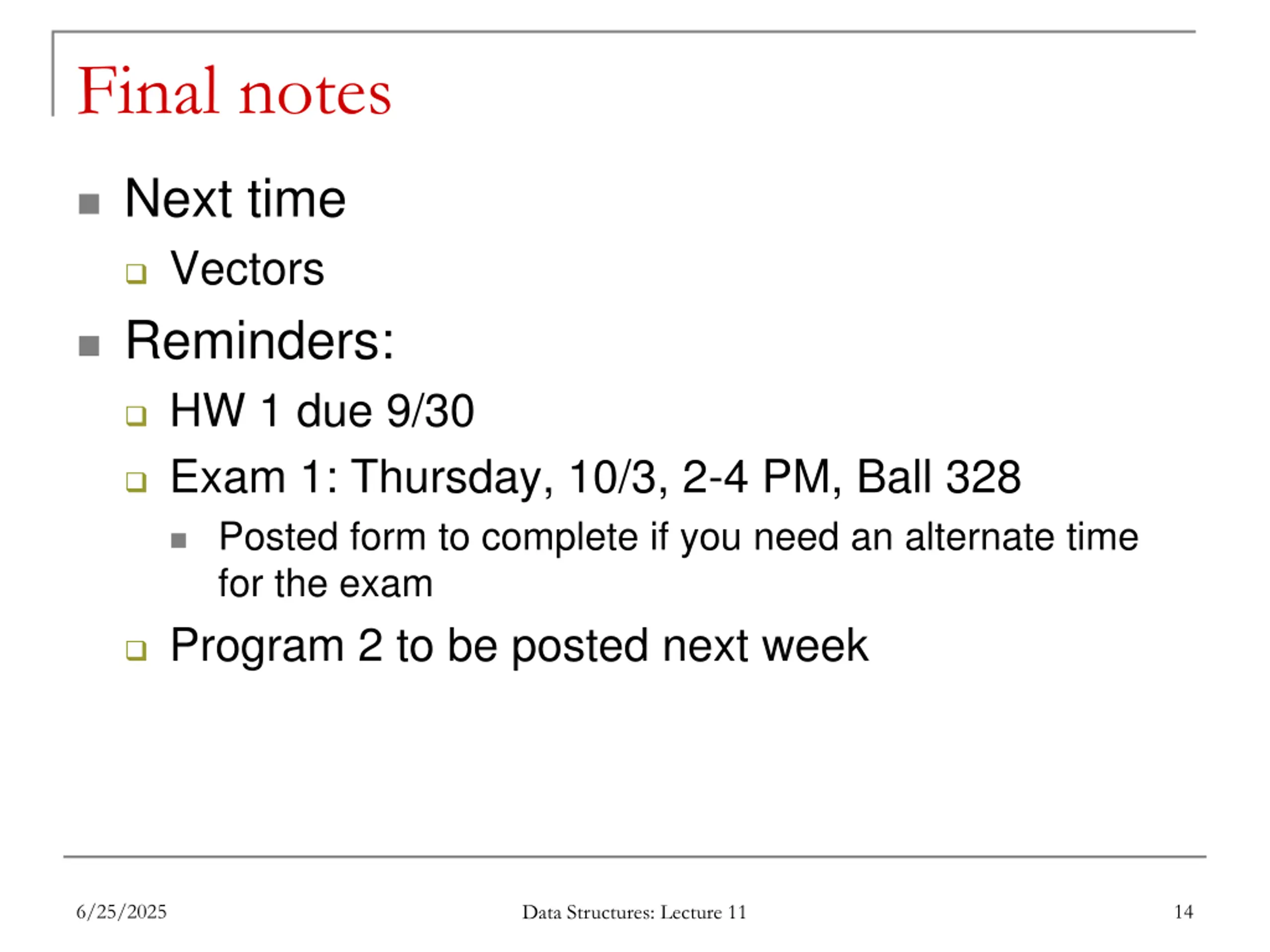

Final notes Next time Vectors Reminders: HW 1 due 9/30 Exam 1: Thursday, 10/3, 2-4 PM, Ball 328 Posted form to complete if you need an alternate time for the exam Program 2 to be posted next week 6/25/2025 14 Data Structures: Lecture 11
