Revit Family file ITEV-0100P-0180P AIR COOLED CHILLER

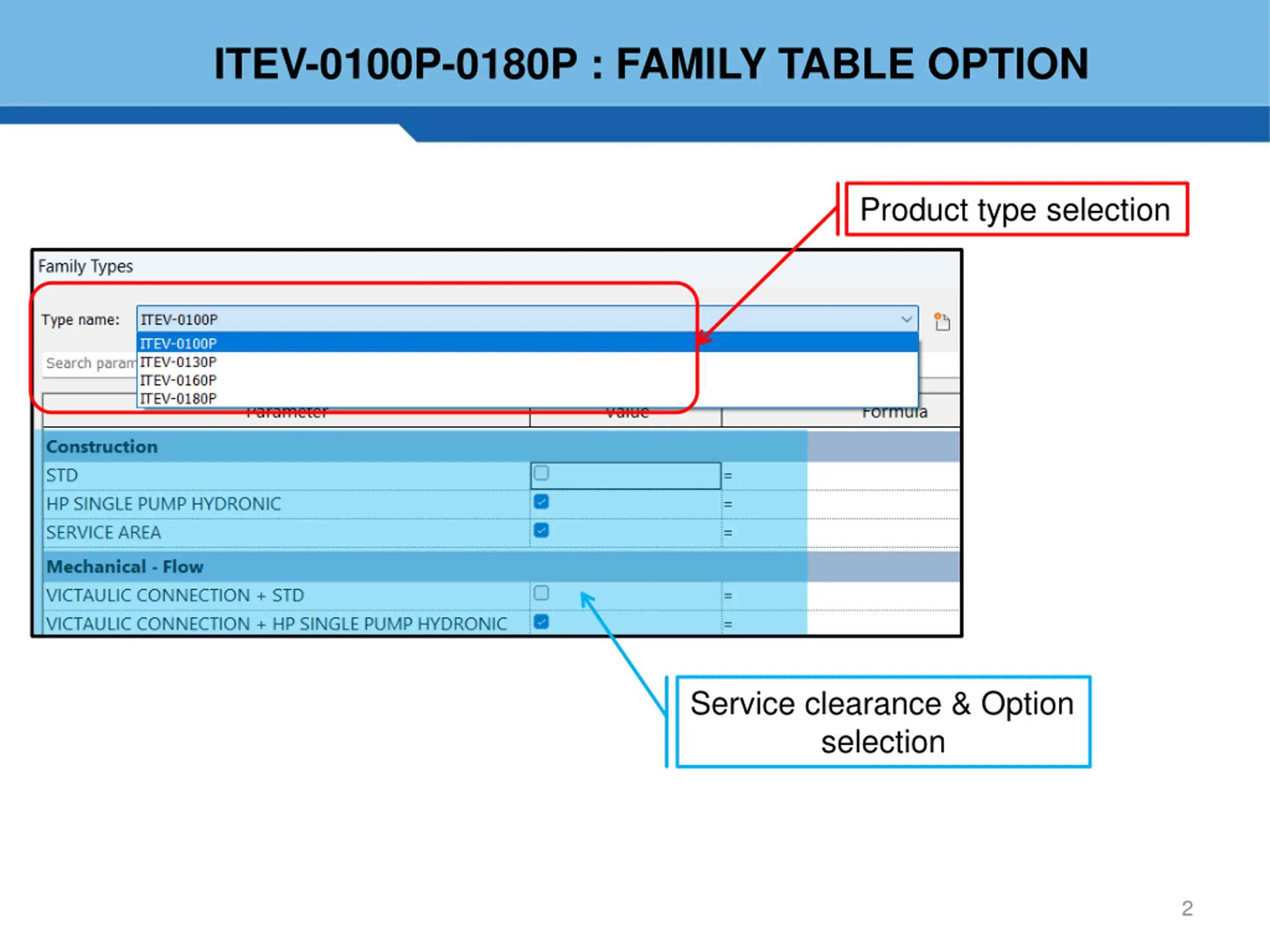

ITEV-0100P-0180P : FAMILY TABLE OPTION Product type selection Service clearance & Option selection 2
ITEV-0100P-0180P ITEV-0100P-0180P Revit Family Latest Modification IDENTIFY DATA EDITING Model description details are added in the Identify Data parameter segment for all the revit family files. Based on the type of family, details have been provided (0100P, 0130P, 0160P, 0180P). This data will be extracted from the end MEP user whenever he/she will take Material Take-off job or BOM preparation for the particular unit. 3

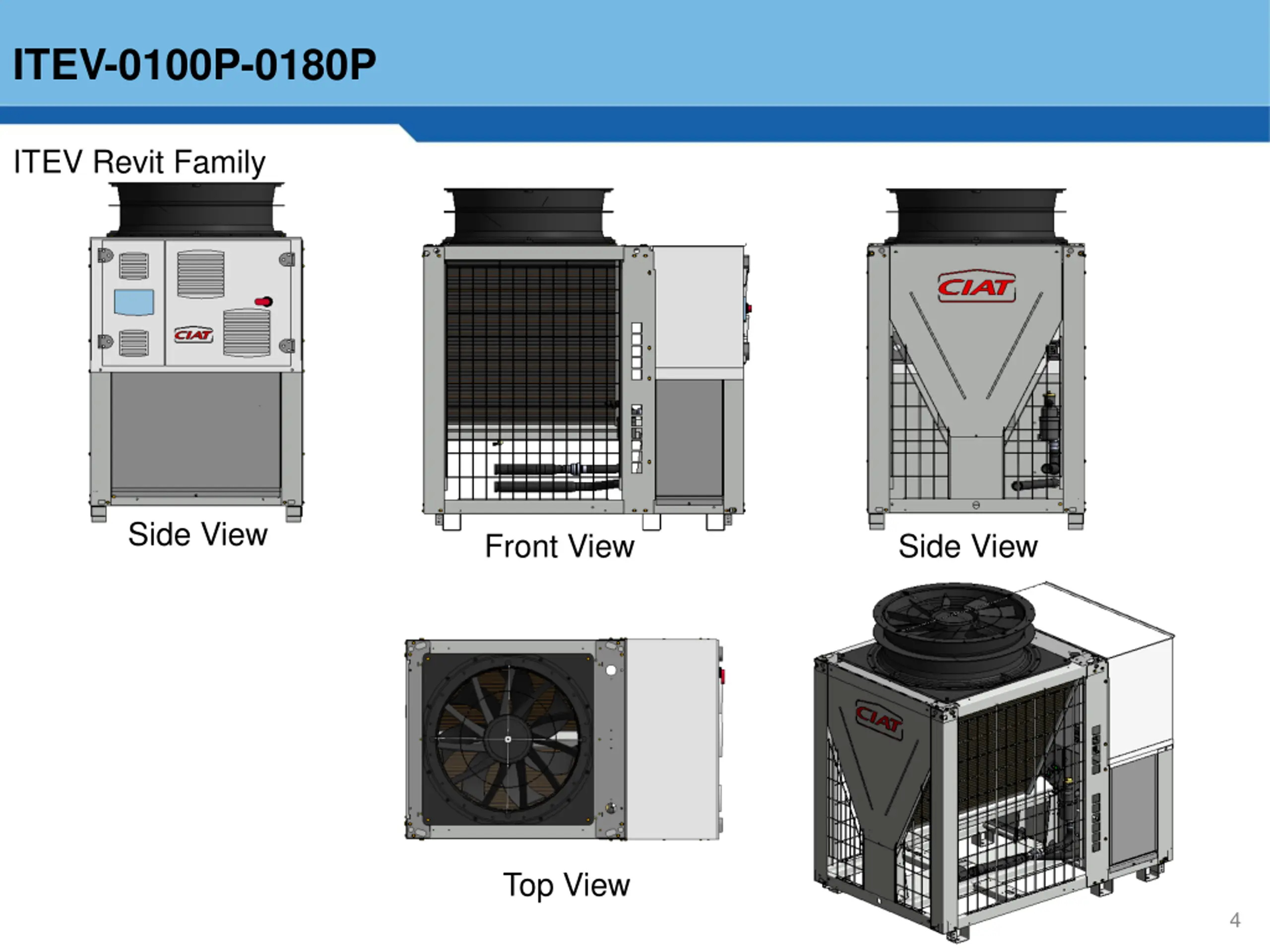

ITEV-0100P-0180P ITEV Revit Family Side View Front View Side View Top View 4

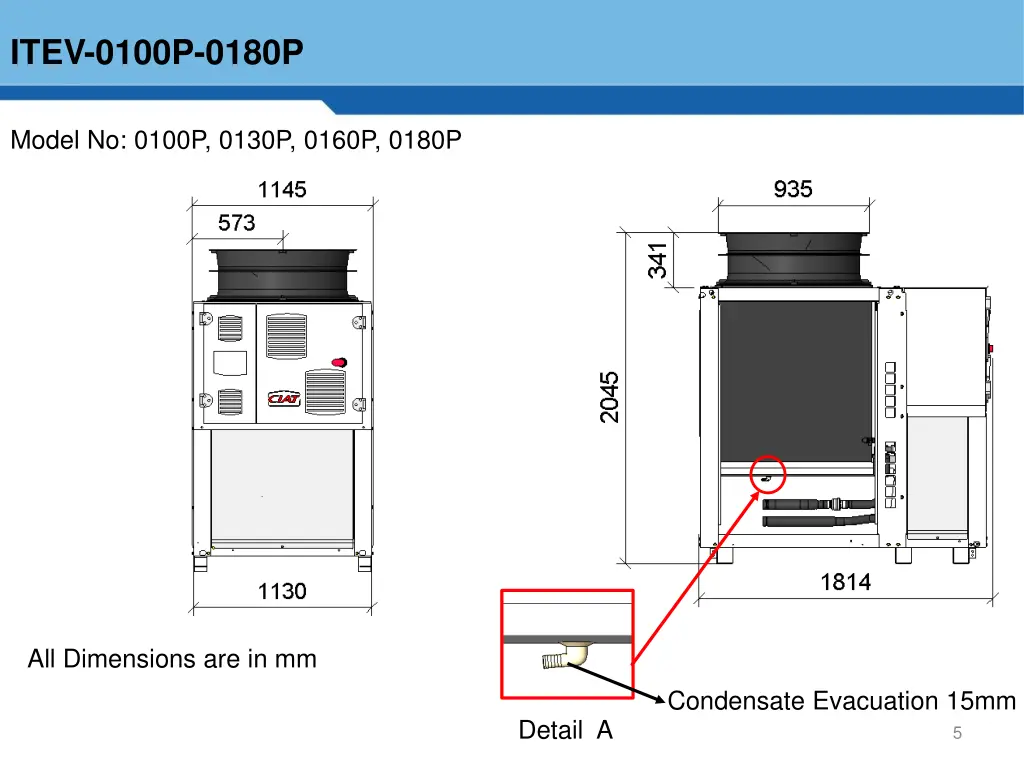

ITEV-0100P-0180P Model No: 0100P, 0130P, 0160P, 0180P All Dimensions are in mm Condensate Evacuation 15mm Detail A 5

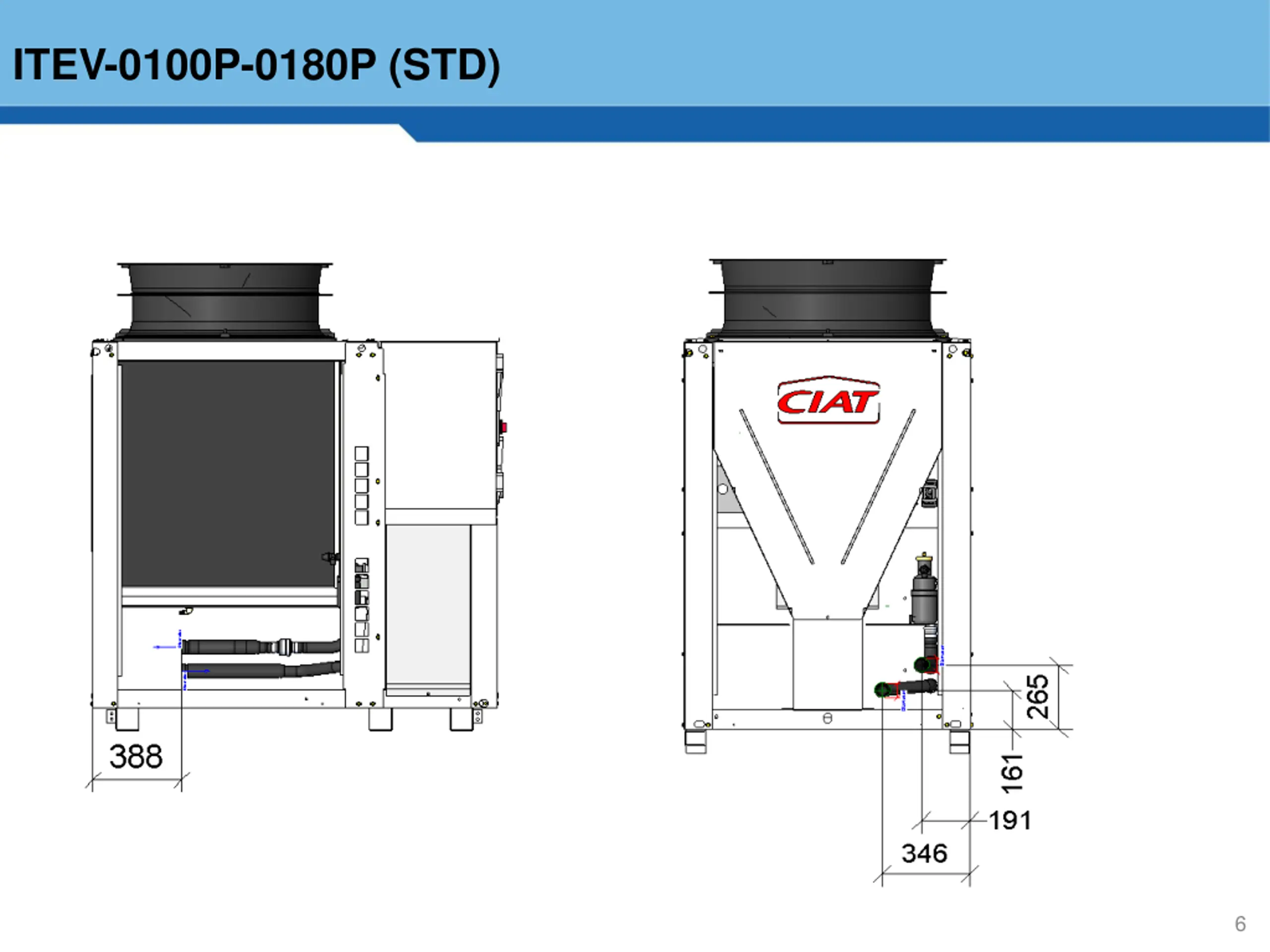

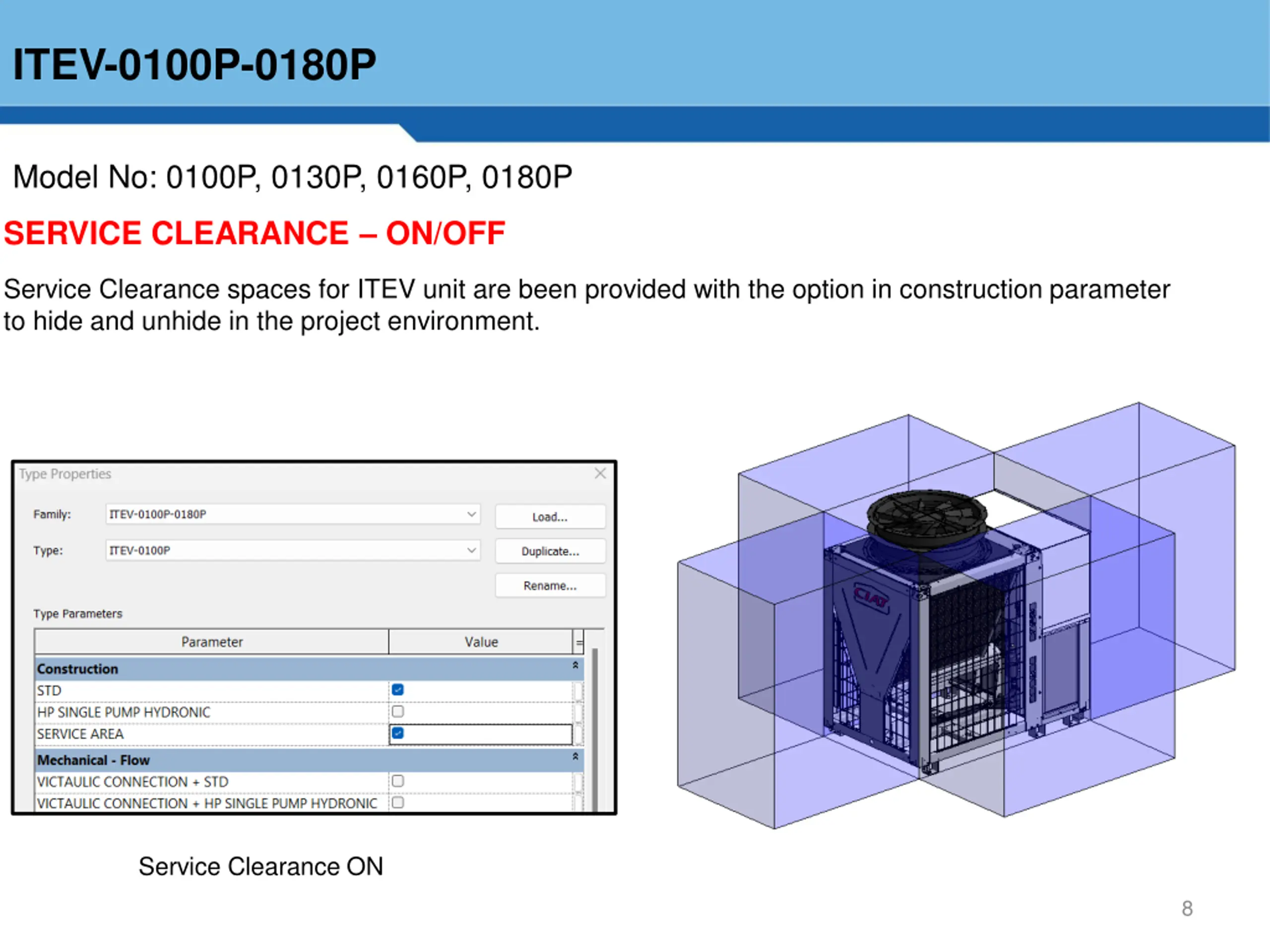

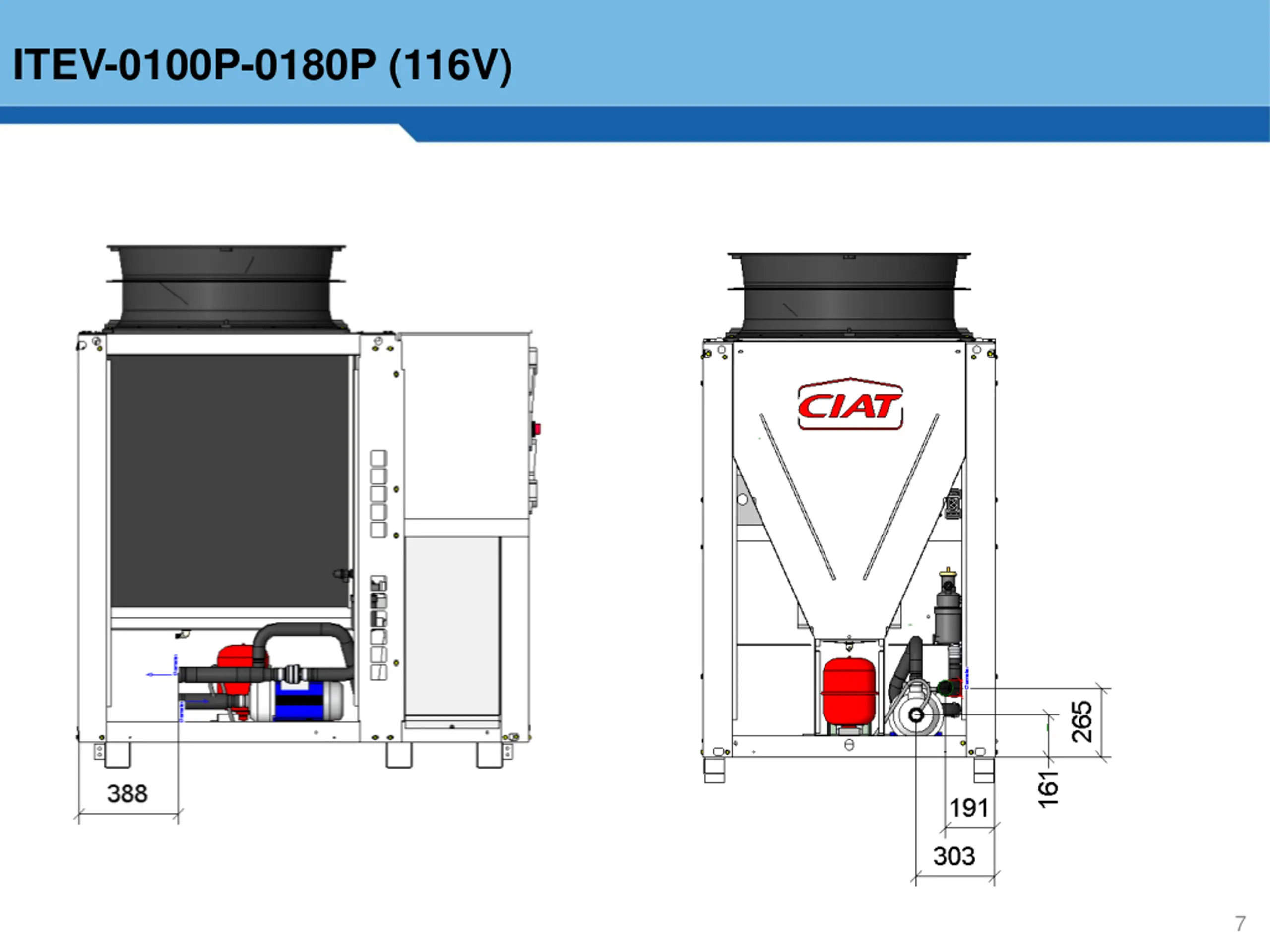

ITEV-0100P-0180P Model No: 0100P, 0130P, 0160P, 0180P SERVICE CLEARANCE ON/OFF Service Clearance spaces for ITEV unit are been provided with the option in construction parameter to hide and unhide in the project environment. Service Clearance ON 8

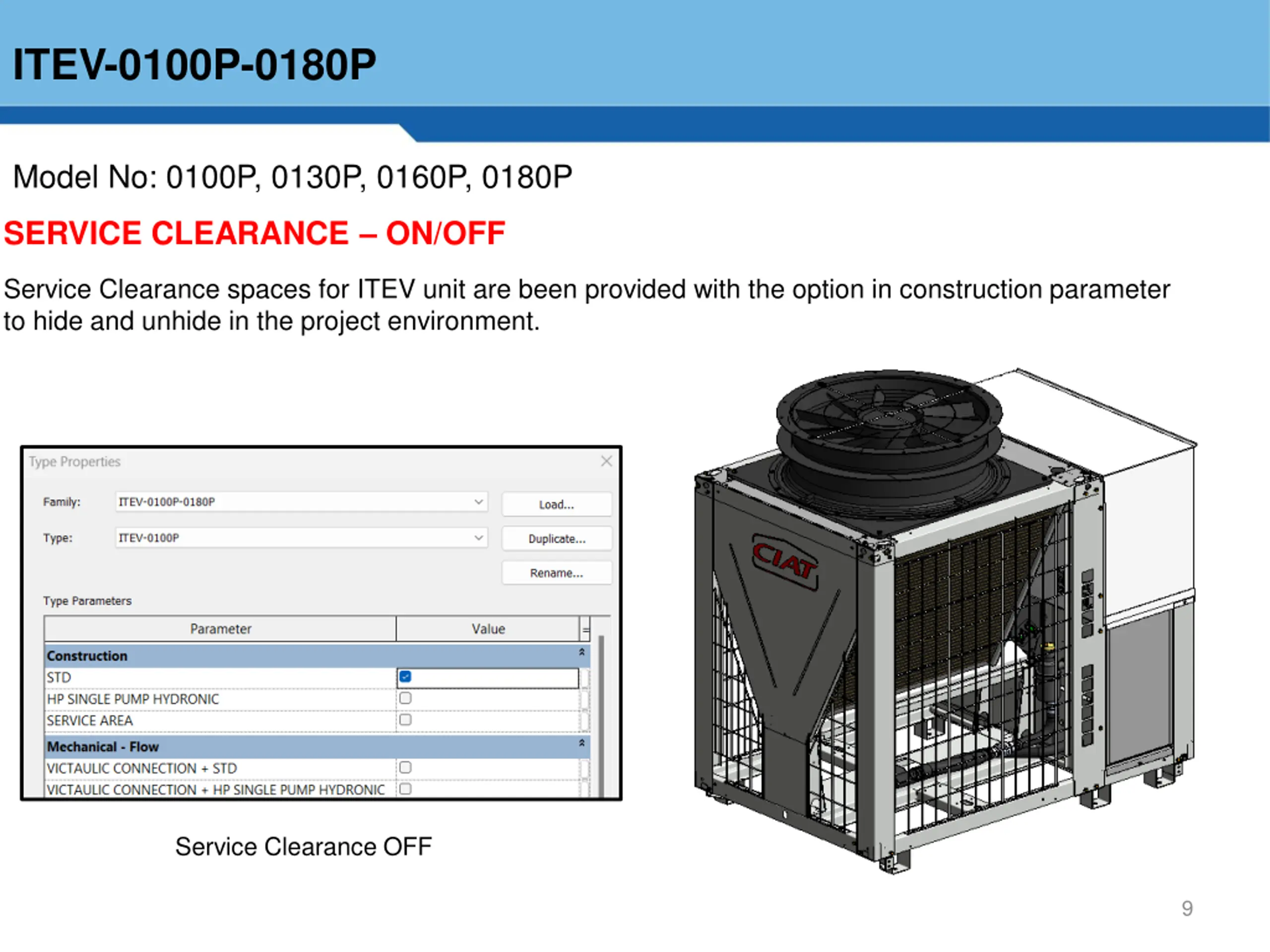

ITEV-0100P-0180P Model No: 0100P, 0130P, 0160P, 0180P SERVICE CLEARANCE ON/OFF Service Clearance spaces for ITEV unit are been provided with the option in construction parameter to hide and unhide in the project environment. Service Clearance OFF 9

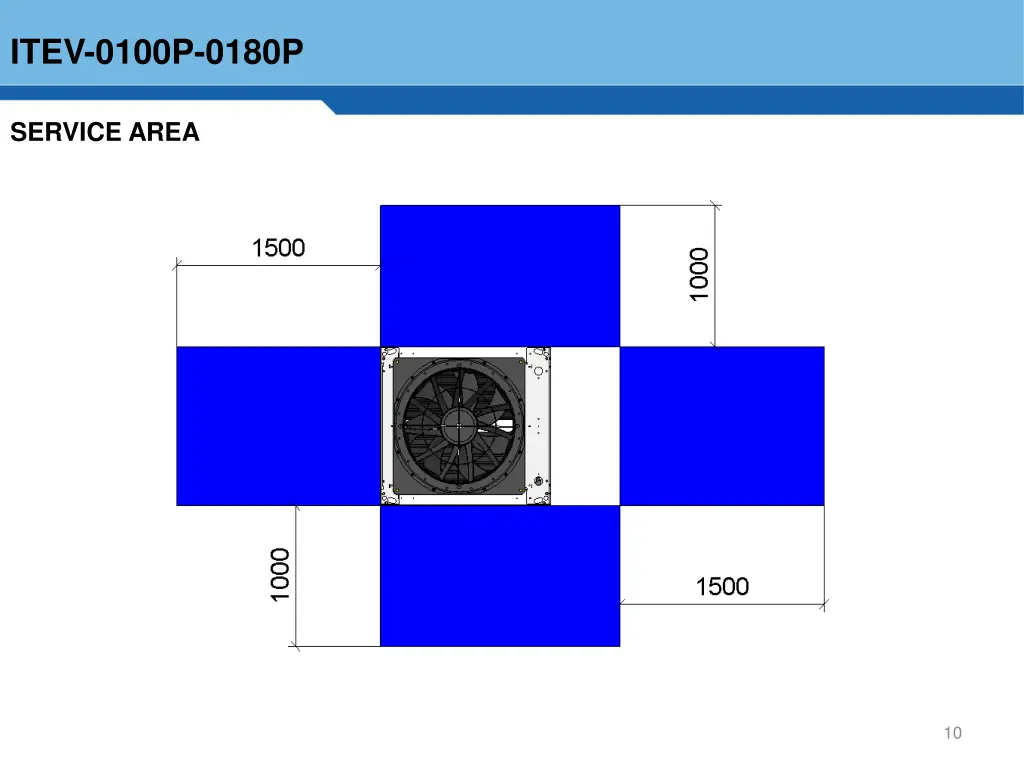

ITEV-0100P-0180P SERVICE AREA 10

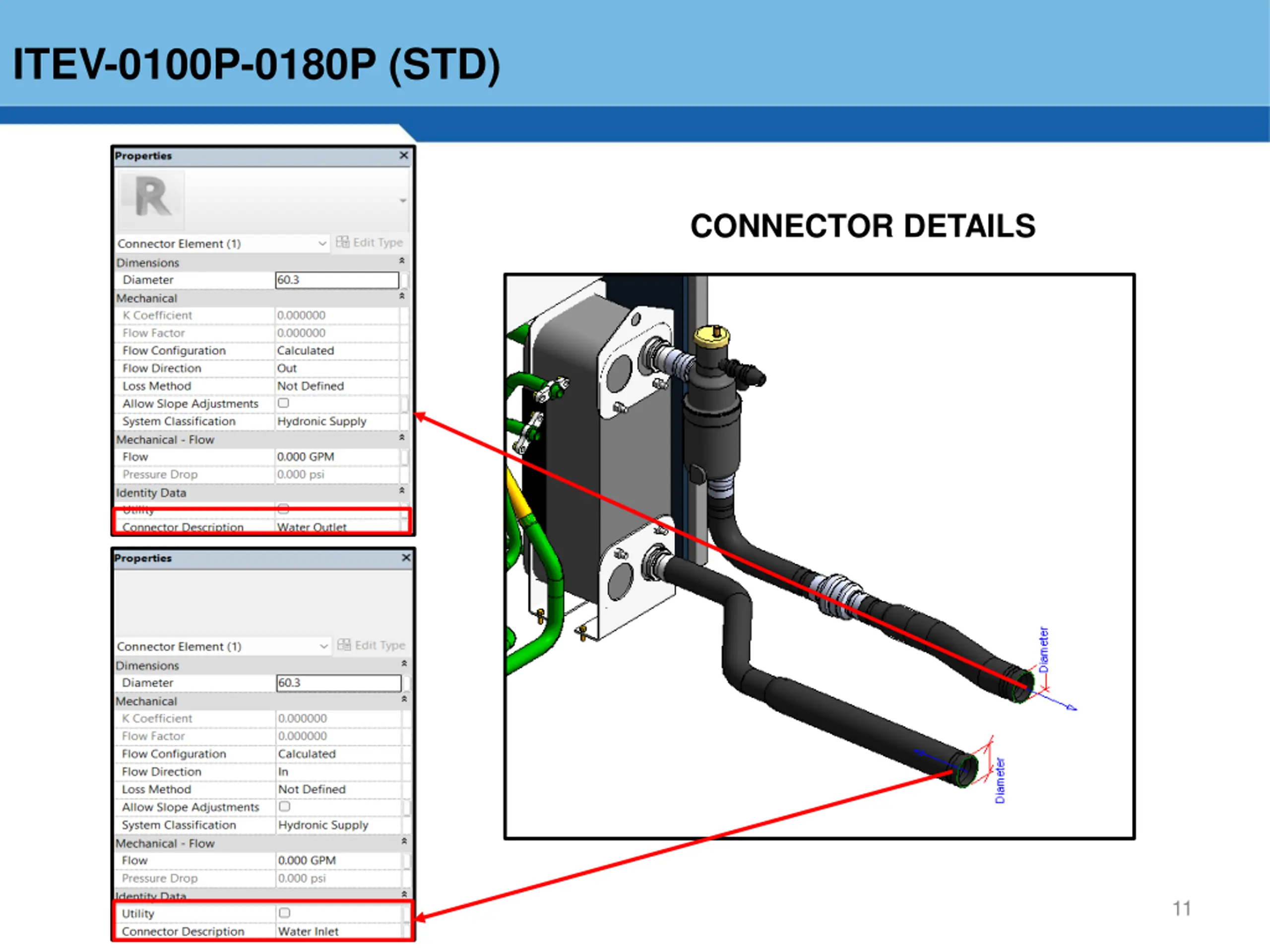

ITEV-0100P-0180P (STD) CONNECTOR DETAILS 11

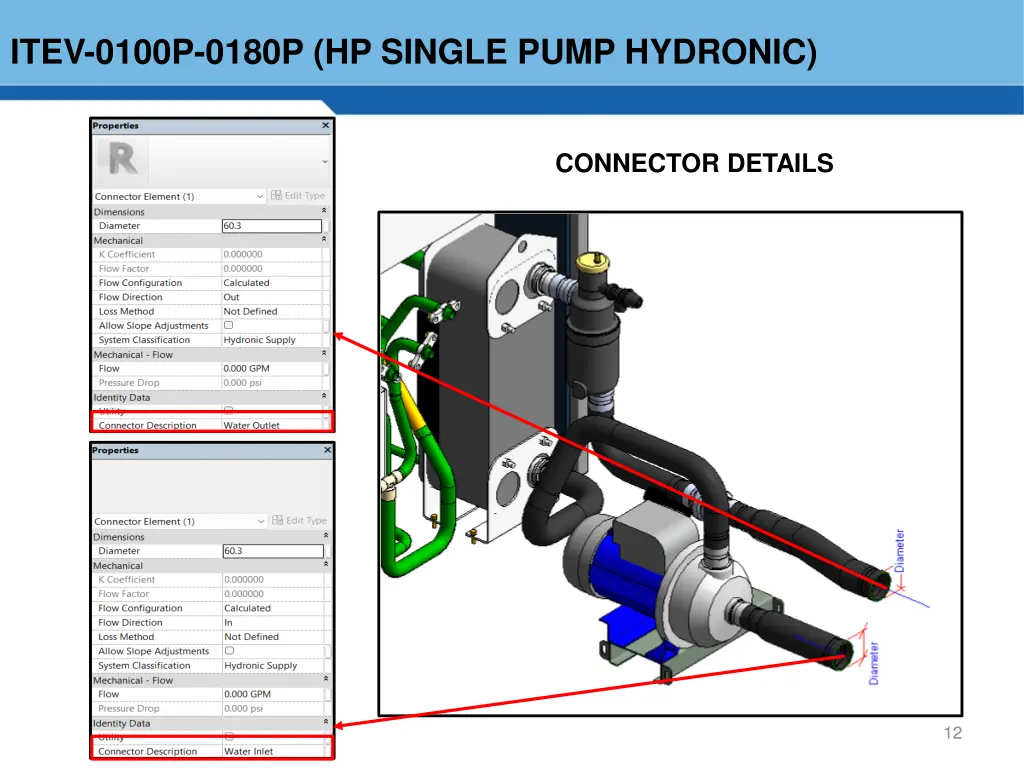

ITEV-0100P-0180P (HP SINGLE PUMP HYDRONIC) CONNECTOR DETAILS 12

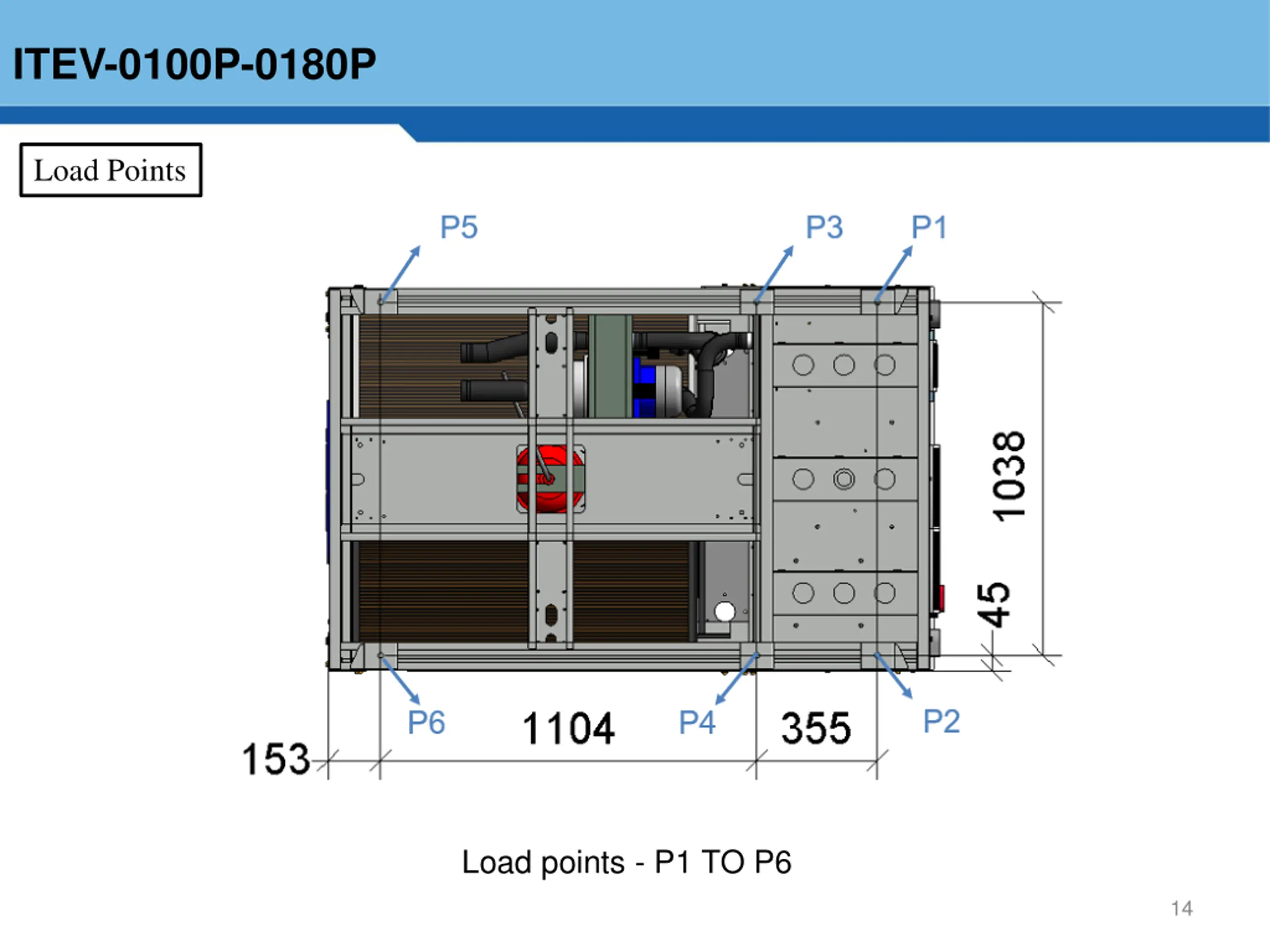

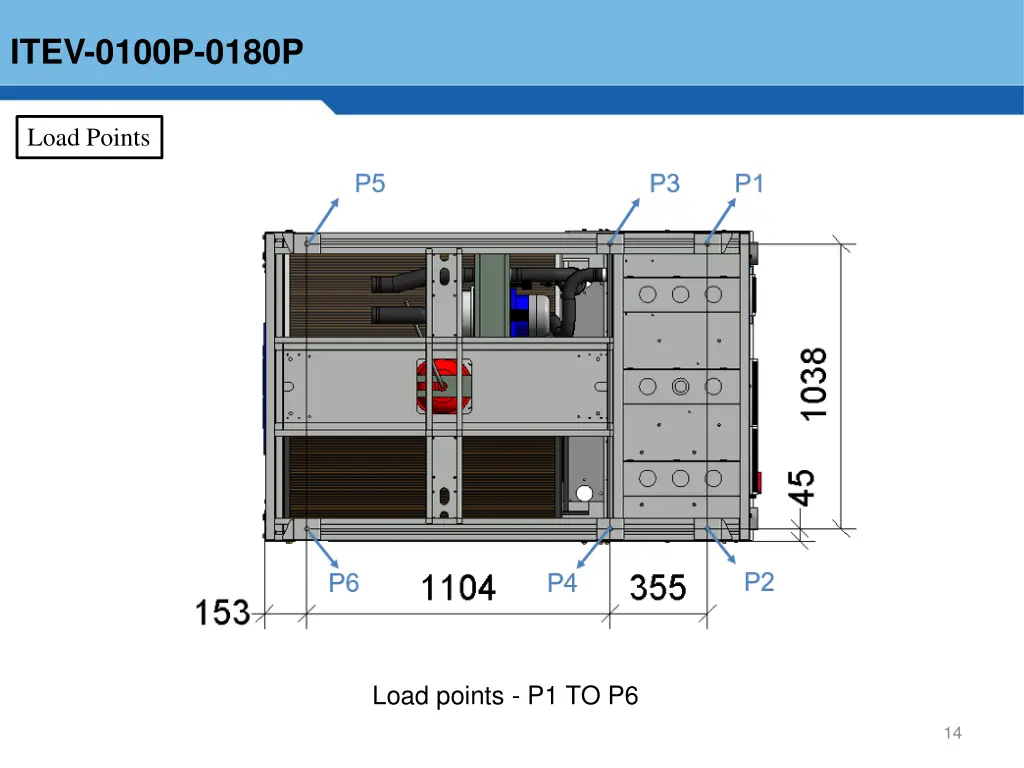

ITEV-0100P-0180P Load Points Load points - P1 TO P6 14

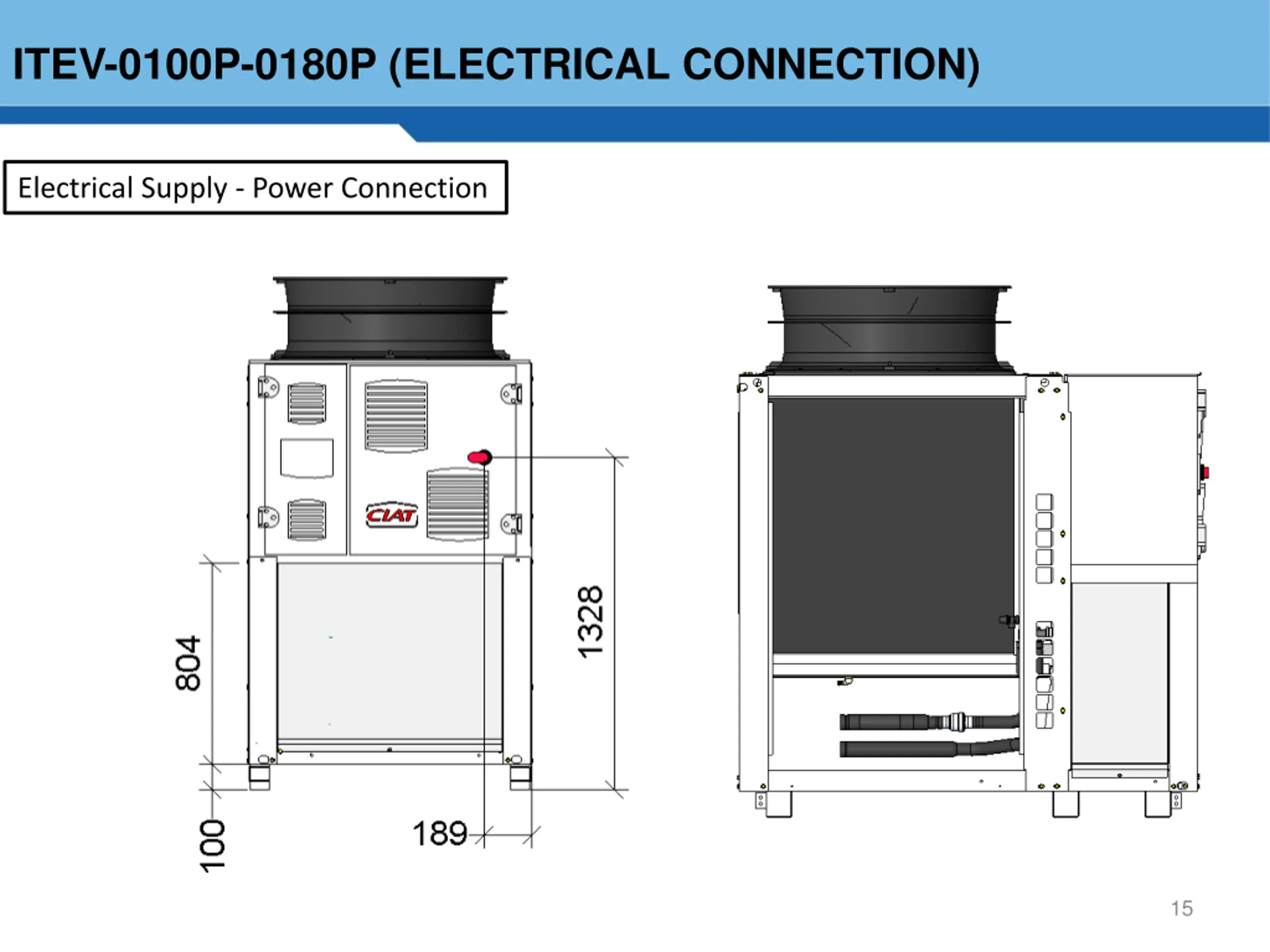

ITEV-0100P-0180P (ELECTRICAL CONNECTION) Electrical Supply - Power Connection 15

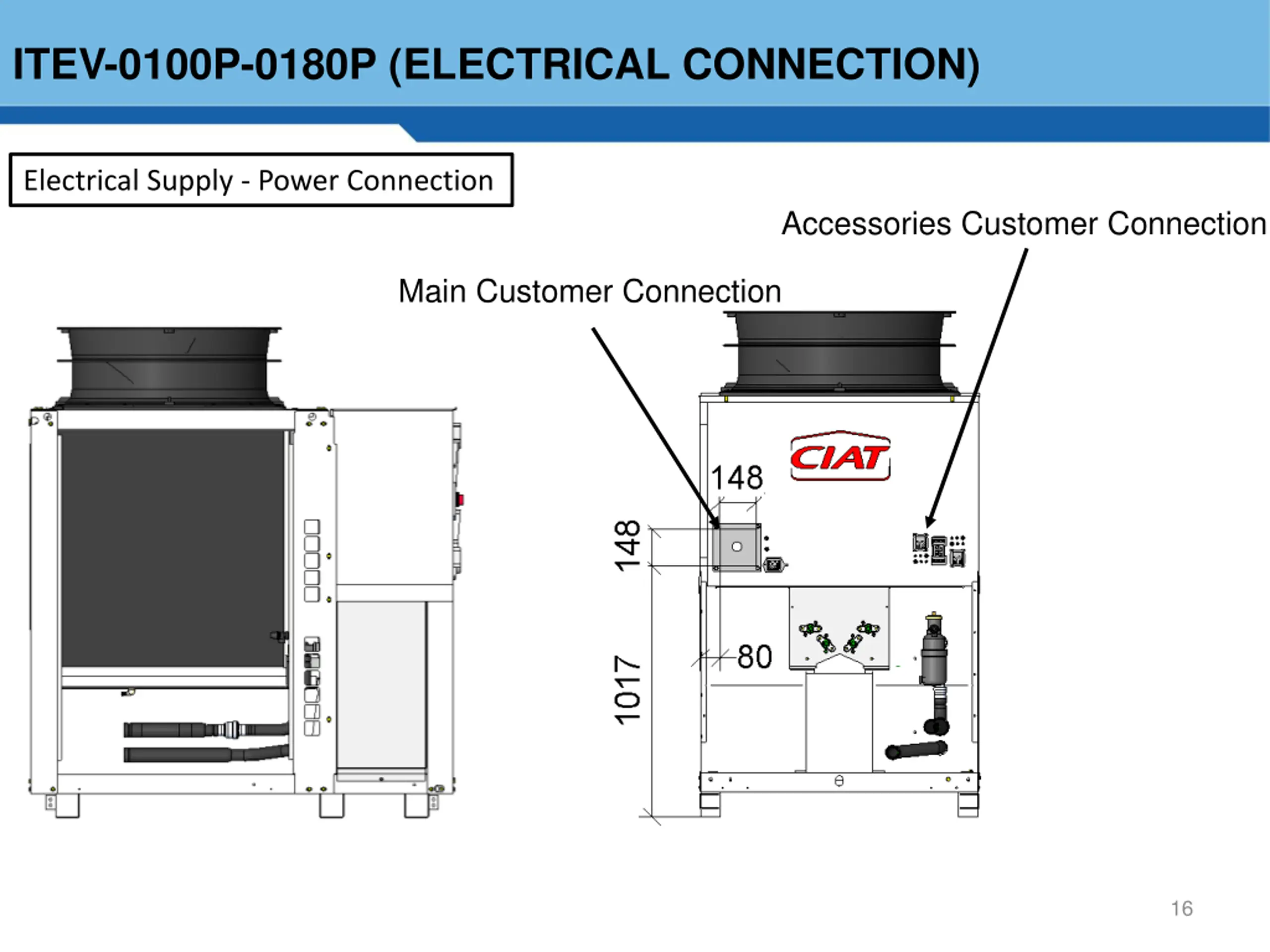

ITEV-0100P-0180P (ELECTRICAL CONNECTION) Electrical Supply - Power Connection Accessories Customer Connection Main Customer Connection 16

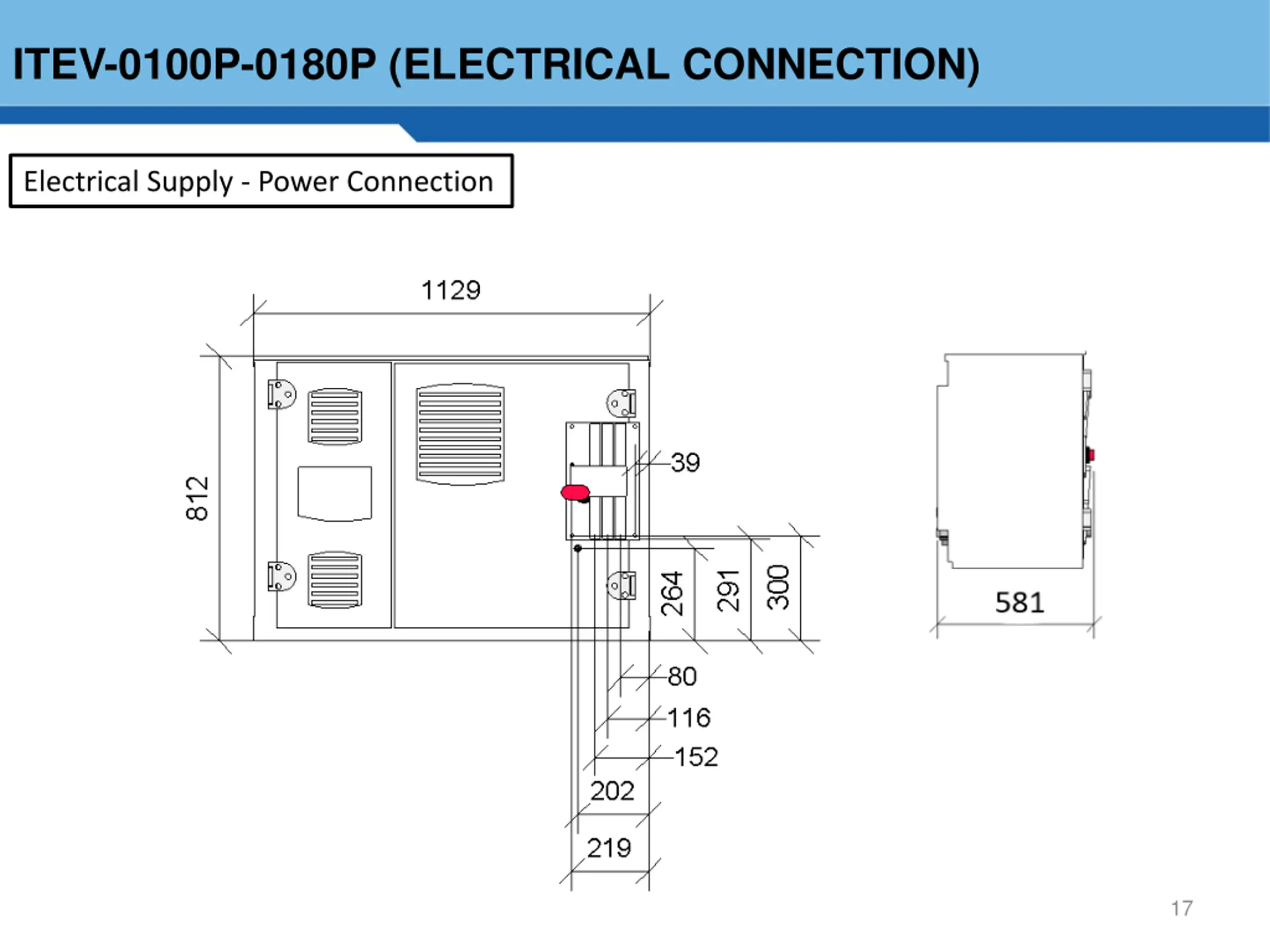

ITEV-0100P-0180P (ELECTRICAL CONNECTION) Electrical Supply - Power Connection 17

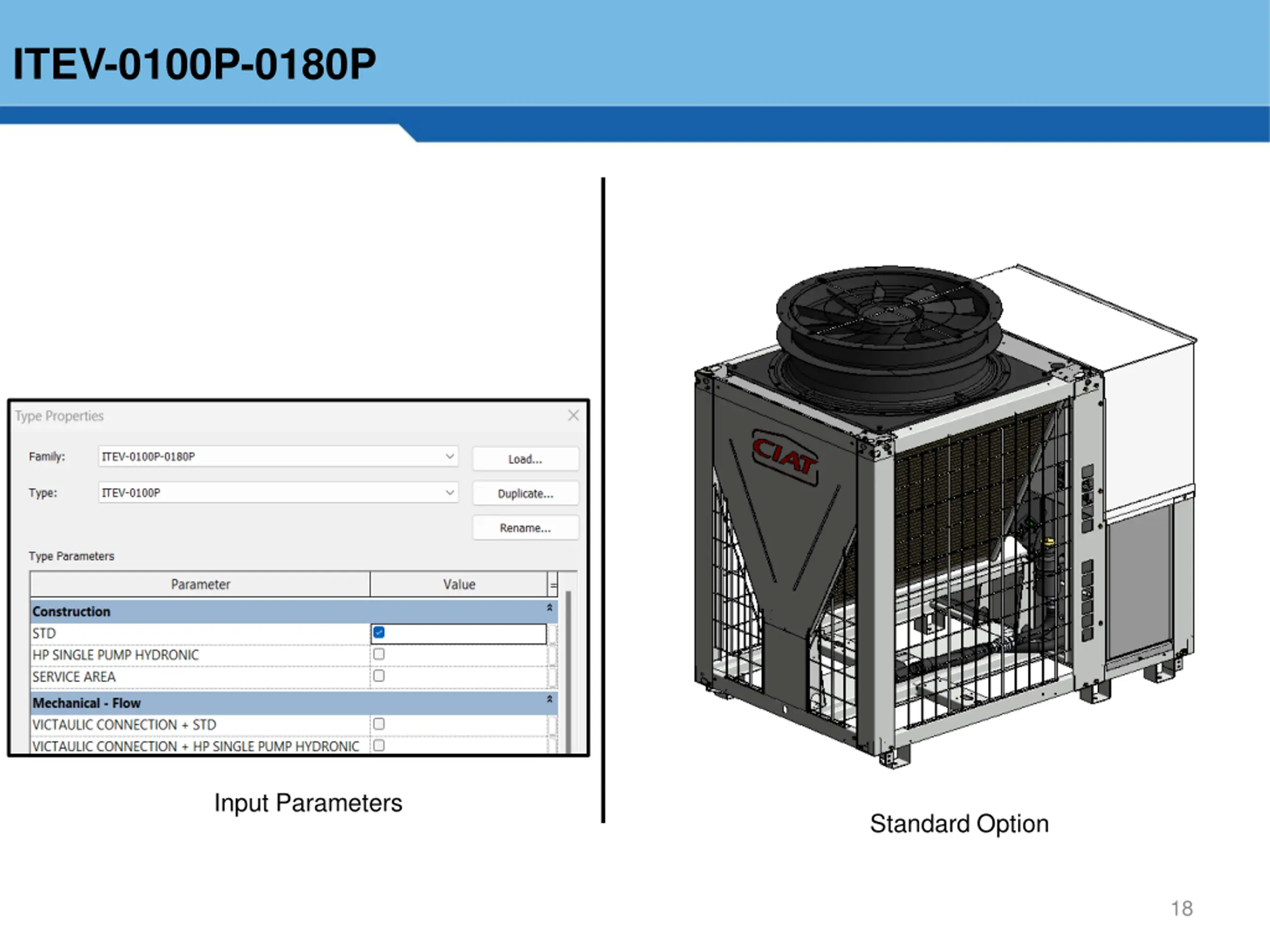

ITEV-0100P-0180P Input Parameters Standard Option 18

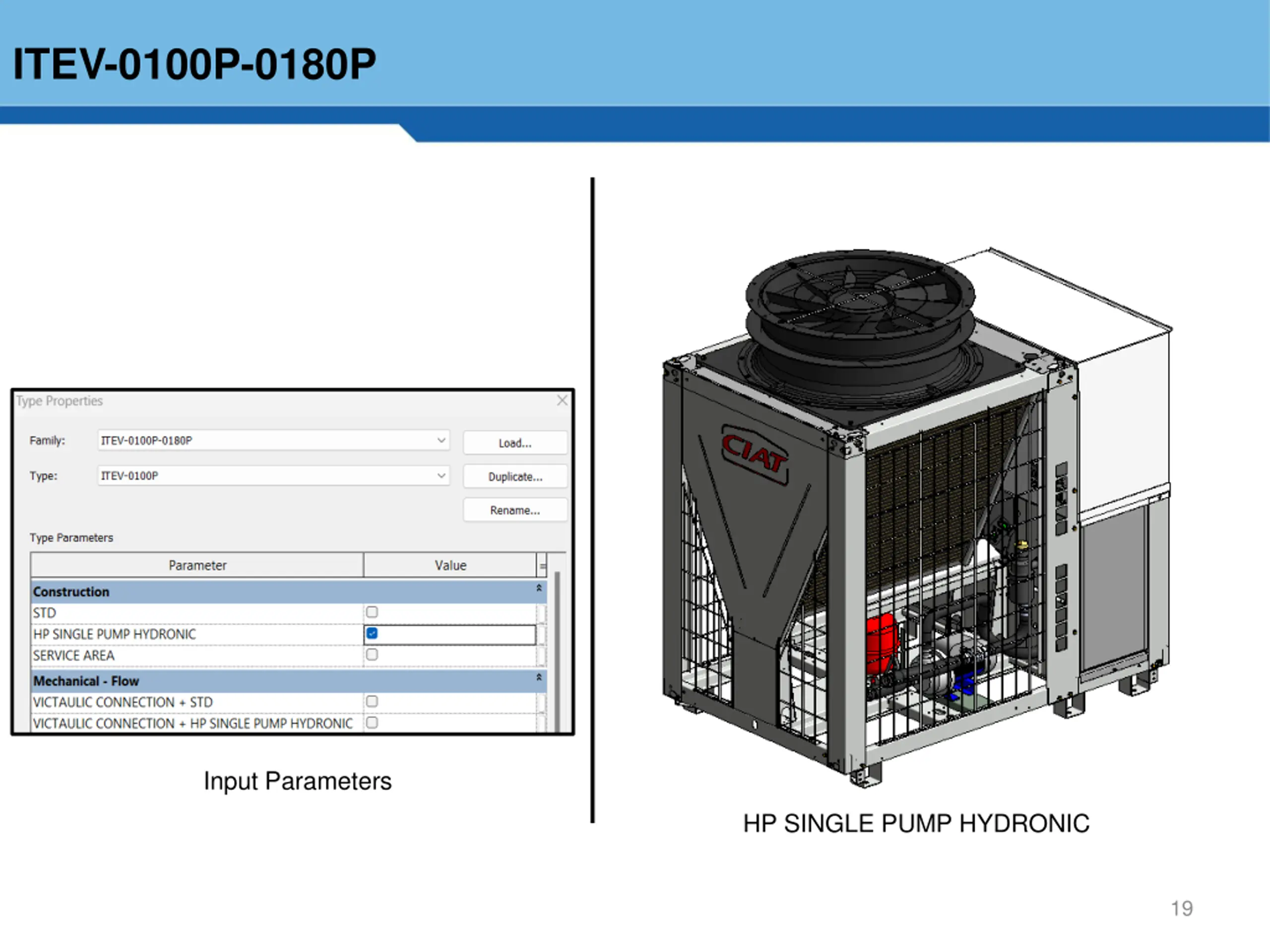

ITEV-0100P-0180P Input Parameters HP SINGLE PUMP HYDRONIC 19

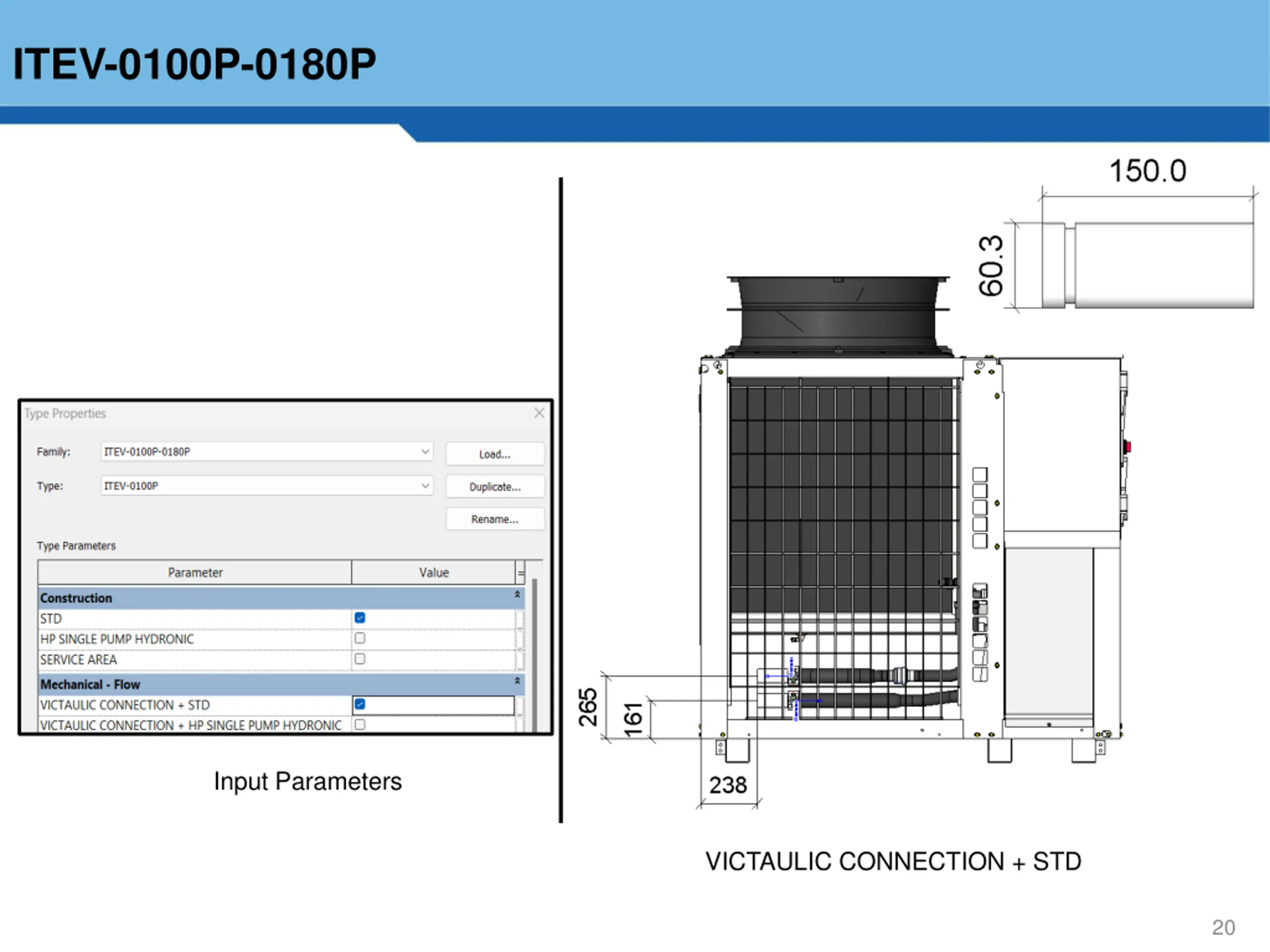

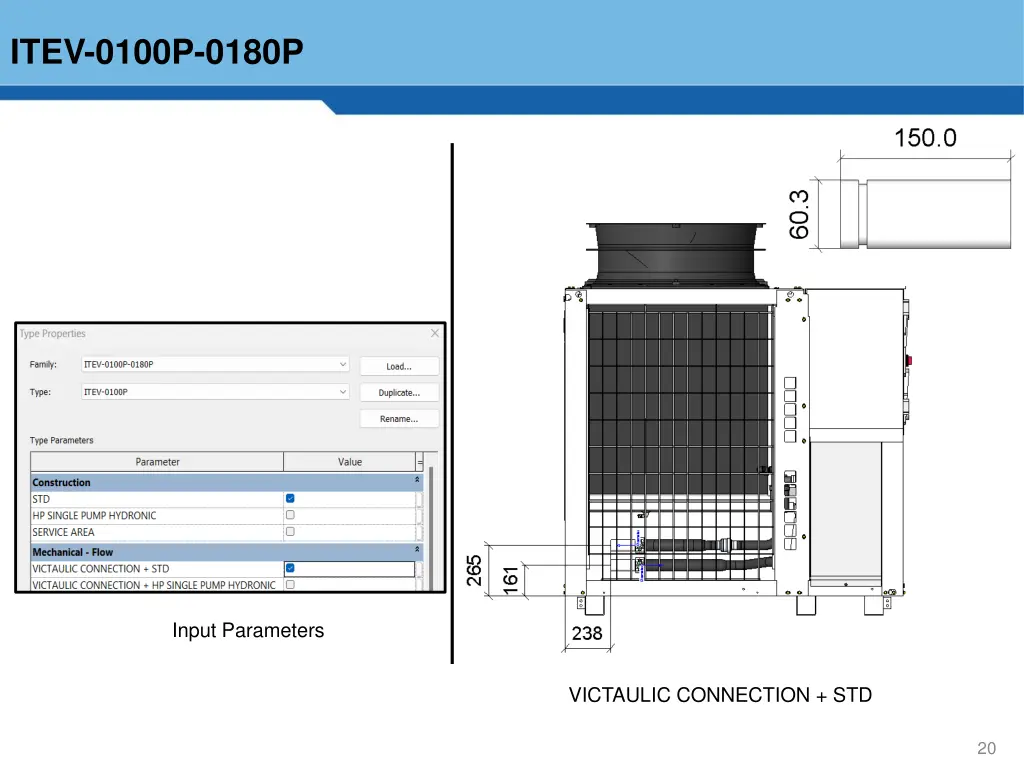

ITEV-0100P-0180P Input Parameters VICTAULIC CONNECTION + STD 20

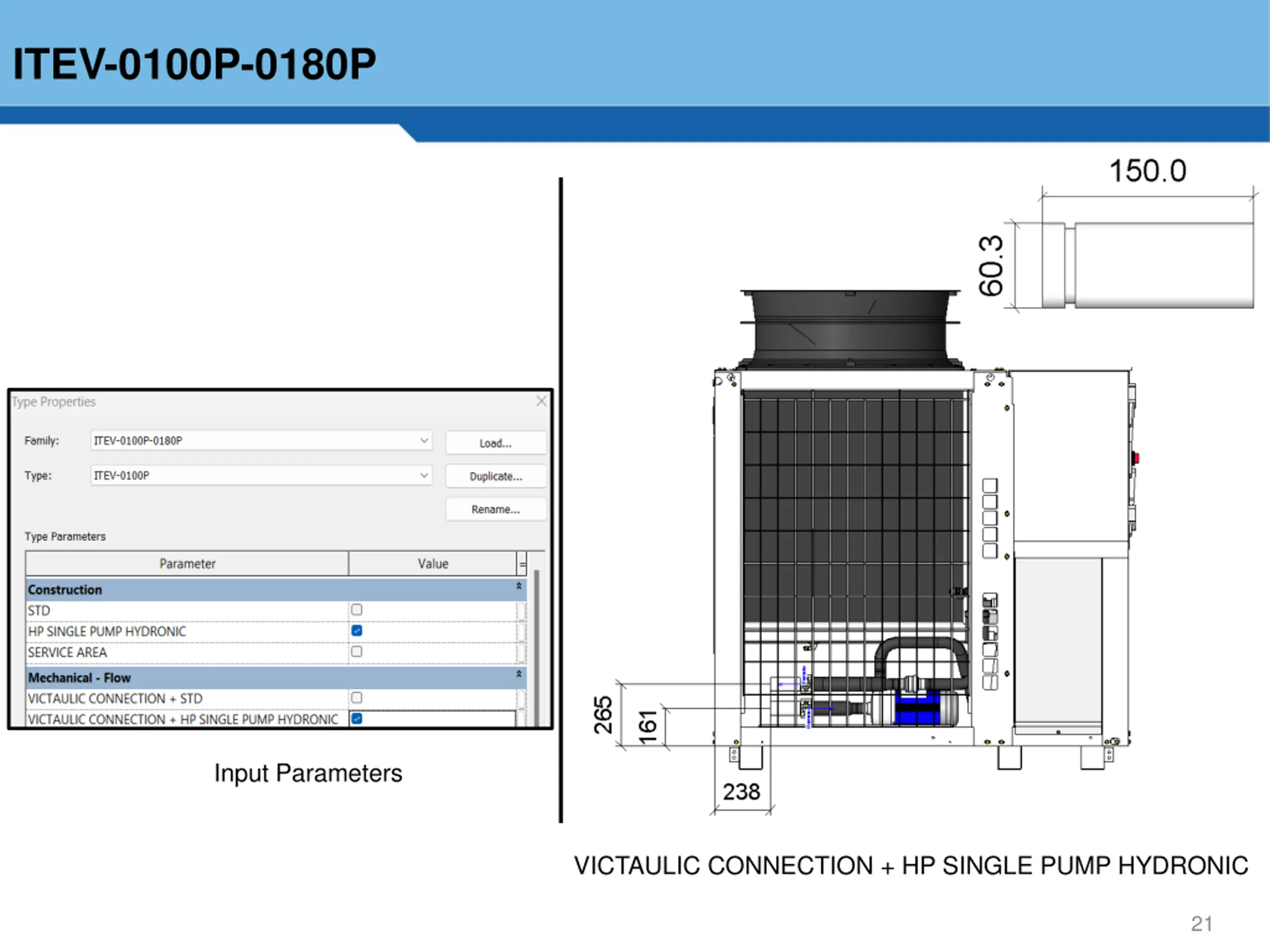

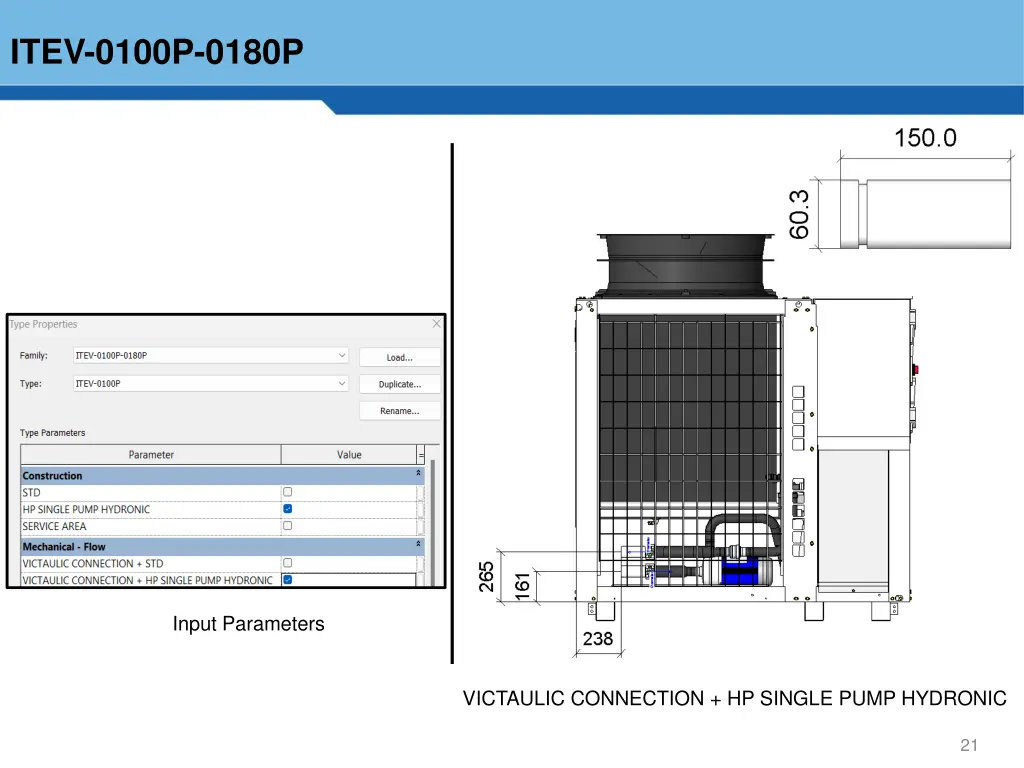

ITEV-0100P-0180P Input Parameters VICTAULIC CONNECTION + HP SINGLE PUMP HYDRONIC 21
