Time-Dependent Analysis of Prestressed Plate
Explore the time-dependent behavior of a prestressed plate subjected to prescribed velocity and varying stress, aiming to maintain a constant 128MPa stress level throughout the analysis. Understand how the displacement measurements are affected by the changing prestress and prescribed velocity. Witness the dynamic interplay between prescribed velocity signal and prestress in this insightful study.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

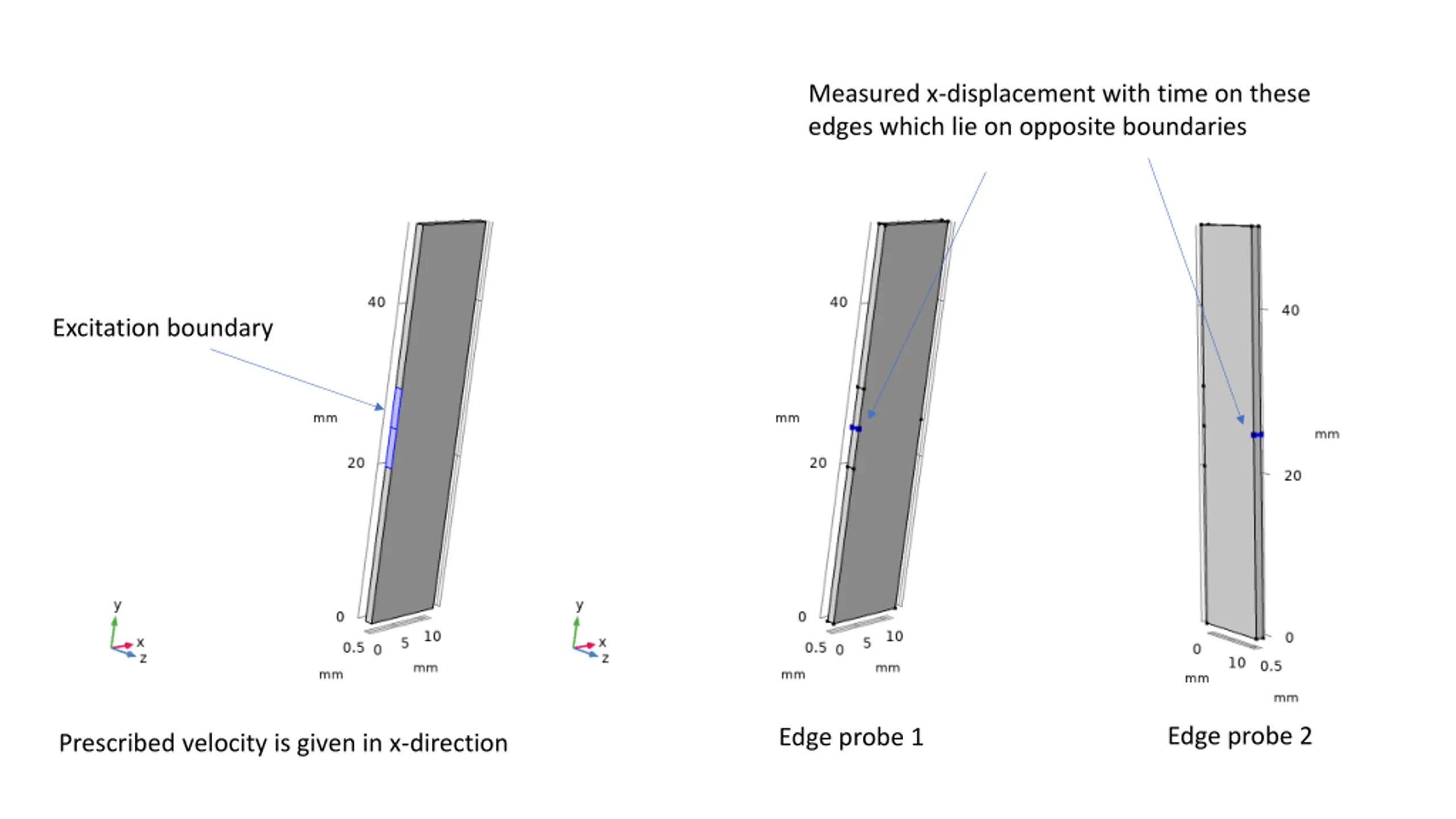

Measured x-displacement with time on these edges which lie on opposite boundaries Excitation boundary Edge probe 2 Edge probe 1 Prescribed velocity is given in x-direction
It looks that 128MPa is taken as an initial value and stress move towards zero means I stretch plate then release So, at receiving edge I can t measure displacement correctly. I want constant 128MPa stress throughout my time dependent analysis It can be seen displacement is not only changing with prescribed velocity but prestress is also changing with time In next slide, it is shown in animation that how prescribed velocity and stress are both changing with time
Here is prescribed velocity signal and rest of thing is caused by prestress
